GB 22757.2-2017: Energy consumption label for light-duty vehicles -- Part 2: For off-vehicle-chargeable hybrid electric vehicles and pure electric vehicles

This part of GB 22757 specifies the content, format, material and paste requirements for energy consumption label for light-duty vehicles. This part applies only to the category M1, M2 and N1 off-vehicle-chargeable hybrid electric vehicles and pure electric vehicle having a maximum design total mass of not more than 3500 kg.
GB 22757.2-2017
GB
NATIONAL STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 43.020
T 08
Energy consumption label for light-duty vehicles ?€?
Part 2. For off-vehicle-chargeable hybrid electric
vehicles and pure electric vehicles
ISSUED ON. MAY 12, 2017
IMPLEMENTED ON. JANUARY 01, 2018
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.
3. No action is required - Full-copy of this standard will be automatically & immediately delivered to your EMAIL address in 0~60 minutes.

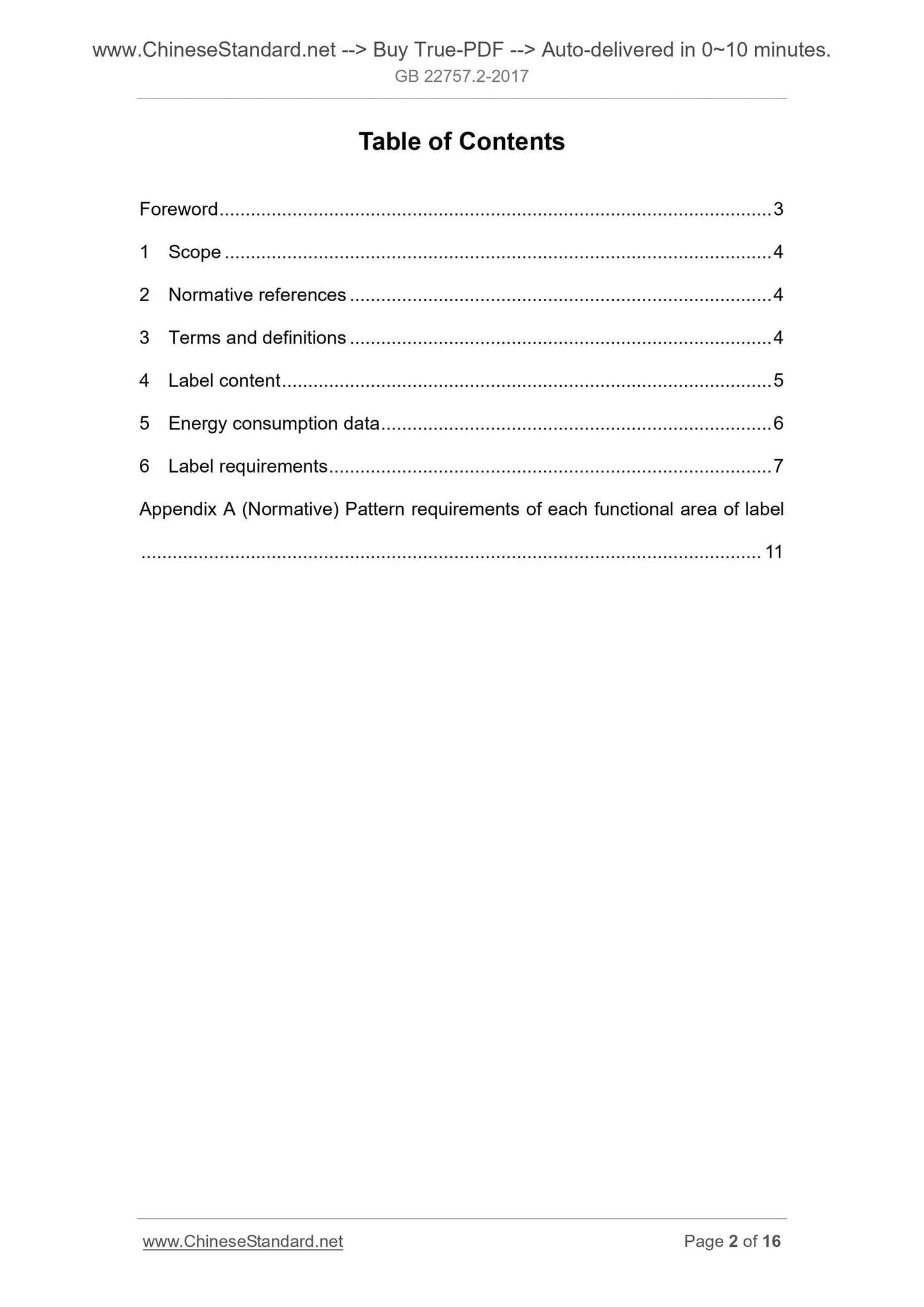

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Label content ... 5
5 Energy consumption data ... 6
6 Label requirements ... 7
Appendix A (Normative) Pattern requirements of each functional area of label ... 11

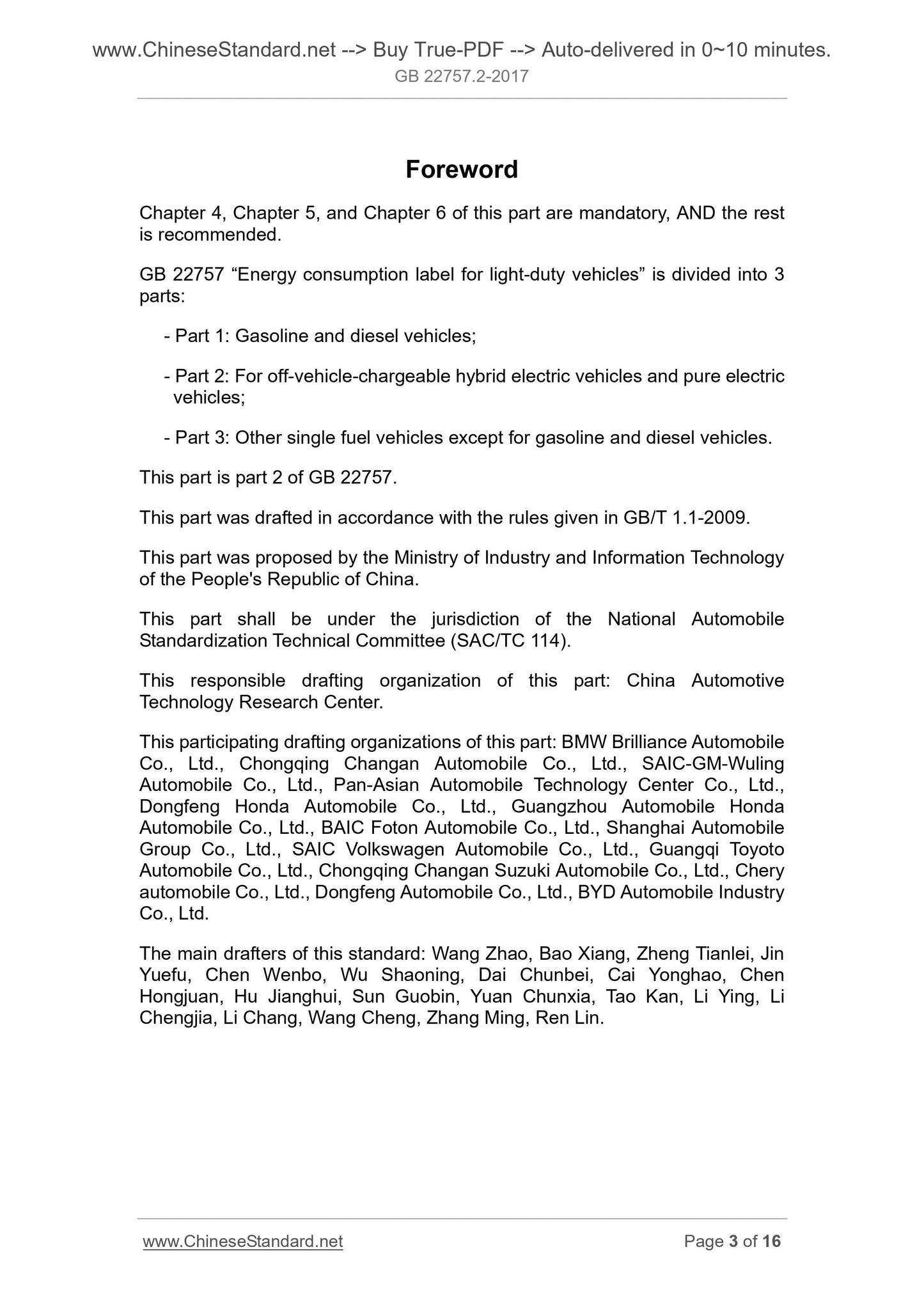

Foreword
Chapter 4, Chapter 5, and Chapter 6 of this part are mandatory, AND the rest is recommended.
GB 22757 ?€?Energy consumption label for light-duty vehicles?€? is divided into 3 parts.
- Part 1. Gasoline and diesel vehicles;
- Part 2. For off-vehicle-chargeable hybrid electric vehicles and pure electric vehicles;
- Part 3. Other single fuel vehicles except for gasoline and diesel vehicles. This part is part 2 of GB 22757.
This part was drafted in accordance with the rules given in GB/T 1.1-2009. This part was proposed by the Ministry of Industry and Information Technology of the People's Republic of China.
This part shall be under the jurisdiction of the National Automobile
Standardization Technical Committee (SAC/TC 114).
This responsible drafting organization of this part. China Automotive
Technology Research Center.
This participating drafting organizations of this part. BMW Brilliance Automobile Co., Ltd., Chongqing Changan Automobile Co., Ltd., SAIC-GM-Wuling
Automobile Co., Ltd., Pan-Asian Automobile Technology Center Co., Ltd., Dongfeng Honda Automobile Co., Ltd., Guangzhou Automobile Honda
Automobile Co., Ltd., BAIC Foton Automobile Co., Ltd., Shanghai Automobile Group Co., Ltd., SAIC Volkswagen Automobile Co., Ltd., Guangqi Toyoto
Automobile Co., Ltd., Chongqing Changan Suzuki Automobile Co., Ltd., Chery automobile Co., Ltd., Dongfeng Automobile Co., Ltd., BYD Automobile Industry Co., Ltd.
The main drafters of this standard. Wang Zhao, Bao Xiang, Zheng Tianlei, Jin Yuefu, Chen Wenbo, Wu Shaoning, Dai Chunbei, Cai Yonghao, Chen
Hongjuan, Hu Jianghui, Sun Guobin, Yuan Chunxia, Tao Kan, Li Ying, Li
Chengjia, Li Chang, Wang Cheng, Zhang Ming, Ren Lin.
Energy consumption label for light-duty vehicles ?€?
Part 2. For off-vehicle-chargeable hybrid electric
vehicles and pure electric vehicles

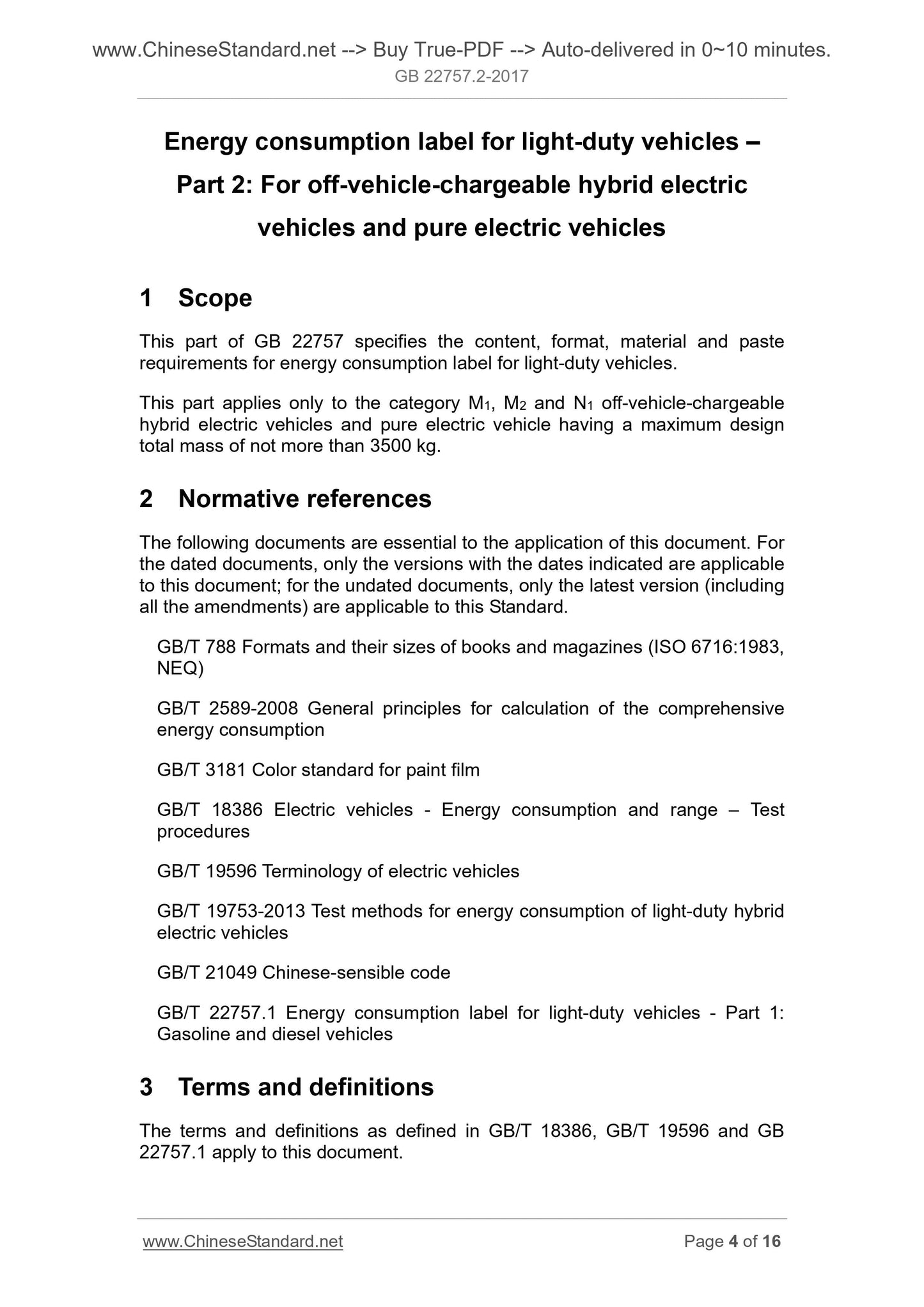

1 Scope
This part of GB 22757 specifies the content, format, material and paste requirements for energy consumption label for light-duty vehicles.
This part applies only to the category M1, M2 and N1 off-vehicle-chargeable hybrid electric vehicles and pure electric vehicle having a maximum design total mass of not more than 3500 kg.
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this Standard.
GB/T 788 Formats and their sizes of books and magazines (ISO 6716.1983, NEQ)
GB/T 2589-2008 General principles for calculation of the comprehensive
energy consumption
GB/T 3181 Color standard for paint film
GB/T 18386 Electric vehicles - Energy consumption and range ?€? Test
procedures
GB/T 19596 Terminology of electric vehicles
GB/T 19753-2013 Test methods for energy consumption of light-duty hybrid electric vehicles
GB/T 21049 Chinese-sensible code
GB/T 22757.1 Energy consumption label for light-duty vehicles - Part 1. Gasoline and diesel vehicles
3 Terms and definitions
The terms and definitions as defined in GB/T 18386, GB/T 19596 and GB
22757.1 apply to this document.
7.1.3 or 7.2.4 of GB/T 19753-2013. The data shall be rounded off to one decimal place.
5.2.4 Pure electric driving mileage refers to the pure electric driving mileage as determined in accordance with the test method as specified in Appendix B of GB/T 19753-2013. The data shall be rounded off to integer.
6 Label requirements
6.1 Functional area division
6.1.1 The label is composed of the four functional areas. ?€?title area?€?, ?€?information area?€?, ?€?description area?€?, and ?€?additional information area?€?, as shown in Figure A.1 and Figure A.2.
6.1.1.1 ?€?Title area?€? is located at the top of the label, its left side is the ?€?enterprise logo?€? AND its right side is ?€?label title?€?. The ?€?label title?€? is the ?€?automobile energy consumption label?€?, corresponding to the English capital of the ?€?AUTOMOBILE ENERGY CONSUMPTION LABEL?€?, AND it is arranged
with the Chinese at upper part and English at lower part.
6.1.1.2 ?€?Information area?€? is divided into two parts ?€?automobile basic
information area?€? and ?€?energy consumption information area?€?. The ?€?automobile basic information area?€? is located in the upper part of the information area. AND the ?€?energy consumption information area?€? is located at the lower part of the information area, which is the core part of the label. The energy
consumption information is located at the upper part of the ?€?energy
consumption information area?€?, AND the driving mileage information is located at the lower part of the ?€?energy consumption information area?€?.
6.1.1.2.1 The ?€?vehicle model basic information?€? part of the pure electric vehicle includes. the production enterprise, the vehicle model, the energy type, the peak power of the driving motor, the overall vehicle mass, the maximum design total mass, and the other information related to the energy consumption which needs to be described by the enterprise. If there is no other information available, it may delete the words ?€?other information?€?. The ?€?vehicle model basic information?€? part of the off-vehicle-chargeable hybrid vehicle shall also include. engine model, displacement, maximum engine net power, and transmission
type.
6.1.1.2.2 ?€?Energy consumption information?€? includes.
a) For pure electric vehicles, it shall include the electrical energy
consumption under comprehensive conditions, converted energy
equivalent fuel consumption, and driving mileage;
Example 1.
Electrical energy consumption under comprehensive conditions. xx.x kW
?€? h/100 km
The energy consumption and the fuel consumption are converted in
accordance with the equivalent calorific value method. AND the energy
consumption of 1kW ?€? h is about 0.113 L gasoline fuel consumption.
Note. off-vehicle-chargeable hybrid electric vehicles (diesel/electric), it shall be described as. the energy consumption of 1kW ?€? h is about 0.1003 L diesel fuel consumption.
Due to such factors as driving habits, road conditions, climatic conditions, fuel quality, and so on, the actual fuel consumption, energy consumption and driving mileage may be different from the fuel consumption, energy
consumption and driving mileage as indicated in this label.
To avoid visualizing the field of view, remove the logo after purchasing the vehicle.
6.1.2 The ?€?additional information area?€? is located at the bottom of the label, AND its main contents include the date of use of the label AND the additional information as specified by the government authorities, such as the reference number.
6.2 Label specifications and pattern requirements
6.2.1 The dimensions of the label shall be at least A5 (148.5 mm ?? 210 mm) size as specified in GB/T 788, OR in A4 (210 mm ?? 297 mm) size, OR A5 or A4 formats in other sizes the formats of which comply with requirements.
6.2.2 The label background is yellowish color as specified in GB/T 3181, corresponding to the number Y06; AND the background of ?€?enterprise logo?€? area and the energy consumption information area is white.
6.2.3 The layout and dimension of each functional area of the A5 size label shall comply with the requirements of Figure A.3 and Figure A.4. The texts and numbers used in the label are all black, AND the corresponding font and font size requirements are as shown in Table 1. The A4 size label shall be enlarged accordingly.
Table 1 -- Font and font number corresponding to each functional area
Functional area Contents Font Font size
Title area a Text Chinese Black and bold 26px English Black and bold 12px Information area b
Text Chinese
a Black 12px
English Black 12px
Number
Pure electric vehicle
energy consumption value Black and bold 36px
Off-vehicle-chargeable
hybrid electric vehicle
energy consumption value
Black and bold 22px
Driving mileage value c Black and bold 22px
Description area Text Chinese Black 10.5px English Black 10.5px
