GB 22757.1-2023: Energy consumption label for light-duty vehicles - Part 1: For gasoline and diesel vehicles

This document specifies the content, format, material and pasting requirements for the energy consumption label of light-duty vehicles. This document is applicable to Category-M1, M2 and N1 vehicles capable of burning gasoline or diesel fuel, and with a maximum design total mass not exceeding 3,500 kg. It does not apply to off-vehicle-chargeable hybrid electric vehicles and battery electric vehicles and vehicles that can only burn other single fuels.

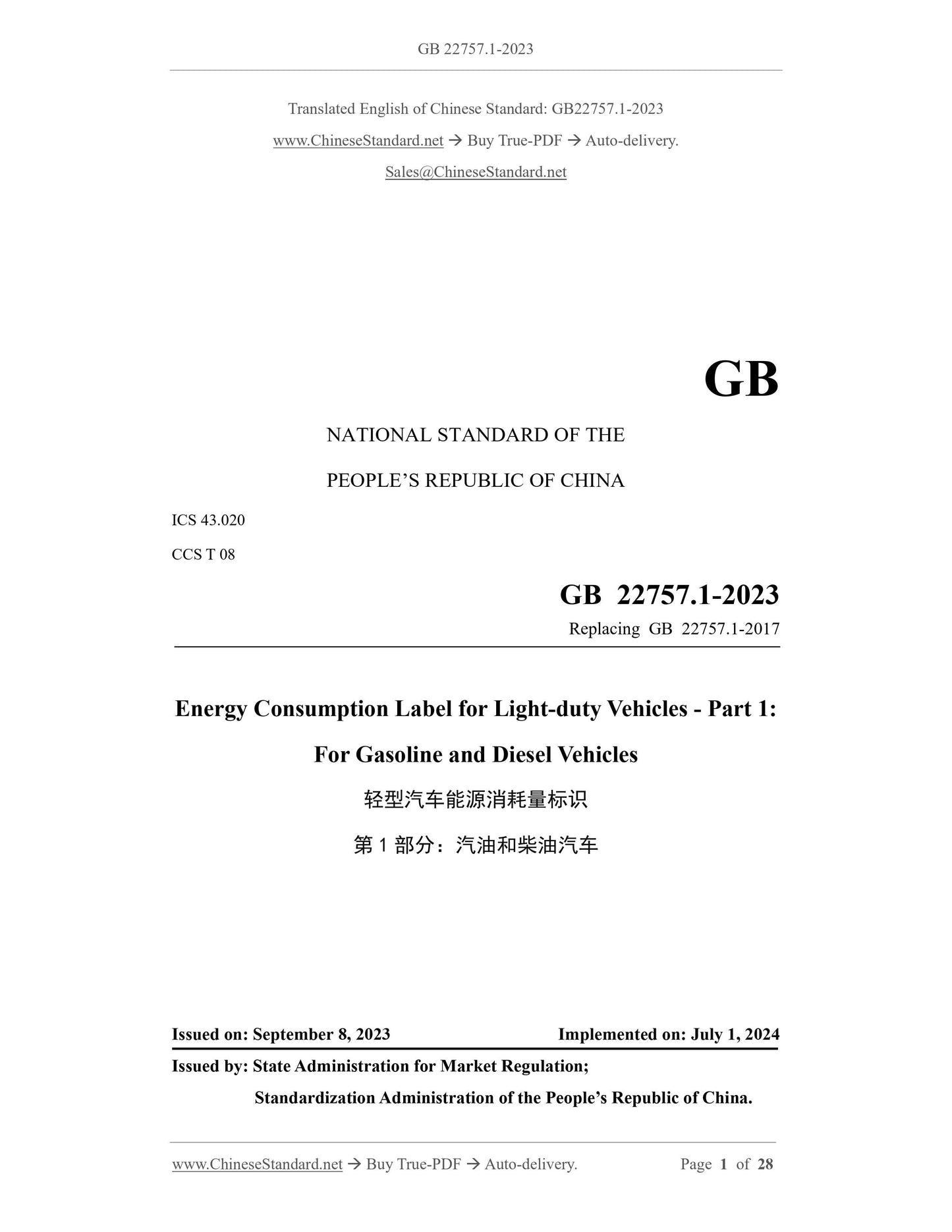

GB 22757.1-2023
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 43.020
CCS T 08
Replacing GB 22757.1-2017
Energy Consumption Label for Light-duty Vehicles - Part 1:
For Gasoline and Diesel Vehicles
ISSUED ON: SEPTEMBER 8, 2023
IMPLEMENTED ON: JULY 1, 2024
Issued by: State Administration for Market Regulation;
Standardization Administration of the PEOPLE Republic of China.

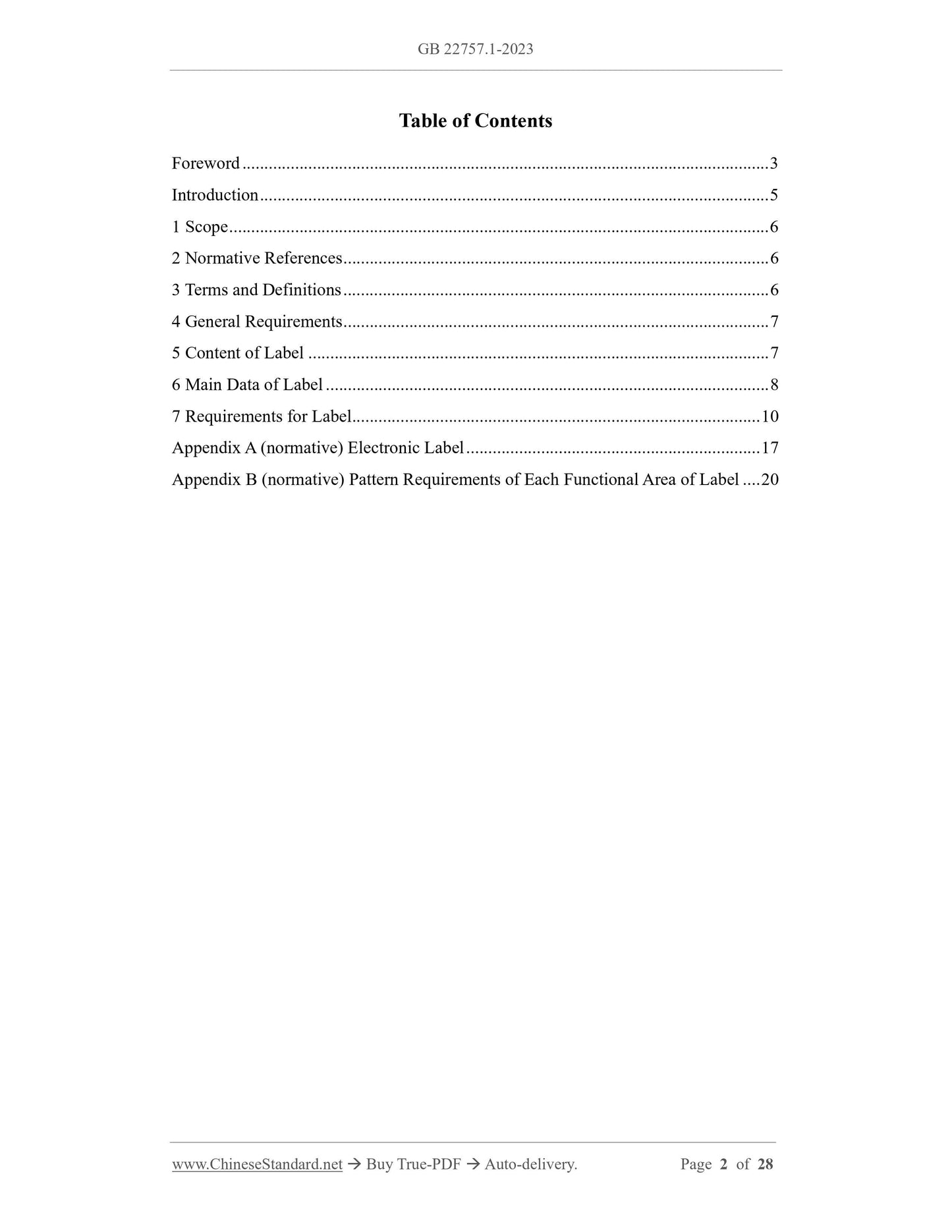

Table of Contents
Foreword ... 3
Introduction ... 5
1 Scope ... 6
2 Normative References ... 6
3 Terms and Definitions ... 6
4 General Requirements ... 7
5 Content of Label ... 7
6 Main Data of Label ... 8
7 Requirements for Label ... 10
Appendix A (normative) Electronic Label ... 17
Appendix B (normative) Pattern Requirements of Each Functional Area of Label ... 20 Energy Consumption Label for Light-duty Vehicles - Part 1:
For Gasoline and Diesel Vehicles

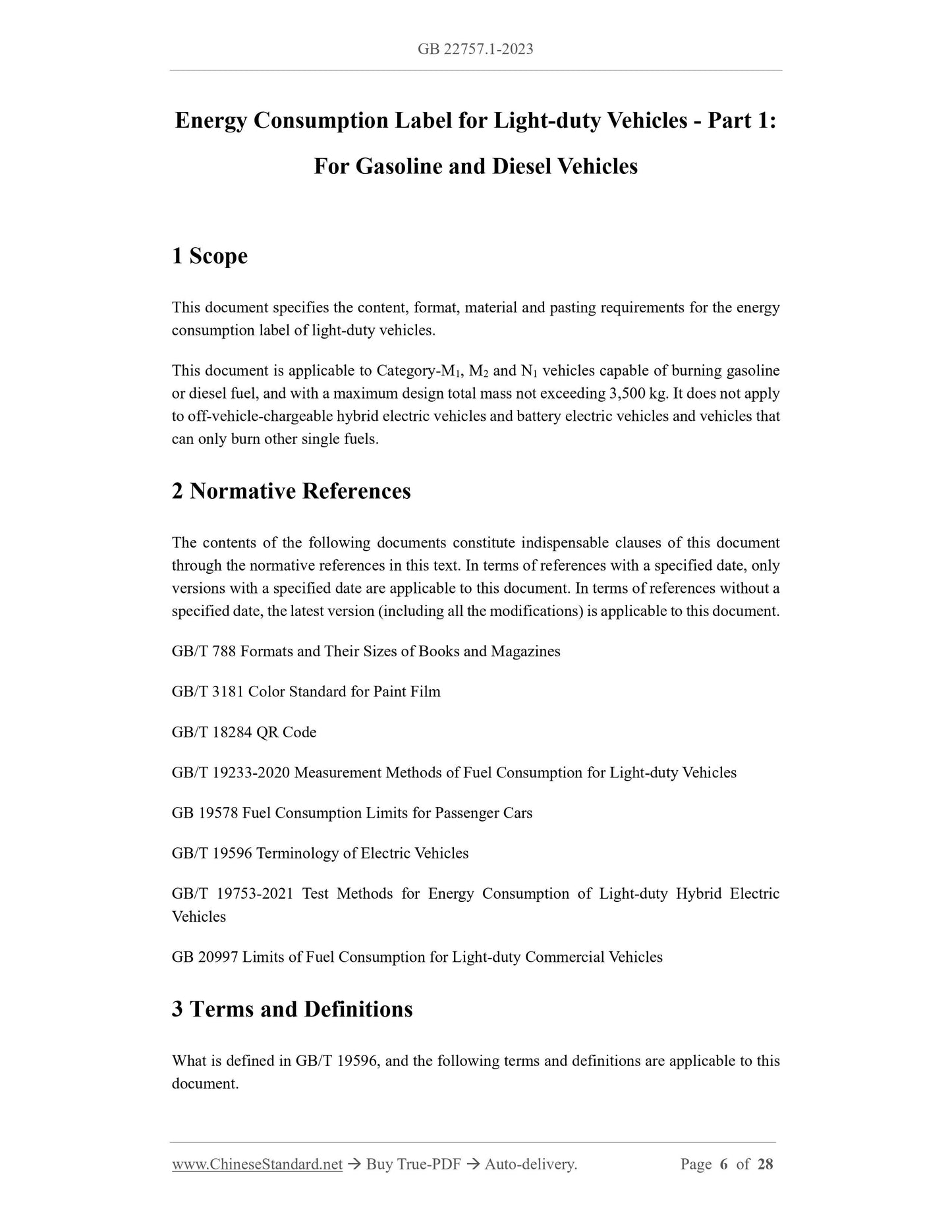

1 Scope
This document specifies the content, format, material and pasting requirements for the energy consumption label of light-duty vehicles.
This document is applicable to Category-M1, M2 and N1 vehicles capable of burning gasoline or diesel fuel, and with a maximum design total mass not exceeding 3,500 kg. It does not apply to off-vehicle-chargeable hybrid electric vehicles and battery electric vehicles and vehicles that can only burn other single fuels.
2 Normative References
The contents of the following documents constitute indispensable clauses of this document through the normative references in this text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 788 Formats and Their Sizes of Books and Magazines
GB/T 3181 Color Standard for Paint Film
GB/T 18284 QR Code
GB/T 19233-2020 Measurement Methods of Fuel Consumption for Light-duty Vehicles GB 19578 Fuel Consumption Limits for Passenger Cars
GB/T 19596 Terminology of Electric Vehicles
GB/T 19753-2021 Test Methods for Energy Consumption of Light-duty Hybrid Electric Vehicles
GB 20997 Limits of Fuel Consumption for Light-duty Commercial Vehicles
3 Terms and Definitions
What is defined in GB/T 19596, and the following terms and definitions are applicable to this document.

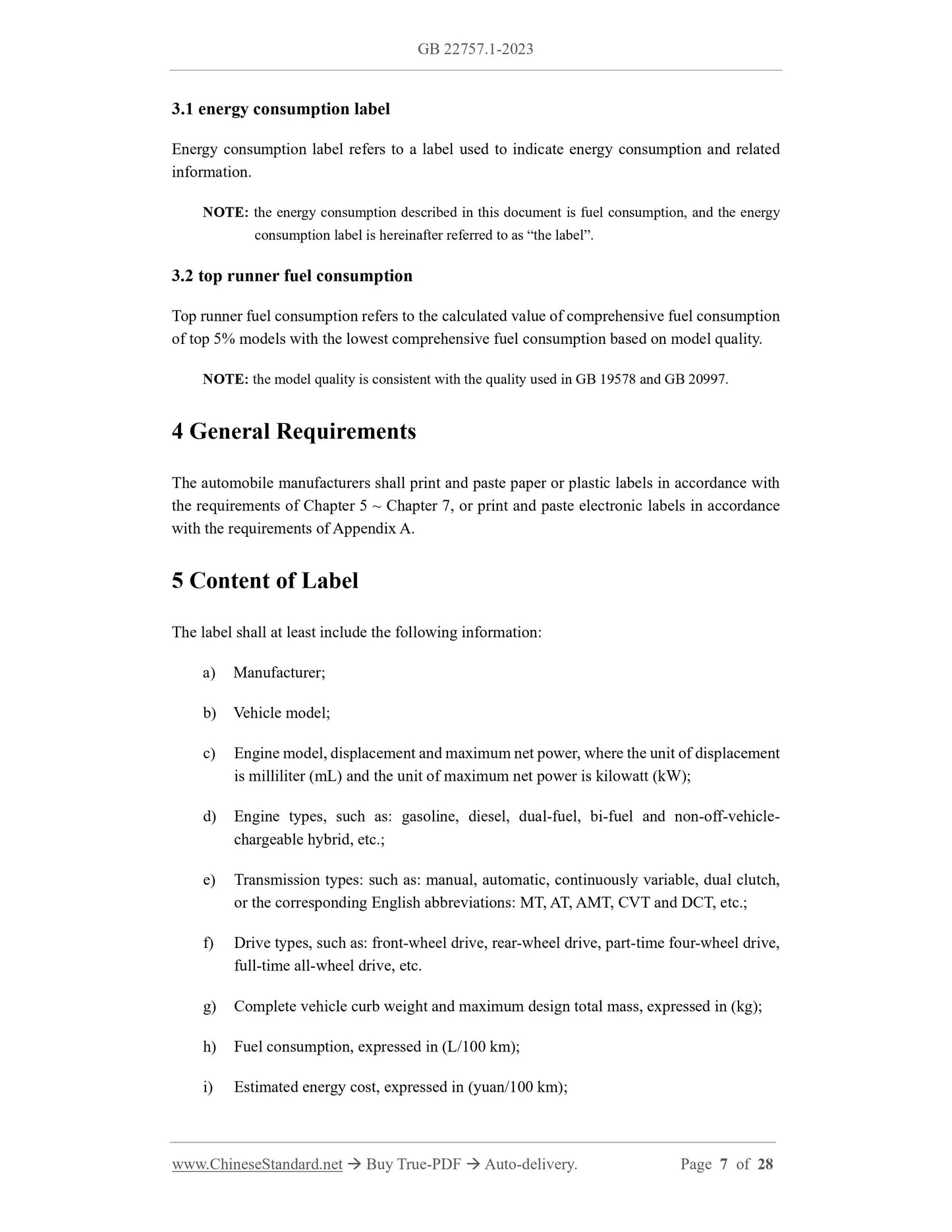

3.1 energy consumption label
Energy consumption label refers to a label used to indicate energy consumption and related information.
NOTE: the energy consumption described in this document is fuel consumption, and the energy consumption label is hereinafter referred to as ?€?the label?€?.
3.2 top runner fuel consumption
Top runner fuel consumption refers to the calculated value of comprehensive fuel consumption of top 5% models with the lowest comprehensive fuel consumption based on model quality. NOTE: the model quality is consistent with the quality used in GB 19578 and GB 20997. 4 General Requirements
The automobile manufacturers shall print and paste paper or plastic labels in accordance with the requirements of Chapter 5 ~ Chapter 7, or print and paste electronic labels in accordance with the requirements of Appendix A.
5 Content of Label
The label shall at least include the following information:
a) Manufacturer;
b) Vehicle model;
c) Engine model, displacement and maximum net power, where the unit of displacement is milliliter (mL) and the unit of maximum net power is kilowatt (kW);
d) Engine types, such as: gasoline, diesel, dual-fuel, bi-fuel and non-off-vehicle- chargeable hybrid, etc.;
e) Transmission types: such as: manual, automatic, continuously variable, dual clutch, or the corresponding English abbreviations: MT, AT, AMT, CVT and DCT, etc.; f) Drive types, such as: front-wheel drive, rear-wheel drive, part-time four-wheel drive, full-time all-wheel drive, etc.
g) Complete vehicle curb weight and maximum design total mass, expressed in (kg); h) Fuel consumption, expressed in (L/100 km);
i) Estimated energy cost, expressed in (yuan/100 km);

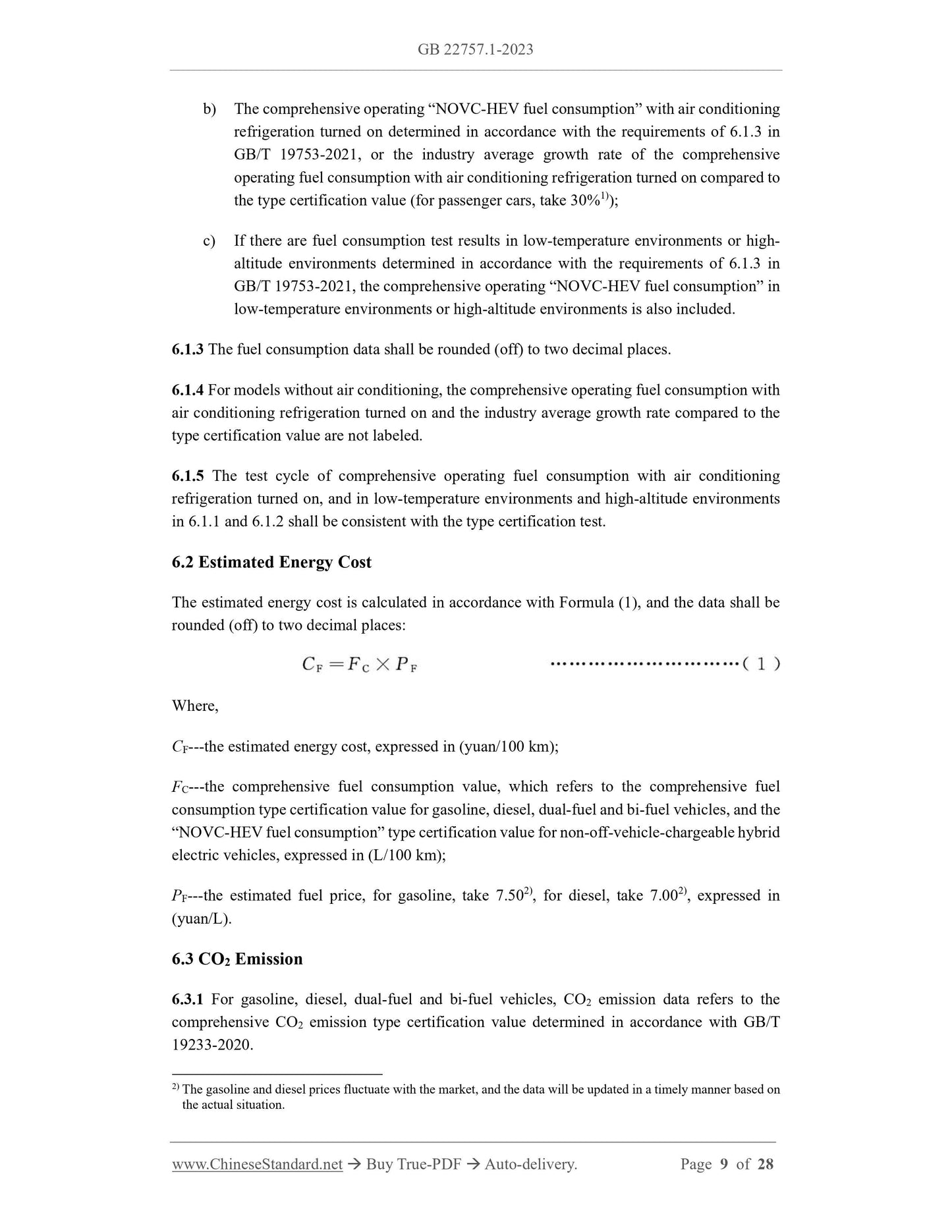

b) The comprehensive operating ?€?NOVC-HEV fuel consumption?€? with air conditioning refrigeration turned on determined in accordance with the requirements of 6.1.3 in GB/T 19753-2021, or the industry average growth rate of the comprehensive operating fuel consumption with air conditioning refrigeration turned on compared to the type certification value (for passenger cars, take 30%1));
c) If there are fuel consumption test results in low-temperature environments or high- altitude environments determined in accordance with the requirements of 6.1.3 in GB/T 19753-2021, the comprehensive operating ?€?NOVC-HEV fuel consumption?€? in low-temperature environments or high-altitude environments is also included. 6.1.3 The fuel consumption data shall be rounded (off) to two decimal places. 6.1.4 For models without air conditioning, the comprehensive operating fuel consumption with air conditioning refrigeration turned on and the industry average growth rate compared to the type certification value are not labeled.
6.1.5 The test cycle of comprehensive operating fuel consumption with air conditioning refrigeration turned on, and in low-temperature environments and high-altitude environments in 6.1.1 and 6.1.2 shall be consistent with the type certification test. 6.2 Estimated Energy Cost
The estimated energy cost is calculated in accordance with Formula (1), and the data shall be rounded (off) to two decimal places:
Where,
CF---the estimated energy cost, expressed in (yuan/100 km);
FC---the comprehensive fuel consumption value, which refers to the comprehensive fuel consumption type certification value for gasoline, diesel, dual-fuel and bi-fuel vehicles, and the ?€?NOVC-HEV fuel consumption?€? type certification value for non-off-vehicle-chargeable hybrid electric vehicles, expressed in (L/100 km);
PF---the estimated fuel price, for gasoline, take 7.502), for diesel, take 7.002), expressed in (yuan/L).
6.3 CO2 Emission
6.3.1 For gasoline, diesel, dual-fuel and bi-fuel vehicles, CO2 emission data refers to the comprehensive CO2 emission type certification value determined in accordance with GB/T 19233-2020.
2) The gasoline and diesel prices fluctuate with the market, and the data will be updated in a timely manner based on the actual situation.

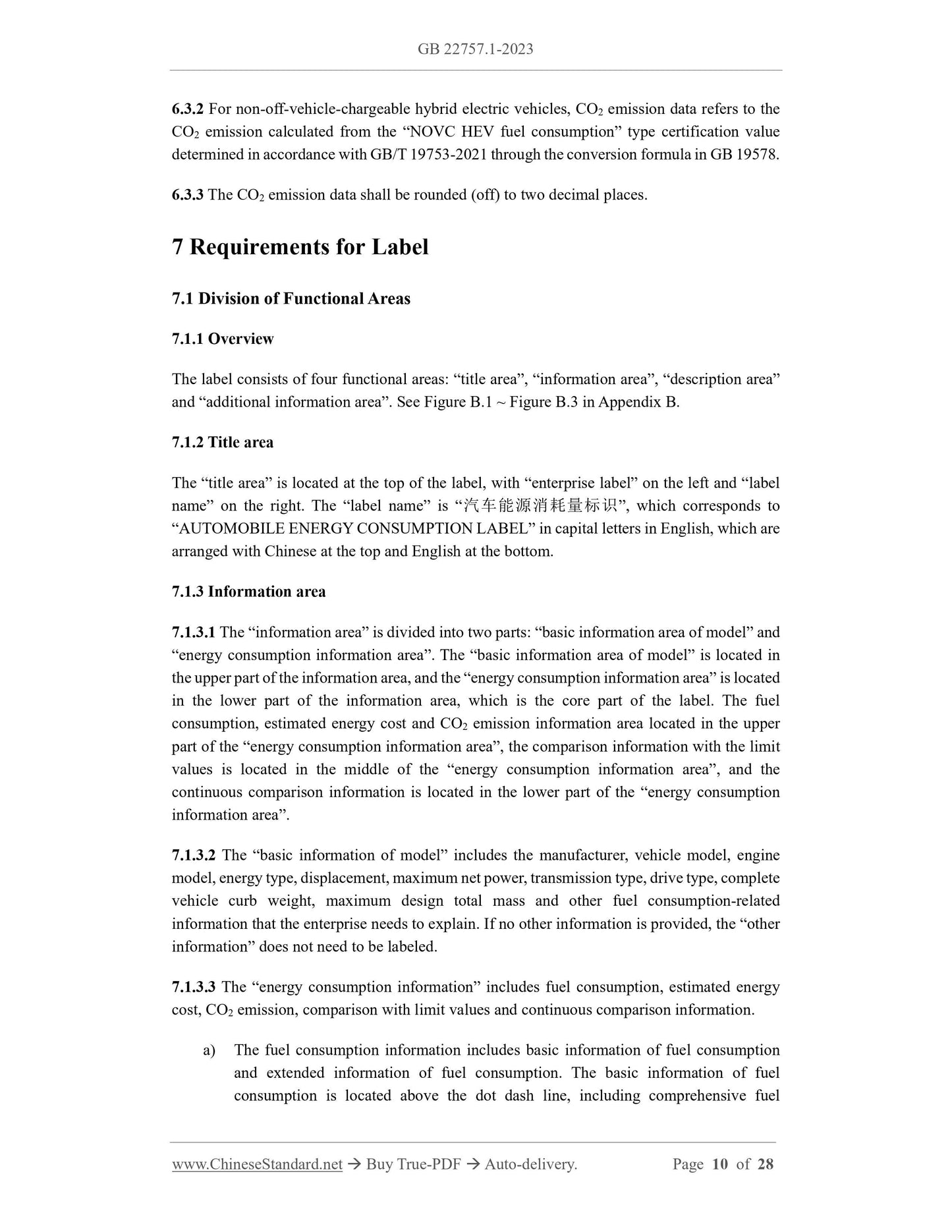

6.3.2 For non-off-vehicle-chargeable hybrid electric vehicles, CO2 emission data refers to the CO2 emission calculated from the ?€?NOVC HEV fuel consumption?€? type certification value determined in accordance with GB/T 19753-2021 through the conversion formula in GB 19578. 6.3.3 The CO2 emission data shall be rounded (off) to two decimal places. 7 Requirements for Label
7.1 Division of Functional Areas
7.1.1 Overview
The label consists of four functional areas: ?€?title area?€?, ?€?information area?€?, ?€?description area?€? and ?€?additional information area?€?. See Figure B.1 ~ Figure B.3 in Appendix B. 7.1.2 Title area
The ?€?title area?€? is located at the top of the label, with ?€?enterprise label?€? on the left and ?€?label ?€?AUTOMOBILE ENERGY CONSUMPTION LABEL?€? in capital letters in English, which are arranged with Chinese at the top and English at the bottom.
7.1.3 Information area
7.1.3.1 The ?€?information area?€? is divided into two parts: ?€?basic information area of model?€? and ?€?energy consumption information area?€?. The ?€?basic information area of model?€? is located in the upper part of the information area, and the ?€?energy consumption information area?€? is located in the lower part of the information area, which is the core part of the label. The fuel consumption, estimated energy cost and CO2 emission information area located in the upper part of the ?€?energy consumption information area?€?, the comparison information with the limit values is located in the middle of the ?€?energy consumption information area?€?, and the continuous comparison information is located in the lower part of the ?€?energy consumption information area?€?.
7.1.3.2 The ?€?basic information of model?€? includes the manufacturer, vehicle model, engine model, energy type, displacement, maximum net power, transmission type, drive type, complete vehicle curb weight, maximum design total mass and other fuel consumption-related information that the enterprise needs to explain. If no other information is provided, the ?€?other information?€? does not need to be labeled.
7.1.3.3 The ?€?energy consumption information?€? includes fuel consumption, estimated energy cost, CO2 emission, comparison with limit values and continuous comparison information. a) The fuel consumption information includes basic information of fuel consumption and extended information of fuel consumption. The basic information of fuel consumption is located above the dot dash line, including comprehensive fuel Low-speed: ??????.?????? L/100 km

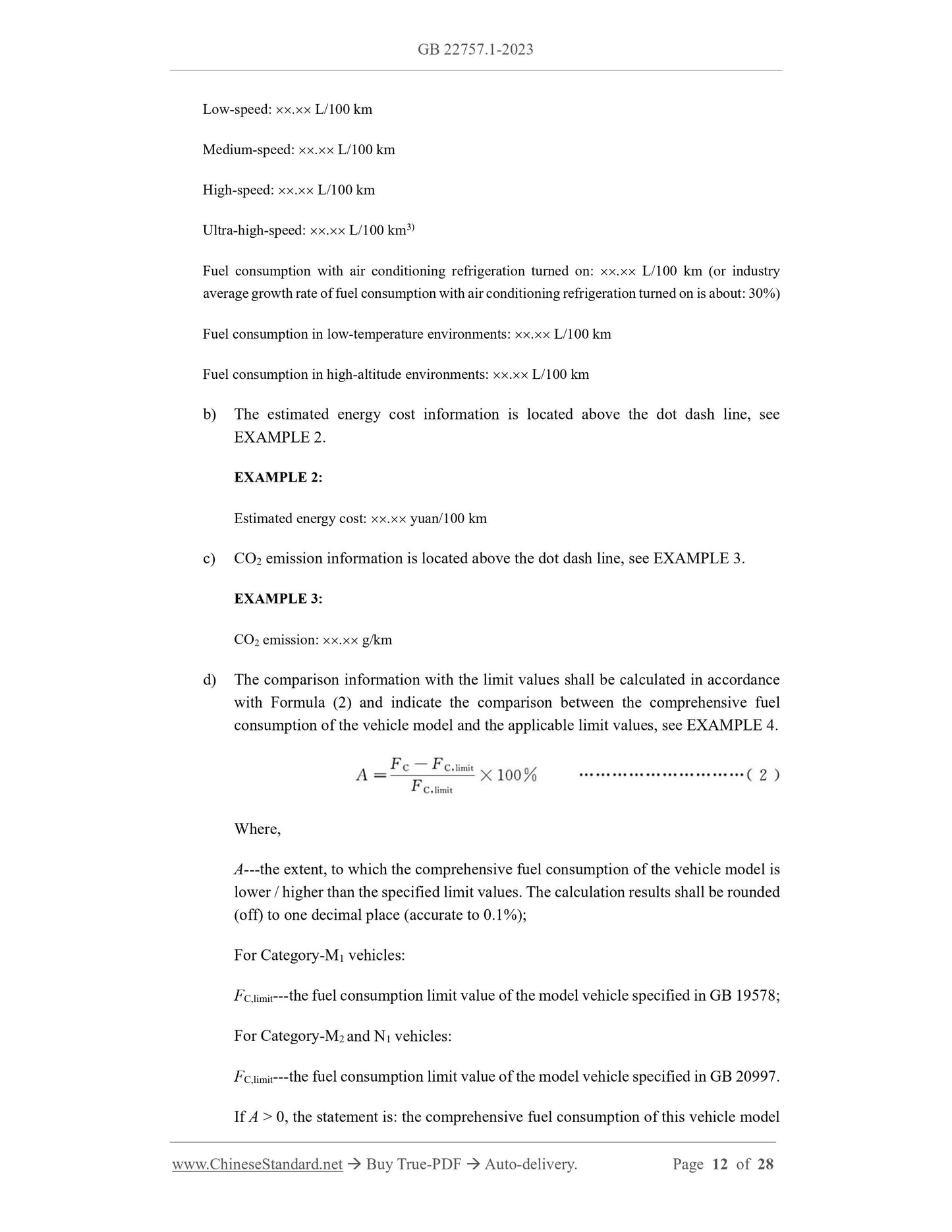

Medium-speed: ??????.?????? L/100 km
High-speed: ??????.?????? L/100 km
Ultra-high-speed: ??????.?????? L/100 km3)
Fuel consumption with air conditioning refrigeration turned on: ??????.?????? L/100 km (or industry average growth rate of fuel consumption with air conditioning refrigeration turned on is about: 30%) Fuel consumption in low-temperature environments: ??????.?????? L/100 km
Fuel consumption in high-altitude environments: ??????.?????? L/100 km
b) The estimated energy cost information is located above the dot dash line, see EXAMPLE 2.
EXAMPLE 2:
Estimated energy cost: ??????.?????? yuan/100 km
c) CO2 emission information is located above the dot dash line, see EXAMPLE 3. EXAMPLE 3:
CO2 emission: ??????.?????? g/km
d) The comparison information with the limit values shall be calculated in accordance with Formula (2) and indicate the comparison between the comprehensive fuel consumption of the vehicle model and the applicable limit values, see EXAMPLE 4. Where,
A---the extent, to which the comprehensive fuel consumption of the vehicle model is lower / higher than the specified limit values. The calculation results shall be rounded (off) to one decimal place (accurate to 0.1%);
For Category-M1 vehicles:
FC,limit---the fuel consumption limit value of the model vehicle specified in GB 19578; For Category-M2 and N1 vehicles:
FC,limit---the fuel consumption limit value of the model vehicle specified in GB 20997. If A > 0, the statement is: the comprehensive fuel consumption of this vehicle model pattern at Position C. If the comprehensive fuel consumption is smaller than the top runner fuel consumption, the inverted triangle pattern at Position C shall point to Position A in the figure; if the comprehensive fuel consumption is greater than the limit value, the inverted triangle pattern at Position C shall point to Position E in the figure.

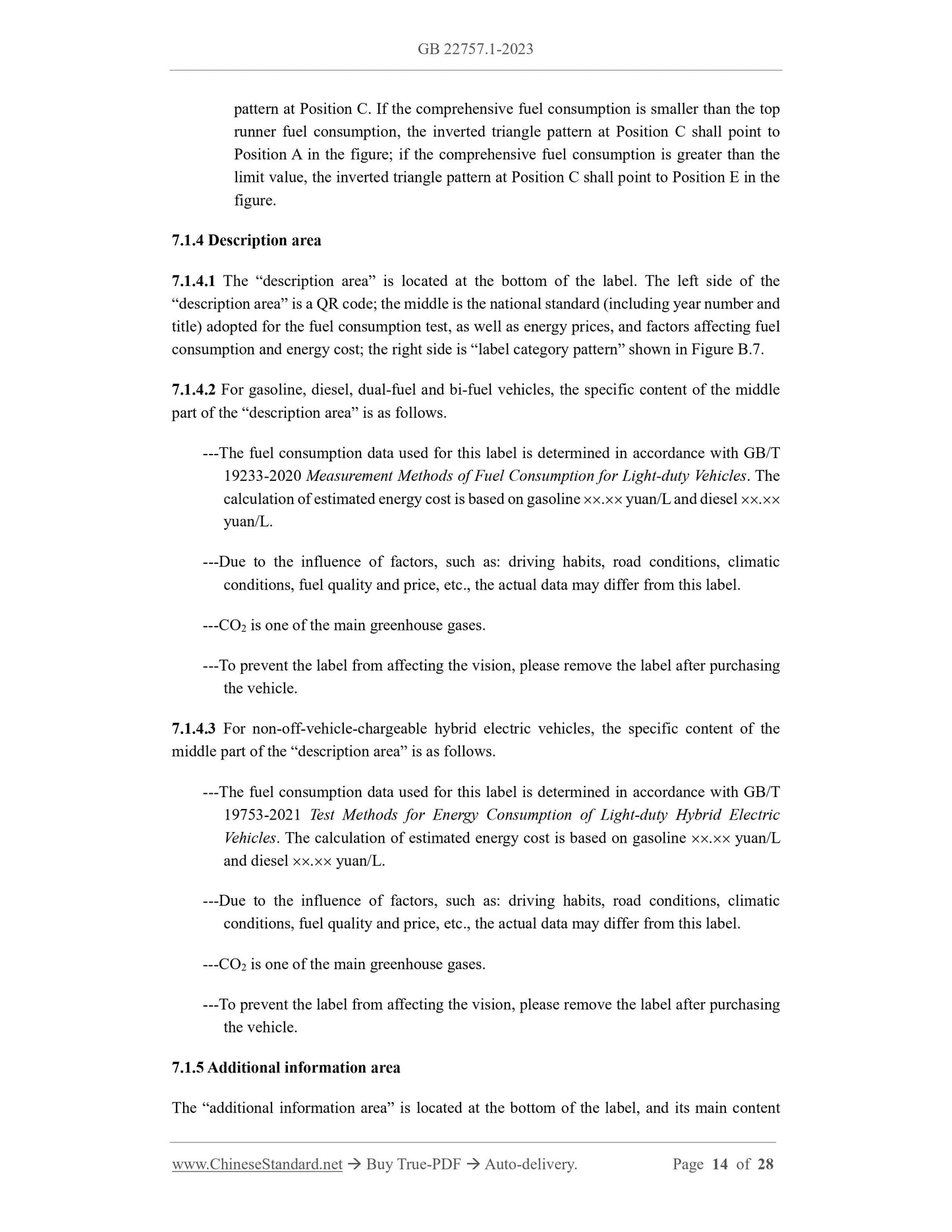

7.1.4 Description area
7.1.4.1 The ?€?description area?€? is located at the bottom of the label. The left side of the ?€?description area?€? is a QR code; the middle is the national standard (including year number and title) adopted for the fuel consumption test, as well as energy prices, and factors affecting fuel consumption and energy cost; the right side is ?€?label category pattern?€? shown in Figure B.7. 7.1.4.2 For gasoline, diesel, dual-fuel and bi-fuel vehicles, the specific content of the middle part of the ?€?description area?€? is as follows.
---The fuel consumption data used for this label is determined in accordance with GB/T 19233-2020 Measurement Methods of Fuel Consumption for Light-duty Vehicles. The calculation of estimated energy cost is based on gasoline ??????.?????? yuan/L and diesel ??????.?????? yuan/L.
---Due to the influence of factors, such as: driving habits, road conditions, climatic conditions, fuel quality and price, etc., the actual data may differ from this label. ---CO2 is one of the main greenhouse gases.
---To prevent the label from affecting the vision, please remove the label after purchasing the vehicle.
7.1.4.3 For non-off-vehicle-chargeable hybrid electric vehicles, the specific content of the middle part of the ?€?description area?€? is as follows.
---The fuel consumption data used for this label is determined in accordance with GB/T 19753-2021 Test Methods for Energy Consumption of Light-duty Hybrid Electric Vehicles. The calculation of estimated energy cost is based on gasoline ??????.?????? yuan/L and diesel ??????.?????? yuan/L.
---Due to the influence of factors, such as: driving habits, road conditions, climatic conditions, fuel quality and price, etc., the actual data may differ from this label. ---CO2 is one of the main greenhouse gases.
---To prevent the label from affecting the vision, please remove the label after purchasing the vehicle.
7.1.5 Additional information area

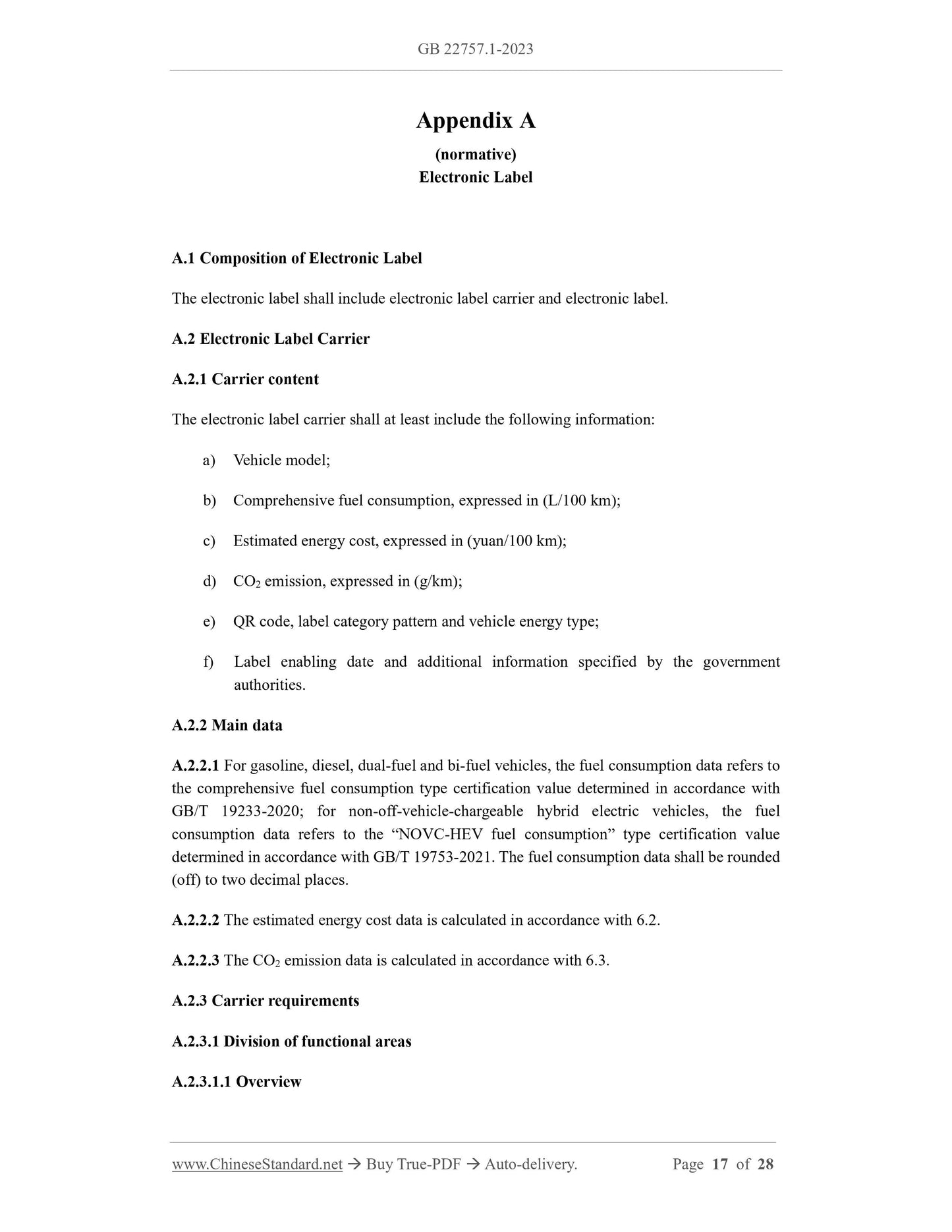

The ?€?additional information area?€? is located at the bottom of the label, and its main content Appendix A
(normative)
Electronic Label
A.1 Composition of Electronic Label
The electronic label shall include electronic label carrier and electronic label. A.2 Electronic Label Carrier
A.2.1 Carrier content
The electronic label carrier shall at least include the following information: a) Vehicle model;
b) Comprehensive fuel consumption, expressed in (L/100 km);
c) Estimated energy cost, expressed in (yuan/100 km);
d) CO2 emission, expressed in (g/km);
e) QR code, label category pattern and vehicle energy type;
f) Label enabling date and additional information specified by the government authorities.
A.2.2 Main data
A.2.2.1 For gasoline, diesel, dual-fuel and bi-fuel vehicles, the fuel consumption data refers to the comprehensive fuel consumption type certification value determined in accordance with GB/T 19233-2020; for non-off-vehicle-chargeable hybrid electric vehicles, the fuel consumption data refers to the ?€?NOVC-HEV fuel consumption?€? type certification value determined in accordance with GB/T 19753-2021. The fuel consumption data shall be rounded (off) to two decimal places.
A.2.2.2 The estimated energy cost data is calculated in accordance with 6.2. A.2.2.3 The CO2 emission data is calculated in accordance with 6.3.
A.2.3 Carrier requirements
A.2.3.1 Division of functional areas
A.2.3.1.1 Overview

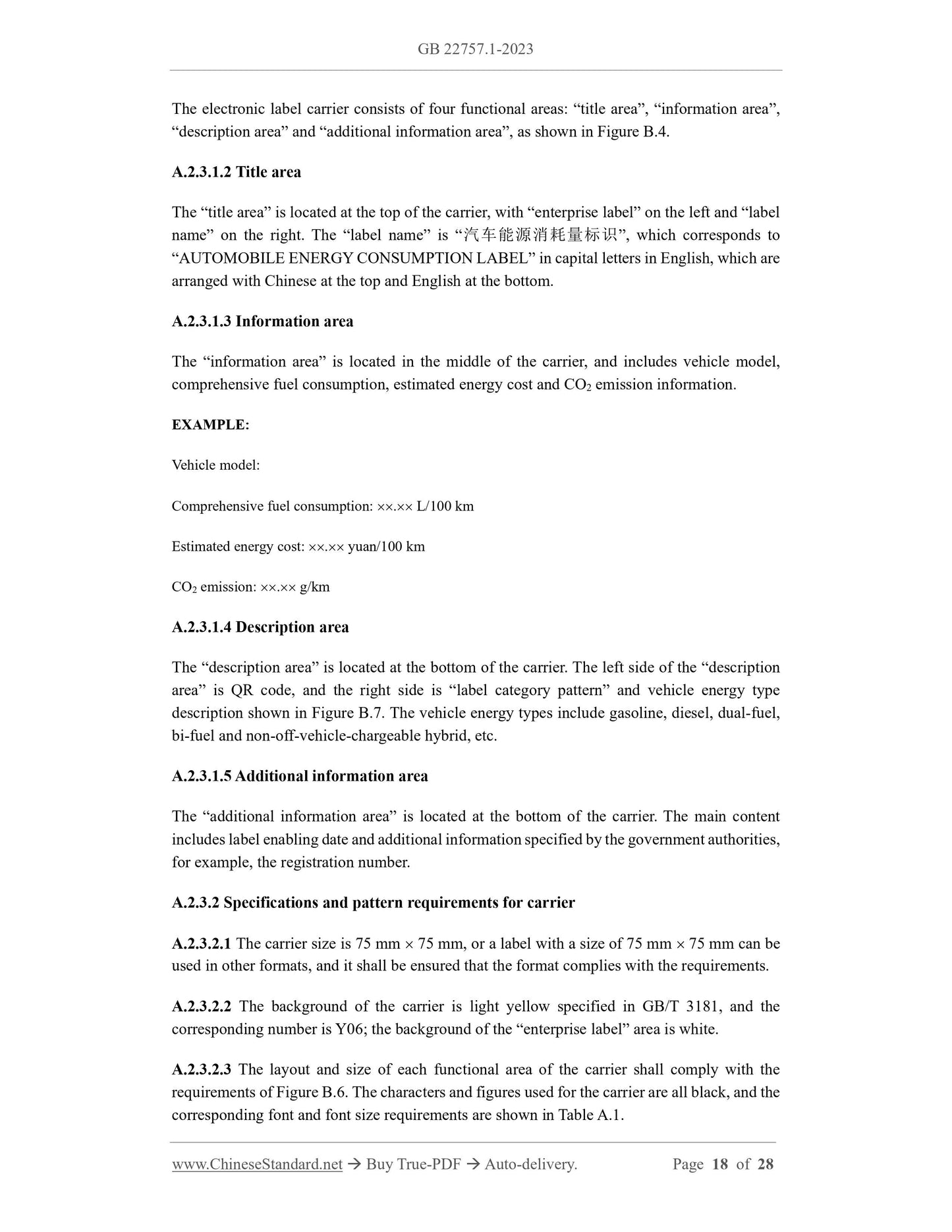

The electronic label carrier consists of four functional areas: ?€?title area?€?, ?€?information area?€?, ?€?description area?€? and ?€?additional information area?€?, as shown in Figure B.4. A.2.3.1.2 Title area
The ?€?title area?€? is located at the top of the carrier, with ?€?enterprise label?€? on the left and ?€?label ?€?AUTOMOBILE ENERGY CONSUMPTION LABEL?€? in capital letters in English, which are arranged with Chinese at the top and English at the bottom.
A.2.3.1.3 Information area
The ?€?information area?€? is located in the middle of the carrier, and includes vehicle model, comprehensive fuel consumption, estimated energy cost and CO2 emission information. EXAMPLE:
Vehicle model:
Comprehensive fuel consumption: ??????.?????? L/100 km
Estimated energy cost: ??????.?????? yuan/100 km
CO2 emission: ??????.?????? g/km
A.2.3.1.4 Description area
The ?€?description area?€? is located at the bottom of the carrier. The left side of the ?€?description area?€? is QR code, and the right side is ?€?label category pattern?€? and vehicle energy type description shown in Figure B.7. The vehicle energy types include gasoline, diesel, dual-fuel, bi-fuel and non-off-vehicle-chargeable hybrid, etc.
A.2.3.1.5 Additional information area
The ?€?additional information area?€? is located at the bottom of the carrier. The main content includes label enabling date and additional information specified by the government authorities, for example, the registration number.
A.2.3.2 Specifications and pattern requirements for carrier
A.2.3.2.1 The carrier size is 75 mm ??? 75 mm, or a label with a size of 75 mm ??? 75 mm can be used in other formats, and it shall be ensured that the format complies with the requirements. A.2.3.2.2 The background of the carrier is light yellow specified in GB/T 3181, and the corresponding number is Y06; the background of the ?€?enterprise label?€? area is white. A.2.3.2.3 The layout and size of each functional area of the carrier shall comply with the requirements of Figure B.6. The characters and figures used for the carrier are all black, and the corresponding font and font size requirements are shown in Table A.1.
