GB 19484.1-2004: Requirement and measurement methods of electromagnetic compatibility for 800MHz CDMA digital cellular telecommunications system -- Part 1: Mobile station and ancillary equipment

This Standard specifies the requirements of electromagnetic compatibility (EMC) for 800 MHz CDMA digital cellular mobile telecommunication system: MS and ancillary equipment that receive and transmit voice and/or data, including measurement methods, frequency range, limits and performance criteria etc. This Standard is not only applicable to portable and vehicle-mounted mobile stations but also to those powered by AC and used at fixed locations.

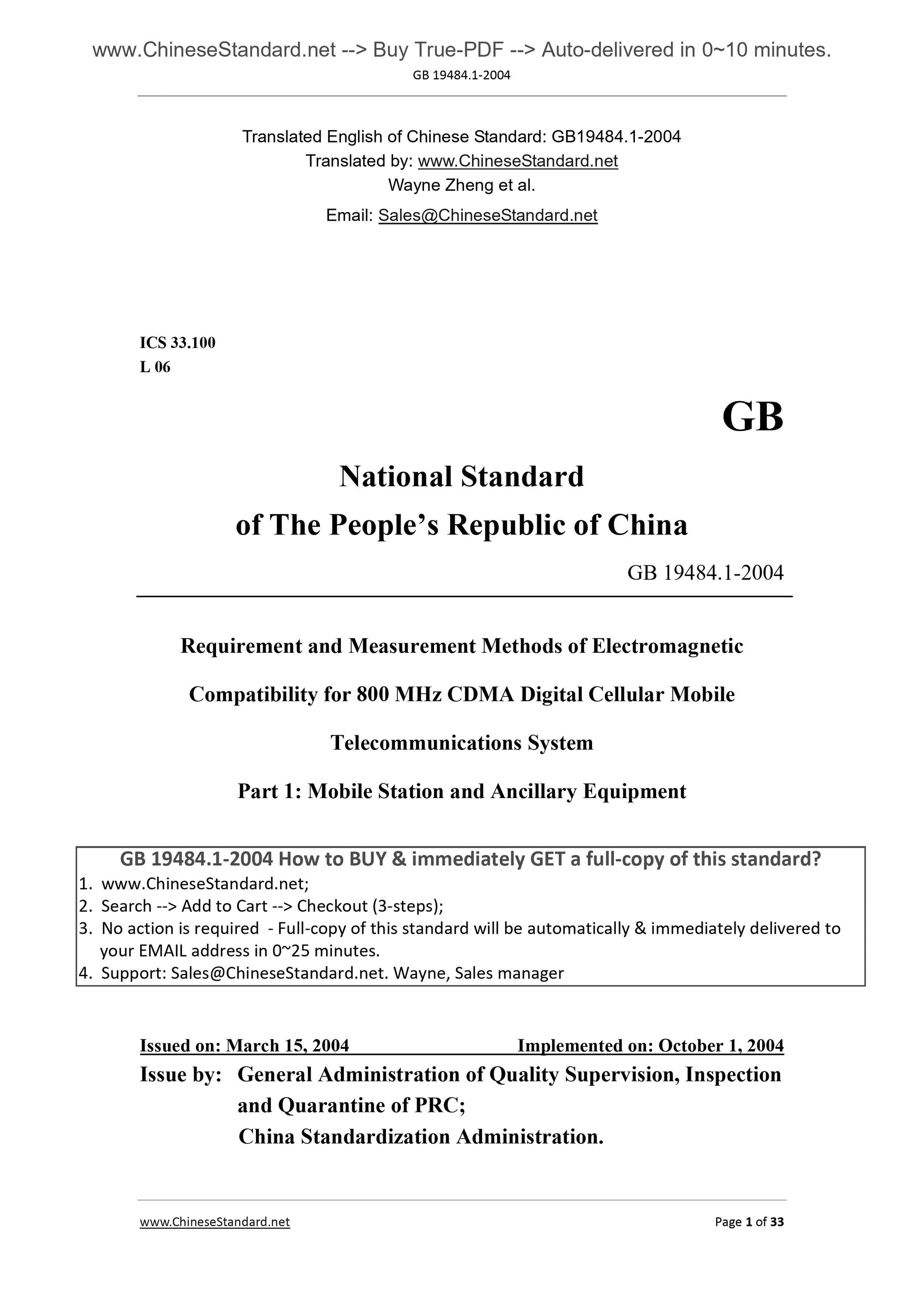

GB 19484.1-2004
ICS 33.100
L 06
GB
National Standard
of The PEOPLE Republic of China
Requirement and Measurement Methods of Electromagnetic
Compatibility for 800 MHz CDMA Digital Cellular Mobile
Telecommunications System
Part 1. Mobile Station and Ancillary Equipment
ISSUED ON. MARCH 15, 2004
IMPLEMENTED ON. OCTOBER 1, 2004
Issue by. General Administration of Quality Supervision, Inspection
and Quarantine of PRC;
China Standardization Administration.

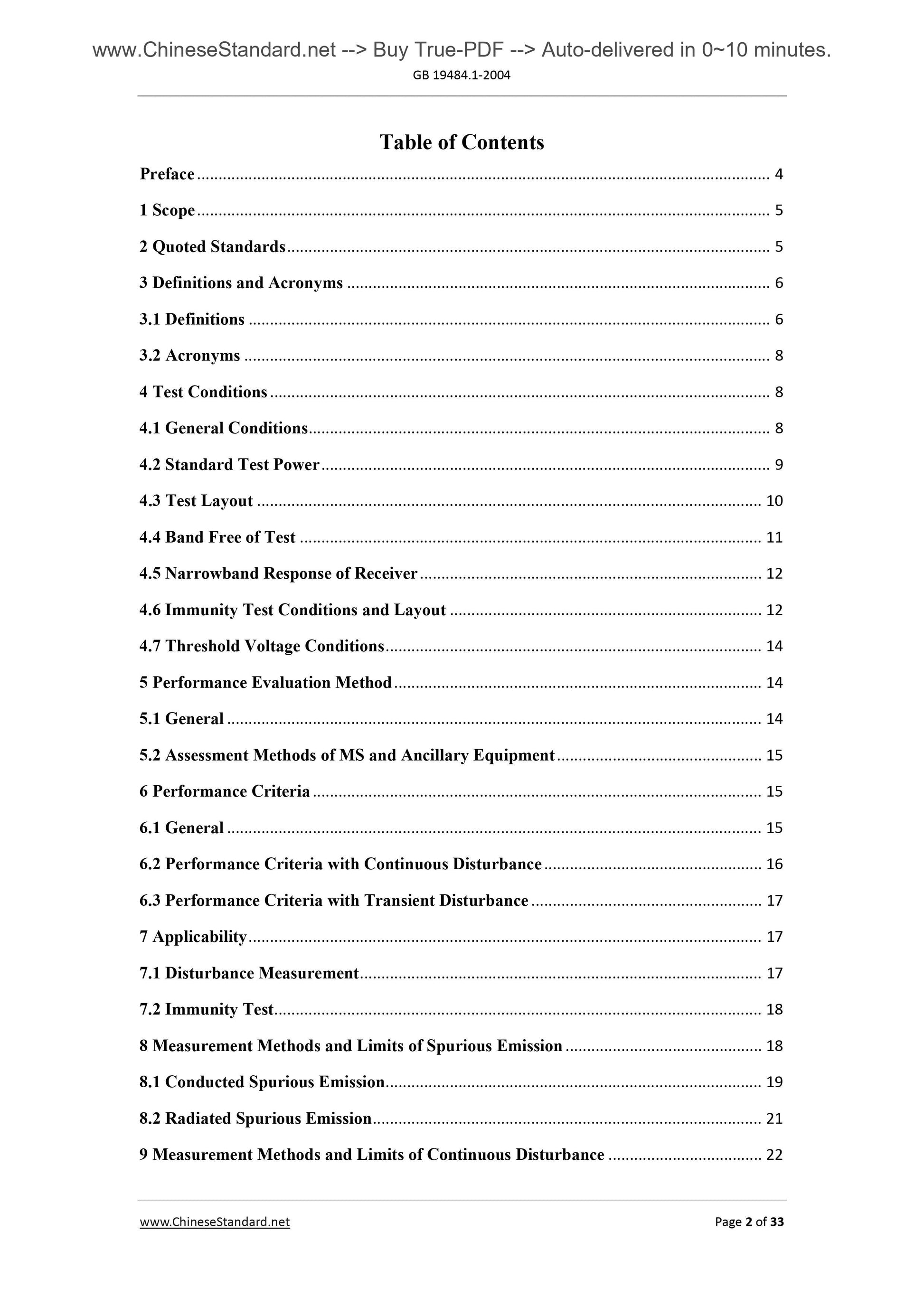

Table of Contents
Preface ... 4
1 Scope ... 5
2 Quoted Standards ... 5
3 Definitions and Acronyms ... 6

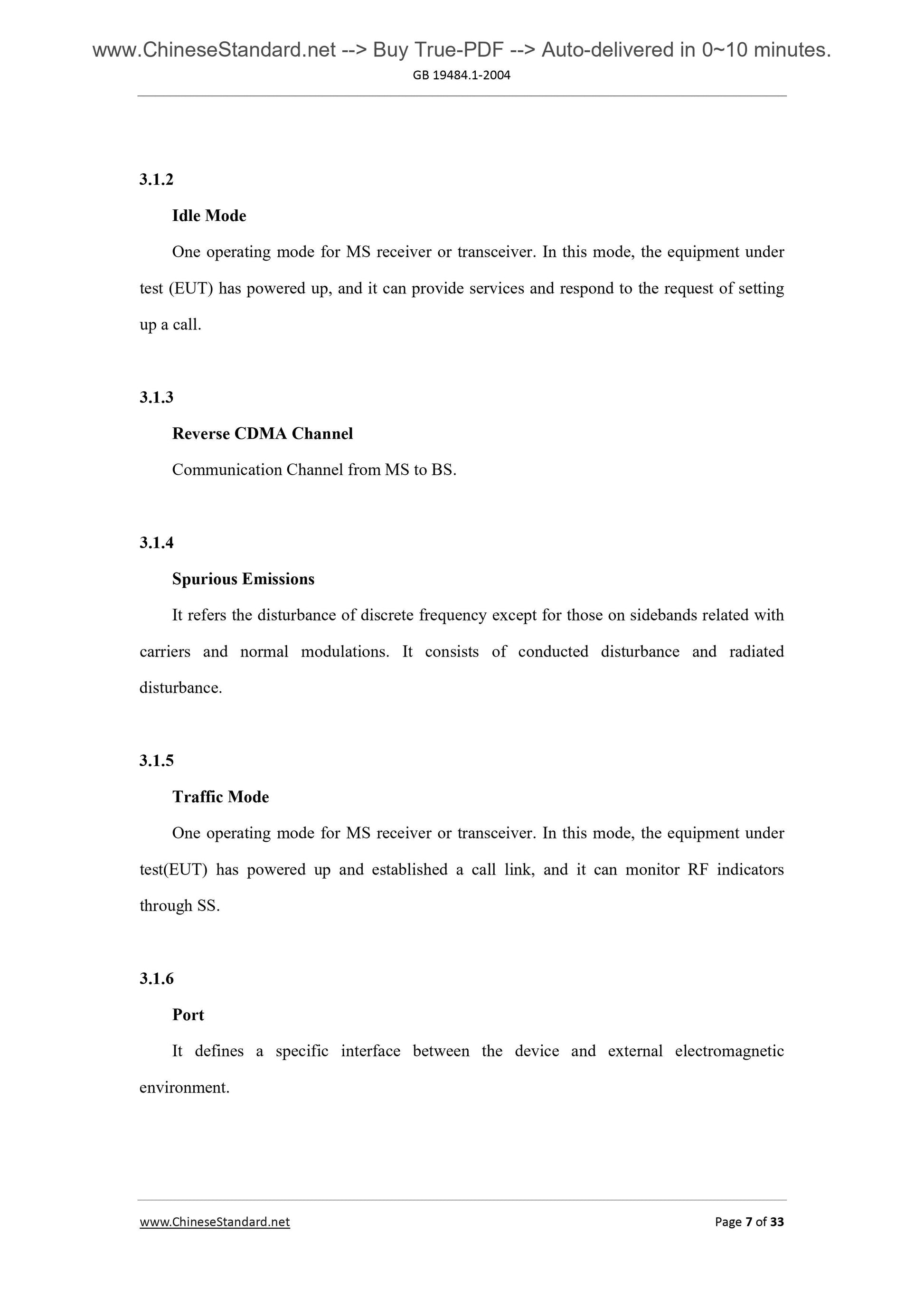

3.1 Definitions ... 6
3.2 Acronyms ... 8
4 Test Conditions ... 8
4.1 General Conditions ... 8

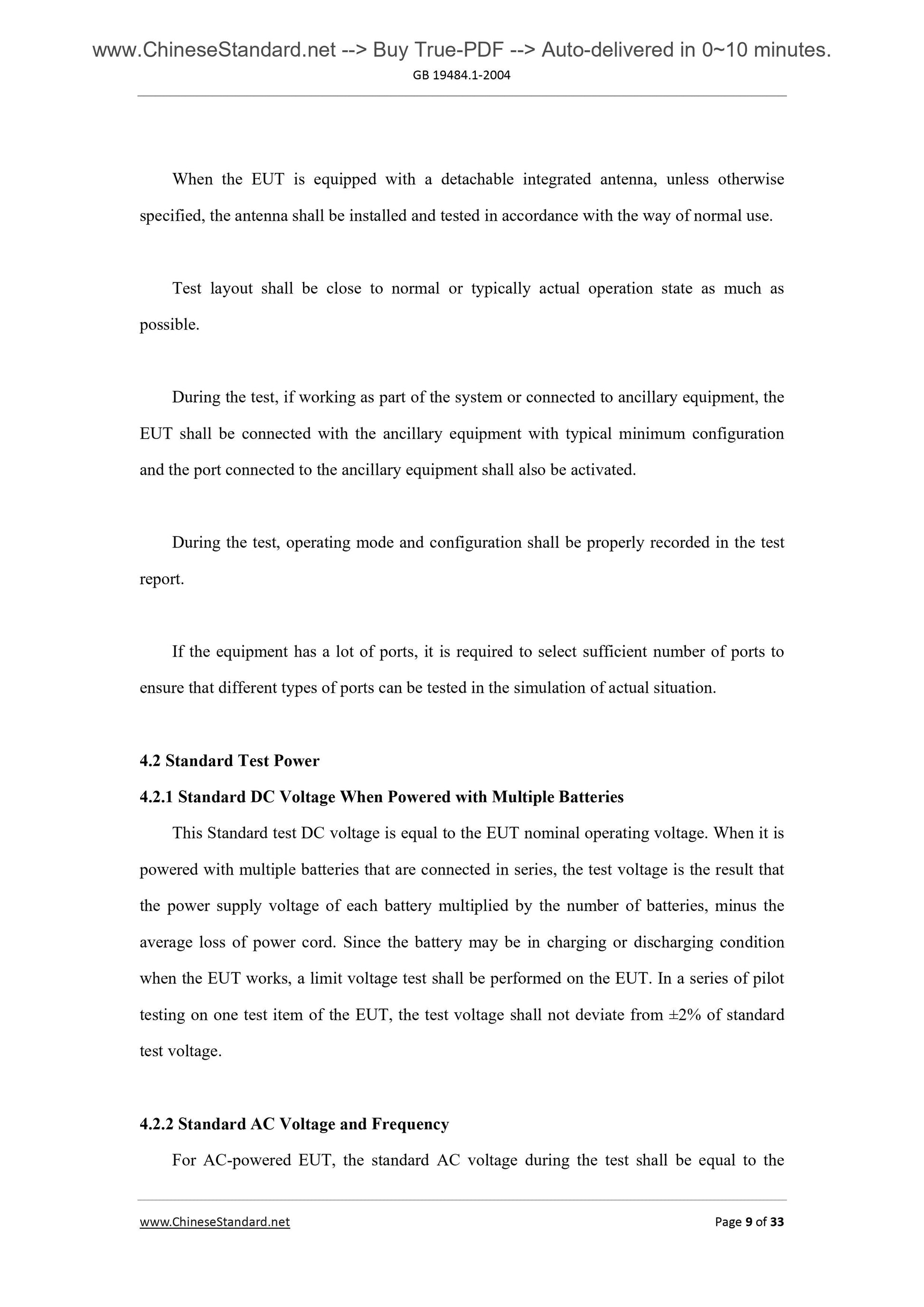

4.2 Standard Test Power ... 9
4.3 Test Layout ... 10

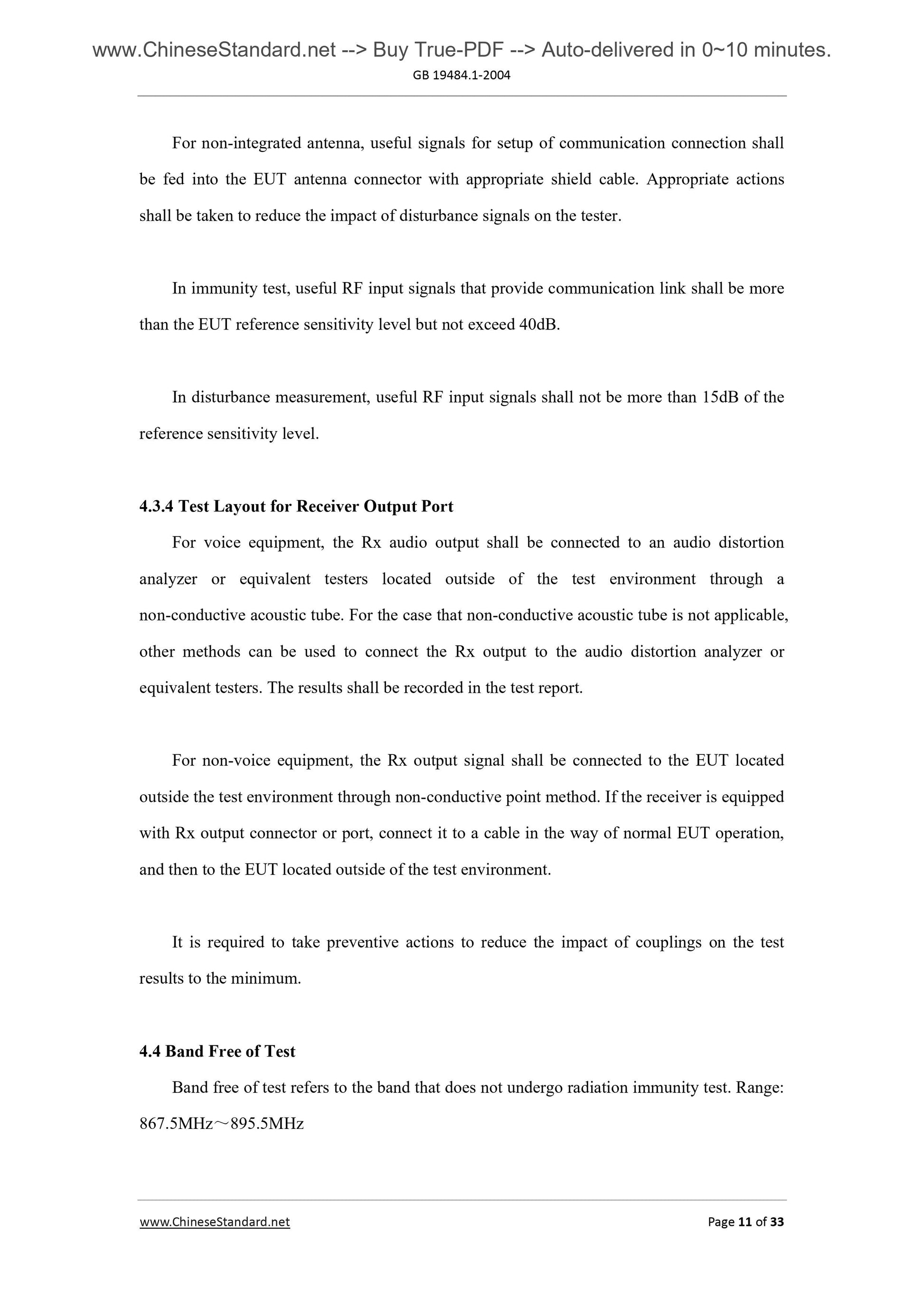

4.4 Band Free of Test ... 11
4.5 Narrowband Response of Receiver ... 12

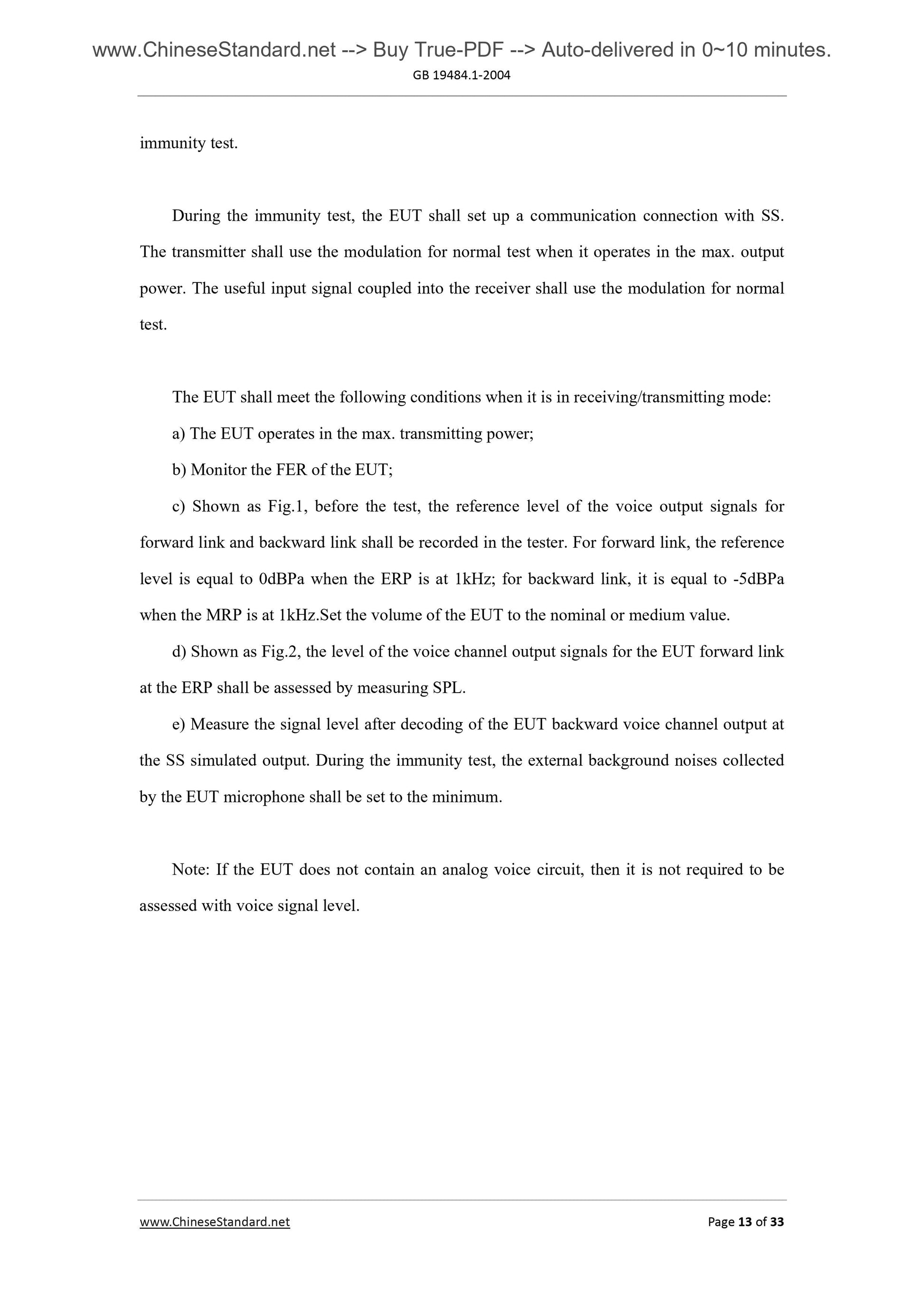

4.6 Immunity Test Conditions and Layout ... 12
4.7 Threshold Voltage Conditions ... 14
5 Performance Evaluation Method ... 14
5.1 General ... 14

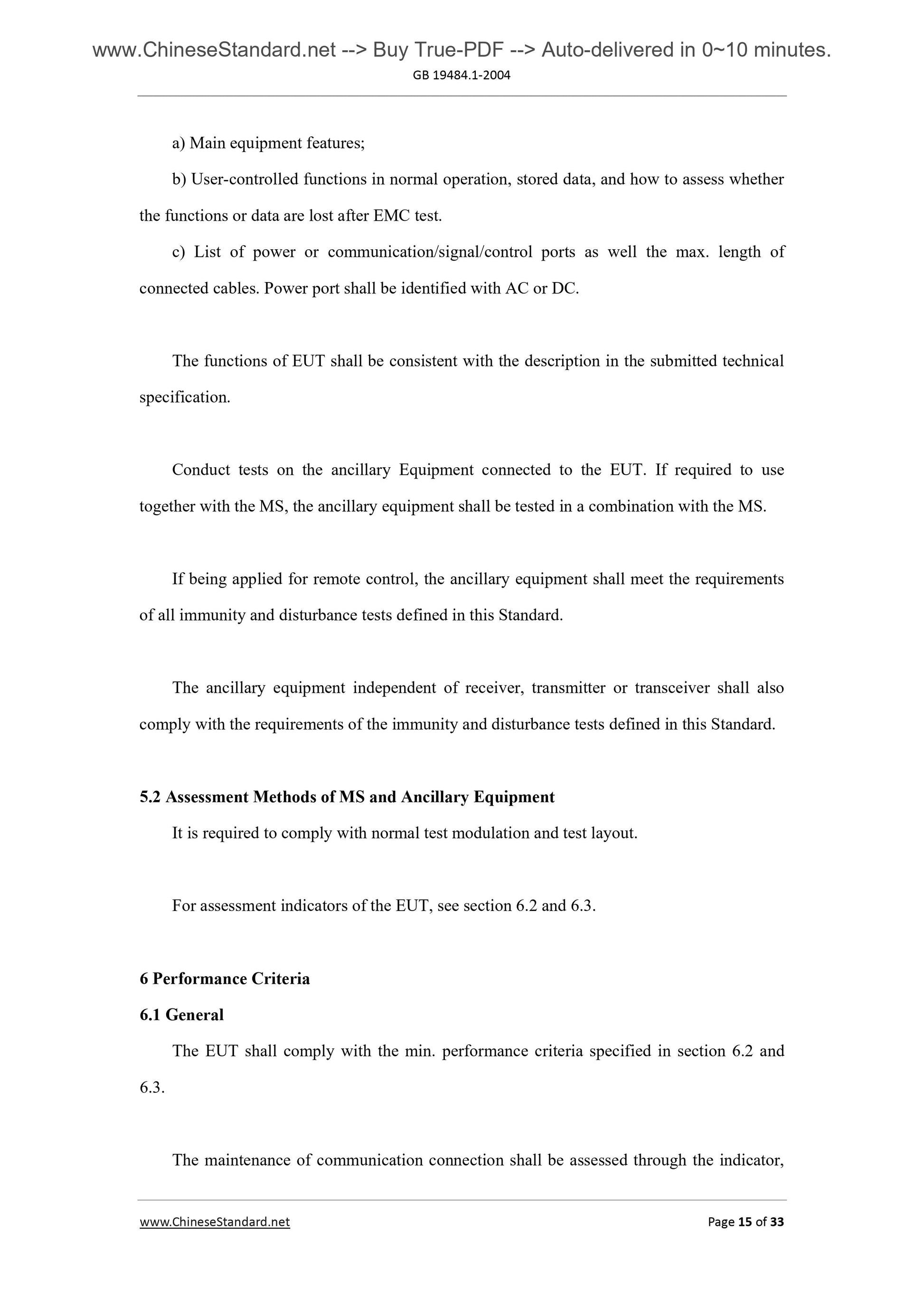

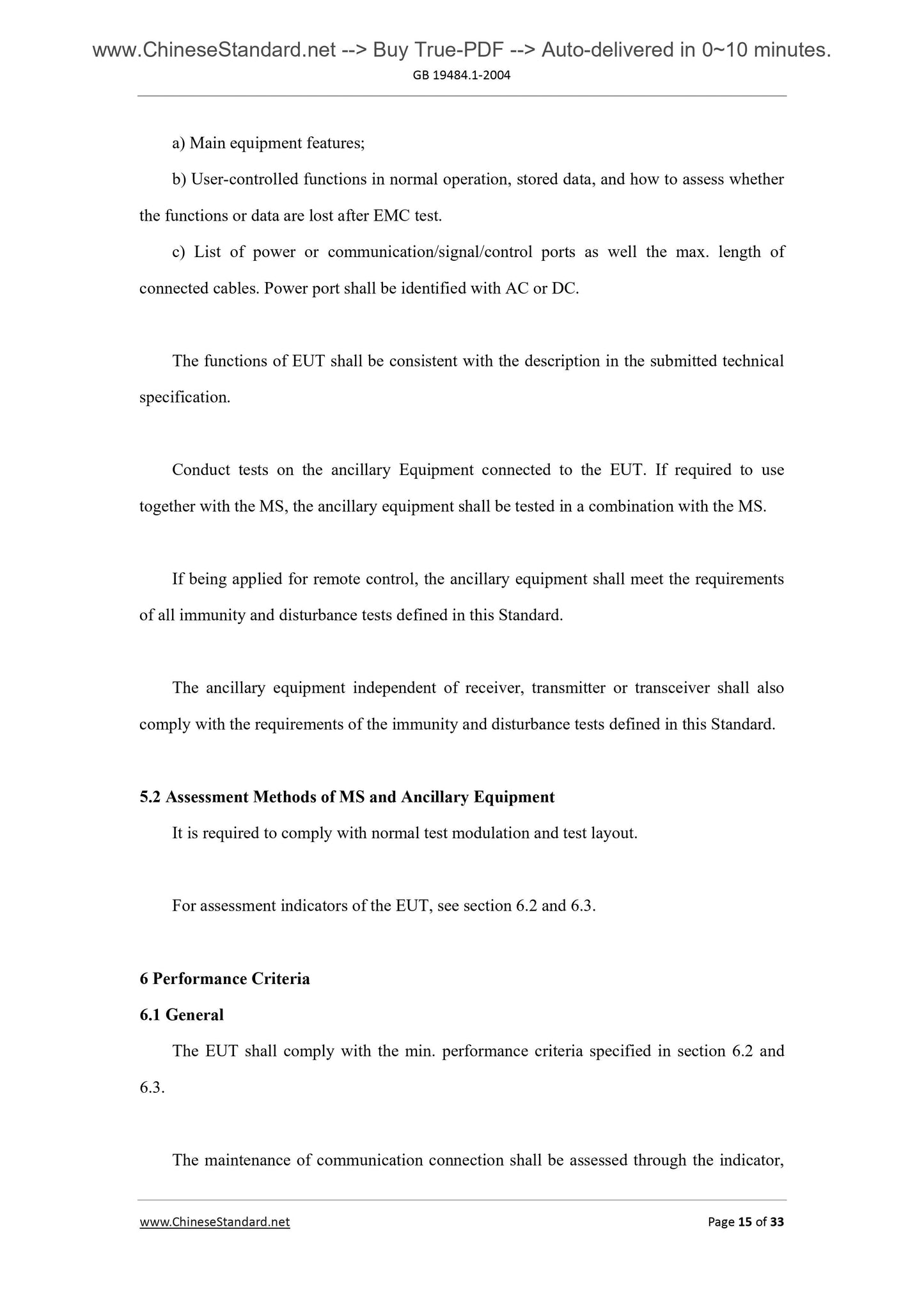

5.2 Assessment Methods of MS and Ancillary Equipment ... 15
6 Performance Criteria ... 15
6.1 General ... 15
6.2 Performance Criteria with Continuous Disturbance ... 16
6.3 Performance Criteria with Transient Disturbance ... 17
7 Applicability ... 17
7.1 Disturbance Measurement ... 17
7.2 Immunity Test ... 18
8 Measurement Methods and Limits of Spurious Emission ... 18

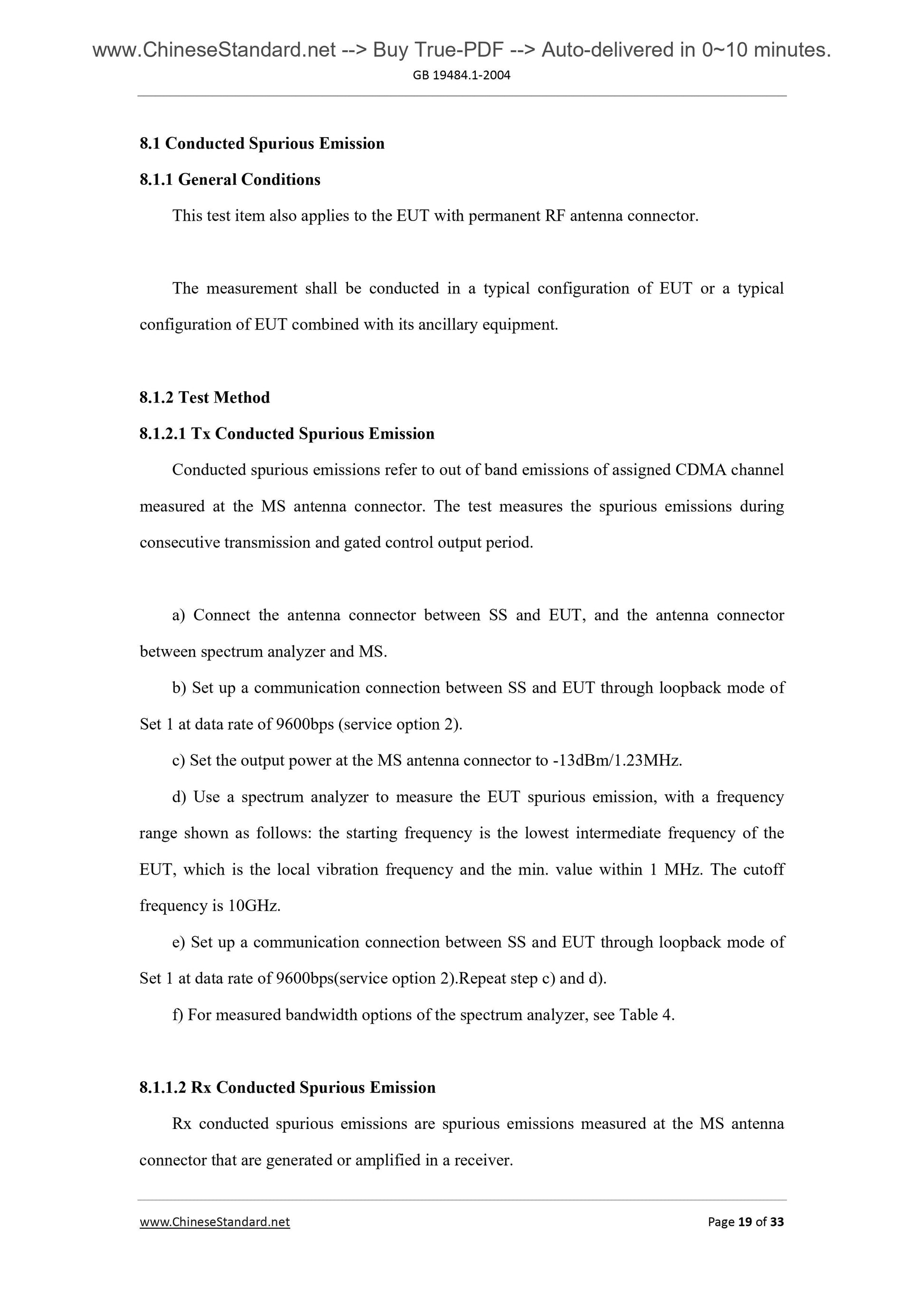

8.1 Conducted Spurious Emission ... 19
8.2 Radiated Spurious Emission ... 21
9 Measurement Methods and Limits of Continuous Disturbance ... 22
9.1 General Conditions ... 22
9.2 Ancillary Equipment ... 22
9.3 Signal/Control Port ... 23
9.4 DC Input/Output Port ... 24
9.5 AC Input/Output Port ... 25
9.6 Harmonic Current(AC Input Port) ... 26

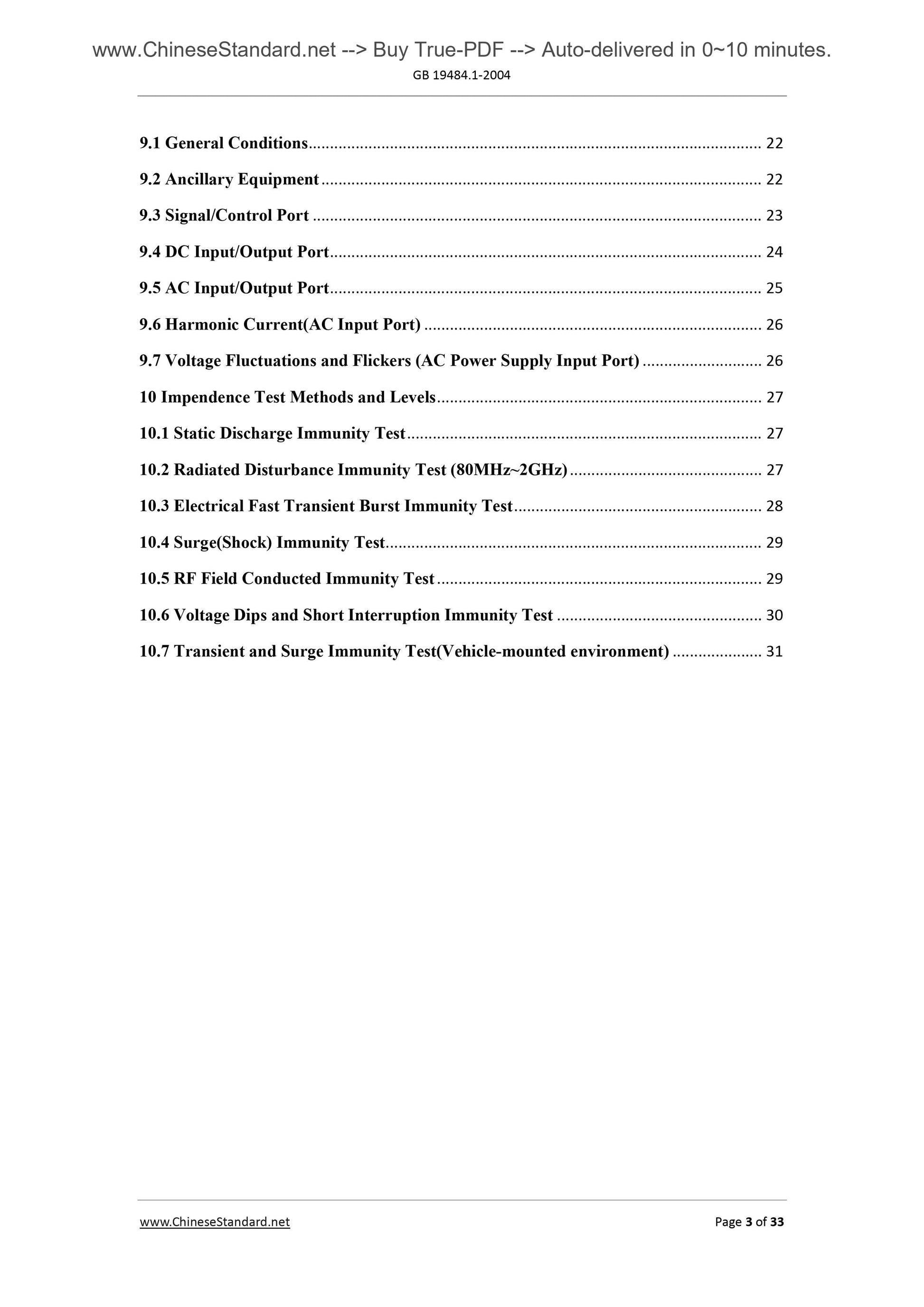

9.7 Voltage Fluctuations and Flickers (AC Power Supply Input Port) ... 26 10 Impendence Test Methods and Levels ... 27
10.1 Static Discharge Immunity Test ... 27
10.2 Radiated Disturbance Immunity Test (80MHz~2GHz) ... 27
10.3 Electrical Fast Transient Burst Immunity Test ... 28
10.4 Surge(Shock) Immunity Test ... 29
10.5 RF Field Conducted Immunity Test ... 29
10.6 Voltage Dips and Short Interruption Immunity Test ... 30

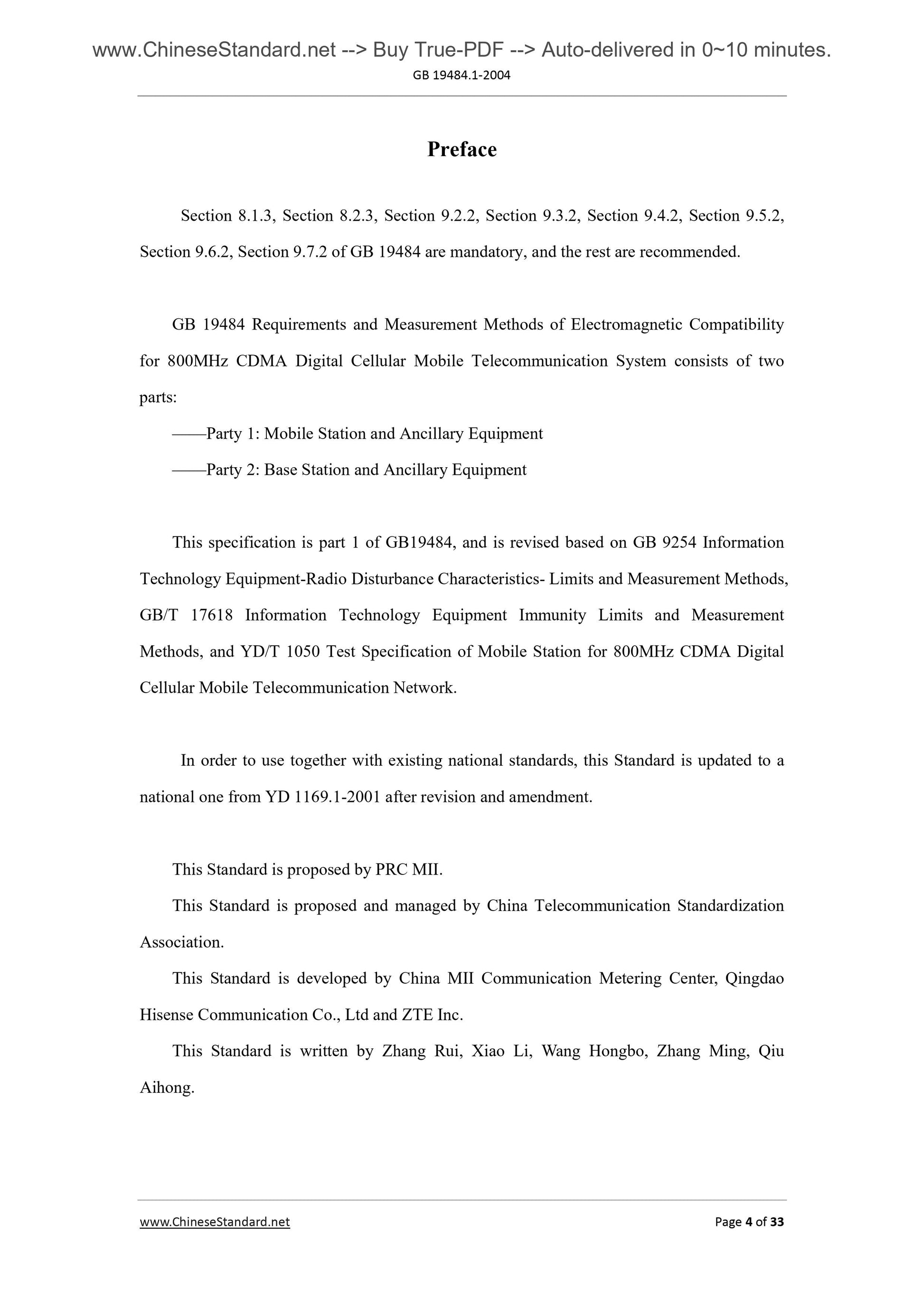

10.7 Transient and Surge Immunity Test(Vehicle-mounted environment) ... 31 Preface
Section 8.1.3, Section 8.2.3, Section 9.2.2, Section 9.3.2, Section 9.4.2, Section 9.5.2, Section 9.6.2, Section 9.7.2 of GB 19484 are mandatory, and the rest are recommended. GB 19484 Requirements and Measurement Methods of Electromagnetic Compatibility for 800MHz CDMA Digital Cellular Mobile Telecommunication System consists of two parts.
?€??€?Party 1. Mobile Station and Ancillary Equipment
?€??€?Party 2. Base Station and Ancillary Equipment
This specification is part 1 of GB19484, and is revised based on GB 9254 Information Technology Equipment-Radio Disturbance Characteristics- Limits and Measurement Methods, GB/T 17618 Information Technology Equipment Immunity Limits and Measurement Methods, and YD/T 1050 Test Specification of Mobile Station for 800MHz CDMA Digital Cellular Mobile Telecommunication Network.
In order to use together with existing national standards, this Standard is updated to a national one from YD 1169.1-2001 after revision and amendment.
This Standard is proposed by PRC MII.
This Standard is proposed and managed by China Telecommunication Standardization Association.
This Standard is developed by China MII Communication Metering Center, Qingdao Hisense Communication Co., Ltd and ZTE Inc.
This Standard is written by Zhang Rui, Xiao Li, Wang Hongbo, Zhang Ming, Qiu Aihong.
Requirement and Measurement Methods of Electromagnetic
Compatibility for 800 MHz CDMA Digital Cellular Mobile
Telecommunication System
Part 1. Mobile Station and Ancillary Equipment

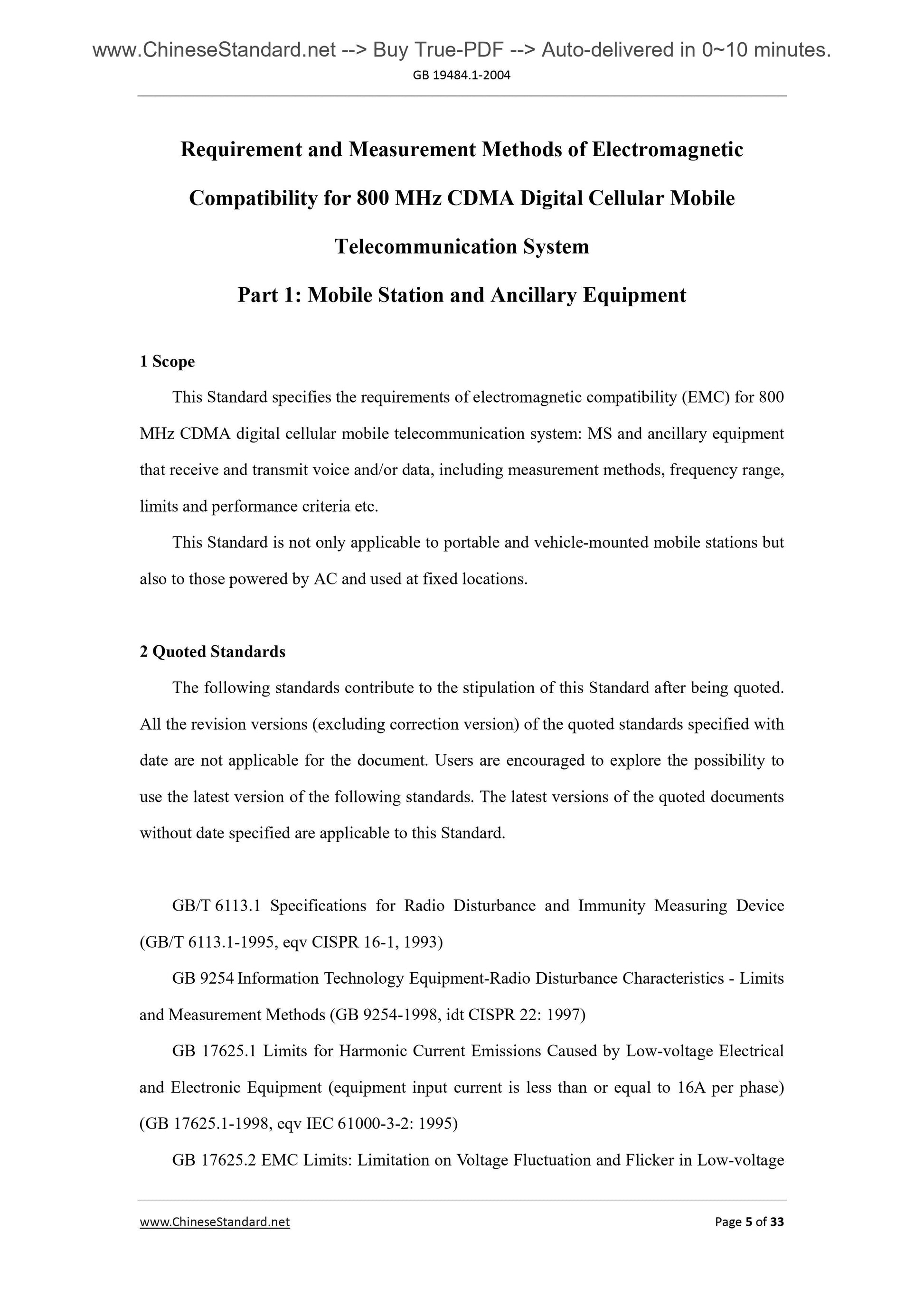

1 Scope
This Standard specifies the requirements of electromagnetic compatibility (EMC) for 800 MHz CDMA digital cellular mobile telecommunication system. MS and ancillary equipment that receive and transmit voice and/or data, including measurement methods, frequency range, limits and performance criteria etc.
This Standard is not only applicable to portable and vehicle-mounted mobile stations but also to those powered by AC and used at fixed locations.
2 Quoted Standards
The following standards contribute to the stipulation of this Standard after being quoted. All the revision versions (excluding correction version) of the quoted standards specified with date are not applicable for the document. Users are encouraged to explore the possibility to use the latest version of the following standards. The latest versions of the quoted documents without date specified are applicable to this Standard.
GB/T 6113.1 Specifications for Radio Disturbance and Immunity Measuring Device (GB/T 6113.1-1995, eqv CISPR 16-1, 1993)
GB 9254 Information Technology Equipment-Radio Disturbance Characteristics - Limits and Measurement Methods (GB 9254-1998, idt CISPR 22. 1997)
GB 17625.1 Limits for Harmonic Current Emissions Caused by Low-voltage Electrical and Electronic Equipment (equipment input current is less than or equal to 16A per phase) (GB 17625.1-1998, eqv IEC 61000-3-2. 1995)
GB 17625.2 EMC Limits. Limitation on Voltage Fluctuation and Flicker in Low-voltage Power Supply System for Equipment with Rated Current ??? 16A (GB 17625.2-1999, idt IEC 61000-3-3. 1994)

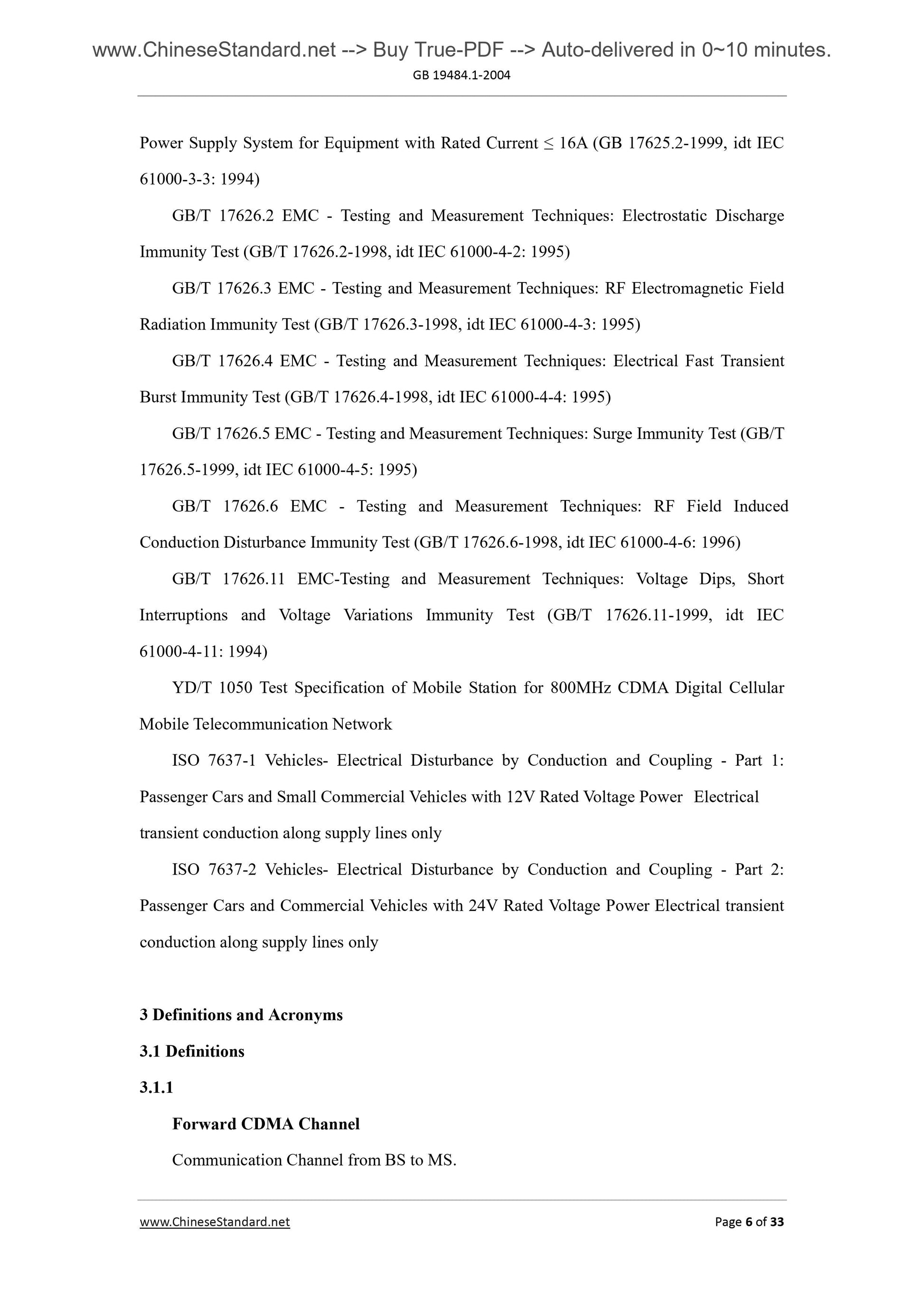

GB/T 17626.2 EMC - Testing and Measurement Techniques. Electrostatic Discharge Immunity Test (GB/T 17626.2-1998, idt IEC 61000-4-2. 1995)
GB/T 17626.3 EMC - Testing and Measurement Techniques. RF Electromagnetic Field Radiation Immunity Test (GB/T 17626.3-1998, idt IEC 61000-4-3. 1995)
GB/T 17626.4 EMC - Testing and Measurement Techniques. Electrical Fast Transient Burst Immunity Test (GB/T 17626.4-1998, idt IEC 61000-4-4. 1995)
GB/T 17626.5 EMC - Testing and Measurement Techniques. Surge Immunity Test (GB/T 17626.5-1999, idt IEC 61000-4-5. 1995)
GB/T 17626.6 EMC - Testing and Measurement Techniques. RF Field Induced Conduction Disturbance Immunity Test (GB/T 17626.6-1998, idt IEC 61000-4-6. 1996) GB/T 17626.11 EMC-Testing and Measurement Techniques. Voltage Dips, Short Interruptions and Voltage Variations Immunity Test (GB/T...
