GB 19081-2008: Safety regulations for dust explosion prevention in feed processing system

This Standard specifies the basic requirements for dust explosion prevention in feed processing system. This Standard is applicable to the design, construction, operation and management for dust explosion prevention in feed processing system.

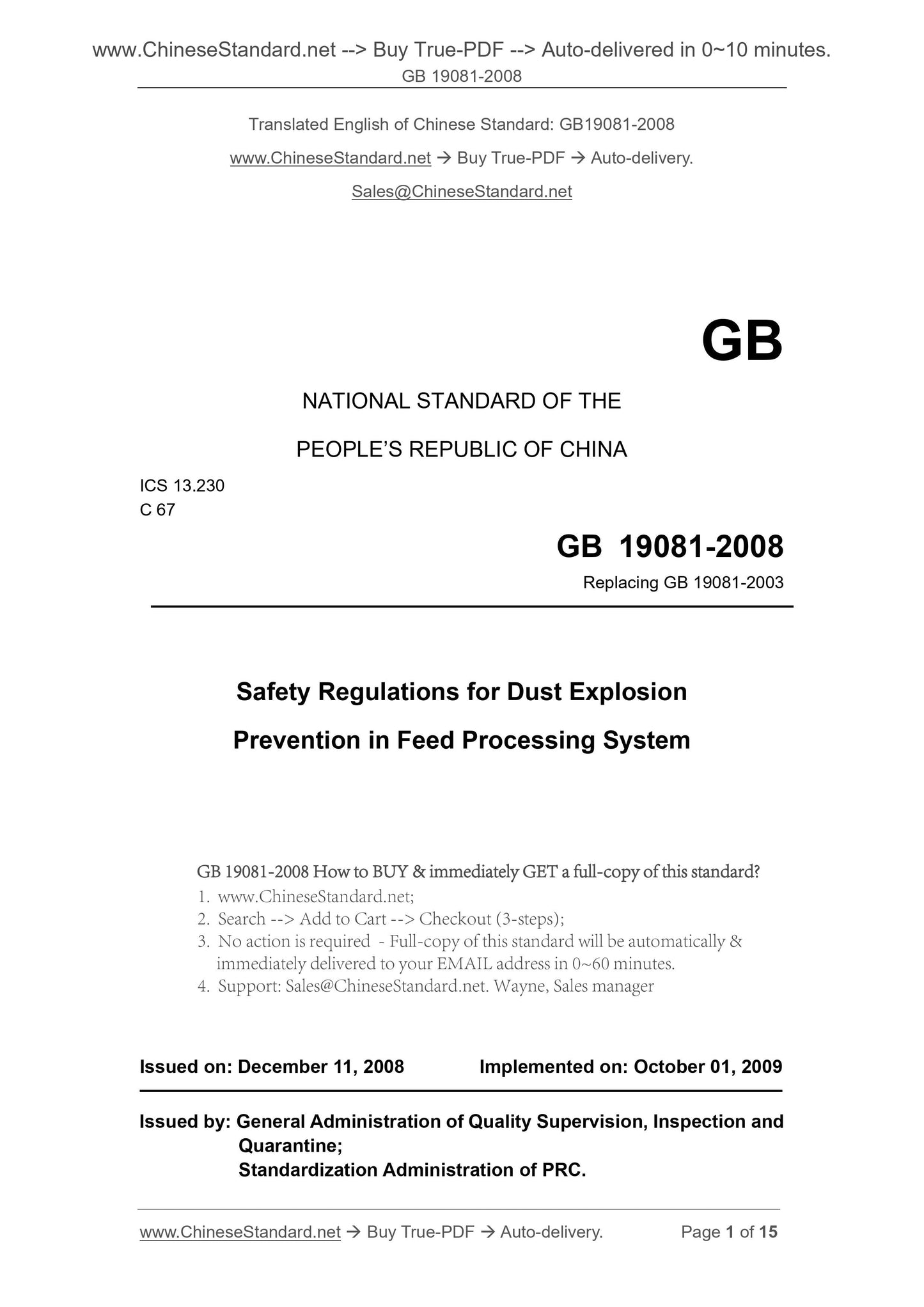

GB 19081-2008
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 13.230
C 67
Replacing GB 19081-2003
Safety Regulations for Dust Explosion
Prevention in Feed Processing System
ISSUED ON. DECEMBER 11, 2008
IMPLEMENTED ON. OCTOBER 01, 2009
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of PRC.

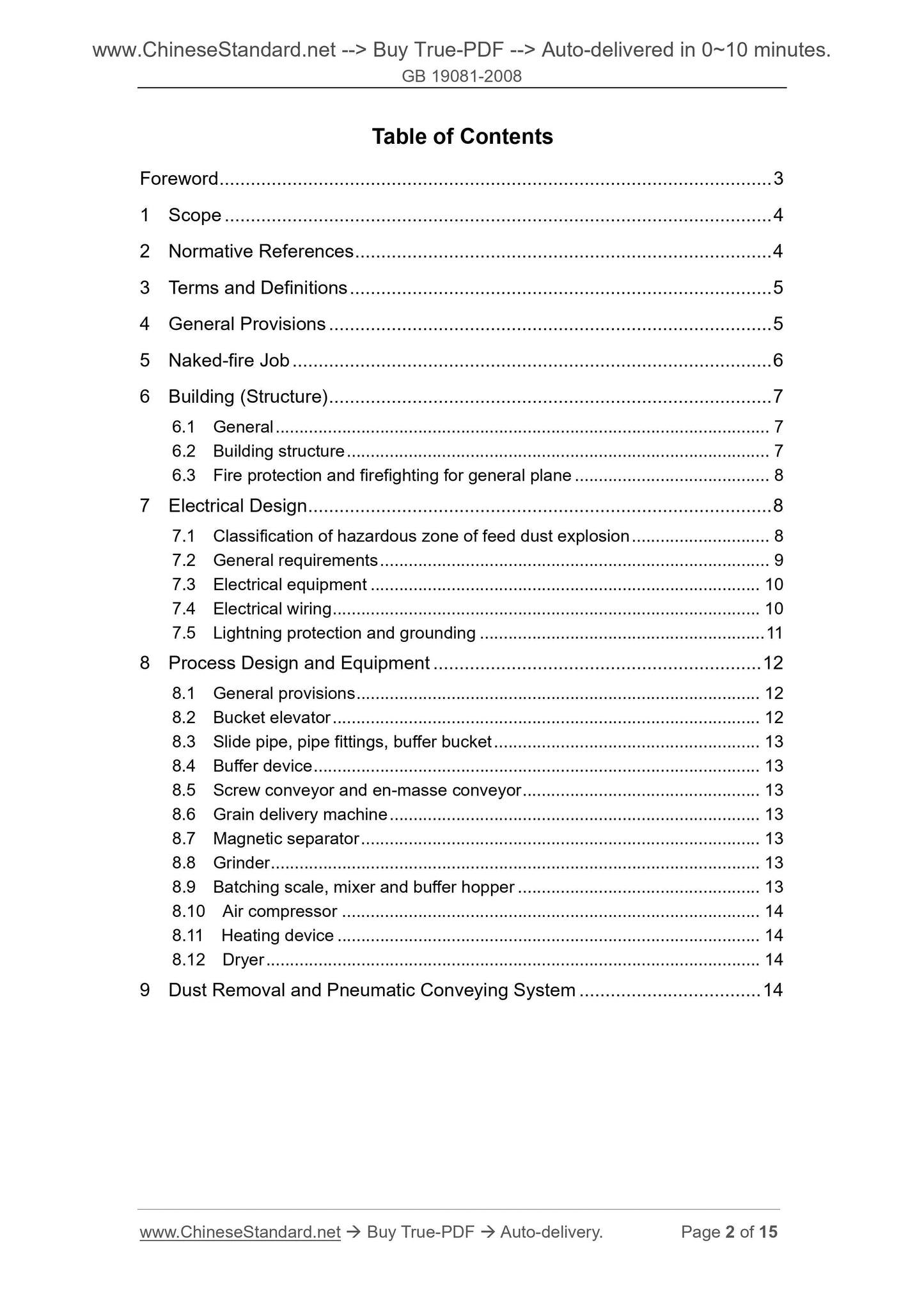

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 5
4 General Provisions ... 5
5 Naked-fire Job ... 6
6 Building (Structure) ... 7
6.1 General ... 7
6.2 Building structure ... 7
6.3 Fire protection and firefighting for general plane ... 8
7 Electrical Design ... 8
7.1 Classification of hazardous zone of feed dust explosion ... 8
7.2 General requirements ... 9
7.3 Electrical equipment ... 10
7.4 Electrical wiring ... 10
7.5 Lightning protection and grounding ... 11
8 Process Design and Equipment ... 12
8.1 General provisions ... 12
8.2 Bucket elevator ... 12
8.3 Slide pipe, pipe fittings, buffer bucket ... 13
8.4 Buffer device ... 13
8.5 Screw conveyor and en-masse conveyor ... 13
8.6 Grain delivery machine ... 13
8.7 Magnetic separator ... 13
8.8 Grinder ... 13
8.9 Batching scale, mixer and buffer hopper ... 13
8.10 Air compressor ... 14
8.11 Heating device ... 14
8.12 Dryer ... 14
9 Dust Removal and Pneumatic Conveying System ... 14

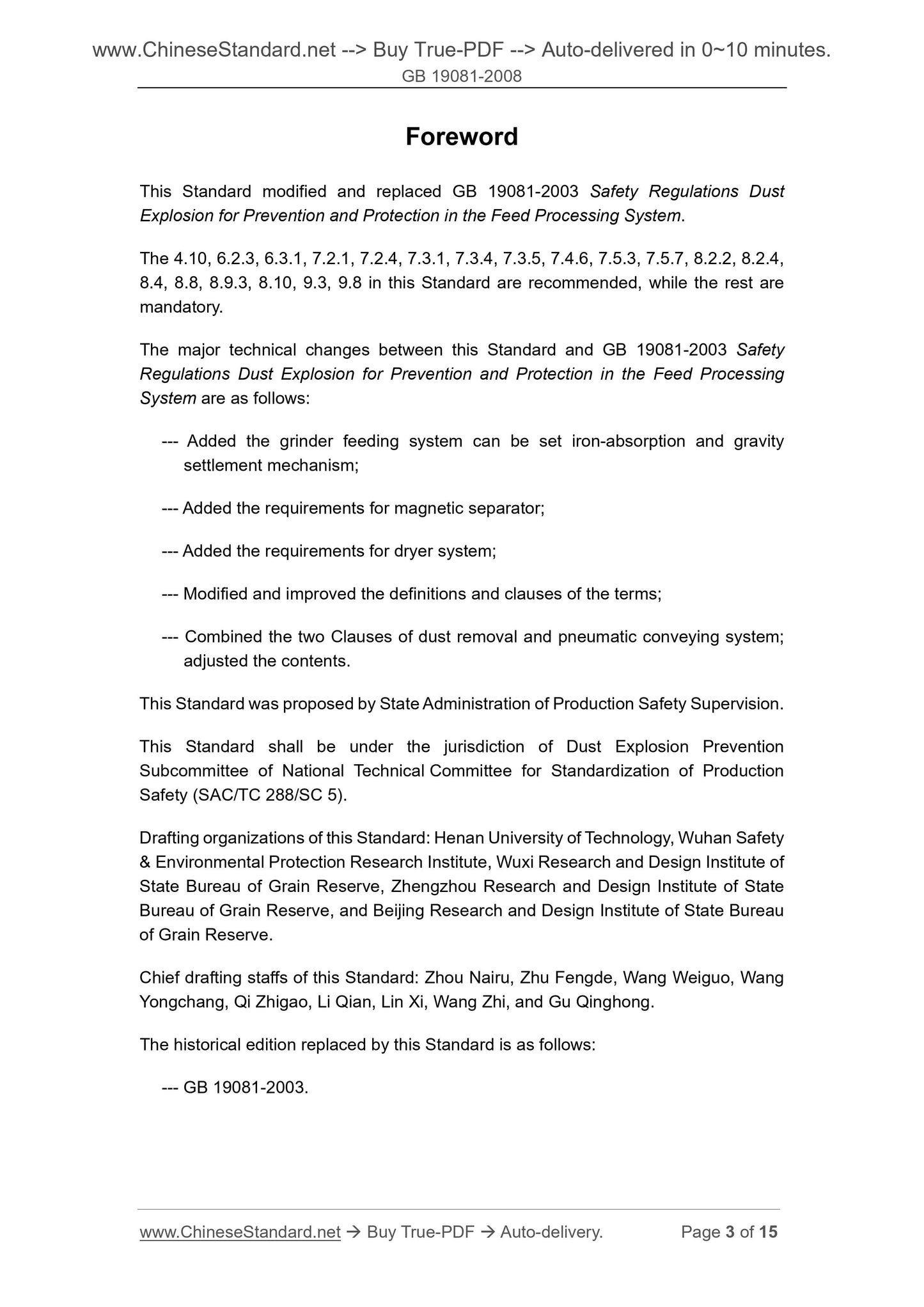

Foreword
This Standard modified and replaced GB 19081-2003 Safety Regulations Dust Explosion for Prevention and Protection in the Feed Processing System.
The 4.10, 6.2.3, 6.3.1, 7.2.1, 7.2.4, 7.3.1, 7.3.4, 7.3.5, 7.4.6, 7.5.3, 7.5.7, 8.2.2, 8.2.4, 8.4, 8.8, 8.9.3, 8.10, 9.3, 9.8 in this Standard are recommended, while the rest are mandatory.
The major technical changes between this Standard and GB 19081-2003 Safety Regulations Dust Explosion for Prevention and Protection in the Feed Processing System are as follows.
--- Added the grinder feeding system can be set iron-absorption and gravity settlement mechanism;
--- Added the requirements for magnetic separator;
--- Added the requirements for dryer system;
--- Modified and improved the definitions and clauses of the terms;
--- Combined the two Clauses of dust removal and pneumatic conveying system; adjusted the contents.
This Standard was proposed by State Administration of Production Safety Supervision. This Standard shall be under the jurisdiction of Dust Explosion Prevention Subcommittee of National Technical Committee for Standardization of Production Safety (SAC/TC 288/SC 5).
Drafting organizations of this Standard. Henan University of Technology, Wuhan Safety & Environmental Protection Research Institute, Wuxi Research and Design Institute of State Bureau of Grain Reserve, Zhengzhou Research and Design Institute of State Bureau of Grain Reserve, and Beijing Research and Design Institute of State Bureau of Grain Reserve.
Chief drafting staffs of this Standard. Zhou Nairu, Zhu Fengde, Wang Weiguo, Wang Yongchang, Qi Zhigao, Li Qian, Lin Xi, Wang Zhi, and Gu Qinghong.
The historical edition replaced by this Standard is as follows.
--- GB 19081-2003.
Safety Regulations for Dust Explosion
Prevention in Feed Processing System

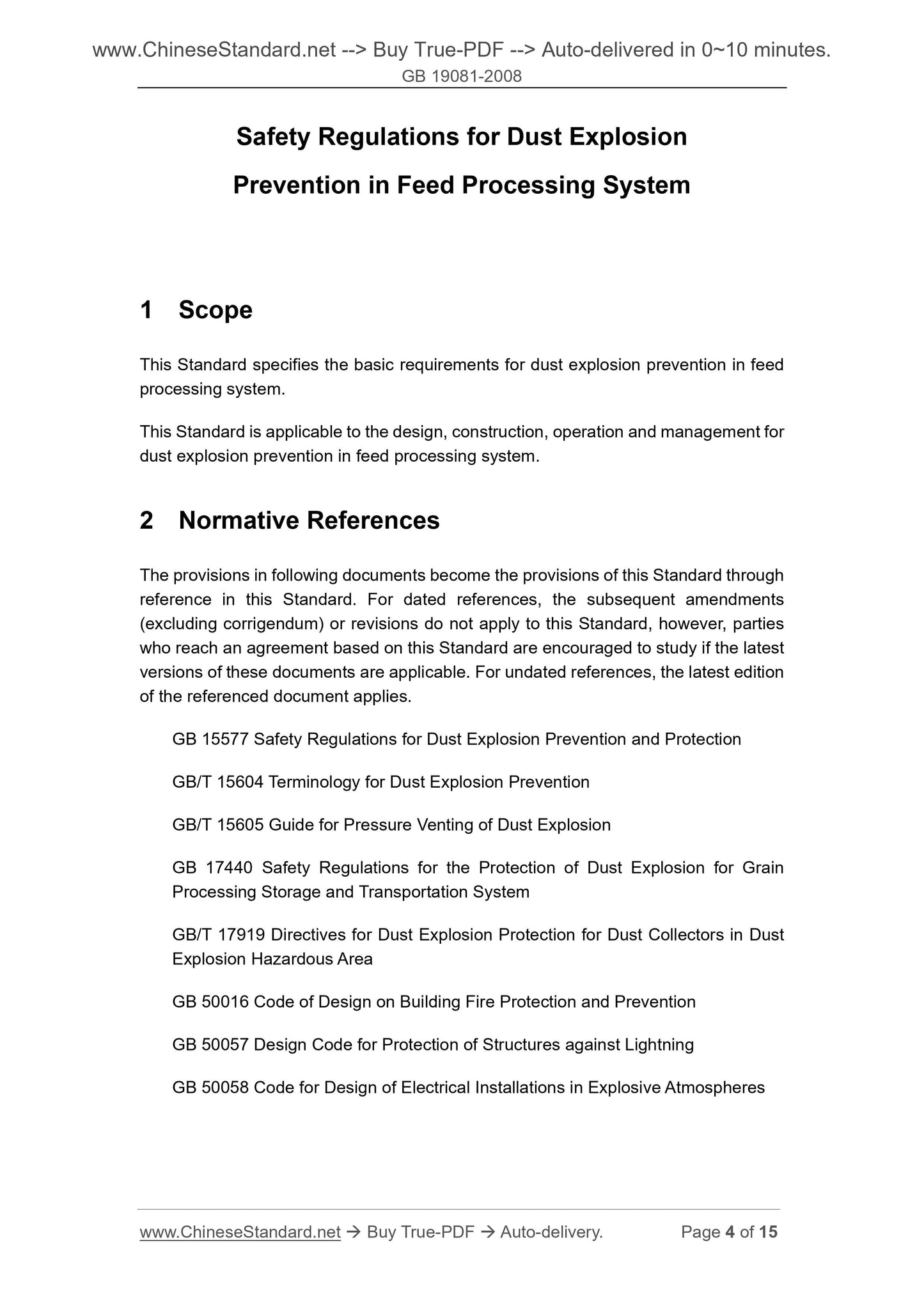

1 Scope
This Standard specifies the basic requirements for dust explosion prevention in feed processing system.
This Standard is applicable to the design, construction, operation and management for dust explosion prevention in feed processing system.
2 Normative References
The provisions in following documents become the provisions of this Standard through reference in this Standard. For dated references, the subsequent amendments (excluding corrigendum) or revisions do not apply to this Standard, however, parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies.
GB 15577 Safety Regulations for Dust Explosion Prevention and Protection GB/T 15604 Terminology for Dust Explosion Prevention
GB/T 15605 Guide for Pressure Venting of Dust Explosion
GB 17440 Safety Regulations for the Protection of Dust Explosion for Grain Processing Storage and Transportation System
GB/T 17919 Directives for Dust Explosion Protection for Dust Collectors in Dust Explosion Hazardous Area
GB 50016 Code of Design on Building Fire Protection and Prevention
GB 50057 Design Code for Protection of Structures against Lightning

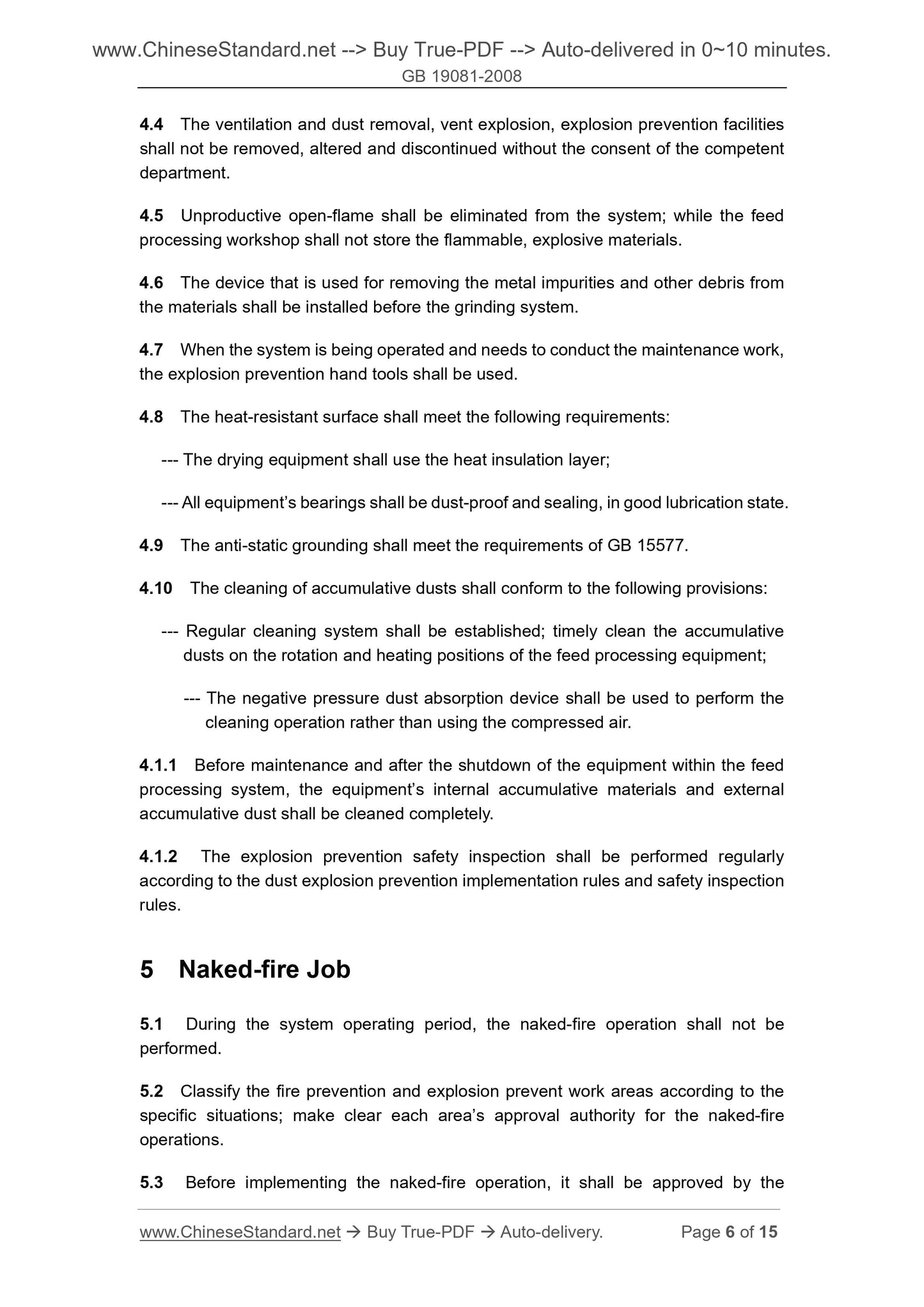

GB 50058 Code for Design of Electrical Installations in Explosive Atmospheres 4.4 The ventilation and dust removal, vent explosion, explosion prevention facilities shall not be removed, altered and discontinued without the consent of the competent department.
4.5 Unproductive open-flame shall be eliminated from the system; while the feed processing workshop shall not store the flammable, explosive materials. 4.6 The device that is used for removing the metal impurities and other debris from the materials shall be installed before the grinding system.
4.7 When the system is being operated and needs to conduct the maintenance work, the explosion prevention hand tools shall be used.
4.8 The heat-resistant surface shall meet the following requirements.
--- The drying equipment shall use the heat insulation layer;
--- All equipment?€?s bearings shall be dust-proof and sealing, in good lubrication state. 4.9 The anti-static grounding shall meet the requirements of GB 15577.
4.10 The cleaning of accumulative dusts shall conform to the following provisions. --- Regular cleaning system shall be established; timely clean the accumulative dusts on the rotation and heating positions of the feed processing equipment; --- The negative pressure dust absorption device shall be used to perform the cleaning operation rather than using the compressed air.
4.1.1 Before maintenance and after the shutdown of the equipment within the feed processing system, the equipment?€?s internal accumulative materials and external accumulative dust shall be cleaned completely.
4.1.2 The explosion prevention safety inspection shall be performed regularly according to the dust explosion prevention implementation rules and safety inspection rules.
5 Naked-fire Job
5.1 During the system operating period, the naked-fire operation shall not be performed.
5.2 Classify the fire prevention and explosion prevent work areas according to the specific situations; make clear each area?€?s approval authority for the naked-fire operations.

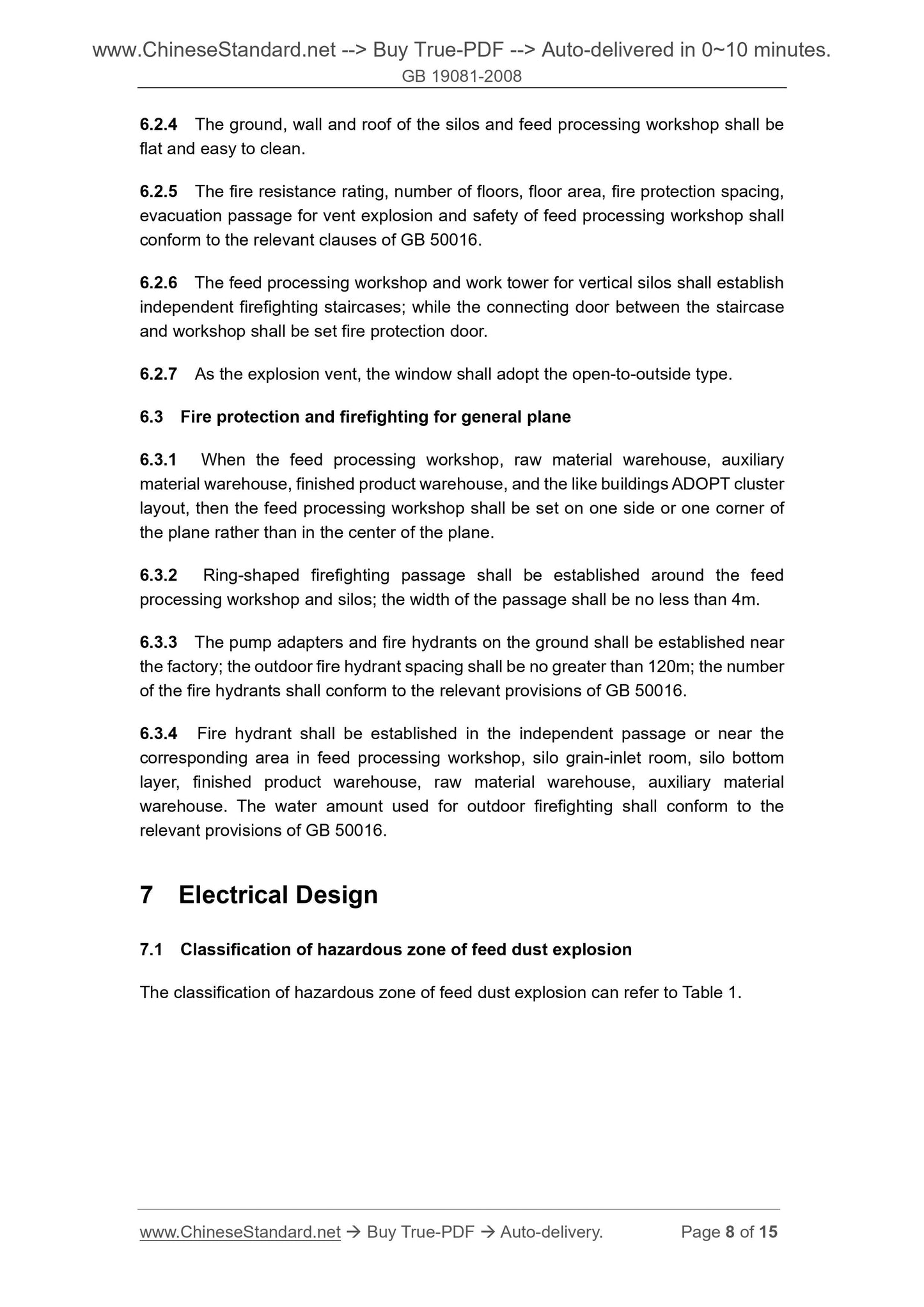

5.3 Before implementing the naked-fire operation, it shall be approved by the 6.2.4 The ground, wall and roof of the silos and feed processing workshop shall be flat and easy to clean.
6.2.5 The fire resistance rating, number of floors, floor area, fire protection spacing, evacuation passage for vent explosion and safety of feed processing workshop shall conform to the relevant clauses of GB 50016.
6.2.6 The feed processing workshop and work tower for vertical silos shall establish independent firefighting staircases; while the connecting door between the staircase and workshop shall be set fire protection door.
6.2.7 As the explosion vent, the window shall adopt the open-to-outside type. 6.3 Fire protection and firefighting for general plane
6.3.1 When the feed processing workshop, raw material warehouse, auxiliary material warehouse, finished product warehouse, and the like buildings ADOPT cluster layout, then the feed processing workshop shall be set on one side or one corner of the plane rather than in the center of the plane.
6.3.2 Ring-shaped firefighting passage shall be established around the feed processing workshop and silos; the width of the passage shall be no less than 4m. 6.3.3 The pump adapters and fire hydrants on the ground shall be established near the factory; the outdoor fire hydrant spacing shall be no greater than 120m; the number of the fire hydrants shall conform to the relevant provisions of GB 50016. 6.3.4 Fire hydrant shall be established in the independent passage or near the corresponding area in feed processing workshop, silo grain-inlet room, silo bottom layer, finished product warehouse, raw material warehouse, auxiliary material warehouse. The water amount used for outdoor firefighting shall conform to the relevant provisions of GB 50016.
7 Electrical Design
7.1 Classification of hazardous zone of feed dust explosion

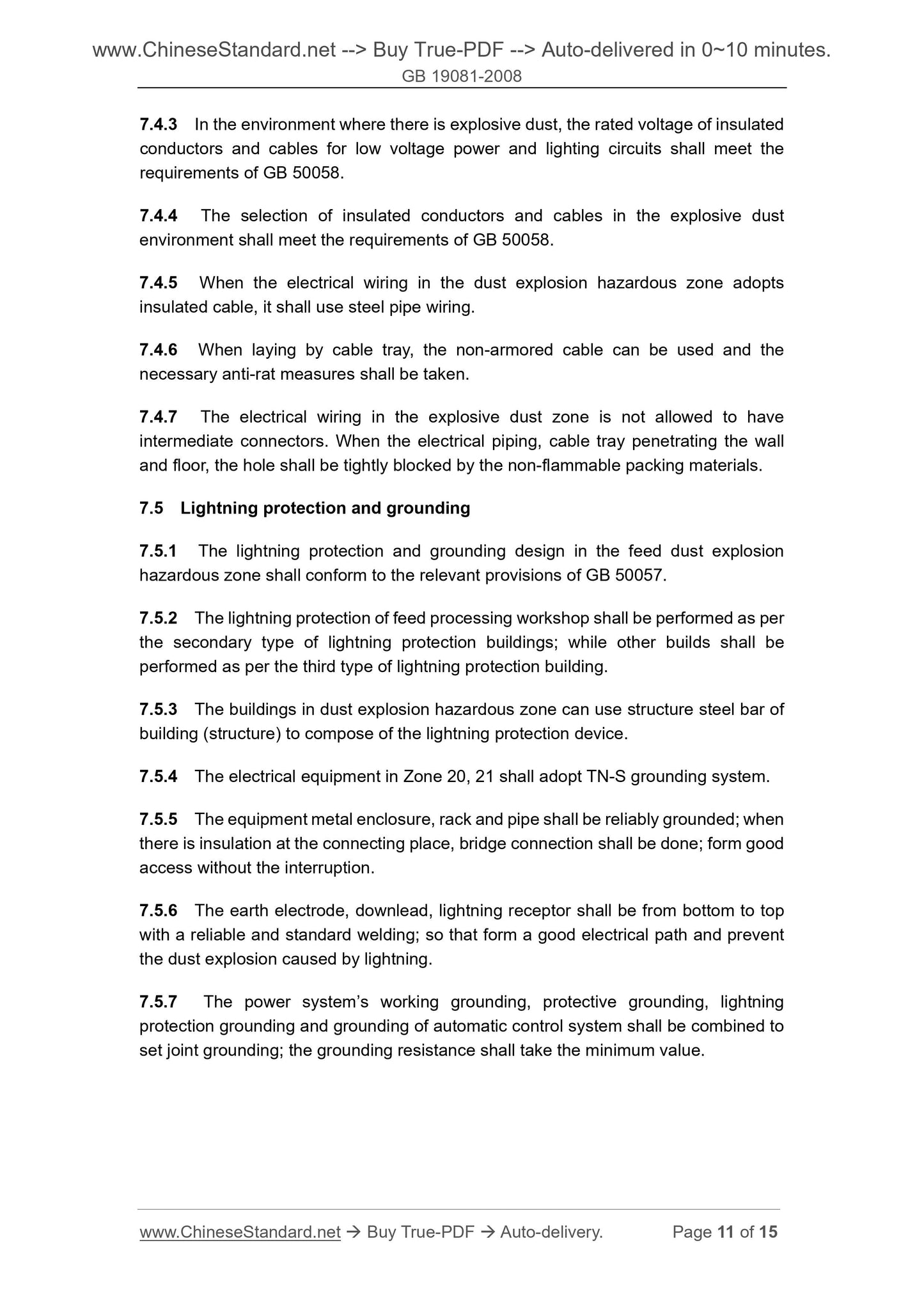

The classification of hazardous zone of feed dust explosion can refer to Table 1. 7.4.3 In the environment where there is explosive dust, the rated voltage of insulated conductors and cables for low voltage power and lighting circuits shall meet the requirements of GB 50058.
7.4.4 The selection of insulated conductors and cables in the explosive dust environment shall meet the requirements of GB 50058.
7.4.5 When the electrical wiring in the dust explosion hazardous zone adopts insulated cable, it shall use steel pipe wiring.
7.4.6 When laying by cable tray, the non-armored cable can be used and the necessary anti-rat measures shall be taken.
7.4.7 The electrical wiring in the explosive dust zone is not allowed to have intermediate connectors. When the electrical piping, cable tray penetrating the wall and floor, the hole shall be tightly blocked by the non-flammable packing materials. 7.5 Lightning protection and grounding
7.5.1 The lightning protection and grounding design in the feed dust explosion hazardous zone shall conform to the relevant provisions of GB 50057.
7.5.2 The lightning protection of feed processing workshop shall be performed as per the secondary type of lightning protection buildings; while other builds shall be performed as pe...
