GB 18499-2008: [GB/T 18499-2008] Residual current operated protective devices (RCD) for household and similar use -- Electromagnetic compatibility

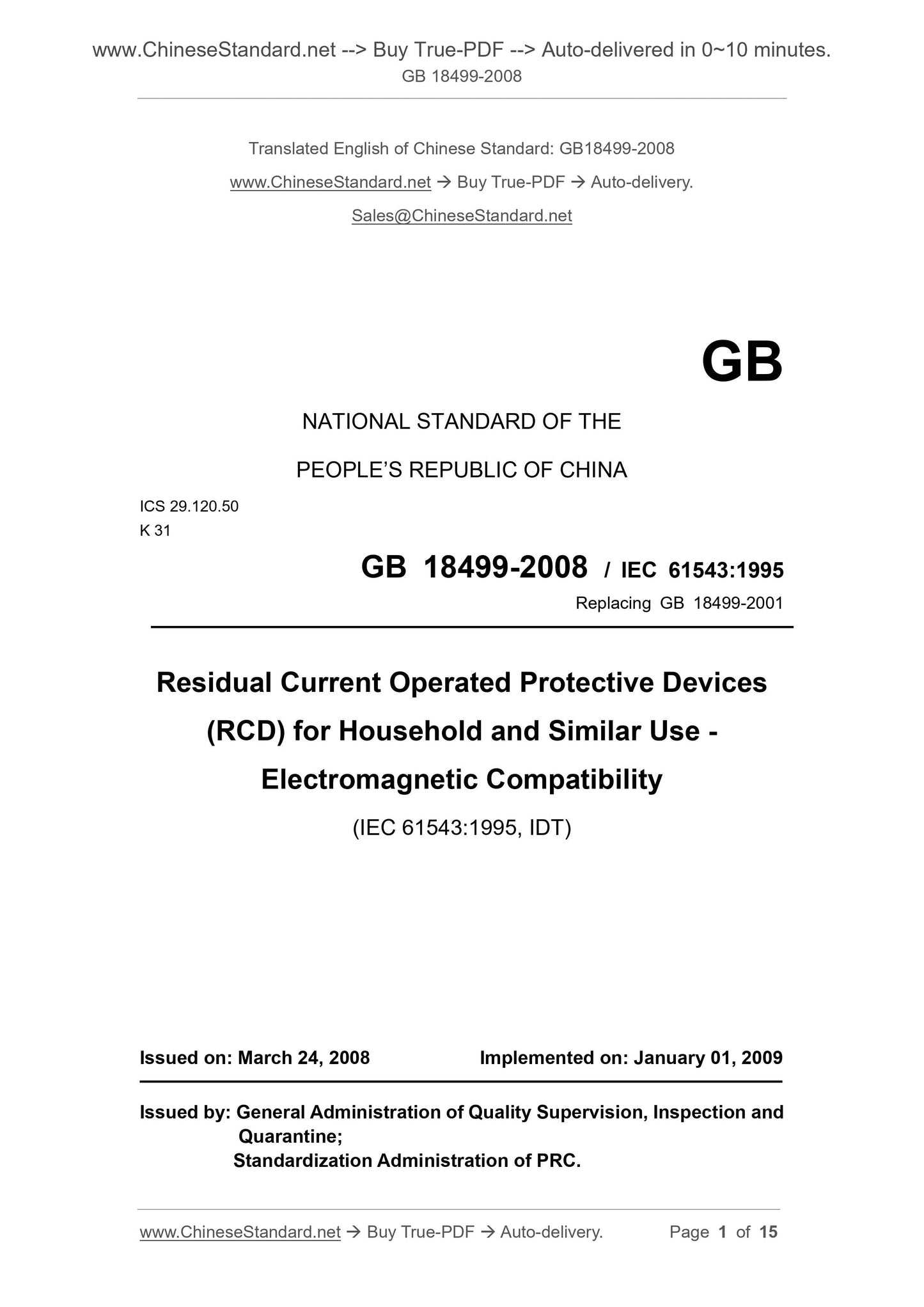

GB 18499-2008
Residual current operated protective devices (RCD) for household and similar use.Electromagnetic compatibility
ICS 29.120.50
K31
National Standards of People's Republic of China
GB 18499-2008/IEC 61543.1995
Replacing GB 18499-2001
Residual current for household and similar purposes
Protection device (RCD) Electromagnetic Compatibility
(IEC 61543.1995, IDT)
Posted 2008-03-24
2009-01-01 implementation
Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China
Standardization Administration of China released

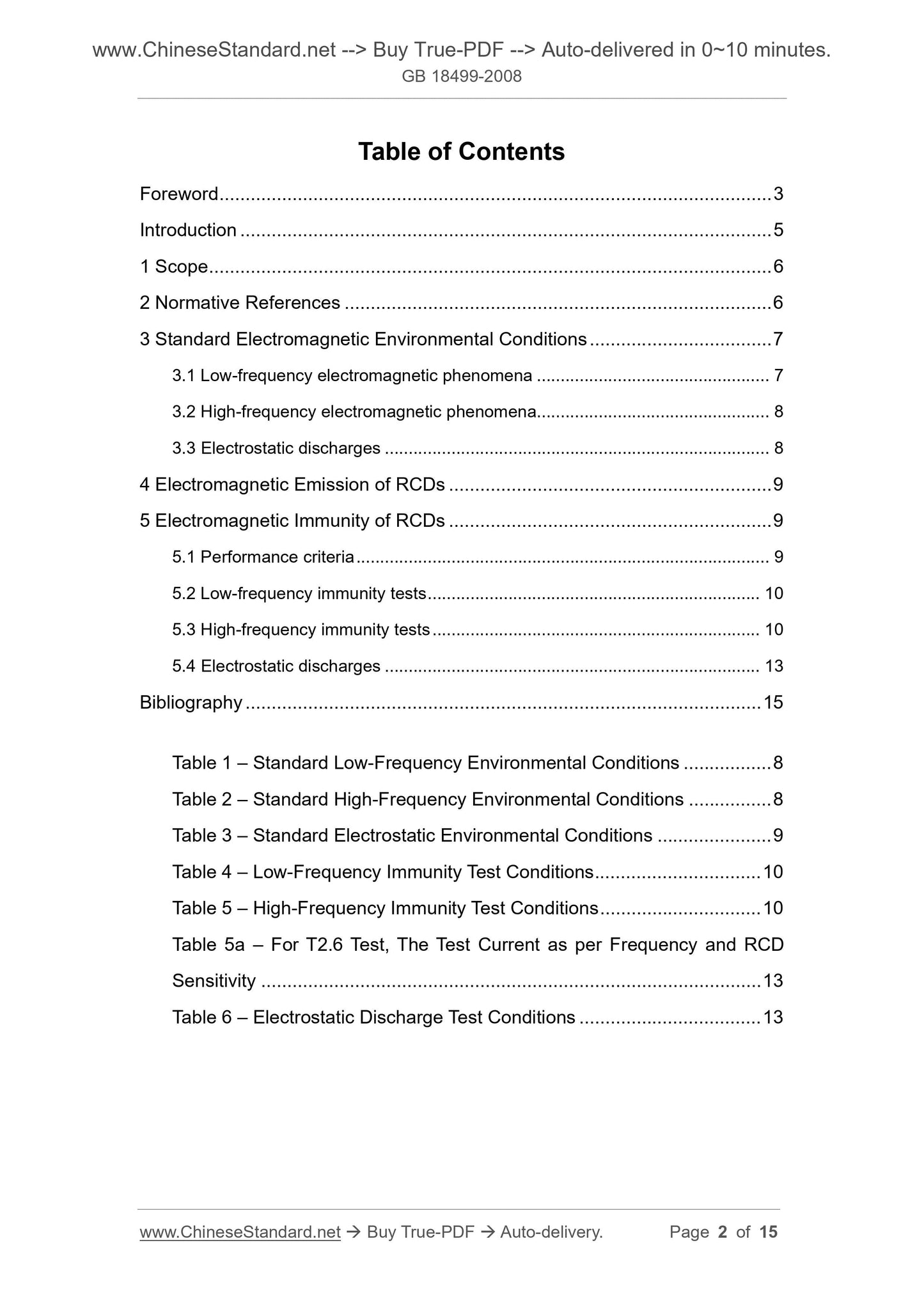

Table of Contents
Preface Ⅰ
Introduction Ⅱ
1 Scope 1
2 Normative references 1
3 standard electromagnetic environment conditions 2
3.1 low frequency electromagnetic phenomena 2
3.2 high-frequency electromagnetic phenomenon 2
3.3 Electrostatic Discharge 2
4 RCD electromagnetic emission 2
5 RCD electromagnetic immunity 3
5.1 Performance criterion 3
5.2 low frequency immunity test 3
5.3 4 high-frequency immunity test
5.4 Electrostatic Discharge 5
Reference 7
Suitable test circuit of Figure 1 Example 6
Table 1 Standard 2 low-frequency environmental conditions
Table 2 standard frequency and environmental conditions 2
Table 3 2 standard static environmental conditions
Table 4 low frequency immunity test conditions 3
Table 5 High Frequency Immunity Test Condition 4
Test current table 5a of T2.6 test according to the frequency and RCD sensitivity of 5 regulations
Table 6 Test Condition ESD 6
GB 18499-2008/IEC 61543.1995

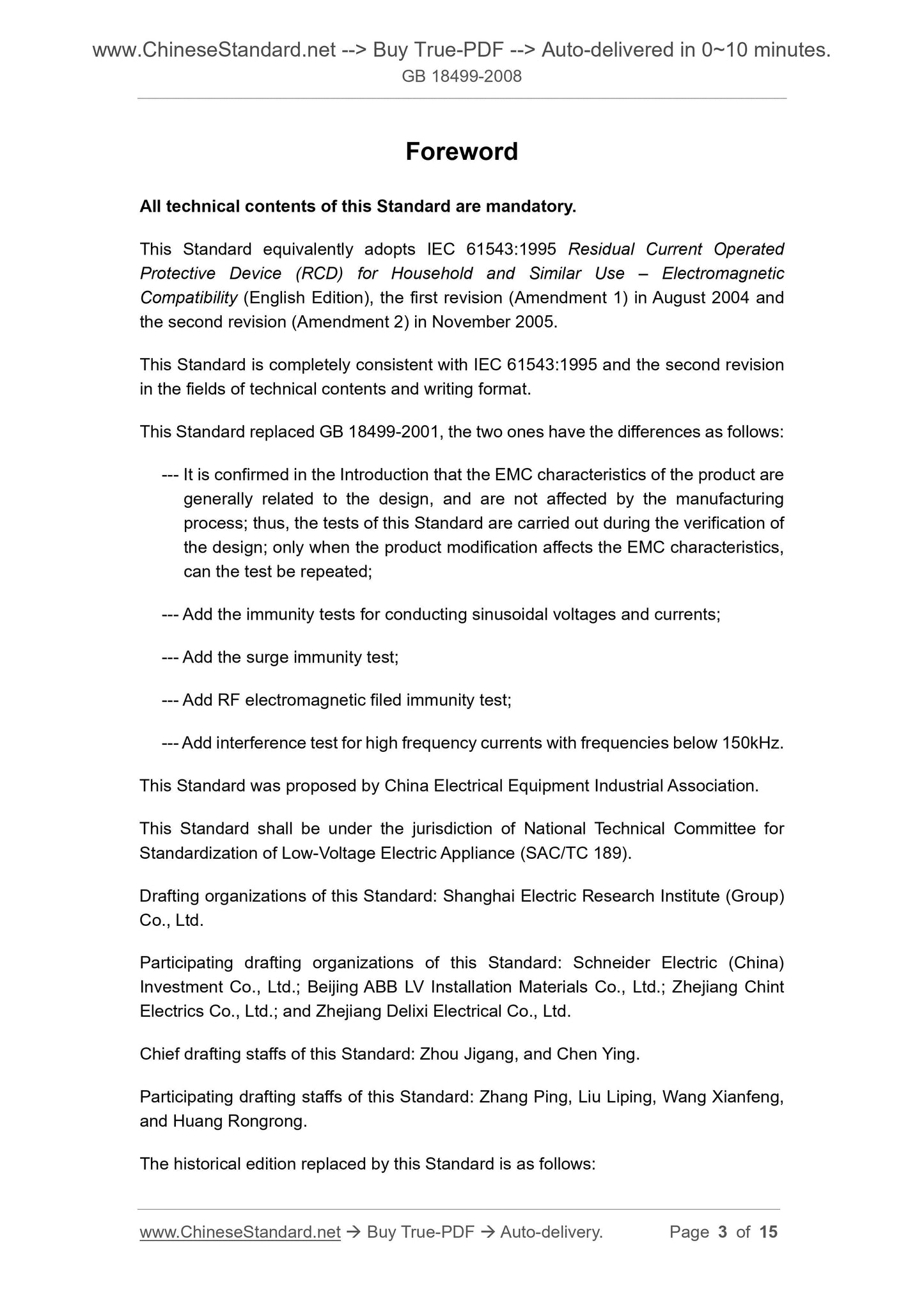

Foreword
All the technical contents of this standard is mandatory.
This standard is identical with IEC 61543.1995 "residual current protection for household and similar purposes (RCD) Electromagnetic Compatibility"
(In English), and the first revision (Rev. 1) and the second revision of November 2005 (Rev. 2) in August 2004 of.
This standard is the technical content and writing format 61543 and IEC .1995 exactly the same content and the secondary Amendment member.
This standard replaces GB 18499-2001, the main differences are as follows.
--- Clear in the introduction. EMC product features and design in general, whereas the impact of the manufacturing process is not, therefore, the standard test
Experience in the design verification carried out only when modifying their products affect EMC performance test is repeated;
--- Increased sinusoidal voltage and current conduction immunity test;
--- Increased surge immunity test;
--- Increasing the RF electromagnetic field immunity test;
--- Increased frequency of 150kHz or less interference test high-frequency current.
The standard proposed by China Electrical Equipment Industrial Association.
The low-voltage electrical standard by the National Standardization Technical Committee (SAC/TC189) centralized.
The standard by the Shanghai Electrical Apparatus Research Institute (Group) Co., Ltd. is responsible for drafting.
Participated in the drafting of this standard. Schneider Electric (China) Investment Co., Ltd., Beijing ABB Low Voltage Electric Co., Ltd., Zhejiang Chint Electric
Device Co., Ltd., Zhejiang Electric Co., West Germany.
The main drafters of this standard. Zhou Gang plot, Chen Ying.
Participation drafters of this standard. Zhang Ping, Liu Liping, Wang Xianfeng, Huang Rongrong.
This standard replaces the standard for the previous editions.
--- GB 18499-2001.
GB 18499-2008/IEC 61543.1995
introduction
This standard includes the definition, standard electromagnetic conditions, operating conditions and the use of residual current protective devices required electromagnetic tests.
When the product standards required, and this standard is applicable for use with product standards, the current applicable standards.
--- Applicable RCCB of GB 16916;
--- Applicable RCBO of GB 16917;
--- Applicable PRCD of GB 200441).
The Standard and the corresponding national standards will be published together also apply without overcurrent protection in a fixed or stationary socket outlet group
The residual current device (SRCD) installed (currently under consideration), and other overcurrent protection RCD.
EMC product features and design in general, whereas the manufacturing process is not affected, therefore, the standard tests performed in design validation,
The test is repeated only when design changes affect EMC performance.
1) IEC 61543.1995 Publishing, Portable residual current protection device (PRCD) of IEC standards and corresponding national standards are being developed,
IEC 61543.1995 is not included in the original applies PRCD standards. Now IEC 61540.1997 and CB20044-2005 "Electrical accessories
Portable residual current device (PRCD) for household and similar purposes without overcurrent protection "has been approved and promulgated and implemented, so when mining standard applicable
Criteria included. "Applies PRCD of GB 20044 standards", described below has been modified accordingly.
GB 18499-2008/IEC 61543.1995
Residual current for household and similar purposes
Protection device (RCD) Electromagnetic Compatibility

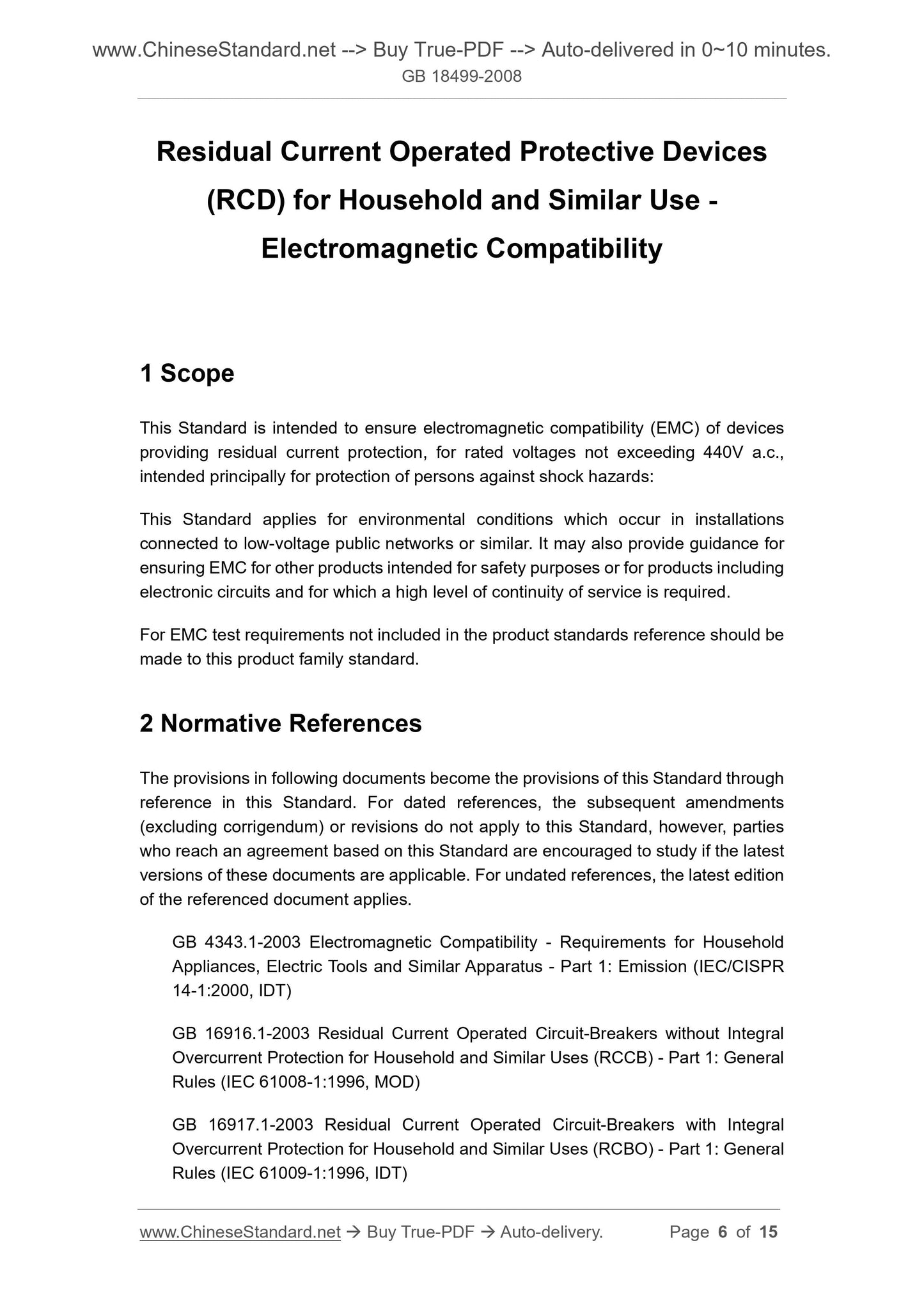

1 Scope
This standard is used to ensure that the rated voltage does not exceed AC 440V, mainly used for protection of residual current protection device to prevent the human body electric shock
Electromagnetic compatibility (EMC).
This standard applies to environmental conditions and the low public grid lines or similar facilities connected device. This standard may also be to ensure that
Other products used for safety purposes, or that contains electronic circuitry and a high degree of continuity with EMC performance requirements of the product to provide guidance.
Not included in the standard product for the EMC test requirements should refer to the product family standards.

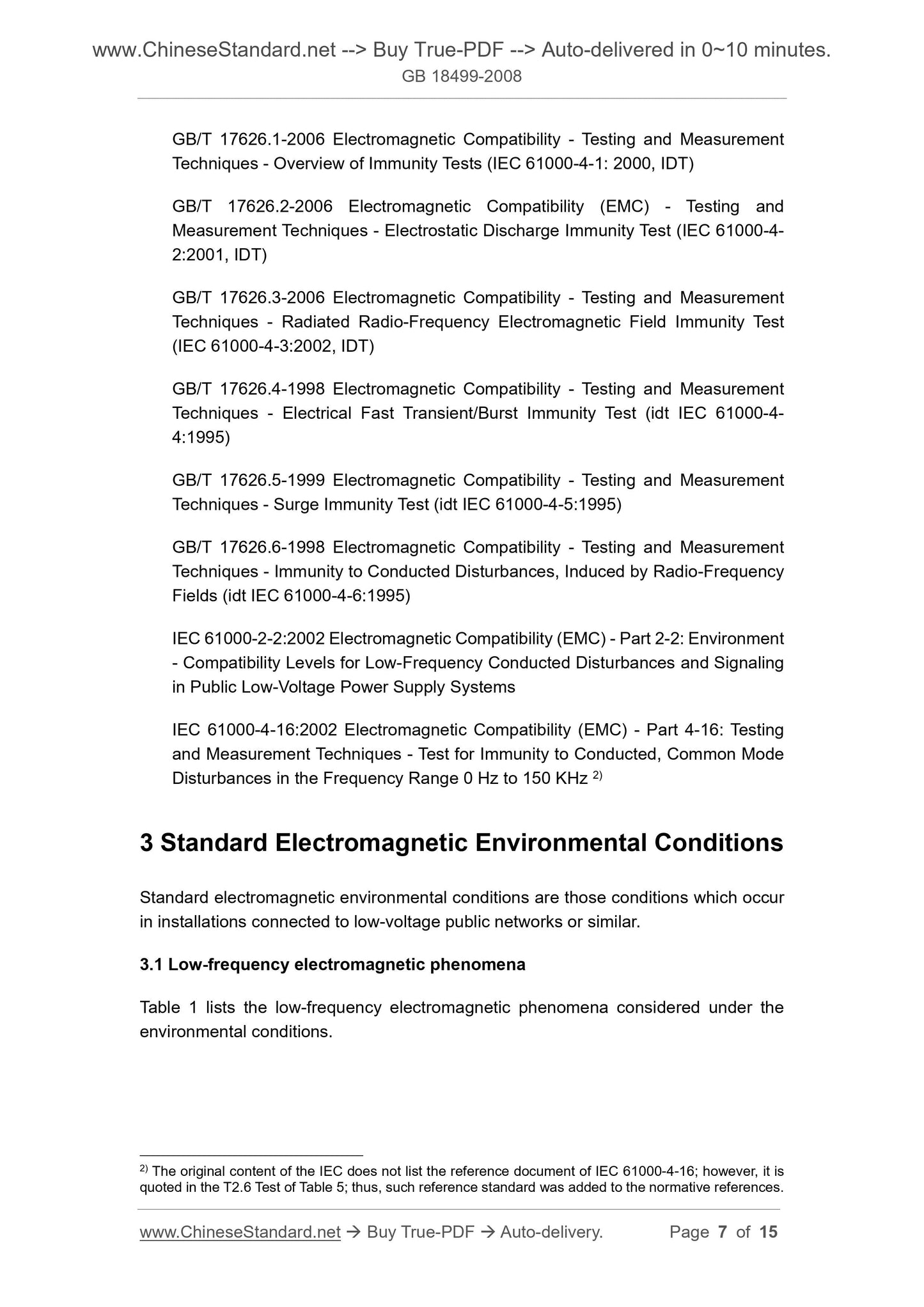

2 Normative references
The following documents contain provisions which, through reference in this standard and become the standard terms. For dated references, subsequent
Amendments (not including errata content) or revisions do not apply to this standard, however, encourage the parties to the agreement are based on research
Whether the latest versions of these documents. For undated reference documents, the latest versions apply to this standard.
GB 4343.1-2003 Electromagnetic compatibility appliances, electric tools and similar apparatus - Part 1. Emission
(IEC /CISPR14-1.2000, IDT)
(RCCB) Part 1 GB 16916.1-2003 household and similar uses overcurrent protection for residual current operated circuit breaker
Score. General rules (IEC 61008-1.1996, MOD)
(RCBO) Part 1 with GB 16917.1-2003 household and similar uses overcurrent protection for residual current operated circuit breaker
Score. General rules (IEC 61009-1.1996, IDT)
GB/T 17626.1-2006 Electromagnetic compatibility - Testing and measurement techniques - Overview of immunity tests (IEC 61000-4-1.2000,
IDT)
GB/T 17626.2-2006 Electromagnetic compatibility - Testing and measurement techniques - Electrostatic discharge immunity test (IEC 61000-4-2.
2001, IDT)
GB/T 17626.3-2006 Electromagnetic compatibility - Testing and measurement techniques RFEMS test (IEC 61000-4-
3.2002, IDT)
GB/T 17626.4-1998 Electromagnetic compatibility - Testing and measurement techniques - Electrical fast transient burst immunity test
(Idt IEC 61000-4-4.1995)
GB/T 17626.5-1999 Electromagnetic compatibility - Testing and measurement techniques - Surge (impact) immunity test (idt IEC 61000-4-5.
1995)
GB/T 17626.6-1998 Electromagnetic compatibility - Testing and measurement techniques Immunity to conducted disturbances i...
