GB 18241.1-2014: [GB/T 18241.1-2014] Rubber lining -- Part 1: Anticorrosion lining for equipment

This Part specifies the terms and definitions, classification and product marking, requirements, test methods, inspection rules as well as marks, packaging, transport and storage of rubber anti-corrosion lining. This Part is applicable to the rubber lining fit in the lining equipment to prevent equipment from being corroded by media.

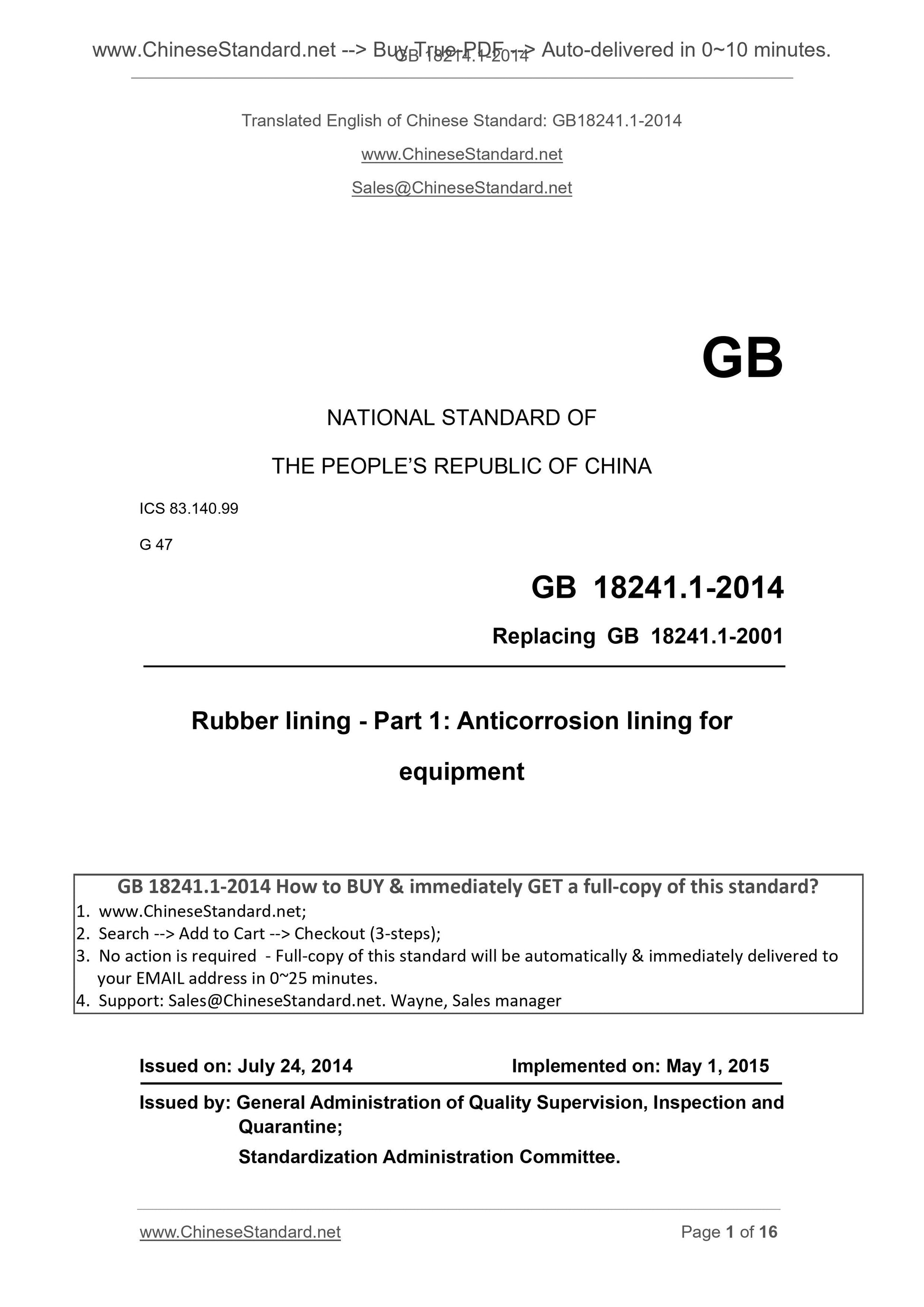

GB 18214.1-2014
GB
NATIONAL STANDARD OF
THE PEOPLE REPUBLIC OF CHINA
ICS 83.140.99
G 47
Replacing GB 18241.1-2001
Rubber lining - Part 1. Anticorrosion lining for
equipment
ISSUED ON. JULY 24, 2014
IMPLEMENTED ON. MAY 1, 2015
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration Committee.

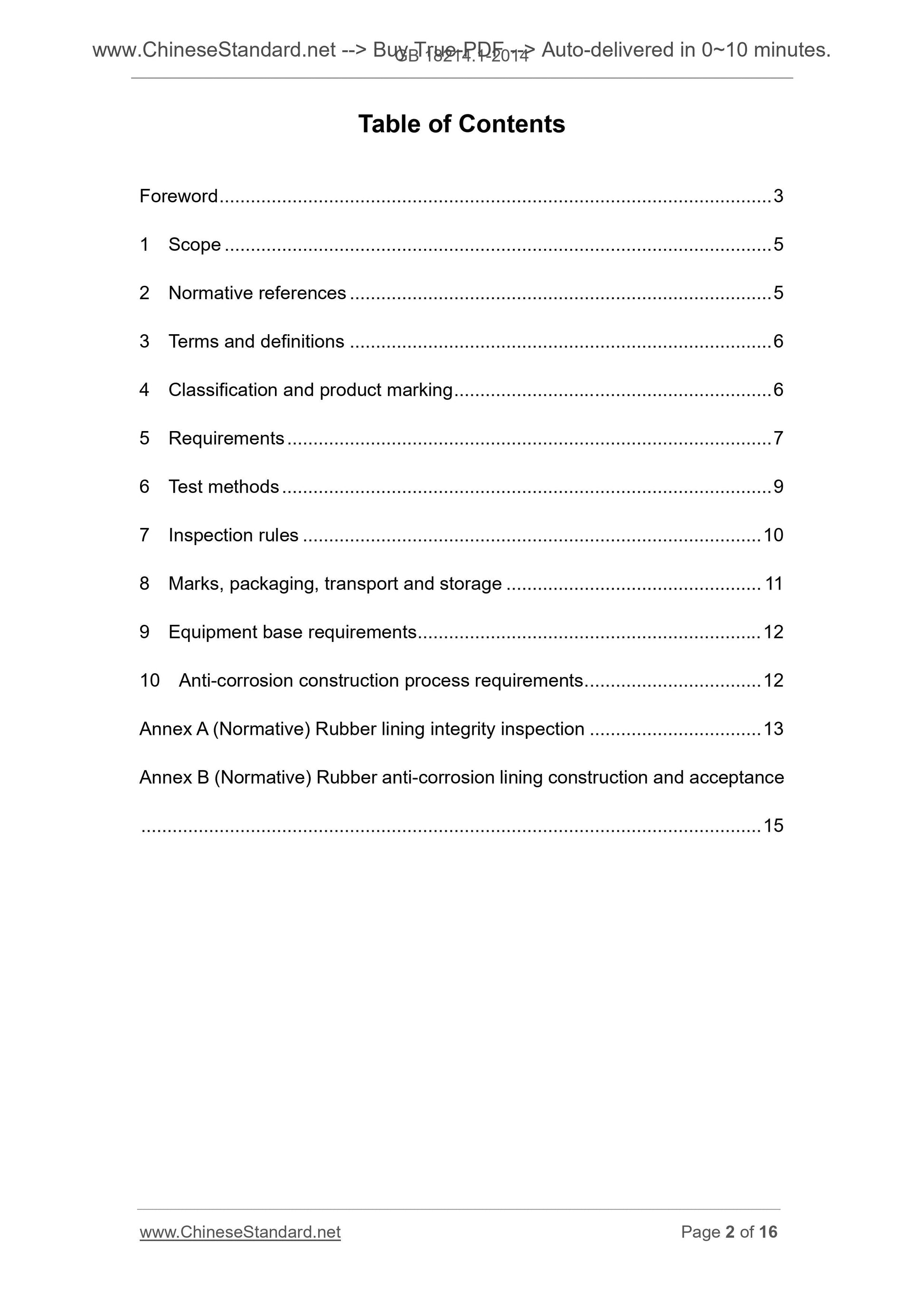

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 Classification and product marking ... 6
5 Requirements ... 7
6 Test methods ... 9
7 Inspection rules ... 10
8 Marks, packaging, transport and storage ... 11
9 Equipment base requirements ... 12
10 Anti-corrosion construction process requirements ... 12
Annex A (Normative) Rubber lining integrity inspection ... 13

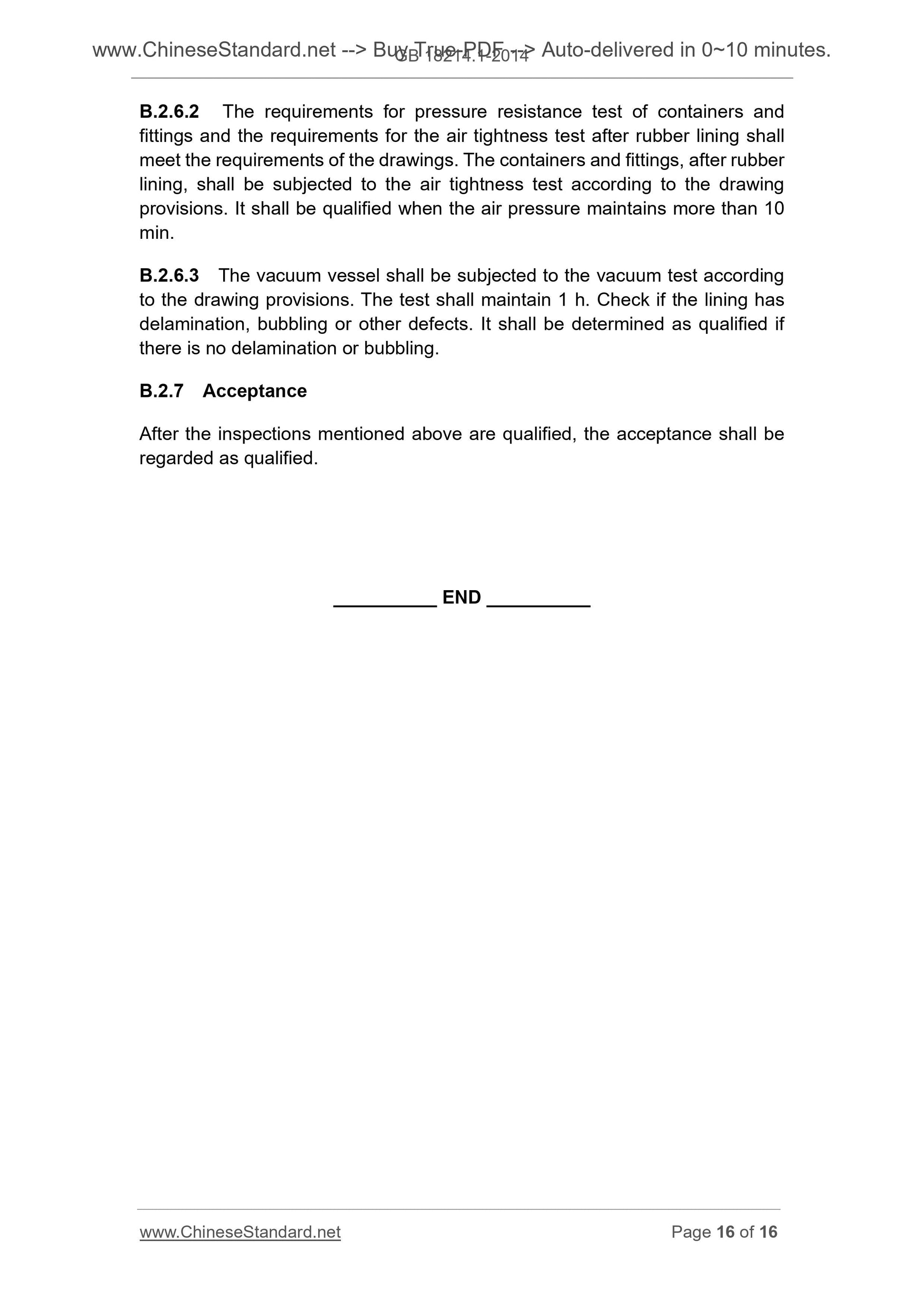

Annex B (Normative) Rubber anti-corrosion lining construction and acceptance ... 15

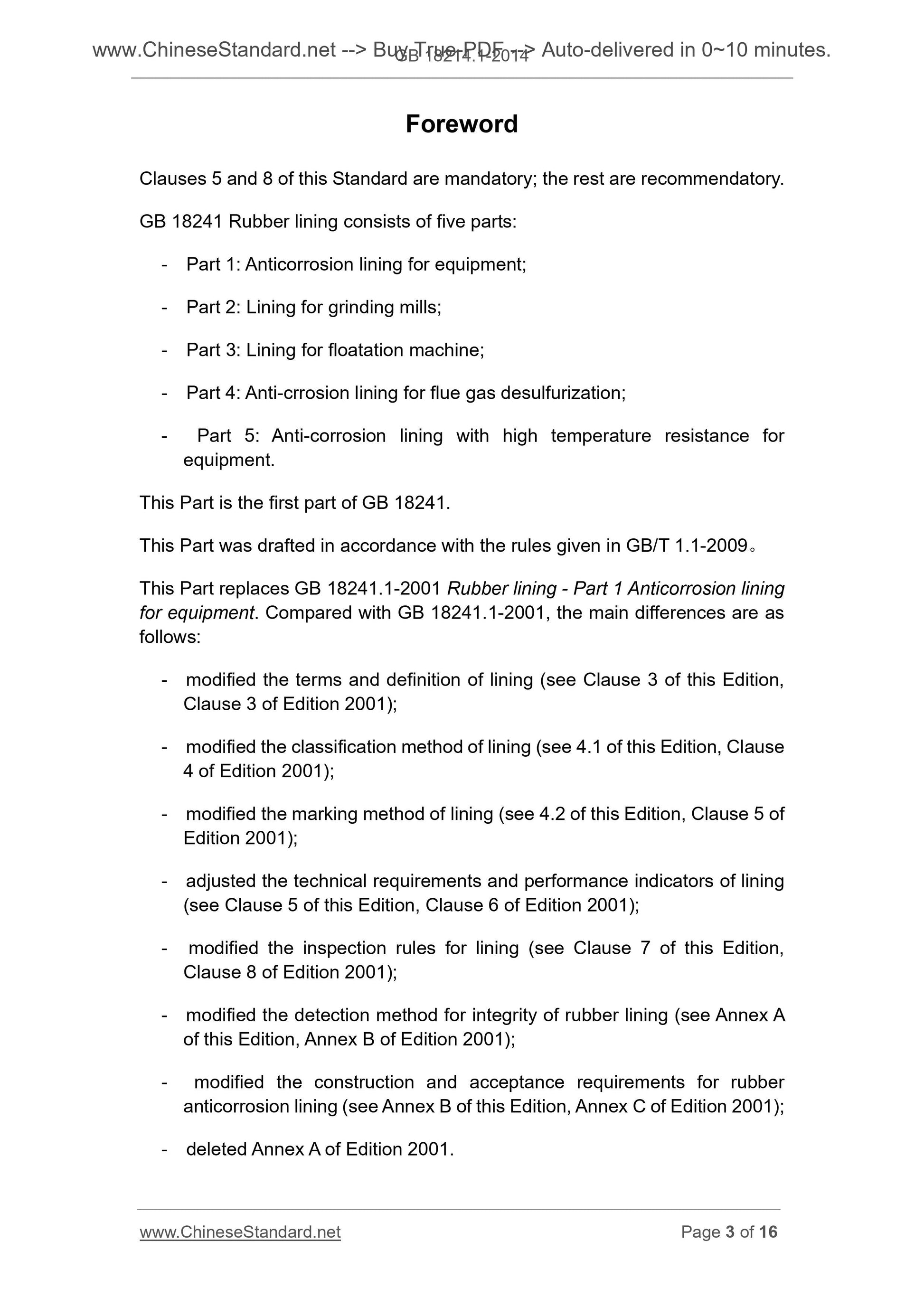

Foreword
Clauses 5 and 8 of this Standard are mandatory; the rest are recommendatory. GB 18241 Rubber lining consists of five parts.
- Part 1. Anticorrosion lining for equipment;
- Part 2. Lining for grinding mills;
- Part 3. Lining for floatation machine;
- Part 4. Anti-crrosion lining for flue gas desulfurization;
- Part 5. Anti-corrosion lining with high temperature resistance for
equipment.
This Part is the first part of GB 18241.
This Part was drafted in accordance with the rules given in GB/T 1.1-2009. This Part replaces GB 18241.1-2001 Rubber lining - Part 1 Anticorrosion lining for equipment. Compared with GB 18241.1-2001, the main differences are as follows.
- modified the terms and definition of lining (see Clause 3 of this Edition, Clause 3 of Edition 2001);
- modified the classification method of lining (see 4.1 of this Edition, Clause 4 of Edition 2001);
- modified the marking method of lining (see 4.2 of this Edition, Clause 5 of Edition 2001);
- adjusted the technical requirements and performance indicators of lining (see Clause 5 of this Edition, Clause 6 of Edition 2001);
- modified the inspection rules for lining (see Clause 7 of this Edition, Clause 8 of Edition 2001);
- modified the detection method for integrity of rubber lining (see Annex A of this Edition, Annex B of Edition 2001);
- modified the construction and acceptance requirements for rubber
anticorrosion lining (see Annex B of this Edition, Annex C of Edition 2001); - deleted Annex A of Edition 2001.

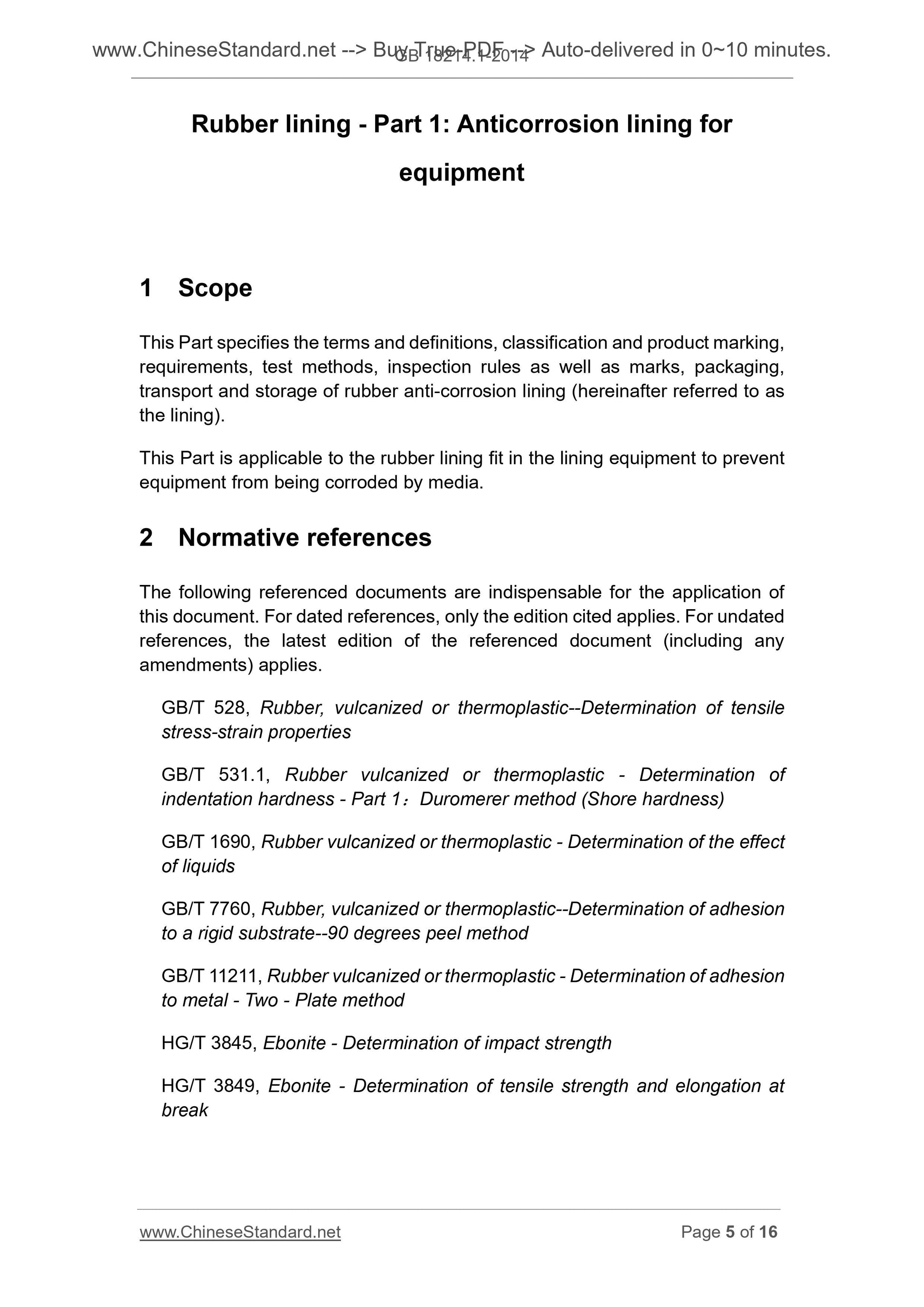

Rubber lining - Part 1. Anticorrosion lining for
equipment
1 Scope
This Part specifies the terms and definitions, classification and product marking, requirements, test methods, inspection rules as well as marks, packaging, transport and storage of rubber anti-corrosion lining (hereinafter referred to as the lining).
This Part is applicable to the rubber lining fit in the lining equipment to prevent equipment from being corroded by media.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
GB/T 528, Rubber, vulcanized or thermoplastic--Determination of tensile stress-strain properties
GB/T 531.1, Rubber vulcanized or thermoplastic - Determination of
indentation hardness - Part 1. Duromerer method (Shore hardness)
GB/T 1690, Rubber vulcanized or thermoplastic - Determination of the effect of liquids
GB/T 7760, Rubber, vulcanized or thermoplastic--Determination of adhesion to a rigid substrate--90 degrees peel method
GB/T 11211, Rubber vulcanized or thermoplastic - Determination of adhesion to metal - Two - Plate method
HG/T 3845, Ebonite - Determination of impact strength
HG/T 3849, Ebonite - Determination of tensile strength and elongation at break

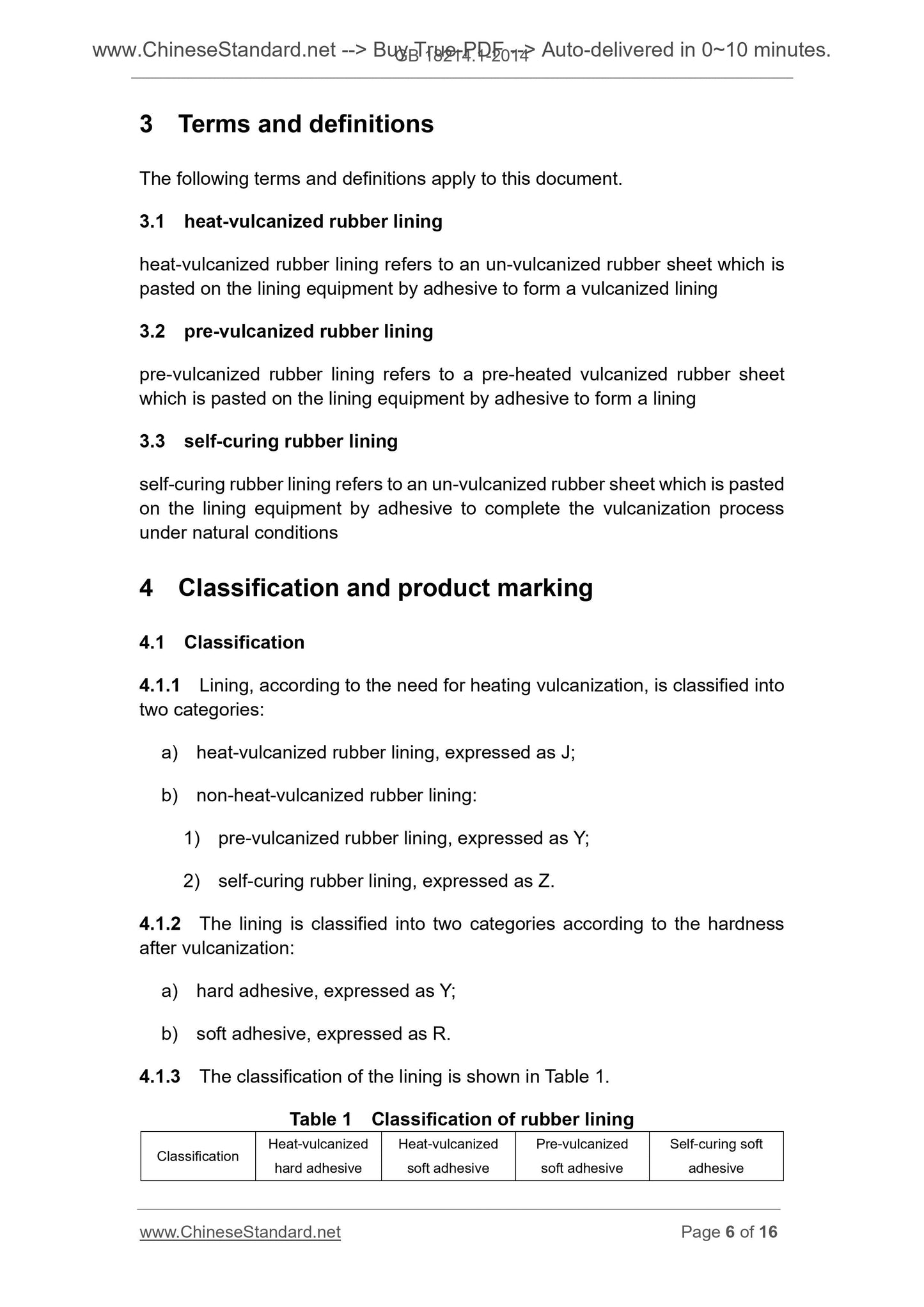

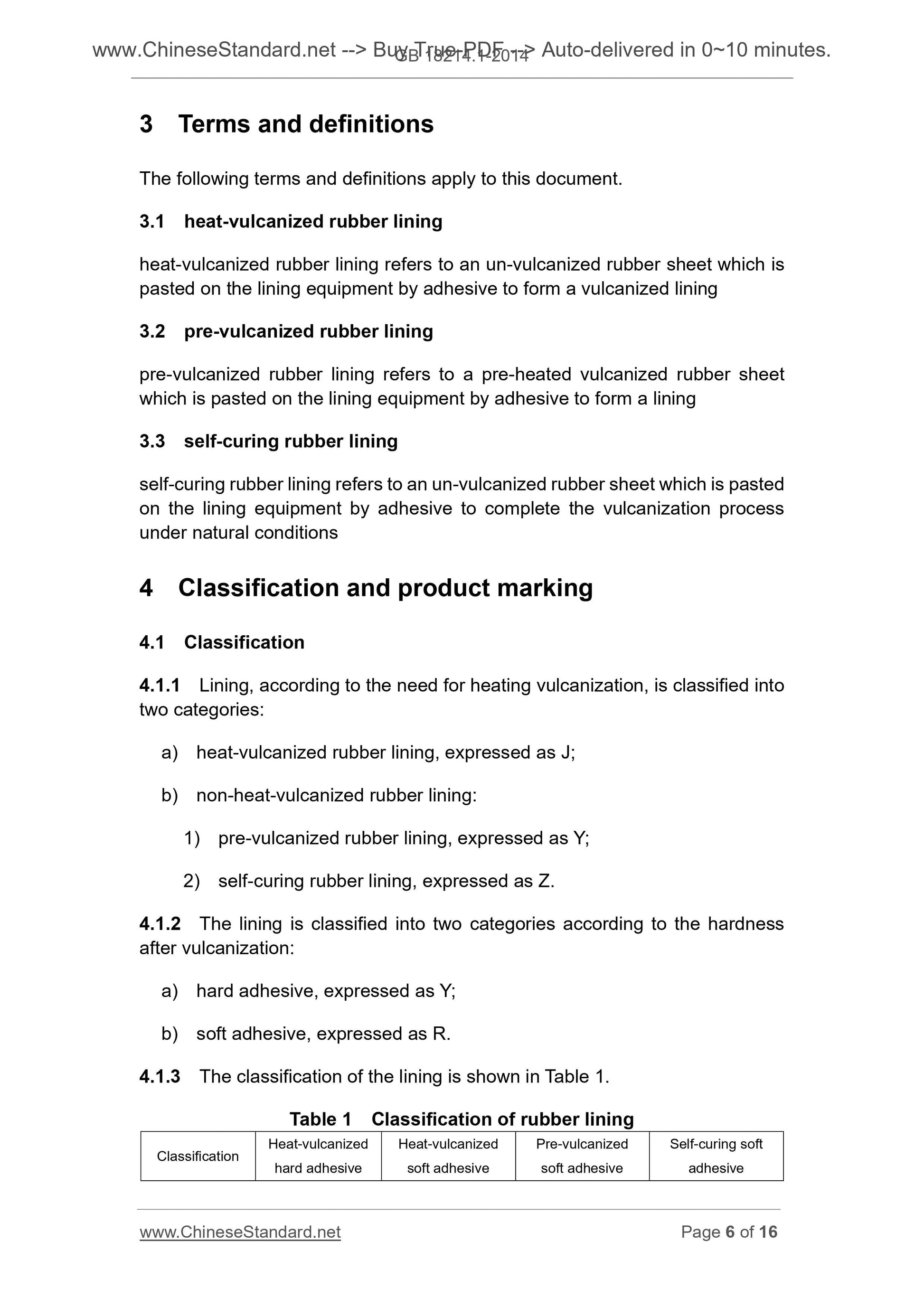

3 Terms and definitions
The following terms and definitions apply to this document.
3.1 heat-vulcanized rubber lining
heat-vulcanized rubber lining refers to an un-vulcanized rubber sheet which is pasted on the lining equipment by adhesive to form a vulcanized lining
3.2 pre-vulcanized rubber lining
pre-vulcanized rubber lining refers to a pre-heated vulcanized rubber sheet which is pasted on the lining equipment by adhesive to form a lining
3.3 self-curing rubber lining
self-curing rubber lining refers to an un-vulcanized rubber sheet which is pasted on the lining equipment by adhesive to complete the vulcanization process under natural conditions
4 Classification and product marking
4.1 Classification
4.1.1 Lining, according to the need for heating vulcanization, is classified into two categories.
a) heat-vulcanized rubber lining, expressed as J;
b) non-heat-vulcanized rubber lining.
1) pre-vulcanized rubber lining, expressed as Y;
2) self-curing rubber lining, expressed as Z.
4.1.2 The lining is classified into two categories according to the hardness after vulcanization.
a) hard adhesive, expressed as Y;
b) soft adhesive, expressed as R.
4.1.3 The classification of the lining is shown in Table 1.
Table 1 Classification of rubber lining
Classification Heat-vulcanized hard adhesive
Heat-vulcanized
soft adhesive
Pre-vulcanized
soft adhesive
Self-curing soft
adhesive

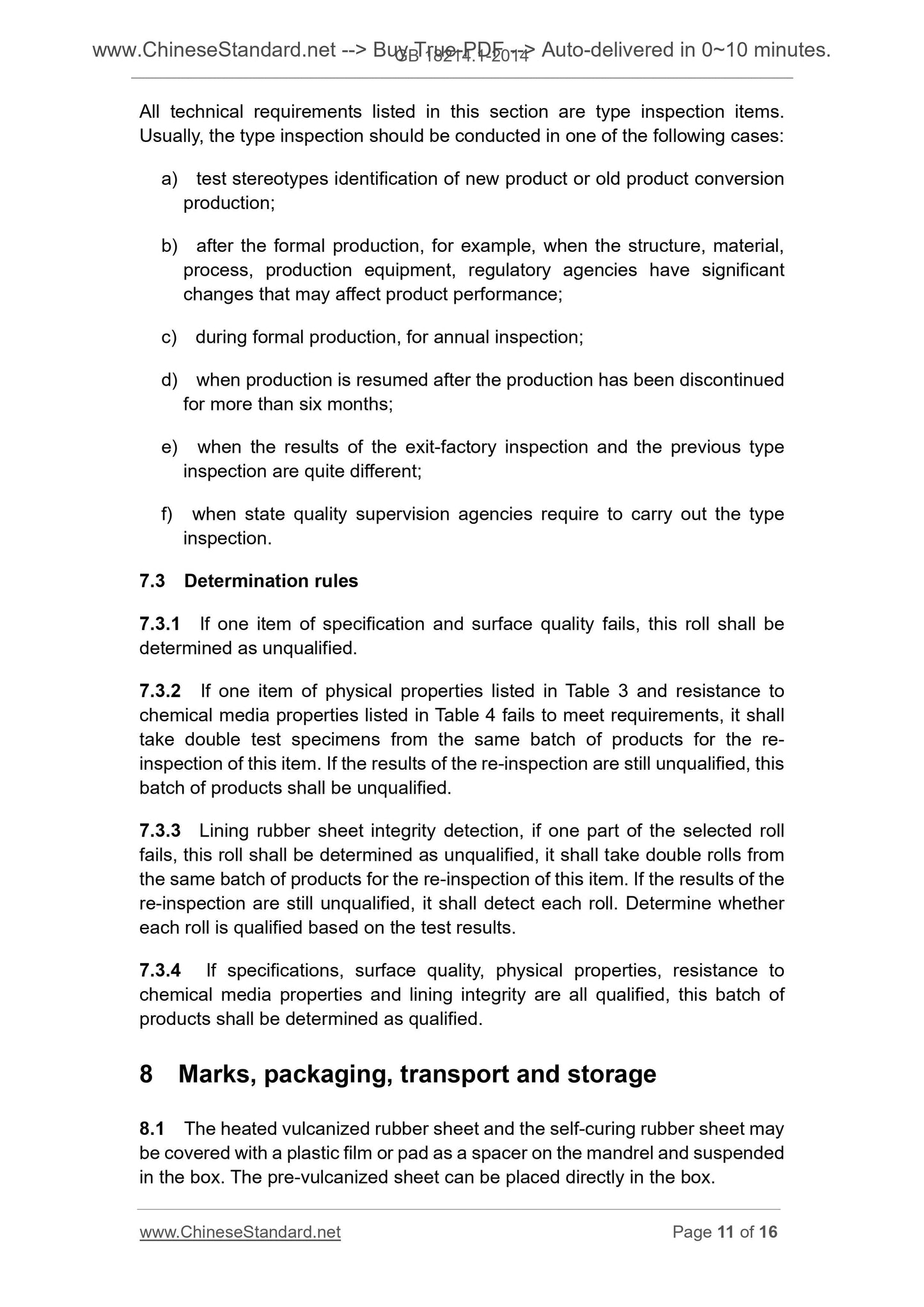

All technical requirements listed in this section are type inspection items. Usually, the type inspection should be conducted in one of the following cases. a) test stereotypes identification of new product or old product conversion production;
b) after the formal production, for example, when the structure, material, process, production equipment, regulatory agencies have significant
changes that may affect product performance;
c) during formal production, for annual inspection;
d) when production is resumed after the production has been discontinued for more than six months;
e) when the results of the exit-factory inspection and the previous type inspection are quite different;
f) when state quality supervision agencies require to carry out the type inspection.
7.3 Determination rules
7.3.1 If one item of specification and surface quality fails, this roll shall be determined as unqualified.
7.3.2 If one item of physical properties listed in Table 3 and resistance to chemical media properties listed in Table 4 fails to meet requirements, it shall take double test specimens from the same batch of products for the re-
inspection of this item. If the results of the re-inspection are still unqualified, this batch of products shall be unqualified.
7.3.3 Lining rubber sheet integrity detection, if one part of the selected roll fails, this roll shall be determined as unqualified, it shall take double rolls from the same batch of products for the re-inspection of this item. If the results of the re-inspection are still unqualified, it shall detect each roll. Determine whether each roll is qualified based on the test results.
7.3.4 If specifications, surface quality, physical properties, resistance to chemical media properties and lining integrity are all qualified, this batch of products shall be determined as qualified.
8 Marks, packaging, transport and storage

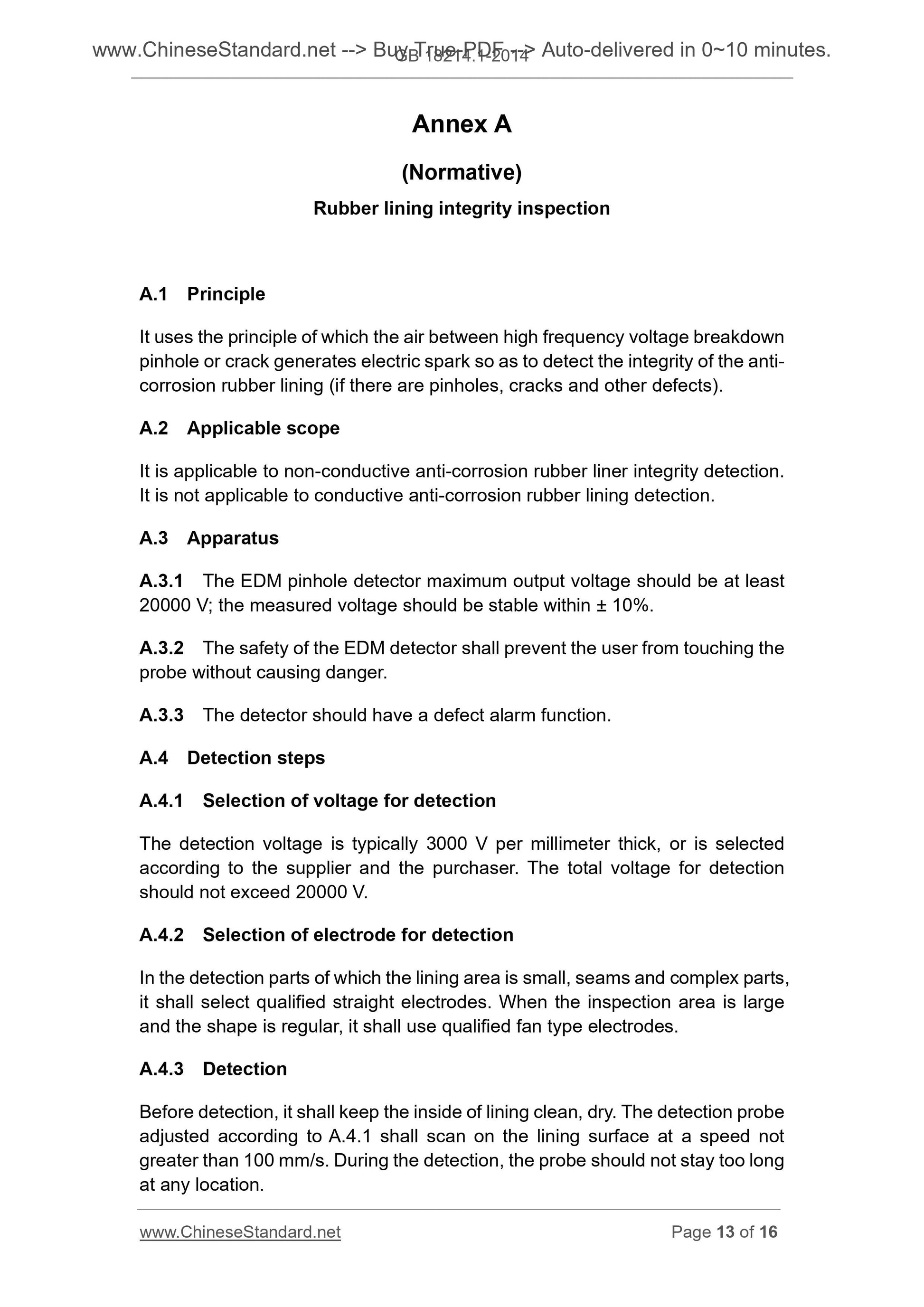

8.1 The heated vulcanized rubber sheet and the self-curing rubber sheet may be covered with a plastic film or pad as a spacer on the mandrel and suspended in the box. The pre-vulcanized sheet can be placed directly in the box. Annex A
(Normative)
Rubber lining integrity inspection
A.1 Principle
It uses the principle of which the air between high frequency voltage breakdown pinhole or crack generates electric spark so as to detect the integrity of the anti- corrosion rubber lining (if there are pinholes, cracks and other defects). A.2 Applicable scope
It is applicable to non-conductive anti-corrosion rubber liner integrity detection. It is not applicable to conductive anti-corrosion rubber lining detection. A.3 Apparatus
A.3.1 The EDM pinhole detector maximum output voltage should be at least 20000 V; the measured voltage should be stable within ?? 10%.
A.3.2 The safety of the EDM detector shall prevent the user from touching the probe without causing danger.
A.3.3 The detector should have a defect alarm function.
A.4 Detection steps
A.4.1 Selection of voltage for detection
The detection voltage is typically 3000 V per millimeter thick, or is selected according to the supplier and the purchaser. The total voltage for detection should not exceed 20000 V.
A.4.2 Selection of electrode for detection
In the detection parts of which the lining area is small, seams and complex parts, it shall select qualified straight electrodes. When the inspection area is large and the shape is regular, it shall use qualified fan type electrodes.
A.4.3 Detection
Before detection, it shall ...
