GB 18173.1-2012: [GB/T 18173.1-2012] Polymer water-proof materials -- Part 1: Water-proof sheet

This Part of GB 18173 specifies the terms and definitions, classification and markings, requirements, test methods, inspection rules, symbols, packaging, transportation and storage of the water-proof sheets made of polymer waterproof materials.

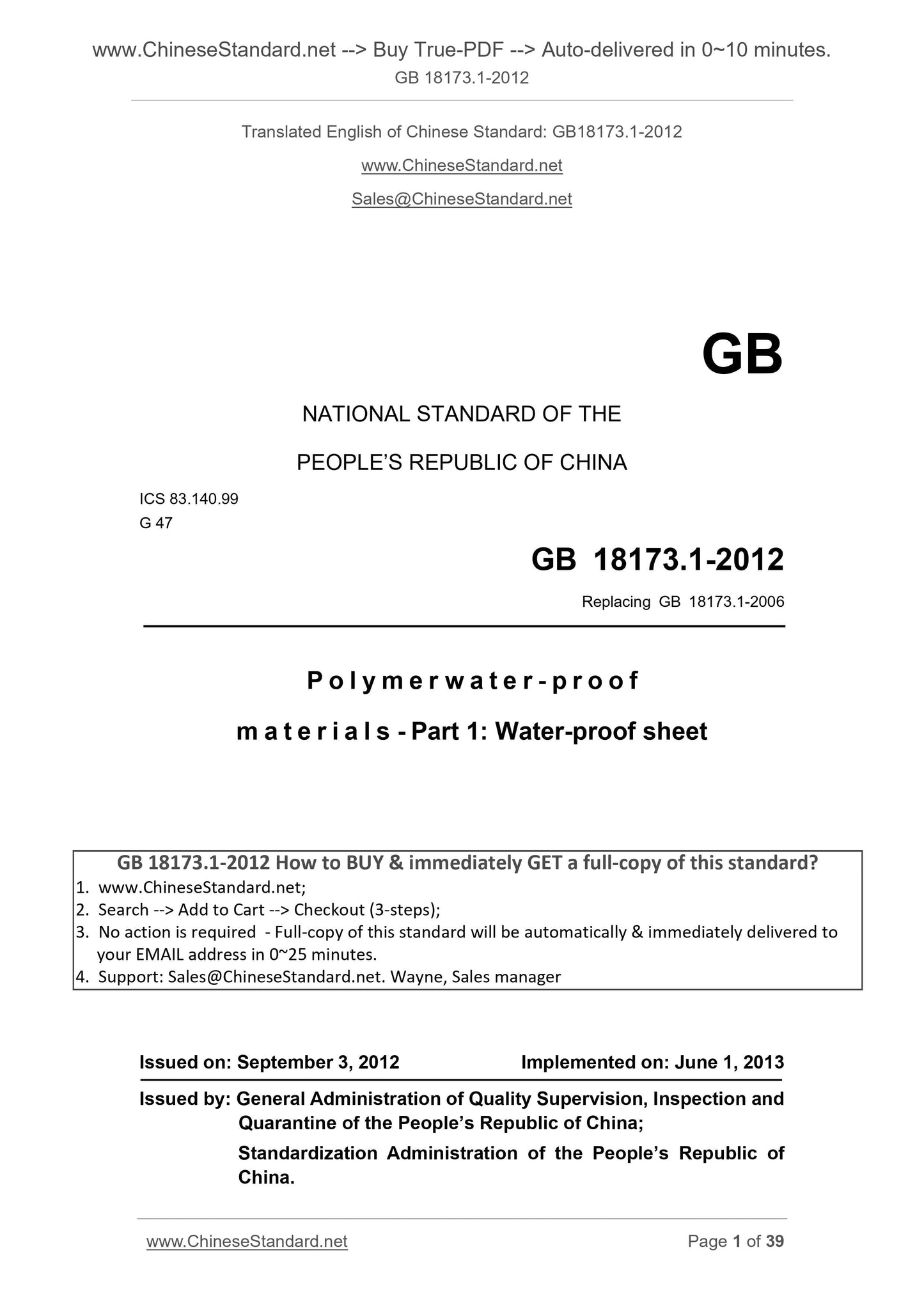

GB 18173.1-2012
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 83.140.99
G 47
Replacing GB 18173.1-2006
Polymer water-proof materials -
Part 1. Water-proof sheet
ISSUED ON. SEPTEMBER 3, 2012
IMPLEMENTED ON. JUNE 1, 2013
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the PEOPLE Republic of China;
Standardization Administration of the PEOPLE Republic of
China.

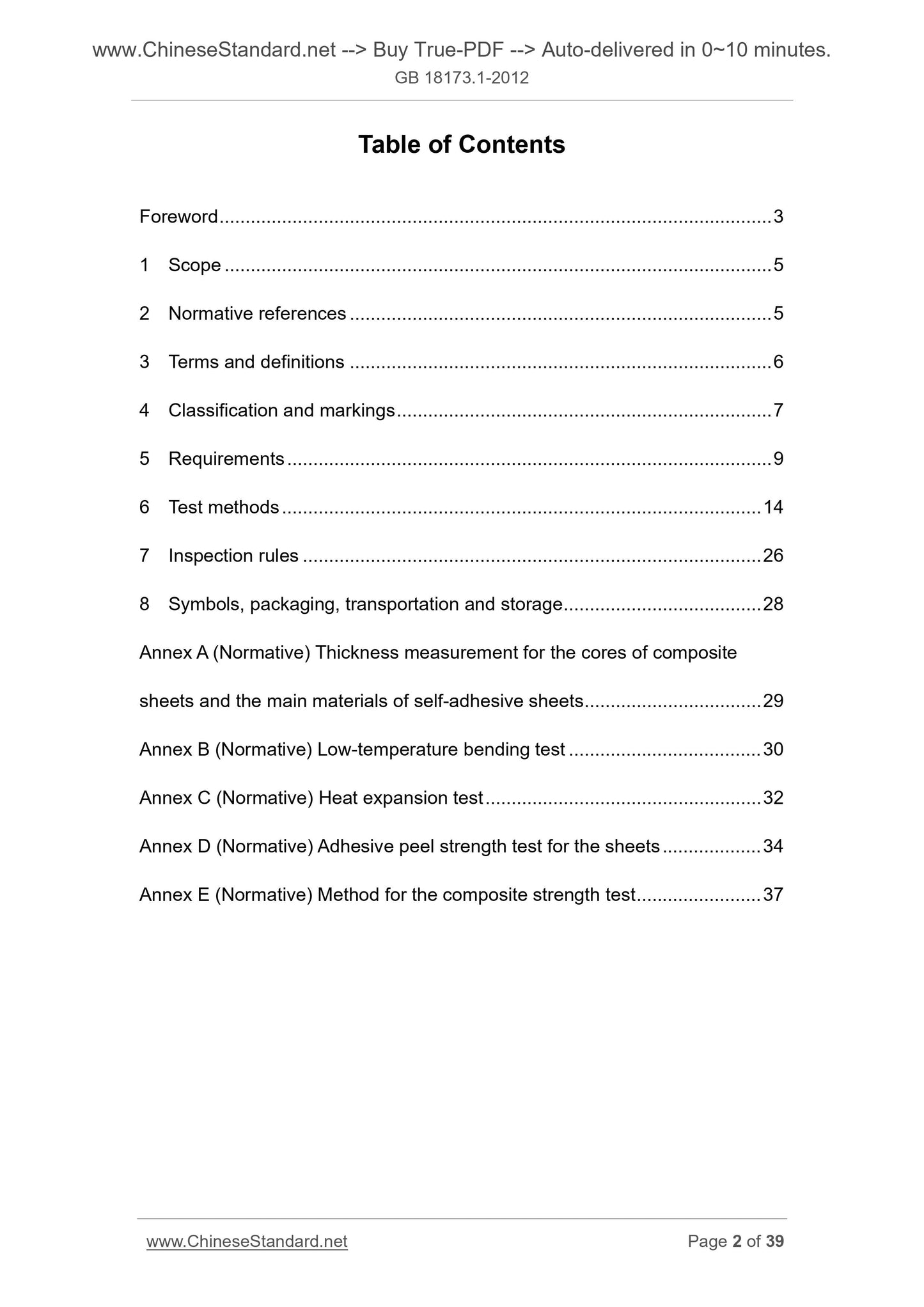

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 Classification and markings ... 7
5 Requirements ... 9
6 Test methods ... 14
7 Inspection rules ... 26
8 Symbols, packaging, transportation and storage ... 28
Annex A (Normative) Thickness measurement for the cores of composite
sheets and the main materials of self-adhesive sheets ... 29
Annex B (Normative) Low-temperature bending test ... 30
Annex C (Normative) Heat expansion test ... 32
Annex D (Normative) Adhesive peel strength test for the sheets ... 34
Annex E (Normative) Method for the composite strength test ... 37

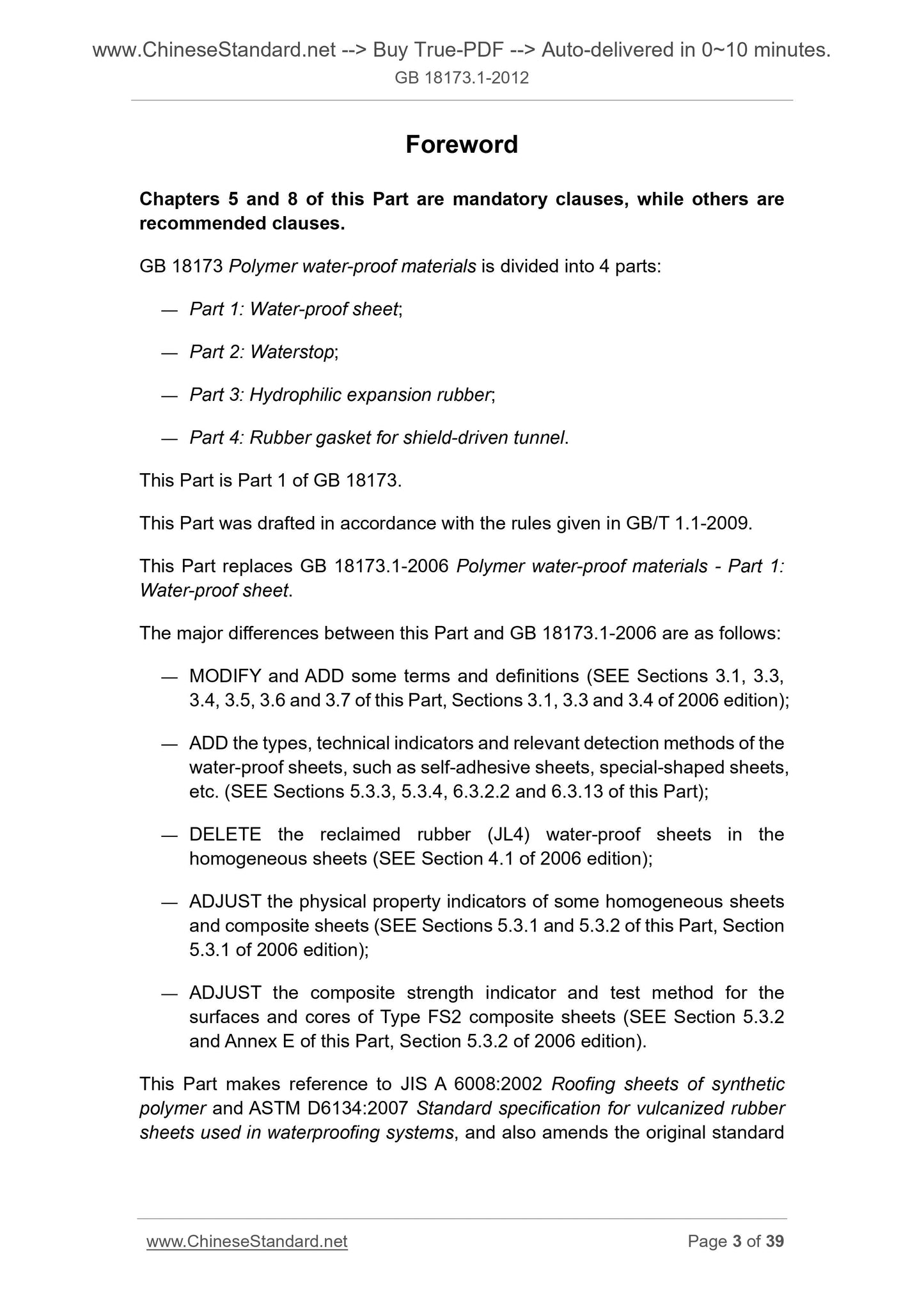

Foreword
Chapters 5 and 8 of this Part are mandatory clauses, while others are
recommended clauses.
GB 18173 Polymer water-proof materials is divided into 4 parts.
?€? Part 1. Water-proof sheet;
?€? Part 2. Waterstop;
?€? Part 3. Hydrophilic expansion rubber;
?€? Part 4. Rubber gasket for shield-driven tunnel.
This Part is Part 1 of GB 18173.
This Part was drafted in accordance with the rules given in GB/T 1.1-2009. This Part replaces GB 18173.1-2006 Polymer water-proof materials - Part 1. Water-proof sheet.
The major differences between this Part and GB 18173.1-2006 are as follows. ?€? MODIFY and ADD some terms and definitions (SEE Sections 3.1, 3.3,
3.4, 3.5, 3.6 and 3.7 of this Part, Sections 3.1, 3.3 and 3.4 of 2006 edition); ?€? ADD the types, technical indicators and relevant detection methods of the water-proof sheets, such as self-adhesive sheets, special-shaped sheets, etc. (SEE Sections 5.3.3, 5.3.4, 6.3.2.2 and 6.3.13 of this Part);
?€? DELETE the reclaimed rubber (JL4) water-proof sheets in the
homogeneous sheets (SEE Section 4.1 of 2006 edition);
?€? ADJUST the physical property indicators of some homogeneous sheets
and composite sheets (SEE Sections 5.3.1 and 5.3.2 of this Part, Section 5.3.1 of 2006 edition);
?€? ADJUST the composite strength indicator and test method for the
surfaces and cores of Type FS2 composite sheets (SEE Section 5.3.2
and Annex E of this Part, Section 5.3.2 of 2006 edition).
This Part makes reference to JIS A 6008.2002 Roofing sheets of synthetic polymer and ASTM D6134.2007 Standard specification for vulcanized rubber sheets used in waterproofing systems, and also amends the original standard Polymer water-proof materials -
Part 1. Water-proof sheet

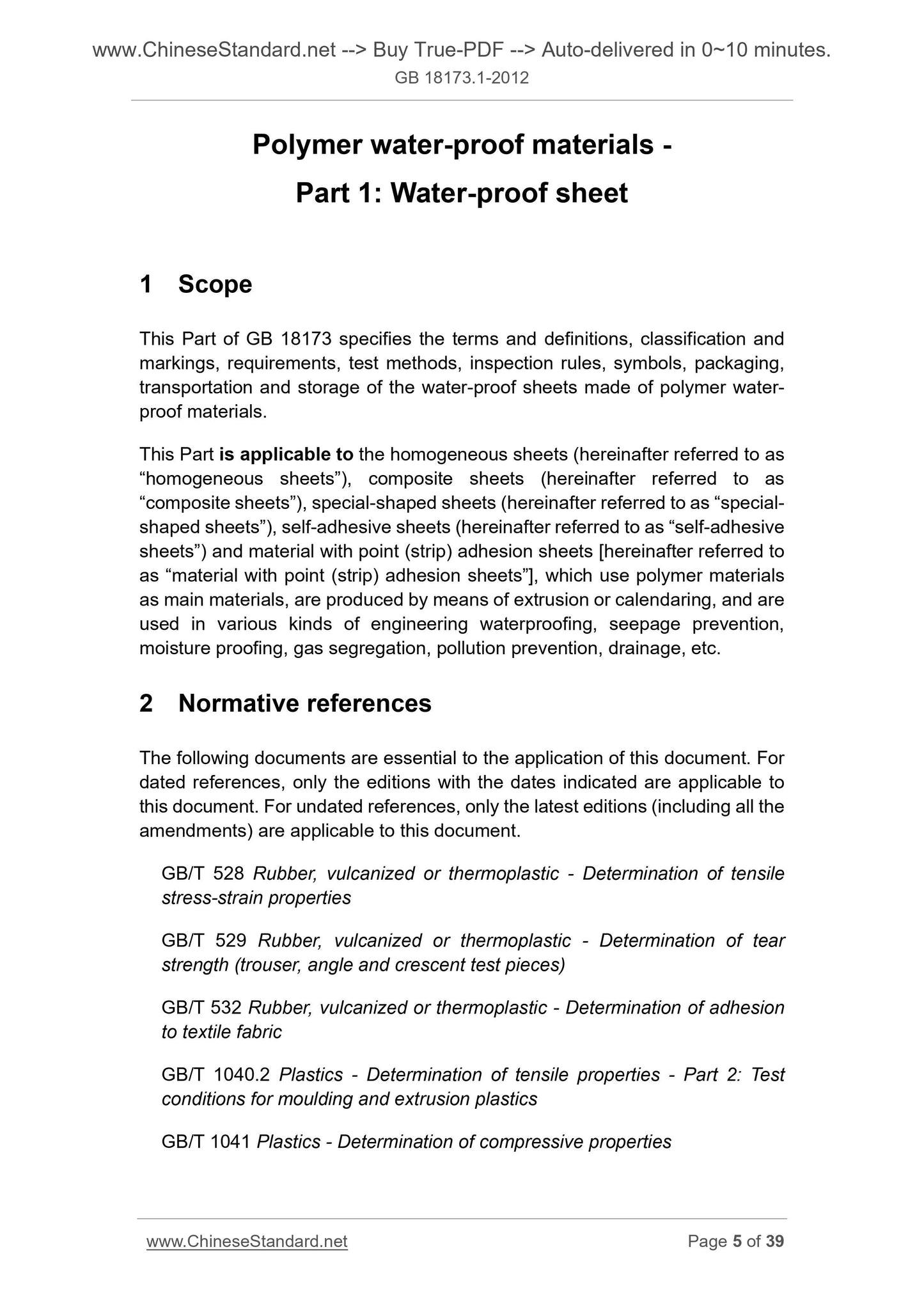

1 Scope
This Part of GB 18173 specifies the terms and definitions, classification and markings, requirements, test methods, inspection rules, symbols, packaging, transportation and storage of the water-proof sheets made of polymer water- proof materials.
This Part is applicable to the homogeneous sheets (hereinafter referred to as ?€?homogeneous sheets?€?), composite sheets (hereinafter referred to as
?€?composite sheets?€?), special-shaped sheets (hereinafter referred to as ?€?special- shaped sheets?€?), self-adhesive sheets (hereinafter referred to as ?€?self-adhesive sheets?€?) and material with point (strip) adhesion sheets [hereinafter referred to as ?€?material with point (strip) adhesion sheets?€?], which use polymer materials as main materials, are produced by means of extrusion or calendaring, and are used in various kinds of engineering waterproofing, seepage prevention, moisture proofing, gas segregation, pollution prevention, drainage, etc. 2 Normative references
The following documents are essential to the application of this document. For dated references, only the editions with the dates indicated are applicable to this document. For undated references, only the latest editions (including all the amendments) are applicable to this document.
GB/T 528 Rubber, vulcanized or thermoplastic - Determination of tensile stress-strain properties
GB/T 529 Rubber, vulcanized or thermoplastic - Determination of tear
strength (trouser, angle and crescent test pieces)
GB/T 532 Rubber, vulcanized or thermoplastic - Determination of adhesion to textile fabric
GB/T 1040.2 Plastics - Determination of tensile properties - Part 2. Test conditions for moulding and extrusion plastics
GB/T 1041 Plastics - Determination of compressive properties

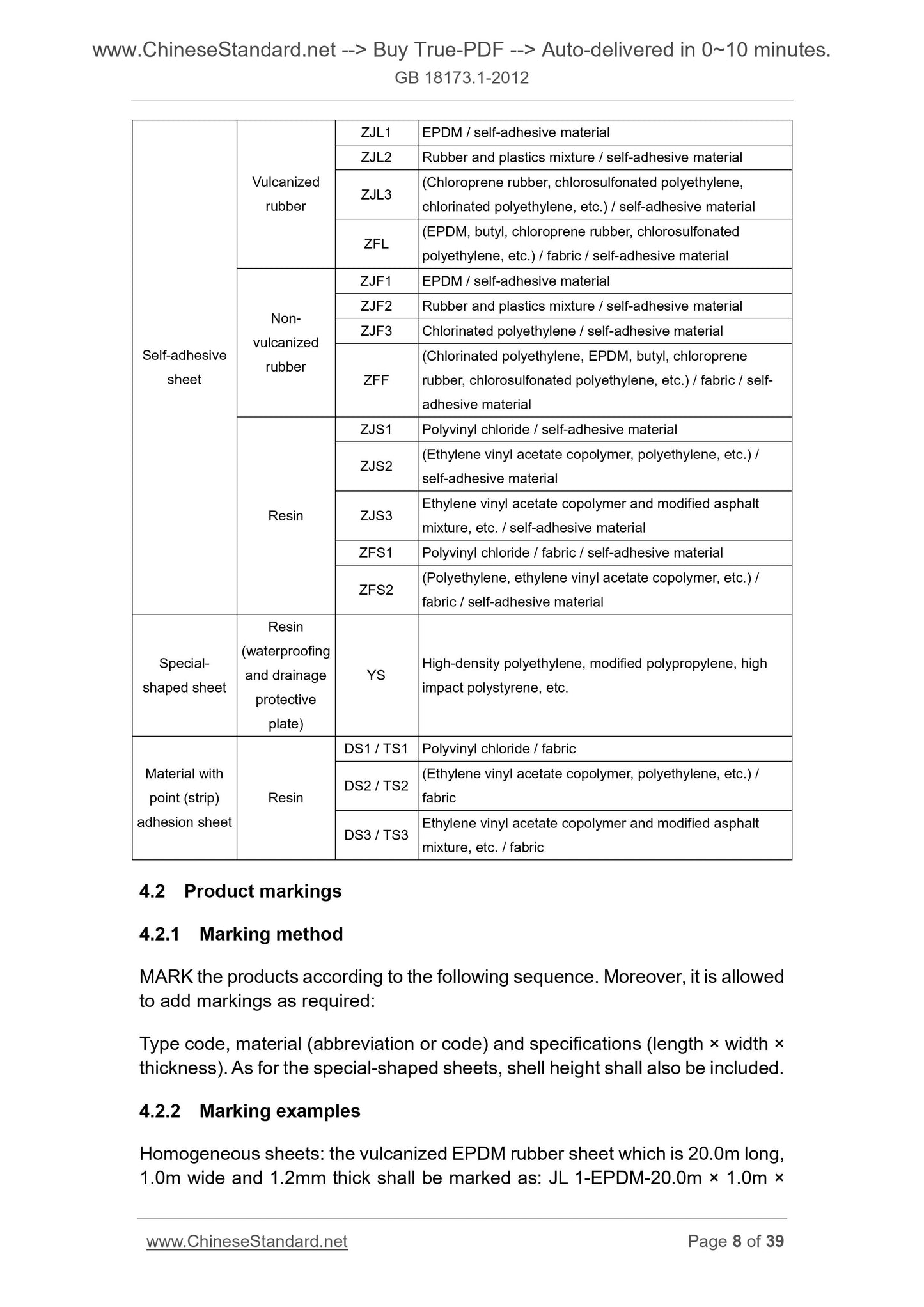

Self-adhesive
sheet
Vulcanized
rubber
ZJL1 EPDM / self-adhesive material
ZJL2 Rubber and plastics mixture / self-adhesive material
ZJL3 (Chloroprene rubber, chlorosulfonated polyethylene, chlorinated polyethylene, etc.) / self-adhesive material ZFL (EPDM, butyl, chloroprene rubber, chlorosulfonated polyethylene, etc.) / fabric / self-adhesive material Non-
vulcanized
rubber
ZJF1 EPDM / self-adhesive material
ZJF2 Rubber and plastics mixture / self-adhesive material
ZJF3 Chlorinated polyethylene / self-adhesive material
ZFF
(Chlorinated polyethylene, EPDM, butyl, chloroprene
rubber, chlorosulfonated polyethylene, etc.) / fabric / self-
adhesive material
Resin
ZJS1 Polyvinyl chloride / self-adhesive material
ZJS2 (Ethylene vinyl acetate copolymer, polyethylene, etc.) / self-adhesive material ZJS3 Ethylene vinyl acetate copolymer and modified asphalt mixture, etc. / self-adhesive material ZFS1 Polyvinyl chloride / fabric / self-adhesive material
ZFS2 (Polyethylene, ethylene vinyl acetate copolymer, etc.) / fabric / self-adhesive material Special-
shaped sheet
Resin
(waterproofing
and drainage
protective
plate)
YS High-density polyethylene, modified polypropylene, high impact polystyrene, etc. Material with
point (strip)
adhesion sheet
Resin
DS1 / TS1 Polyvinyl chloride / fabric
DS2 / TS2 (Ethylene vinyl acetate copolymer, polyethylene, etc.) / fabric DS3 / TS3 Ethylene vinyl acetate copolymer and modified asphalt mixture, etc. / fabric 4.2 Product markings
4.2.1 Marking method
MARK the products according to the following sequence. Moreover, it is allowed to add markings as required.
Type code, material (abbreviation or code) and specifications (length ?? width ?? thickness). As for the special-shaped sheets, shell height shall also be included. 4.2.2 Marking examples
Homogeneous sheets. the vulcanized EPDM rubber sheet which is 20.0m long, 1.0m wide and 1.2mm thick shall be marked as. JL 1-EPDM-20.0m ?? 1.0m ??

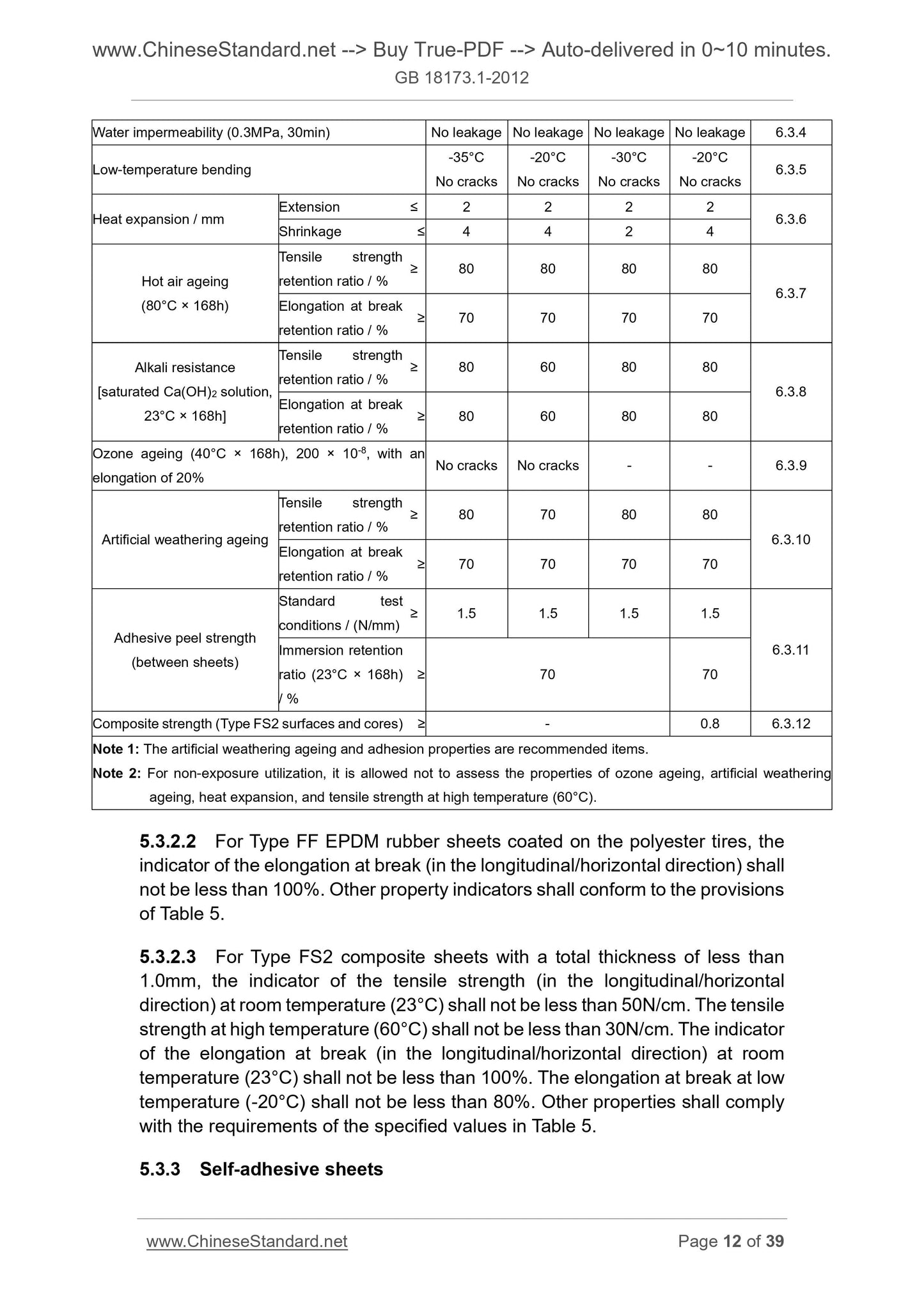

Water impermeability (0.3MPa, 30min) No leakage No leakage No leakage No leakage 6.3.4 Low-temperature bending -35??C No cracks
-20??C
No cracks
-30??C
No cracks
-20??C
No cracks 6.3.5
Heat expansion / mm Extension ??? 2 2 2 2 6.3.6 Shrinkage ??? 4 4 2 4
Hot air ageing
(80??C ?? 168h)
Tensile strength
retention ratio / % ??? 80 80 80 80 6.3.7 Elongation at break
retention ratio / % ??? 70 70 70 70
Alkali resistance
[saturated Ca(OH)2 solution,
23??C ?? 168h]
Tensile strength
retention ratio / % ??? 80 60 80 80 6.3.8 Elongation at break
retention ratio / % ??? 80 60 80 80
Ozone ageing (40??C ?? 168h), 200 ?? 10-8, with an
elongation of 20% No cracks No cracks - - 6.3.9
Artificial weathering ageing
Tensile strength
retention ratio / % ??? 80 70 80 80 6.3.10 Elongation at break
retention ratio / % ??? 70 70 70 70
Adhesive peel strength
(between sheets)
Standard test
conditions / (N/mm) ??? 1.5 1.5 1.5 1.5
6.3.11 Immersion retention
ratio (23??C ?? 168h)
/ %
??? 70 70
Composite strength (Type FS2 surfaces and cores) ??? - 0.8 6.3.12
Note 1. The artificial weathering ageing and adhesion properties are recommended items. Note 2. For non-exposure utilization, it is allowed not to assess the properties of ozone ageing, artificial weathering ageing, heat expansion, and tensile strength at high temperature (60??C). 5.3.2.2 For Type FF EPDM rubber sheets coated on the polyester tires, the indicator of the elongation at break (in the longitudinal/horizontal direction) shall not be less than 100%. Other property indicators shall conform to the provisions of Table 5.
5.3.2.3 For Type FS2 composite sheets with a total thickness of less than 1.0mm, the indicator of the tensile strength (in the longitudinal/horizontal direction) at room temperature (23??C) shall not be less than 50N/cm. The tensile strength at high temperature (60??C) shall not be less than 30N/cm. The indicator of the elongation at break (in the longitudinal/horizontal direction) at room temperature (23??C) shall not be less than 100%. The elongation at break at low temperature (-20??C) shall not be less than 80%. Other properties shall comply with the requirements of the specified values in Table 5.
5.3.3 Self-adhesive sheets

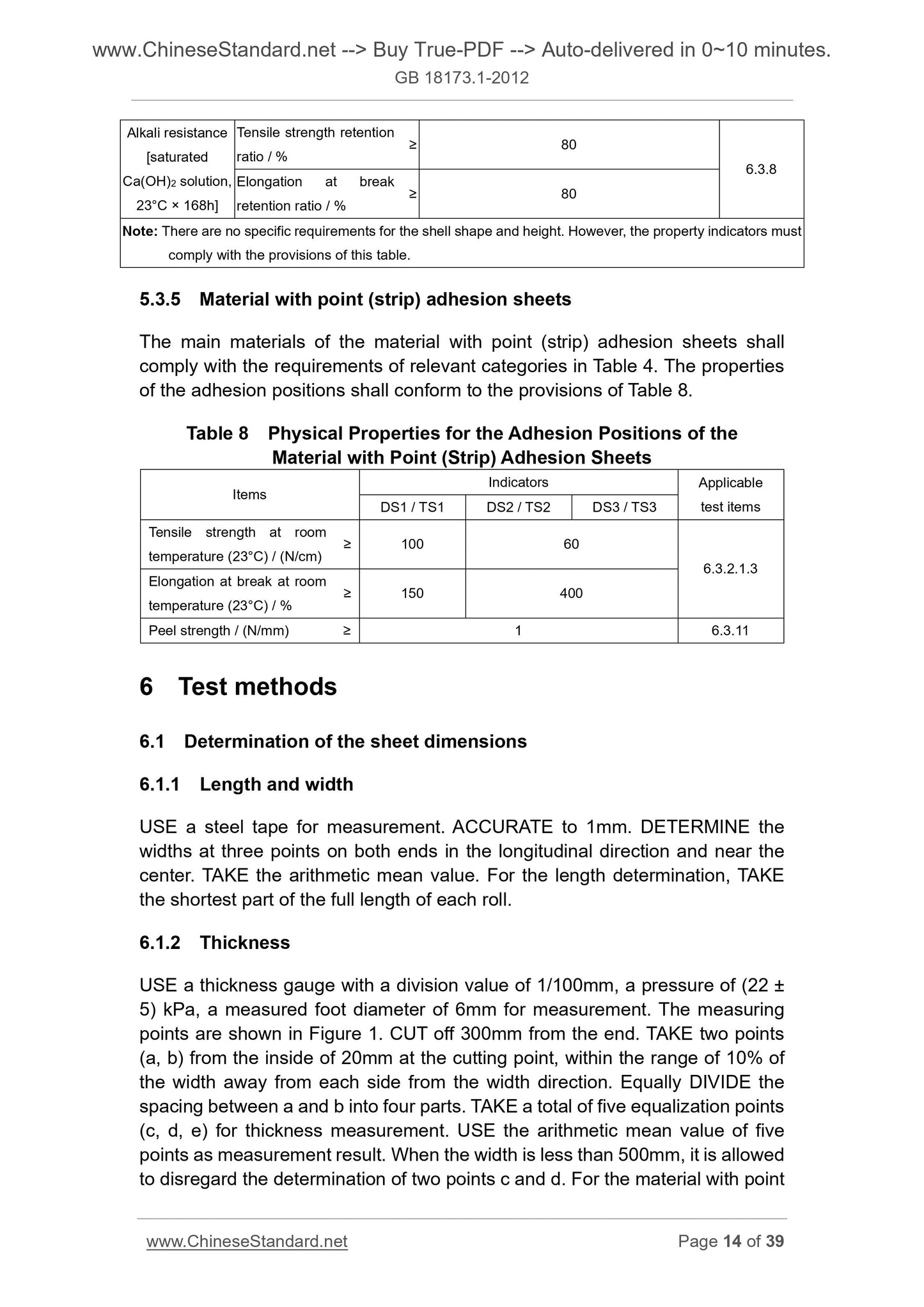

Alkali resistance
[saturated
Ca(OH)2 solution,
23??C ?? 168h]
Tensile strength retention ...
