GB 15630-1995: Requirements for the placement of fire safety signs

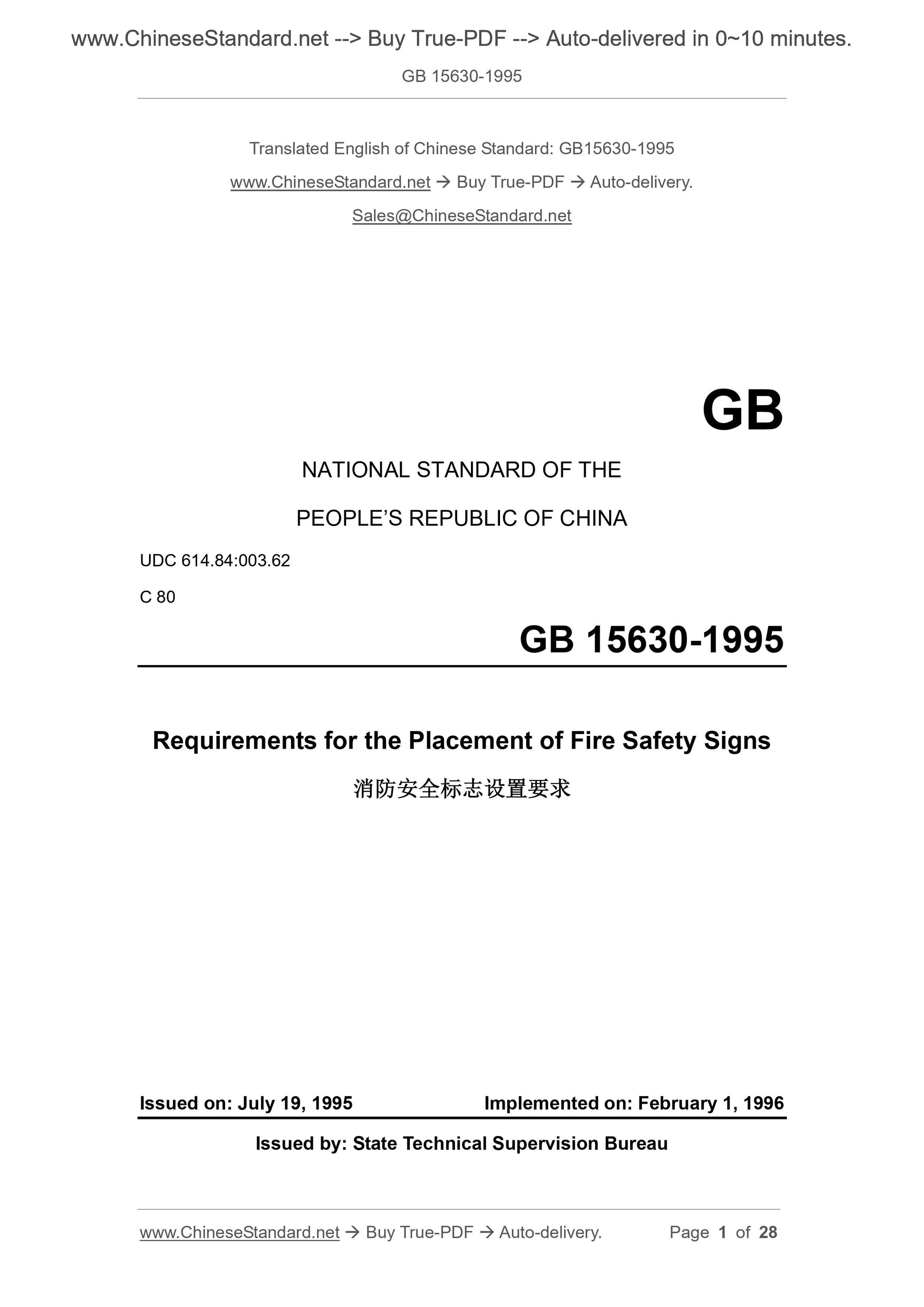

GB 15630-1995
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
UDC 614.84:003.62
C 80
Requirements for the Placement of Fire Safety Signs
ISSUED ON: JULY 19, 1995
IMPLEMENTED ON: FEBRUARY 1, 1996
Issued by: State Technical Supervision Bureau

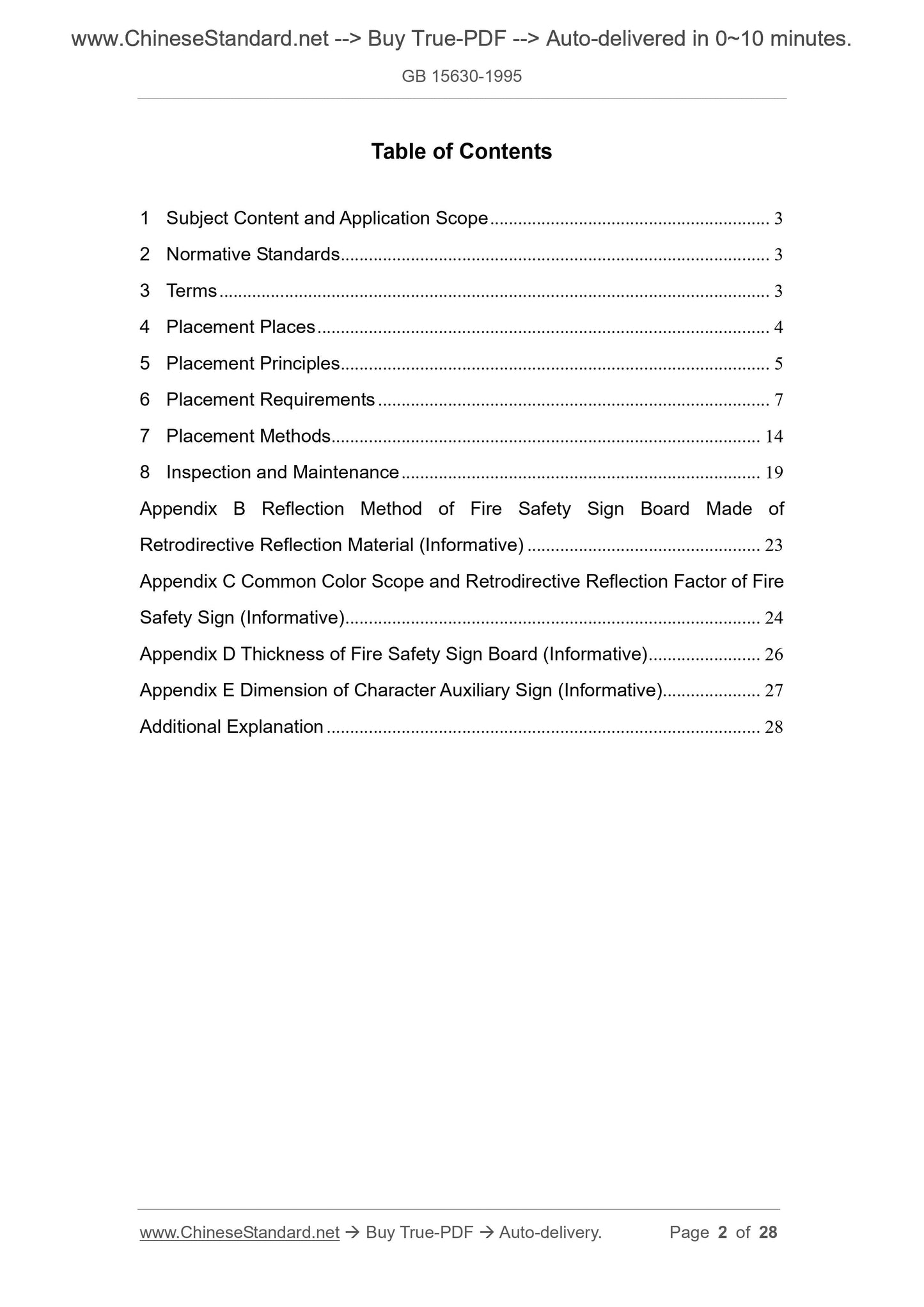

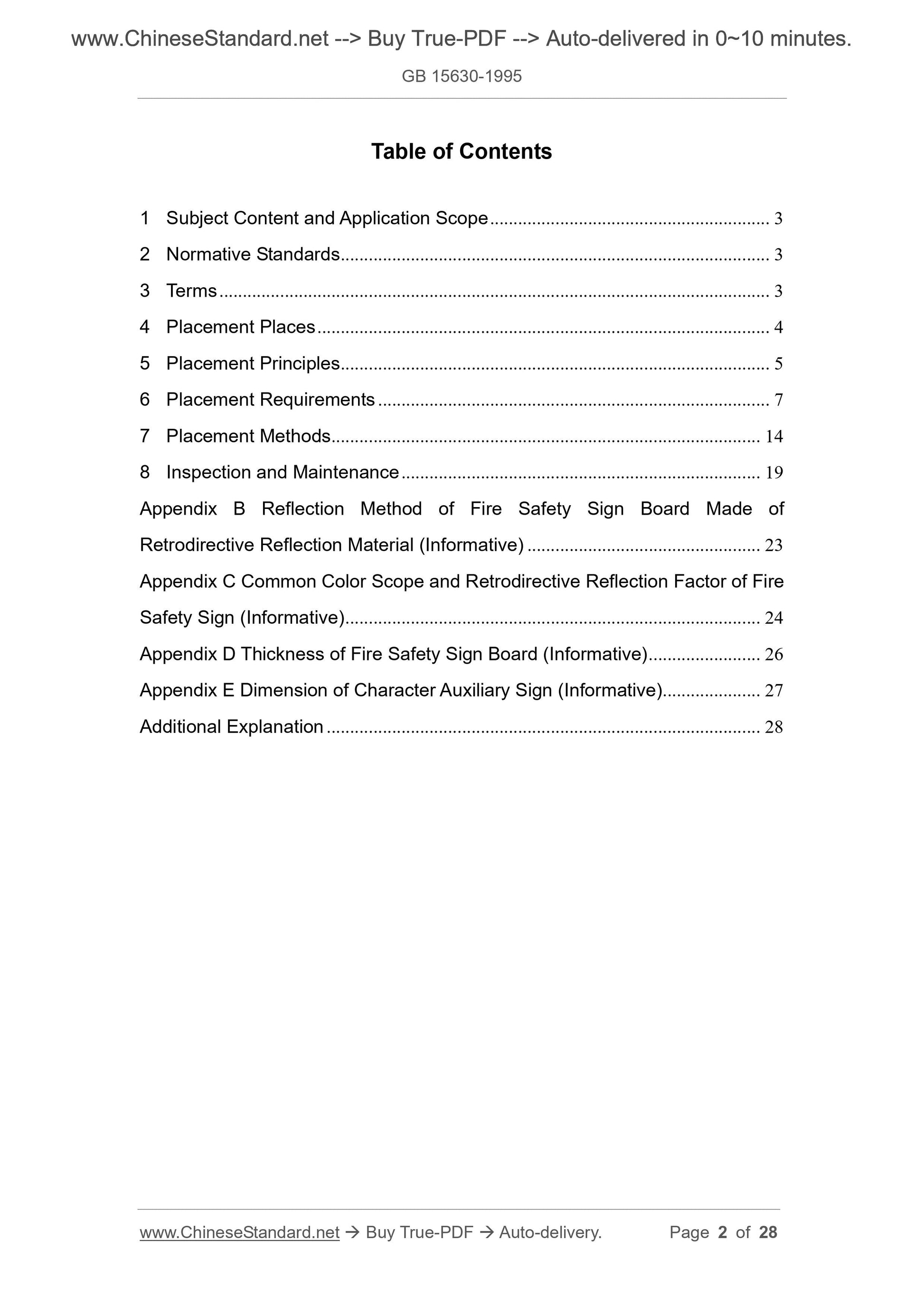

Table of Contents
1 Subject Content and Application Scope ... 3
2 Normative Standards ... 3
3 Terms ... 3
4 Placement Places ... 4
5 Placement Principles ... 5
6 Placement Requirements ... 7

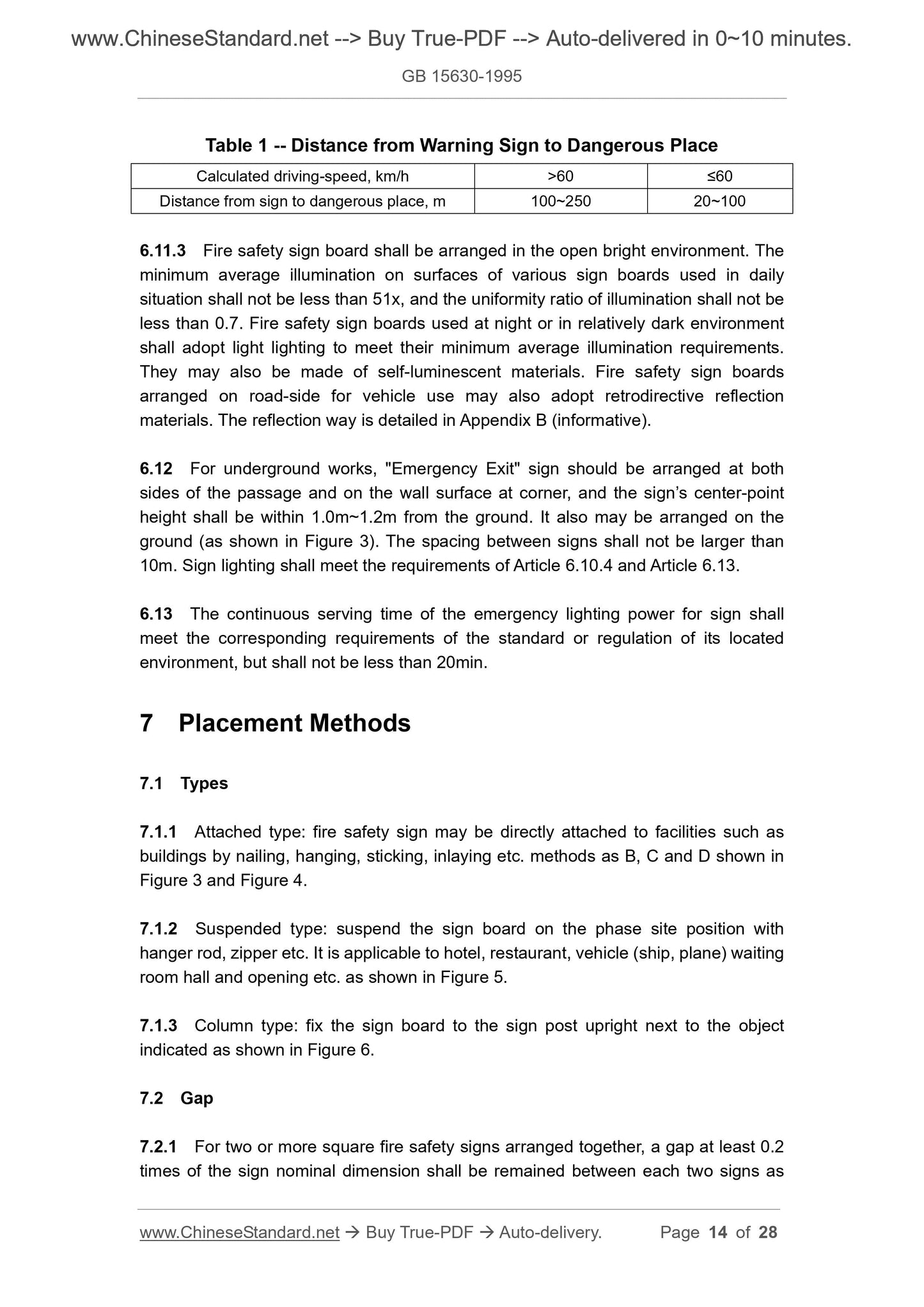

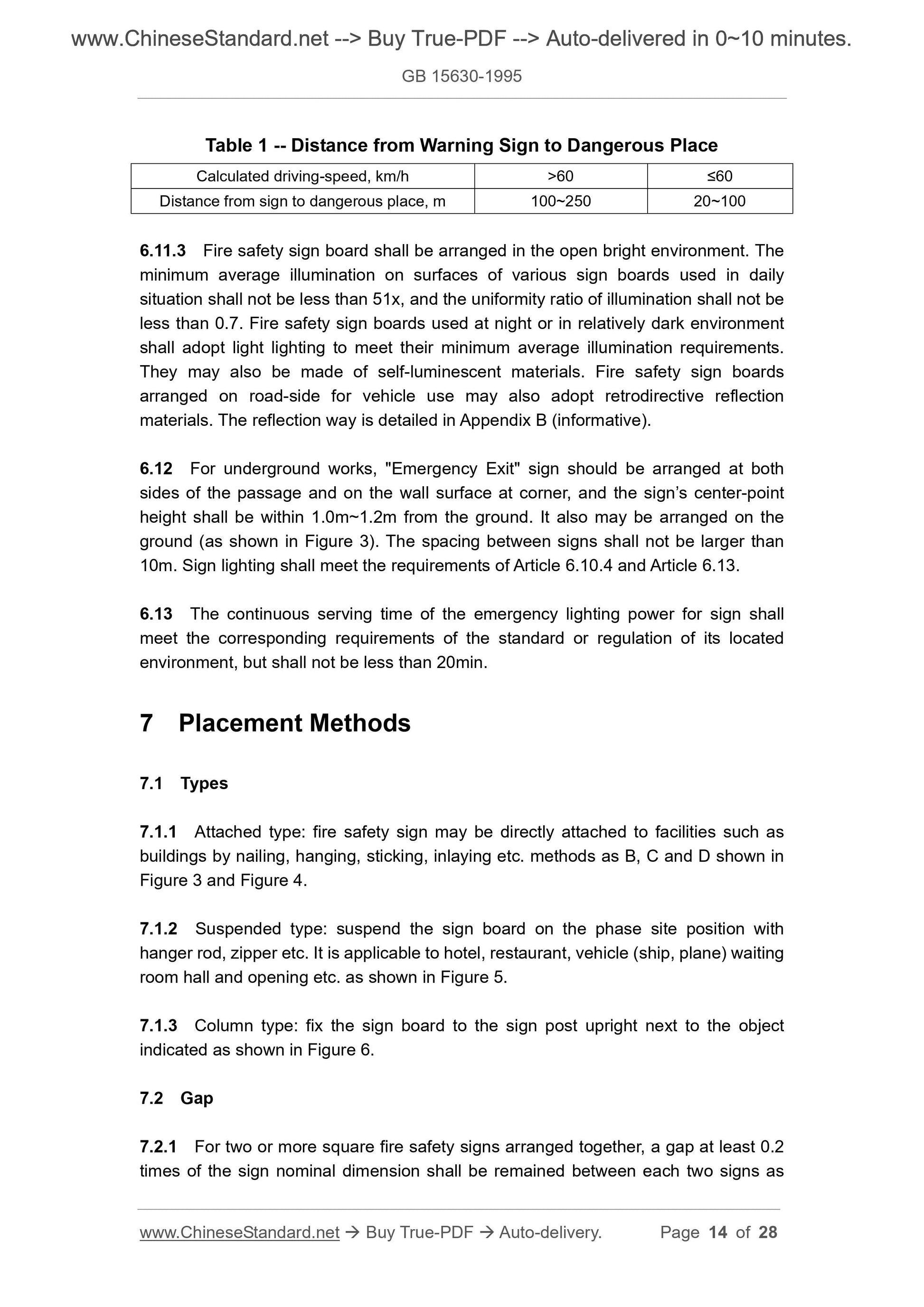

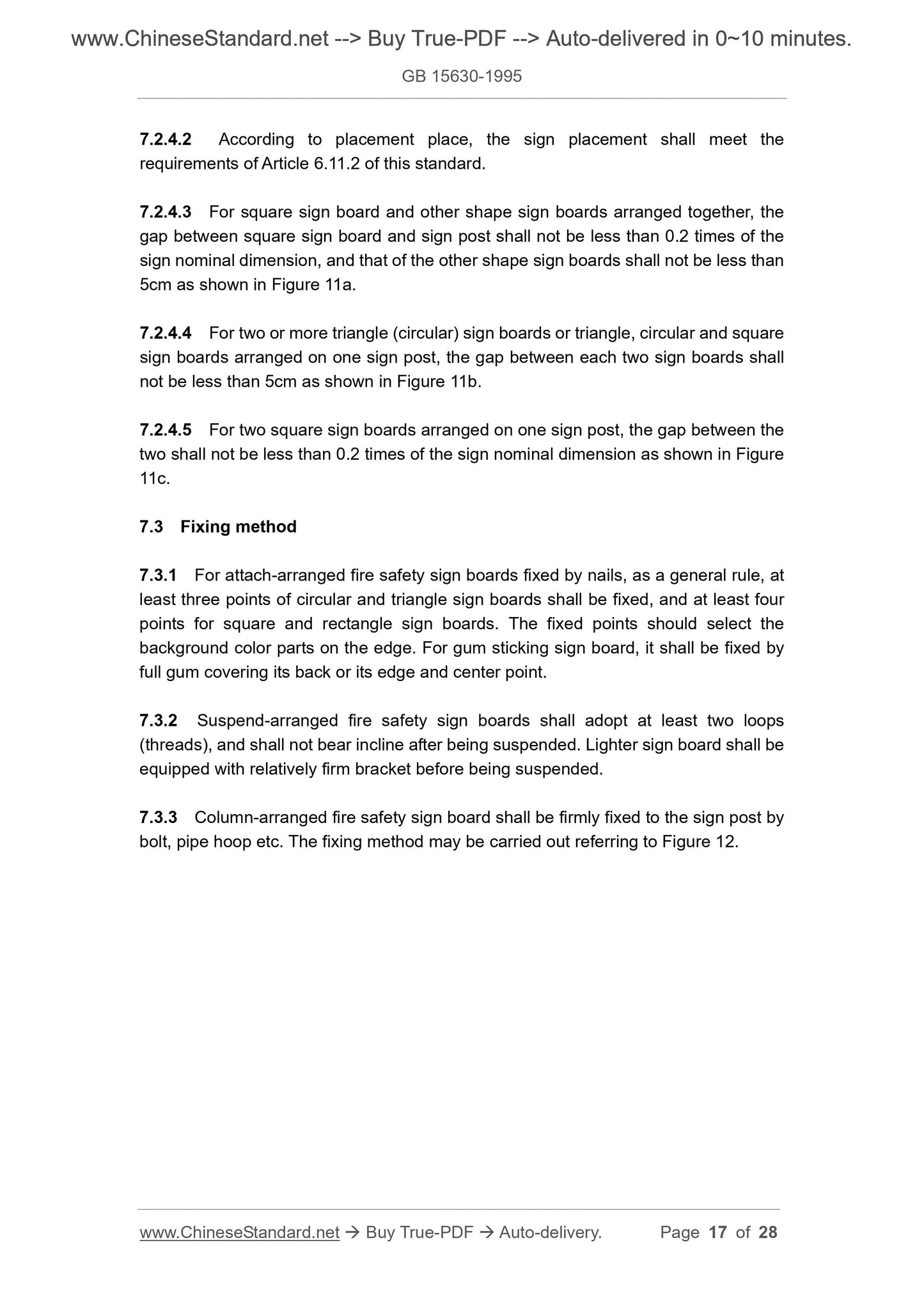

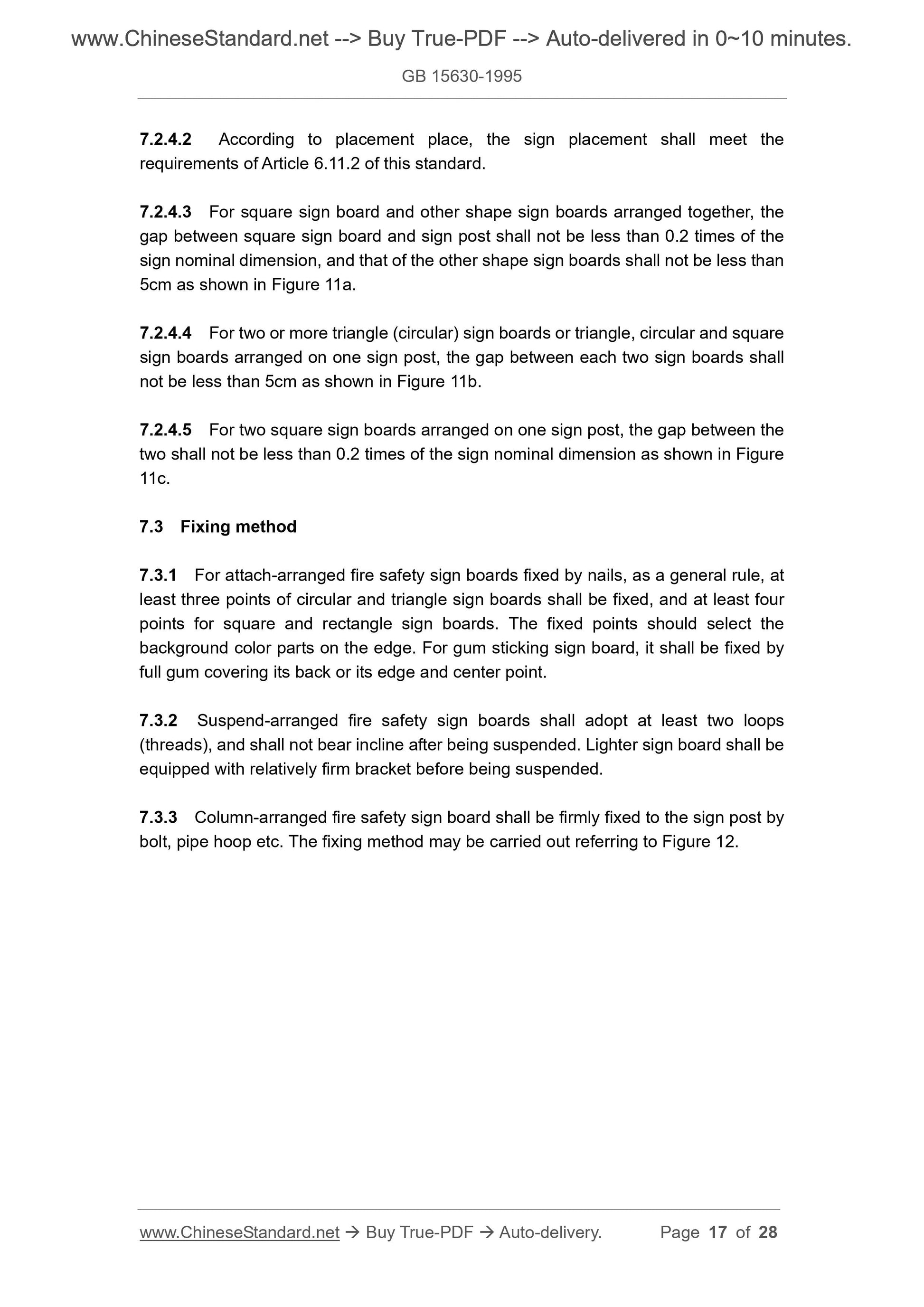

7 Placement Methods ... 14

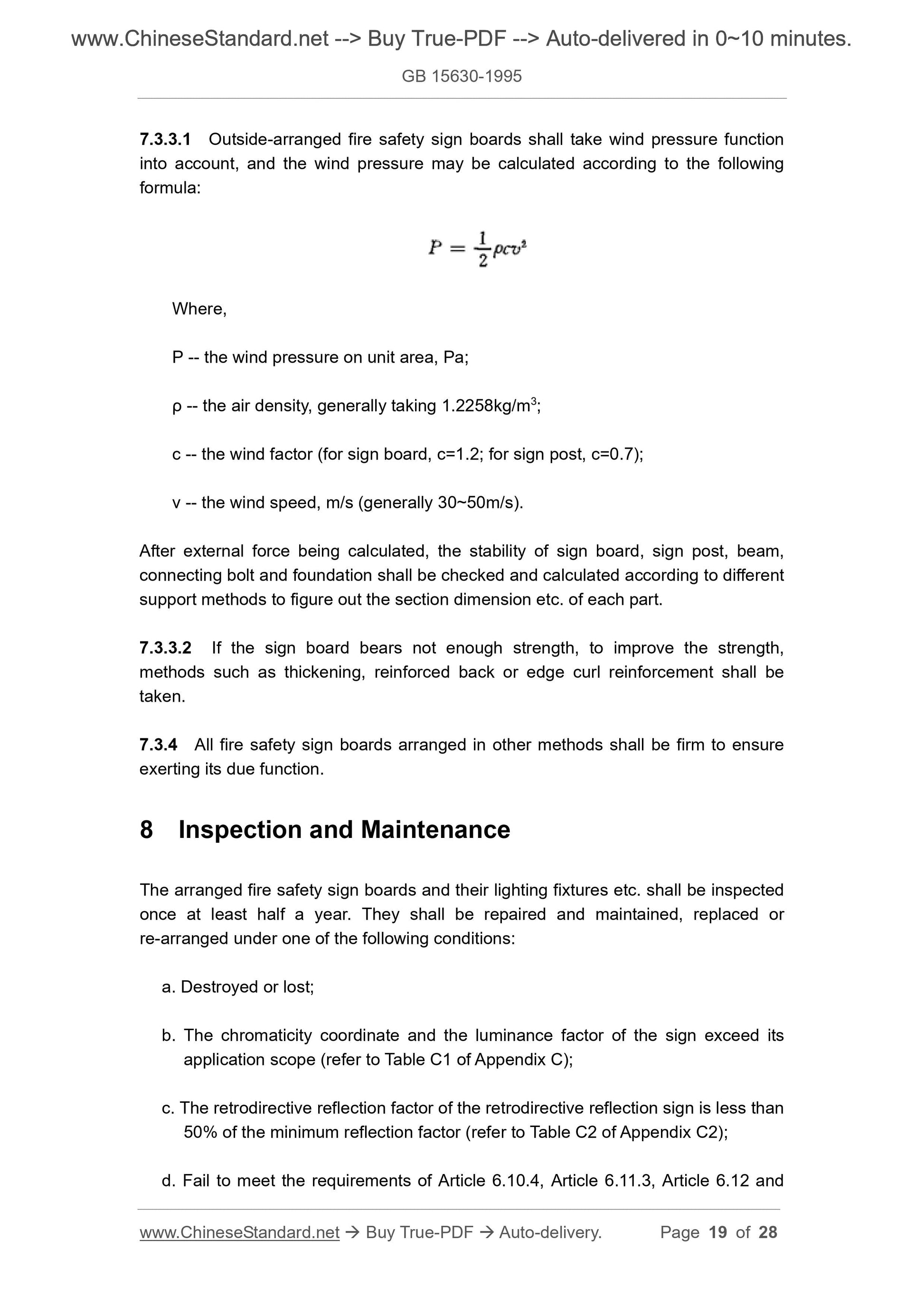

8 Inspection and Maintenance ... 19

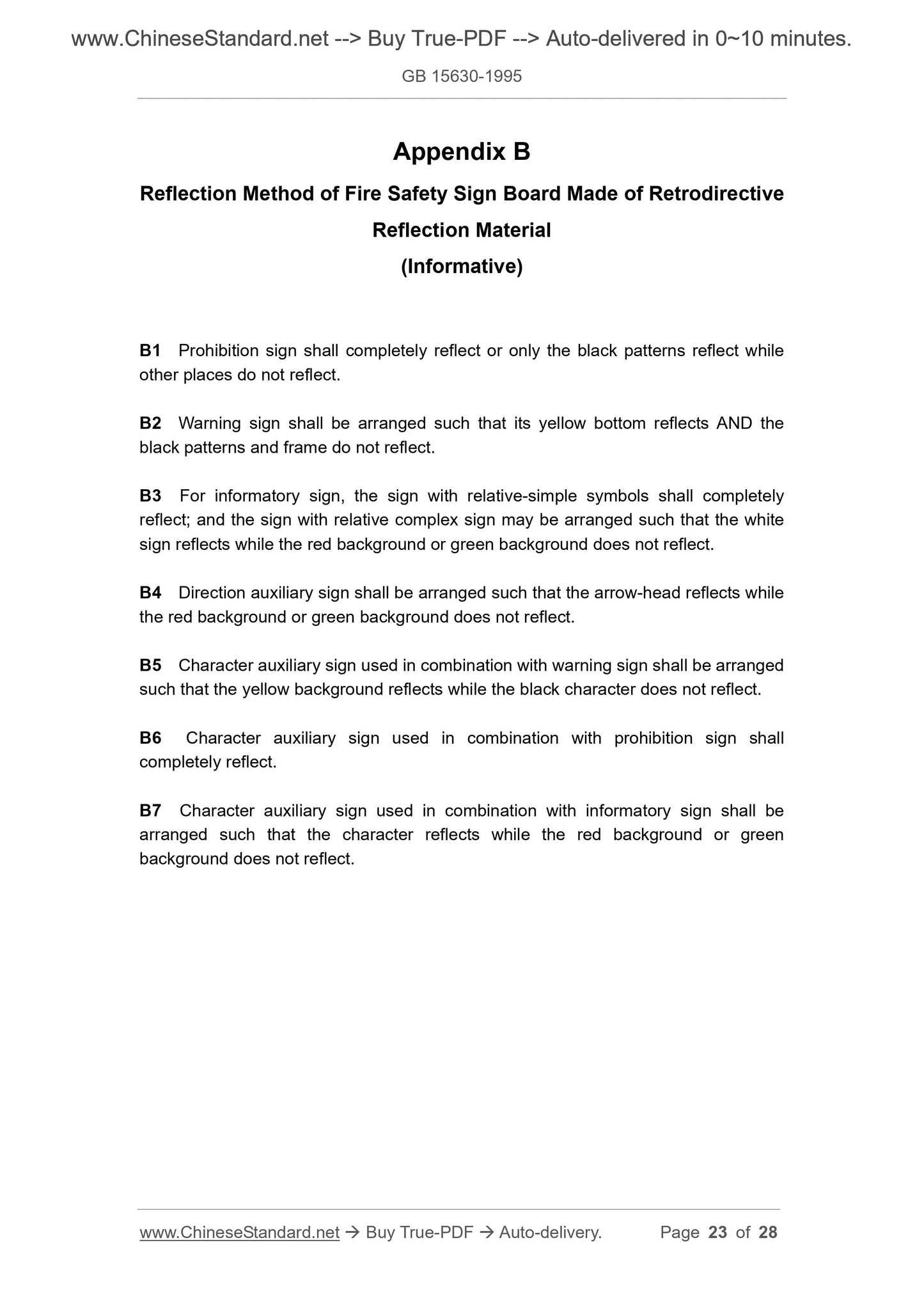

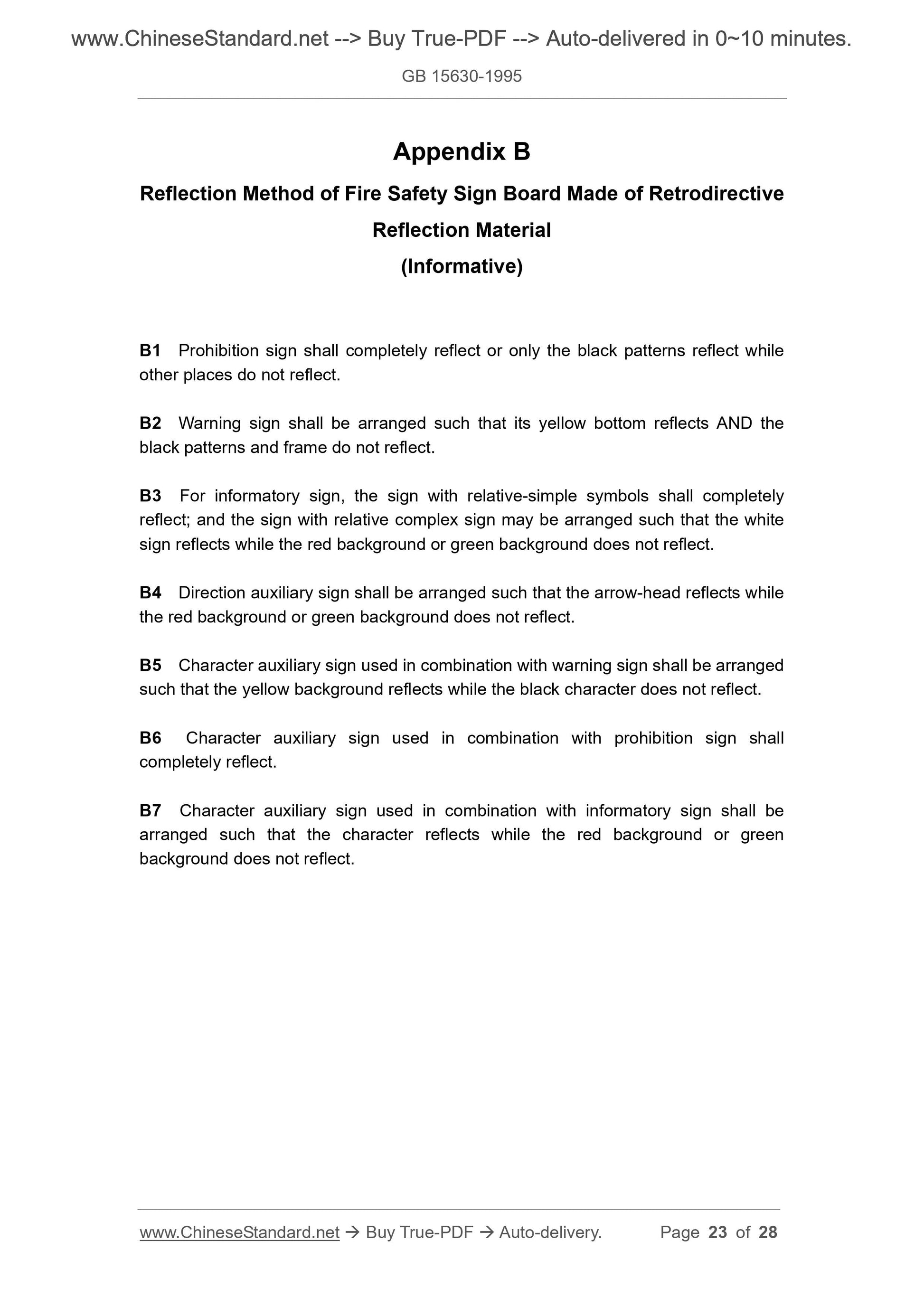

Appendix B Reflection Method of Fire Safety Sign Board Made of
Retrodirective Reflection Material (Informative) ... 23
Appendix C Common Color Scope and Retrodirective Reflection Factor of Fire
Safety Sign (Informative) ... 24
Appendix D Thickness of Fire Safety Sign Board (Informative) ... 26
Appendix E Dimension of Character Auxiliary Sign (Informative) ... 27
Additional Explanation ... 28

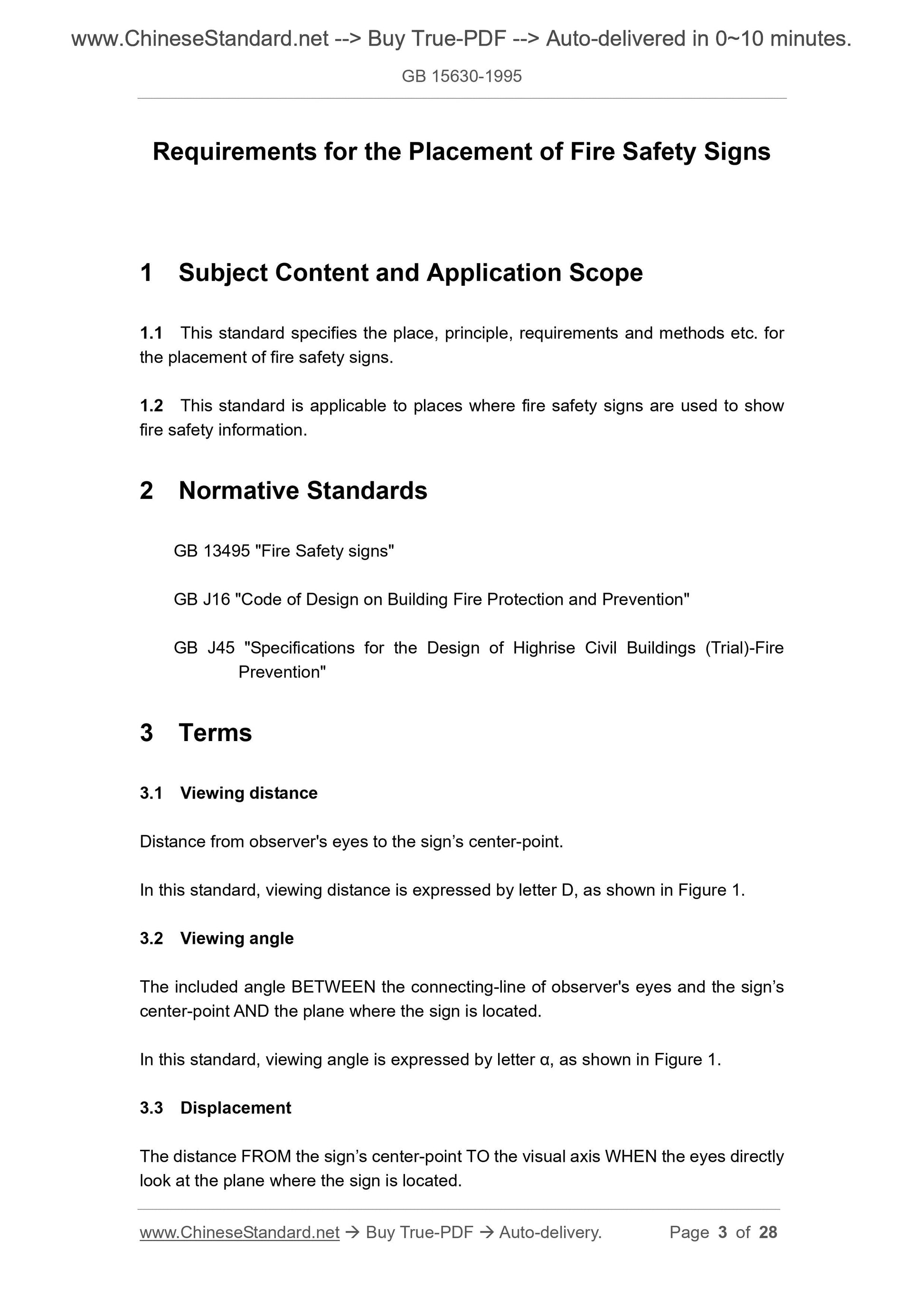

Requirements for the Placement of Fire Safety Signs
1 Subject Content and Application Scope
1.1 This standard specifies the place, principle, requirements and methods etc. for
the placement of fire safety signs.
1.2 This standard is applicable to places where fire safety signs are used to show
fire safety information.
2 Normative Standards
GB 13495 "Fire Safety signs"
GB J16 "Code of Design on Building Fire Protection and Prevention"
GB J45 "Specifications for the Design of Highrise Civil Buildings (Trial)-Fire
Prevention"
3 Terms
3.1 Viewing distance
Distance from observer's eyes to the sign’s center-point.
In this standard, viewing distance is expressed by letter D, as shown in Figure 1.
3.2 Viewing angle
The included angle BETWEEN the connecting-line of observer's eyes and the sign’s
center-point AND the plane where the sign is located.
In this standard, viewing angle is expressed by letter α, as shown in Figure 1.
3.3 Displacement
The distance FROM the sign’s center-point TO the visual axis WHEN the eyes directly
look at the plane where the sign is located.

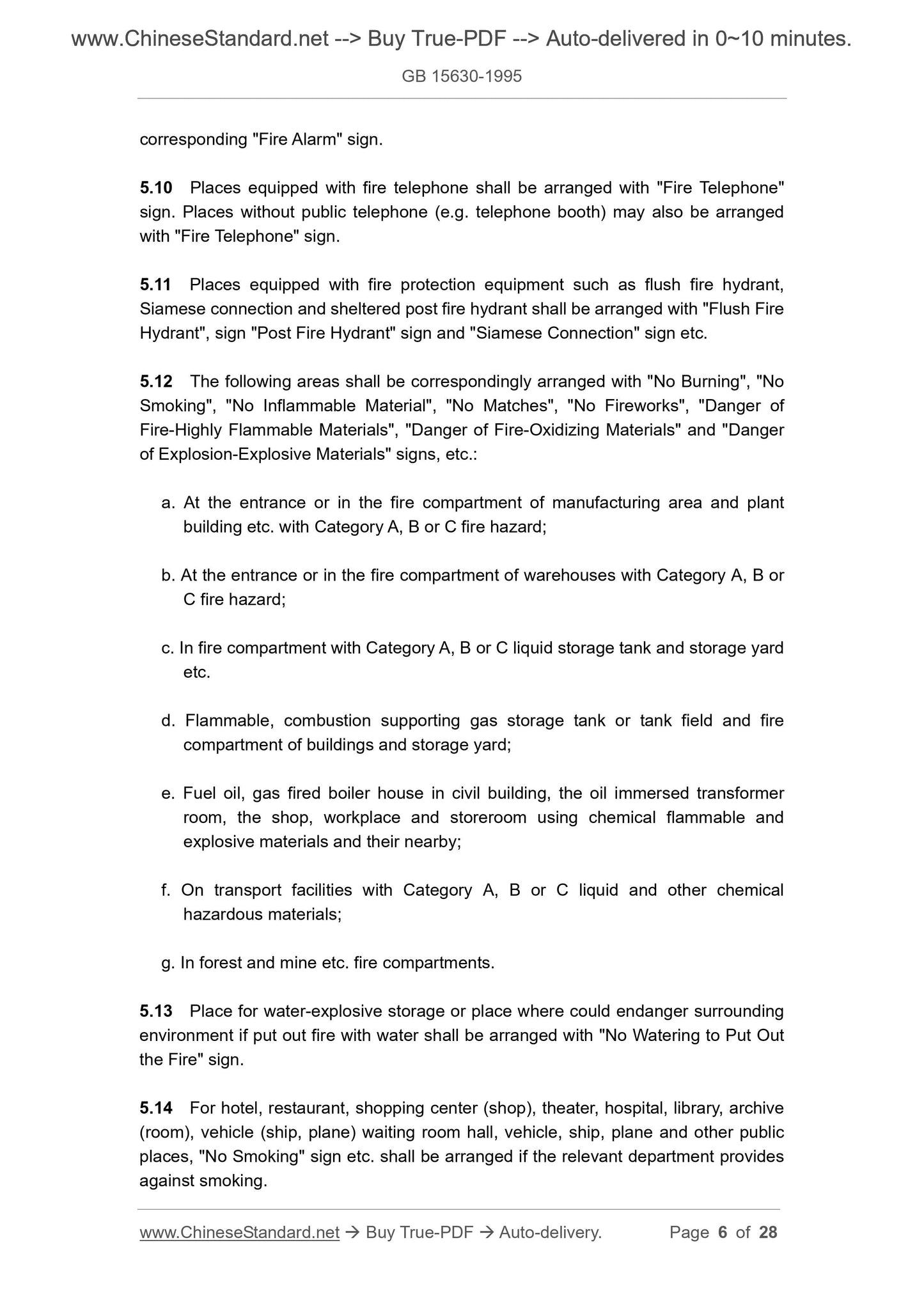

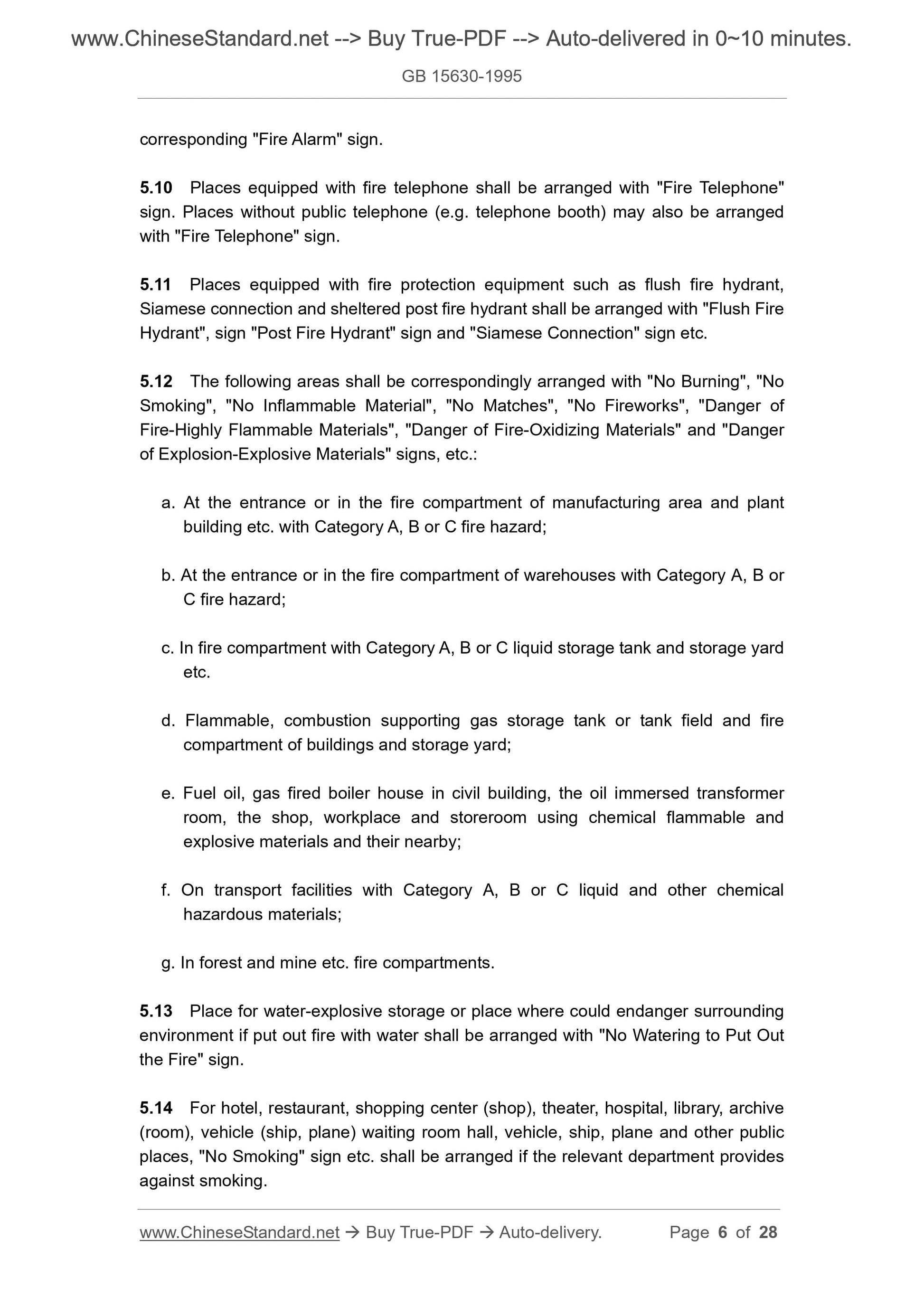

corresponding "Fire Alarm" sign.
5.10 Places equipped with fire telephone shall be arranged with "Fire Telephone"
sign. Places without public telephone (e.g. telephone booth) may also be arranged
with "Fire Telephone" sign.
5.11 Places equipped with fire protection equipment such as flush fire hydrant,
Siamese connection and sheltered post fire hydrant shall be arranged with "Flush Fire
Hydrant", sign "Post Fire Hydrant" sign and "Siamese Connection" sign etc.
5.12 The following areas shall be correspondingly arranged with "No Burning", "No
Smoking", "No Inflammable Material", "No Matches", "No Fireworks", "Danger of
Fire-Highly Flammable Materials", "Danger of Fire-Oxidizing Materials" and "Danger
of Explosion-Explosive Materials" signs, etc.:
a. At the entrance or in the fire compartment of manufacturing area and plant
building etc. with Category A, B or C fire hazard;
b. At the entrance or in the fire compartment of warehouses with Category A, B or
C fire hazard;
c. In fire compartment with Category A, B or C liquid storage tank and storage yard
etc.
d. Flammable, combustion supporting gas storage tank or tank field and fire
compartment of buildings and storage yard;
e. Fuel oil, gas fired boiler house in civil building, the oil immersed transformer
room, the shop, workplace and storeroom using chemical flammable and
explosive materials and their nearby;
f. On transport facilities with Category A, B or C liquid and other chemical
hazardous materials;
g. In forest and mine etc. fire compartments.
5.13 Place for water-explosive storage or place where could endanger surrounding
environment if put out fire with water shall be arranged with "No Watering to Put Out
the Fire" sign.
5.14 For hotel, restaurant, shopping center (shop), theater, hospital, library, archive
(room), vehicle (ship, plane) waiting room hall, vehicle, ship, plane and other public
places, "No Smoking" sign etc. shall be arranged if the relevant department provides
against smoking.

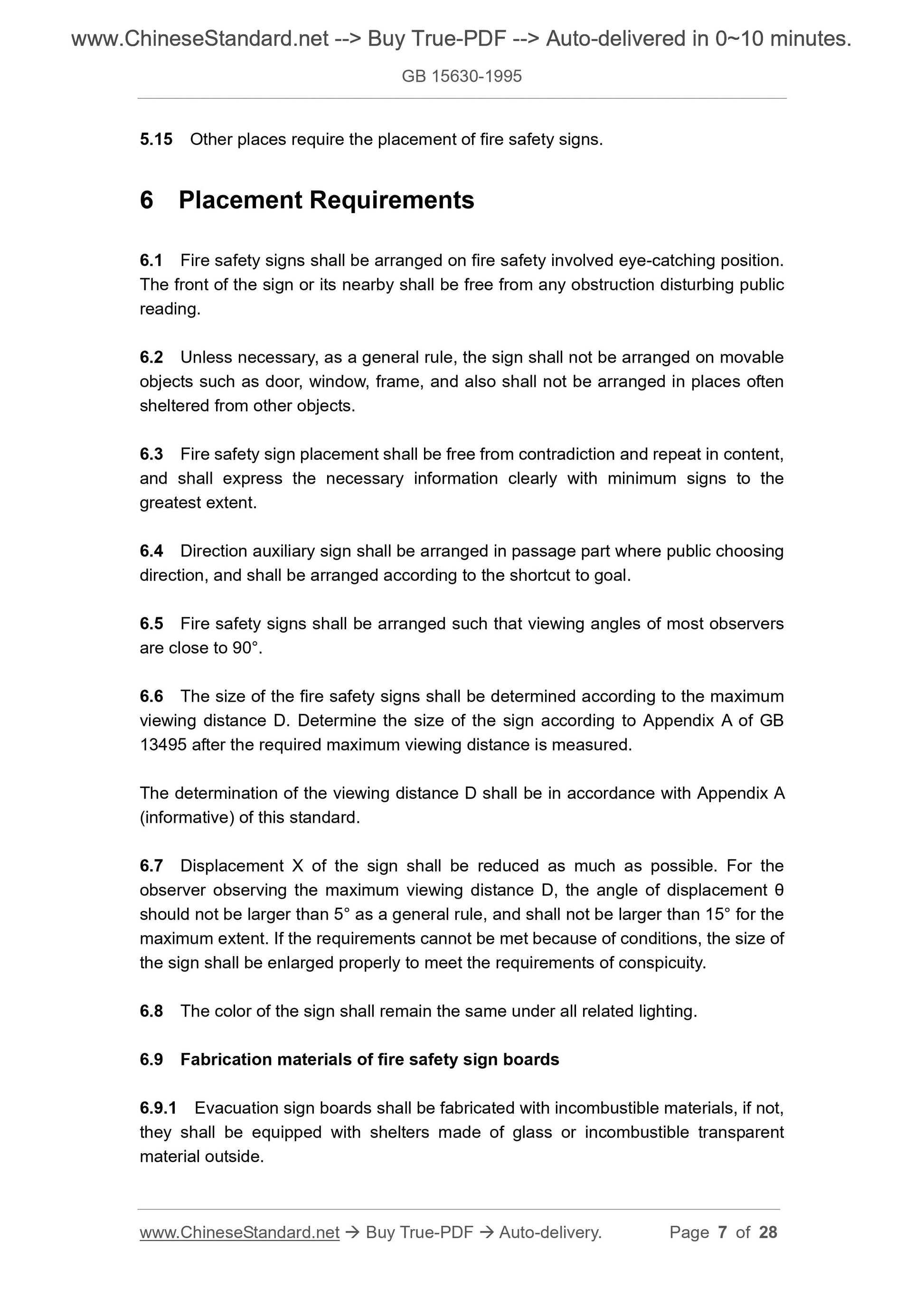

5.15 Other places require the placement of fire safety signs.
6 Placement Requirements
6.1 Fire safety signs shall be arranged on fire safety involved eye-catching position.
The front of the sign or its nearby shall be free from any obstruction disturbing public
reading.
6.2 Unless necessary, as a general rule, the sign shall not be arranged on movable
objects such as door, window, frame, and also shall not be arranged in places often
sheltered from other objects.
6.3 Fire safety sign placement shall be free from contradiction and repeat in content,
and shall express the necessary information clearly with minimum signs to the
greatest extent.
6.4 Direction auxiliary sign shall be arranged in passage part where public choosing
direction, and shall be arranged according to the shortcut to goal.
6.5 Fire safety signs shall be arranged such that viewing angles of most observers
are close to 90°.
6.6 The size of the fire safety signs shall be determined according to the maximum
viewing distance D. Determine the size of the sign according to Appendix A of GB
13495 after the required maximum viewing distance is measured.
The determination of the viewing distance D shall be in accordance with Appendix A
(informative) of this standard.
6.7 Displacement X of the sign shall be reduced as much as possible. For the
observer observing the maximum viewing distance D, the angle of displacement θ
should not be larger than 5° as a general rule, and shall not be larger than 15° for the
maximum extent. If the requirements cannot be met because of conditions, the size of
the sign shall be enlarged properly to meet the requirements of conspicuity.
6.8 The color of the sign shall remain the same under all related lighting.
6.9 Fabrication materials of fire safety sign boards
6.9.1 Evacuation sign boards shall be fabricated with incombustible materials, if not,
they shall be equipped with shelters made of glass or incombustible transparent
material outside.

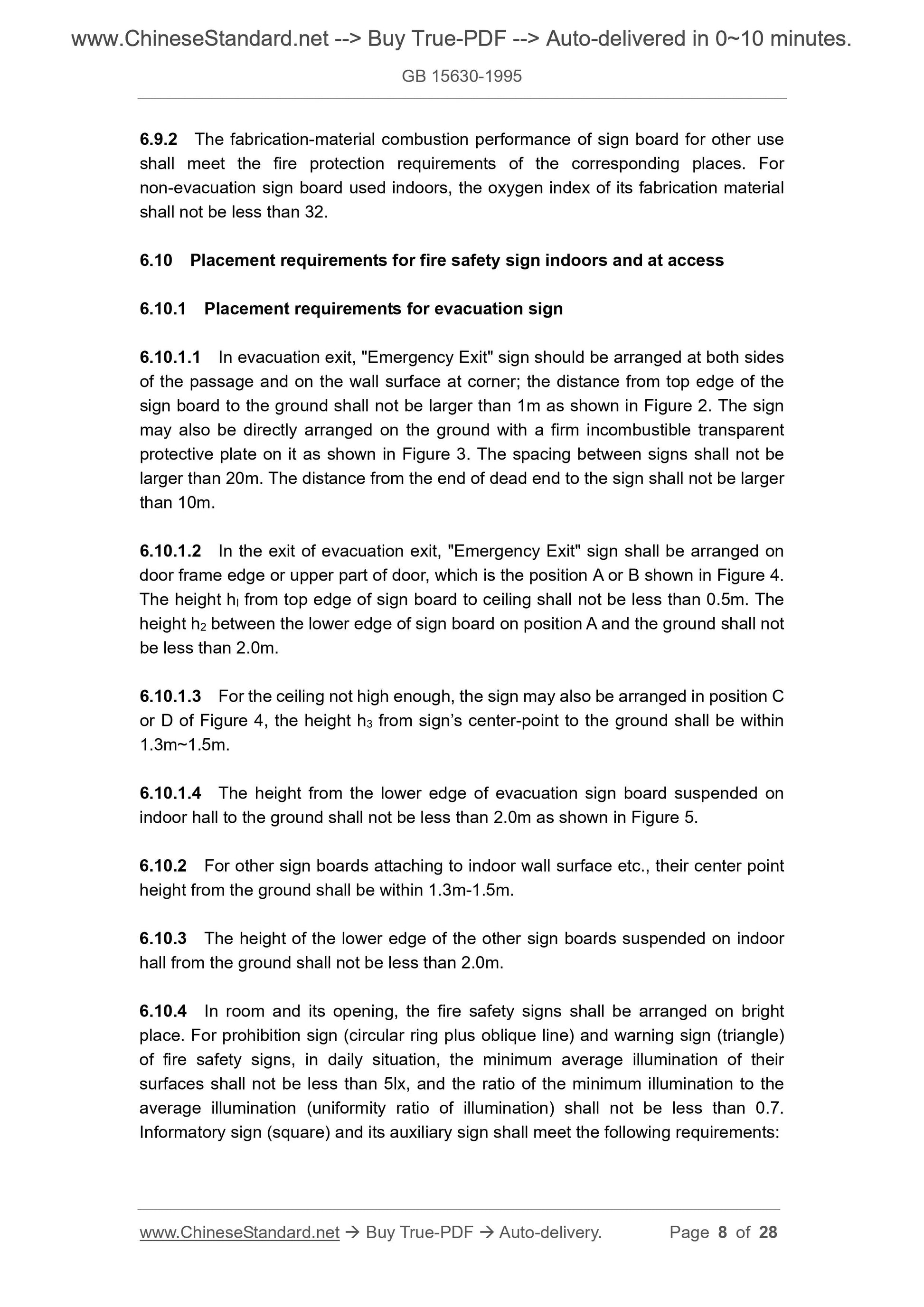

6.9.2 The fabrication-material combustion performance of sign board for other use
shall meet the fire protection requirements of the corresponding places. For
non-evacuation sign board used indoors, the oxygen index of its fabrication material
shall not be less than 32.

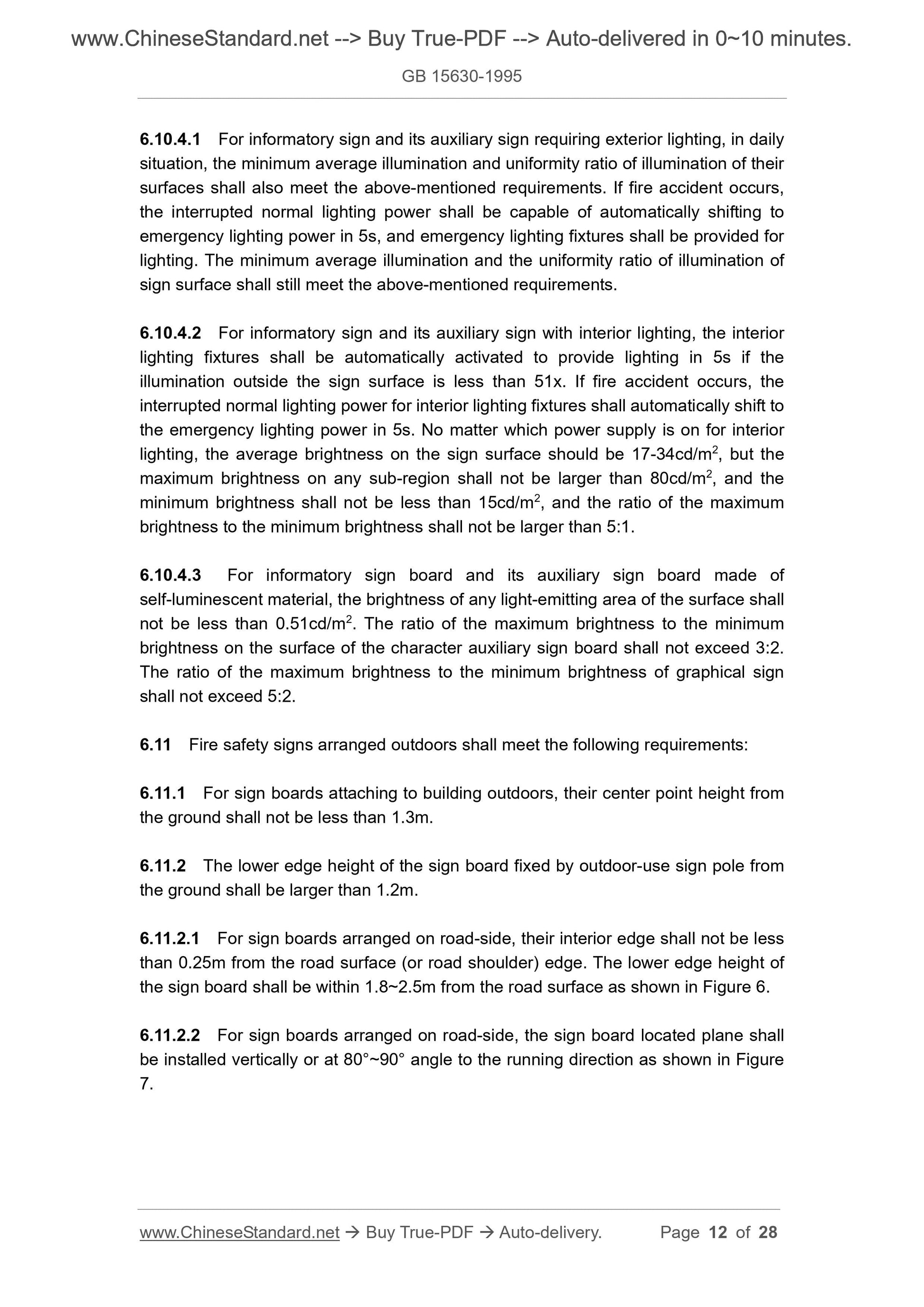

6.10 Placement requirements for fire safety sign indoors and at access
6.10.1 Placement requirements for evacuation sign
6.10.1.1 In evacuation exit, "Emergency Exit" sign should be arranged at both sides
of the passage and on the wall surface at corner; the distance from top edge of the
sign board to the ground shall not be larger than 1m as shown in Figure 2. The sign
may also be directly arranged on the ground with a firm incombustible transparent
protective plate on it as shown in Figure 3. The spacing between signs shall not be
larger than 20m. The distance from the end of dead end to the sign shall not be larger
than 10m.
6.10.1.2 In the exit of evacuation exit, "Emergency Exit" sign shall be arranged on
door frame edge or upper part of door, which is the position A or B shown in Figure 4.
The height hl from top edge of sign board to ceiling shall not be less than 0.5m. The
height h2 between the lower edge of sign board on position A and the ground shall not
be less than 2.0m.
6.10.1.3 For the ceiling not high enough, the sign may also be arranged in position C
or D of Figure 4, the height h3 from sign’s center-point to the ground shall be w...
