GB 15629.1104-2006 English PDF (GB15629.1104-2006)

GB 15629.1104-2006 English PDF (GB15629.1104-2006)

Regular price $910.00 USD
Regular price Sale price $910.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here GB 15629.1104-2006 to get it for Purchase Approval, Bank TT...

GB 15629.1104-2006: Information technology -- Telecommunications and information exchange between systems -- Local and metropolitan area networks -- Specific requirements -- Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications

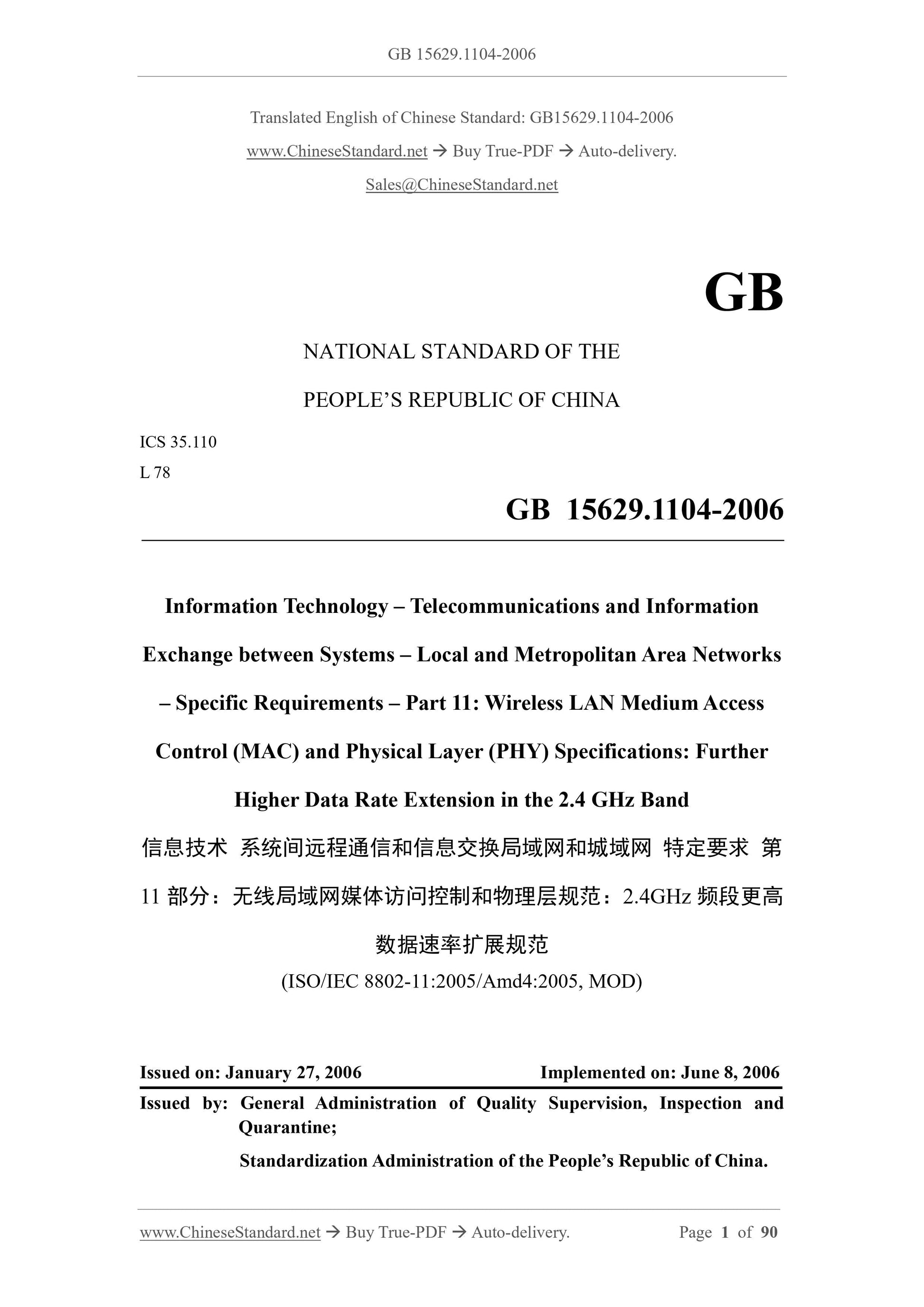

GB 15629.1104-2006
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 35.110
L 78
Information Technology – Telecommunications and Information
Exchange between Systems – Local and Metropolitan Area Networks
– Specific Requirements – Part 11: Wireless LAN Medium Access
Control (MAC) and Physical Layer (PHY) Specifications: Further
Higher Data Rate Extension in the 2.4 GHz Band
(ISO/IEC 8802-11:2005/Amd4:2005, MOD)
ISSUED ON: JANUARY 27, 2006
IMPLEMENTED ON: JUNE 8, 2006
Issued by: General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of the People’s Republic of China.

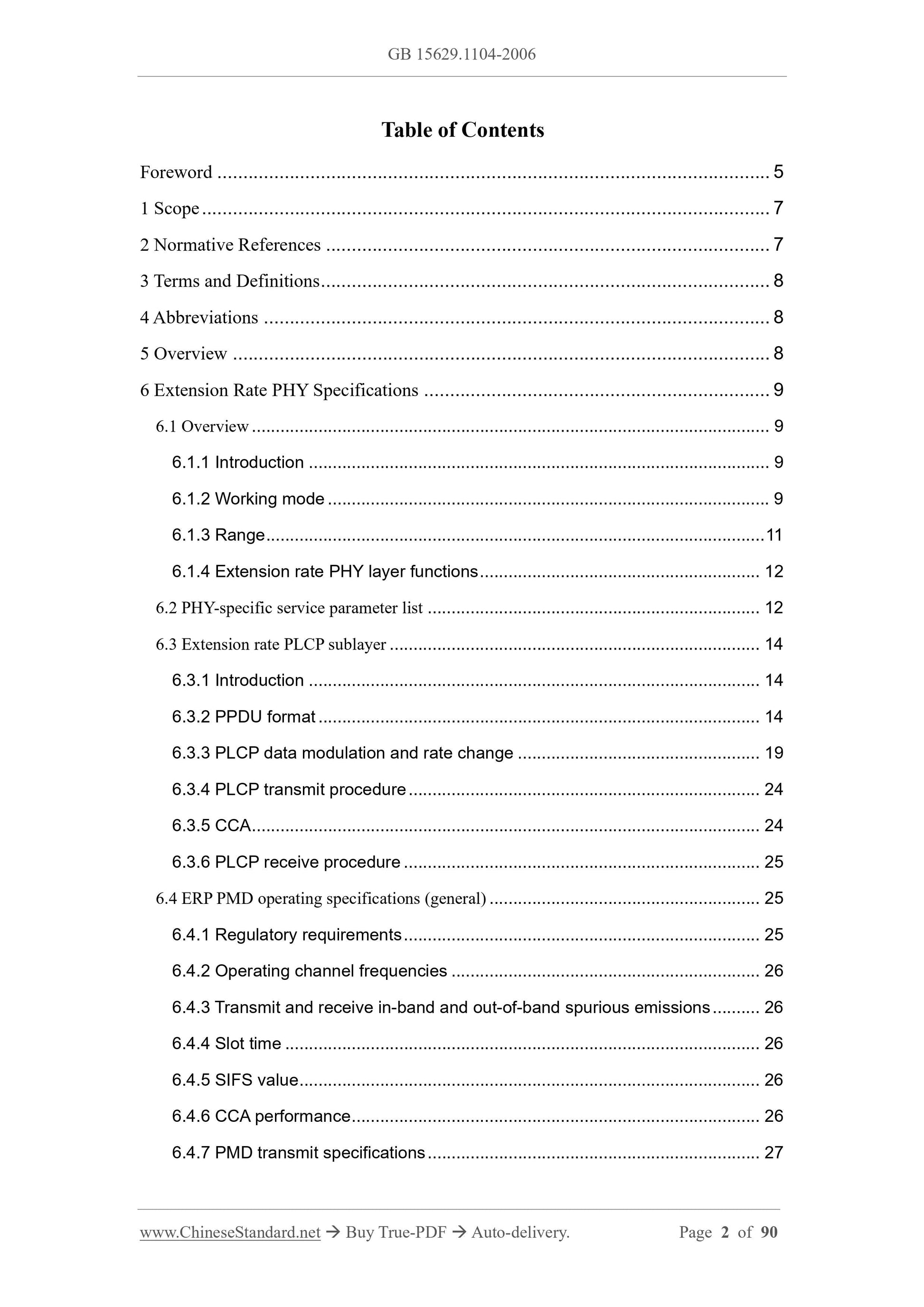

Table of Contents
Foreword ... 5
1 Scope ... 7
2 Normative References ... 7
3 Terms and Definitions ... 8
4 Abbreviations ... 8
5 Overview ... 8
6 Extension Rate PHY Specifications ... 9
6.1 Overview ... 9
6.1.1 Introduction ... 9
6.1.2 Working mode ... 9
6.1.3 Range ... 11
6.1.4 Extension rate PHY layer functions ... 12
6.2 PHY-specific service parameter list ... 12
6.3 Extension rate PLCP sublayer ... 14
6.3.1 Introduction ... 14
6.3.2 PPDU format ... 14
6.3.3 PLCP data modulation and rate change ... 19
6.3.4 PLCP transmit procedure ... 24
6.3.5 CCA ... 24
6.3.6 PLCP receive procedure ... 25
6.4 ERP PMD operating specifications (general) ... 25
6.4.1 Regulatory requirements ... 25
6.4.2 Operating channel frequencies ... 26
6.4.3 Transmit and receive in-band and out-of-band spurious emissions ... 26 6.4.4 Slot time ... 26
6.4.5 SIFS value ... 26
6.4.6 CCA performance ... 26
6.4.7 PMD transmit specifications ... 27

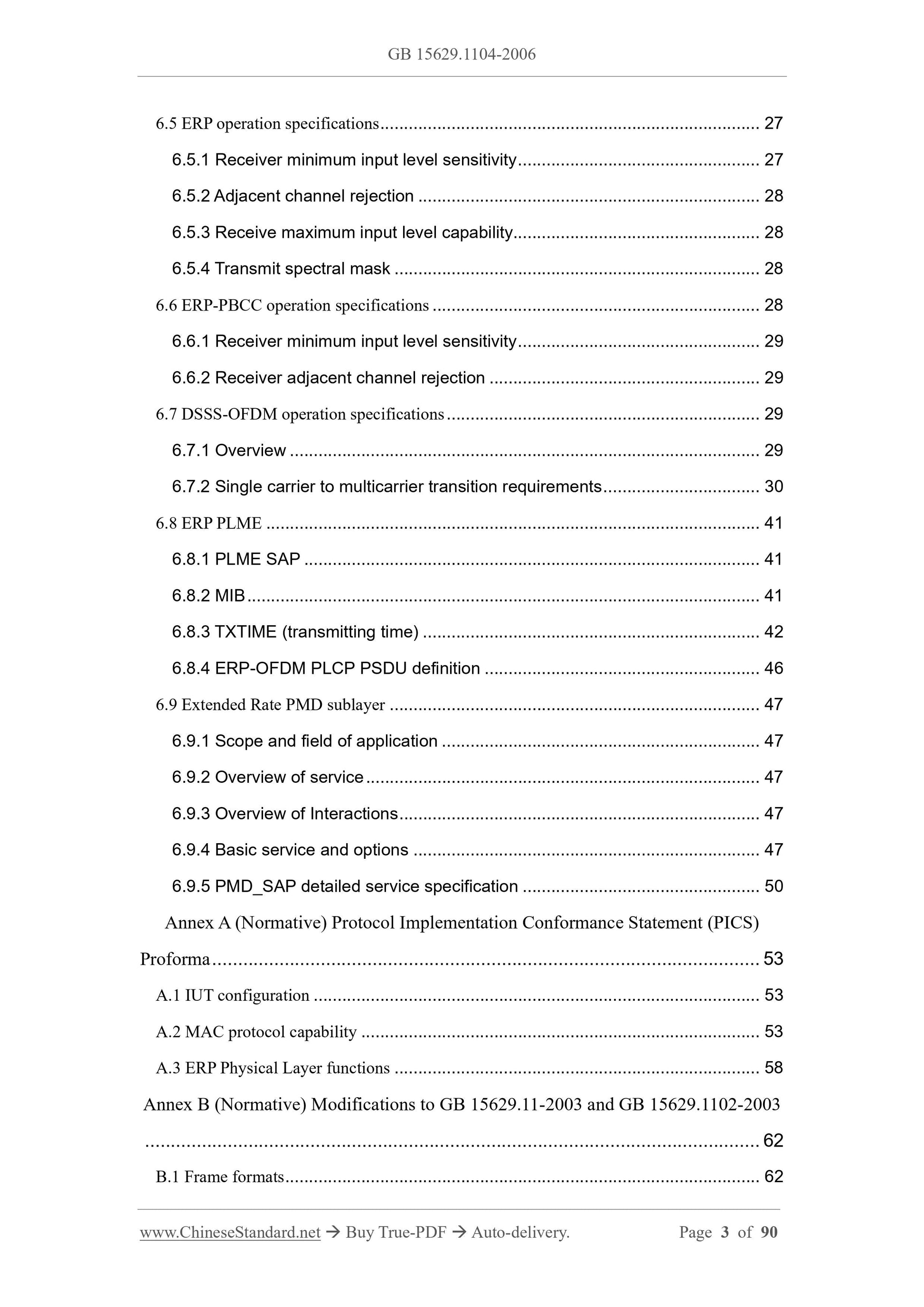

6.5 ERP operation specifications ... 27
6.5.1 Receiver minimum input level sensitivity ... 27
6.5.2 Adjacent channel rejection ... 28
6.5.3 Receive maximum input level capability... 28
6.5.4 Transmit spectral mask ... 28
6.6 ERP-PBCC operation specifications ... 28
6.6.1 Receiver minimum input level sensitivity ... 29
6.6.2 Receiver adjacent channel rejection ... 29
6.7 DSSS-OFDM operation specifications ... 29
6.7.1 Overview ... 29
6.7.2 Single carrier to multicarrier transition requirements ... 30
6.8 ERP PLME ... 41
6.8.1 PLME SAP ... 41
6.8.2 MIB ... 41
6.8.3 TXTIME (transmitting time) ... 42
6.8.4 ERP-OFDM PLCP PSDU definition ... 46
6.9 Extended Rate PMD sublayer ... 47
6.9.1 Scope and field of application ... 47
6.9.2 Overview of service ... 47
6.9.3 Overview of Interactions ... 47
6.9.4 Basic service and options ... 47
6.9.5 PMD_SAP detailed service specification ... 50
Annex A (Normative) Protocol Implementation Conformance Statement (PICS) Proforma ... 53
A.1 IUT configuration ... 53
A.2 MAC protocol capability ... 53
A.3 ERP Physical Layer functions ... 58
Annex B (Normative) Modifications to GB 15629.11-2003 and GB 15629.1102-2003 ... 62

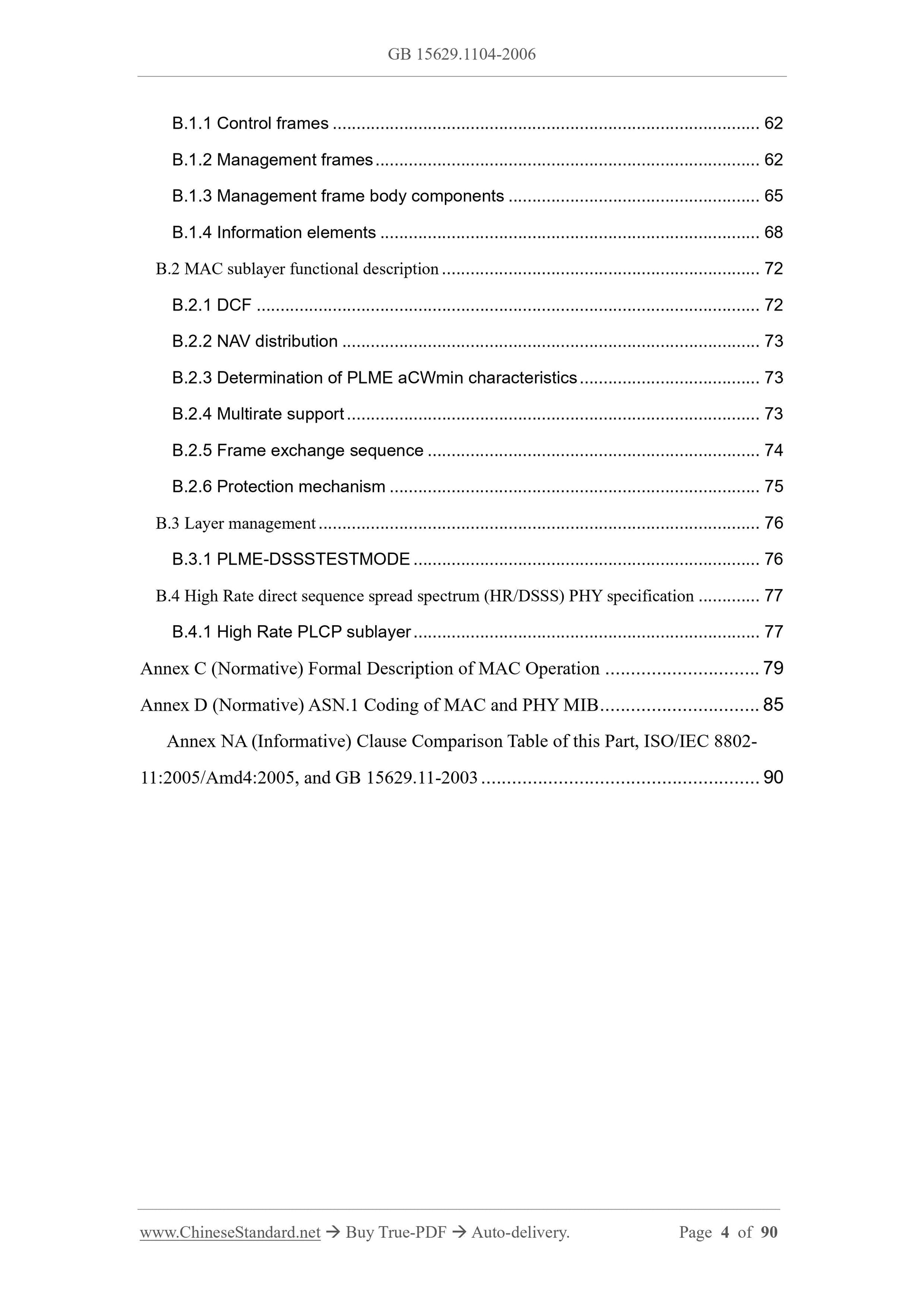

B.1 Frame formats ... 62
B.1.1 Control frames ... 62
B.1.2 Management frames ... 62
B.1.3 Management frame body components ... 65
B.1.4 Information elements ... 68
B.2 MAC sublayer functional description ... 72
B.2.1 DCF ... 72
B.2.2 NAV distribution ... 73
B.2.3 Determination of PLME aCWmin characteristics ... 73
B.2.4 Multirate support ... 73
B.2.5 Frame exchange sequence ... 74
B.2.6 Protection mechanism ... 75
B.3 Layer management ... 76
B.3.1 PLME-DSSSTESTMODE ... 76
B.4 High Rate direct sequence spread spectrum (HR/DSSS) PHY specification ... 77 B.4.1 High Rate PLCP sublayer ... 77
Annex C (Normative) Formal Description of MAC Operation ... 79
Annex D (Normative) ASN.1 Coding of MAC and PHY MIB ... 85
Annex NA (Informative) Clause Comparison Table of this Part, ISO/IEC 8802- 11:2005/Amd4:2005, and GB 15629.11-2003 ... 90

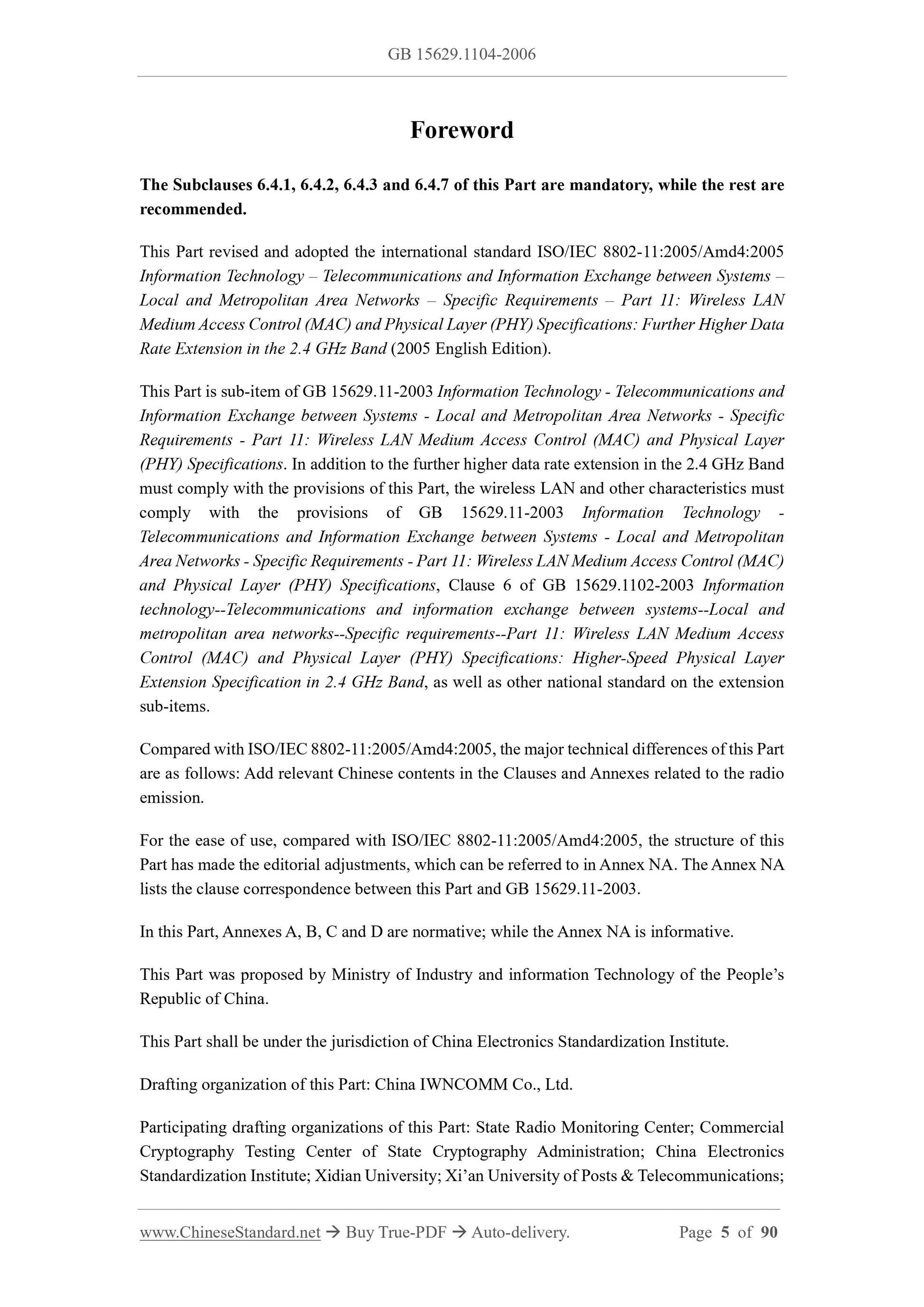

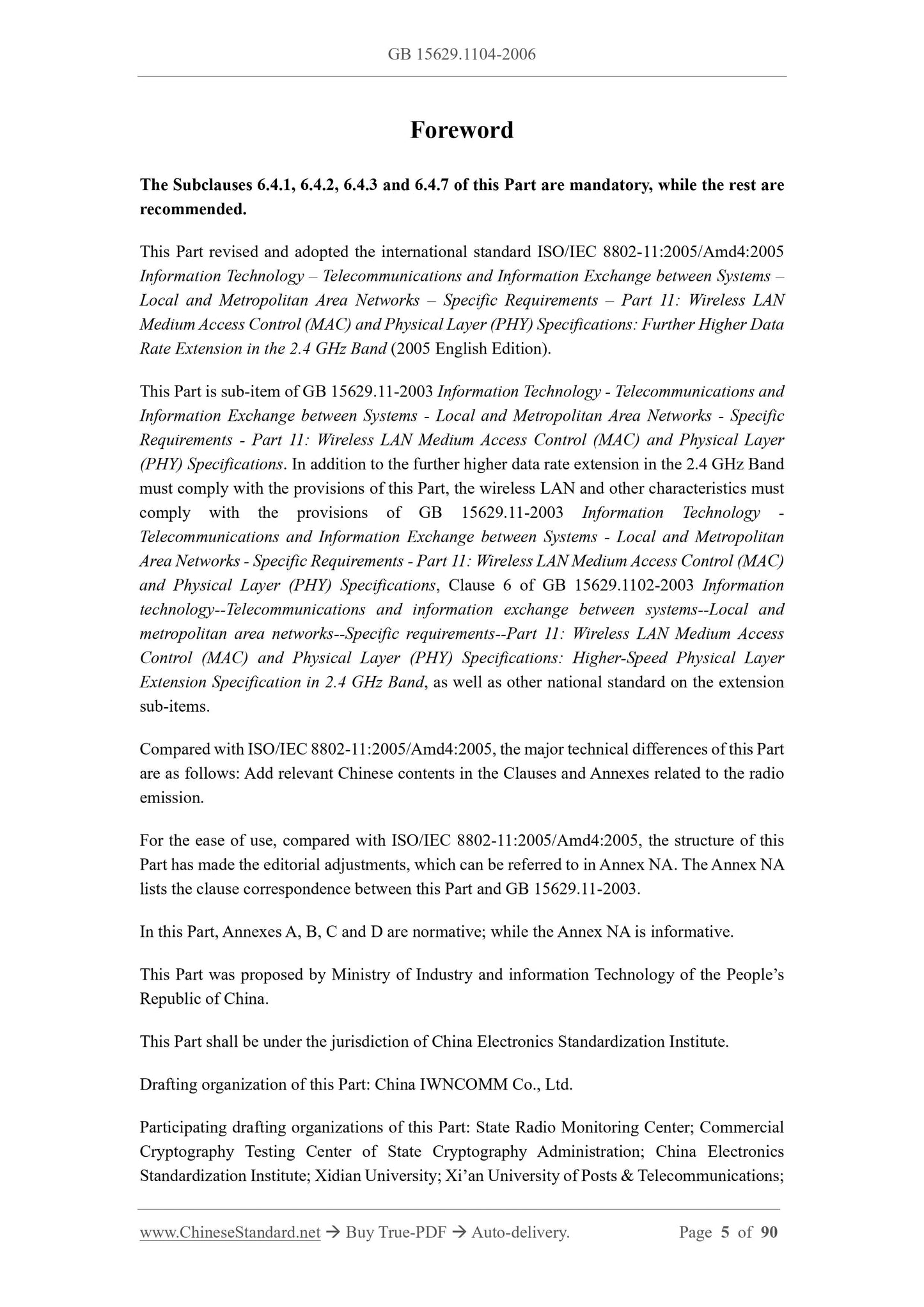

Foreword
The Subclauses 6.4.1, 6.4.2, 6.4.3 and 6.4.7 of this Part are mandatory, while the rest are recommended.
This Part revised and adopted the international standard ISO/IEC 8802-11:2005/Amd4:2005 Information Technology – Telecommunications and Information Exchange between Systems – Local and Metropolitan Area Networks – Specific Requirements – Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications: Further Higher Data Rate Extension in the 2.4 GHz Band (2005 English Edition).
This Part is sub-item of GB 15629.11-2003 Information Technology - Telecommunications and Information Exchange between Systems - Local and Metropolitan Area Networks - Specific Requirements - Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications. In addition to the further higher data rate extension in the 2.4 GHz Band must comply with the provisions of this Part, the wireless LAN and other characteristics must comply with the provisions of GB 15629.11-2003 Information Technology - Telecommunications and Information Exchange between Systems - Local and Metropolitan Area Networks - Specific Requirements - Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications, Clause 6 of GB 15629.1102-2003 Information technology--Telecommunications and information exchange between systems--Local and metropolitan area networks--Specific requirements--Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications: Higher-Speed Physical Layer Extension Specification in 2.4 GHz Band, as well as other national standard on the extension sub-items.
Compared with ISO/IEC 8802-11:2005/Amd4:2005, the major technical differences of this Part are as follows: Add relevant Chinese contents in the Clauses and Annexes related to the radio emission.
For the ease of use, compared with ISO/IEC 8802-11:2005/Amd4:2005, the structure of this Part has made the editorial adjustments, which can be referred to in Annex NA. The Annex NA lists the clause correspondence between this Part and GB 15629.11-2003. In this Part, Annexes A, B, C and D are normative; while the Annex NA is informative. This Part was proposed by Ministry of Industry and information Technology of the People’s Republic of China.
This Part shall be under the jurisdiction of China Electronics Standardization Institute. Drafting organization of this Part: China IWNCOMM Co., Ltd.
Participating drafting organizations of this Part: State Radio Monitoring Center; Commercial Cryptography Testing Center of State Cryptography Administration; China Electronics Standardization Institute; Xidian University; Xi’an University of Posts and Telecommunications; Information Technology – Telecommunications and Information
Exchange between Systems – Local and Metropolitan Area Networks
– Specific Requirements – Part 11: Wireless LAN Medium Access
Control (MAC) and Physical Layer (PHY) Specifications: Further
Higher Data Rate Extension in the 2.4 GHz Band

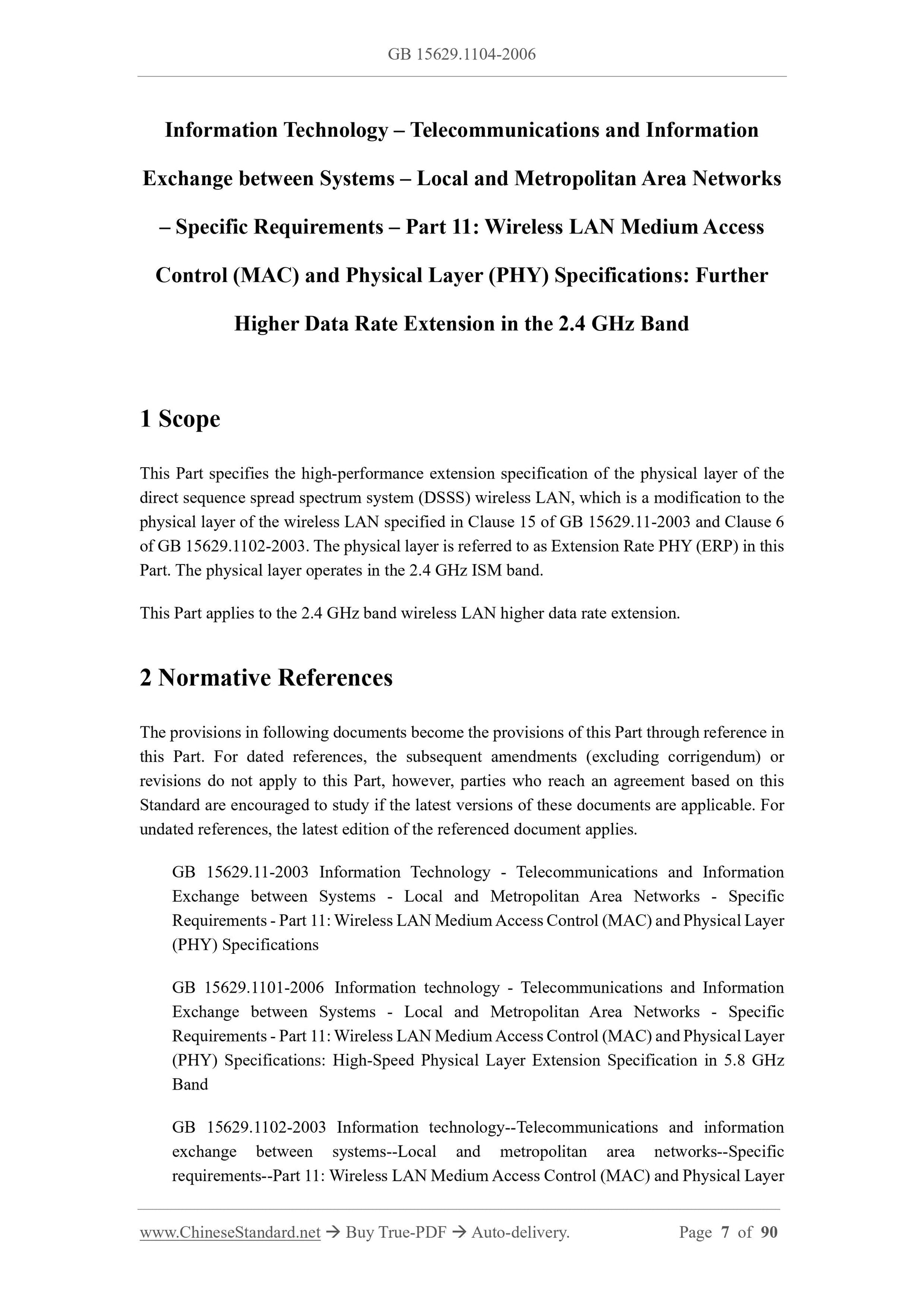

1 Scope
This Part specifies the high-performance extension specification of the physical layer of the direct sequence spread spectrum system (DSSS) wireless LAN, which is a modification to the physical layer of the wireless LAN specified in Clause 15 of GB 15629.11-2003 and Clause 6 of GB 15629.1102-2003. The physical layer is referred to as Extension Rate PHY (ERP) in this Part. The physical layer operates in the 2.4 GHz ISM band.
This Part applies to the 2.4 GHz band wireless LAN higher data rate extension. 2 Normative References
The provisions in following documents become the provisions of this Part through reference in this Part. For dated references, the subsequent amendments (excluding corrigendum) or revisions do not apply to this Part, however, parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB 15629.11-2003 Information Technology - Telecommunications and Information Exchange between Systems - Local and Metropolitan Area Networks - Specific Requirements - Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications
GB 15629.1101-2006 Information technology - Telecommunications and Information Exchange between Systems - Local and Metropolitan Area Networks - Specific Requirements - Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications: High-Speed Physical Layer Extension Specification in 5.8 GHz Band
GB 15629.1102-2003 Information technology--Telecommunications and information exchange between systems--Local and metropolitan area networks--Specific requirements--Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications: Higher-Speed Physical Layer Extension Specification in 2.4 GHz Band

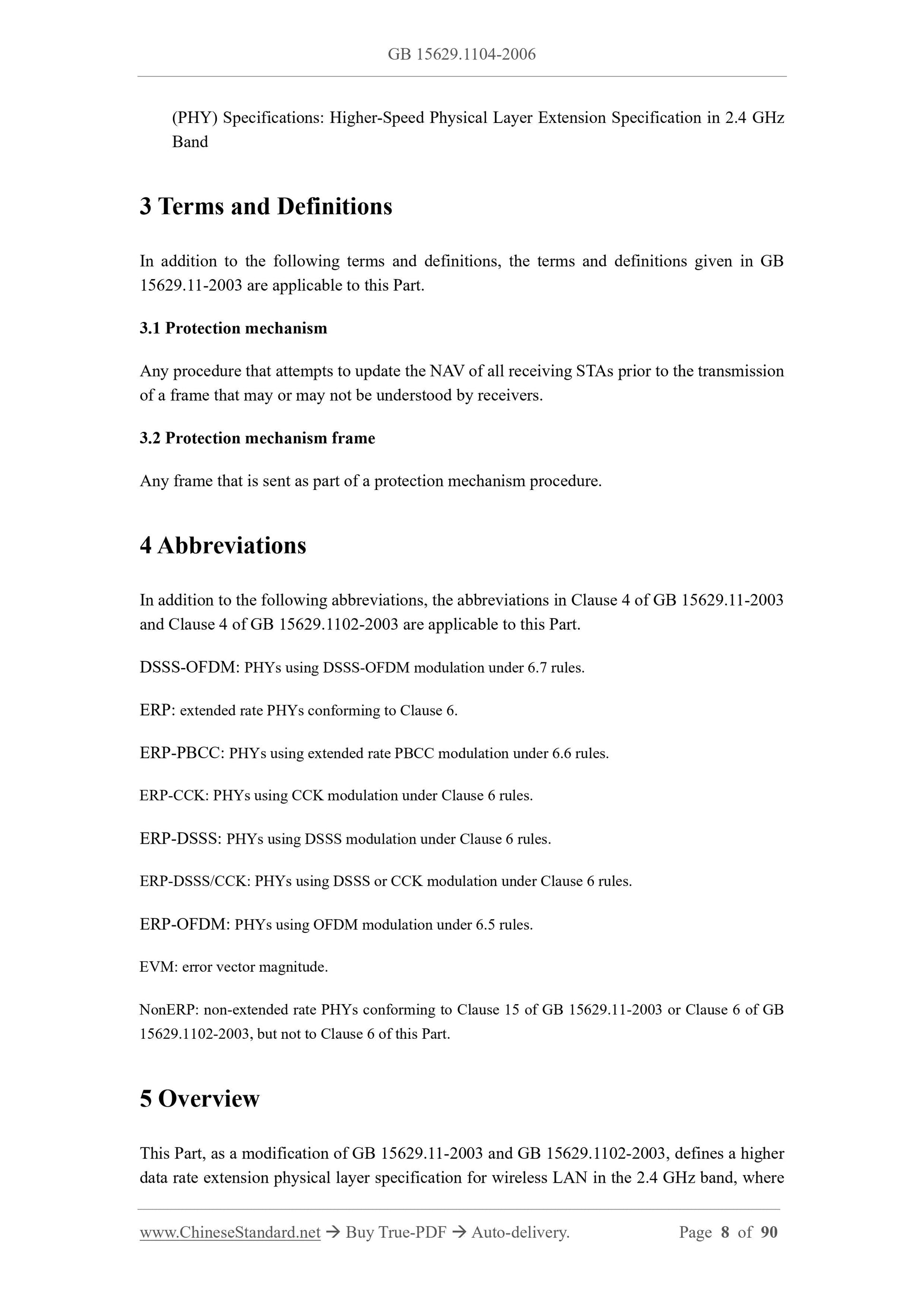

3 Terms and Definitions
In addition to the following terms and definitions, the terms and definitions given in GB 15629.11-2003 are applicable to this Part.
3.1 Protection mechanism
Any procedure that attempts to update the NAV of all receiving STAs prior to the transmission of a frame that may or may not be understood by receivers.
3.2 Protection mechanism frame
Any frame that is sent as part of a protection mechanism procedure.
4 Abbreviations
In addition to the following abbreviations, the abbreviations in Clause 4 of GB 15629.11-2003 and Clause 4 of GB 15629.1102-2003 are applicable to this Part.
DSSS-OFDM: PHYs using DSSS-OFDM modulation under 6.7 rules.
ERP: extended rate PHYs conforming to Clause 6.
ERP-PBCC: PHYs using extended rate PBCC modulation under 6.6 rules.
ERP-CCK: PHYs using CCK modulation under Clause 6 rules.
ERP-DSSS: PHYs using DSSS modulation under Clause 6 rules.
ERP-DSSS/CCK: PHYs using DSSS or CCK modulation under Clause 6 rules.
ERP-OFDM: PHYs using OFDM modulation under 6.5 rules.
EVM: error vector magnitude.
NonERP: non-extended rate PHYs conforming to Clause 15 of GB 15629.11-2003 or Clause 6 of GB 15629.1102-2003, but not to Clause 6 of this Part.
5 Overview
This Part, as a modification of GB 15629.11-2003 and GB 15629.1102-2003, defines a higher data rate extension physical layer specification for wireless LAN in the 2.4 GHz band, where
