GB 15365-2008: Symbols for controls -- Indicators and tell tales for motorcycles and mopeds

This Standard specifies symbols and colour of light signal device for controls, indicators and tell tales for motorcycles and mopeds. This Standard applies to those controls that are installed on the dashboard and that are close to the drivers of motorcycles and mopeds. However, this does not mean that each control listed in this Standard must be used. This Standard applies to motorcycles and mopeds.

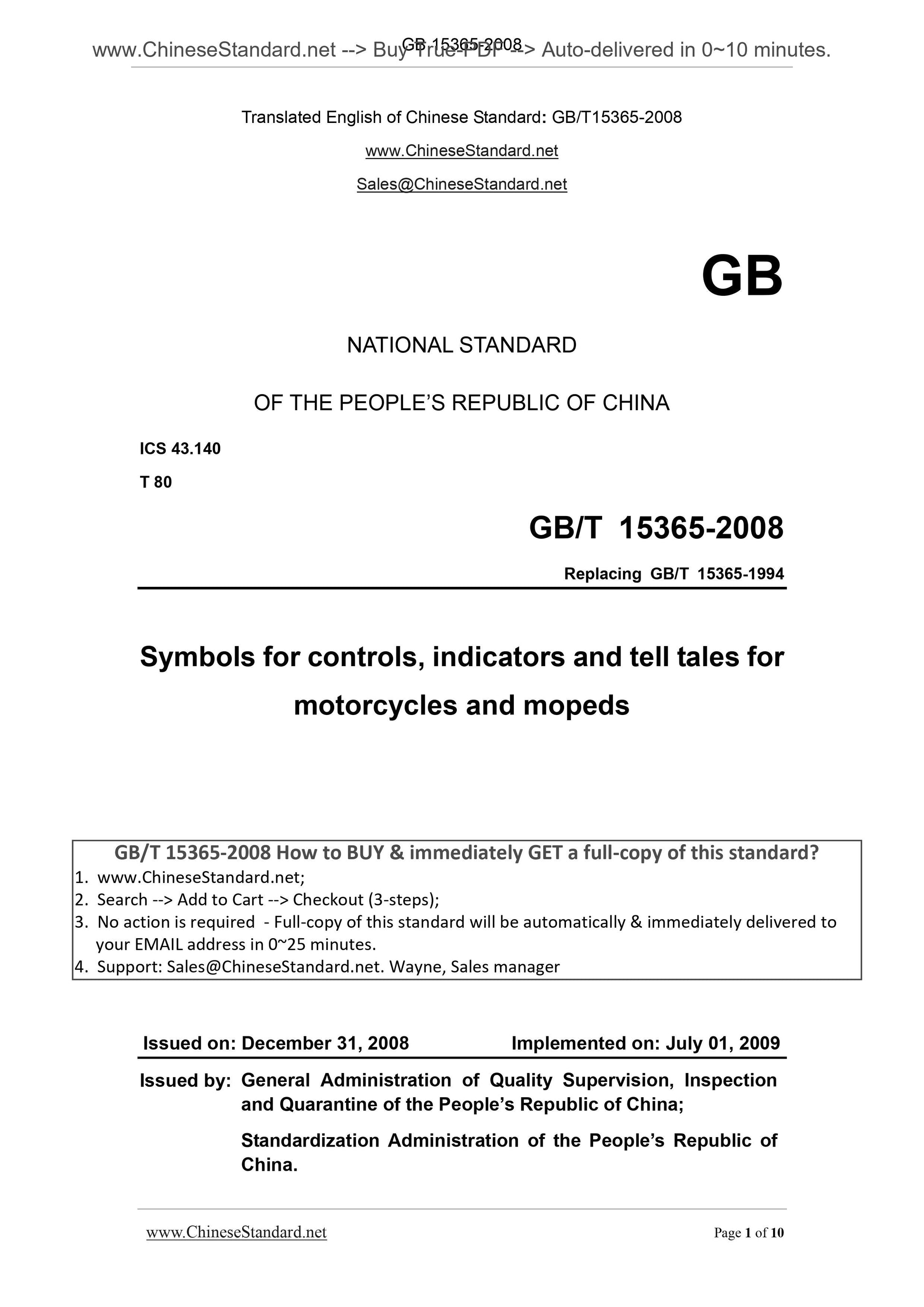

GB 15365-2008
GB
NATIONAL STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 43.140
T 80
GB/T 15365-2008
Replacing GB/T 15365-1994
Symbols for controls, indicators and tell tales for
motorcycles and mopeds
ISSUED ON. DECEMBER 31, 2008
IMPLEMENTED ON. JULY 01, 2009
Issued by.
General Administration of Quality Supervision, Inspection
and Quarantine of the PEOPLE Republic of China;
Standardization Administration of the PEOPLE Republic of
China.

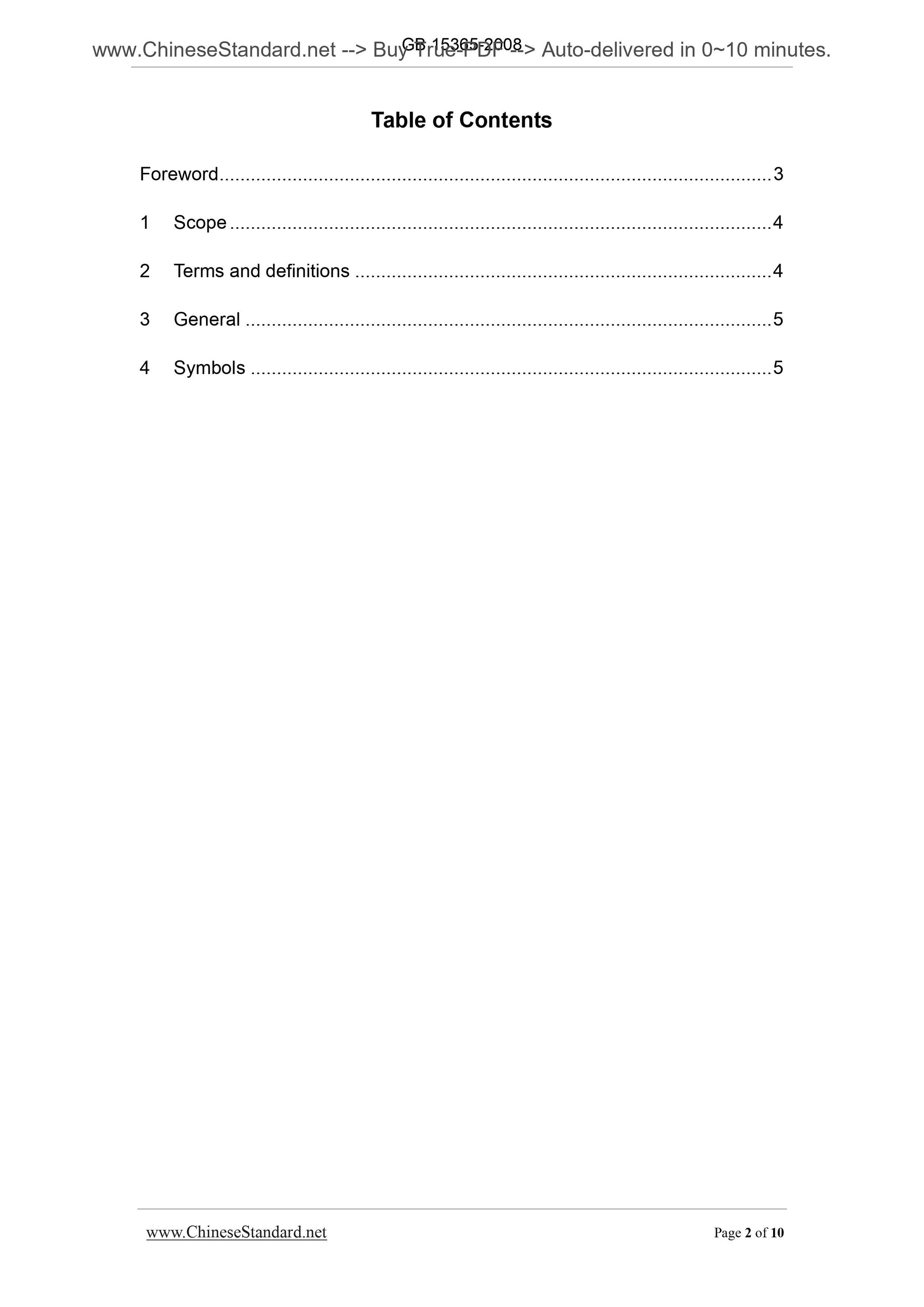

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Terms and definitions ... 4
3 General ... 5
4 Symbols ... 5

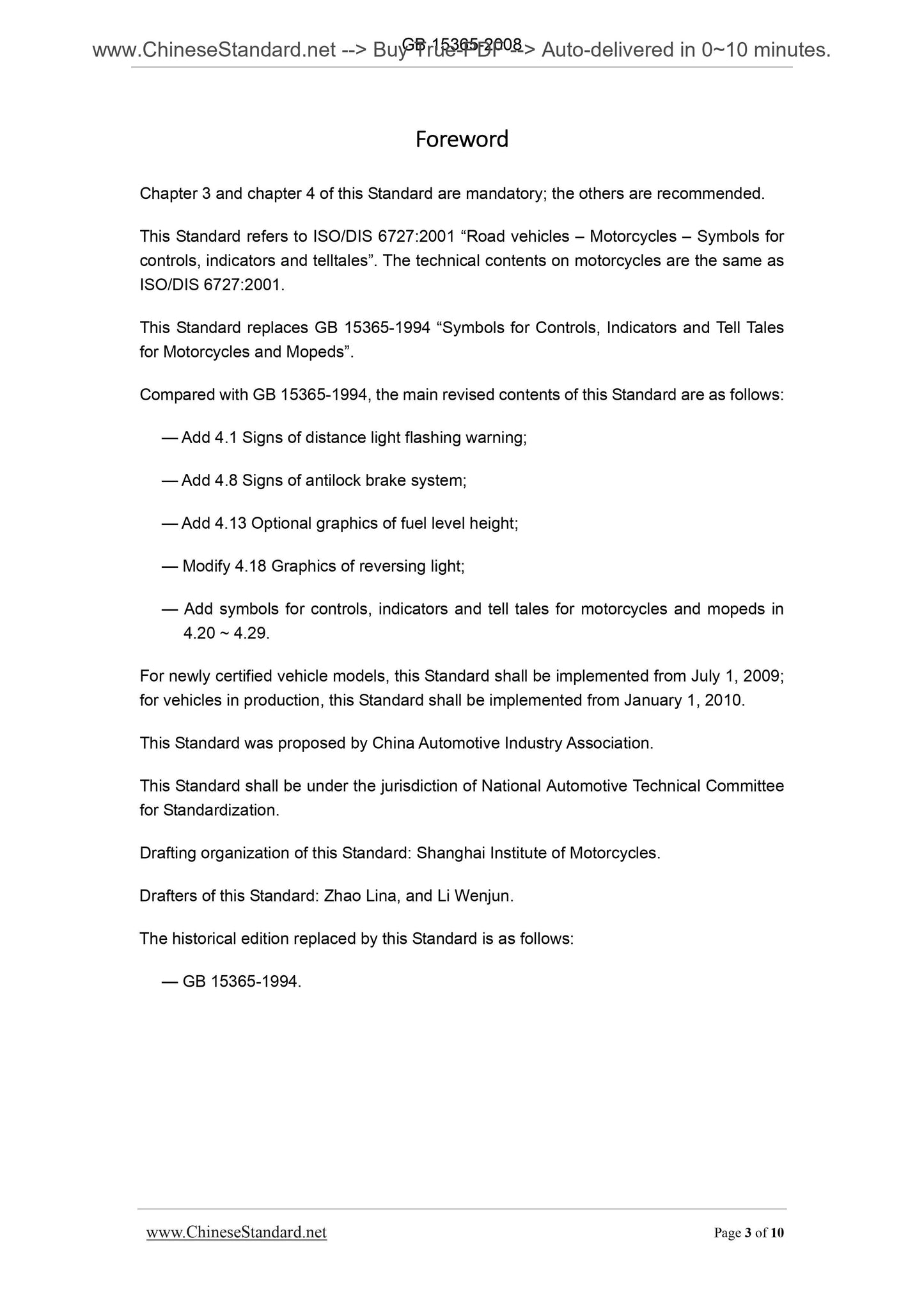

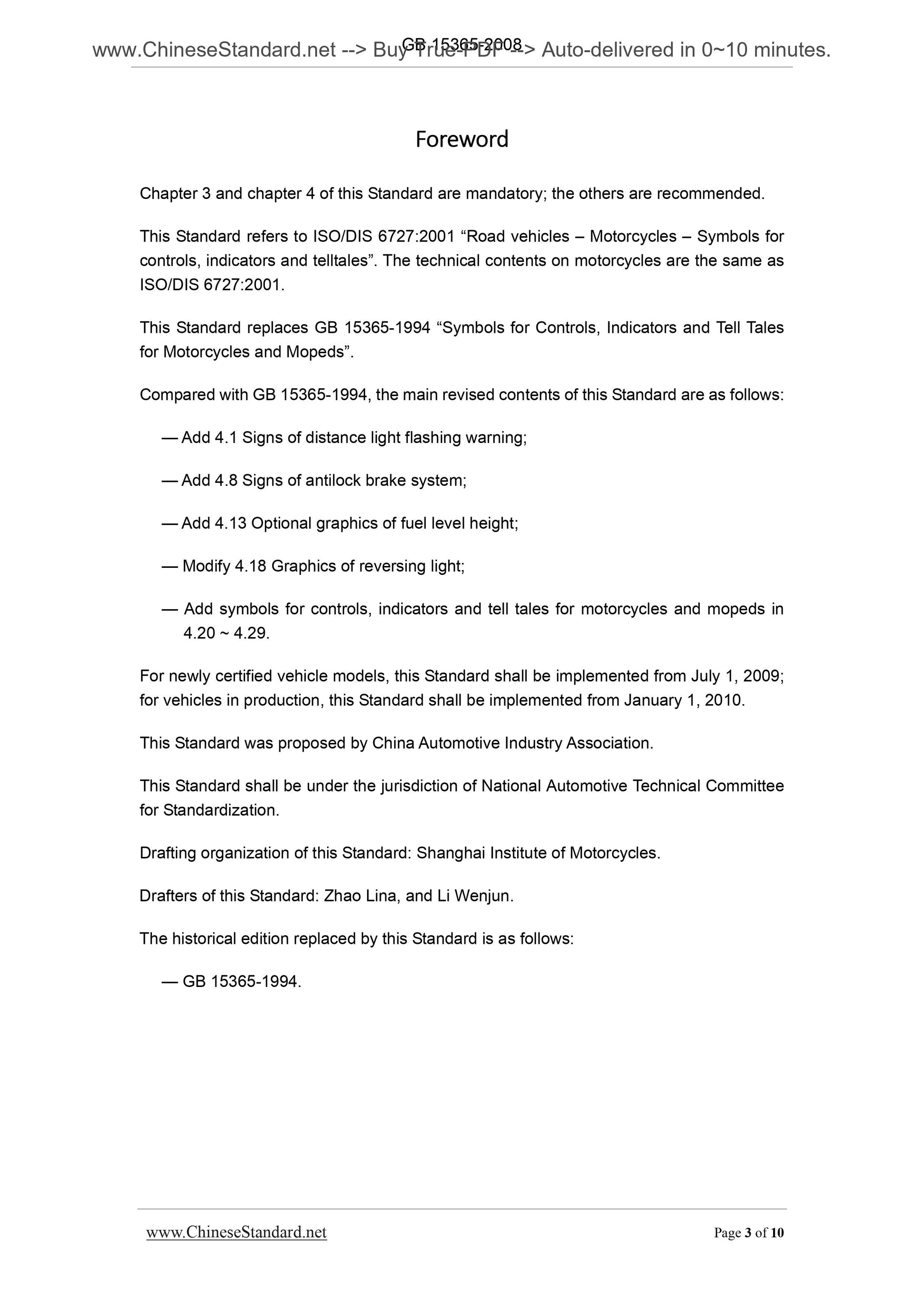

Foreword
Chapter 3 and chapter 4 of this Standard are mandatory; the others are recommended. This Standard refers to ISO/DIS 6727.2001 ?€?Road vehicles ?€? Motorcycles ?€? Symbols for controls, indicators and telltales?€?. The technical contents on motorcycles are the same as ISO/DIS 6727.2001.
This Standard replaces GB 15365-1994 ?€?Symbols for Controls, Indicators and Tell Tales for Motorcycles and Mopeds?€?.
Compared with GB 15365-1994, the main revised contents of this Standard are as follows. ?€? Add 4.1 Signs of distance light flashing warning;
?€? Add 4.8 Signs of antilock brake system;
?€? Add 4.13 Optional graphics of fuel level height;
?€? Modify 4.18 Graphics of reversing light;
?€? Add symbols for controls, indicators and tell tales for motorcycles and mopeds in 4.20 ~ 4.29.
For newly certified vehicle models, this Standard shall be implemented from July 1, 2009; for vehicles in production, this Standard shall be implemented from January 1, 2010. This Standard was proposed by China Automotive Industry Association.
This Standard shall be under the jurisdiction of National Automotive Technical Committee for Standardization.
Drafting organization of this Standard. Shanghai Institute of Motorcycles. Drafters of this Standard. Zhao Lina, and Li Wenjun.
The historical edition replaced by this Standard is as follows.
?€? GB 15365-1994.

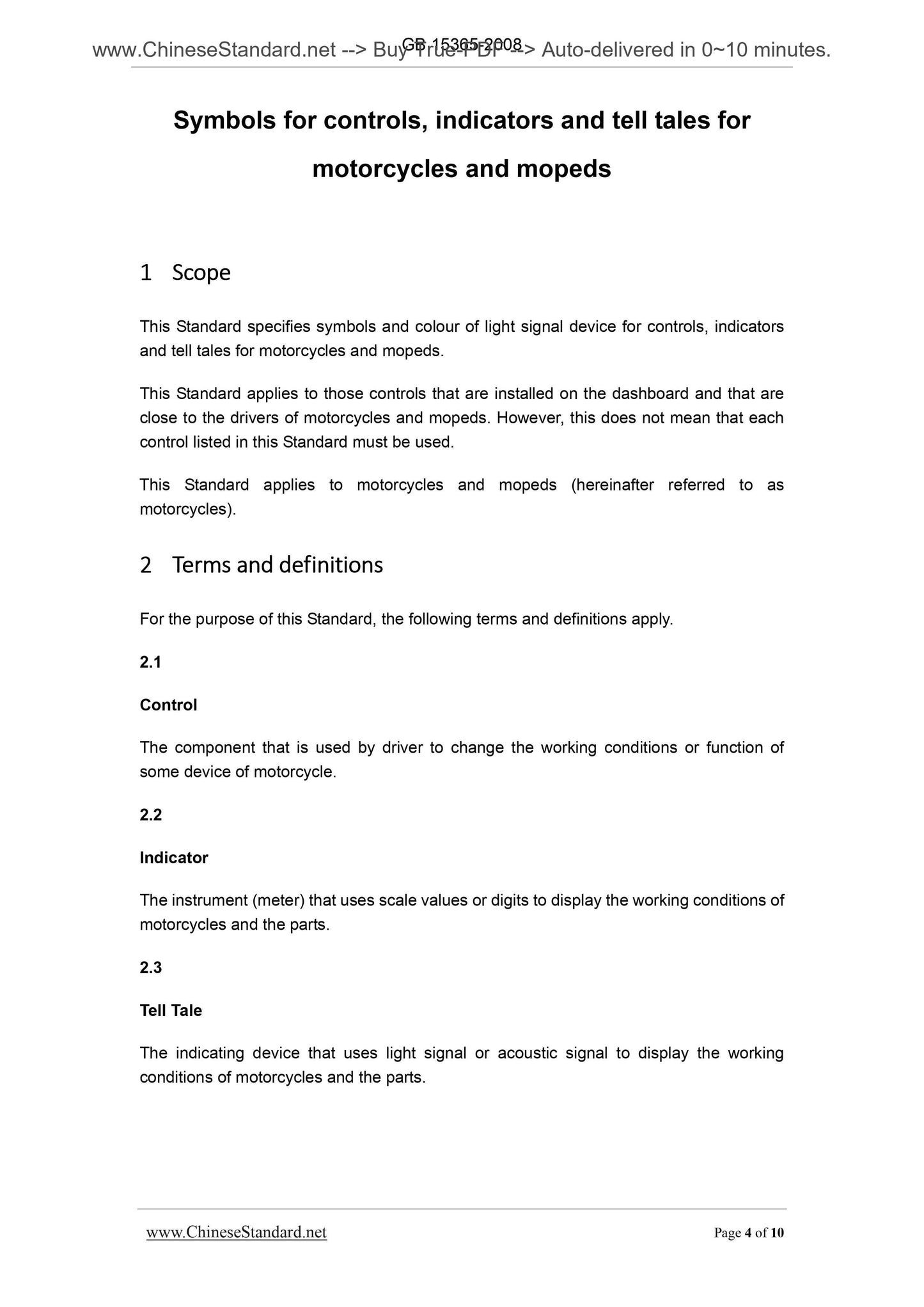

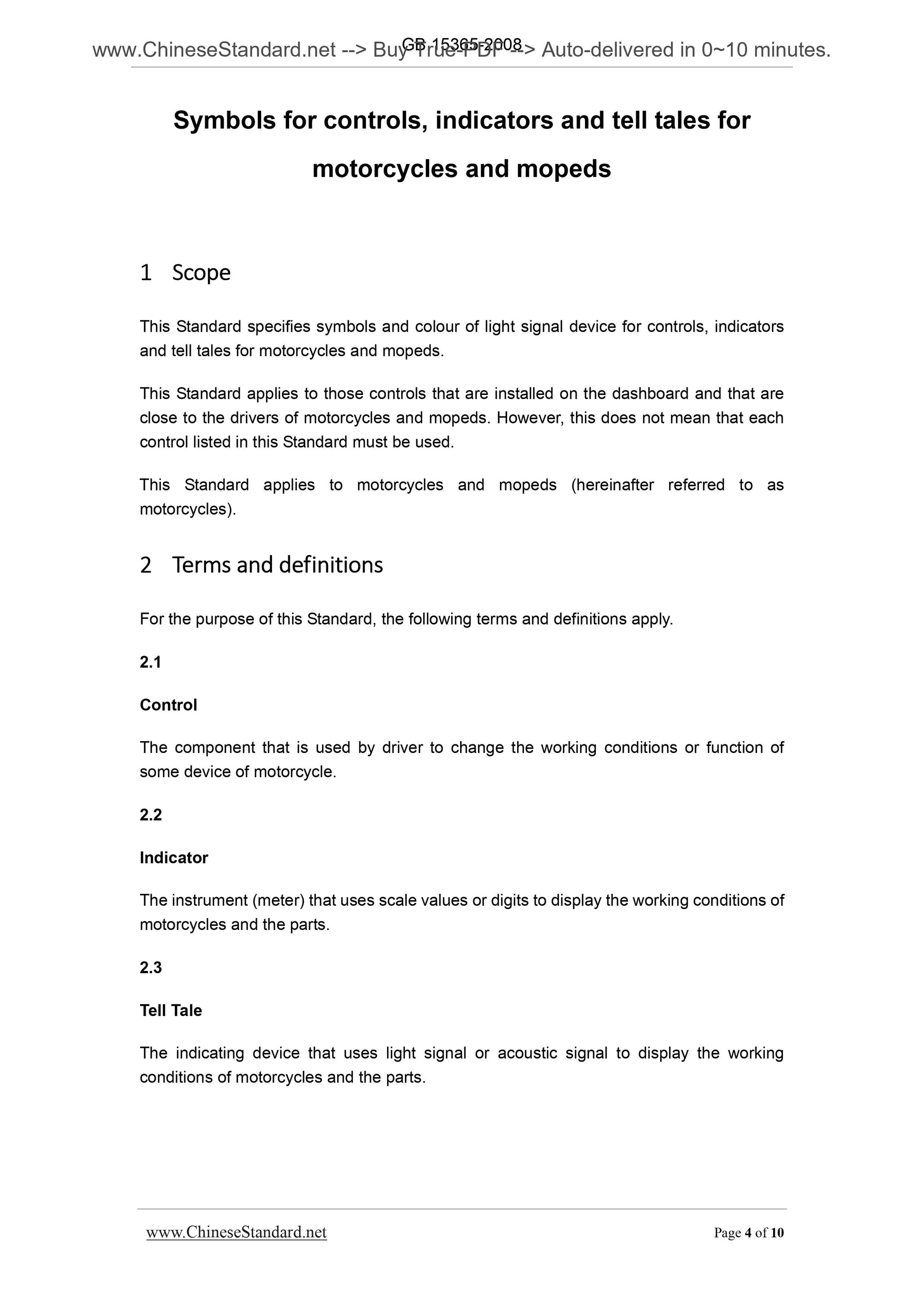

Symbols for controls, indicators and tell tales for
motorcycles and mopeds
1 Scope
This Standard specifies symbols and colour of light signal device for controls, indicators and tell tales for motorcycles and mopeds.
This Standard applies to those controls that are installed on the dashboard and that are close to the drivers of motorcycles and mopeds. However, this does not mean that each control listed in this Standard must be used.
This Standard applies to motorcycles and mopeds (hereinafter referred to as motorcycles).
2 Terms??and??definitions
For the purpose of this Standard, the following terms and definitions apply. 2.1
Control
The component that is used by driver to change the working conditions or function of some device of motorcycle.
2.2
Indicator
The instrument (meter) that uses scale values or digits to display the working conditions of motorcycles and the parts.
2.3
Tell Tale
The indicating device that uses light signal or acoustic signal to display the working conditions of motorcycles and the parts.

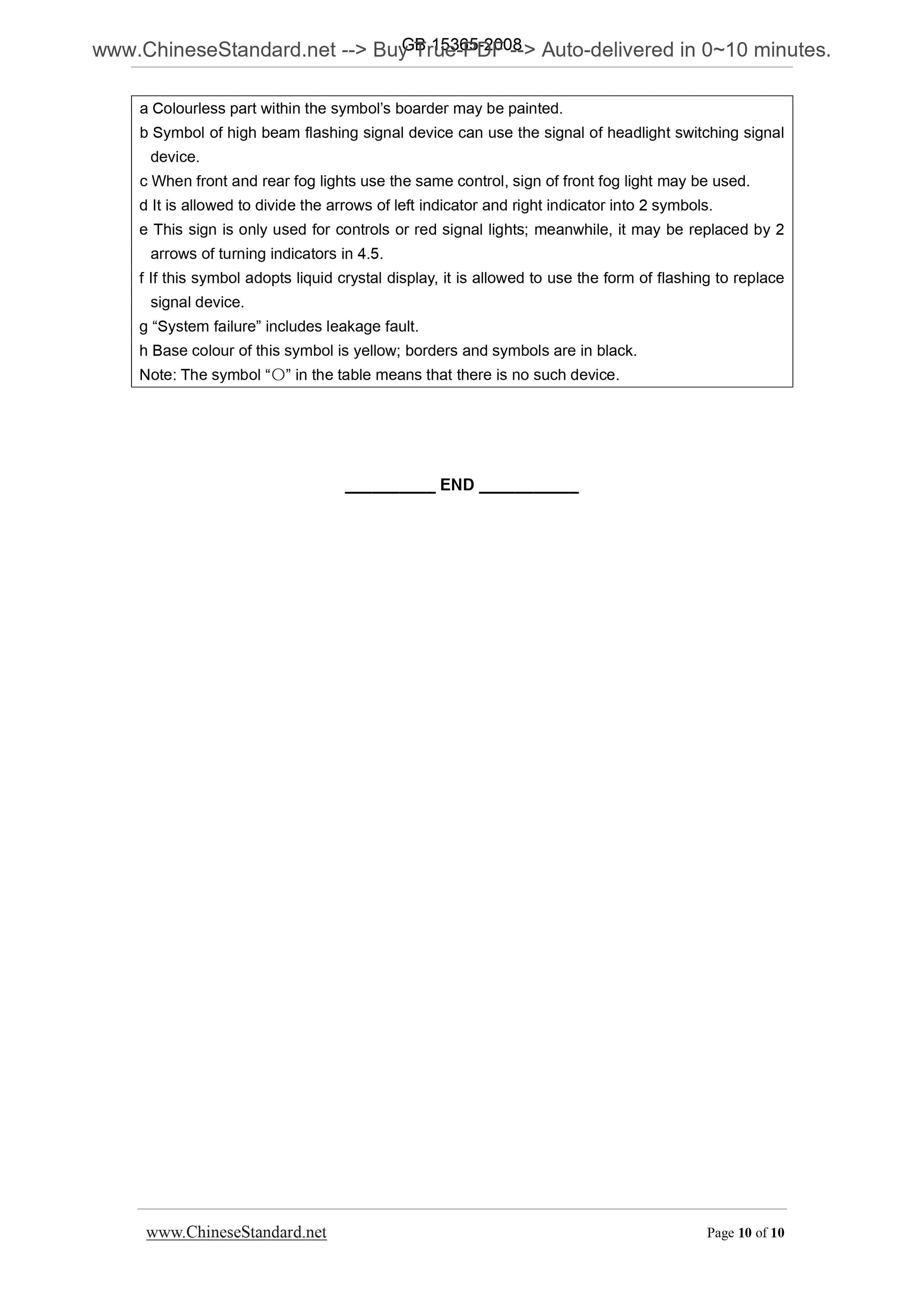

a Colourless part within the symbol?€?s boarder may be painted.
b Symbol of high beam flashing signal device can use the signal of headlight switching signal device.
c When front and rear fog lights use the same control, sign of front fog light may be used. d It is allowed to divide the arrows of left indicator and right indicator into 2 symbols. e This sign is only used for controls or red signal lights; meanwhile, it may be replaced by 2 arrows of turning indicators in 4.5.
f If this symbol adopts liquid crystal display, it is allowed to use the form of flashing to replace signal device.
g ?€?System failure?€? includes leakage fault.
h Base colour of this symbol is yellow; borders and symbols are in black. Note. The symbol ?€??€??€? in the table means that there is no such device.
