GB 14784-2013: Safety regulations of belt conveyor

This Standard specifies the safety requirements of the belt conveyor in aspects of design and manufacture, installation, operation, and maintenance etc. This Standard is applicable to the fixed belt conveyor for conveying all kinds of blocky and granular bulk materials etc. as well as packed articles.
GB 14784-2013
GB
National Standard
of the PEOPLE Republic of China
ICS 53.040.01
J 81
Replacing GB/T 14784-1993
Safety Regulations of Belt Conveyor
ISSUED ON. DECEMBER 31, 2013
IMPLEMENTED ON. JULY 1, 2014
Jointly issued by. General Administration of Quality Supervision,
Inspection and Quarantine (AQSIQ);
Standardization Administration (SAC) of the People's
Republic of China.
Table of Contents
Foreword??...??3
1 Scope??...??5
2 Normative References??...??5
3 Basic Requirements??...??6
4 Safety Rules??...??6
Appendix A (Normative) Product Operation and Maintenance Instructions??...??21 Foreword
Articles 4.1.1, 4.1.2, 4.1.3, 4.1.4, 4.1.5, 4.1.10 and 4.1.11 of this Standard [except Items d), e), f) and h)] are compulsory; the rest are recommended.
This Standard was drafted according to the rules given in GB/T 1.1-2009. This Standard replaces GB 14784-1993 "Safety Regulations of Belt Conveyor". Compared with GB/T 14784-1993, main differences in this Standard are as follows. - Application scope in the former standard was modified;
- Sections 3.1, 3.5, 3.10, 4.1, 5.1, 5.2, 5.3 and 5.8; Items a, b, c, d, e and g in Article 3.2.3.4; Articles 4.3.3 and 5.4.5.6; and Chapter 7 in the former standard were deleted;
- Basic requirements were added (see Chapter 3);
- This Safety Regulations was prepared into three parts - "design and manufacture stage", "installation stage", and "operation and maintenance stage".
- Article 3.11.2 and Table 1 in the former standard were revised (see Article 4.1.1.3 and Table 1);
- Article 3.11.3 was deleted; and its contents were respectively written in the drum protection, idler protection, tension device protection, driving device protection, belt device protection, unloading vehicle protection and metal structural member protection;
- "The idler in the transition section of the bearing branch conveyor belt, the idler in the lower part of the guide chute, the idler in the lower part of the pinch roller, and the part between the pinch roller and the conveyor belt are also easily-pinched parts" (see Article 4.1.1.2) was added;
- Anti-clamping wedge protection was added (see Article 4.1.2);
- Transition idler protection, protection for the idler in the lower part of the guide chute, and protection for the idler in the lower part of the pinch roller were added (see Articles 4.1.3.4, 4.1.3.5 and 4.1.3.6);
- Vehicle-type tension device protection was added (see Article 4.1.4.2); - Belt device protection was added (see Article 4.1.6);
- Requirements for the protective plate were added (see Article 4.1.10); - Requirements for the emergency stop switch were added [see Item i) in Article 4.1.11];
- Requirements for the preparation of "product operation and maintenance instructions" were added (see Article 4.1.12 and Appendix A);
- The requirements that the test run shall not be carried out before completion of installation of the passageway etc. were added (see Article 4.2.4);
- Items e), i), j), m), n), o), and p) in Section 4.3 were added.
This Standard was proposed by China Machinery Industry Federation.
This Standard shall be under the jurisdiction of National Technical Committee on Continuous Handling Machinery of Standardization Administration of China (SAC/TC 331).
Drafting organizations of this Standard. Beijing Yueji Industry Co., Ltd., and Beijing Materials Handling Research Institute (BMHRI).
Participating drafting organizations of this Standard. Northeren Heavy Industries Group Co., Ltd., Huadian Heavy Industries Co., Ltd., Shanghai Keda Heavy Industry Group Co., Ltd., Hengyang Conveying Machinery Co., Ltd., Shanxi Oriental Material Handling Co., Ltd., Tongling Miracle Mechanical Equipment Co., Ltd., Transportation Machinery Equipment Manufacturing Co., Ltd. of Maanshan Iron & Steel Co., Ltd., and Jiangsu Huanyu Crane Transporter Co., Ltd.
Chief drafting staffs of this Standard. Huang Wenlin, Wang Shunting, Ma Limin, Zhang Jigong, Liu Wenjun, Wang Yu, Liu Pokuan, Wang Fenglei, Zhang Xiaohua, Wang Yonghong, Yu Hongquan, Zhang Yongfeng, and Zhang Liming.
The previous edition replaced by this Standard is as follows.
- GB/T 14784-1993.
Safety Regulations of Belt Conveyor
1 Scope
This Standard specifies the safety requirements of the belt conveyor (hereinafter referred to as "conveyor") in aspects of design and manufacture, installation, operation, and maintenance etc.
This Standard is applicable to the fixed belt conveyor for conveying all kinds of blocky and granular bulk materials etc. as well as packed articles.
This Standard is not applicable to the belt conveyors that are used for the underground coal mine, that in direct contact with foods or drugs, and manned belt conveyor.
The conveyor for conveying flammable, explosive, toxic, corrosive and radioactive materials etc. shall comply with both this Standard and corresponding standards. 2 Normative References
The following referenced documents are indispensable for the application of this document. For dated reference, only the edition cited applies. For undated references, the latest edition of the normative document (including any amendments) applies. GB/T 10595 Belt Conveyors
GB/T 17119 Continuous Mechanical Handling Equipment - Belt Conveyors with Carrying Idlers - Calculation of Operating Power and Tensile Forces
GB 23821-2009 Safety of Machinery - Safety Distances to Prevent Danger Zones Being Reached by the Upper and Lower Limbs
GB/T 25295 Guidelines on Safety Designs for Electric Equipment
GB 50168 Code for Construction and Acceptance of Cable System Electric
Equipment Installation Engineering
GB 50169 Code for Construction and Acceptance of Grounding Connection
Electric Equipment Installation Engineering
GB 50170 Code for Construction and Acceptance of Rotating Electrical Machines Electric Equipment Installation Engineering
GB 50254 Code for Construction and Acceptance of Low-voltage Apparatus
Electric Equipment Installation Engineering
GB 50255 Code for Construction and Acceptance of Power Convertor Equipment Electric Equipment Installation Engineering
GB 50270 Code for Construction and Acceptance of Conveyor Equipment
Installation Engineering
GB 50431 Code for Design of Belt Conveyor Engineering
3 Basic Requirements
3.1 Design of the conveyor shall meet the requirements of GB 50431 and GB/T 17119.
3.2 Manufacture of the conveyor shall meet the requirements of GB/T 10595. 3.3 Operation conditions of the conveyor shall meet its normal operating conditions. The conveyor with special requirements shall also meet corresponding conditions. 3.4 Installation of the conveyor shall meet the requirements of GB 50270. Design of the electrical installations shall meet the requirements of GB/T 25295; installation of the electrical installations shall meet the requirements of GB 50168, GB 50169, GB 50170, GB 50254 and GB 50255.
4 Safety Rules
4.1 Design and Manufacture Stage
4.1.1 Scope of easily-pinched parts
4.1.1.1 Head, tail and tension parts of the conveyor where people are often accessible as well as turn-about part of the conveyor belt are easily-pinched parts (see Figures 1 and 2).
4.1.1.2 The part between the idler and the conveyor belt where the conveyor belt cannot be lifted and produces a distance of more than 50mm from the pinch point shall be considered as the easily-pinched part. Therefore, the idler where the included angle between adjacent two groups of idlers in the convex arc section, the idler in the transition section of the bearing branch conveyor belt, the idler in the lower part of the guide chute, the idler in the lower part of the pinch roller and the part between the pinch roller and the conveyor belt are also easily-pinched parts (see Figure 3). brake or stopper shall be installed;
b) For the conveyor conveying materials downward in an inclined way, when its driving moment during full-load operation is a negative value, anti-overspeed safety device shall be installed;
c) Protection and alarm device which prevents the conveyor belt from deflection shall be installed;
d) Detection device which prevents the conveyor belt from slipping on the drive drum should be arranged;
e) Automatic control conveyor with power take-up device should be arranged with an instantaneous tension detector;
f) The conveyor used in the open air or coastal area with above Scale 6 gale danger should be arranged with a device preventing the conveying belt from overturning.
g) The rope-core conveyor conveying bulky and hard materials shall be installed with a protective device preventing the conveyor belt from longitudinal tearing; h) Hopper blocking alarm device should be arranged;
i) The full length of the walkway along the conveyor shall be arranged with emergency stop pull-cord switch, whose spacing shall not be greater than 60m. When the length of the conveyor is less than 30m, pull-cord switch may not be arranged and an emergency stop button is arranged to replace it; however, the distance from any point at the length direction of the conveyor to the
emergency stop button shall not be greater than 10m.

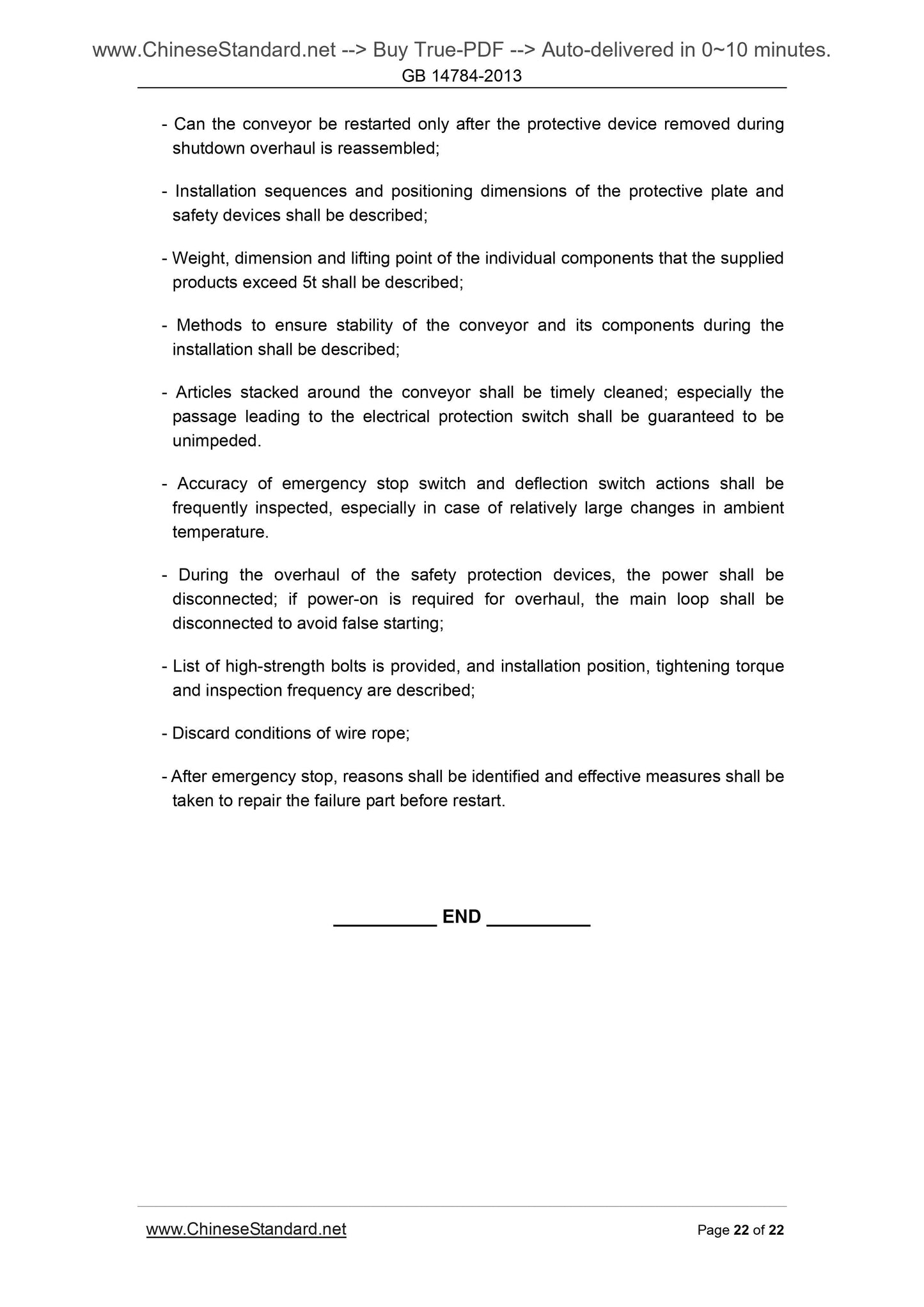

4.1.12 Product operation and maintenance ins...
