GB 14536.11-2008: [GB/T 14536.11-2008] Automatic electrical controls for household and similar use -- Particular requirements for motor-starting relays

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB 14536.11-2008 (Self-service in 1-minute)
Newer / historical versions: GB 14536.11-2008

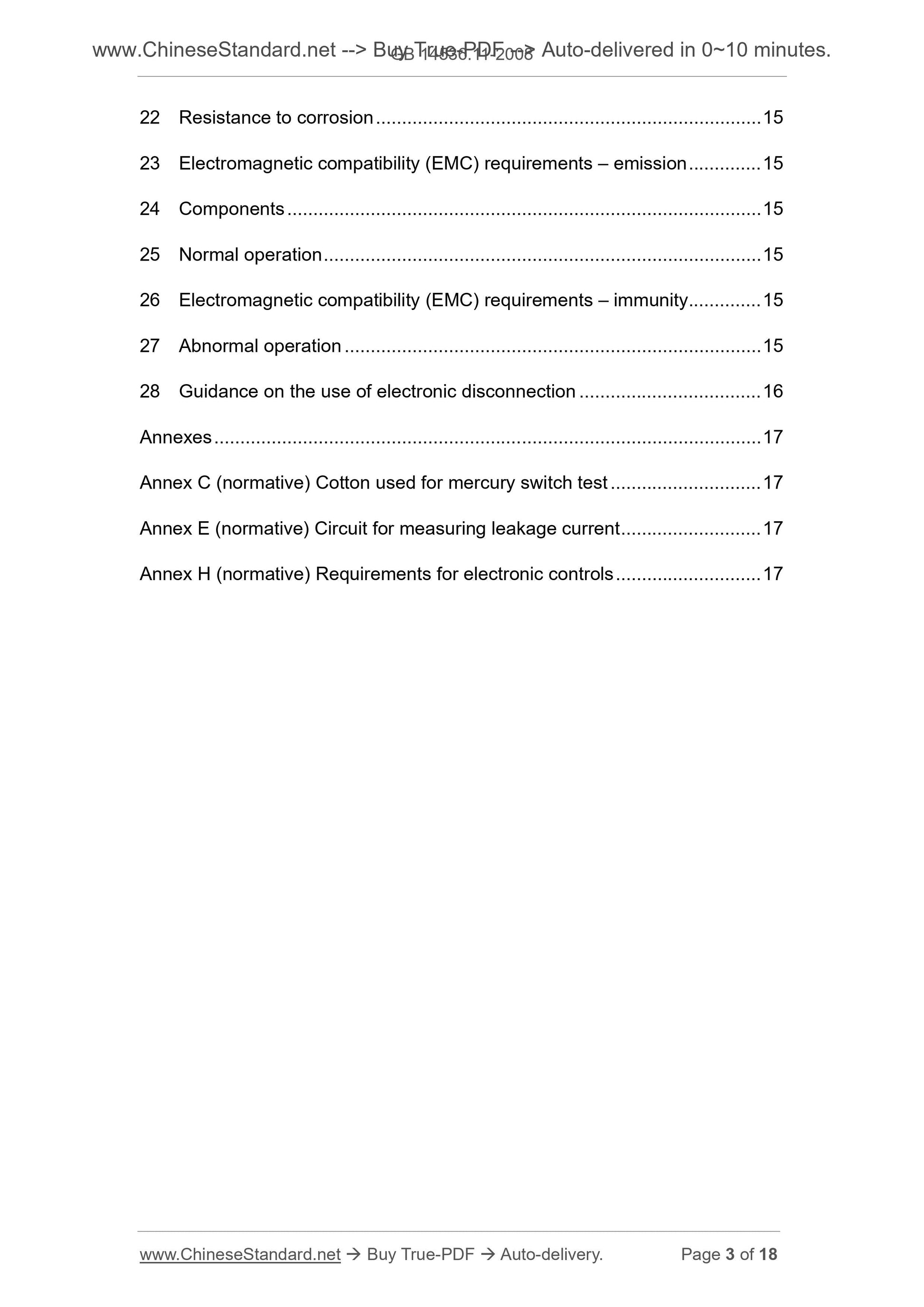

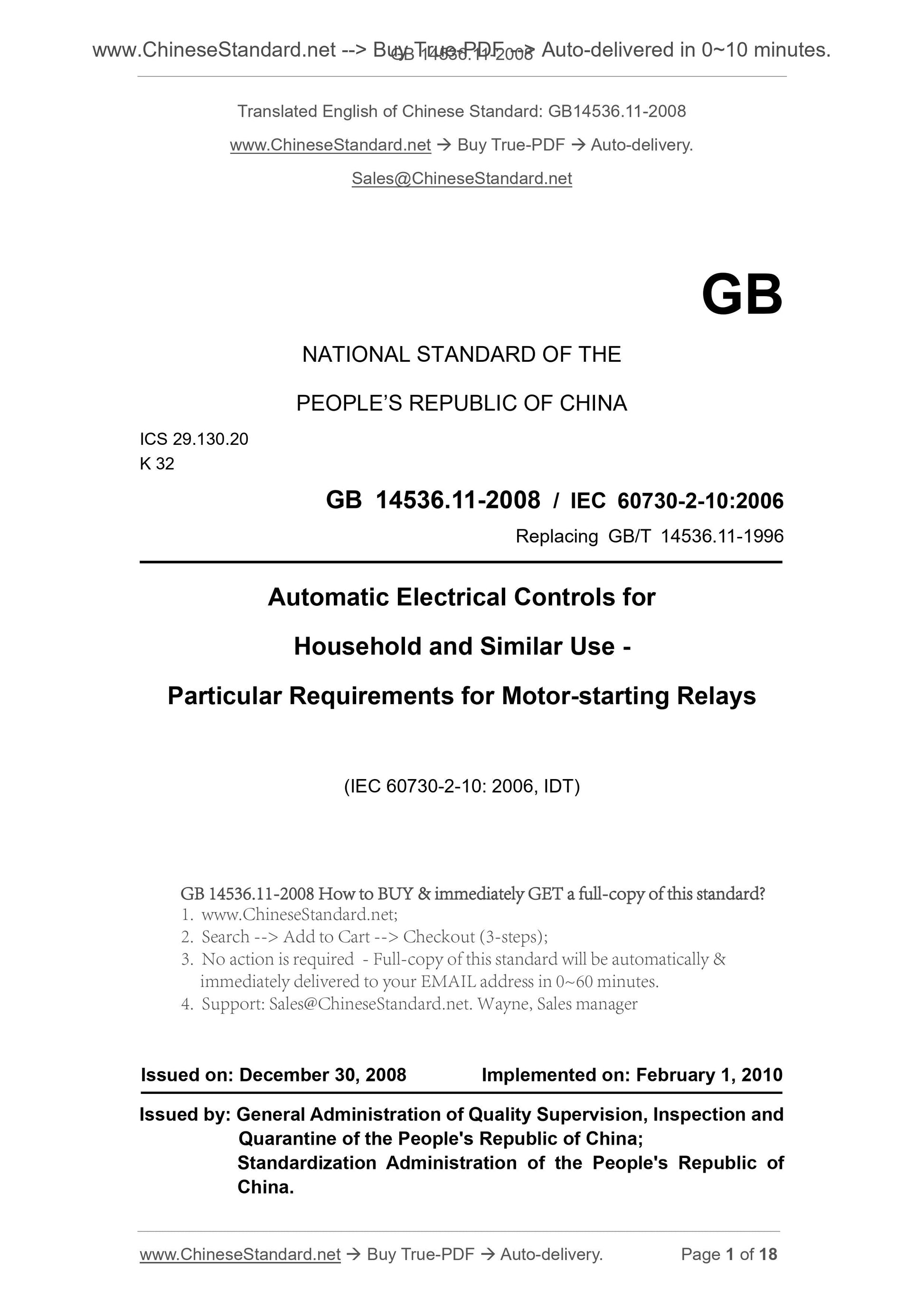

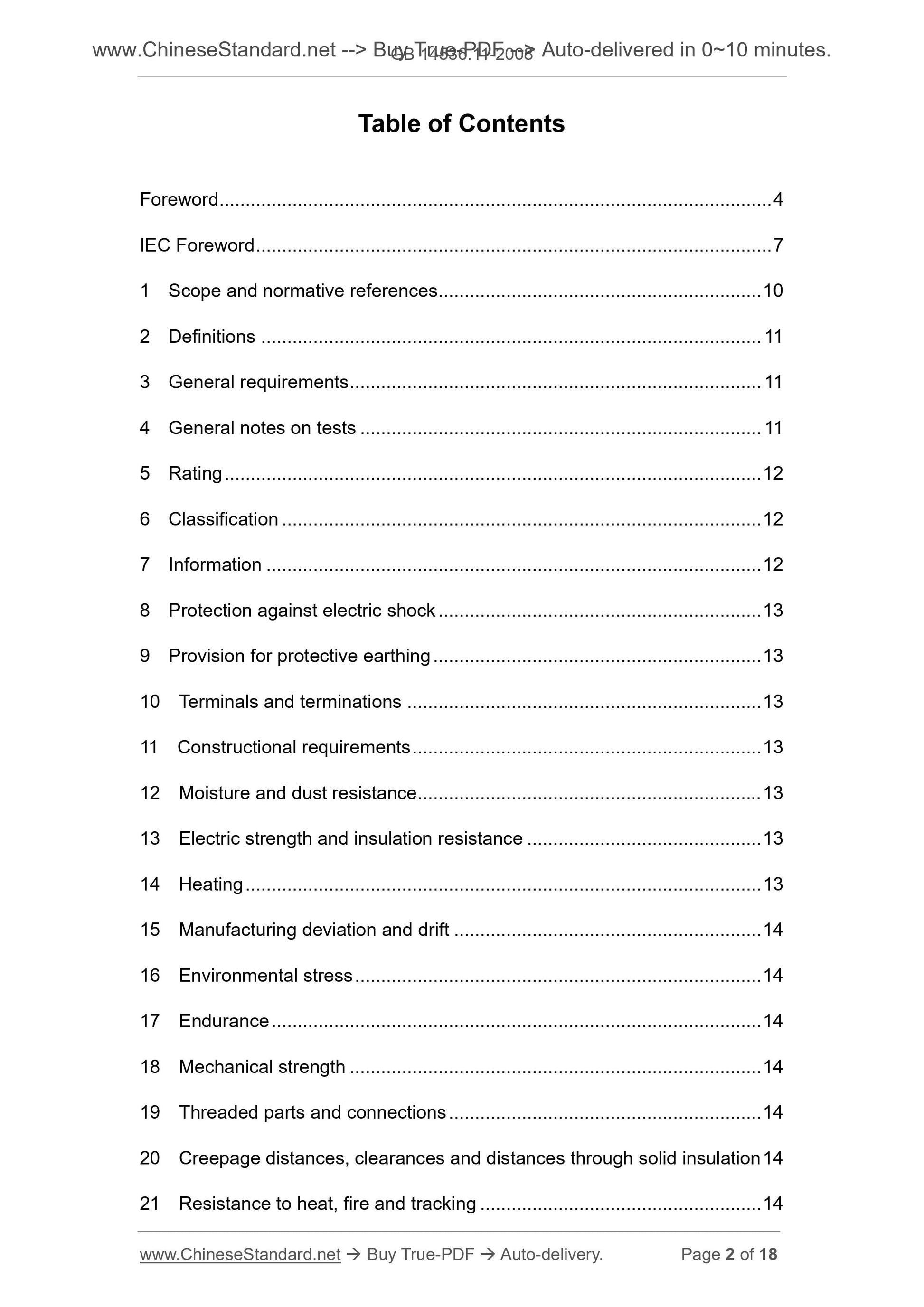

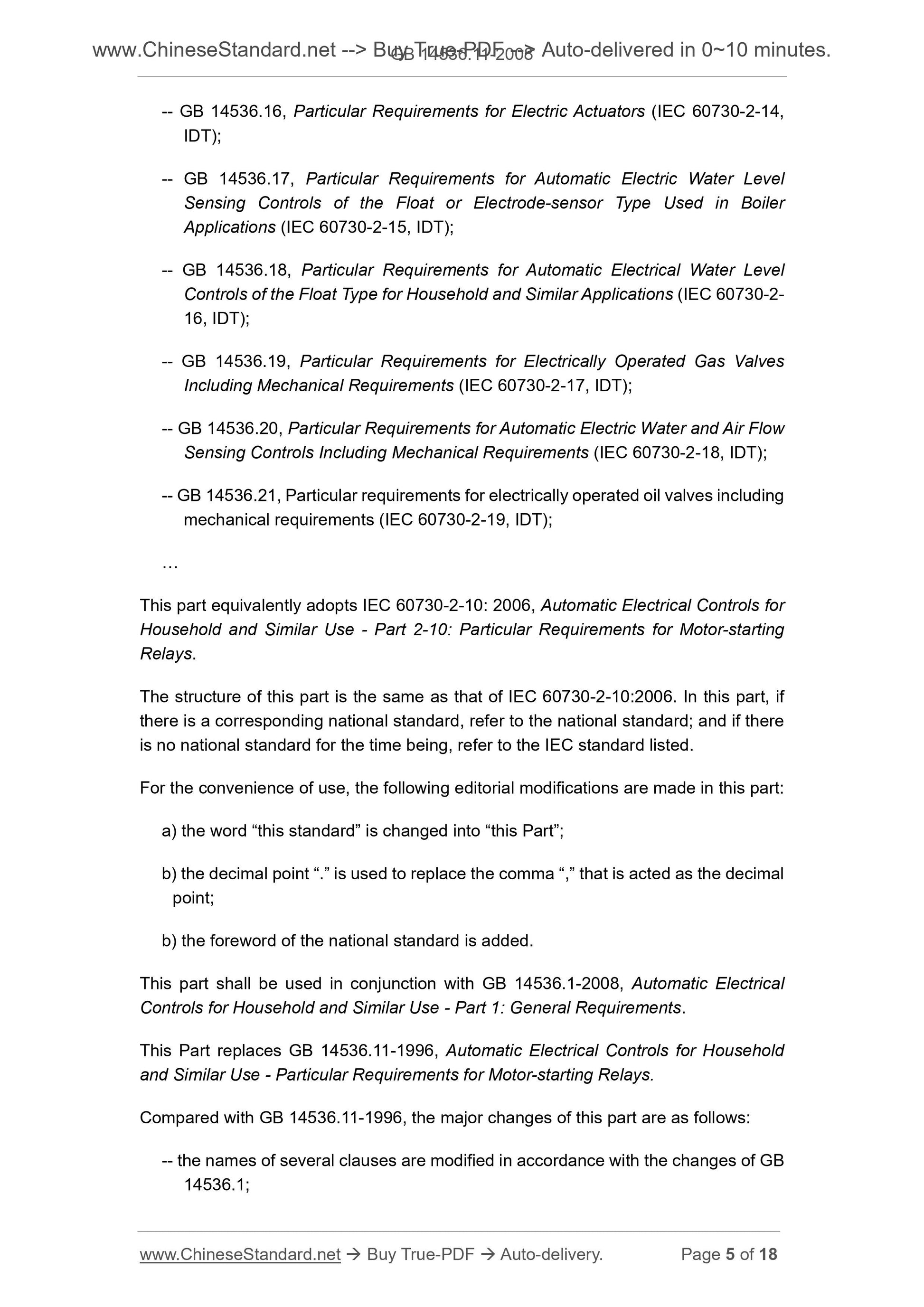

Preview True-PDF

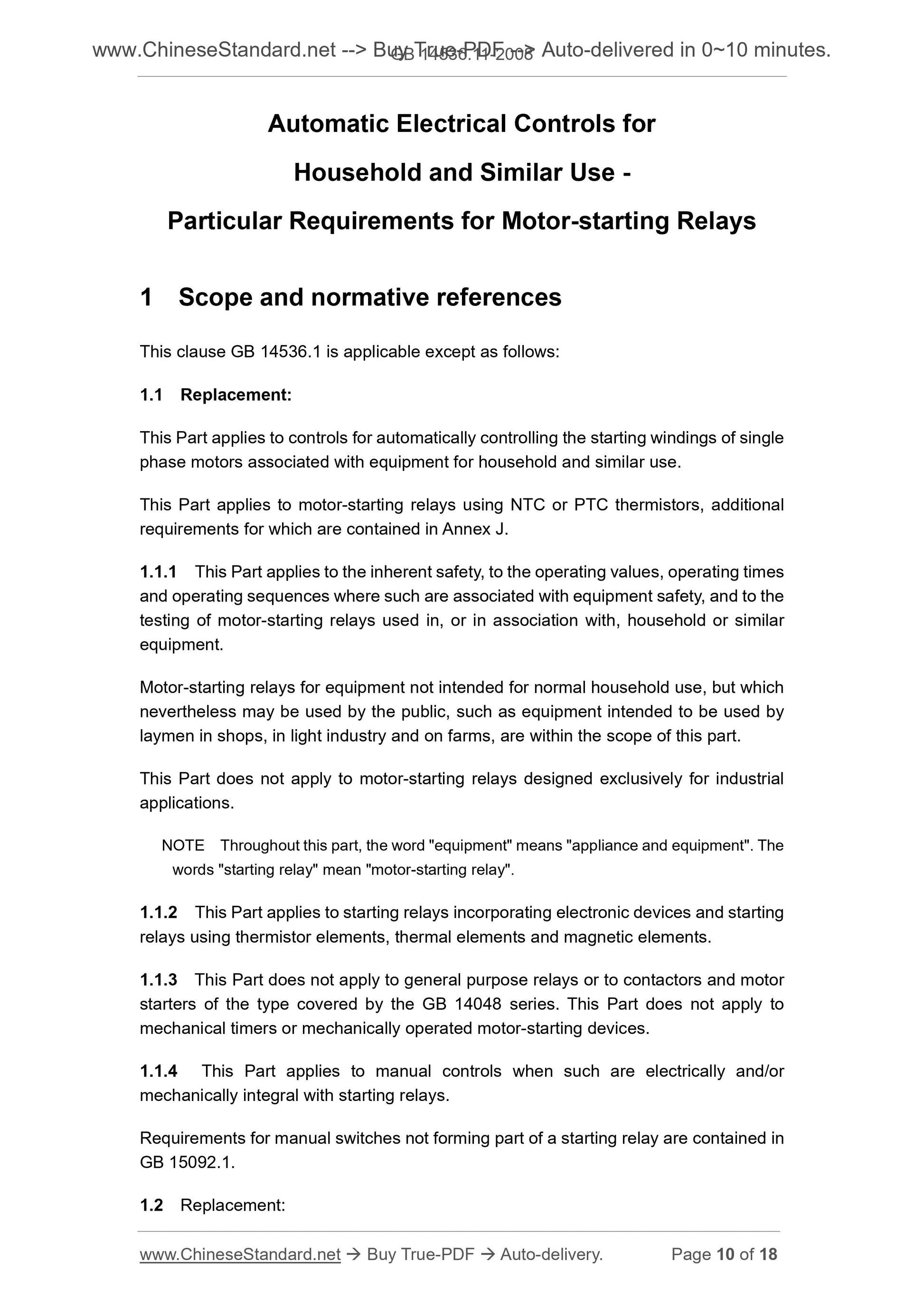

Scope

GB 14536.1 of the chapter is applicable except as follows.
1.1 Replacement.
This section applies to household and similar equipment with automatic control of single-phase motor starting control winding.
This section applies to use NTC or PTC thermistor motor starting relays, the corresponding requirements of Appendix J.
1.1.1 This section applies to the inherent safety Automatic electrical controls for safety equipment and related operating values, operating time and operating procedures
Sequence, starting relays and test applies to household or similar device or equipment used in conjunction with an electric motor.
Not as a general household, but for the public, such as equipment shops, light industry and farm use by non-professionals, the use of
Motor starting relays are also included within the scope of this.
This part is not designed solely for the purpose of industrial motors use starting relays.
Note. "device" in this section use the term with "utensils and equipment." The term "start relay" means "motor starting relays."
1.1.2 This section applies to an electronic device equipped with the starter relay, also apply to the use of a thermistor element, from the element and the magnetic elements
Relay.
1.1.3 This section does not apply to general purpose relays or contactors within the GB 14048 series range, the motor starter. This section
Does not apply to electrical and mechanical timers mechanically operated starter.
1.1.4 This section applies to those in the manual control or mechanically and electrically starter relay combination.
Manual switch request does not constitute a part of the starter is contained in the GB 15092.1.
1.2 Replacement.
This section applies to the rated voltage not exceeding 690V, rated current not exceeding 63A of the starter relay.
1.3 Replacement.
This section considered response depends on the starter relay in the device mounting method of automatic operation. If the response to make to protect
Wearer and the surrounding environment meaningful response by the manufacturer or by the determination of the appropriate equipment standard values apply.
1.4 Replacement.
This section also applies to the starter relay with electronic devices, the corresponding requirements of Annex H.

Basic Data

Standard ID	GB 14536.11-2008 (GB14536.11-2008)
Description (Translated English)	[GB/T 14536.11-2008] Automatic electrical controls for household and similar use -- Particular requirements for motor-starting relays
Sector / Industry	National Standard
Classification of Chinese Standard	K32
Classification of International Standard	29.130.20
Word Count Estimation	15,169
Date of Issue	2008-12-30
Date of Implementation	2010-02-01
Older Standard (superseded by this standard)	GB 14536.11-1996
Quoted Standard	GB 14536.1
Adopted Standard	IEC 60730-2-10-2006, IDT
Regulation (derived from)	Announcement of Newly Approved National Standards No. 26 of 2008 (total 139)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This Chinese standard applies to equipment for household and similar use automatic control of single-phase motor start-winding controller. This standard applies to an NTC or PTC thermistors motor starting relays, the corresponding requirements in Appendix J. 1. 1. 1 this standard applies to the inherent safety Automatic electrical controls for safety -related operations and equipment value, the operating time and operating procedures, as well as for the home or similar device, or with the device used motor starting relays tests. Not intended for normal household, but are used in public places such as shops, light industry and farms by non-professionals use equipment, the use of motor starting relays are also included within the scope of this standard. This standard is not designed for industrial purposes for motor starting relays. Note: this standard uses the"device"encompasses"appliances and equipment. "Starter relay"means that"motor starting relays. "1. 1. 2 this standard applies to the starter relay is equipped with electronic devices, also apply to the use of a thermistor element, heating elements and magnetic components starter relay. 1. 1. 3 this standard does not apply to GB 14048 series within the scope of general purpose relays or contactors, motor starters. This standard does not apply to mechanical timers and mechanical operation of the electric starter. 1. 1. 4 this standard applies to those who are electrically or mechanically combined with the starter relay manual controller. Does not constitute a part of the starter of the manual switch in the request contained in GB15092. 1
