GB 13955-2005: [GB/T 13955-2005] Installation and operation of residual current operated protective devices

This standard specifies the relevant requirements for correctly selecting, installing, and using residual current operated protective devices (hereinafter referred as residual current protective device, RCD for short), and its operation and management. This standard is applicable to power supply and consumption system of power supply neutral-point direct grounding, the operating voltage is AC 50 Hz or 60 Hz, the rated voltage is less than or equal to 230/400 (220/ 380)V. This standard is not applicable to protection of phase-phase or phase-N line electric shock accident, electrical equipment damage, or electric fire accident.

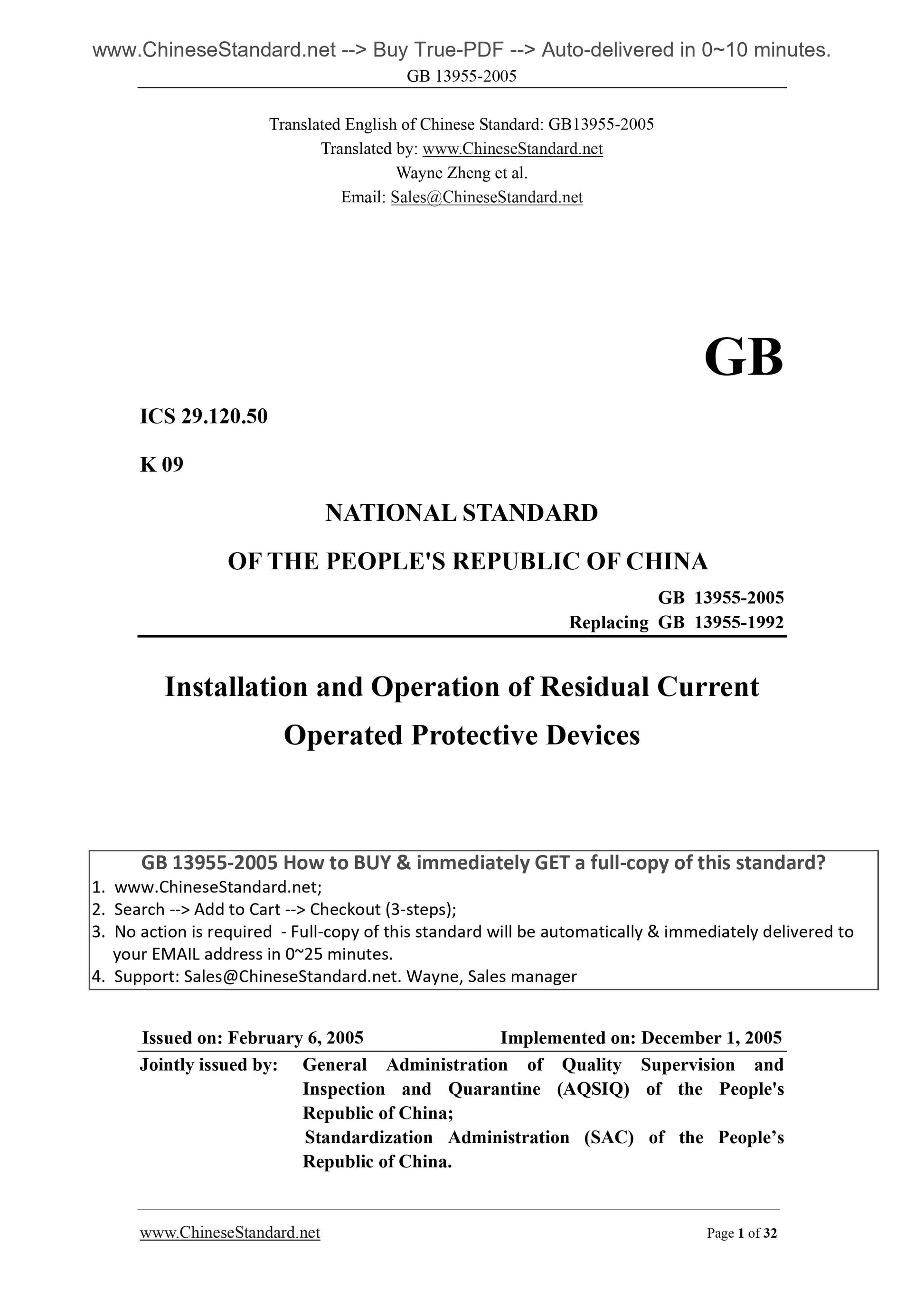

GB 13955-2005
GB
ICS 29.120.50
K 09
NATIONAL STANDARD
OF THE PEOPLE'S REPUBLIC OF CHINA
Replacing GB 13955-1992
Installation and Operation of Residual Current
Operated Protective Devices
ISSUED ON. FEBRUARY 6, 2005
IMPLEMENTED ON. DECEMBER 1, 2005
Jointly issued by. General Administration of Quality Supervision and
Inspection and Quarantine (AQSIQ) of the People's
Republic of China;
Standardization Administration (SAC) of the PEOPLE
Republic of China.

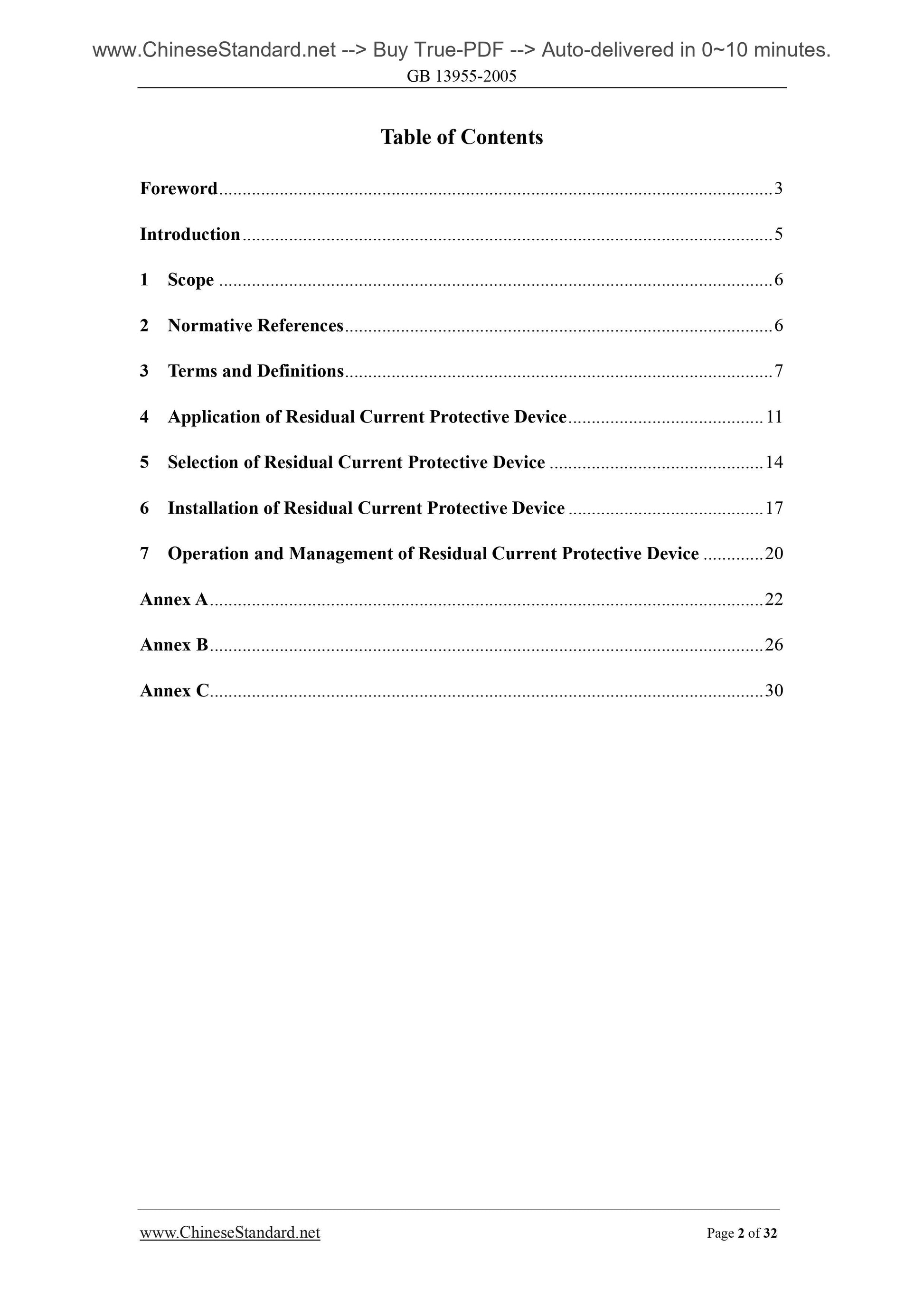

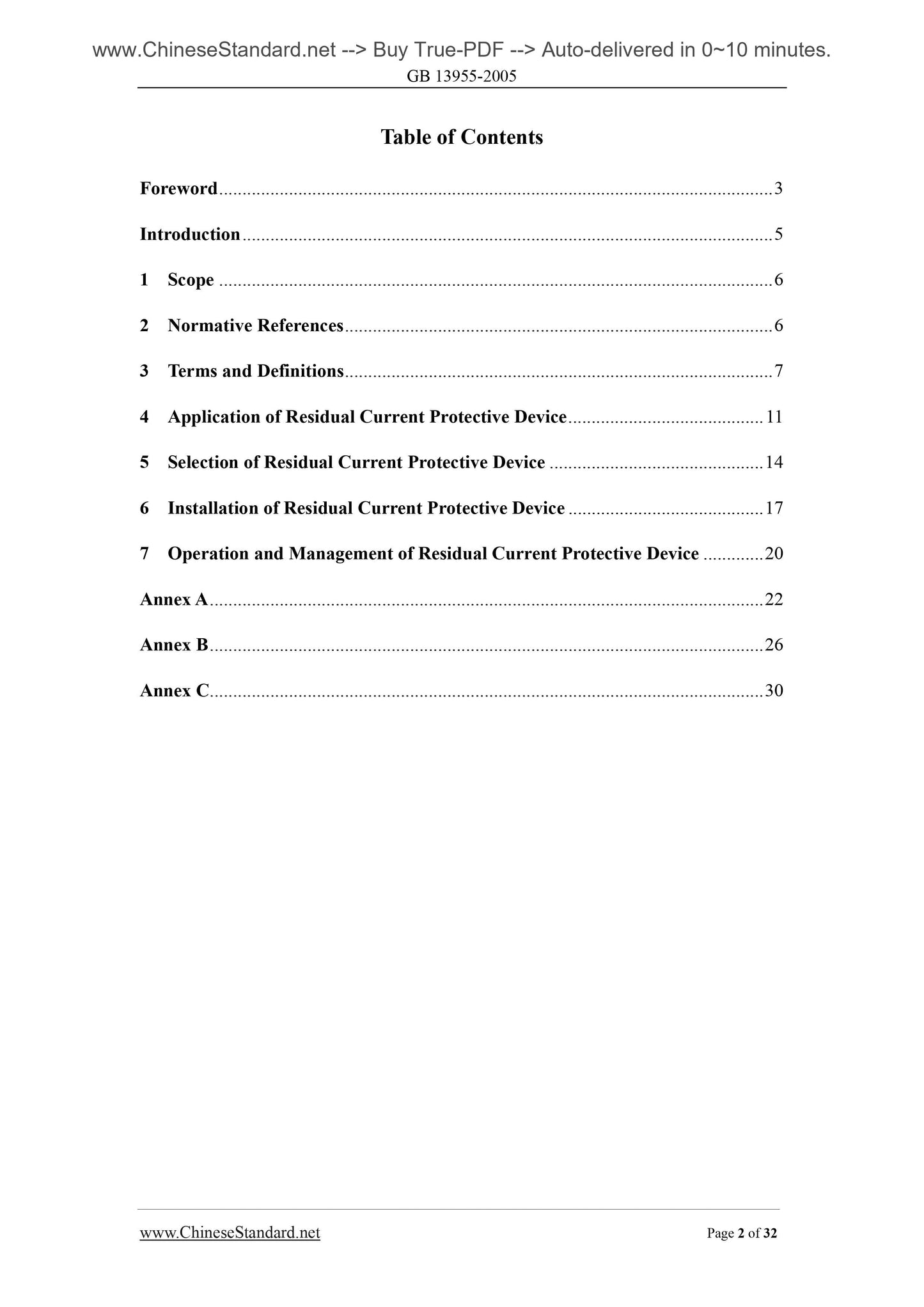

Table of Contents
Foreword ... 3
Introduction ... 5
1 Scope ... 6
2 Normative References ... 6
3 Terms and Definitions ... 7
4 Application of Residual Current Protective Device ... 11
5 Selection of Residual Current Protective Device ... 14
6 Installation of Residual Current Protective Device ... 17
7 Operation and Management of Residual Current Protective Device ... 20 Annex A ... 22
Annex B ... 26
Annex C... 30

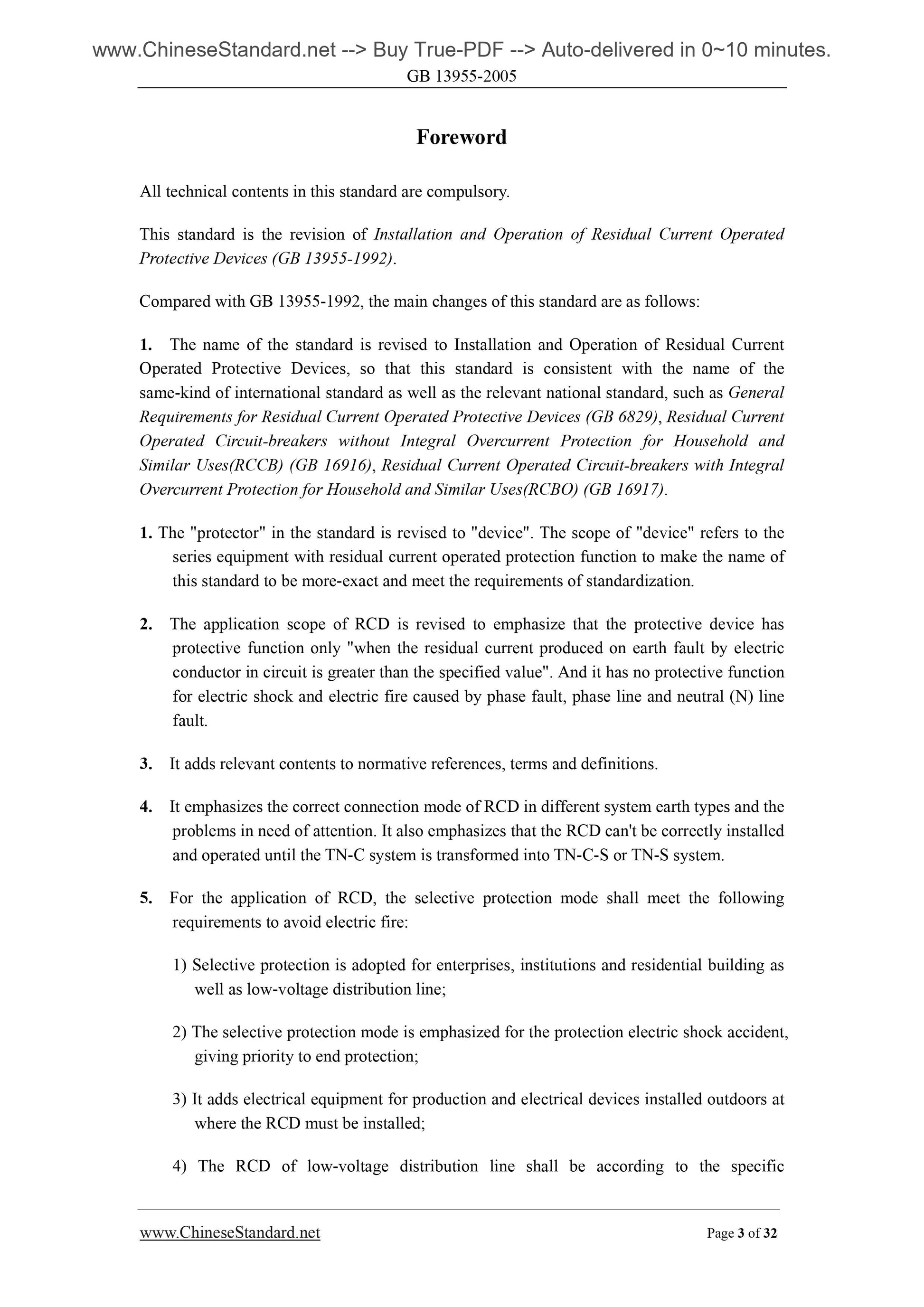

Foreword
All technical contents in this standard are compulsory.
This standard is the revision of Installation and Operation of Residual Current Operated Protective Devices (GB 13955-1992).
Compared with GB 13955-1992, the main changes of this standard are as follows. 1. The name of the standard is revised to Installation and Operation of Residual Current Operated Protective Devices, so that this standard is consistent with the name of the same-kind of international standard as well as the relevant national standard, such as General Requirements for Residual Current Operated Protective Devices (GB 6829), Residual Current Operated Circuit-breakers without Integral Overcurrent Protection for Household and Similar Uses(RCCB) (GB 16916), Residual Current Operated Circuit-breakers with Integral Overcurrent Protection for Household and Similar Uses(RCBO) (GB 16917). 1. The "protector" in the standard is revised to "device". The scope of "device" refers to the series equipment with residual current operated protection function to make the name of this standard to be more-exact and meet the requirements of standardization. 2. The application scope of RCD is revised to emphasize that the protective device has protective function only "when the residual current produced on earth fault by electric conductor in circuit is greater than the specified value". And it has no protective function for electric shock and electric fire caused by phase fault, phase line and neutral (N) line fault.
3. It adds relevant contents to normative references, terms and definitions. 4. It emphasizes the correct connection mode of RCD in different system earth types and the problems in need of attention. It also emphasizes that the RCD can't be correctly installed and operated until the TN-C system is transformed into TN-C-S or TN-S system. 5. For the application of RCD, the selective protection mode shall meet the following requirements to avoid electric fire.
1) Selective protection is adopted for enterprises, institutions and residential building as well as low-voltage distribution line;
2) The selective protection mode is emphasized for the protection electric shock accident, giving priority to end protection;
3) It adds electrical equipment for production and electrical devices installed outdoors at where the RCD must be installed;

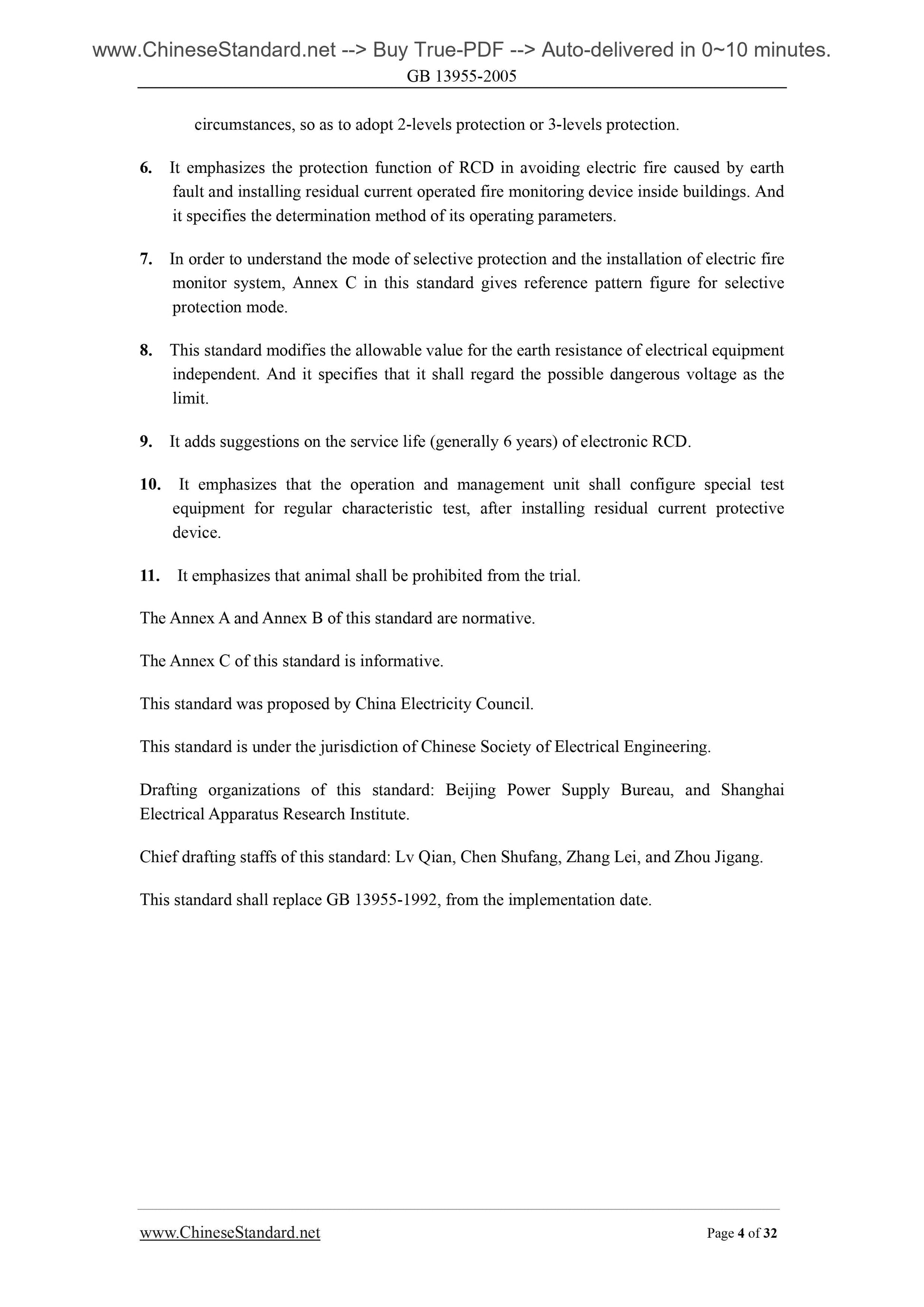

4) The RCD of low-voltage distribution line shall be according to the specific circumstances, so as to adopt 2-levels protection or 3-levels protection. 6. It emphasizes the protection function of RCD in avoiding electric fire caused by earth fault and installing residual current operated fire monitoring device inside buildings. And it specifies the determination method of its operating parameters.
7. In order to understand the mode of selective protection and the installation of electric fire monitor system, Annex C in this standard gives reference pattern figure for selective protection mode.
8. This standard modifies the allowable value for the earth resistance of electrical equipment independent. And it specifies that it shall regard the possible dangerous voltage as the limit.
9. It adds suggestions on the service life (generally 6 years) of electronic RCD. 10. It emphasizes that the operation and management unit shall configure special test equipment for regular characteristic test, after installing residual current protective device.
11. It emphasizes that animal shall be prohibited from the trial.
The Annex A and Annex B of this standard are normative.
The Annex C of this standard is informative.
This standard was proposed by China Electricity Council.
This standard is under the jurisdiction of Chinese Society of Electrical Engineering. Drafting organizations of this standard. Beijing Power Supply Bureau, and Shanghai Electrical Apparatus Research Institute.

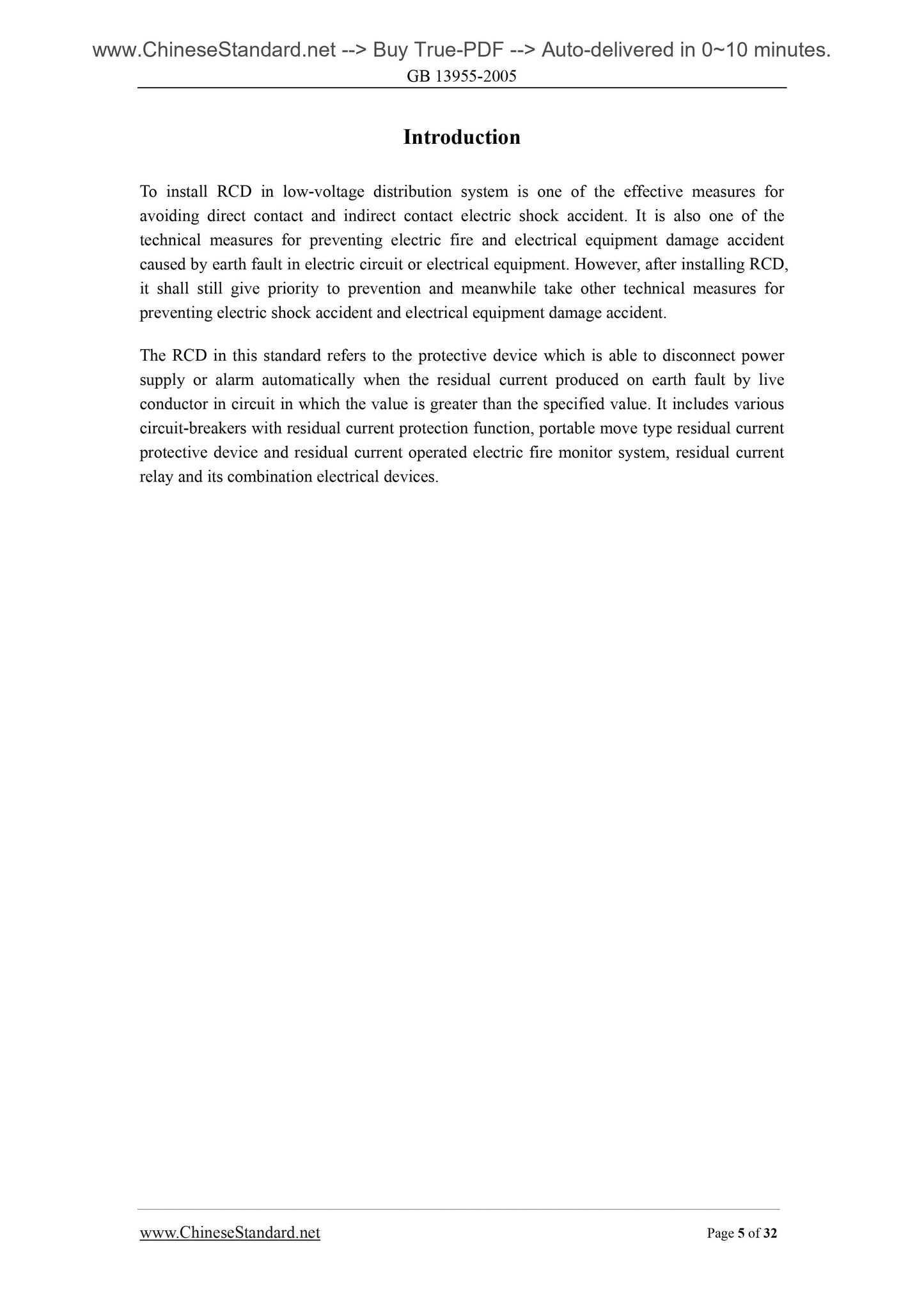

Chief drafting staffs of this standard. Lv Qian, Chen Shufang, Zhang Lei, and Zhou Jigang. This standard shall replace GB 13955-1992, from the implementation date. Introduction

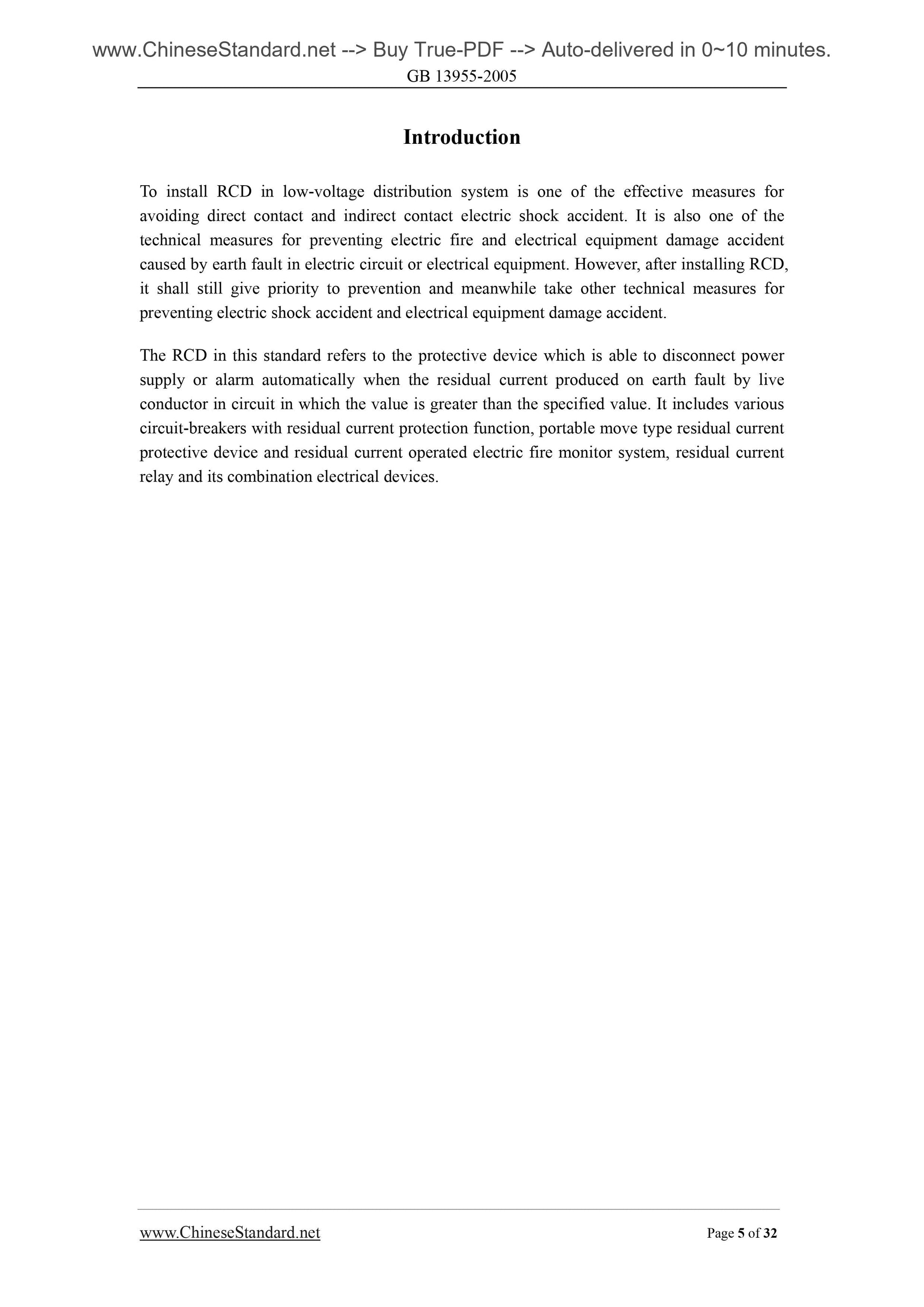

To install RCD in low-voltage distribution system is one of the effective measures for avoiding direct contact and indirect contact electric shock accident. It is also one of the technical measures for preventing electric fire and electrical equipment damage accident caused by earth fault in electric circuit or electrical equipment. However, after installing RCD, it shall still give priority to prevention and meanwhile take other technical measures for preventing electric shock accident and electrical equipment damage accident. The RCD in this standard refers to the protective device which is able to disconnect power supply or alarm automatically when the residual current produced on earth fault by live conductor in circuit in which the value is greater than the specified value. It includes various circuit-breakers with residual current protection function, portable move type residual current protective device and residual current operated electric fire monitor system, residual current relay and its combination electrical devices.
Installation and Operation of Residual Current
Operated Protective Devices

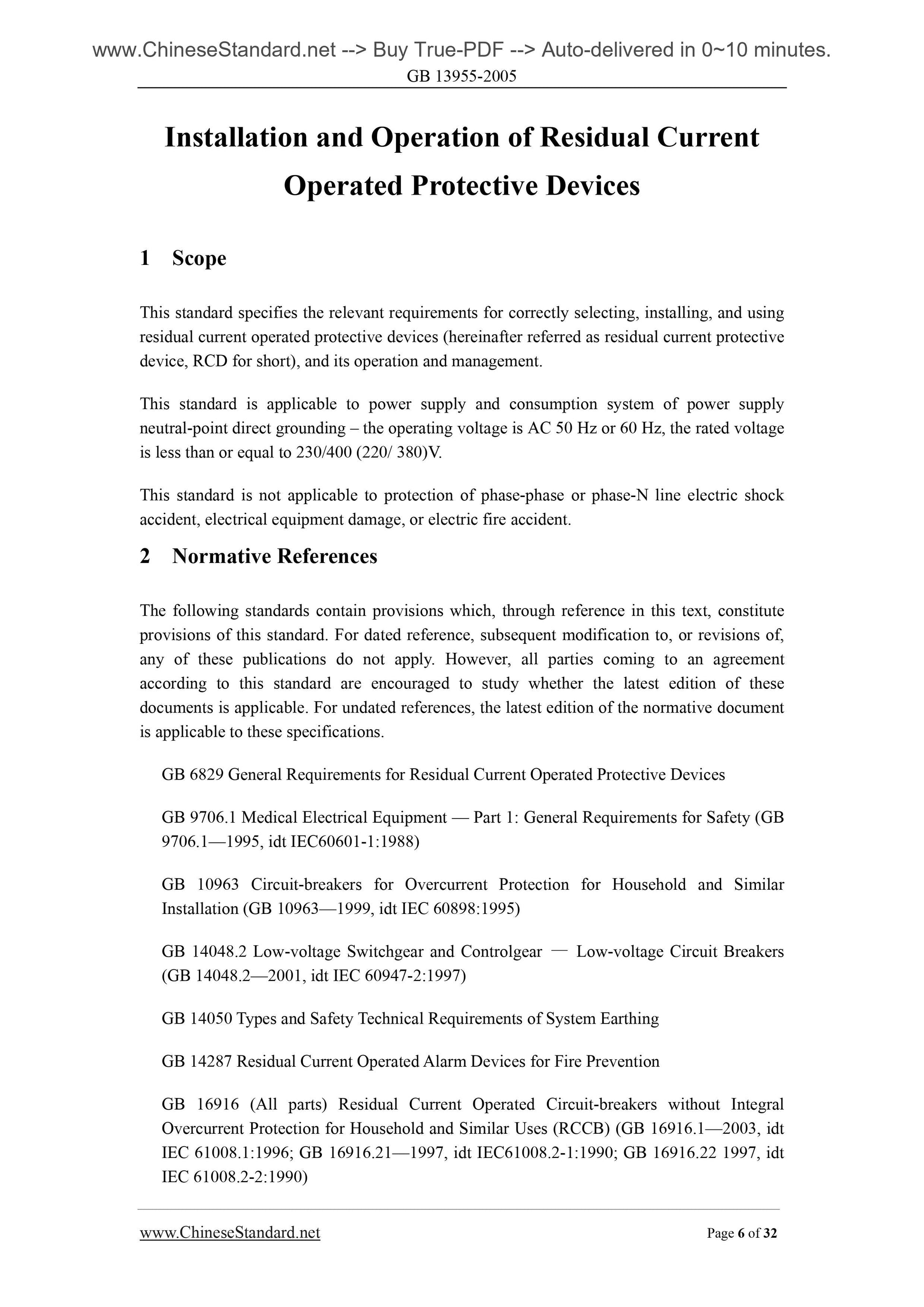

1 Scope
This standard specifies the relevant requirements for correctly selecting, installing, and using residual current operated protective devices (hereinafter referred as residual current protective device, RCD for short), and its operation and management.
This standard is applicable to power supply and consumption system of power supply neutral-point direct grounding ?€? the operating voltage is AC 50 Hz or 60 Hz, the rated voltage is less than or equal to 230/400 (220/ 380)V.
This standard is not applicable to protection of phase-phase or phase-N line electric shock accident, electrical equipment damage, or electric fire accident.
2 Normative References
The following standards contain provisions which, through reference in this text, constitute provisions of this standard. For dated reference, subsequent modification to, or revisions of, any of these publications do not apply. However, all parties coming to an agreement according to this standard are encouraged to study whether the latest edition of these documents is applicable. For undated references, the latest edition of the normative document is applicable to these specifications.
GB 6829 General Requirements for Residual Current Operated Protective Devices GB 9706.1 Medical Electrical Equipment ?€? Part 1. General Requirements for Safety (GB 9706.1?€?1995, idt IEC60601-1.1988)
GB 10963 Circuit-breakers for Overcurrent Protection for Household and Similar Installation (GB 10963?€?1999, idt IEC 60898.1995)
GB 14048.2 Low-voltage Switchgear and Controlgear ?€? Low-voltage Circuit Breakers (GB 14048.2?€?2001, idt IEC 60947-2.1997)
GB 14050 Types and Safety Technical Requirements of System Earthing
GB 14287 Residual Current Operated Alarm Devices for Fire Prevention
GB 16916 (All parts) Residual Current Operated Circuit-breakers without Integral Overcurrent Protection for Household and Similar Uses (RCCB) (GB 16916.1?€?2003, idt IEC 61008.1.1996; GB 16916.21?€?1997, idt IEC61008.2-1.1990; GB 16916.22 1997, idt IEC 61008.2-2.1990)
GB 16917 (All parts) Residual Current Operated Circuit-breakers with Integral Overcurrent Protection for Household and Similar Uses (RCBO)
(GB 16917.1?€?2003, idt IEC 61009-1.1996; GB 16917.21?€?1997, idt IEC
61009-2-1.1991; GB 16917.22?€?1997, idt IEC 61009-2-2. 1991)

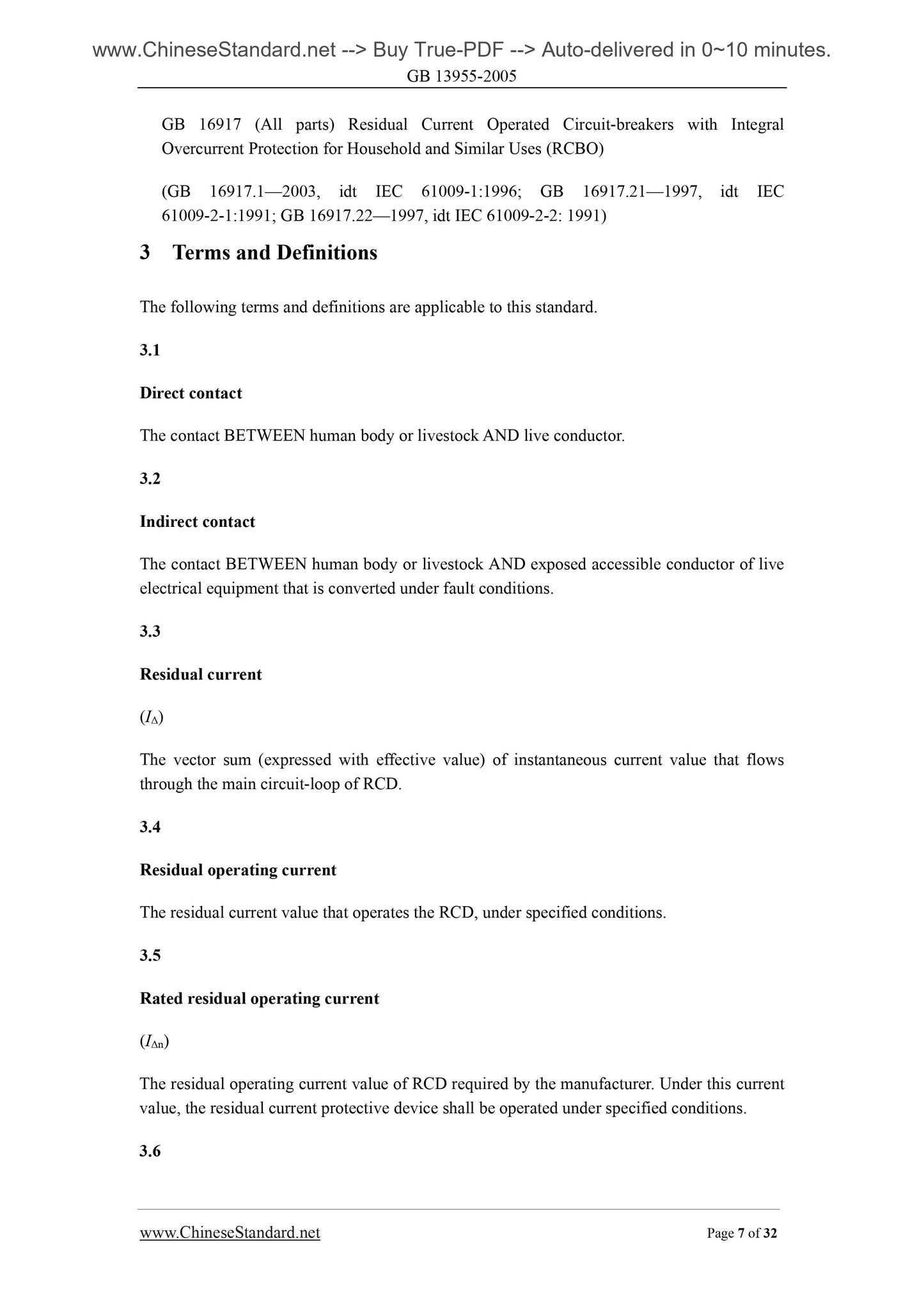

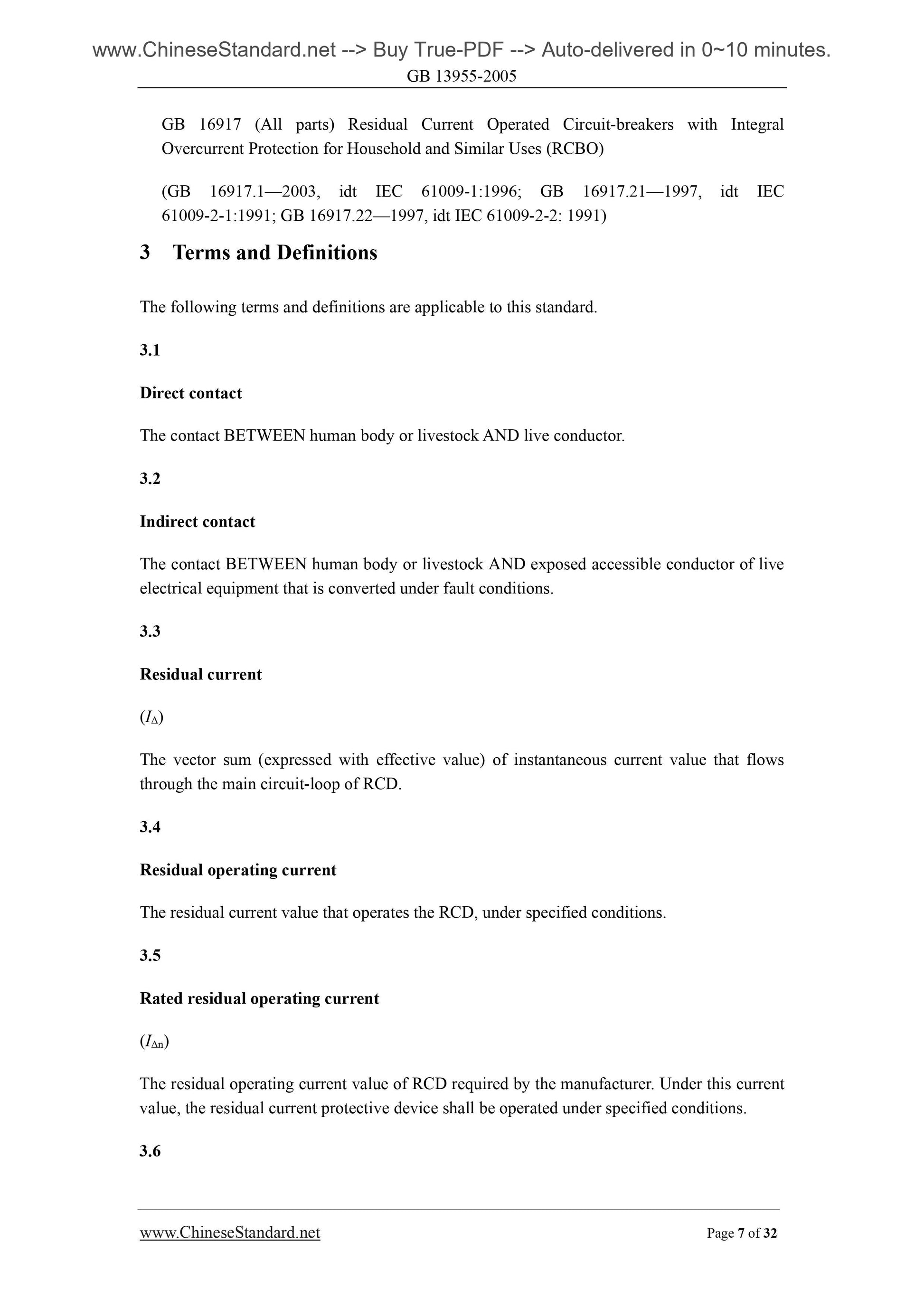

3 Terms and Definitions
The following terms and definitions are applicable to this standard.
3.1
Direct contact
The contact BETWEEN human body or livestock AND live conductor.
3.2
Indirect contact
The contact BETWEEN human body or livestock AND exposed accessible conductor of live electrical equipment that is converted under fault conditions.
3.3
Residual current
(I??)
The vector sum (expressed with effecti...
