GB 13140.1-2008: [GB/T 13140.1-2008] Connecting devices for low-voltage circuits for household and similar purposes -- Part l: General requirements

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB 13140.1-2008 (Self-service in 1-minute)
Newer / historical versions: GB 13140.1-2008

Preview True-PDF

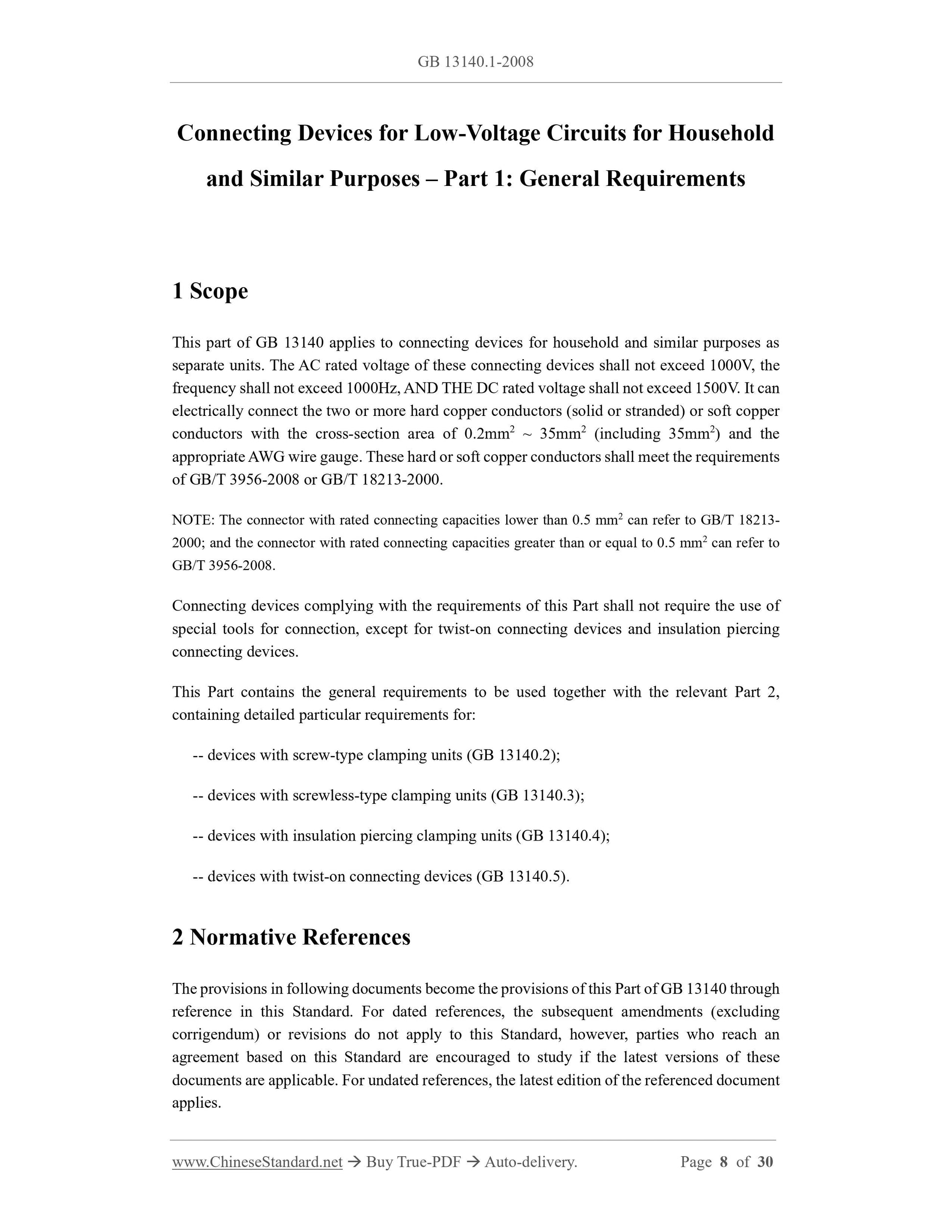

Scope

This part of GB 13140 applies to connecting devices for household and similar purposes as
separate units. The AC rated voltage of these connecting devices shall not exceed 1000V, the
frequency shall not exceed 1000Hz, AND THE DC rated voltage shall not exceed 1500V. It can
electrically connect the two or more hard copper conductors (solid or stranded) or soft copper
conductors with the cross-section area of 0.2mm2 ~ 35mm2 (including 35mm2) and the
appropriate AWG wire gauge. These hard or soft copper conductors shall meet the requirements
of GB/T 3956-2008 or GB/T 18213-2000.
NOTE: The connector with rated connecting capacities lower than 0.5 mm2 can refer to GB/T 18213-
2000; and the connector with rated connecting capacities greater than or equal to 0.5 mm2 can refer to
GB/T 3956-2008.
Connecting devices complying with the requirements of this Part shall not require the use of
special tools for connection, except for twist-on connecting devices and insulation piercing
connecting devices.
This Part contains the general requirements to be used together with the relevant Part 2,
containing detailed particular requirements for:
-- devices with screw-type clamping units (GB 13140.2);
-- devices with screwless-type clamping units (GB 13140.3);
-- devices with insulation piercing clamping units (GB 13140.4);
-- devices with twist-on connecting devices (GB 13140.5).

Basic Data

Standard ID	GB 13140.1-2008 (GB13140.1-2008)
Description (Translated English)	[GB/T 13140.1-2008] Connecting devices for low-voltage circuits for household and similar purposes -- Part l: General requirements
Sector / Industry	National Standard
Classification of Chinese Standard	K30
Classification of International Standard	29.120.20
Word Count Estimation	23,222
Date of Issue	2008-12-30
Date of Implementation	2010-02-01
Older Standard (superseded by this standard)	GB 13140.1-1997
Quoted Standard	GB/T 2423.8-1995; GB/T 2423.55-2006; GB/T 3956-2008; GB/T 4207-2003; GB 4208; GB/T 5169.10-2006; GB/T 9797-2005; GB/T 9799-1997; GB/T 12599-2002; GB/T 16842-2008; GB/T 18213-2000; IEC 60695-10-2-1995
Adopted Standard	IEC 60998-1-2002, IDT
Regulation (derived from)	Announcement of Newly Approved National Standards No. 26 of 2008 (total 139)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This Chinese standard applies to connected devices independent unit for household and similar purposes. These connecting devices shall not exceed the rated voltage 1000V, frequency less than 1000Hz, DC rated voltage should not exceed 1500V, electrically connect two or more root should be able to cross-section of 0. 2mm2 ~ 35mm2 (including 35mm2) or the corresponding the AWG wire gauge hard copper wire (solid or stranded) or soft copper wire. These hard or soft copper conductors shall comply with GB/T 3956-2008 or GB/T 18213-2000 requirements. Note: The rated capacity of less than 0. 5mm2 wire connection reference to GB/T 18213-2000, rated connecting capacity greater than or equal to 0. 5mm2 conductors with reference to GB/T 3956-2008. In addition to twist -on connecting devices and with insulation piercing connecting devices would otherwise meet the requirements of this standard shall be connected to the device without the use of special tools to make the connection. This standard General Requirements, Part 2 should be special requirements (hereinafter referred to as"Part 2), in conjunction with: with screw -type clamping device (GB 13140. 2) with screw -type clamping device (GB1 3140. 3) with insulation piercing clamping units connected devices (GB 13140. 4) twist-on devices (GB 13140. 5)
