FZ/T 73020-2012 English PDF (FZT73020-2012)

FZ/T 73020-2012 English PDF (FZT73020-2012)

Regular price $85.00 USD
Regular price Sale price $85.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: 24-hr self-service. Click FZ/T 73020-2012
See Chinese contents: FZ/T 73020-2012

FZ/T 73020-2012: Knitted casual wear

This Standard specifies the product number type, requirements, test methods, determination rules, product instructions, packaging, transport and storage of knitted casual wear. This standard is applicable to the identification of the quality of knitted casual wear that are made of textile knitted fabrics as the main material.

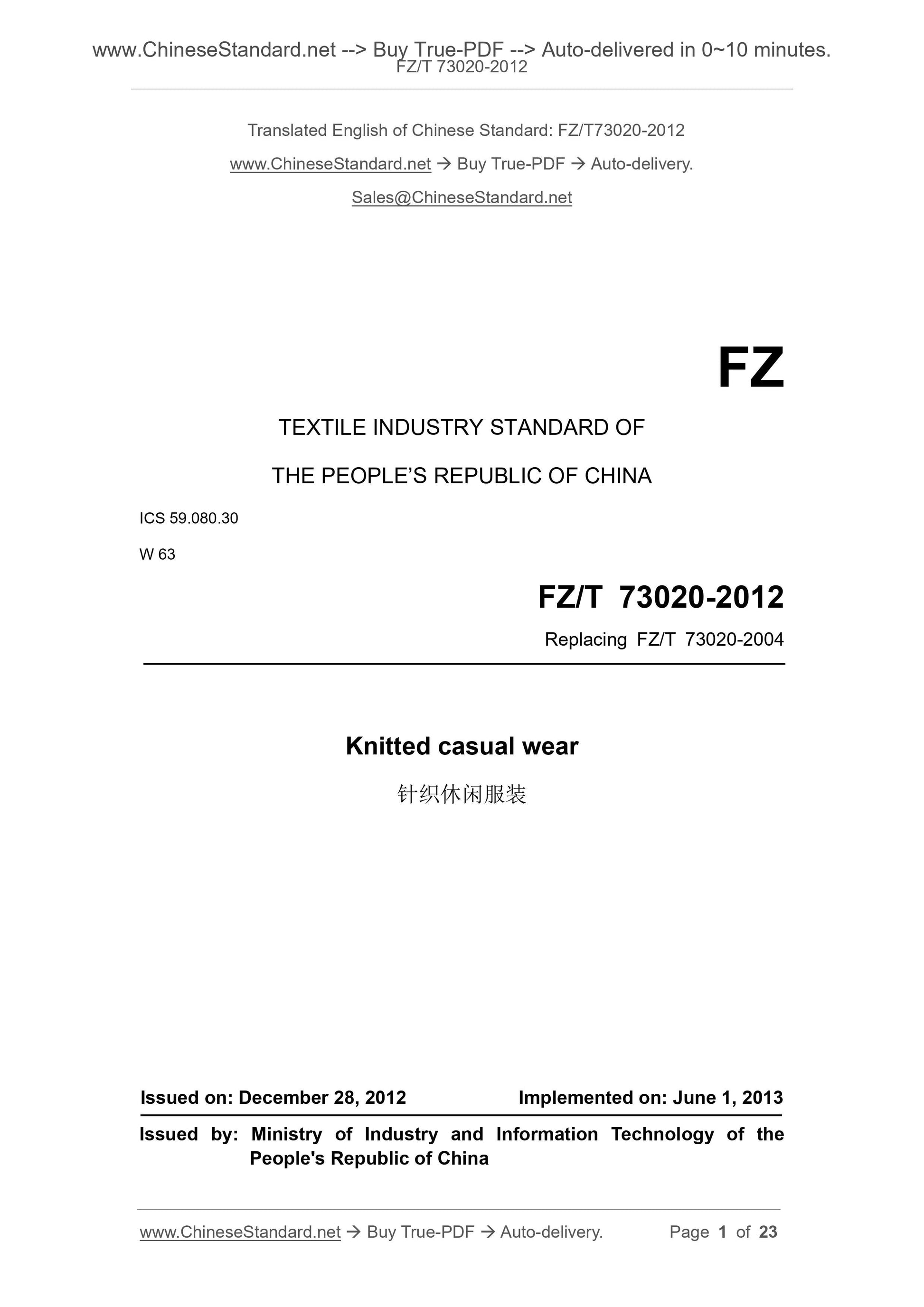

FZ/T 73020-2012
FZ
TEXTILE INDUSTRY STANDARD OF
THE PEOPLE REPUBLIC OF CHINA
ICS 59.080.30
W 63
Replacing FZ/T 73020-2004
Knitted casual wear
??????????????????
ISSUED ON. DECEMBER 28, 2012
IMPLEMENTED ON. JUNE 1, 2013
Issued by. Ministry of Industry and Information Technology of the
People's Republic of China

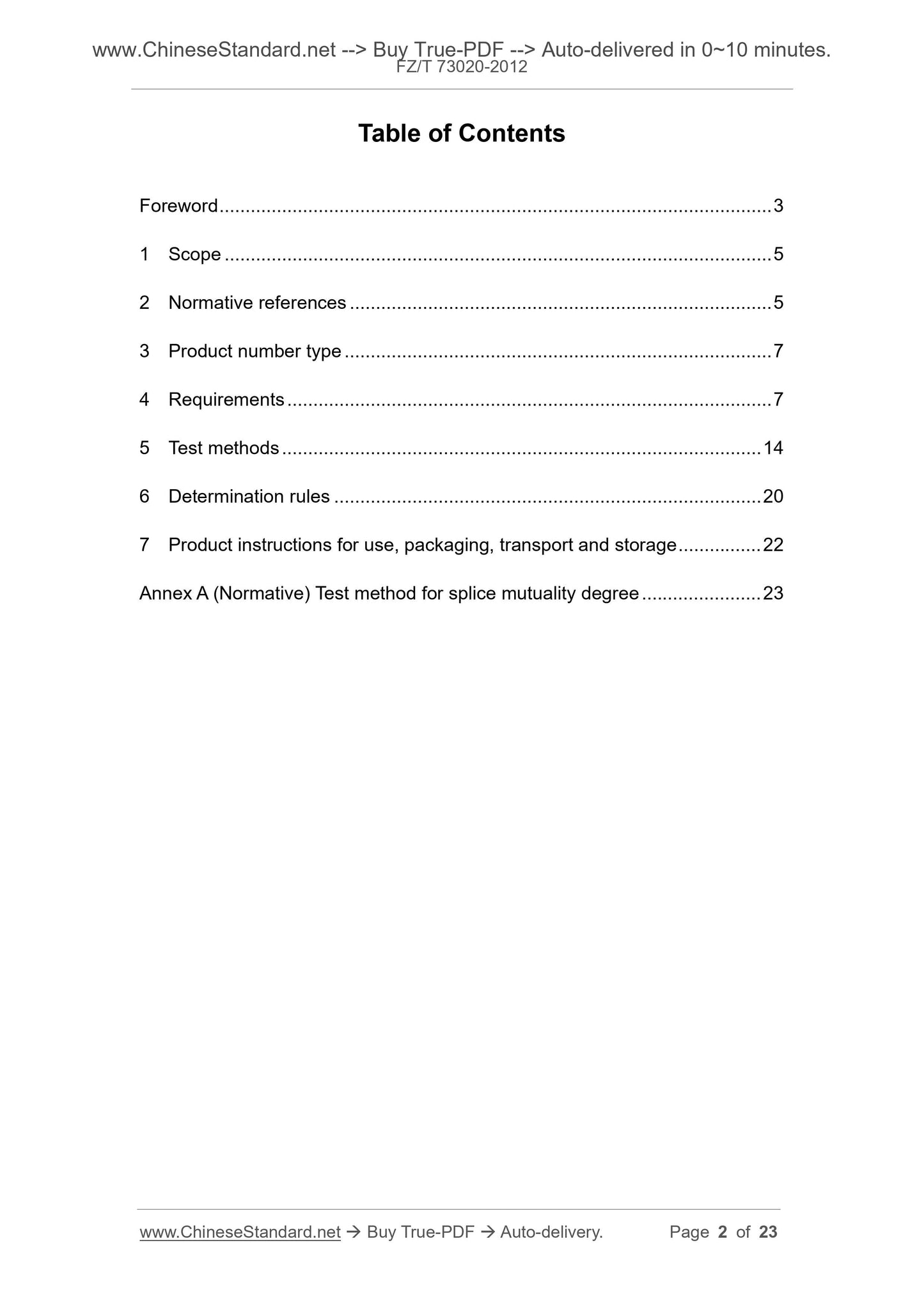

Table of Contents
Foreword . 3
1 Scope .. 5
2 Normative references .. 5
3 Product number type .. 7
4 Requirements .. 7
5 Test methods . 14
6 Determination rules .. 20
7 Product instructions for use, packaging, transport and storage .. 22 Annex A (Normative) Test method for splice mutuality degree . 23

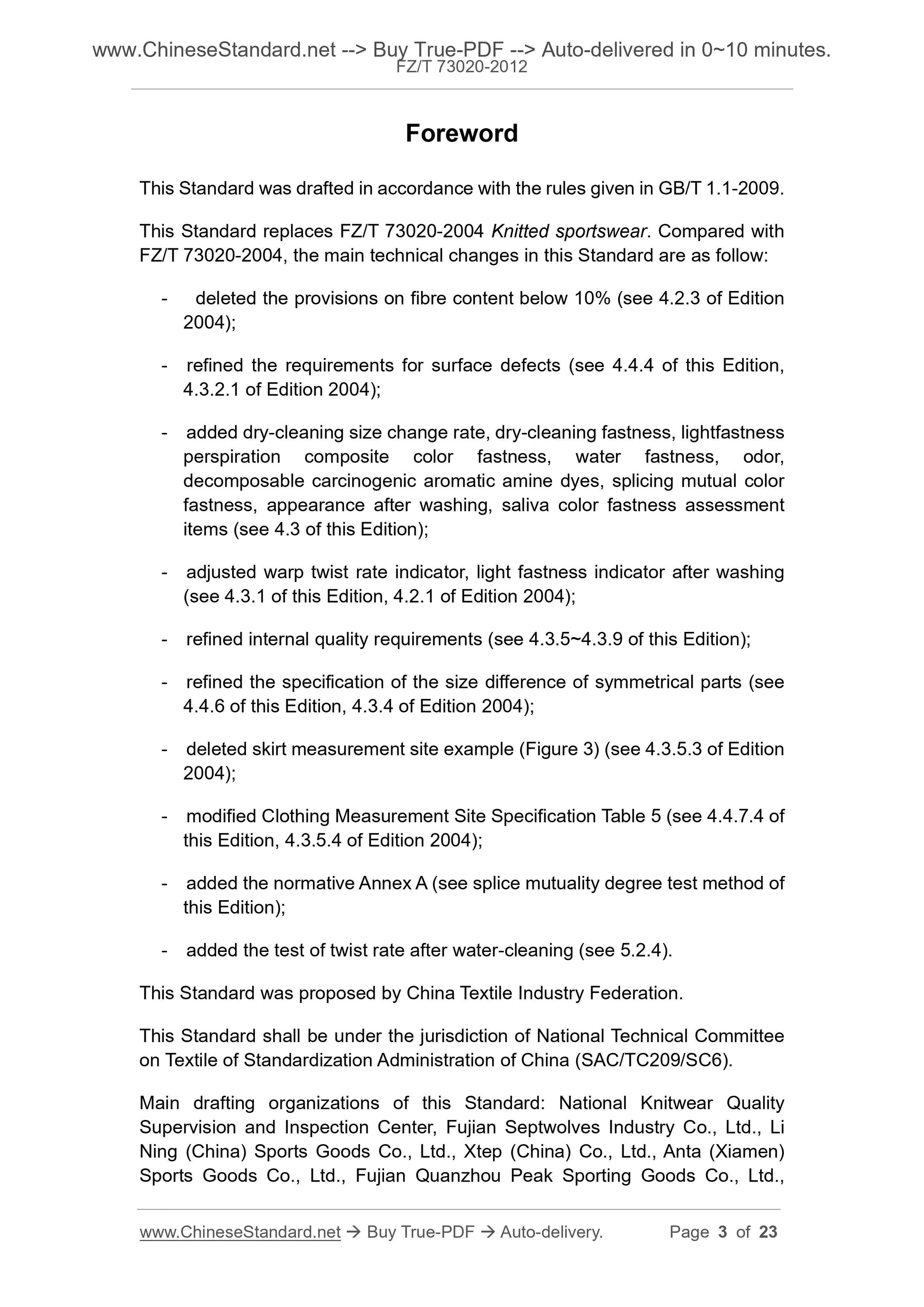

Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009. This Standard replaces FZ/T 73020-2004 Knitted sportswear. Compared with FZ/T 73020-2004, the main technical changes in this Standard are as follow. - deleted the provisions on fibre content below 10% (see 4.2.3 of Edition 2004);
- refined the requirements for surface defects (see 4.4.4 of this Edition, 4.3.2.1 of Edition 2004);
- added dry-cleaning size change rate, dry-cleaning fastness, lightfastness perspiration composite color fastness, water fastness, odor,
decomposable carcinogenic aromatic amine dyes, splicing mutual color
fastness, appearance after washing, saliva color fastness assessment
items (see 4.3 of this Edition);
- adjusted warp twist rate indicator, light fastness indicator after washing (see 4.3.1 of this Edition, 4.2.1 of Edition 2004);
- refined internal quality requirements (see 4.3.5~4.3.9 of this Edition); - refined the specification of the size difference of symmetrical parts (see 4.4.6 of this Edition, 4.3.4 of Edition 2004);
- deleted skirt measurement site example (Figure 3) (see 4.3.5.3 of Edition 2004);
- modified Clothing Measurement Site Specification Table 5 (see 4.4.7.4 of this Edition, 4.3.5.4 of Edition 2004);
- added the normative Annex A (see splice mutuality degree test method of this Edition);
- added the test of twist rate after water-cleaning (see 5.2.4).
This Standard was proposed by China Textile Industry Federation.
This Standard shall be under the jurisdiction of National Technical Committee on Textile of Standardization Administration of China (SAC/TC209/SC6).
Main drafting organizations of this Standard. National Knitwear Quality Supervision and Inspection Center, Fujian Septwolves Industry Co., Ltd., Li Ning (China) Sports Goods Co., Ltd., Xtep (China) Co., Ltd., Anta (Xiamen) Sports Goods Co., Ltd., Fujian Quanzhou Peak Sporting Goods Co., Ltd.,

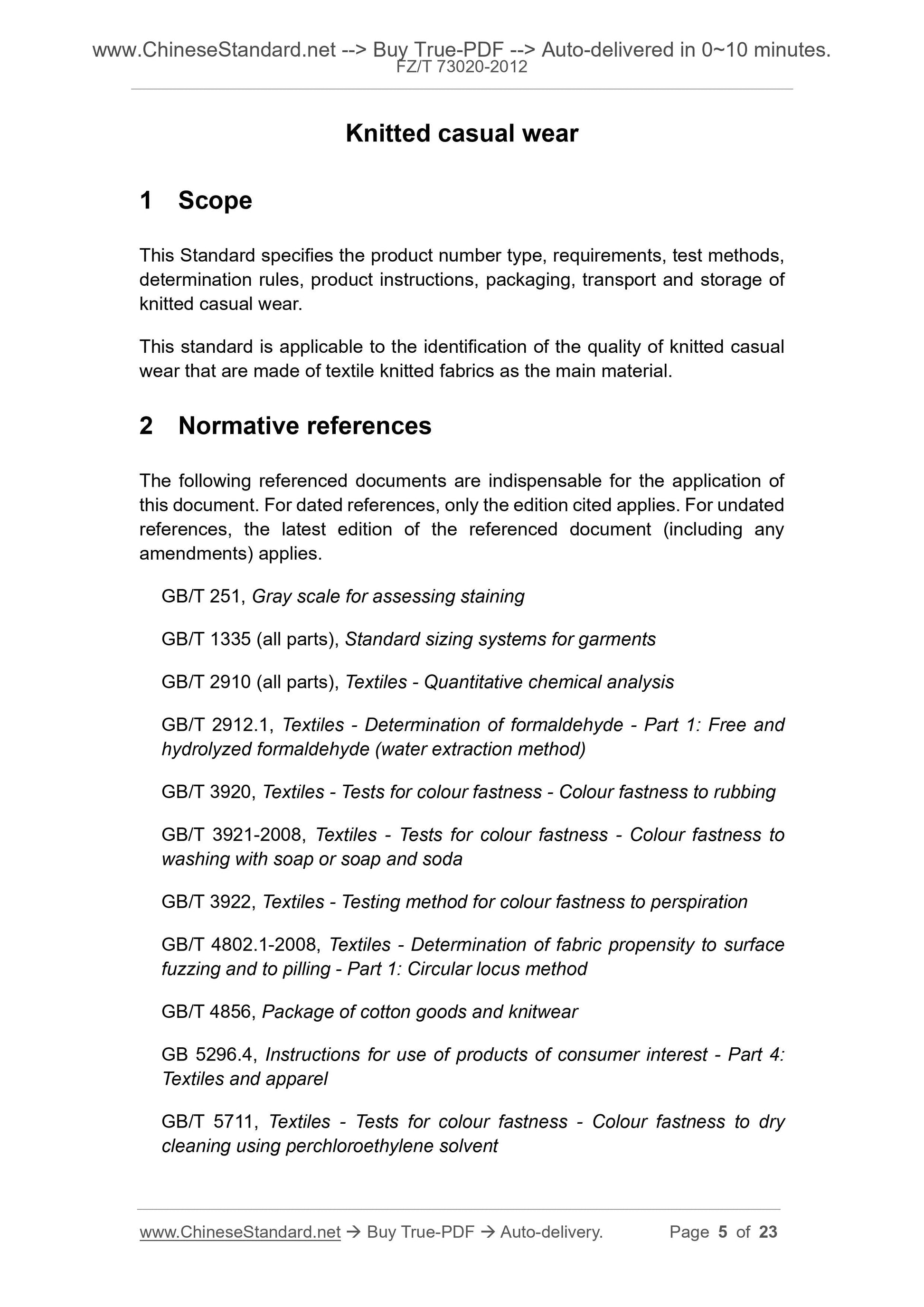

Knitted casual wear
1 Scope
This Standard specifies the product number type, requirements, test methods, determination rules, product instructions, packaging, transport and storage of knitted casual wear.
This standard is applicable to the identification of the quality of knitted casual wear that are made of textile knitted fabrics as the main material.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
GB/T 251, Gray scale for assessing staining
GB/T 1335 (all parts), Standard sizing systems for garments
GB/T 2910 (all parts), Textiles - Quantitative chemical analysis
GB/T 2912.1, Textiles - Determination of formaldehyde - Part 1. Free and hydrolyzed formaldehyde (water extraction method)
GB/T 3920, Textiles - Tests for colour fastness - Colour fastness to rubbing GB/T 3921-2008, Textiles - Tests for colour fastness - Colour fastness to washing with soap or soap and soda
GB/T 3922, Textiles - Testing method for colour fastness to perspiration GB/T 4802.1-2008, Textiles - Determination of fabric propensity to surface fuzzing and to pilling - Part 1. Circular locus method
GB/T 4856, Package of cotton goods and knitwear
GB 5296.4, Instructions for use of products of consumer interest - Part 4. Textiles and apparel
GB/T 5711, Textiles - Tests for colour fastness - Colour fastness to dry cleaning using perchloroethylene solvent

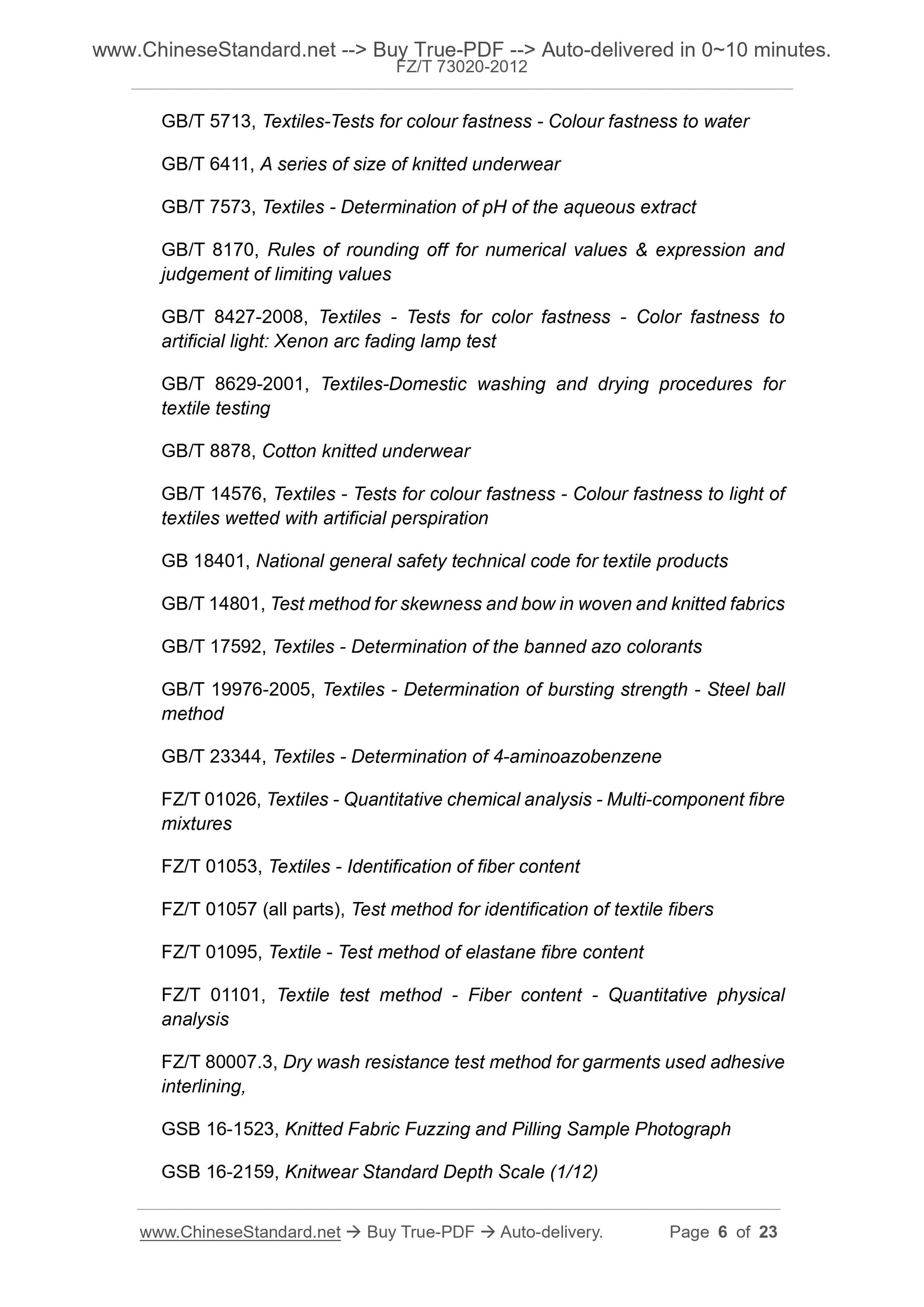

GB/T 5713, Textiles-Tests for colour fastness - Colour fastness to water GB/T 6411, A series of size of knitted underwear
GB/T 7573, Textiles - Determination of pH of the aqueous extract
GB/T 8170, Rules of rounding off for numerical values and expression and
judgement of limiting values
GB/T 8427-2008, Textiles - Tests for color fastness - Color fastness to artificial light. Xenon arc fading lamp test
GB/T 8629-2001, Textiles-Domestic washing and drying procedures for
textile testing
GB/T 8878, Cotton knitted underwear
GB/T 14576, Textiles - Tests for colour fastness - Colour fastness to light of textiles wetted with artificial perspiration
GB 18401, National general safety technical code for textile products
GB/T 14801, Test method for skewness and bow in woven and knitted fabrics GB/T 17592, Textiles - Determination of the banned azo colorants
GB/T 19976-2005, Textiles - Determination of bursting strength - Steel ball method
GB/T 23344, Textiles - Determination of 4-aminoazobenzene
FZ/T 01026, Textiles - Quantitative chemical analysis - Multi-component fibre mixtures
FZ/T 01053, Textiles - Identification of fiber content
FZ/T 01057 (all parts), Test method for identification of textile fibers FZ/T 01095, Textile - Test method of elastane fibre content
FZ/T 01101, Textile test method - Fiber content - Quantitative physical analysis
FZ/T 80007.3, Dry wash resistance test method for garments used adhesive interlining,
GSB 16-1523, Knitted Fabric Fuzzing and Pilling Sample Photograph
GSB 16-2159, Knitwear Standard Depth Scale (1/12)
ironing is smooth, head is clean, no debris.

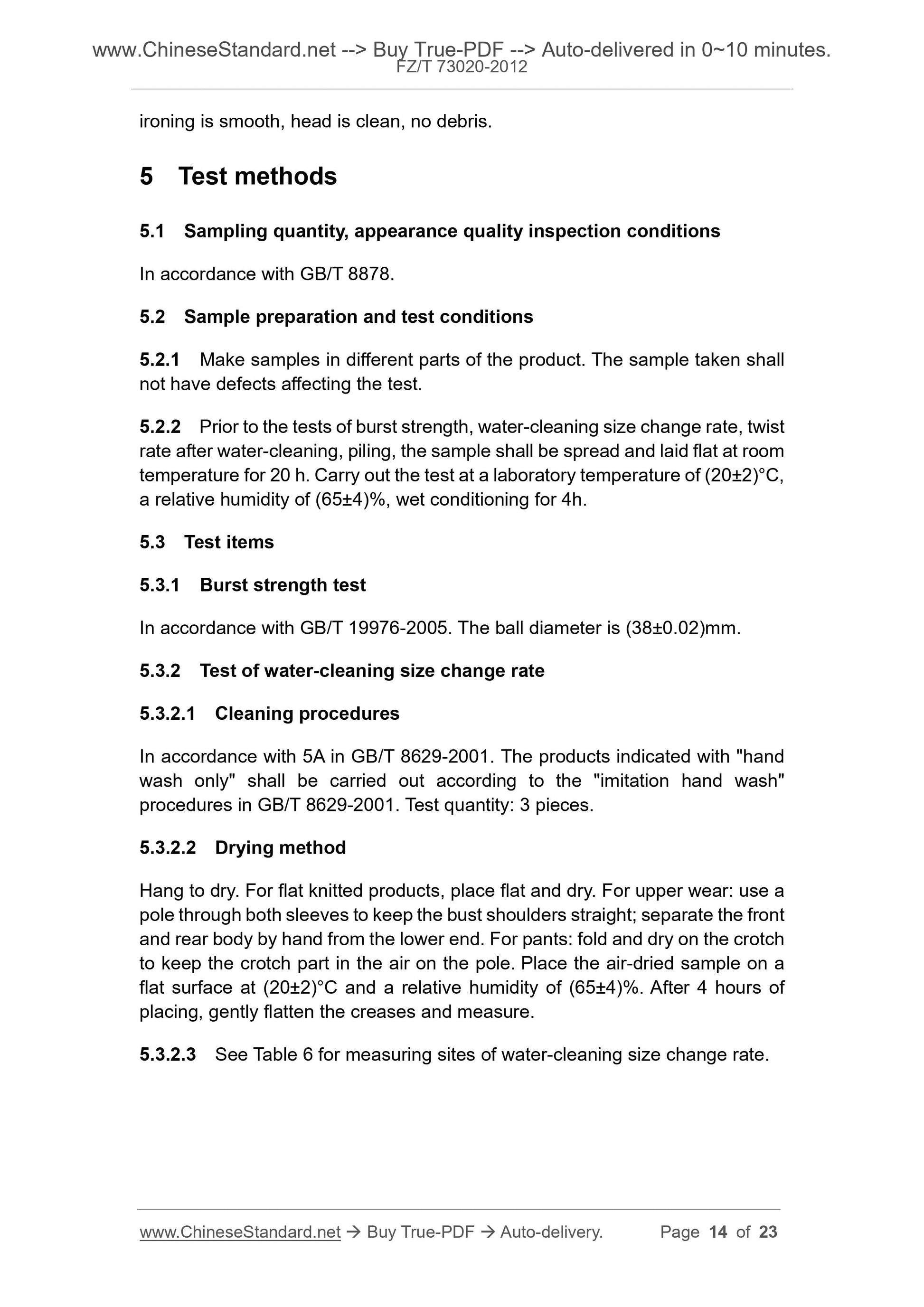

5 Test methods
5.1 Sampling quantity, appearance quality inspection conditions
In accordance with GB/T 8878.
5.2 Sample preparation and test conditions
5.2.1 Make samples in different parts of the product. The sample taken shall not have defects affecting the test.
5.2.2 Prior to the tests of burst strength, water-cleaning size change rate, twist rate after water-cleaning, piling, the sample shall be spread and laid flat at room temperature for 20 h. Carry out the test at a laboratory temperature of (20??2)??C, a relative humidity of (65??4)%, wet conditioning for 4h.
5.3 Test items
5.3.1 Burst strength test
In accordance with GB/T 19976-2005. The ball diameter is (38??0.02)mm.
5.3.2 Test of water-cleaning size change rate
5.3.2.1 Cleaning procedures
In accordance with 5A in GB/T 8629-2001. The products indicated with "hand wash only" shall be carried out according to the "imitation hand wash"
procedures in GB/T 8629-2001. Test quantity. 3 pieces.
5.3.2.2 Drying method
Hang to dry. For flat knitted products, place flat and dry. For upper wear. use a pole through both sleeves to keep the bust shoulders straight; separate the front and rear body by hand from the lower end. For pants. fold and dry on the crotch to keep the crotch part in the air on the pole. Place the air-dried sample on a flat surface at (20??2)??C and a relative humidity of (65??4)%. After 4 hours of placing, gently flatten the creases and measure.
5.3.2.3 See Table 6 for measuring sites of water-cleaning size change rate. In accordance with GB/T 14576.

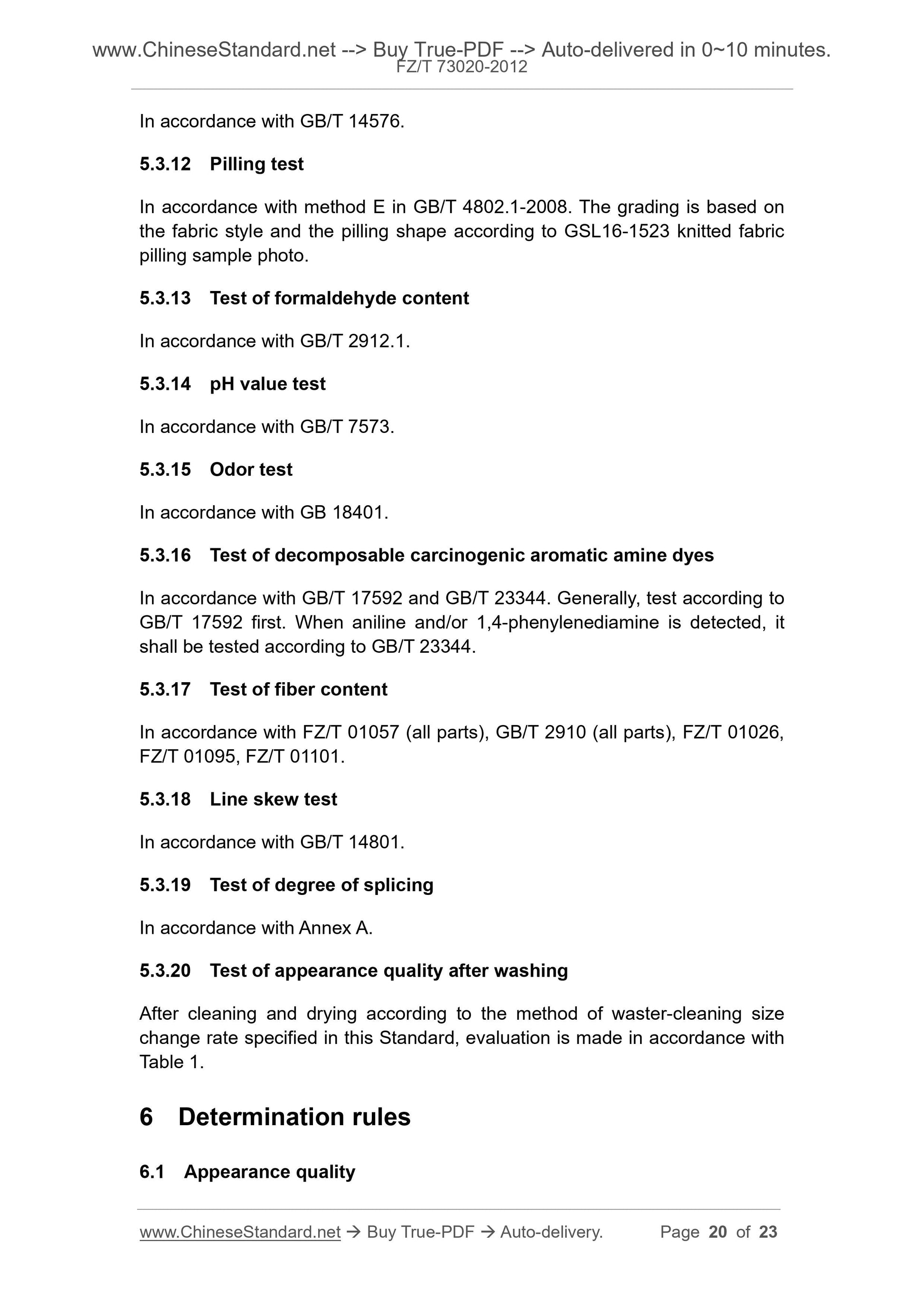

5.3.12 Pilling test
In accordance with method E in GB/T 4802.1-2008. The grading is based on the fabric style and the pilling shape according to GSL16-1523 knitted fabric pilling sample photo.
5.3.13 Test of formaldehyde content
In accordance with GB/T 2912.1.
5.3.14 pH value test
In accordance with GB/T 7573.
5.3.15 Odor test
In accordance with GB 18401.
5.3.16 Test of decomposable carcinogenic aromatic amine dyes
In accordance with GB/T 17592 and GB/T 23344. Generally, test according to GB/T 17592 first. When aniline and/or 1,4-phenylenediamine is detected, it shall be tested according to GB/T 23344.
5.3.17 Test of fiber content
In accordance with FZ/T 01057 (all parts), GB/T 2910 (all parts), FZ/T 01026, FZ/T 01095, FZ/T 01101.
5.3.18 Line skew test
In accordance with GB/T 14801.
5.3.19 Test of degree of splicing
In accordance with Annex A.
5.3.20 Test of appearance quality after washing
After cleaning and drying according to the method of waster-cleaning size change rate specified in this Standard, evaluation is made in accordance with Table 1.

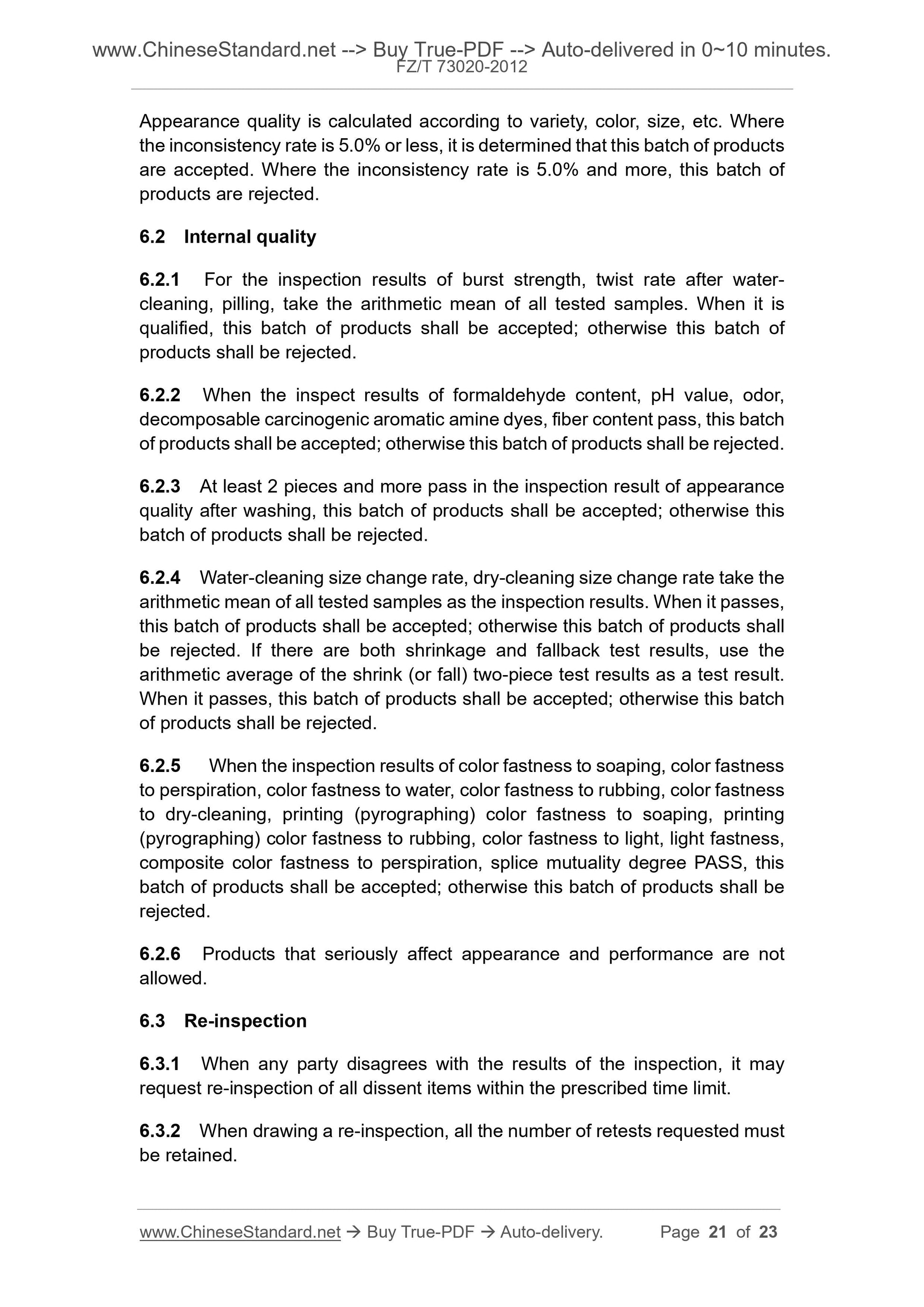

6 Determination rules
6.1 Appearance quality
Appearance quality is calculated according to variety, color, size, etc. Where the inconsistency rate is 5.0% or less, it is determined that this batch of products are accepted. Where the inconsistency rate is 5.0% and more, this batch of products are rejected.
6.2 Internal quality
6.2.1 For the inspection results of burst strength, twist rate after water- cleaning, pilling, take the arithmetic mean of all tested samples. When it is qualified, this batch of products shall be accepted; otherwise this batch of products shall be rejected.
6.2.2 When the inspect results of formaldehyde content, pH value, odor, decomposable carcinogenic aromatic amine dyes, fiber content pass, this batch of products shall be accepted; otherwise this batch of products shall be rejected. 6.2.3 At least 2 pieces and more pass in the inspection result of appearance quality after washing, this batch of products shall be accepted; otherwise this batch of products shall be rejected.
6.2.4 Water-cleaning size change rate, dry-cleaning size change rate take the arithmetic mean of all tested samples as the inspection results. When it passes, this batch of products shall be accepted; otherwise this batch of products shall be rejected. If there are both shrinkage and fallback test results, use the ...
