FZ/T 01095-2002 English PDF (FZT01095-2002)

FZ/T 01095-2002 English PDF (FZT01095-2002)

Regular price $70.00 USD
Regular price Sale price $70.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here FZ/T 01095-2002 to get it for Purchase Approval, Bank TT...

FZ/T 01095-2002: Textile - Test method of elastane fibre content

This standard specifies two methods - Method A (separation method) and Method B (chemical analysis method), for determining the fibre content in products containing elastane.

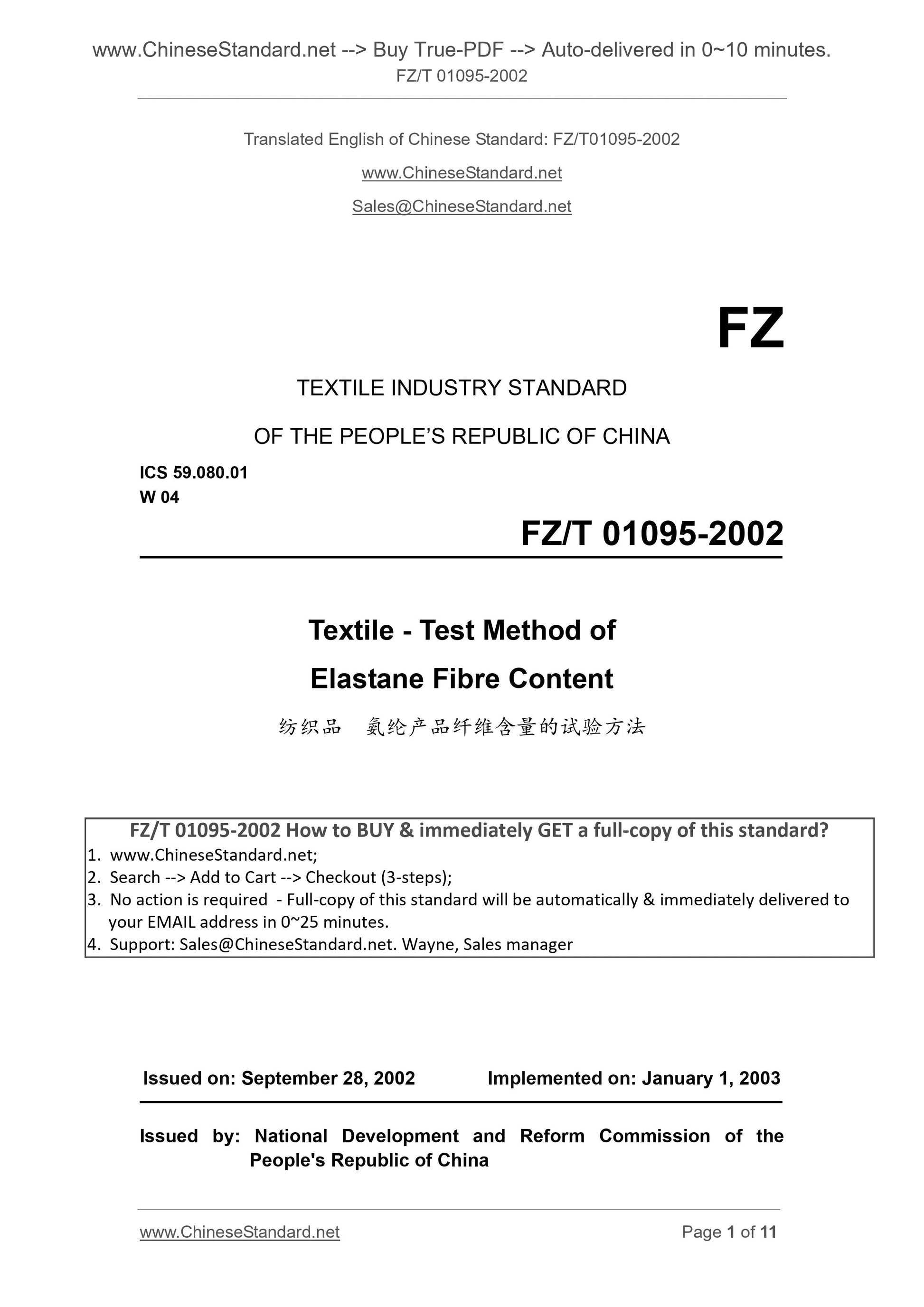

FZ/T 01095-2002
FZ
TEXTILE INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 59.080.01
W 04
Textile - Test Method of
Elastane Fibre Content
ISSUED ON. SEPTEMBER 28, 2002
IMPLEMENTED ON. JANUARY 1, 2003
Issued by. National Development and Reform Commission of the
People's Republic of China

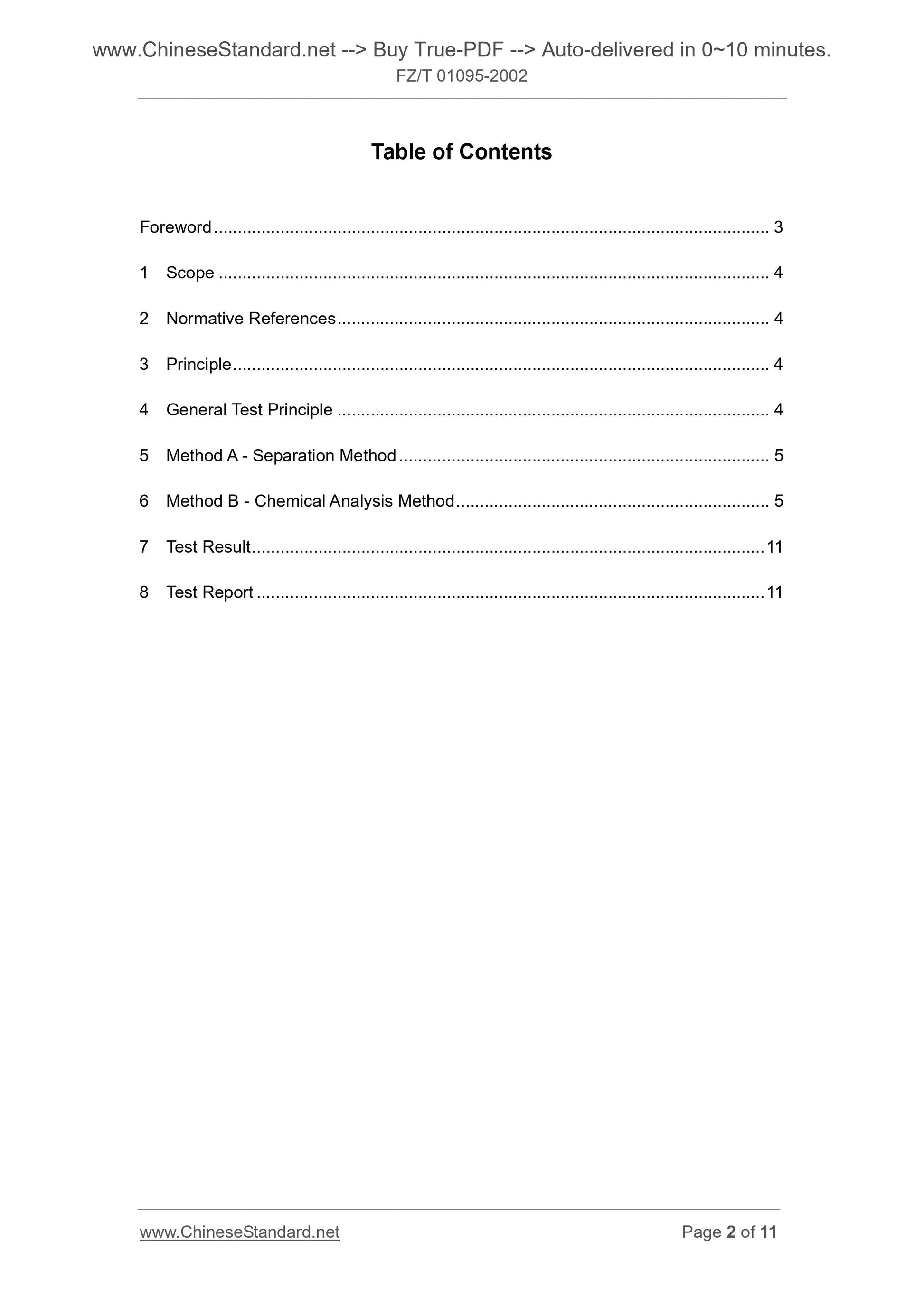

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Principle ... 4
4 General Test Principle ... 4
5 Method A - Separation Method ... 5
6 Method B - Chemical Analysis Method ... 5
7 Test Result ... 11
8 Test Report ... 11

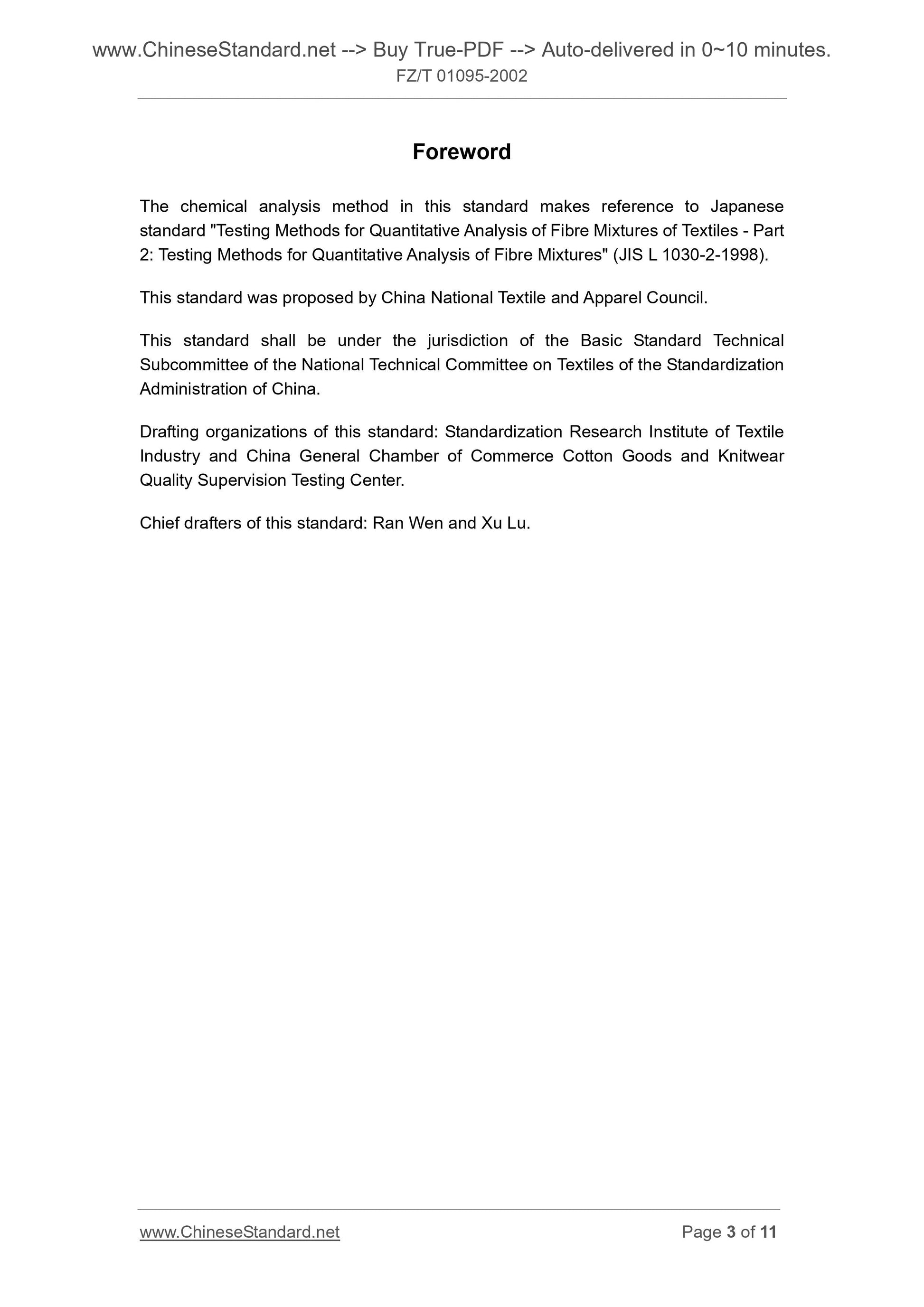

Foreword
The chemical analysis method in this standard makes reference to Japanese standard "Testing Methods for Quantitative Analysis of Fibre Mixtures of Textiles - Part 2. Testing Methods for Quantitative Analysis of Fibre Mixtures" (JIS L 1030-2-1998). This standard was proposed by China National Textile and Apparel Council. This standard shall be under the jurisdiction of the Basic Standard Technical Subcommittee of the National Technical Committee on Textiles of the Standardization Administration of China.
Drafting organizations of this standard. Standardization Research Institute of Textile Industry and China General Chamber of Commerce Cotton Goods and Knitwear Quality Supervision Testing Center.
Chief drafters of this standard. Ran Wen and Xu Lu.

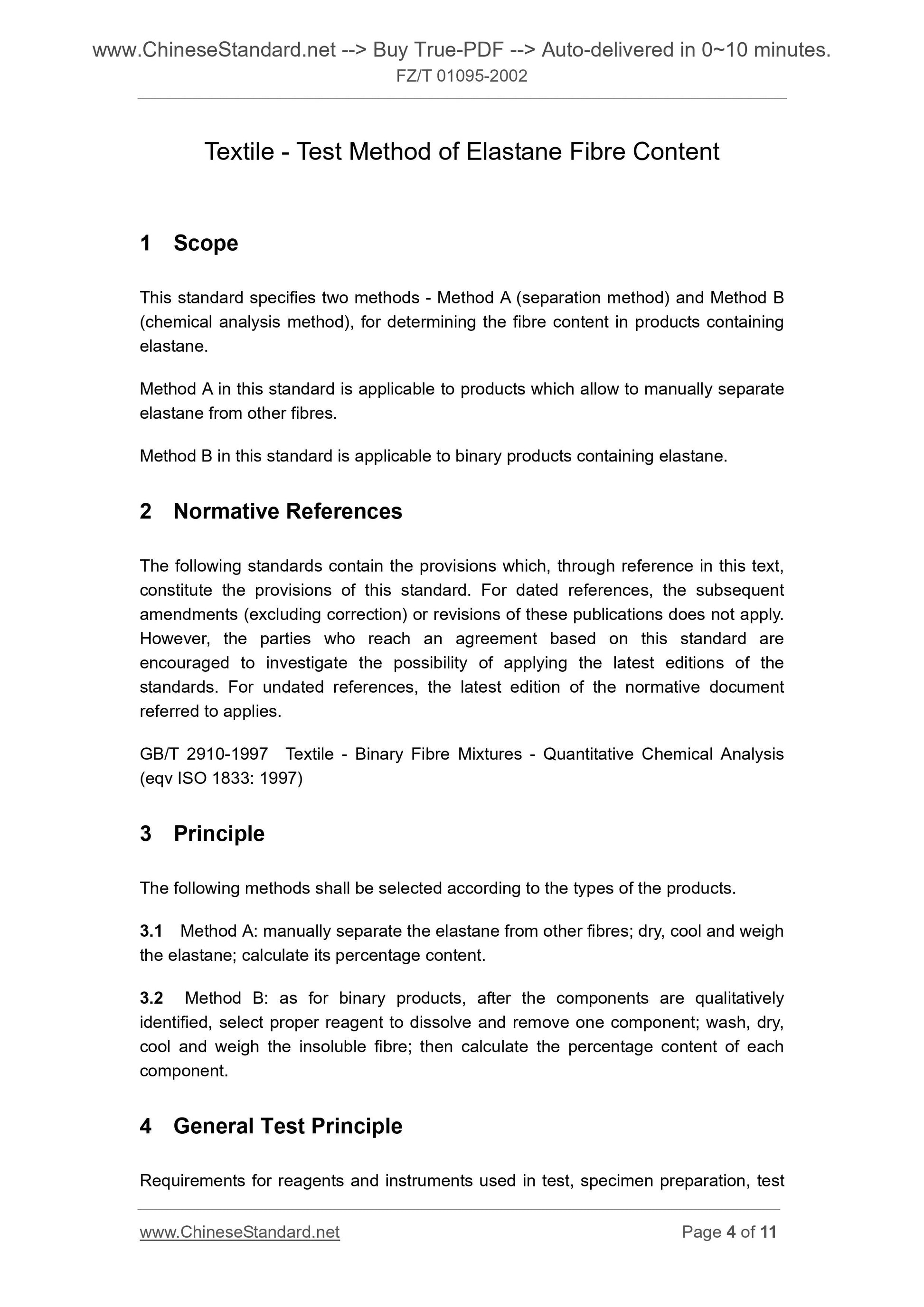

Textile - Test Method of Elastane Fibre Content
1 Scope
This standard specifies two methods - Method A (separation method) and Method B (chemical analysis method), for determining the fibre content in products containing elastane.
Method A in this standard is applicable to products which allow to manually separate elastane from other fibres.
Method B in this standard is applicable to binary products containing elastane. 2 Normative References
The following standards contain the provisions which, through reference in this text, constitute the provisions of this standard. For dated references, the subsequent amendments (excluding correction) or revisions of these publications does not apply. However, the parties who reach an agreement based on this standard are
encouraged to investigate the possibility of applying the latest editions of the standards. For undated references, the latest edition of the normative document referred to applies.
GB/T 2910-1997 Textile - Binary Fibre Mixtures - Quantitative Chemical Analysis (eqv ISO 1833. 1997)
3 Principle
The following methods shall be selected according to the types of the products. 3.1 Method A. manually separate the elastane from other fibres; dry, cool and weigh the elastane; calculate its percentage content.
3.2 Method B. as for binary products, after the components are qualitatively identified, select proper reagent to dissolve and remove one component; wash, dry, cool and weigh the insoluble fibre; then calculate the percentage content of each component.
4 General Test Principle
Requirements for reagents and instruments used in test, specimen preparation, test 2910-1997.

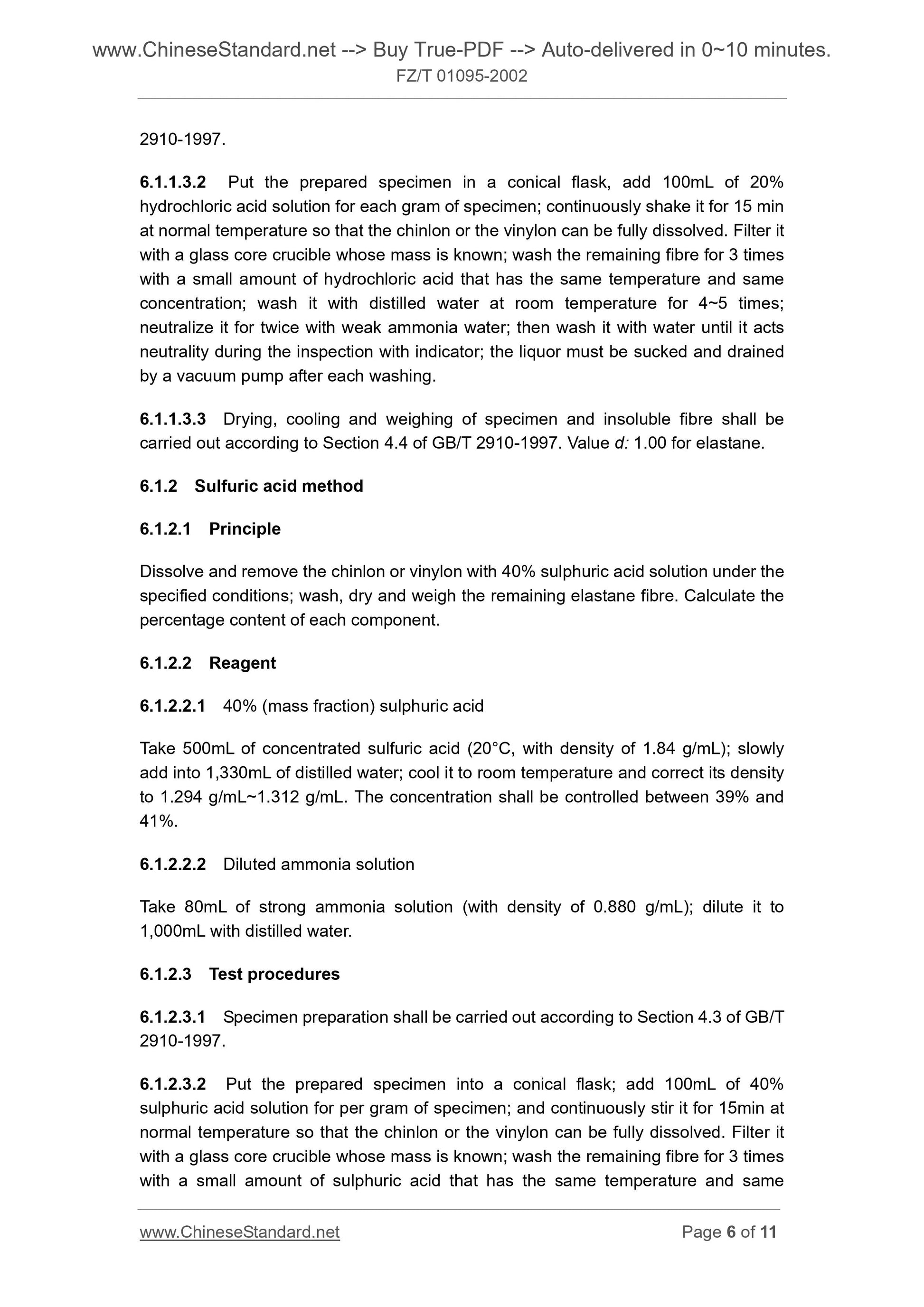

6.1.1.3.2 Put the prepared specimen in a conical flask, add 100mL of 20% hydrochloric acid solution for each gram of specimen; continuously shake it for 15 min at normal temperature so that the chinlon or the vinylon can be fully dissolved. Filter it with a glass core crucible whose mass is known; wash the remaining fibre for 3 times with a small amount of hydrochloric acid that has the same temperature and same concentration; wash it with distilled water at room temperature for 4~5 times; neutralize it for twice with weak ammonia water; then wash it with water until it acts neutrality during the inspection with indicator; the liquor must be sucked and drained by a vacuum pump after each washing.
6.1.1.3.3 Drying, cooling and weighing of specimen and insoluble fibre shall be carried out according to Section 4.4 of GB/T 2910-1997. Value d. 1.00 for elastane. 6.1.2 Sulfuric acid method
6.1.2.1 Principle
Dissolve and remove the chinlon or vinylon with 40% sulphuric acid solution under the specified conditions; wash, dry and weigh the remaining elastane fibre. Calculate the percentage content of each component.
6.1.2.2 Reagent
6.1.2.2.1 40% (mass fraction) sulphuric acid
Take 500mL of concentrated sulfuric acid (20??C, with density of 1.84 g/mL); slowly add into 1,330mL of distilled water; cool it to room temperature and correct its density to 1.294 g/mL~1.312 g/mL. The concentration shall be controlled between 39% and 41%.
6.1.2.2.2 Diluted ammonia solution
Take 80mL of strong ammonia solution (with density of 0.880 g/mL); dilute it to 1,000mL with distilled water.
6.1.2.3 Test procedures
6.1.2.3.1 Specimen preparation shall be carried out according to Section 4.3 of GB/T 2910-1997.
6.1.2.3.2 Put the prepared specimen into a conical flask; add 100mL of 40% sulphuric acid solution for per gram of specimen; and continuously stir it for 15min at normal temperature so that the chinlon or the vinylon can be fully dissolved. Filter it with a glass core crucible whose mass is known; wash the remaining fibre for 3 times with a small amount of sulphuric acid that has the same temperature and same 65% (mass fraction) potassium thiocyanate (20??C, with density of 1.3913 g/mL). Warning. this reagent will cause harm to the human body, thus, the user shall take sound protection measures.
6.4.3 Test procedures
6.4.3.1 Specimen preparation shall be carried out according to Section 4.3 of GB/T 2910-1997.
6.4.3.2 Put the prepared specimen into a conical flask with 72??C??3??C 65% potassium thiocyanate solution; add 100mL of test solution for each gram of specimen; stir for 10 min to dissolve the acrylic fibre. Filter it with a glass core crucible whose mass is known; wash the remaining fibre with the potassium thiocyanate that has the same temperature for 3 times; wash it with water having same temperature for about 10 times; wash it with water until it does not act red during the inspection with ferric trichloride. After each washing, the liquor must be sucked and drained by a vacuum pump.
6.4.3.3 Drying, cooling and weighing of specimen and insoluble fibre shall be carried out according to Section 4.4 of GB/T 2910-1997. Value d. 1.00 for elastane. 6.5 Elastane/acetate fibre and elastane/triacetate
6.5.1 Formic acid method (elastane/acetate fibre and elastane/triacetate) 6.5.1.1 Principle
Dissolve and remove the acetate or triacetate with 75% formic acid solution under the specified conditions; wash, dry and weigh the remaining elastane fibre. Calculate the percentage content of each component.
6.5.1.2 Reagent
6.5.1.2.1 75% (mass fraction) formic acid
Dilute 800 mL of 90% (mass fraction) formic acid (with the density of 1.204 g/mL) with distilled water to 1 L to make the density reach 1.177 g/mL (20??C).
6.5.1.2.2 Diluted ammonia solution
Take 80mL of strong ammonia water (with density of 0.880 g/mL); dilute it to 1,000 mL with distilled water.
6.5.1.3 Test procedures
6.5.1.3.1 Specimen preparation shall be carried out according to Section 4.3 of GB/T The calculation method shall be carried out according to Section 4.5 of GB/T 2910-1997.

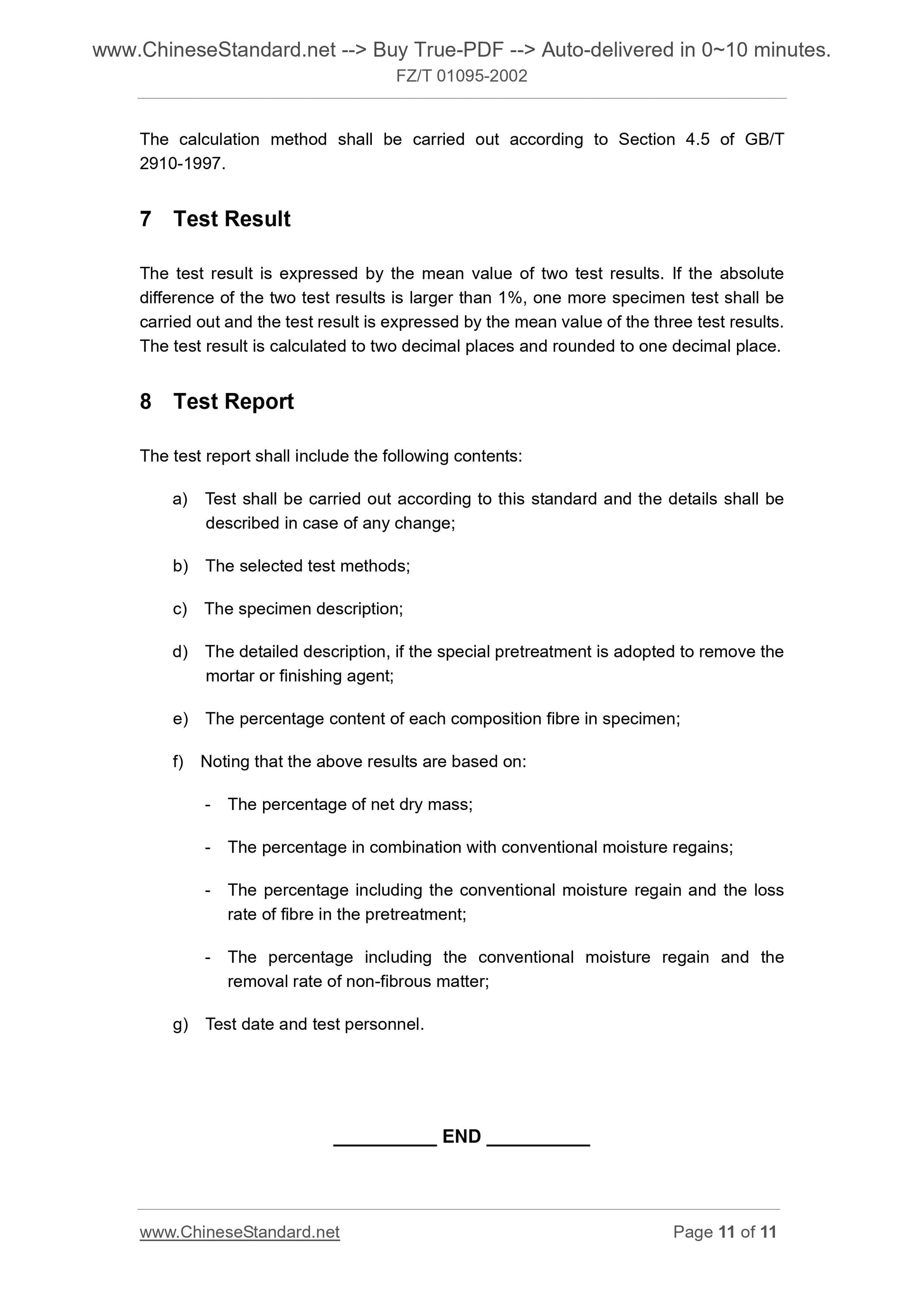

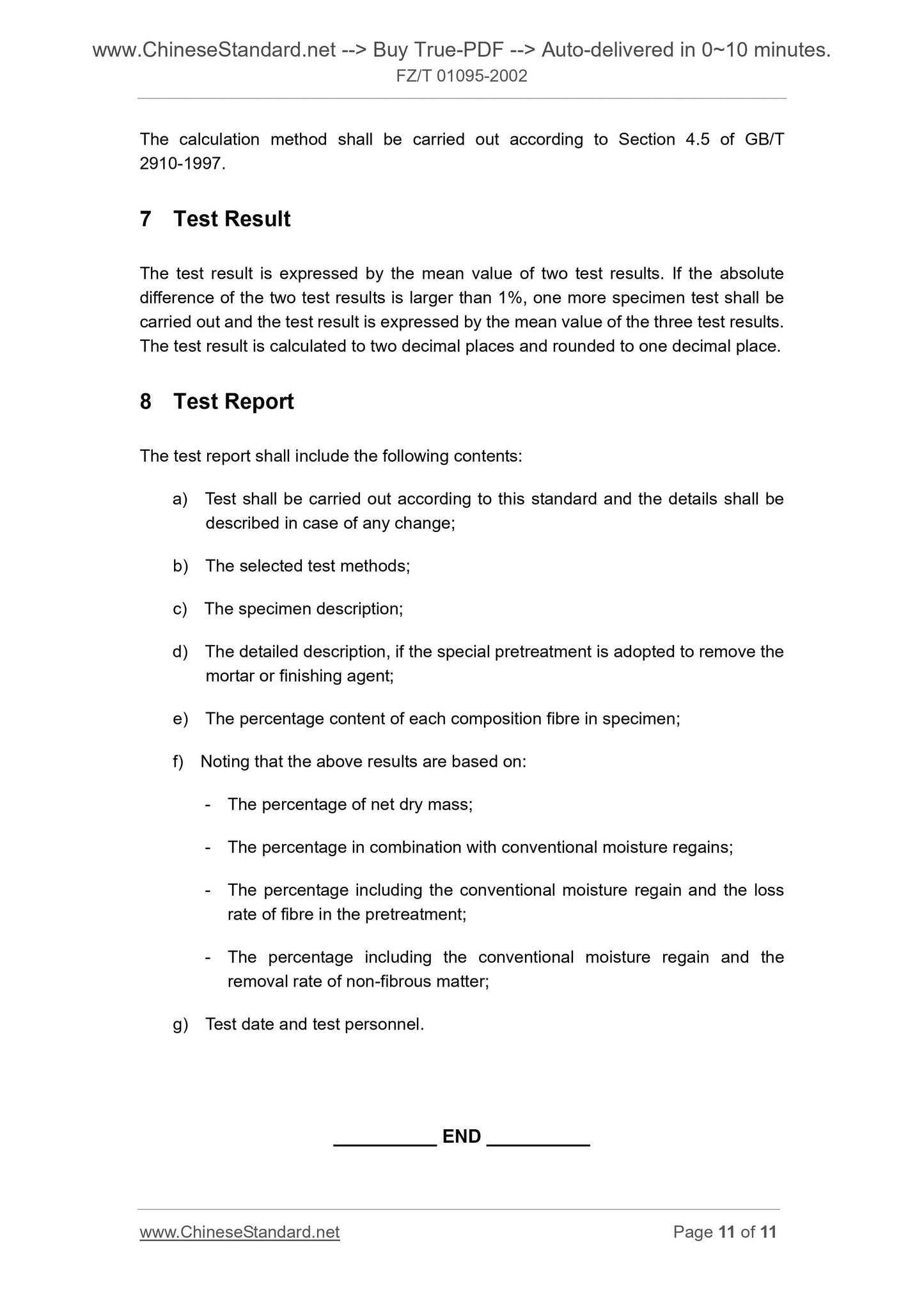

7 Test Result
The test result is expressed by the mean value of two test results. If the absolute difference of the two test results is larger than 1%, one more specimen test shall be carried out and the test result is expressed by the mean value of the three test results. The test result is calculated to two decimal places and rounded to one decimal place. 8 Test Report
The test report shall include the following contents.
a) Test shall be carried out according to this standard and the details shall be described in case of any change;
b) The selected test methods;
c) The specimen description;
d) The detailed description, if the special pretreatment is adopted to remove the mortar or finishing agent;
e) The percentage content of each composition fibre in specimen;
f) Noting that the above results are based on.
- The percentage of net dry mass;
- The percentage in combination with conventional moisture regains;
- The percentage including the conventional moisture regain and the loss rate of fibre in the pretreatment;
- The percentage including the conventional moisture regain and the
removal rate of non-fibrous matter;
g) Test date and test personnel.
