DL/T 1498.5-2019: Technical specification for on-line monitoring device of transformation equipment. Part 5: On-line monitoring device of transformer core earthing current

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click DL/T 1498.5-2019 (Self-service in 1-minute)
Newer / historical versions: DL/T 1498.5-2019

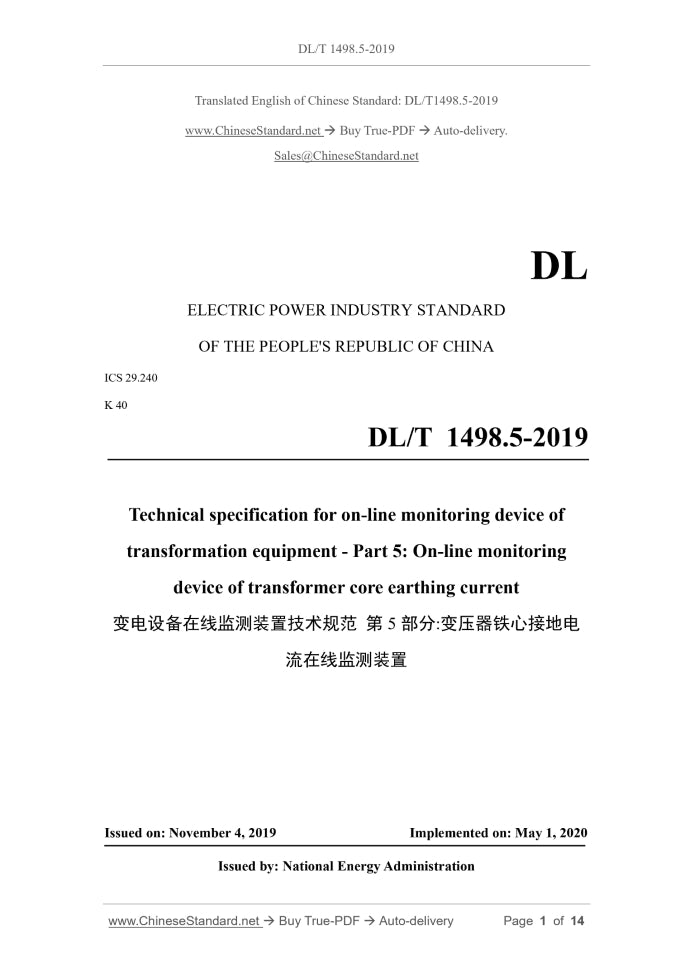

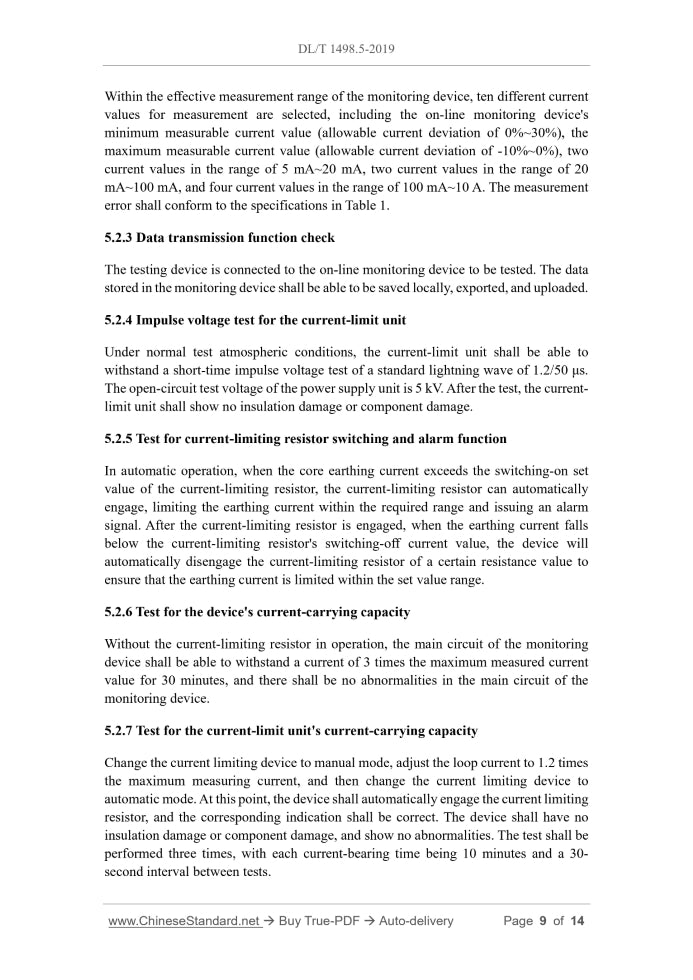

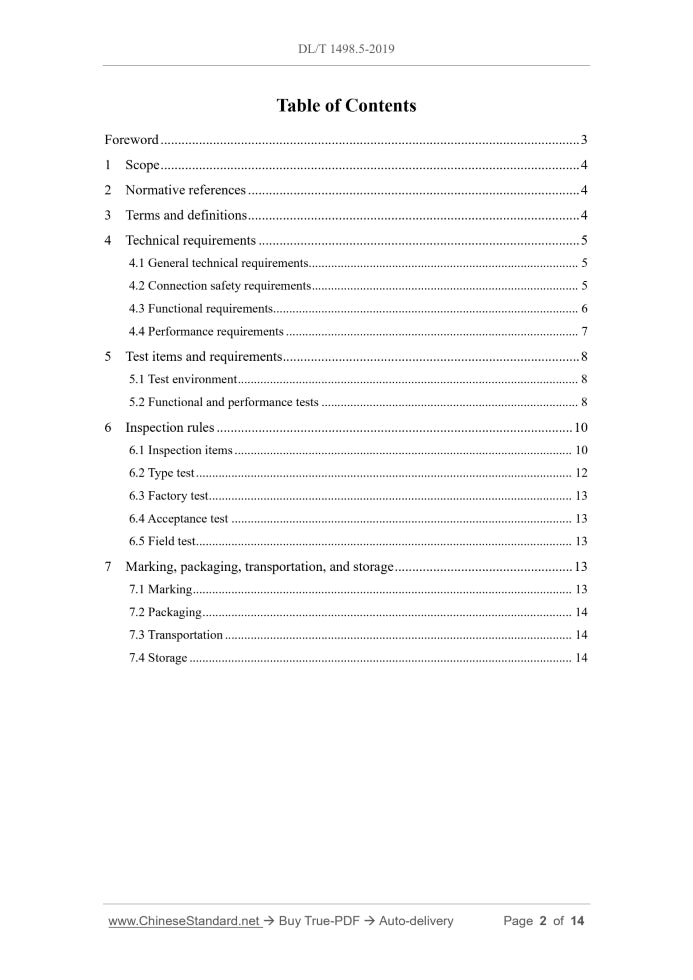

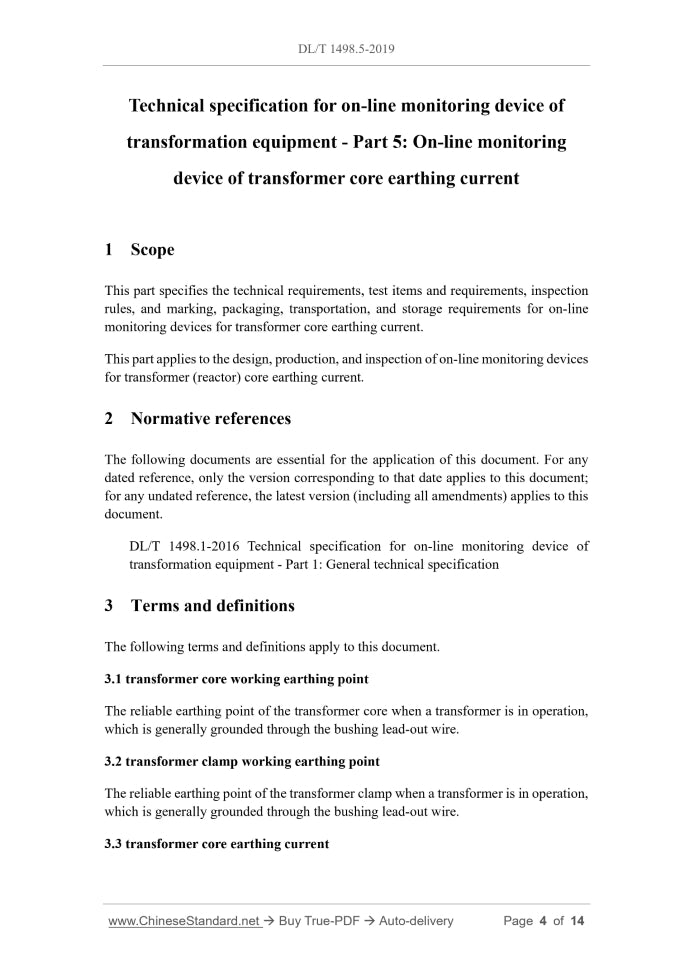

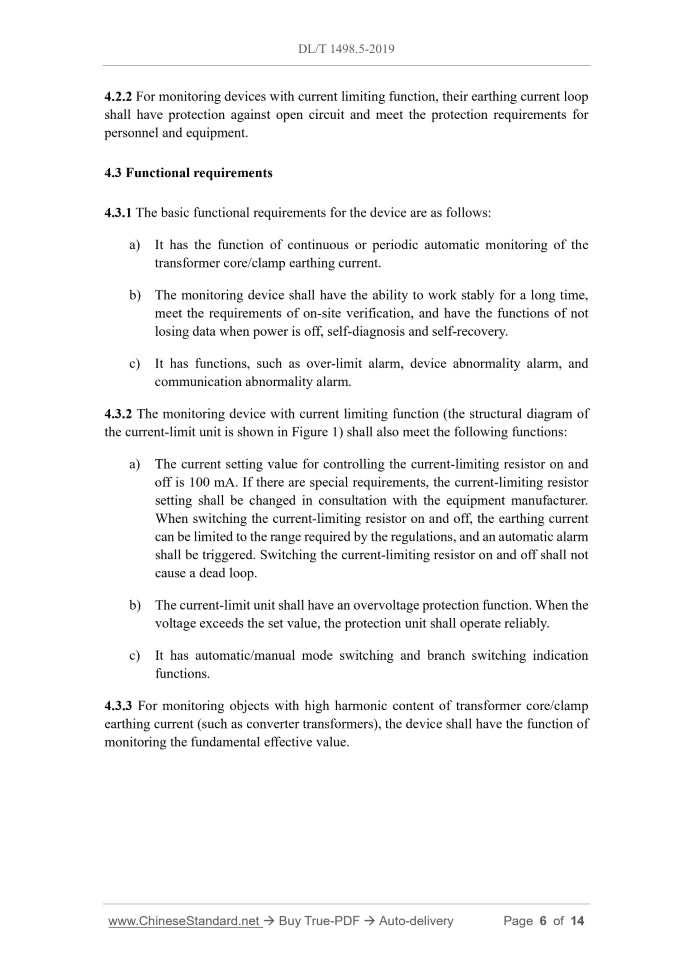

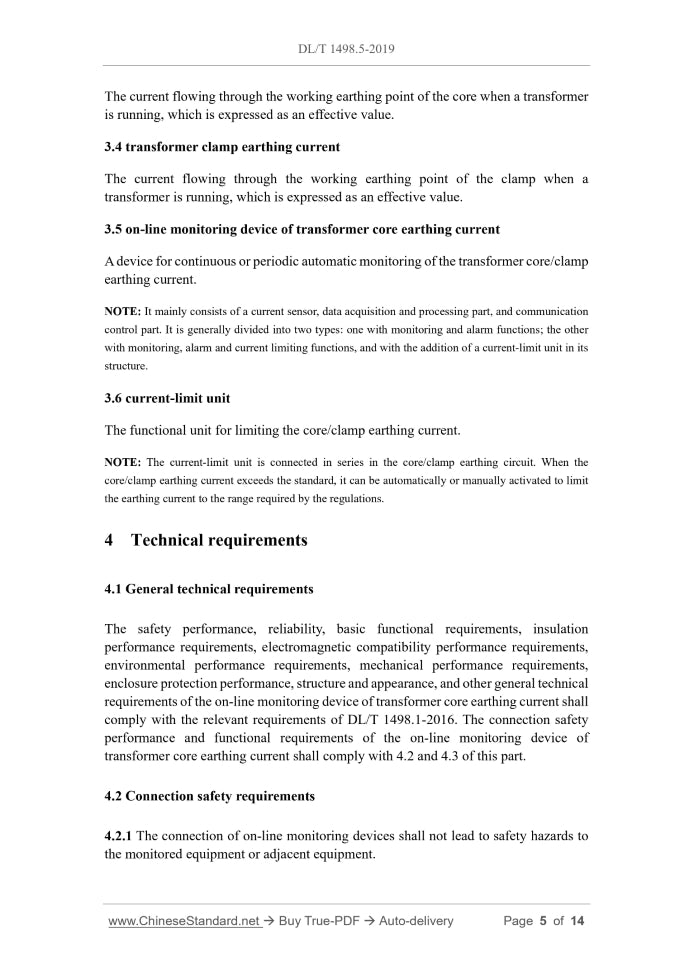

Preview True-PDF

Scope

This part specifies the technical requirements, test items and requirements, inspection
rules, and marking, packaging, transportation, and storage requirements for on-line
monitoring devices for transformer core earthing current.
This part applies to the design, production, and inspection of on-line monitoring devices
for transformer (reactor) core earthing current.

Basic Data

Standard ID	DL/T 1498.5-2019 (DL/T1498.5-2019)
Description (Translated English)	Technical specification for on-line monitoring device of transformation equipment. Part 5: On-line monitoring device of transformer core earthing current
Sector / Industry	Electricity and Power Industry Standard (Recommended)
Classification of Chinese Standard	K40
Classification of International Standard	29.240
Word Count Estimation	9,968
Date of Issue	2019-11-04
Date of Implementation	2020-05-01
Quoted Standard	DL/T 1498.1-2016
Issuing agency(ies)	National Energy Administration
Summary	This standard specifies the technical requirements, test items and requirements, inspection rules, and requirements for marking, packaging, transportation and storage of transformer core grounding current online monitoring devices. This standard applies to the design, production and inspection of the transformer (reactor) iron core grounding current on-line monitoring device.
