DL/T 1432.2-2016: Testing specification for on-line monitoring device of transformation equipment Part 2: on-line monitoring device of gases dissolved in transformer oil

This Part specifies the test conditions, test items, instruments and materials, test contents and requirements, test result processing and test cycle for the online monitoring device of gases dissolved in transformer oil.

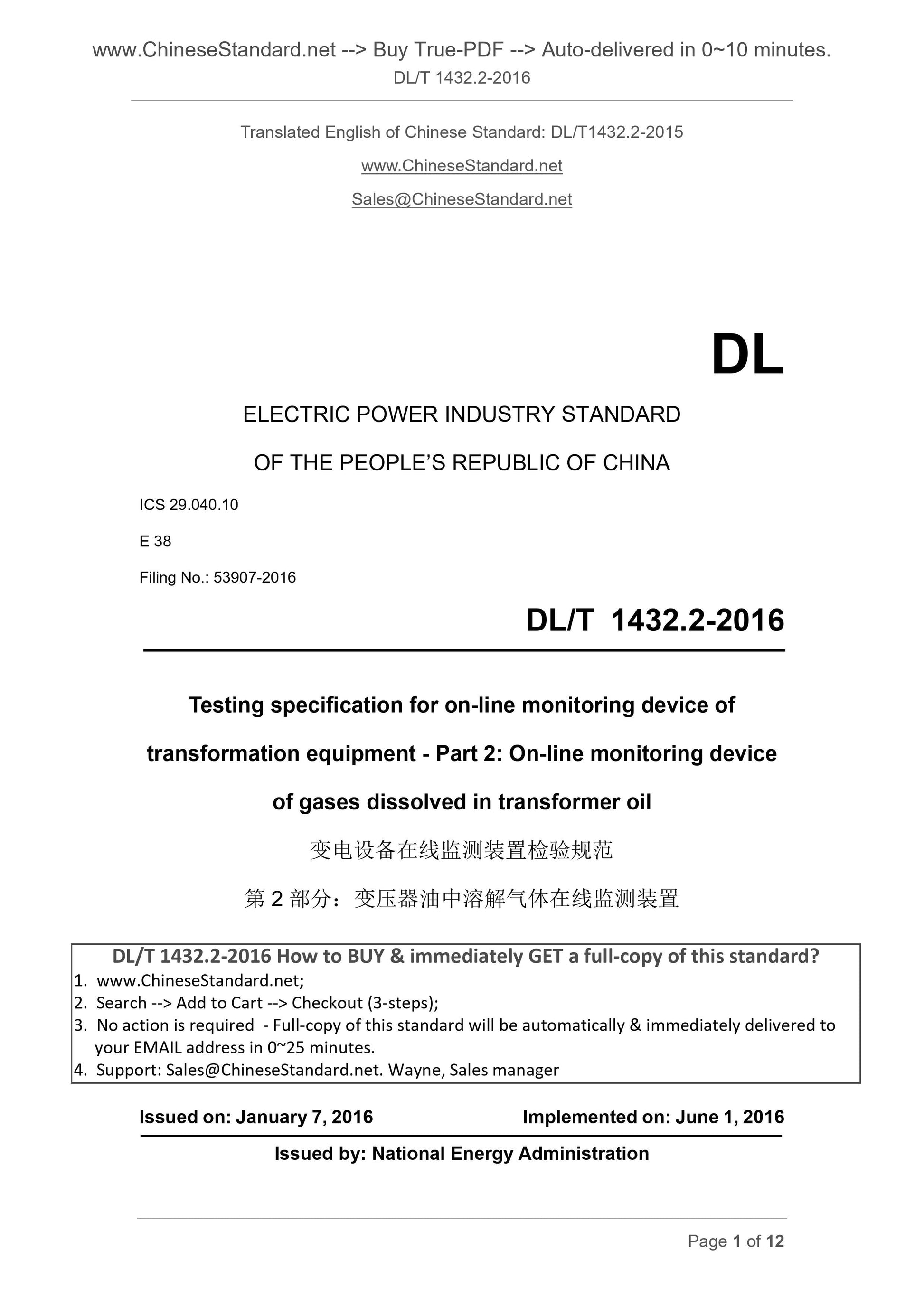

DL/T 1432.2-2016
DL
ELECTRIC POWER INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 29.040.10
E 38
Filing No.. 53907-2016
Testing specification for on-line monitoring device of
transformation equipment - Part 2. On-line monitoring device
of gases dissolved in transformer oil
ISSUED ON. JANUARY 7, 2016
IMPLEMENTED ON. JUNE 1, 2016
Issued by. National Energy Administration

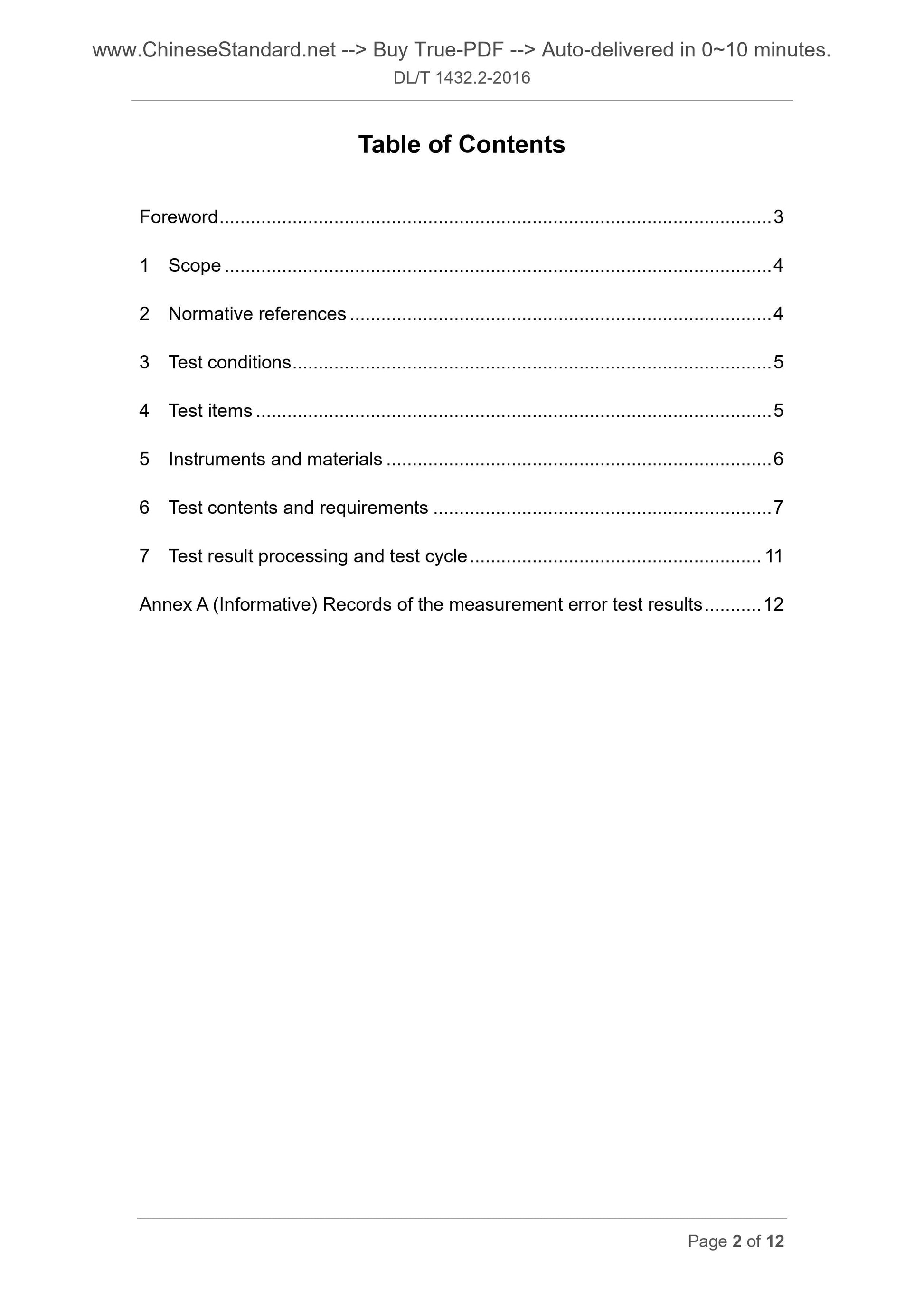

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Test conditions ... 5
4 Test items ... 5
5 Instruments and materials ... 6
6 Test contents and requirements ... 7
7 Test result processing and test cycle ... 11
Annex A (Informative) Records of the measurement error test results ... 12 Foreword

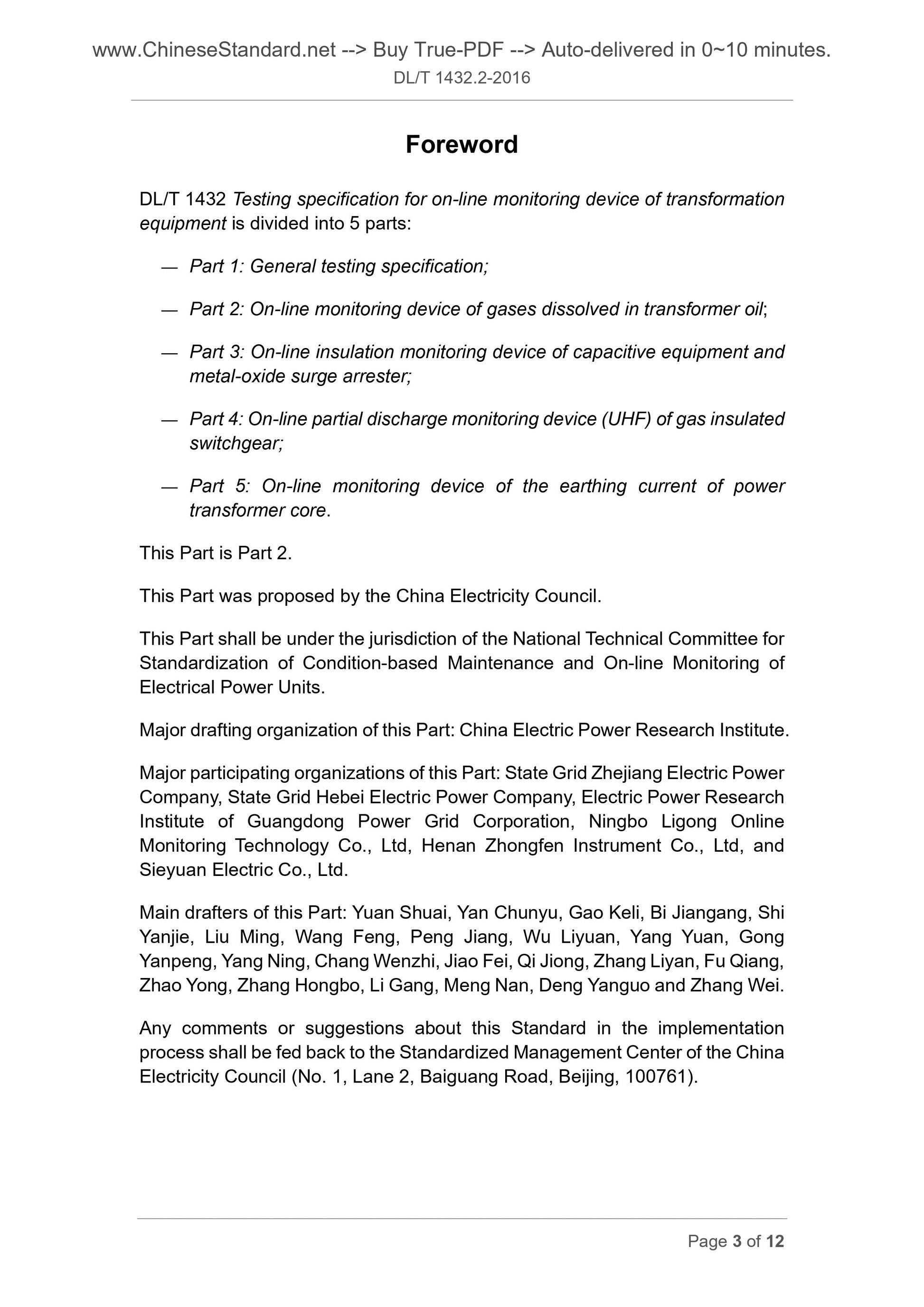

DL/T 1432 Testing specification for on-line monitoring device of transformation equipment is divided into 5 parts.
?€? Part 1. General testing specification;
?€? Part 2. On-line monitoring device of gases dissolved in transformer oil; ?€? Part 3. On-line insulation monitoring device of capacitive equipment and metal-oxide surge arrester;
?€? Part 4. On-line partial discharge monitoring device (UHF) of gas insulated switchgear;
?€? Part 5. On-line monitoring device of the earthing current of power
transformer core.
This Part is Part 2.
This Part was proposed by the China Electricity Council.
This Part shall be under the jurisdiction of the National Technical Committee for Standardization of Condition-based Maintenance and On-line Monitoring of Electrical Power Units.
Major drafting organization of this Part. China Electric Power Research Institute. Major participating organizations of this Part. State Grid Zhejiang Electric Power Company, State Grid Hebei Electric Power Company, Electric Power Research Institute of Guangdong Power Grid Corporation, Ningbo Ligong Online
Monitoring Technology Co., Ltd, Henan Zhongfen Instrument Co., Ltd, and Sieyuan Electric Co., Ltd.
Main drafters of this Part. Yuan Shuai, Yan Chunyu, Gao Keli, Bi Jiangang, Shi Yanjie, Liu Ming, Wang Feng, Peng Jiang, Wu Liyuan, Yang Yuan, Gong
Yanpeng, Yang Ning, Chang Wenzhi, Jiao Fei, Qi Jiong, Zhang Liyan, Fu Qiang, Zhao Yong, Zhang Hongbo, Li Gang, Meng Nan, Deng Yanguo and Zhang Wei.
Any comments or suggestions about this Standard in the implementation
process shall be fed back to the Standardized Management Center of the China Electricity Council (No. 1, Lane 2, Baiguang Road, Beijing, 100761).
Testing specification for on-line monitoring
device of transformation equipment -
Part 2. On-line monitoring device of gases
dissolved in transformer oil

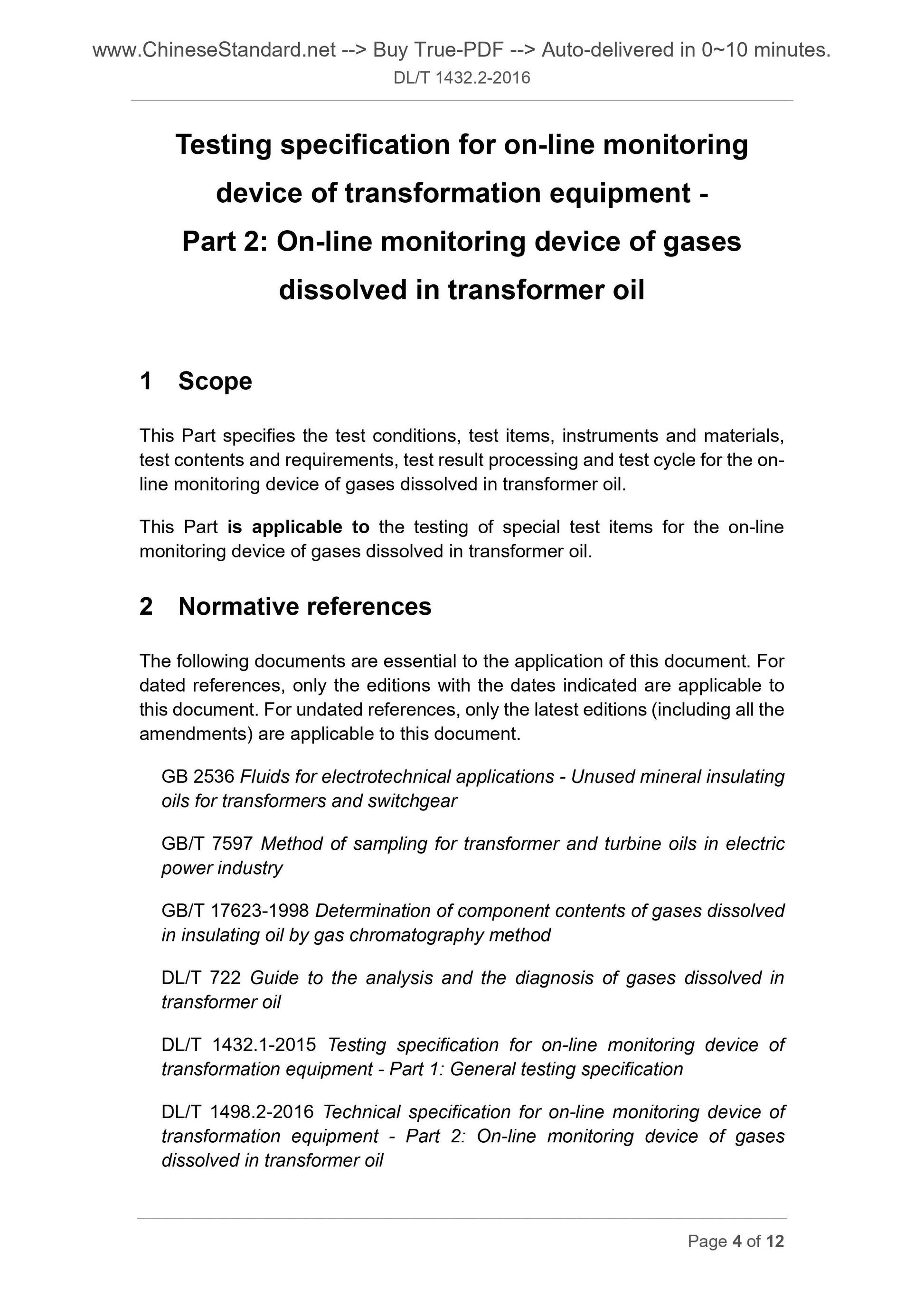

1 Scope
This Part specifies the test conditions, test items, instruments and materials, test contents and requirements, test result processing and test cycle for the on- line monitoring device of gases dissolved in transformer oil.
This Part is applicable to the testing of special test items for the on-line monitoring device of gases dissolved in transformer oil.
2 Normative references
The following documents are essential to the application of this document. For dated references, only the editions with the dates indicated are applicable to this document. For undated references, only the latest editions (including all the amendments) are applicable to this document.
GB 2536 Fluids for electrotechnical applications - Unused mineral insulating oils for transformers and switchgear
GB/T 7597 Method of sampling for transformer and turbine oils in electric power industry
GB/T 17623-1998 Determination of component contents of gases dissolved
in insulating oil by gas chromatography method
DL/T 722 Guide to the analysis and the diagnosis of gases dissolved in
transformer oil
DL/T 1432.1-2015 Testing specification for on-line monitoring device of transformation equipment - Part 1. General testing specification
DL/T 1498.2-2016 Technical specification for on-line monitoring device of transformation equipment - Part 2. On-line monitoring device of gases
dissolved in transformer oil

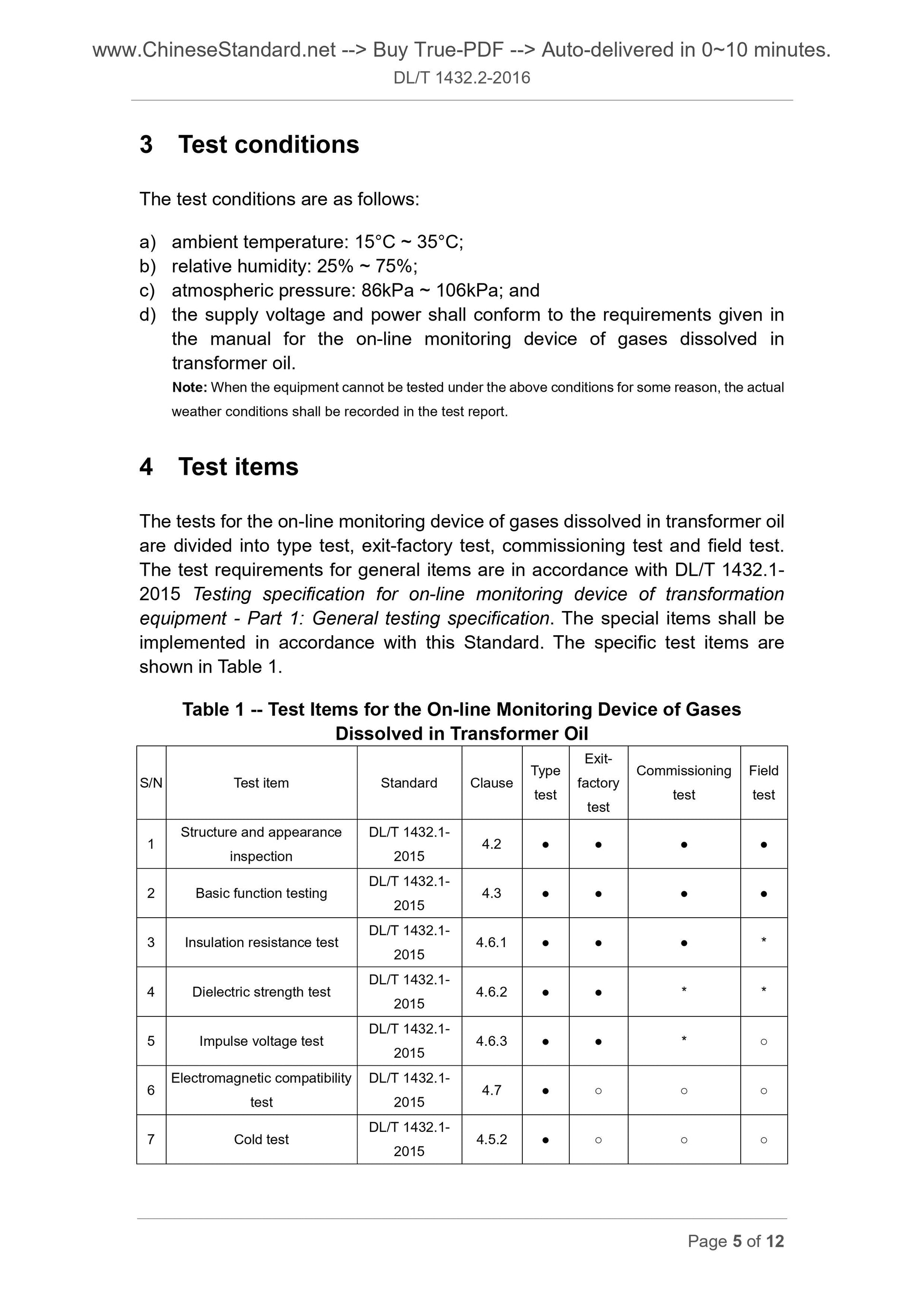

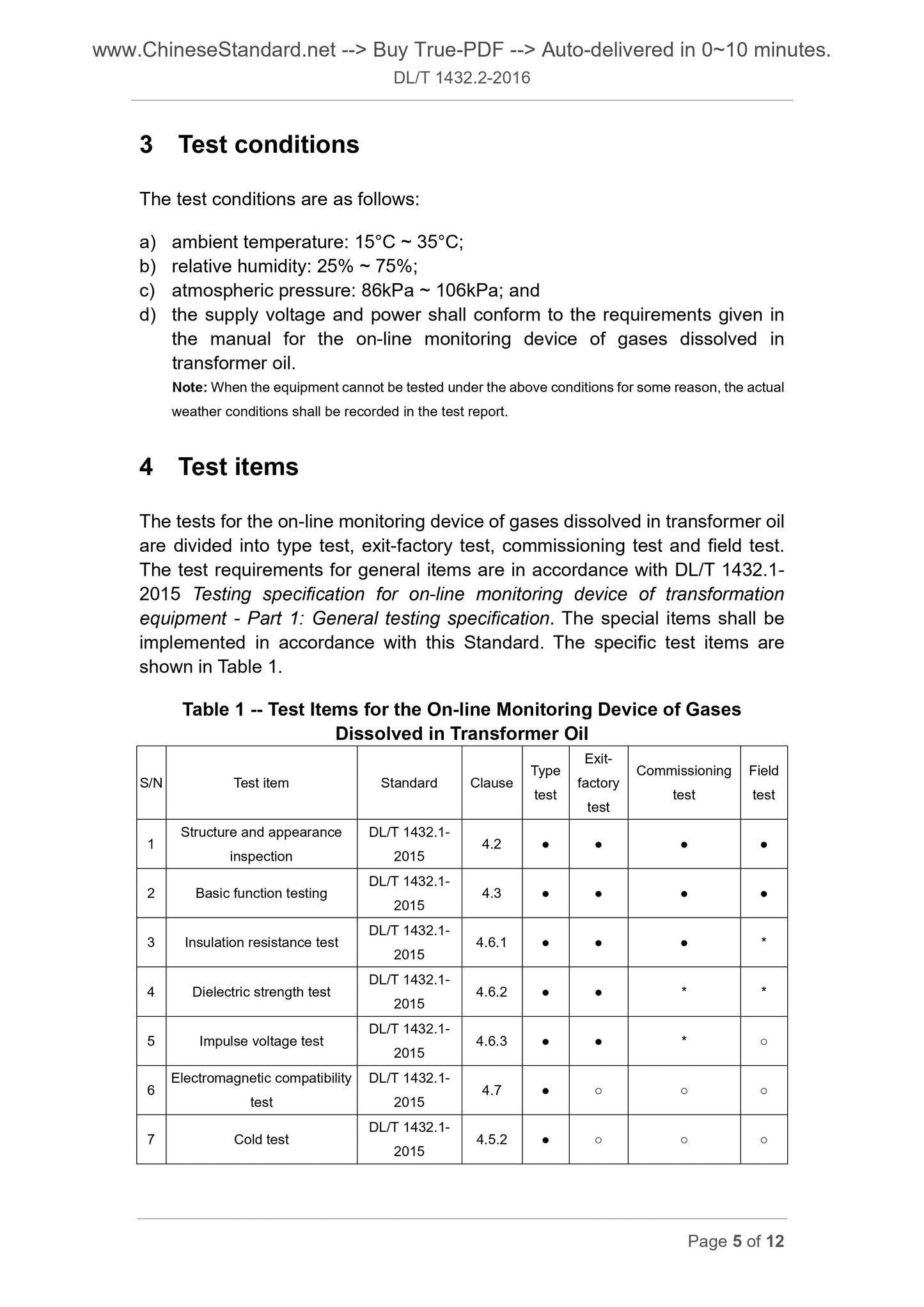

3 Test conditions
The test conditions are as follows.
a) ambient temperature. 15??C ~ 35??C;
b) relative humidity. 25% ~ 75%;
c) atmospheric pressure. 86kPa ~ 106kPa; and
d) the supply voltage and power shall conform to the requirements given in the manual for the on-line monitoring device of gases dissolved in
transformer oil.
Note. When the equipment cannot be tested under the above conditions for some reason, the actual weather conditions shall be recorded in the test report.
4 Test items
The tests for the on-line monitoring device of gases dissolved in transformer oil are divided into type test, exit-factory test, commissioning test and field test. The test requirements for general items are in accordance with DL/T 1432.1- 2015 Testing specification for on-line monitoring device of transformation equipment - Part 1. General testing specification. The special items shall be implemented in accordance with this Standard. The specific test items are shown in Table 1.
Table 1 -- Test Items for the On-line Monitoring Device of Gases
Dissolved in Transformer Oil
S/N Test item Standard Clause Type test
Exit-
factory
test
Commissioning
test
Field
test
1 Structure and appearance inspection
DL/T 1432.1-
2015 4.2 ??? ??? ??? ???
2 Basic function testing DL/T 1432.1-2015 4.3 ??? ??? ??? ???
3 Insulation resistance test DL/T 1432.1-2015 4.6.1 ??? ??? ??? *
4 Dielectric strength test DL/T 1432.1-2015 4.6.2 ??? ??? * *
5 Impulse voltage test DL/T 1432.1-2015 4.6.3 ??? ??? * ???
6 Electromagnetic compatibility test
DL/T 1432.1-
2015 4.7 ??? ??? ??? ???
7 Cold test DL/T 1432.1-2015 4.5.2 ??? ??? ??? ???

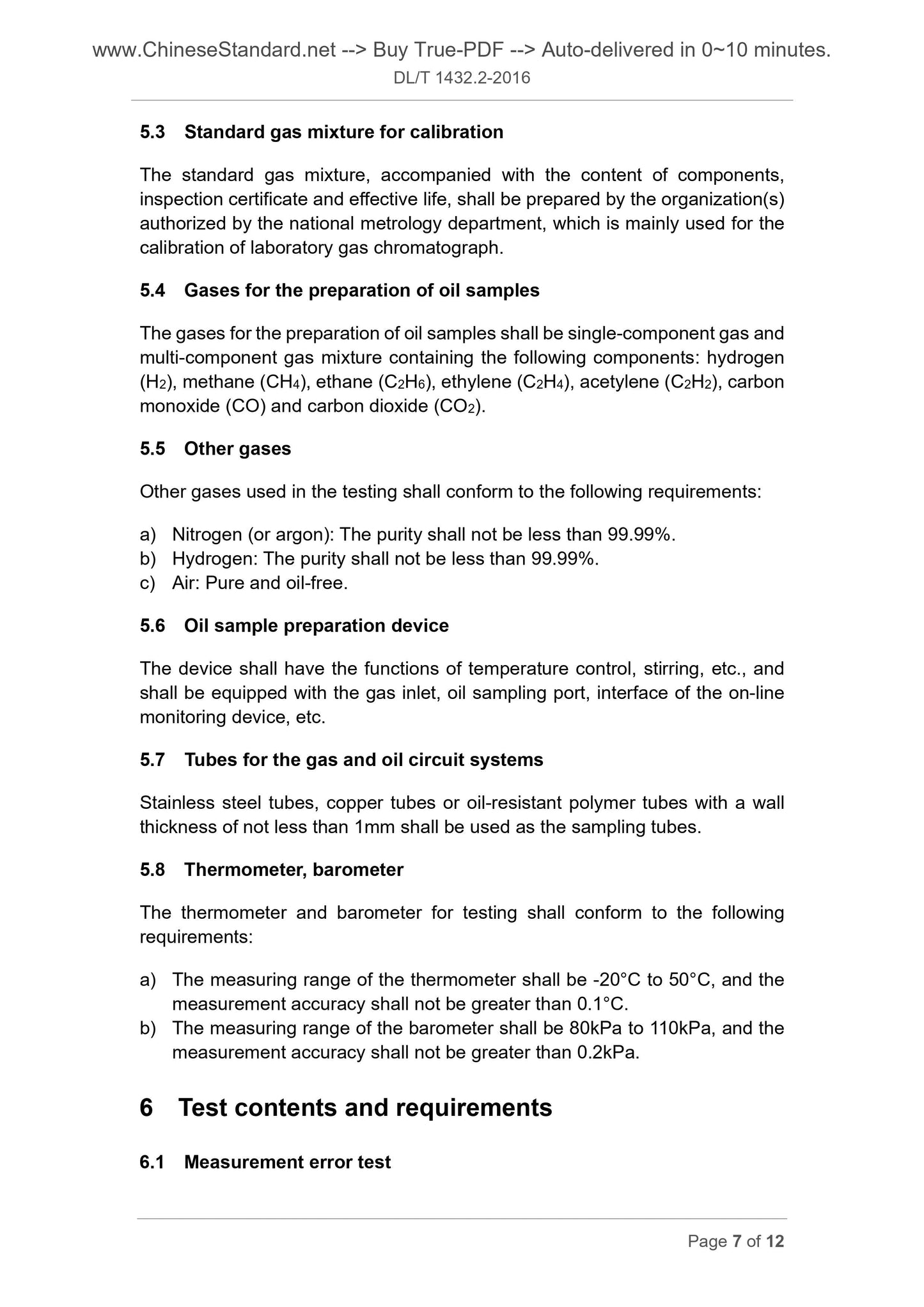

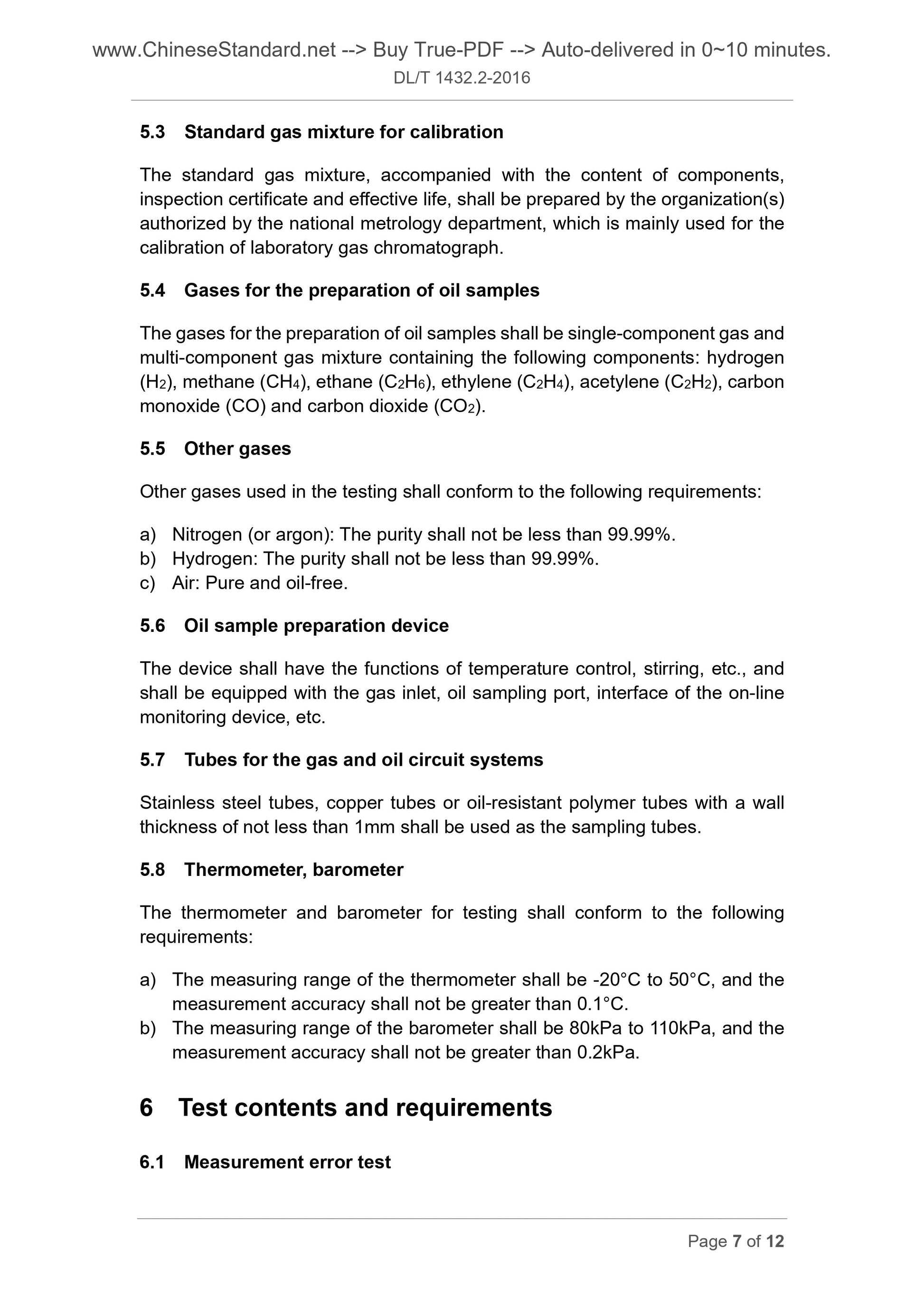

5.3 Standard gas mixture for calibration
The standard gas mixture, accompanied with the content of components,
inspection certificate and effective life, shall be prepared by the organization(s) authorized by the national metrology department, which is mainly used for the calibration of laboratory gas chromatograph.
5.4 Gases for the preparation of oil samples
The gases for the preparation of oil samples shall be single-component gas and multi-component gas mixture containing the following components. hydrogen (H2), methane (CH4), ethane (C2H6), ethylene (C2H4), acetylene (C2H2), carbon monoxide (CO) and carbon dioxide (CO2).
5.5 Other gases
Other gases used in the testing shall conform to the following requirements. a) Nitrogen (or argon). The purity shall not be less than 99.99%.
b) Hydrogen. The purity shall not be less than 99.99%.
c) Air. Pure and oil-free.
5.6 Oil sample preparation device
The device shall have the functions of temperature control, stirring, etc., and shall be equipped with the gas inlet, oil sampling port, interface of the on-line monitoring device, etc.
5.7 Tubes for the gas and oil circuit systems
Stainless steel tubes, copper tubes or oil-resistant polymer tubes with a wall thickness of not less than 1mm shall be used as the sampling tubes.
5.8 Thermometer, barometer
The thermometer and barometer for testing shall conform to the following requirements.
a) The measuring range of the thermometer shall be -20??C to 50??C, and the measurement accuracy shall not be greater than 0.1??C.
b) The measuring range of the barometer shall be 80kPa to 110kPa, and the measurement accuracy shall not be greater than 0.2kPa.
6 Test contents and requirements
6.1 Measurement error test

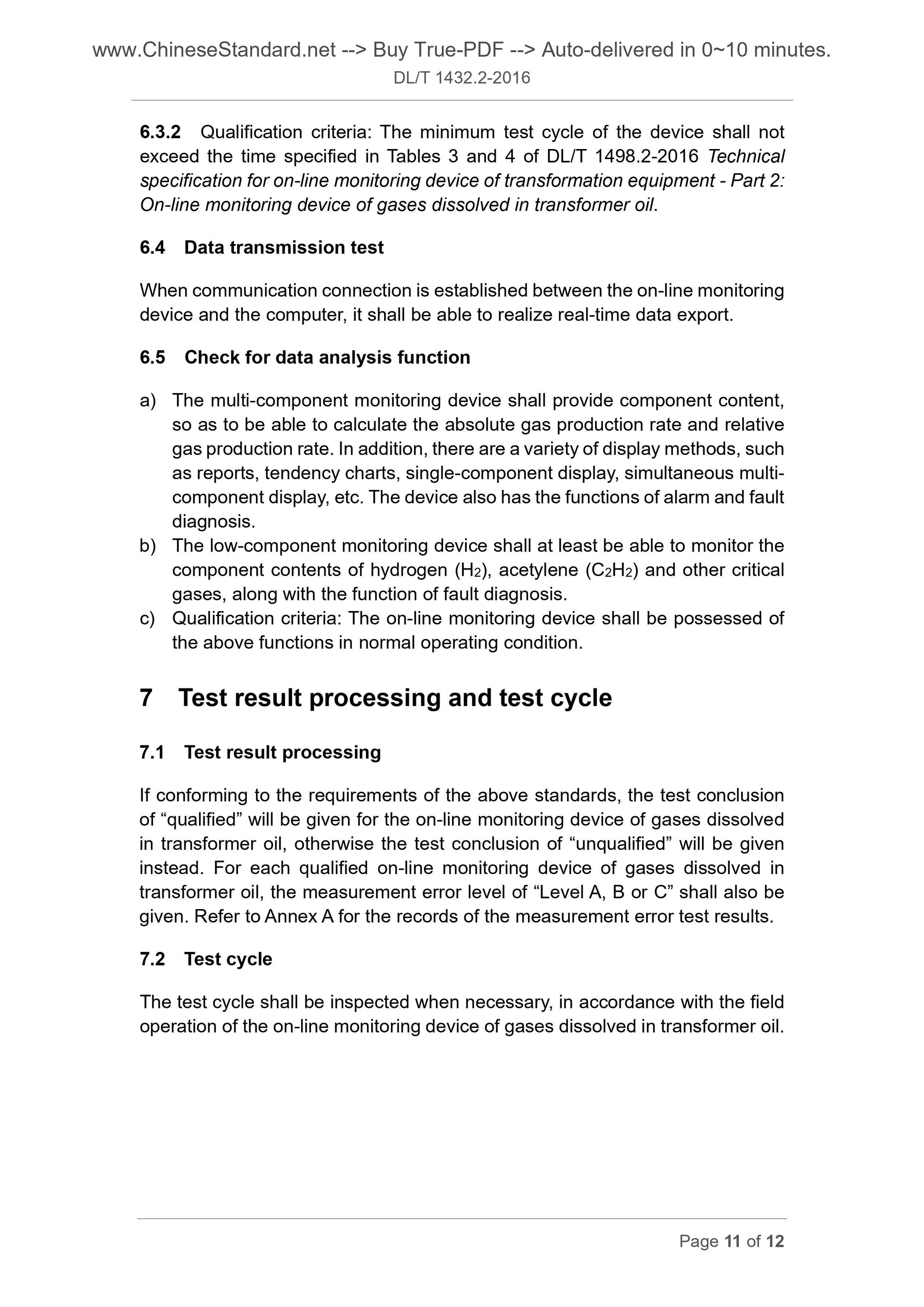

6.3.2 Qualification criteria. The minimum test cycle of the device shall not exceed the time specified in Tables 3 and 4 of DL/T 1498.2-2016 Technical specification for on-line monitoring device of transformation equipment - Part 2. On-line monitoring device of gases dissolved in transformer oil.
6.4 Data transmission test
When communication connection is established between the on-line monitoring device and the computer, it shall be able to realize real-time data export. 6.5 Check for data analysis function
a) The multi-component monitoring device shall provide component content, so as to be able to calculate the absolute gas production rate and relative gas production rate. In addition, there are a variety of display methods, such as reports, tendency charts, single-component display, simultaneous multi- component display, etc. The device also has the functions of alarm and fault diagnosis.
b) The low-component monitoring device shall at least be able to monitor the component contents of hydrogen (H2), acetylene (C2H2) and other critical gases, along with the function of fault diagnosis.
c) Qualification criteria. The on-line monitoring device shall be possessed of the above functions in normal operating condition.
7 Test result processing and test cycle
7.1 Test result processing
If conforming to the requirements of the above standards, the test conclusion of ?€?qualified?€? will be given for the on-line monitoring device of gases dissolved in transformer oil, otherwise the test conclusion of ?€?unqualified?€? will be given instead. For each qualified on-line monitoring device of gases diss...
