DL/T 1338-2014: Specification of real-time supervision and management information system for power generation enterprises

This Standard specifies the hardware and software configuration, applications, system security, documentation, acceptance and other technical requirements of realtime supervision and management information system for power generation enterprises.

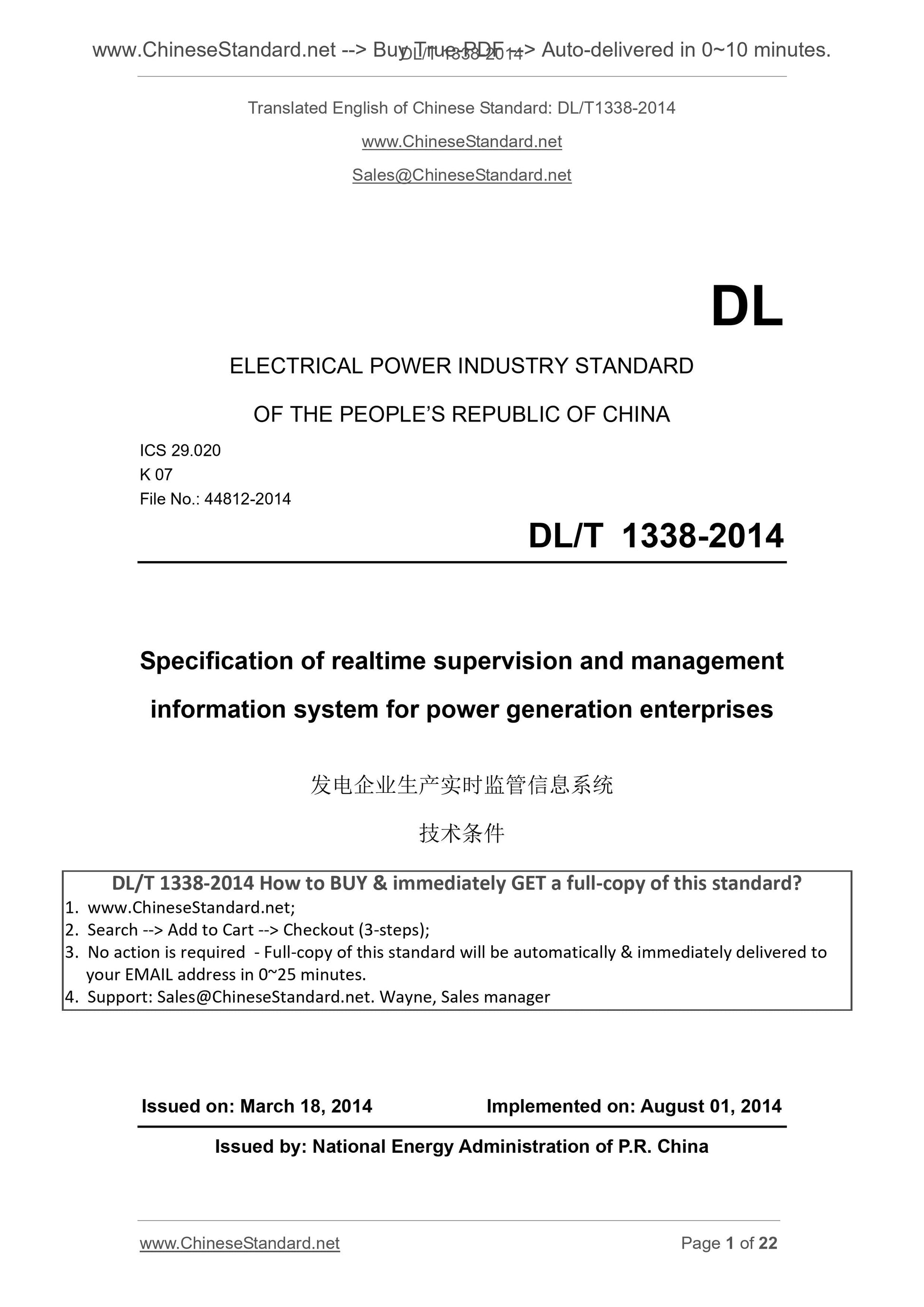

DL/T 1338-2014
DL
ELECTRICAL POWER INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 29.020
K 07
File No.. 44812-2014
Specification of realtime supervision and management
information system for power generation enterprises
ISSUED ON. MARCH 18, 2014
IMPLEMENTED ON. AUGUST 01, 2014
Issued by. National Energy Administration of P.R. China

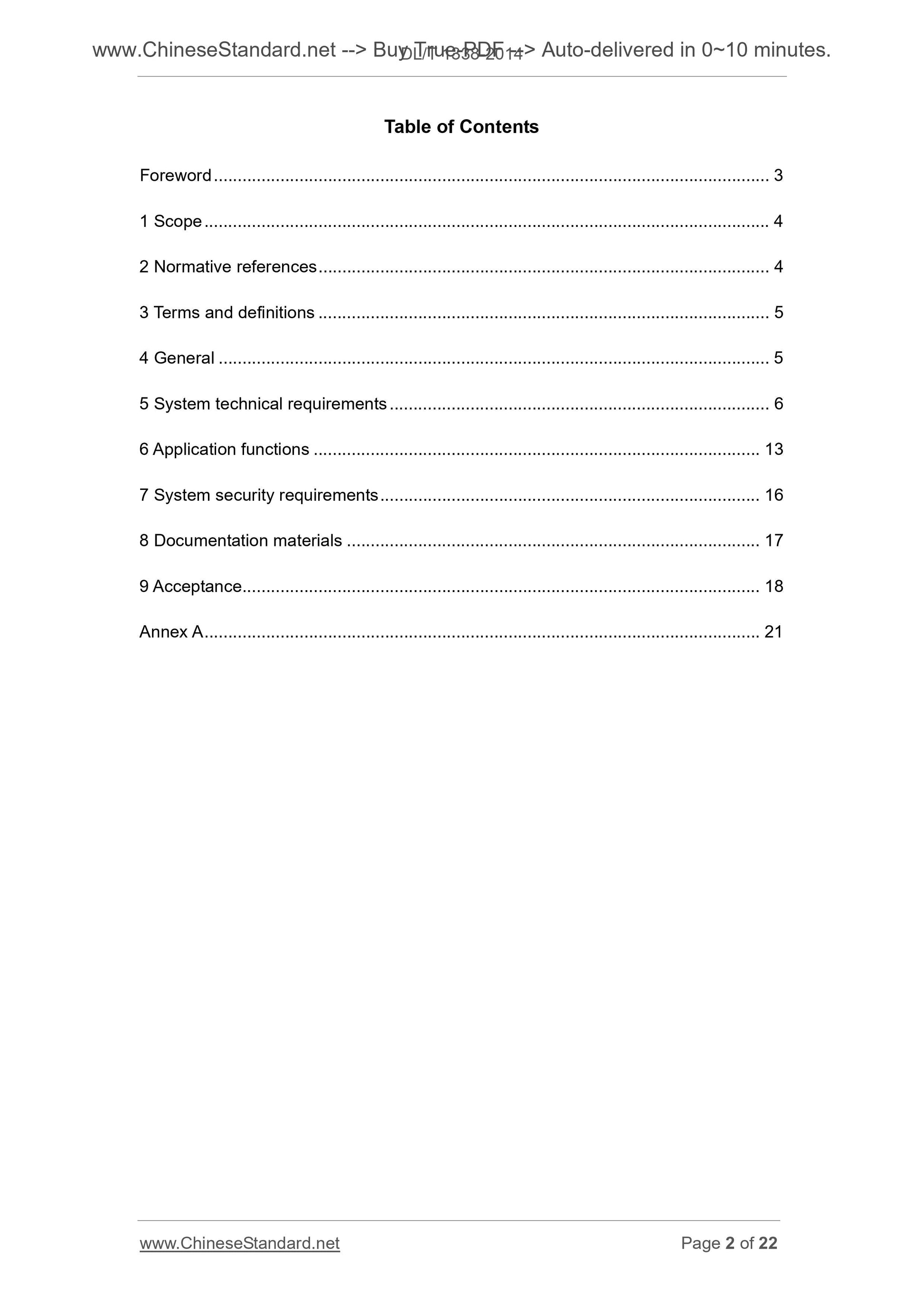

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 5
4 General ... 5
5 System technical requirements ... 6
6 Application functions ... 13
7 System security requirements ... 16
8 Documentation materials ... 17
9 Acceptance ... 18
Annex A ... 21

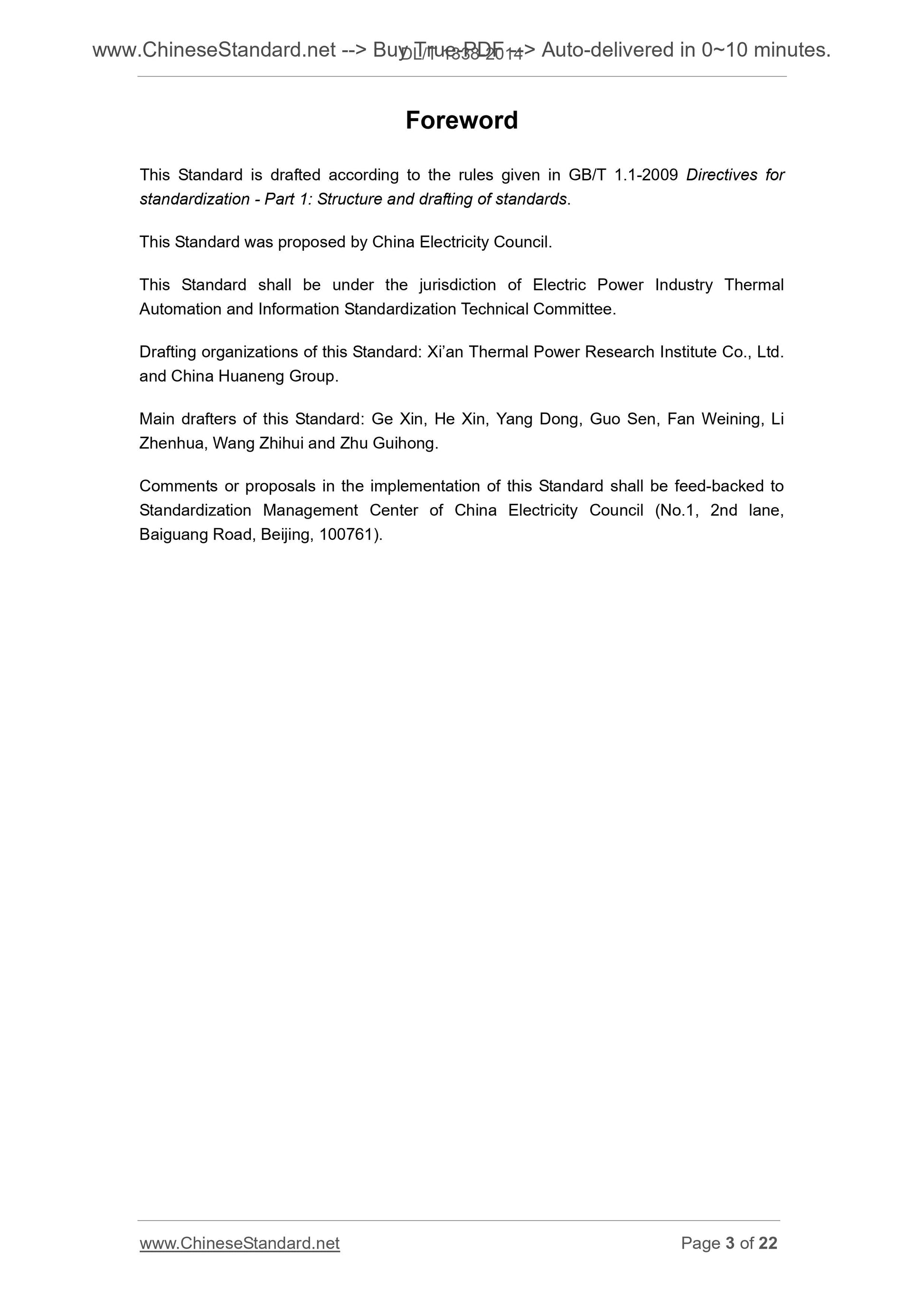

Foreword
This Standard is drafted according to the rules given in GB/T 1.1-2009 Directives for standardization - Part 1. Structure and drafting of standards.
This Standard was proposed by China Electricity Council.
This Standard shall be under the jurisdiction of Electric Power Industry Thermal Automation and Information Standardization Technical Committee.
Drafting organizations of this Standard. Xi?€?an Thermal Power Research Institute Co., Ltd. and China Huaneng Group.
Main drafters of this Standard. Ge Xin, He Xin, Yang Dong, Guo Sen, Fan Weining, Li Zhenhua, Wang Zhihui and Zhu Guihong.
Comments or proposals in the implementation of this Standard shall be feed-backed to Standardization Management Center of China Electricity Council (No.1, 2nd lane, Baiguang Road, Beijing, 100761).
Specification of realtime of supervision and management
information system for power generation enterprises

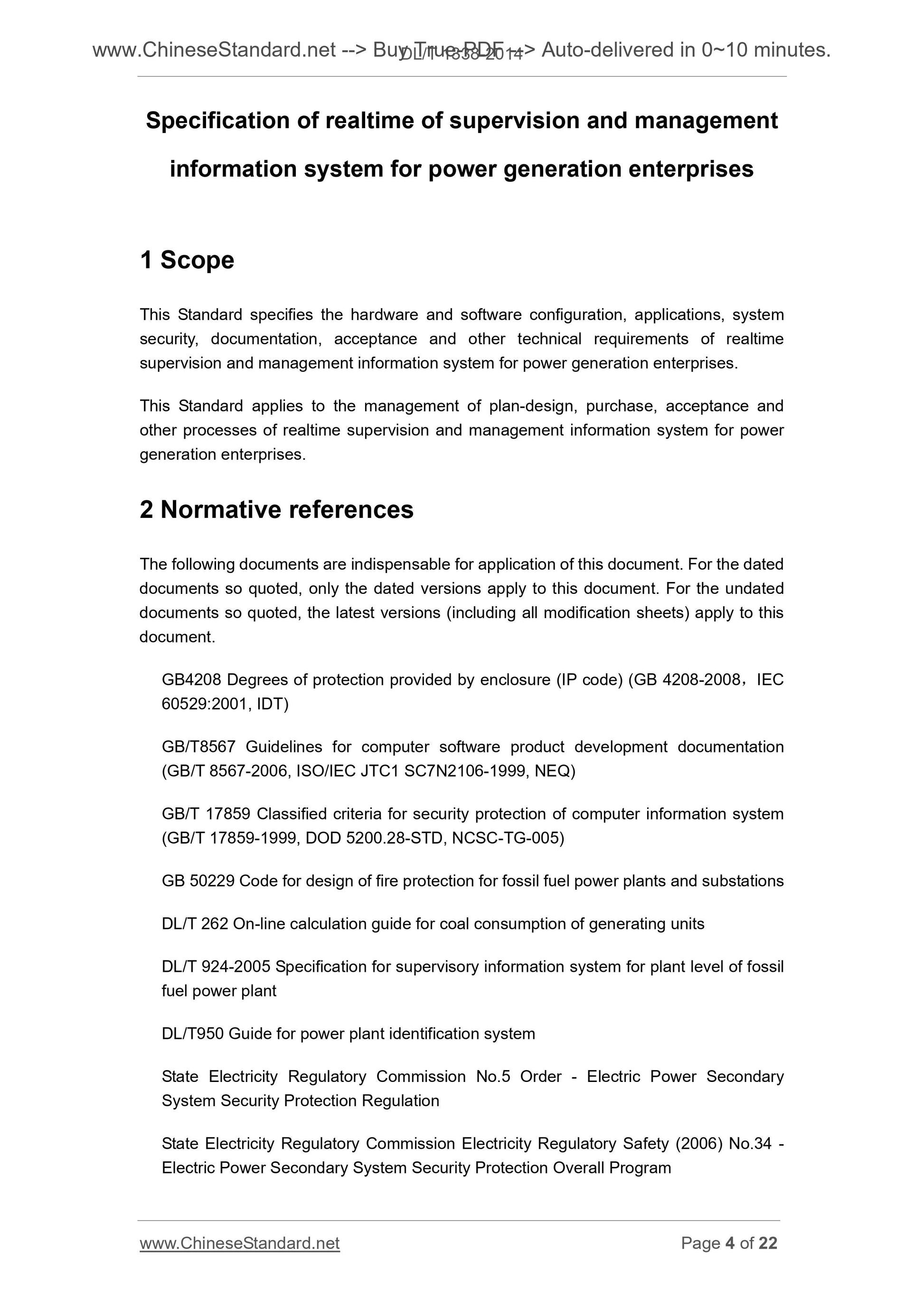

1 Scope
This Standard specifies the hardware and software configuration, applications, system security, documentation, acceptance and other technical requirements of realtime supervision and management information system for power generation enterprises. This Standard applies to the management of plan-design, purchase, acceptance and other processes of realtime supervision and management information system for power generation enterprises.
2 Normative references
The following documents are indispensable for application of this document. For the dated documents so quoted, only the dated versions apply to this document. For the undated documents so quoted, the latest versions (including all modification sheets) apply to this document.
GB4208 Degrees of protection provided by enclosure (IP code) (GB 4208-2008, IEC 60529.2001, IDT)
GB/T8567 Guidelines for computer software product development documentation (GB/T 8567-2006, ISO/IEC JTC1 SC7N2106-1999, NEQ)
GB/T 17859 Classified criteria for security protection of computer information system (GB/T 17859-1999, DOD 5200.28-STD, NCSC-TG-005)
GB 50229 Code for design of fire protection for fossil fuel power plants and substations DL/T 262 On-line calculation guide for coal consumption of generating units DL/T 924-2005 Specification for supervisory information system for plant level of fossil fuel power plant
DL/T950 Guide for power plant identification system
State Electricity Regulatory Commission No.5 Order - Electric Power Secondary System Security Protection Regulation
State Electricity Regulatory Commission Electricity Regulatory Safety (2006) No.34 - Electric Power Secondary System Security Protection Overall Program

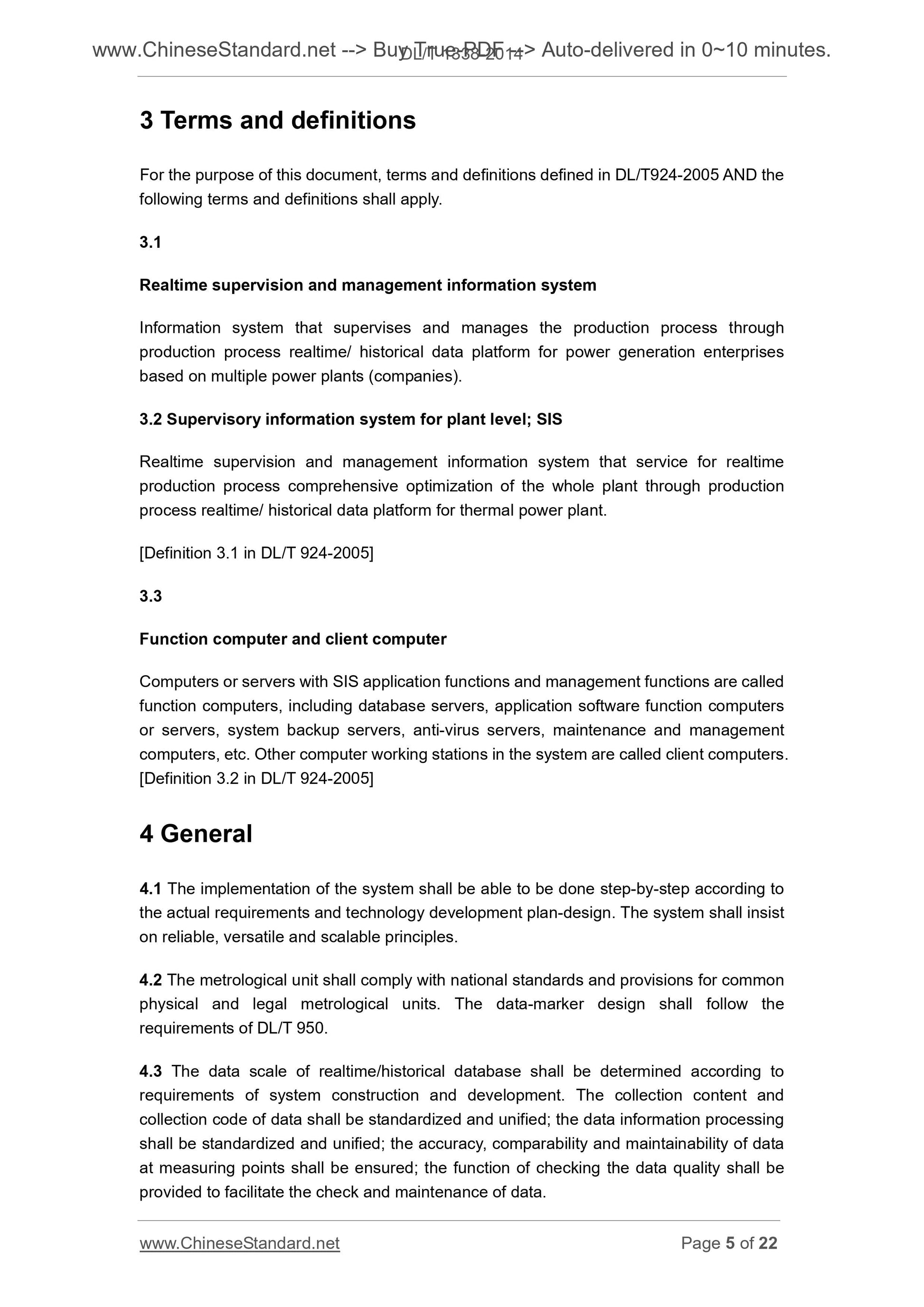

3 Terms and definitions
For the purpose of this document, terms and definitions defined in DL/T924-2005 AND the following terms and definitions shall apply.
3.1
Realtime supervision and management information system
Information system that supervises and manages the production process through production process realtime/ historical data platform for power generation enterprises based on multiple power plants (companies).
3.2 Supervisory information system for plant level; SIS
Realtime supervision and management information system that service for realtime production process comprehensive optimization of the whole plant through production process realtime/ historical data platform for thermal power plant.
[Definition 3.1 in DL/T 924-2005]
3.3
Function computer and client computer
Computers or servers with SIS application functions and management functions are called function computers, including database servers, application software function computers or servers, system backup servers, anti-virus servers, maintenance and management computers, etc. Other computer working stations in the system are called client computers. [Definition 3.2 in DL/T 924-2005]
4 General
4.1 The implementation of the system shall be able to be done step-by-step according to the actual requirements and technology development plan-design. The system shall insist on reliable, versatile and scalable principles.
4.2 The metrological unit shall comply with national standards and provisions for common physical and legal metrological units. The data-marker design shall follow the requirements of DL/T 950.
4.3 The data scale of realtime/historical database shall be determined according to requirements of system construction and development. The collection content and collection code of data shall be standardized and unified; the data information processing shall be standardized and unified; the accuracy, comparability and maintainability of data at measuring points shall be ensured; the function of checking the data quality shall be provided to facilitate the check and maintenance of data.

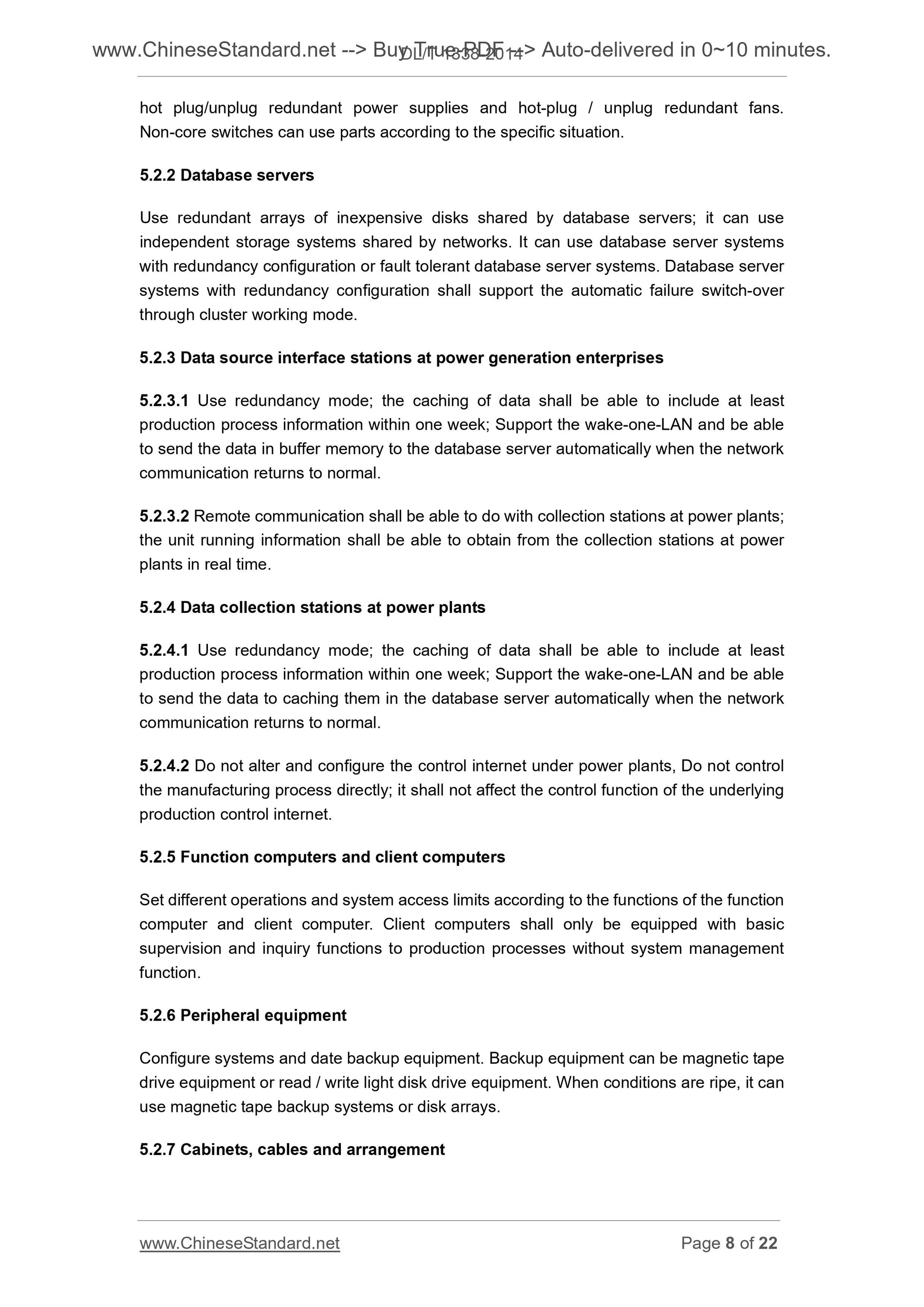

hot plug/unplug redundant power supplies and hot-plug / unplug redundant fans. Non-core switches can use parts according to the specific situation.
5.2.2 Database servers
Use redundant arrays of inexpensive disks shared by database servers; it can use independent storage systems shared by networks. It can use database server systems with redundancy configuration or fault tolerant database server systems. Database server systems with redundancy configuration shall support the automatic failure switch-over through cluster working mode.
5.2.3 Data source interface stations at power generation enterprises
5.2.3.1 Use redundancy mode; the caching of data shall be able to include at least production process information within one week; Support the wake-one-LAN and be able to send the data in buffer memory to the database server automatically when the network communication returns to normal.
5.2.3.2 Remote communication shall be able to do with collection stations at power plants; the unit running information shall be able to obtain from the collection stations at power plants in real time.
5.2.4 Data collection stations at power plants
5.2.4.1 Use redundancy mode; the caching of data shall be able to include at least production process information within one week; Support the wake-one-LAN and be able to send the data to caching them in the database server automatically when the network communication returns to normal.
5.2.4.2 Do not alter and configure the control internet under power plants, Do not control the manufacturing process directly; it shall not affect the control function of the underlying production control internet.
5.2.5 Function computers and client computers
Set different operations and system access limits according to the functions of the function computer and client computer. Client computers shall only be equipped with basic supervision and inquiry functions to production processes without system management function.
5.2.6 Peripheral equipment
Configure systems and date backup equipment. Backup equipment can be magnetic tape drive equipment or read / write light disk drive equipment. When conditions are ripe, it can use magnetic tape backup systems or disk arrays.
5.2.7 Cabinets, cables and arrangement

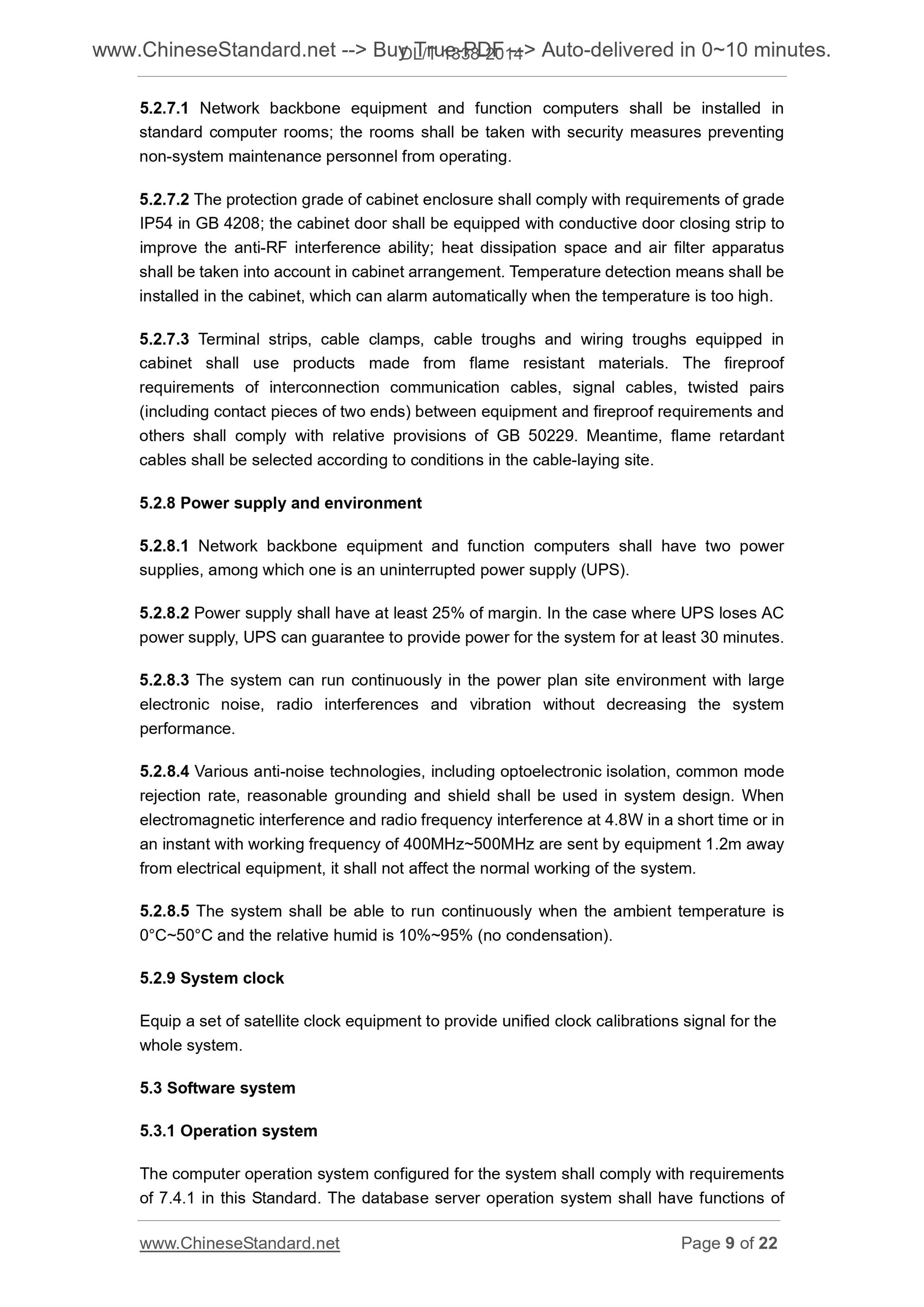

5.2.7.1 Network backbone equipment and function computers shall be installed in standard computer rooms; the rooms shall be taken with security measures preventing non-system maintenance personnel from operating.
5.2.7.2 The protection grade of cabinet enclosure shall comply with requirements of grade IP54 in GB 4208; the cabinet door shall be equipped with conductive door closing strip to improve the anti-RF interference ability; heat dissipation space and air filter apparatus shall be taken into account in cabinet arrangement. Temperature detection means shall be installed in the cabinet, which can alarm automatically when the temperature is too high. 5.2.7.3 Terminal strips, cable clamps, cable troughs and wiring troughs equipped in cabinet shall use products made from flame resistant materials. The fireproof requirements of interconnection communication cables, signal cables, twisted pairs (including contact pieces of two ends) between equipment and fireproof requirements and others shall comply with...
