CNCA C23-01-2019: China Compulsory Certification Implementation Rules - Explosion-proof Electrical Products

This Rules applies to Class I, Class II, and Class III explosion-proof electrical products. The product categories include: explosion-proof motors; explosion-proof electric pumps; explosion-proof power distribution device products; explosion-proof switch, control and protection products; explosion-proof starter products; explosion-proof transformer products; explosion-proof electric actuator and solenoid valve products; explosion-proof plug-in devices; explosion-proof monitoring products; explosion-proof communication and signal devices; explosion-proof air conditioning and ventilation equipment; explosion-proof electric heating products; explosion-proof accessories and Ex components; explosion-proof instrument and meter products; explosion-proof sensors; safety barrier products; explosion-proof instrument box products.

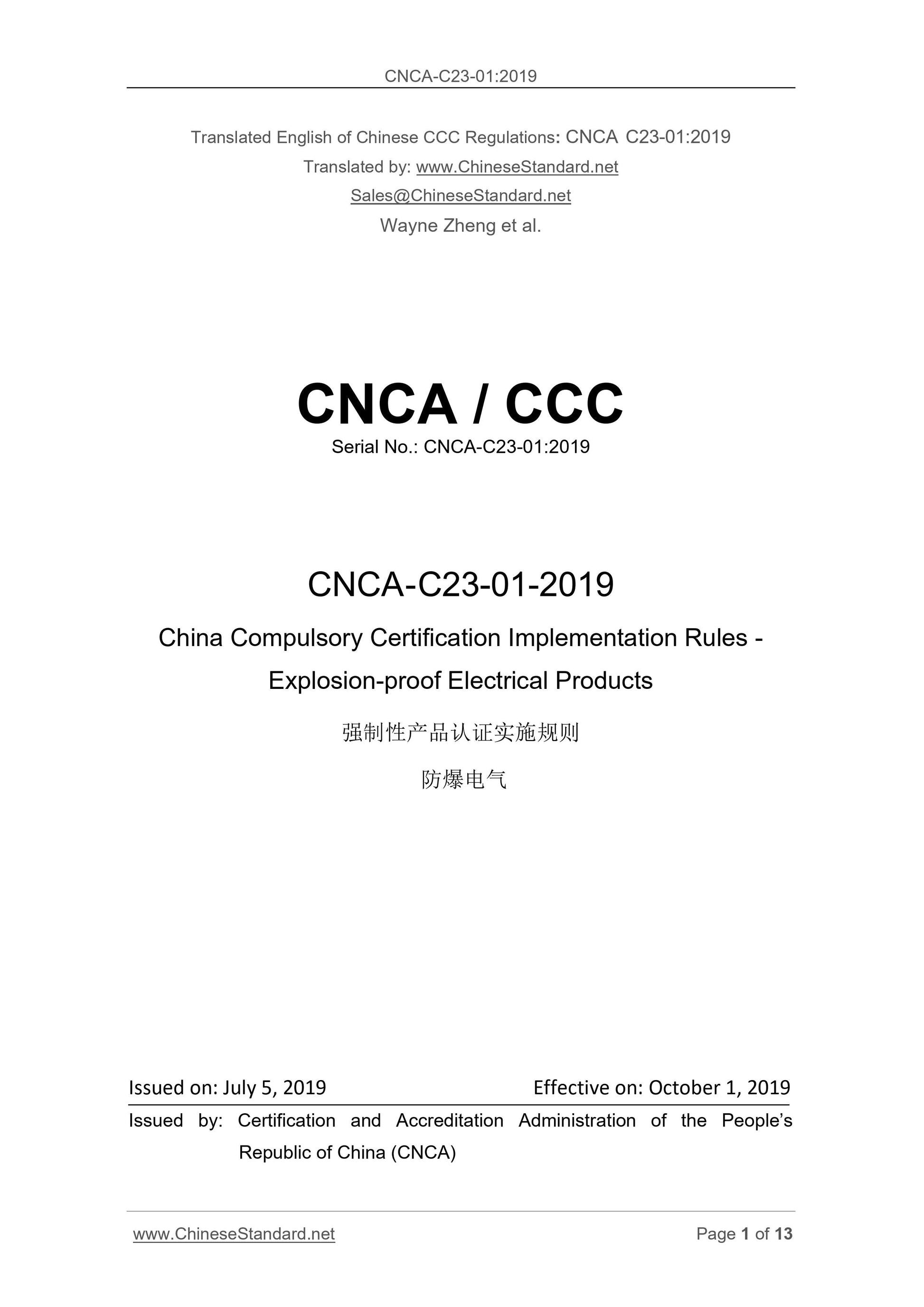

CNCA-C23-01:2019
CNCA / CCC
Serial No.: CNCA-C23-01:2019
CNCA-C23-01-2019
China Compulsory Certification Implementation Rules -
Explosion-proof Electrical Products
Issued??on:??July??5,??2019????????????????????????????????????????????????????????????????????????????????????Effective??on:??October??1,??2019 Issued by: Certification and Accreditation Administration of the PEOPLE Republic of China (CNCA)

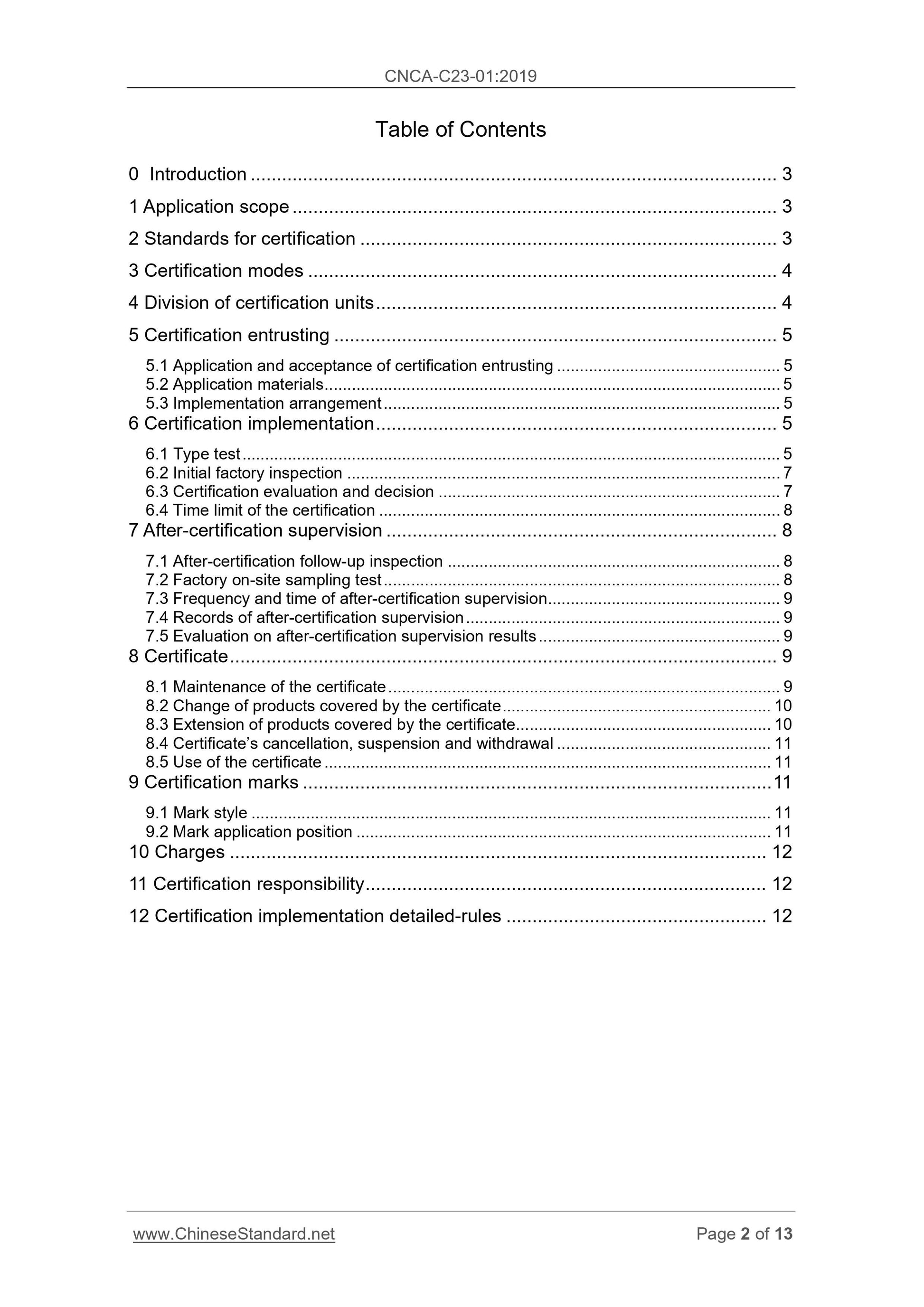

Table of Contents
0 Introduction ... 3
1 Application scope ... 3
2 Standards for certification ... 3
3 Certification modes ... 4
4 Division of certification units ... 4
5 Certification entrusting ... 5
5.1 Application and acceptance of certification entrusting ... 5
5.2 Application materials ... 5
5.3 Implementation arrangement ... 5
6 Certification implementation ... 5
6.1 Type test ... 5
6.2 Initial factory inspection ... 7
6.3 Certification evaluation and decision ... 7
6.4 Time limit of the certification ... 8
7 After-certification supervision ... 8
7.1 After-certification follow-up inspection ... 8
7.2 Factory on-site sampling test ... 8
7.3 Frequency and time of after-certification supervision ... 9
7.4 Records of after-certification supervision ... 9
7.5 Evaluation on after-certification supervision results ... 9
8 Certificate ... 9
8.1 Maintenance of the certificate ... 9
8.2 Change of products covered by the certificate ... 10
8.3 Extension of products covered by the certificate ... 10
8.4 Certificate?€?s cancellation, suspension and withdrawal ... 11
8.5 Use of the certificate ... 11
9 Certification marks ... 11
9.1 Mark style ... 11
9.2 Mark application position ... 11
10 Charges ... 12
11 Certification responsibility ... 12
12 Certification implementation detailed-rules ... 12

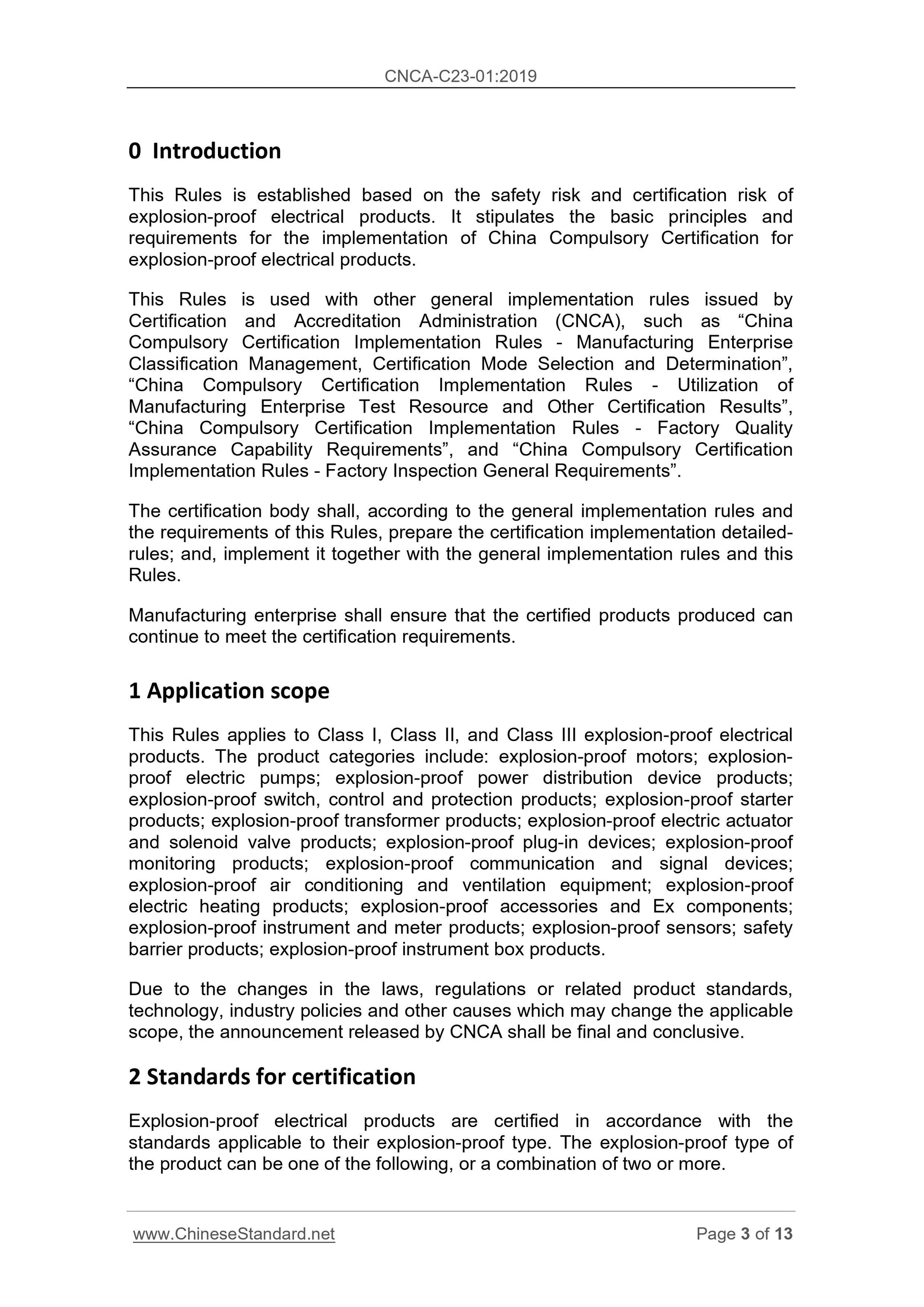

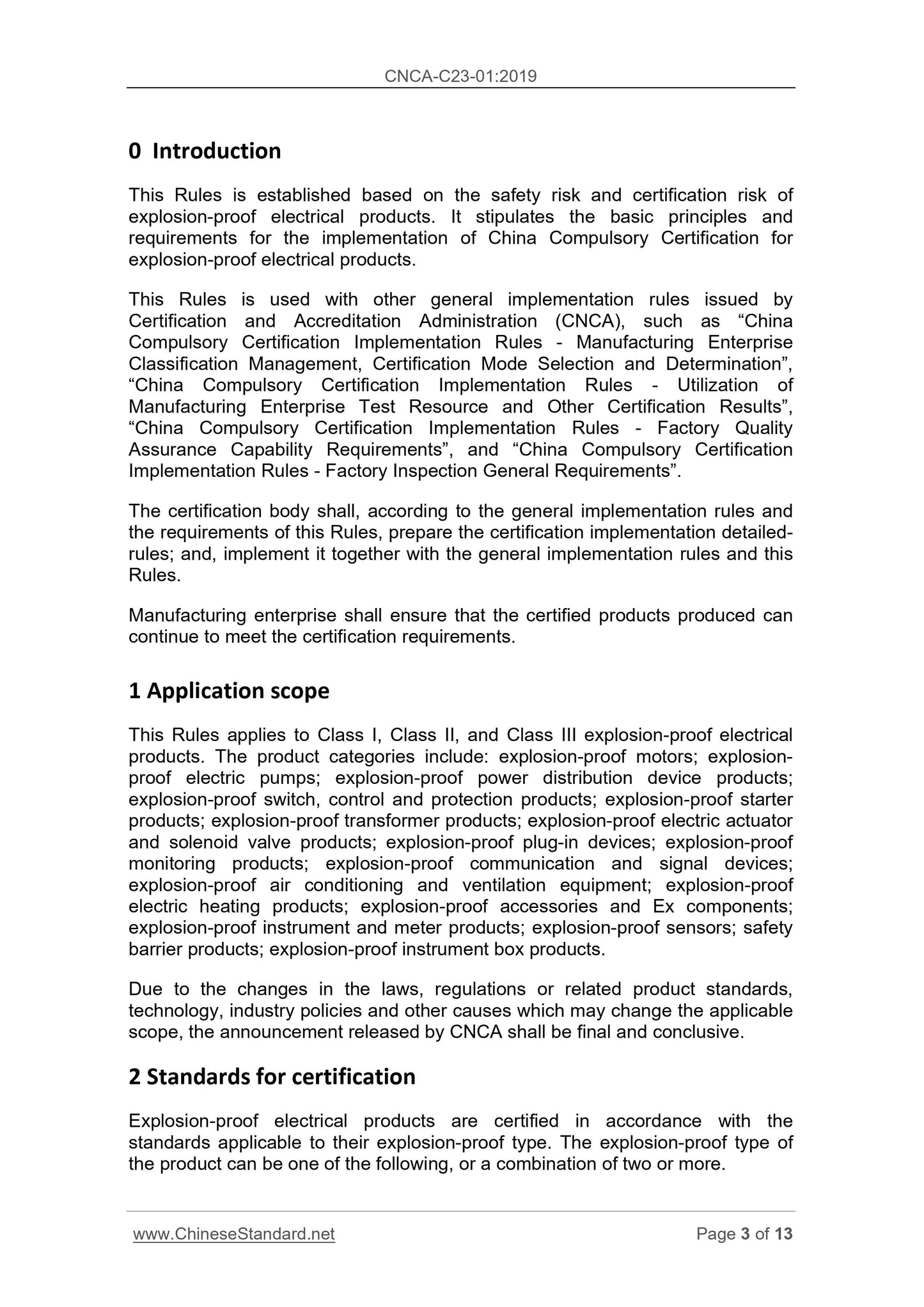

0????Introduction
This Rules is established based on the safety risk and certification risk of explosion-proof electrical products. It stipulates the basic principles and requirements for the implementation of China Compulsory Certification for explosion-proof electrical products.
This Rules is used with other general implementation rules issued by
Certification and Accreditation Administration (CNCA), such as ?€?China
Compulsory Certification Implementation Rules - Manufacturing Enterprise Classification Management, Certification Mode Selection and Determination?€?, ?€?China Compulsory Certification Implementation Rules - Utilization of
Manufacturing Enterprise Test Resource and Other Certification Results?€?, ?€?China Compulsory Certification Implementation Rules - Factory Quality
Assurance Capability Requirements?€?, and ?€?China Compulsory Certification Implementation Rules - Factory Inspection General Requirements?€?.
The certification body shall, according to the general implementation rules and the requirements of this Rules, prepare the certification implementation detailed- rules; and, implement it together with the general implementation rules and this Rules.
Manufacturing enterprise shall ensure that the certified products produced can continue to meet the certification requirements.
1??Application??scope
This Rules applies to Class I, Class II, and Class III explosion-proof electrical products. The product categories include: explosion-proof motors; explosion- proof electric pumps; explosion-proof power distribution device products; explosion-proof switch, control and protection products; explosion-proof starter products; explosion-proof transformer products; explosion-proof electric actuator and solenoid valve products; explosion-proof plug-in devices; explosion-proof monitoring products; explosion-proof communication and signal devices;
explosion-proof air conditioning and ventilation equipment; explosion-proof electric heating products; explosion-proof accessories and Ex components; explosion-proof instrument and meter products; explosion-proof sensors; safety barrier products; explosion-proof instrument box products.
Due to the changes in the laws, regulations or related product standards, technology, industry policies and other causes which may change the applicable scope, the announcement released by CNCA shall be final and conclusive. 2??Standards??for??certification
Explosion-proof electrical products are certified in accordance with the standards applicable to their explosion-proof type. The explosion-proof type of the product can be one of the following, or a combination of two or more. No. Explosion-proof type
Basis standards
General
standards Specific standards
1 Flame-proof type ?€?d?€?
GB3836.1
GB3836.2
2 Increased-safety type ?€?e?€? GB3836.3
3 Intrinsically-safe type ?€?i?€? GB3836.4
4 Pressurized-enclosure type ?€?p?€? GB/T3836.5
5 Liquid-immersion type ?€?o?€? GB/T3836.6
6 Sand-filled type ?€?q?€? GB/T3836.7
7 ?€?n?€? type GB3836.8
8 Encapsulated type ?€?m?€? GB3836.9
9 Intrinsically-safe type ?€?iD?€?
GB12476.1
GB12476.4
10 Enclosure-protection type ?€?tD?€? GB12476.5
11 Encapsulation-protection type ?€?mD?€? GB12476.6
12 Positive-pressure protection type ?€?pD?€? GB12476.7
In principle, the current valid versions of above standards that are issued by the National Standardization Administration shall be executed. When the above standards are revised, it shall be implemented in accordance with the
requirements of the relevant documents issued by the CNCA.
3??Certification??modes
The basic certification mode of implementing the China Compulsory Certification for explosion-proof electrical products is:
Type test + initial factory inspection + after-certification supervision ?€?After-certification supervision?€? refers to one or a combination of two methods: after-certification follow-up inspection and factory on-site sampling test. The certification body shall follow the requirements of ?€?China Compulsory Certification Implementation Rules - Manufacturing Enterprise Classification Management, Certification Mode Selection and Determination?€? to carry out the classification management to manufacturing enterprise; consider the results of classification management; determine the method and frequency of after- certification supervision; may reduce or exempt the initial factory inspection of the extended product.
4??Division??of??certification??units
In principle, according to the equipment classification, explosion-proof type, product type, explosion-proof structure, and safety parameters of explosion- proof electrical products, the application unit is divided.
For the same product that is of same manufacturer but of different
manufacturing enterprises, or for the same product that is of different manufacturers and of same manufacturing enterprise, it is possible to only conduct the type test on the samples of 1 unit. The products of other
manufacturing enterprises / manufacturers shall provide documents for
conformity inspection.
In accordance with the relevant documents issued by the CNCA, the certification body shall specify the specific requirements for the division of units in the certification implementation detailed-rules.
5??Certification??entrusting
5.1 Application and acceptance of certification entrusting
The certification client puts forward the certification entrusting to the certification body. Certification body shall process the certification entrusting; and feedback the acceptance or rejection according to the time limit in the certification implementation detailed-rules. [TRANSLATOR NOTE is not part of this Rules. Translator note: ?€?certification client?€?, the counterpart of certification body, refers to the Applicant / Manufacturer or its proxy (Power of Attorney). For ease of reading, hereinafter abbreviated as ?€?CLIENT?€?]
When it does not comply with national laws and regulations and relevant industry policies, the certification body must not accept the certification entrusting.
5.2 Application materials
The certification body shall, in accordance with the laws and regulations, standards, and the needs of certification implementation, specify the checklist of application materials in the certification implementation detailed-rules. They shall include at least the certification application or contract, registration certificates of CLIENT / manufacturer / manufacturing enterprise, etc.
CLIENT shall provide the required materials according to the requirements of application material checklist in certification implementation detailed-rules. Certification body is responsible for auditing, managing, preserving and keeping confidential of the relevant materials, and shall inform the CLIENT of the material auditing results.
5.3 Implementation arrangement
The certification body shall agree with CLIENT on the relevant responsibility and arrangement of both parties in each link of certification implementation. And according to the situation of manufacturing enterprise and classification management AND the requirements of this Rules and certification
implementation detailed-rules, DETERMINE the specific program of certification implementation and INFORM CLIENT.
6??Certification??implementation
6.1 Type test
6.1.1 Type test plan
Certification body shall formulate the type test plan, after auditing the materials. And INFORM the CLIENT.
The type test plan includes the requirements and quantity of samples for the type test, test standard items, laboratory information, etc.
If the CLIENT submits a type test report that meets the requirements when submitting the certification entrusting, the certification body shall accept it. 6.1.2 Sample requirements of type test
In general, for the sample of type test, representative samples are selected and sent by the CLIENT according to the requirements of the certification body for testing. When necessary, certification body may adopt on-site sampling method to obtain the samples. In the implementation detailed-rules, the certification body shall specify the relevant requirements for sample sending / sampling of certified products.
CLIENT shall ensure that the samples provided by it are consistent with the products actually produced. Certification body and / or laboratory shall inspect the authenticity of the samples provided by the CLIENT. If laboratory has any doubt on the authenticity of the samples, it shall explain the situation to certification body and handle accordingly.
According to relevant documents issued by CNCA, certification body shall, in the certification implementation detailed-rules, define the ?€?product critical components and materials checklist?€? AND relevant requirements.
For critical components and materials within the scope of China Compulsory Certification purchased in China, the manufacturing enterprise shall provide a China Compulsory Certification certificate. For critical components and materials not within the scope of China Compulsory Certification, the certification body shall, in the certification implementation detailed-rules, specify the conditions and specific requirements for voluntary certification certificate or type test report that can be accepted or recognized.
6.1.3 Test items of type test
In principle, it shall include all applicable items specified in product certification standards.
When there are adjustments to some test items in the standards, it shall be executed based on the documents issued by CNCA.
6.1.4 Implementation of type test
In principle, the type test shall be completed in the laboratory designated by CNCA. Laboratory shall conduct the type test to the samples; integrally record the whole test and archive for retaining, so that the record of test process and results is traceable.
On the premise of not affecting the validity of certification results, certification body may, according to "China Compulsory Certification Implementation Rules - Utilization of Manufacturing Enterprise Test Resource and Other Certification Results?€?, formulate the corresponding management procedure. The designated laboratories delegate the testing personnel, according to the standard?€?s requirements, to utilize the manufacturing enterprise testing resource to conduct test or witness test; and the designated laboratories issue the test reports. The laboratory shall ensure the authenticity, accuracy, and traceability of the test conclusion. Certification body shall clearly define the specific requirements and procedure in certification implementation detailed-rules.
6.1.5 Type test report
Certification body shall specify a unified form of the type test report. After the type test is completed, the laboratory shall, in time, provide the type test reports to certification body and CLIENT. The test report shall contain a description of all products and certification related information in the application unit. CLIENT shall ensure that it is able to provide the complete and valid type test report to certification body and laws enforcement authorities during the after-certification supervision.
6.2 Initial factory inspection
The initial factory inspection refers to on-site inspection and evaluation conducted by the certification body to confirm whether the quality assurance capability and product conformity control capability of the manufacturing enterprise conform to the certification requirements. The initial factory inspection shall be performed after the product type test is qualified. When necessary, it can also be carried out at the same time as the product type test.
According to ?€?China Compulsory Certification Implementation Rules - Factory Quality Assurance Capability Requirements?€? and ?€?China Compulsory
Certification Implementation Rules - Factory Inspection General Requirements?€?, based on the characteristics of the product, the certification body shall formulate specific content such as initial factory inspection requirements; make it clear in the certification implementation detailed-rules.
The initial factory inspection shall cover all processing sites of the certified products. When necessary, the certification body may conduct extended
inspections outside the manufacturing enterprise.
6.3 Certification evaluation and decision
The certification body conducts a comprehensive evaluation of the type test and initial factory inspection conclusions, as well as relevant materials / information, and makes a certification decision. For those that meet the certification requirements, a certificate will be issued. If there is an unqualified conclusion, the certification shall be terminated; the certification body shall not issue the certificate.

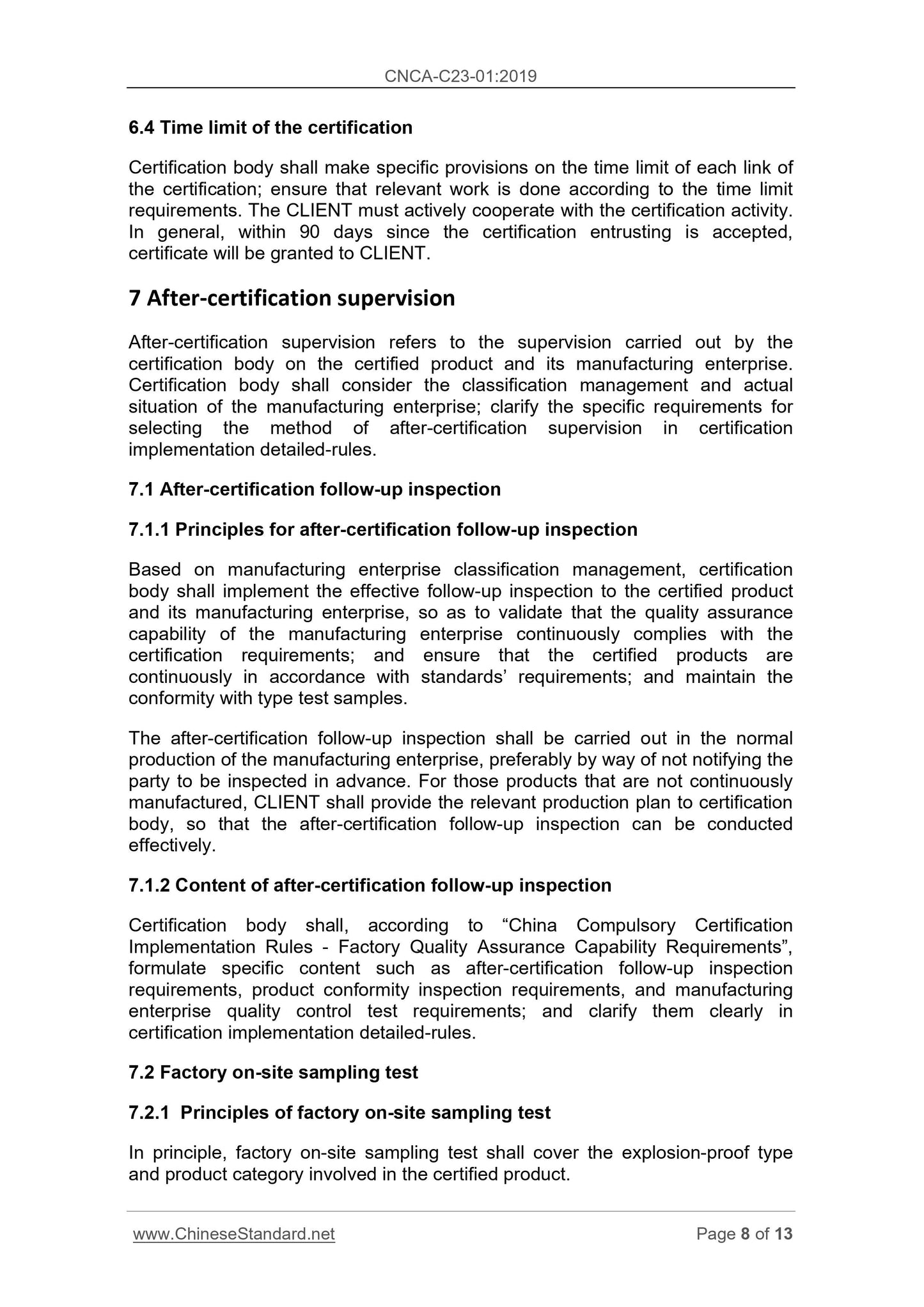

6.4 Time limit of the certification
Certification body shall make specific provisions on the time limit of each link of the certification; ensure that relevant work is done according to the time limit requirements. The CLIENT must actively cooperate with the certification activity. In general, within 90 days since the certification entrusting is accepted, certificate will be granted to CLIENT.
7??After?€?certification??supervision
After-certification supervision refers to the supervision carried out by the certification body on the certified product and its manufacturing enterprise. Certification body shall consider the classification management and actual situation of the manufacturing enterprise; clarify the specific requirements for selecting the method of after-certification supervision in certification implementation detailed-rules.
7.1 After-certification follow-up inspection
7.1.1 Principles for after-certification follow-up inspection
Based on manufacturing enterprise classification management, certification body shall implement the effective follow-up inspection to the certified product and its manufacturing enterprise, so as to validate that the quality assurance capability of the manufacturing enterprise continuously complies with the certification requirements; and ensure that the certified products are
continuously in accordance with standards?€? requirements; and maintain the conformity with type test samples.
The after-certification follow-up inspection shall be carried out in the normal production of the manufacturing enterprise, preferably by way of not notifying the party to be inspected in advance. For those products that are not continuously manufactured, CLIENT shall provide the relevant production plan to certification body, so that the after-certification follow-up inspection can be conducted effectively.
7.1.2 Content of after-certification follow-up inspection
Certification body shall, according to ?€?China Compulsory Certification
Implementation Rules - Factory Quality Assurance Capability Requirements?€?, formulate specific content such as after-certification follow-up inspection requirements, product conformity inspection requirements, and manufacturing enterprise quality control test requirements; and clarify them clearly in certification implementation detailed-rules.
7.2 Factory on-site sampling test
7.2.1 Principles of factory on-site sampling test
In principle, factory on-site sampling test shall cover the explosion-proof type and product category involved in the certified product.
If it adopts ?€?factory on-site sampling test?€? to implement the after-certification supervision, then CLIENT, manufacturer and manufacturing enterprise shall cooperate.
7.2.2 Contents of factory on-site sampling test
Certification body shall specify the specific contents and requirements of factory on-site sampling test in the certification implementation detailed-rules. The manufacturing enterprise shall send the samples to be tested to the designated laboratory.
Certification body may also, according to "China Compulsory Certification Implementation Rules - Utilization of Manufacturing Enterprise Test Resource and Other Certification Results?€?, formulate the corresponding management procedure; utilize the manufacturing enterprise testing resource to conduct sampling test (or witness test); and the designated laboratories issue the test reports.
Certification body shall clearly define the specific requirements and procedure in certification implementation detailed-rules.
7.3 Frequency and time of after-certification supervision
Based on manufacturing enterprise classification management, certification body shall adopt different frequency of after-certification supervision to different types of manufacturing enterprises. The supervision time shall be made in a reasonable way. Detailed principles shall be specified in the certification implementation detailed-rules.
7.4 Records of after-certification supervision
Certification body shall record and archive the whole process of after- certification supervision, so that the certification process and results are traceable.
7.5 Evaluation on after-certification supervision results
Certification body shall comprehensively evaluate the conclusion of after- certification supervision and relevant materials / information. If the evaluation is PASS, it may continue to maintain the certificate and use of certification mark. If the evaluation is Not-PASS, certification body shall suspend or revoke the certificate according to the corresponding situations; and announce it publicly. 8??Certificate
8.1 Maintenance of the certificate
This Rules covers the 5 year validity period of product certificate. Within the validity period, the validity of the certificate is maintained by depending on the ?€?after-certification supervision?€? of the certification body.

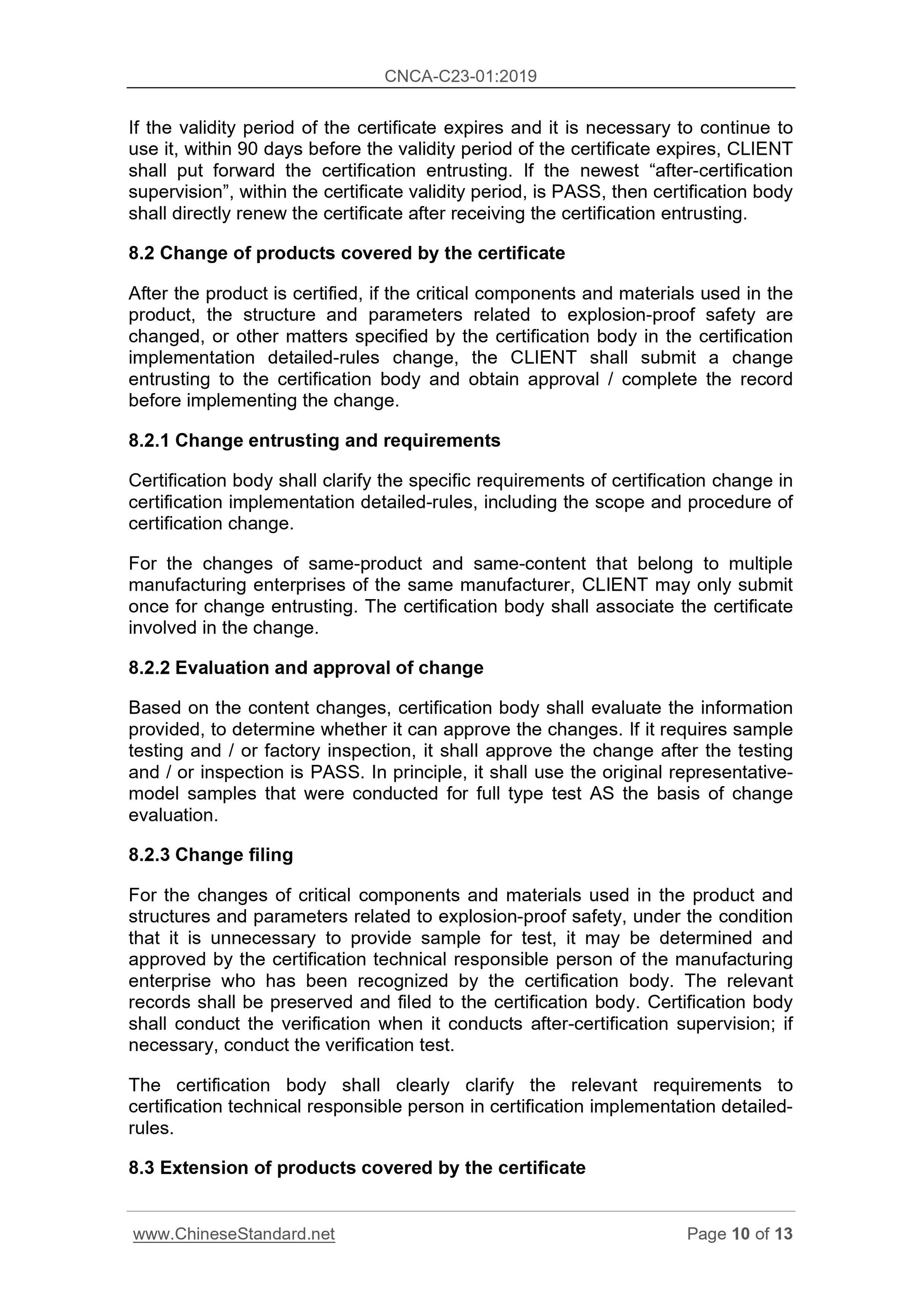

If the validity period of the certificate expires and it is necessary to continue to use it, within 90 days before the vali...
