CNCA C22-03-2014: China Compulsory Certification Implementation Rules - Vehicle occupant restraint system for children

This Rules is established based on the safety risk and certification risk of restraining devices for child occupations of power-driven vehicles. It stipulates the basic principles and requirements for the implementation of China Compulsory Certification for restraining devices for child occupants of power-driven vehicles.

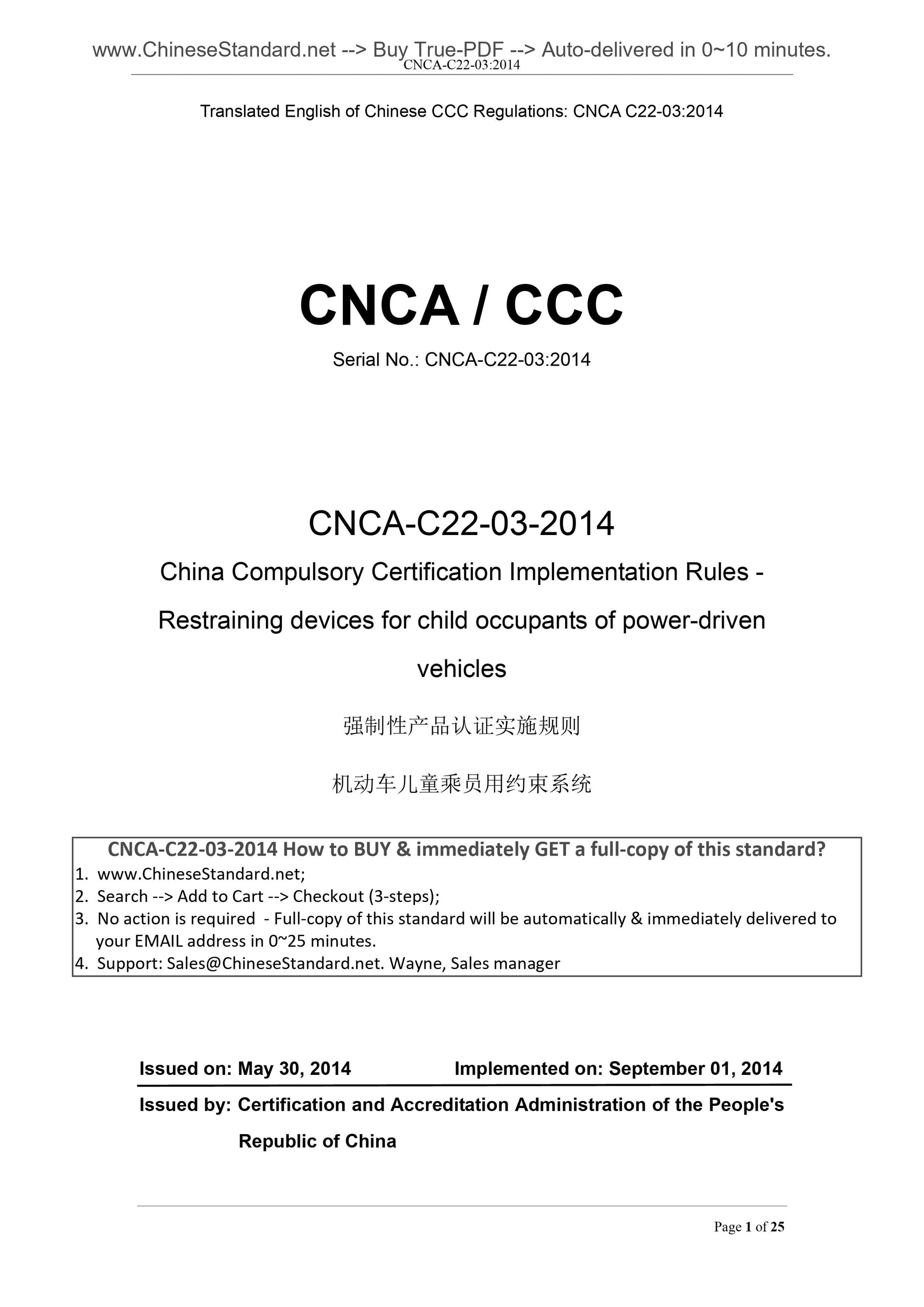

CNCA-C22-03.2014
CNCA / CCC
Serial No.. CNCA-C22-03.2014
CNCA-C22-03-2014
China Compulsory Certification Implementation Rules -
Restraining devices for child occupants of power-driven
vehicles
ISSUED ON. MAY 30, 2014
IMPLEMENTED ON. SEPTEMBER 01, 2014
Issued by. Certification and Accreditation Administration of the People's Republic of China

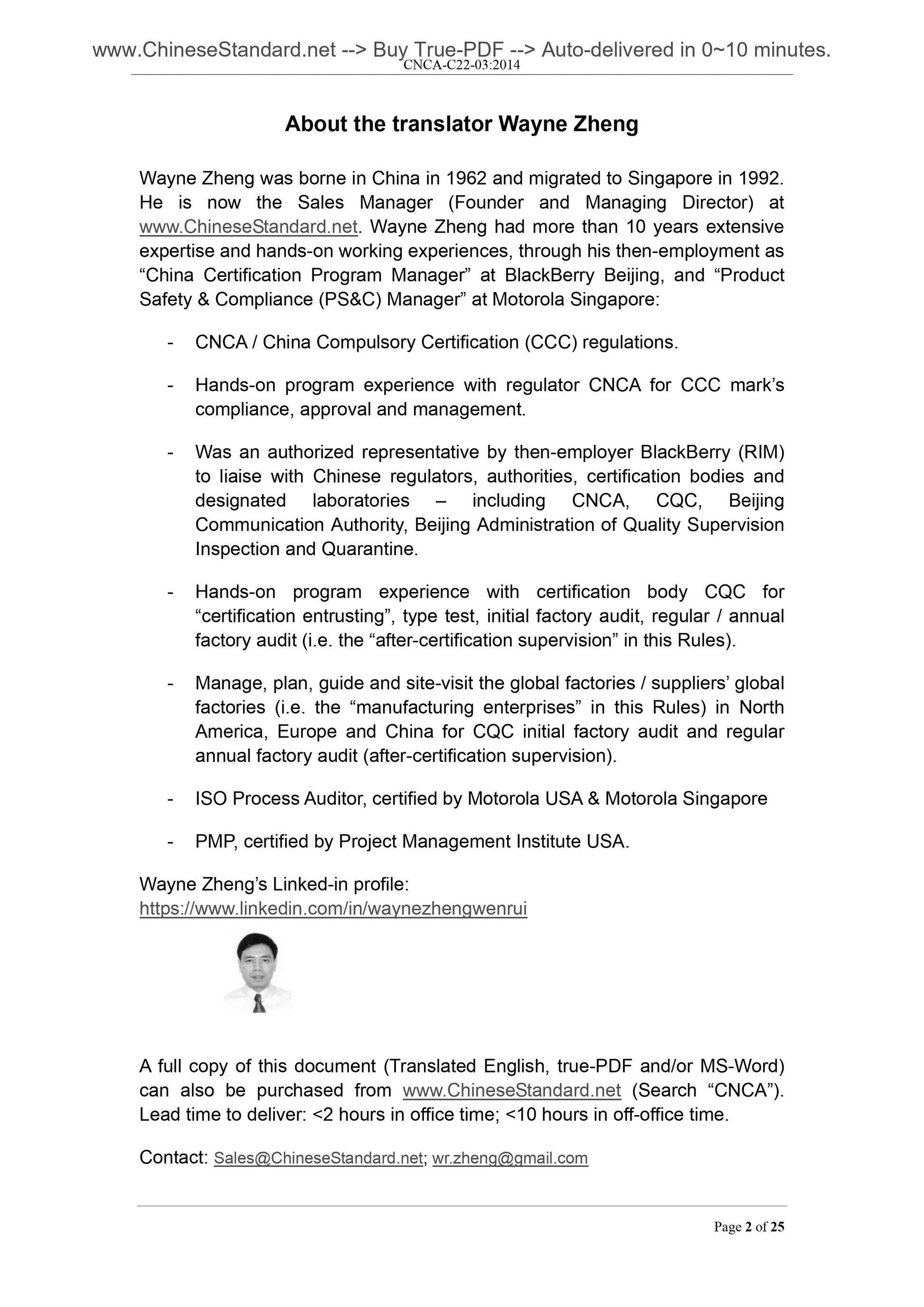

He is now the Sales Manager (Founder and Managing Director) at
expertise and hands-on working experiences, through his then-employment as ?€?China Certification Program Manager?€? at BlackBerry Beijing, and ?€?Product Safety and Compliance (PS and C) Manager?€? at Motorola Singapore.
- CNCA / China Compulsory Certification (CCC) regulations.
- Hands-on program experience with regulator CNCA for CCC mark?€?s
compliance, approval and management.
- Was an authorized representative by then-employer BlackBerry (RIM)
to liaise with Chinese regulators, authorities, certification bodies and designated laboratories ?€? including CNCA, CQC, Beijing
Communication Authority, Beijing Administration of Quality Supervision
Inspection and Quarantine.
- Hands-on program experience with certification body CQC for
?€?certification entrusting?€?, type test, initial factory audit, regular / annual factory audit (i.e. the ?€?after-certification supervision?€? in this Rules). - Manage, plan, guide and site-visit the global factories / suppliers?€? global factories (i.e. the ?€?manufacturing enterprises?€? in this Rules) in North America, Europe and China for CQC initial factory audit and regular
annual factory audit (after-certification supervision).
- ISO Process Auditor, certified by Motorola USA and Motorola Singapore
- PMP, certified by Project Management Institute USA.

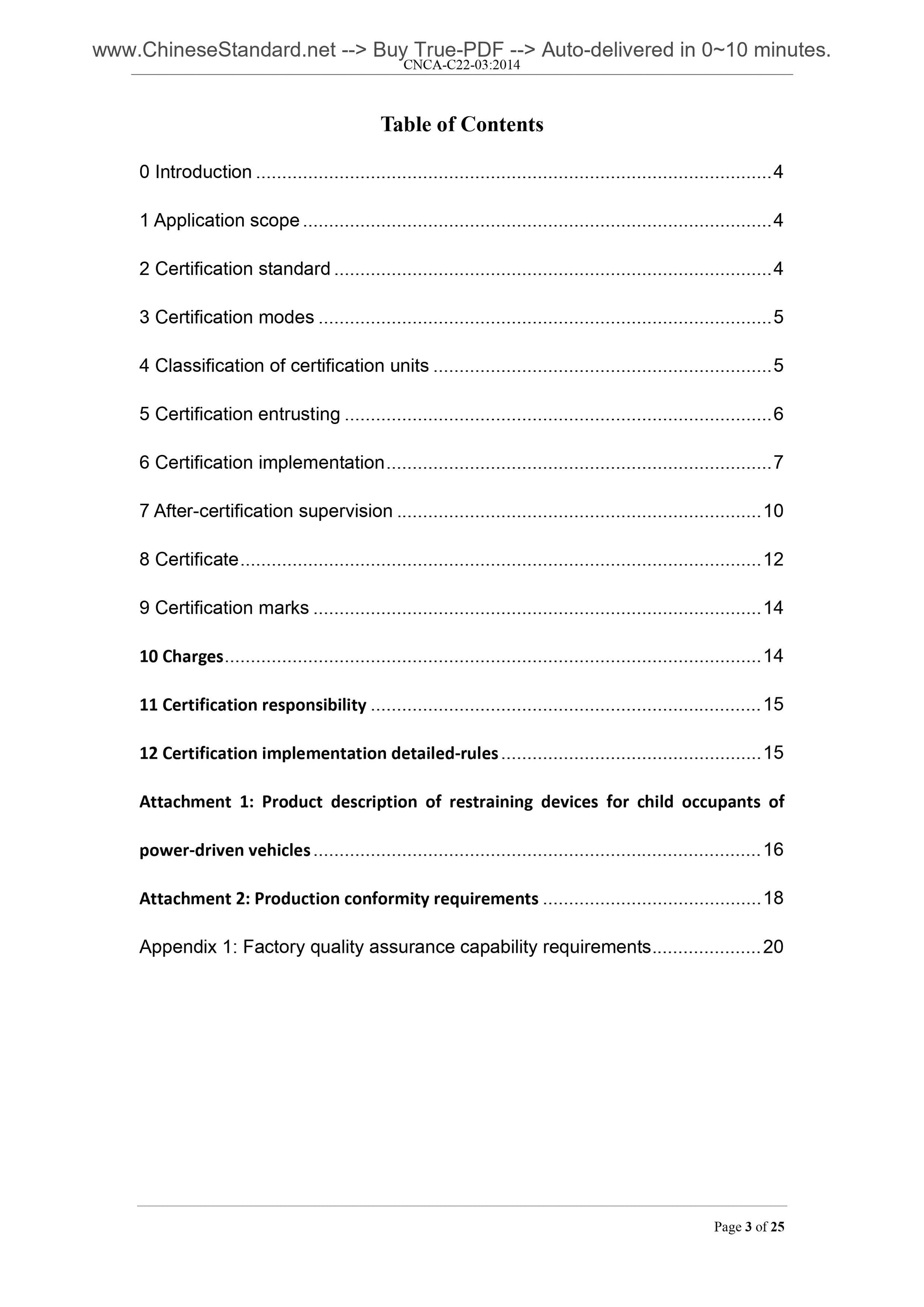

Lead time to deliver. < 2 hours in office time; < 10 hours in off-office time. Table of Contents
0 Introduction ... 4
1 Application scope ... 4
2 Certification standard ... 4
3 Certification modes ... 5
4 Classification of certification units ... 5
5 Certification entrusting ... 6
6 Certification implementation ... 7
7 After-certification supervision ... 10
8 Certificate ... 12
9 Certification marks ... 14
10??Charges ... 14
11??Certification??responsibility ... 15
12??Certification??implementation??detailed?€?rules ... 15
Attachment 1. Product description of restraining devices for child occupants of power?€?driven??vehicles ... 16
Attachment??2.??Production??conformity??requirements ... 18
Appendix 1. Factory quality assurance capability requirements ... 20

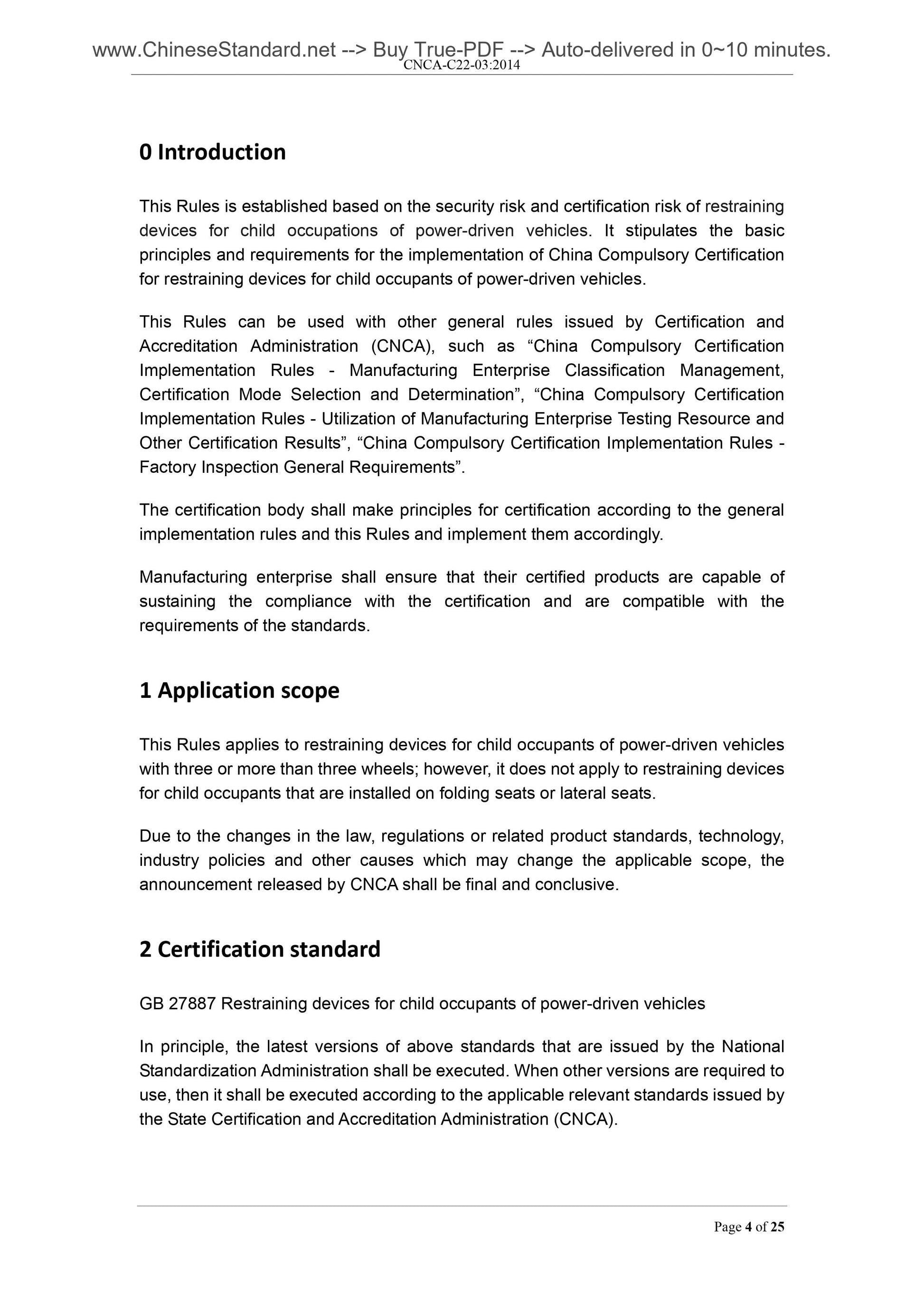

0??Introduction
This Rules is established based on the security risk and certification risk of restraining devices for child occupations of power-driven vehicles. It stipulates the basic principles and requirements for the implementation of China Compulsory Certification for restraining devices for child occupants of power-driven vehicles.
This Rules can be used with other general rules issued by Certification and Accreditation Administration (CNCA), such as ?€?China Compulsory Certification Implementation Rules - Manufacturing Enterprise Classification Management, Certification Mode Selection and Determination?€?, ?€?China Compulsory Certification Implementation Rules - Utilization of Manufacturing Enterprise Testing Resource and Other Certification Results?€?, ?€?China Compulsory Certification Implementation Rules - Factory Inspection General Requirements?€?.
The certification body shall make principles for certification according to the general implementation rules and this Rules and implement them accordingly.
Manufacturing enterprise shall ensure that their certified products are capable of sustaining the compliance with the certification and are compatible with the requirements of the standards.
1??Application??scope
This Rules applies to restraining devices for child occupants of power-driven vehicles with three or more than three wheels; however, it does not apply to restraining devices for child occupants that are installed on folding seats or lateral seats. Due to the changes in the law, regulations or related product standards, technology, industry policies and other causes which may change the applicable scope, the announcement released by CNCA shall be final and conclusive.
2??Certification??standard
GB 27887 Restraining devices for child occupants of power-driven vehicles In principle, the latest versions of above standards that are issued by the National Standardization Administration shall be executed. When other versions are required to use, then it shall be executed according to the applicable relevant standards issued by the State Certification and Accreditation Administration (CNCA).

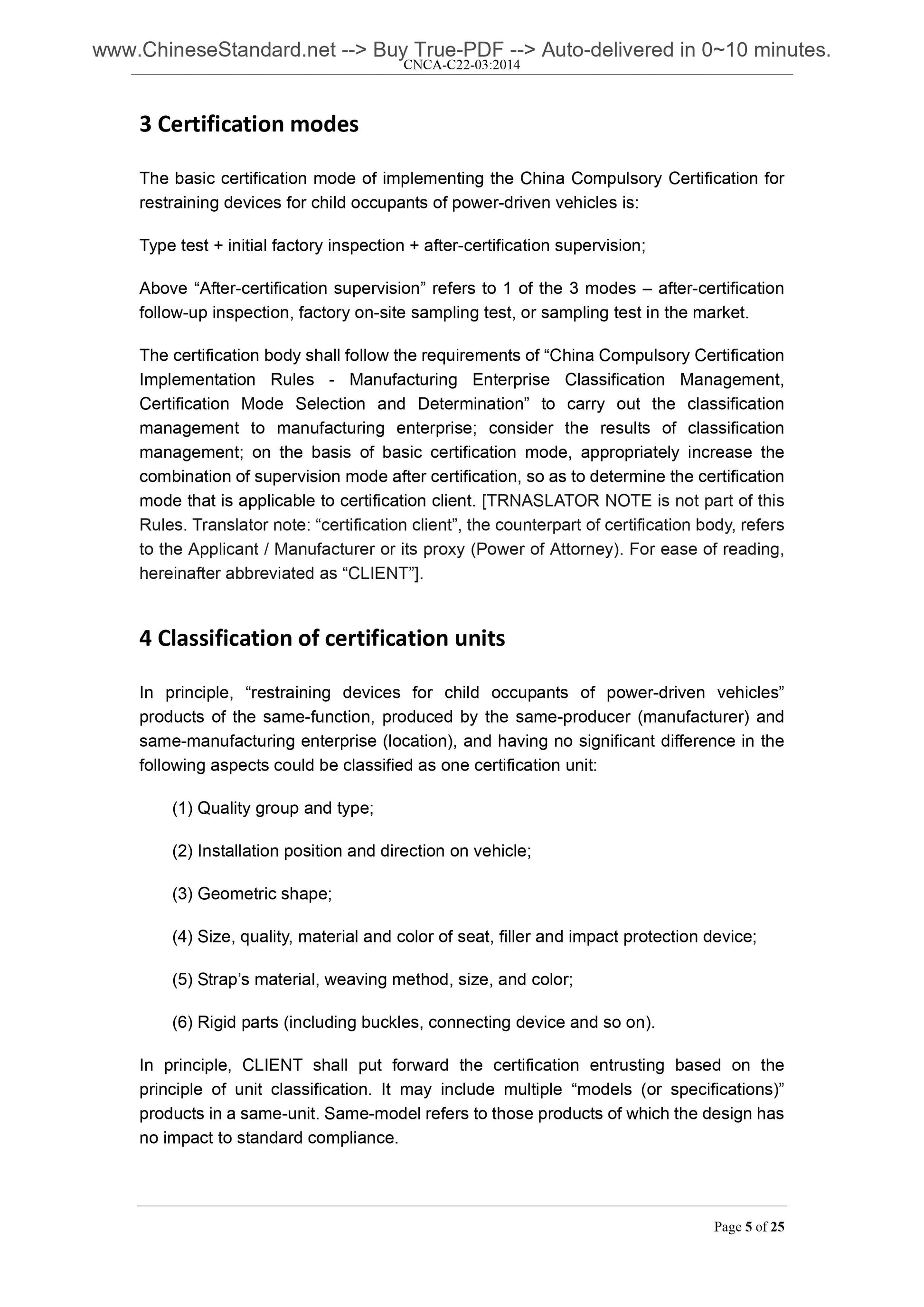

3??Certification??modes
The basic certification mode of implementing the China Compulsory Certification for restraining devices for child occupants of power-driven vehicles is.
Type test + initial factory inspection + after-certification supervision; Above ?€?After-certification supervision?€? refers to 1 of the 3 modes ?€? after-certification follow-up inspection, factory on-site sampling test, or sampling test in the market. The certification body shall follow the requirements of ?€?China Compulsory Certification Implementation Rules - Manufacturing Enterprise Classification Management, Certification Mode Selection and Determination?€? to carry out the classification management to manufacturing enterprise; consider the results of classification management; on the basis of basic certification mode, appropriately increase the combination of supervision mode after certification, so as to determine the certification mode that is applicable to certification client. [TRNASLATOR NOTE is not part of this Rules. Translator note. ?€?certification client?€?, the counterpart of certification body, refers to the Applicant / Manufacturer or its proxy (Power of Attorney). For ease of reading, hereinafter abbreviated as ?€?CLIENT?€?].
4??Classification??of??certification??units
In principle, ?€?restraining devices for child occupants of power-driven vehicles?€? products of the same-function, produced by the same-producer (manufacturer) and same-manufacturing enterprise (location), and having no significant difference in the following aspects could be classified as one certification unit.
(1) Quality group and type;
(2) Installation position and direction on vehicle;
(3) Geometric shape;
(4) Size, quality, material and color of seat, filler and impact protection device; (5) Strap?€?s material, weaving method, size, and color;
(6) Rigid parts (including buckles, connecting device and so on).
In principle, CLIENT shall put forward the certification entrusting based on the principle of unit classification. It may include multiple ?€?models (or specifications)?€? products in a same-unit. Same-model refers to those products of which the design has no impact to standard compliance.

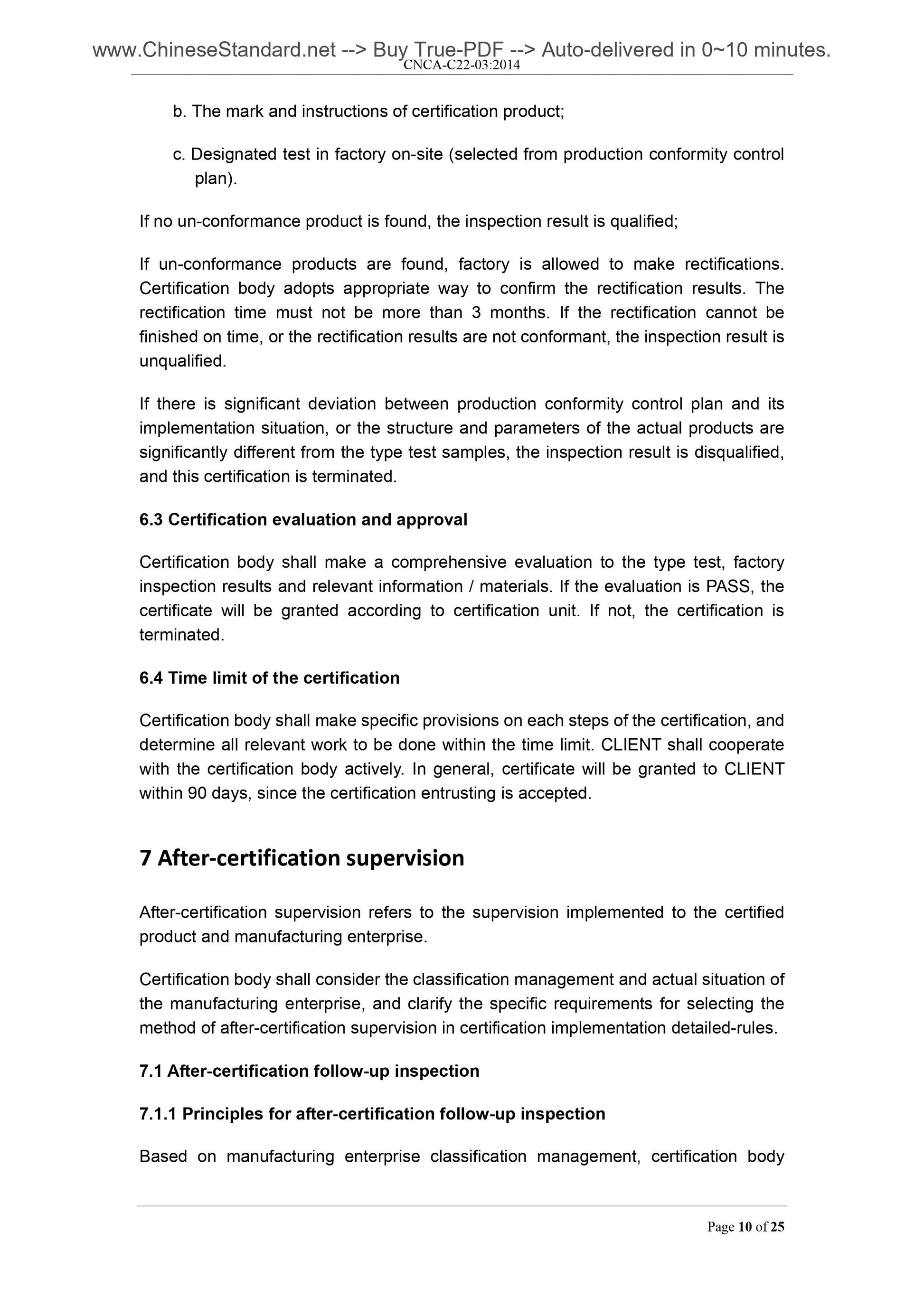

b. The mark and instructions of certification product;
c. Designated test in factory on-site (selected from production conformity control plan).
If no un-conformance product is found, the inspection result is qualified; If un-conformance products are found, factory is allowed to make rectifications. Certification body adopts appropriate way to confirm the rectification results. The rectification time must not be more than 3 months. If the rectification cannot be finished on time, or the rectification results are not conformant, the inspection result is unqualified.
If there is significant deviation between production conformity control plan and its implementation situation, or the structure and parameters of the actual products are significantly different from the type test samples, the inspection result is disqualified, and this certification is terminated.
6.3 Certification evaluation and approval
Certification body shall make a comprehensive evaluation to the type test, factory inspection results and relevant information / materials. If the evaluation is PASS, the certificate will be granted according to certification unit. If not, the certification is terminated.
6.4 Time limit of the certification
Certification body shall make specific provisions on each steps of the certification, and determine all relevant work to be done within the time limit. CLIENT shall cooperate with the certification body actively. In general, certifi...
