CNCA C11-09-2014: China Compulsory Certification Implementation Rules - vehicle interior parts

This Rules is established based on the safety risk and certification risk of automotive interiors. It stipulates the basic principles and requirements for the implementation of China Compulsory Certification for automotive interiors.

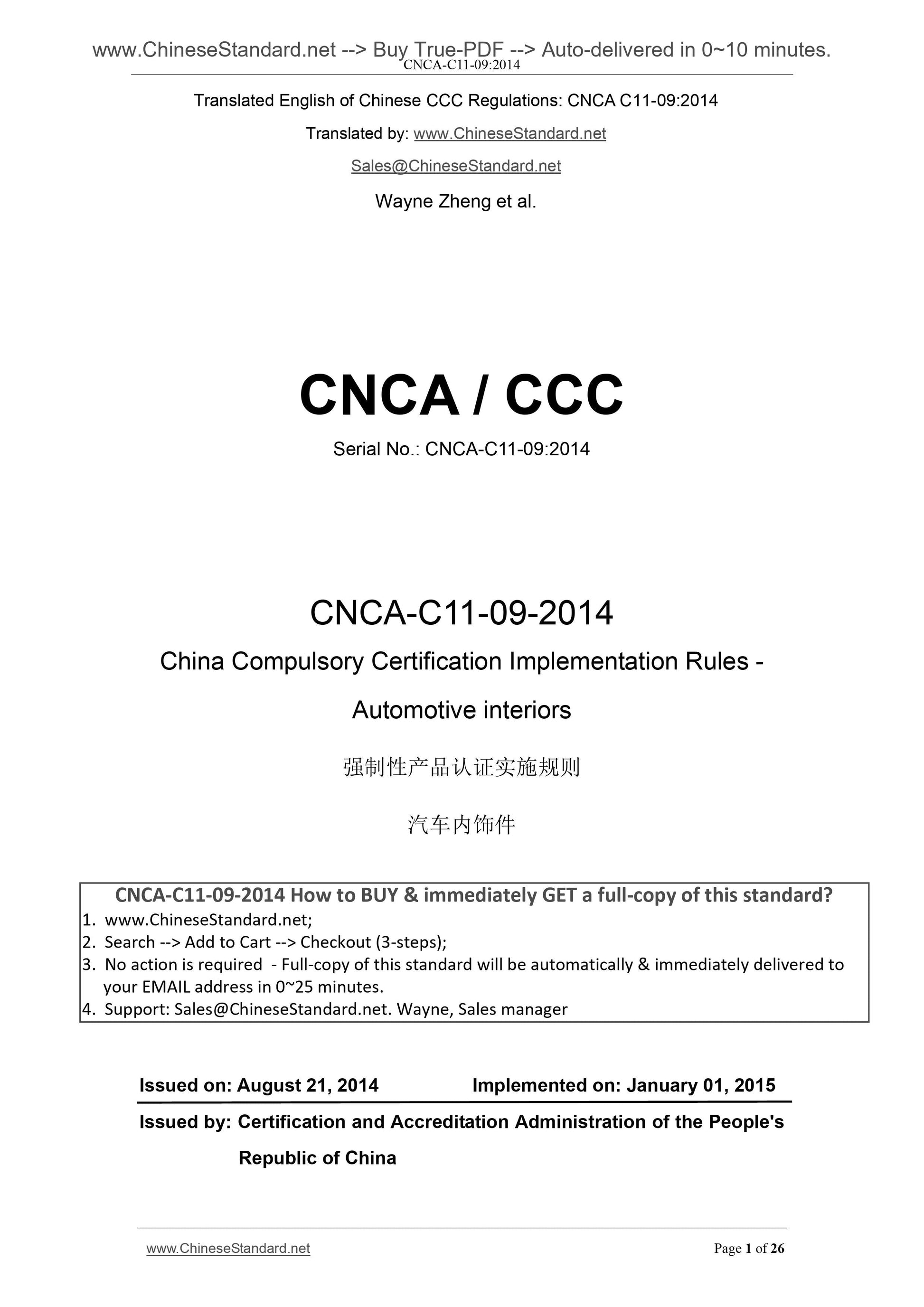

CNCA-C11-09.2014
CNCA / CCC
Serial No.. CNCA-C11-09.2014
CNCA-C11-09-2014
China Compulsory Certification Implementation Rules -
Automotive interiors
ISSUED ON. AUGUST 21, 2014
IMPLEMENTED ON. JANUARY 01, 2015
Issued by. Certification and Accreditation Administration of the People's Republic of China

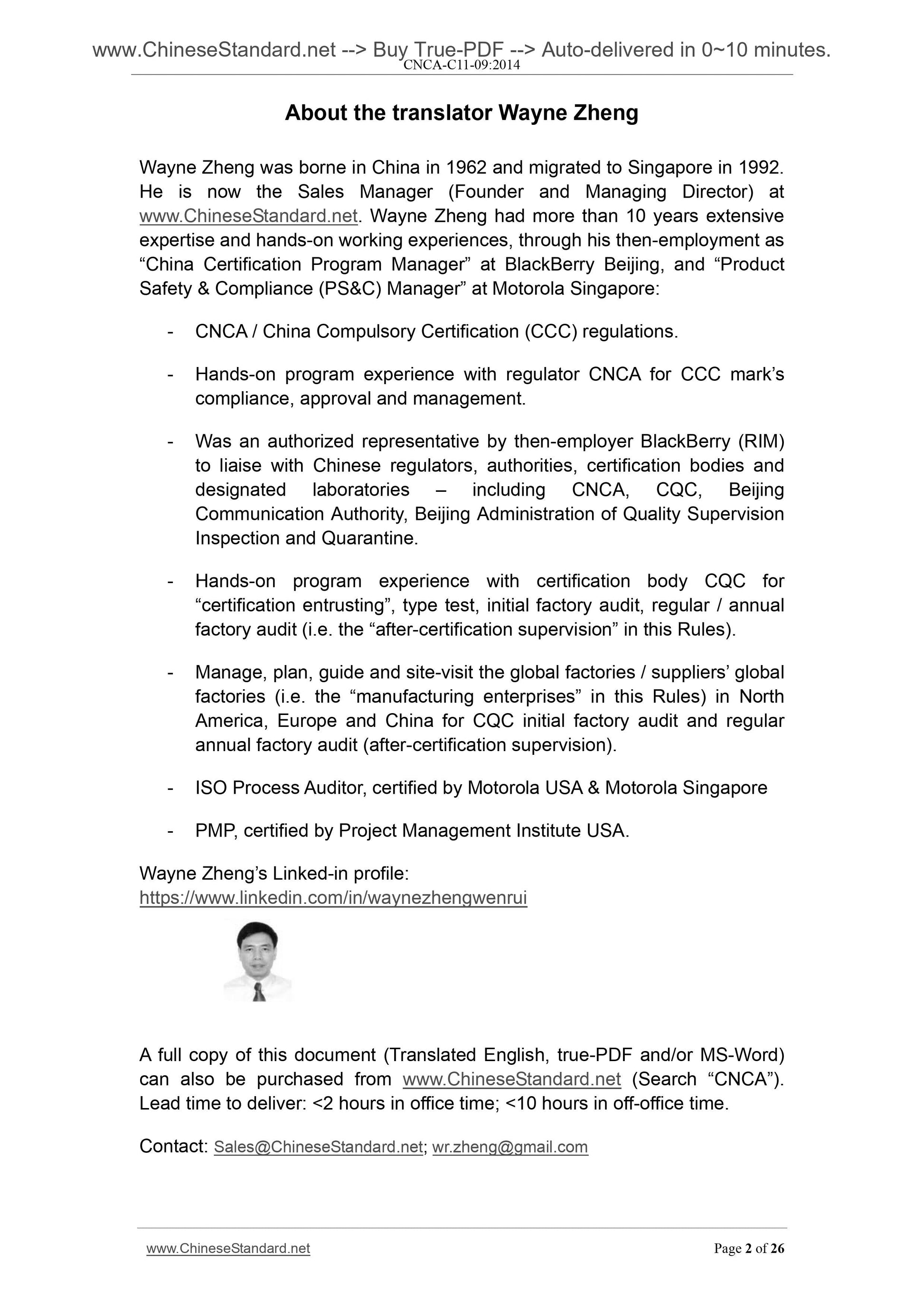

He is now the Sales Manager (Founder and Managing Director) at
expertise and hands-on working experiences, through his then-employment as ?€?China Certification Program Manager?€? at BlackBerry Beijing, and ?€?Product Safety and Compliance (PS and C) Manager?€? at Motorola Singapore.
- CNCA / China Compulsory Certification (CCC) regulations.
- Hands-on program experience with regulator CNCA for CCC mark?€?s
compliance, approval and management.
- Was an authorized representative by then-employer BlackBerry (RIM)
to liaise with Chinese regulators, authorities, certification bodies and designated laboratories ?€? including CNCA, CQC, Beijing
Communication Authority, Beijing Administration of Quality Supervision
Inspection and Quarantine.
- Hands-on program experience with certification body CQC for
?€?certification entrusting?€?, type test, initial factory audit, regular / annual factory audit (i.e. the ?€?after-certification supervision?€? in this Rules). - Manage, plan, guide and site-visit the global factories / suppliers?€? global factories (i.e. the ?€?manufacturing enterprises?€? in this Rules) in North America, Europe and China for CQC initial factory audit and regular
annual factory audit (after-certification supervision).
- ISO Process Auditor, certified by Motorola USA and Motorola Singapore
- PMP, certified by Project Management Institute USA.

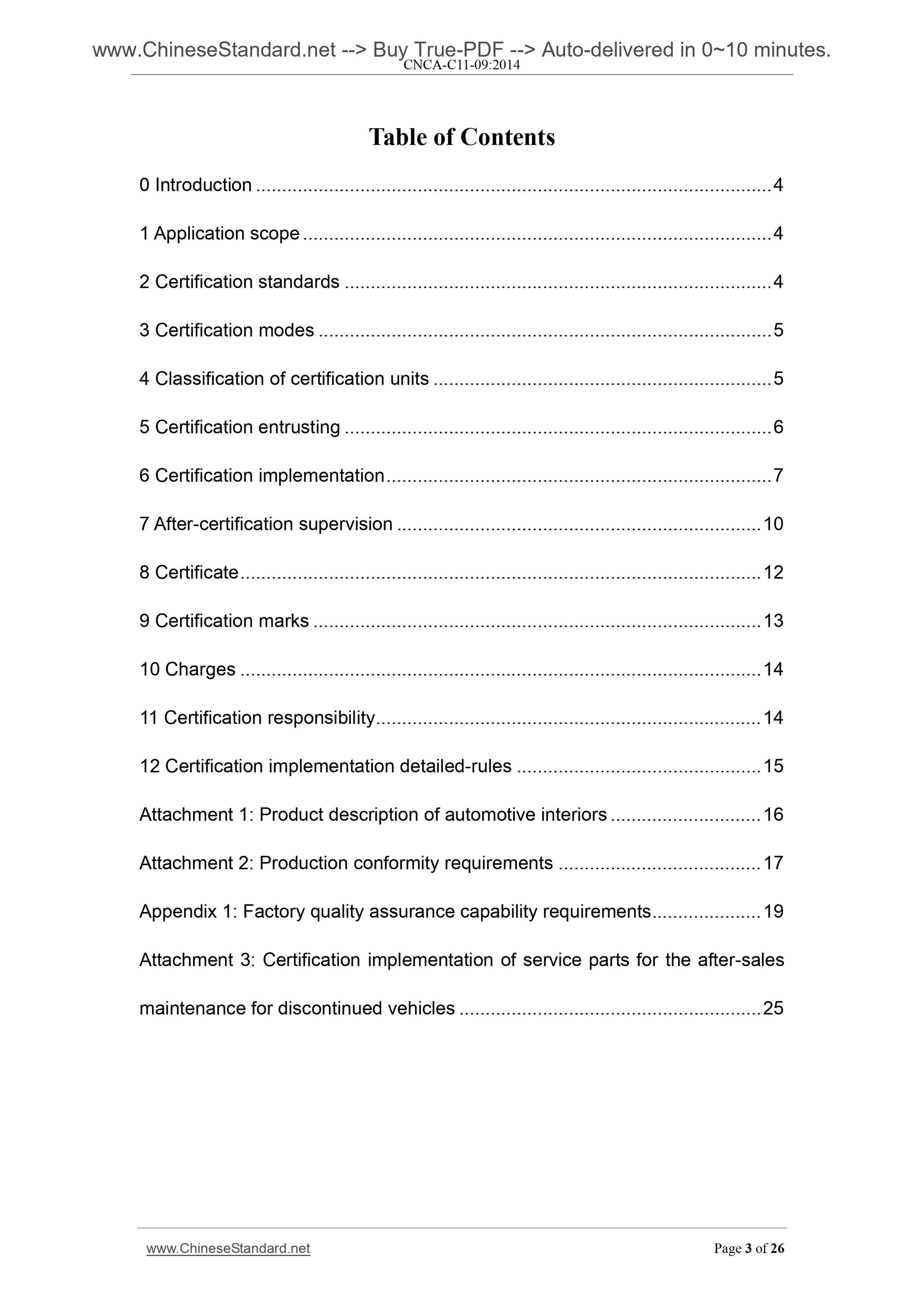

Lead time to deliver. < 2 hours in office time; < 10 hours in off-office time. Table of Contents
0 Introduction ... 4
1 Application scope ... 4
2 Certification standards ... 4
3 Certification modes ... 5
4 Classification of certification units ... 5
5 Certification entrusting ... 6
6 Certification implementation ... 7

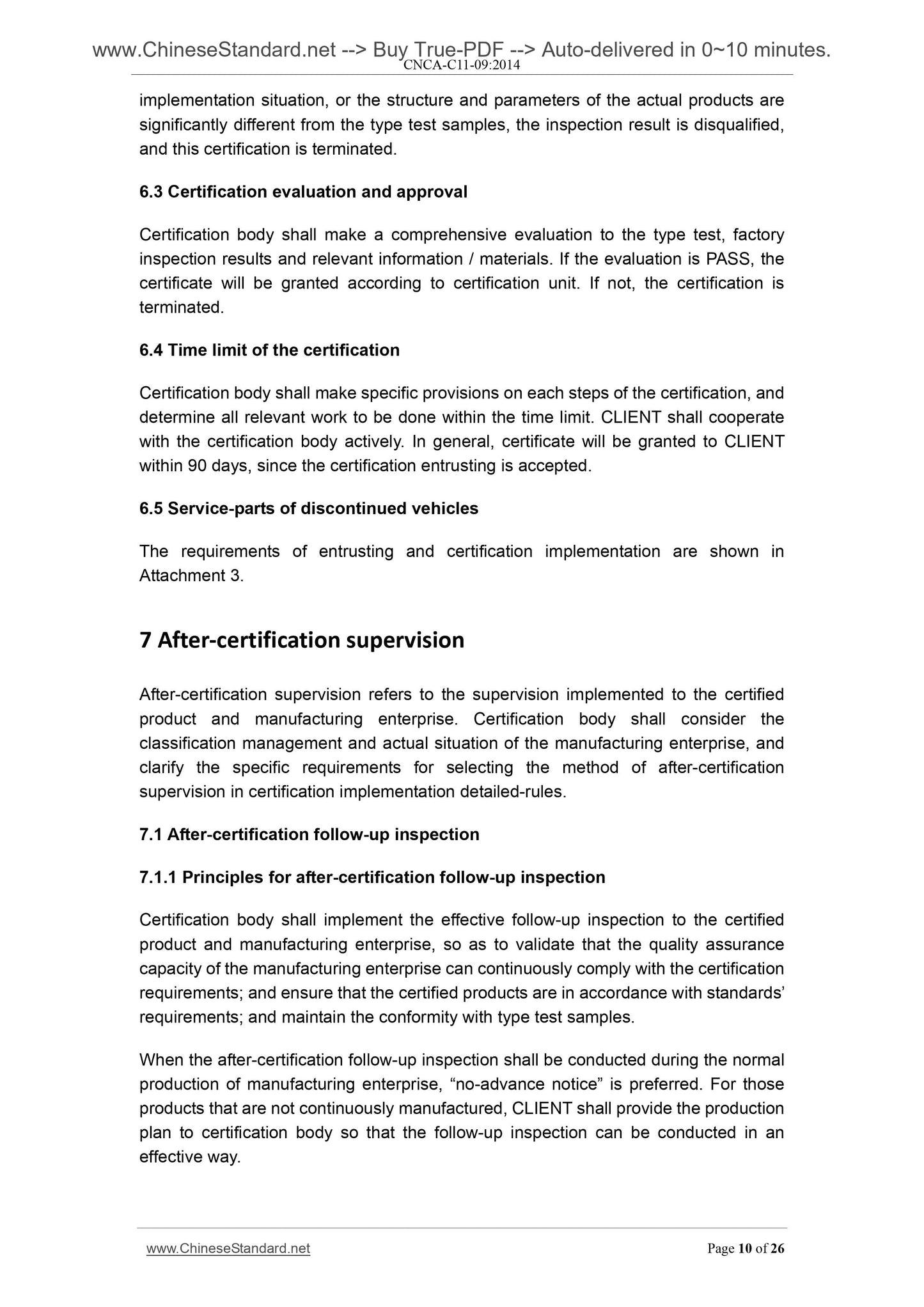

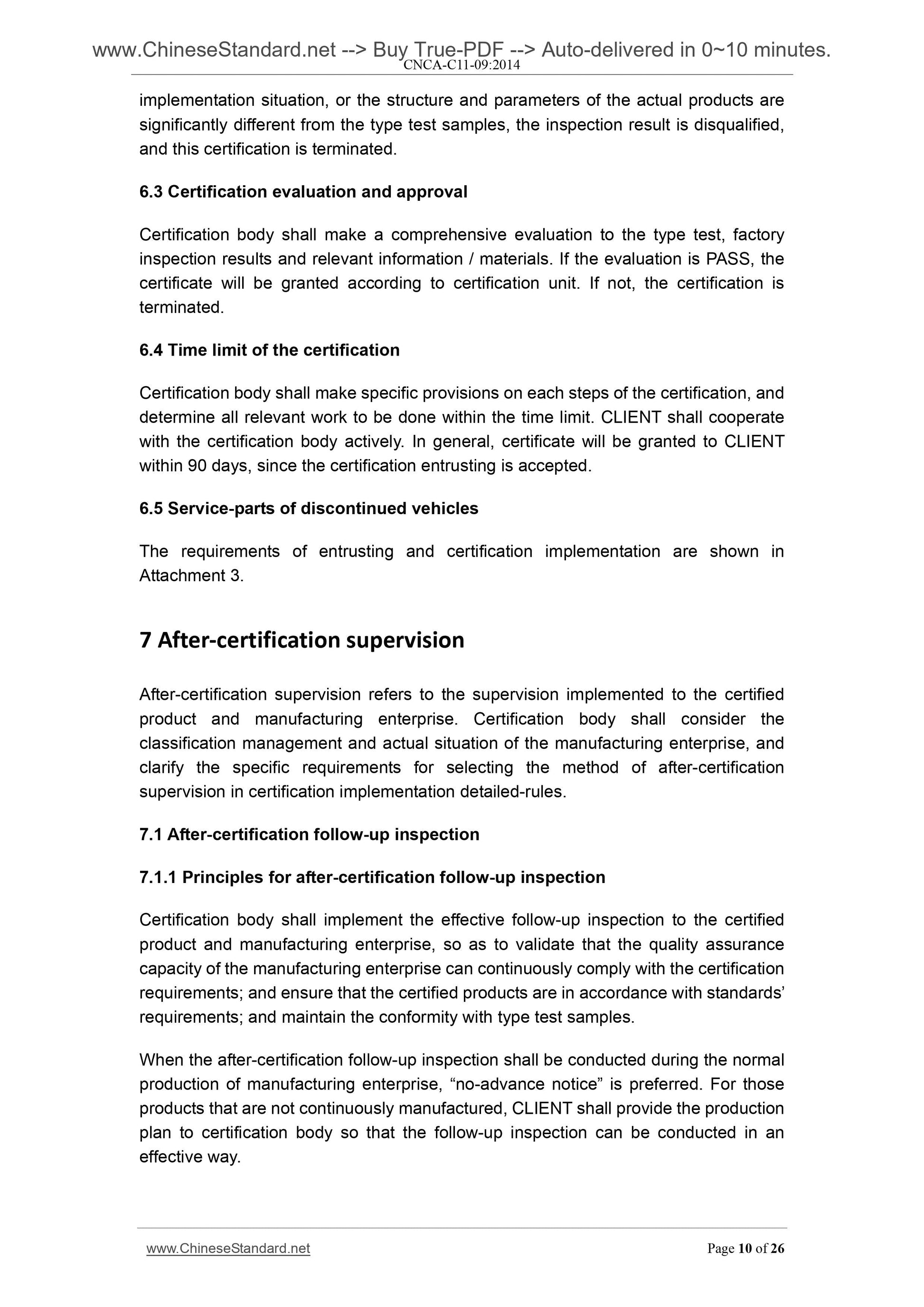

7 After-certification supervision ... 10
8 Certificate ... 12

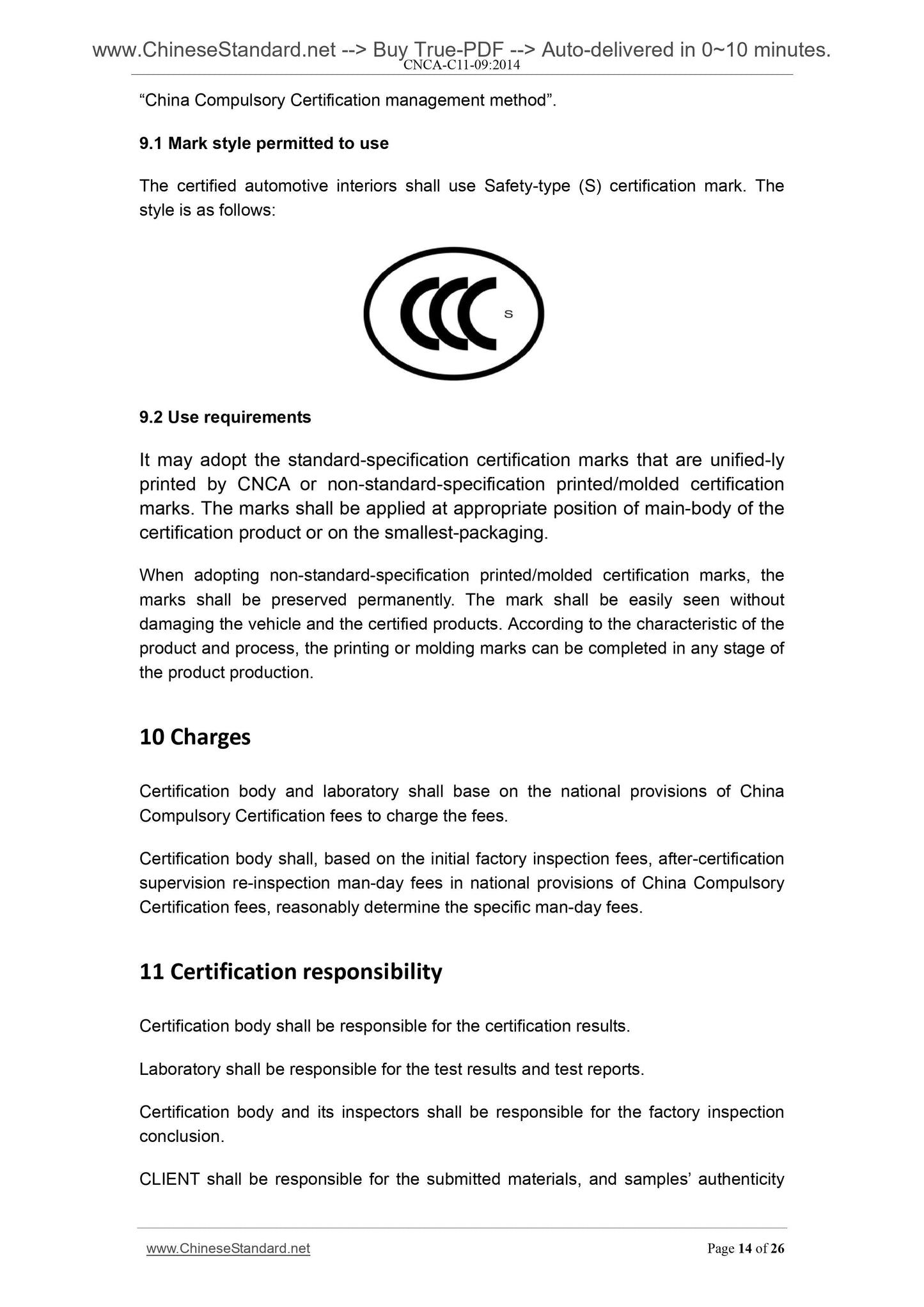

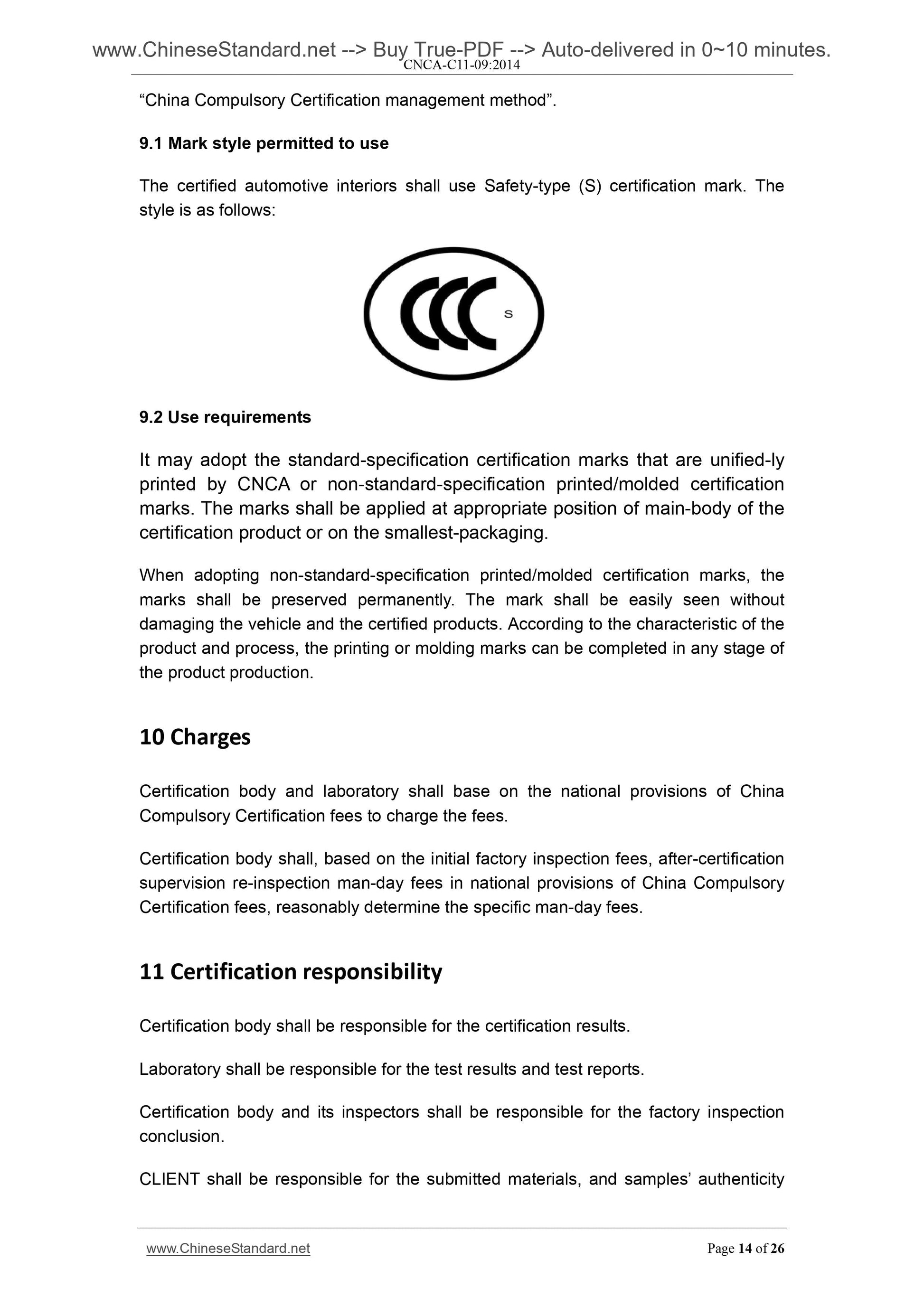

9 Certification marks ... 13
10 Charges ... 14
11 Certification responsibility ... 14
12 Certification implementation detailed-rules ... 15
Attachment 1. Product description of automotive interiors ... 16
Attachment 2. Production conformity requirements ... 17

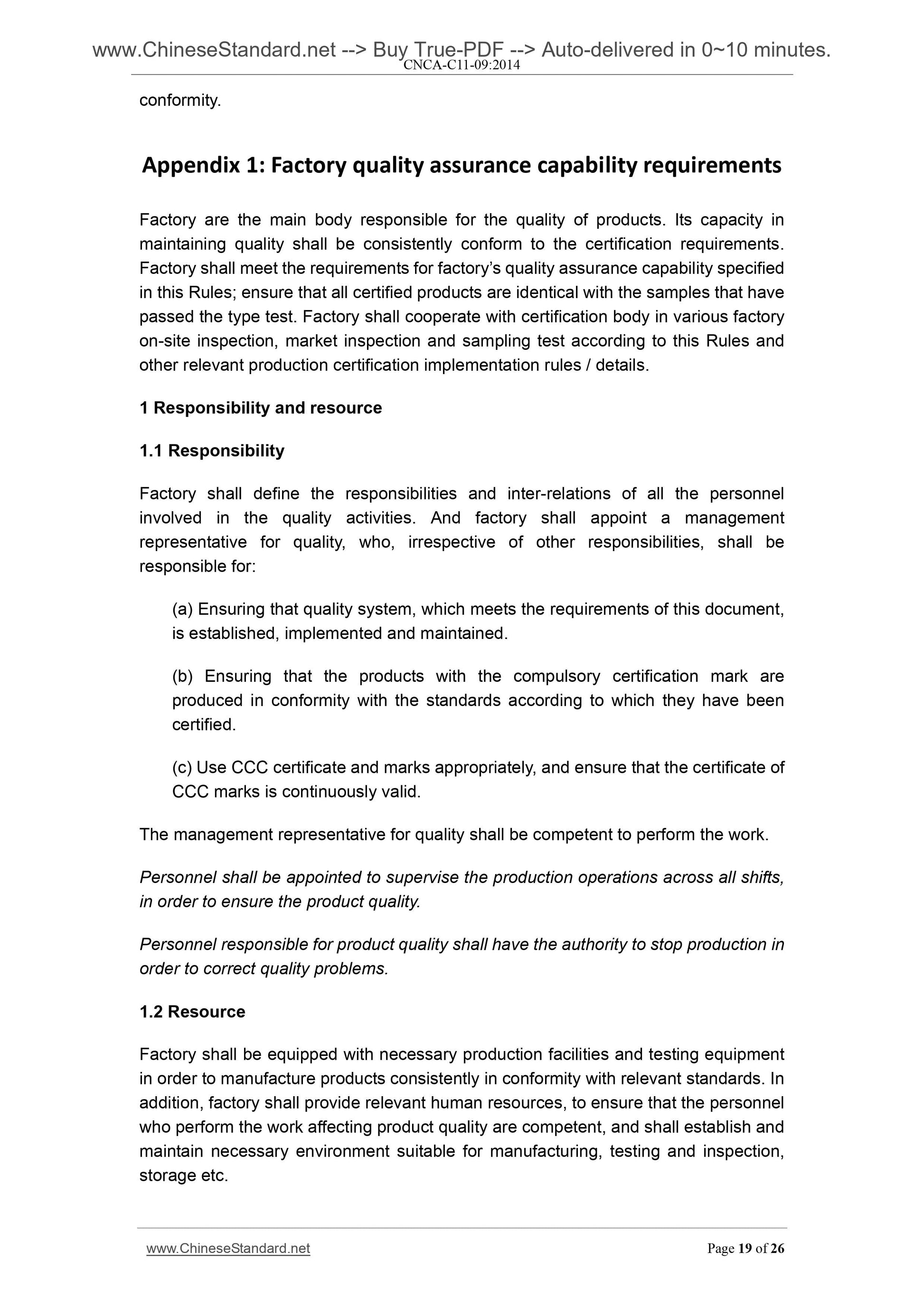

Appendix 1. Factory quality assurance capability requirements ... 19
Attachment 3. Certification implementation of service parts for the after-sales maintenance for discontinued vehicles ... 25

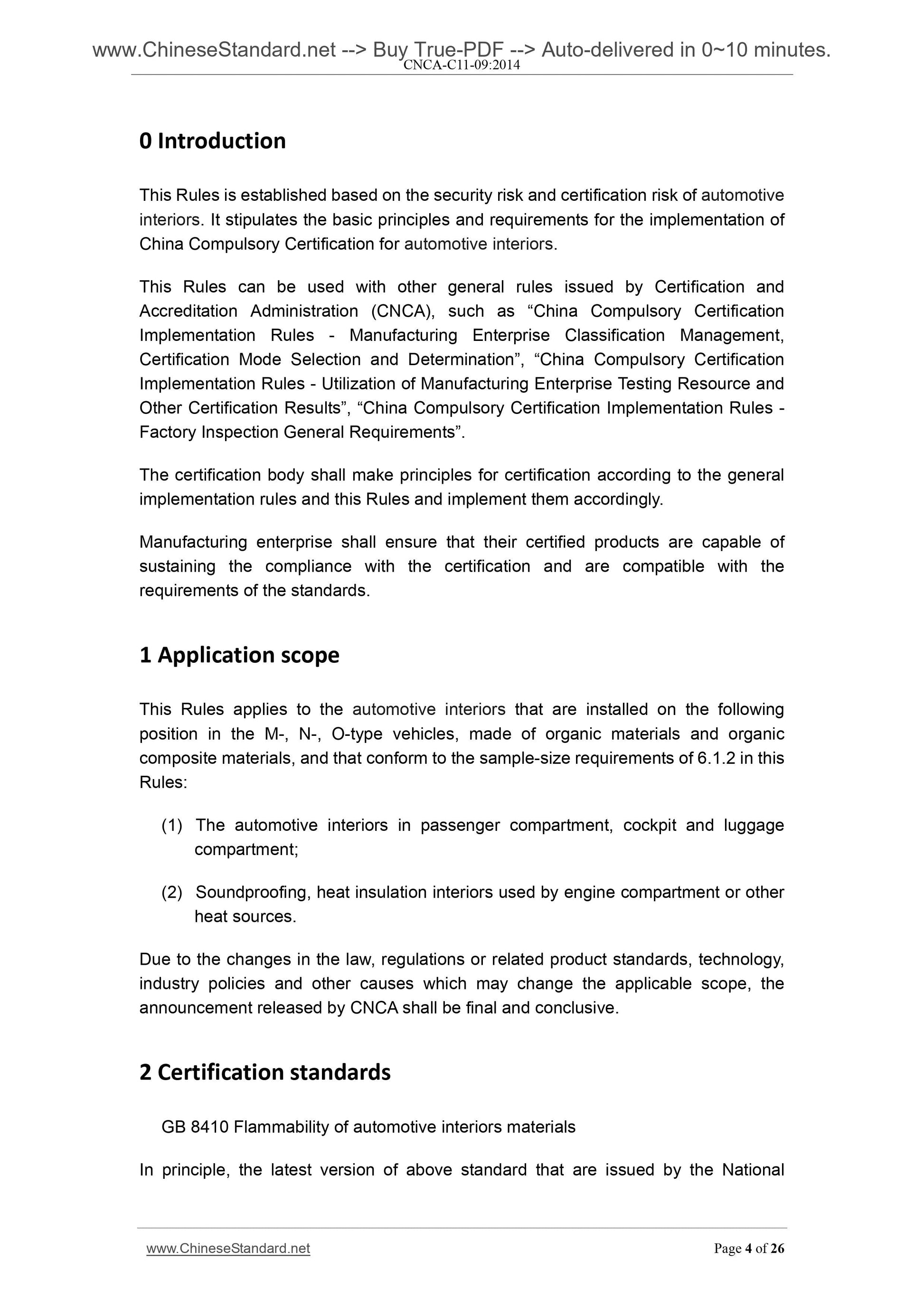

0??Introduction
This Rules is established based on the security risk and certification risk of automotive interiors. It stipulates the basic principles and requirements for the implementation of China Compulsory Certification for automotive interiors.
This Rules can be used with other general rules issued by Certification and Accreditation Administration (CNCA), such as ?€?China Compulsory Certification Implementation Rules - Manufacturing Enterprise Classification Management, Certification Mode Selection and Determination?€?, ?€?China Compulsory Certification Implementation Rules - Utilization of Manufacturing Enterprise Testing Resource and Other Certification Results?€?, ?€?China Compulsory Certification Implementation Rules - Factory Inspection General Requirements?€?.
The certification body shall make principles for certification according to the general implementation rules and this Rules and implement them accordingly.
Manufacturing enterprise shall ensure that their certified products are capable of sustaining the compliance with the certification and are compatible with the requirements of the standards.
1??Application??scope
This Rules applies to the automotive interiors that are installed on the following position in the M-, N-, O-type vehicles, made of organic materials and organic composite materials, and that conform to the sample-size requirements of 6.1.2 in this Rules.
(1) The automotive interiors in passenger compartment, cockpit and luggage compartment;
(2) Soundproofing, heat insulation interiors used by engine compartment or other heat sources.
Due to the changes in the law, regulations or related product standards, technology, industry policies and other causes which may change the applicable scope, the announcement released by CNCA shall be final and conclusive.
2??Certification??standards
GB 8410 Flammability of automotive interiors materials
In principle, the latest version of above standard that are issued by the National Standardization Administration shall be executed. When other versions are required to use, then it shall be executed according to the applicable relevant standards issued by the State Certification and Accreditation Administration (CNCA).

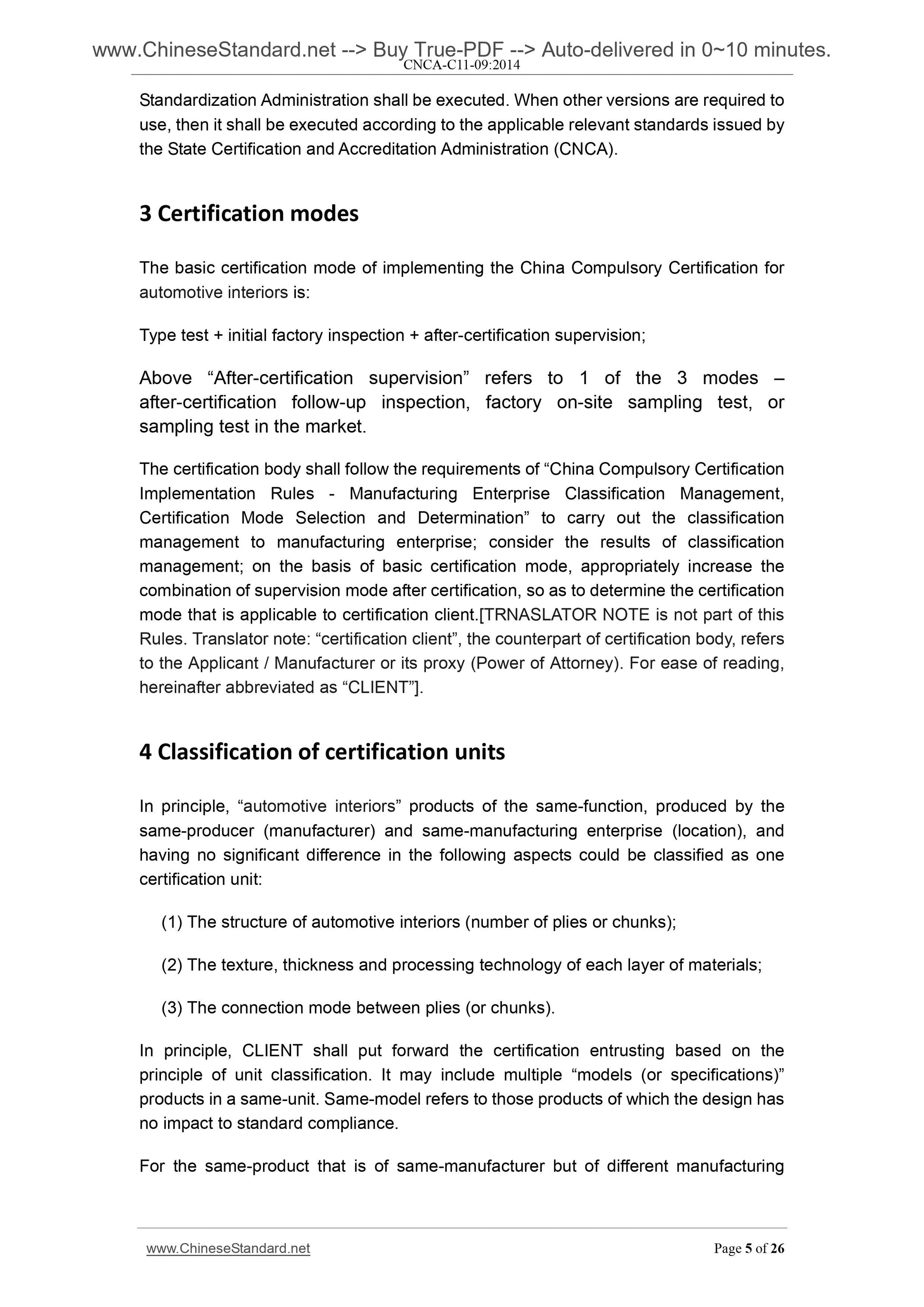

3??Certification??modes
The basic certification mode of implementing the China Compulsory Certification for automotive interiors is.
Type test + initial factory inspection + after-certification supervision; Above ?€?After-certification supervision?€? refers to 1 of the 3 modes ?€?
after-certification follow-up inspection, factory on-site sampling test, or sampling test in the market.
The certification body shall follow the requirements of ?€?China Compulsory Certification Implementation Rules - Manufacturing Enterprise Classification Management, Certification Mode Selection and Determination?€? to carry out the classification management to manufacturing enterprise; consider the results of classification management; on the basis of basic certification mode, appropriately increase the combination of supervision mode after certification, so as to determine the certification mode that is applicable to certification client.[TRNASLATOR NOTE is not part of this Rules. Translator note. ?€?certification client?€?, the counterpart of certification body, refers to the Applicant / Manufacturer or its proxy (Power of Attorney). For ease of reading, hereinafter abbreviated as ?€?CLIENT?€?].
4??Classification??of??certification??units
In principle, ?€?automotive interiors?€? products of the same-function, produced by the same-producer (manufacturer) and same-manufacturing enterprise (location), and having no significant difference in the following aspects could be classified as one certification unit.
(1) The structure of automotive interiors (number of plies or chunks);
(2) The texture, thickness and processing technology of each layer of materials; (3) The connection mode between plies (or chunks).
In principle, CLIENT shall put forward the certification entrusting based on the principle of unit classification. It may include multiple ?€?models (or specifications)?€? products in a same-unit. Same-model refers to those products of which the design has no impact to standard compliance.

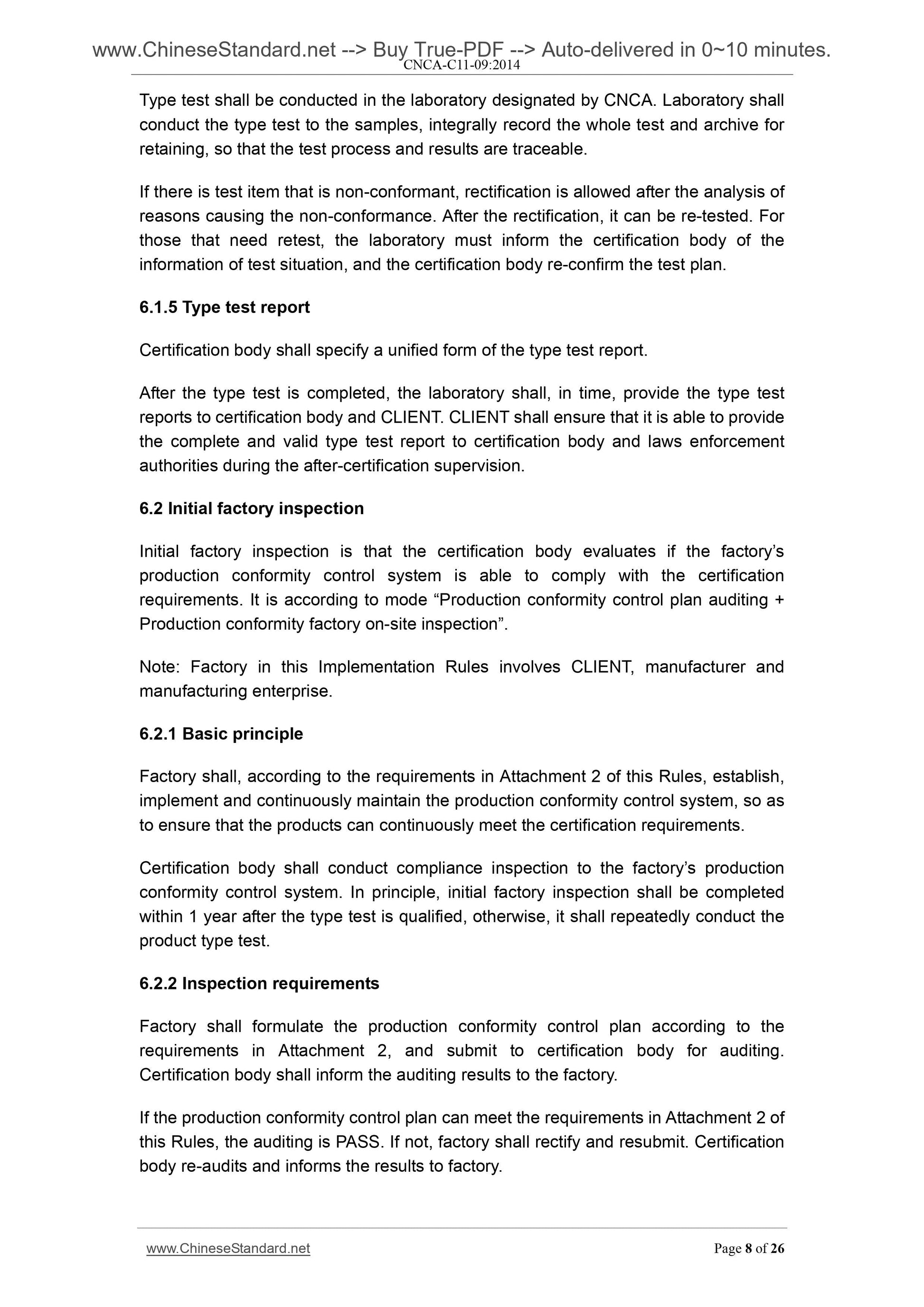

For the same-product that is of same-manufacturer but of different manufacturing Type test shall be conducted in the laboratory designated by CNCA. Laboratory shall conduct the type test to the samples, integrally record the whole test and archive for retaining, so that the test process and results are traceable.
If there is test item that is non-conformant, rectification is allowed after the analysis of reasons causing the non-conformance. After the rectification, it can be re-tested. For those that need retest, the laboratory must inform the certification body of the information of test situation, and the certification body re-confirm the test plan. 6.1.5 Type test report
Certification body shall specify a unified form of the type test report. After the type test is completed, the laboratory shall, in time, provide the type test reports to certification body and CLIENT. CLIENT shall ensure that it is able to provide the complete and valid type test report to certification body and laws enforcement authorities during the after-certification supervision.
6.2 Initial factory inspection
Initial factory inspection is that the certification body evaluates if the factory?€?s production conformity control system is able to comply with the certification requirements. It is according to mode ?€?Production conformity control plan auditing + Production conformity factory on-site inspection?€?.
Note. Factory in this Implementation Rules involves CLIENT, manufacturer and manufacturing enterprise.
6.2.1 Basic principle
Factory shall, according to the requirements in Attachment 2 of this Rules, establish, implement and continuously maintain the production conformity control system, so as to ensu...
