CNCA C04-01-2014: China Compulsory Certification Implementation Rules - Small power motors

This Rules is established based on the safety risk and certification risk of small-power motors. It stipulates the basic principles and requirements for the implementation of China Compulsory Certification for small-power motors. This Rules can be used with other general rules issued by Certification and Accreditation Administration (CNCA), such as China Compulsory Certification Implementation Rules - Manufacturing Enterprise Classification Management, Certification Mode Selection and Determination, China Compulsory Certification Implementation Rules - Utilization of Manufacturing Enterprise Testing Resource and Other Certification Results, China Compulsory Certification Implementation Rules - Factory Inspection General Requirements.

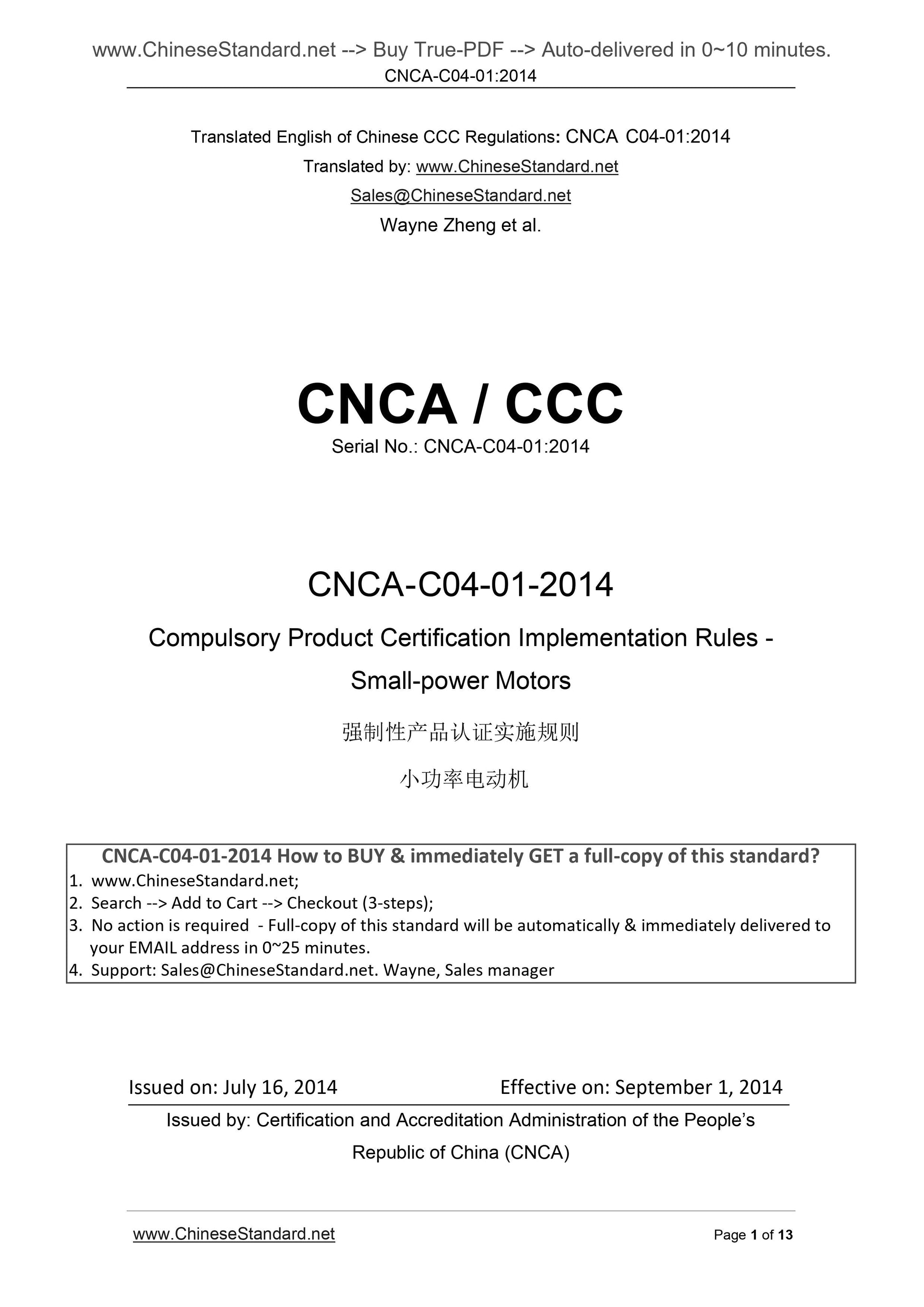

CNCA-C04-01.2014
CNCA / CCC
Serial No.. CNCA-C04-01.2014
CNCA-C04-01-2014
Compulsory Product Certification Implementation Rules -
Small-power Motors
Issued??on.??July??16,??2014 ??????Effective??on.??September??1,??2014
Issued by. Certification and Accreditation Administration of the PEOPLE Republic of China (CNCA)

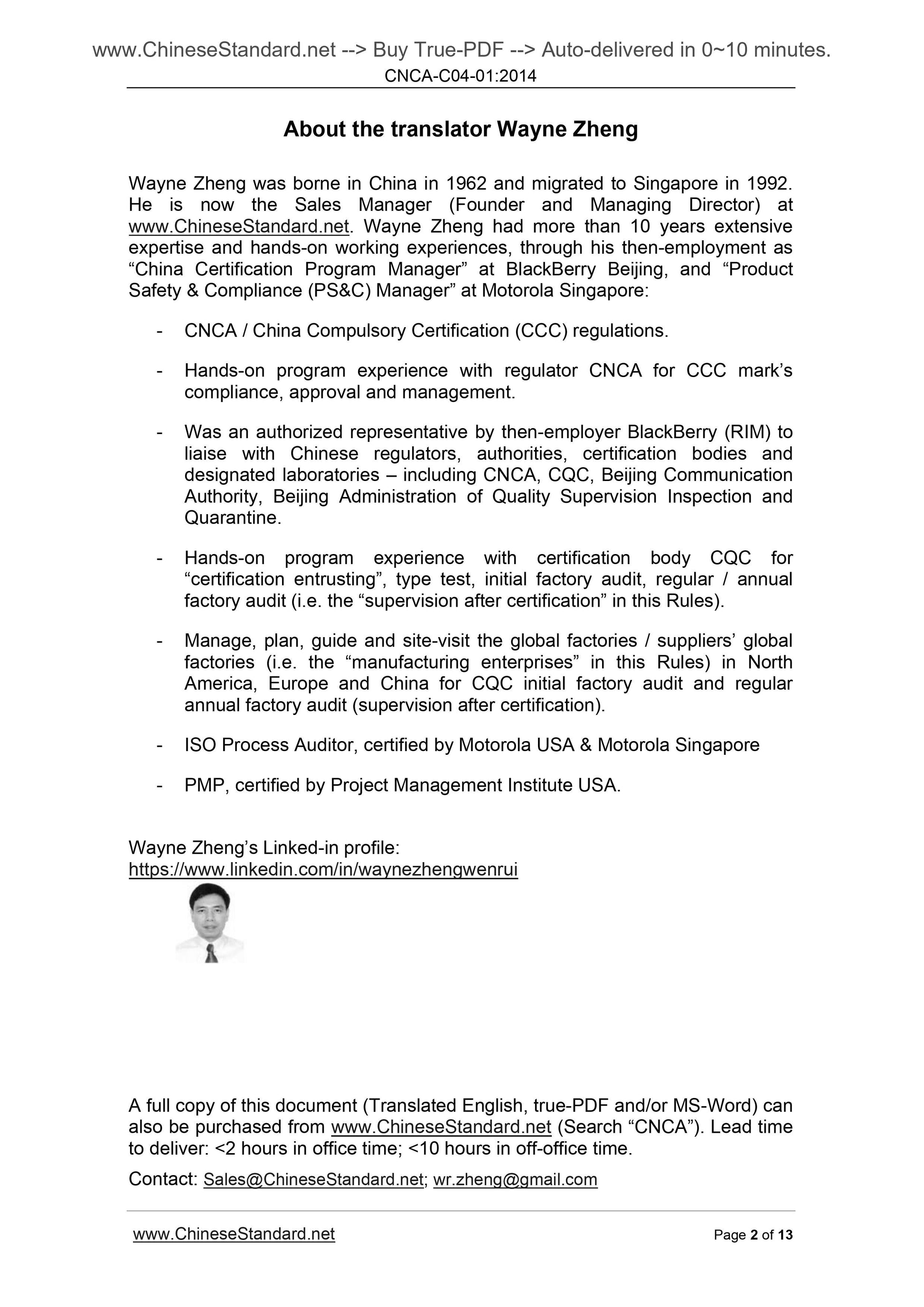

He is now the Sales Manager (Founder and Managing Director) at
expertise and hands-on working experiences, through his then-employment as ?€?China Certification Program Manager?€? at BlackBerry Beijing, and ?€?Product Safety and Compliance (PS and C) Manager?€? at Motorola Singapore.
- CNCA / China Compulsory Certification (CCC) regulations.
- Hands-on program experience with regulator CNCA for CCC mark?€?s
compliance, approval and management.
- Was an authorized representative by then-employer BlackBerry (RIM) to liaise with Chinese regulators, authorities, certification bodies and
designated laboratories ?€? including CNCA, CQC, Beijing Communication
Authority, Beijing Administration of Quality Supervision Inspection and Quarantine.
- Hands-on program experience with certification body CQC for
?€?certification entrusting?€?, type test, initial factory audit, regular / annual factory audit (i.e. the ?€?supervision after certification?€? in this Rules). - Manage, plan, guide and site-visit the global factories / suppliers?€? global factories (i.e. the ?€?manufacturing enterprises?€? in this Rules) in North America, Europe and China for CQC initial factory audit and regular
annual factory audit (supervision after certification).
- ISO Process Auditor, certified by Motorola USA and Motorola Singapore
- PMP, certified by Project Management Institute USA.
to deliver. < 2 hours in office time; < 10 hours in off-office time.

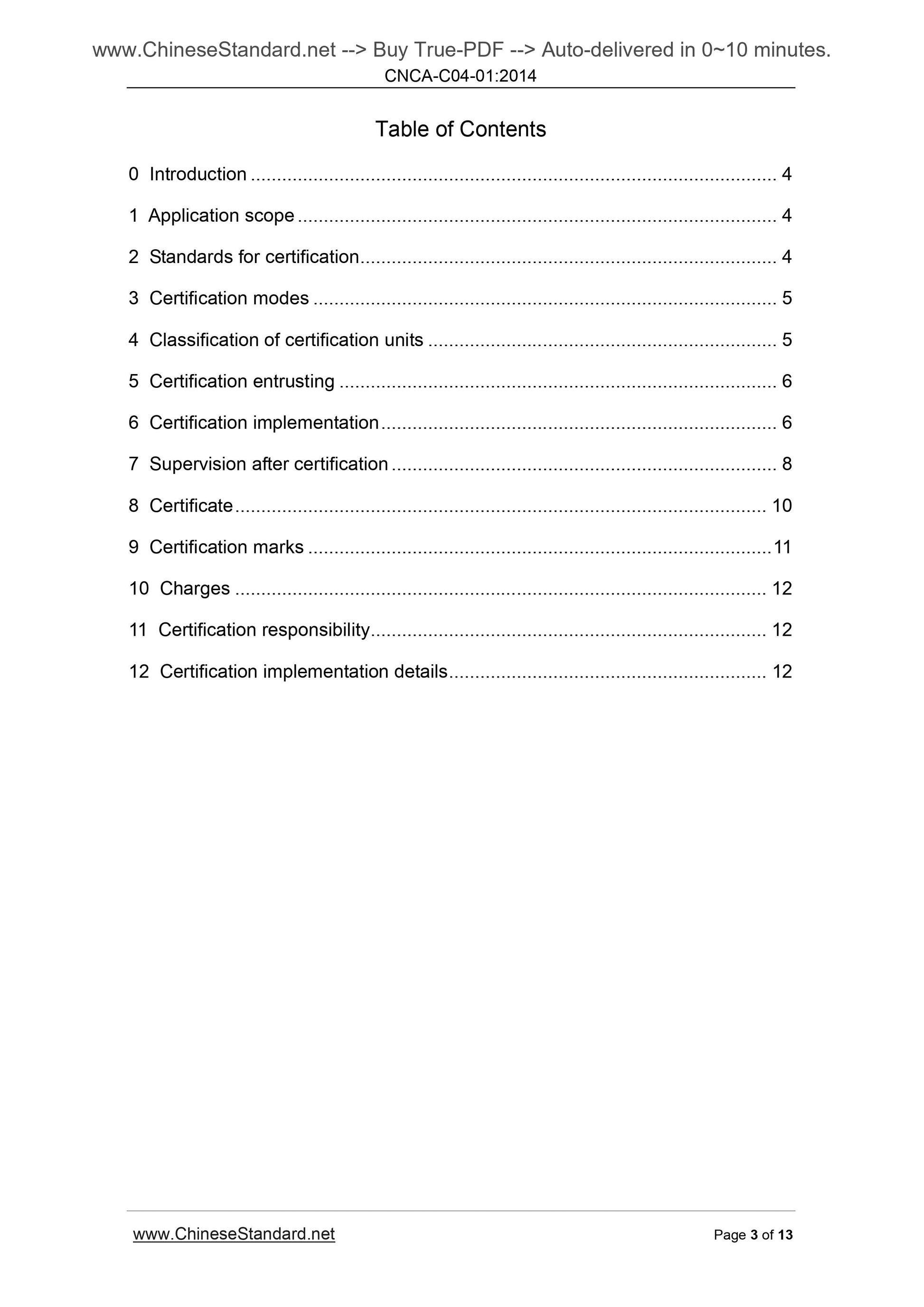

Table of Contents
0 Introduction ... 4
1 Application scope ... 4
2 Standards for certification ... 4
3 Certification modes ... 5
4 Classification of certification units ... 5
5 Certification entrusting ... 6
6 Certification implementation ... 6
7 Supervision after certification ... 8
8 Certificate ... 10
9 Certification marks ... 11
10 Charges ... 12
11 Certification responsibility ... 12
12 Certification implementation details ... 12

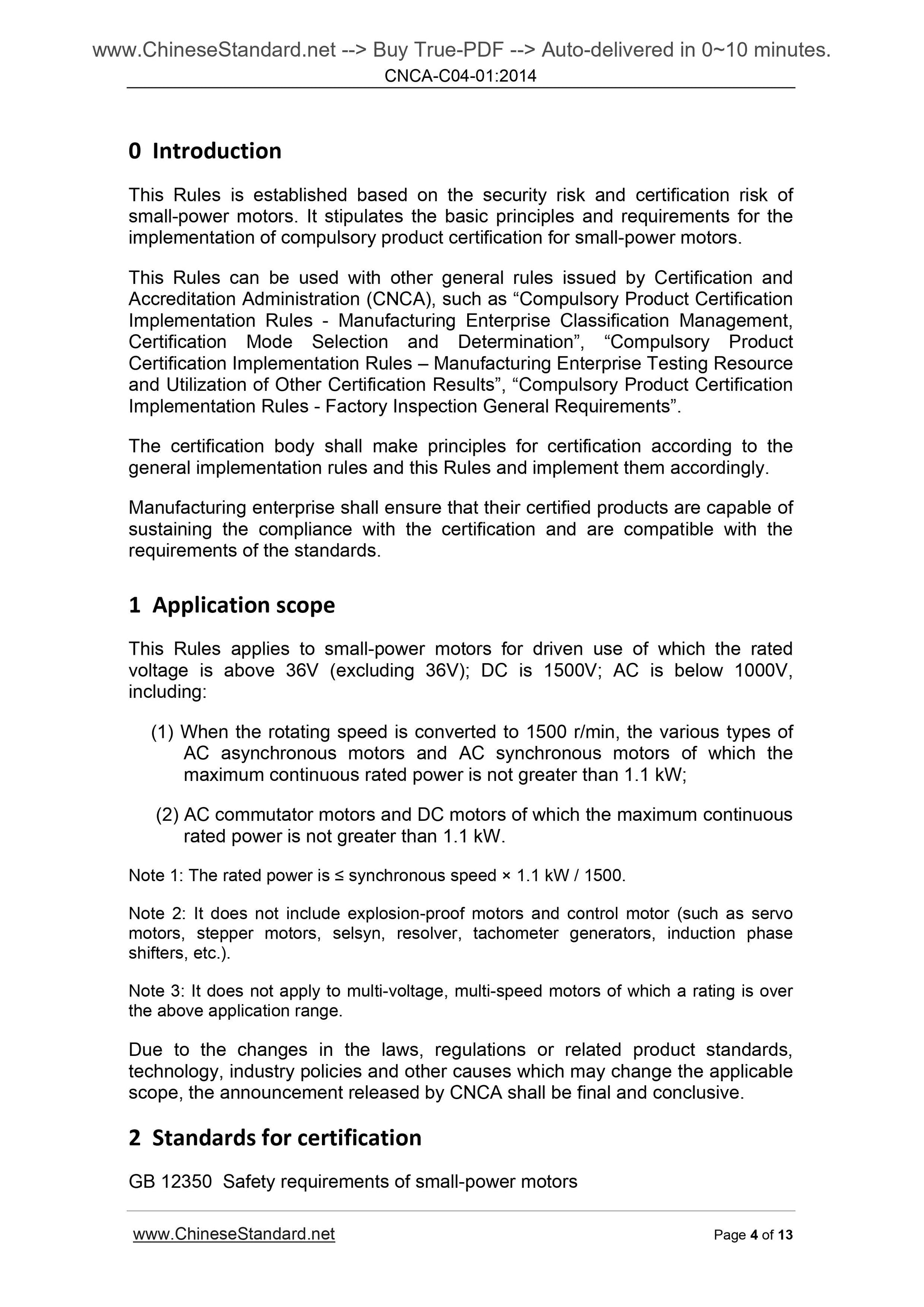

0????Introduction
This Rules is established based on the security risk and certification risk of small-power motors. It stipulates the basic principles and requirements for the implementation of compulsory product certification for small-power motors. This Rules can be used with other general rules issued by Certification and Accreditation Administration (CNCA), such as ?€?Compulsory Product Certification Implementation Rules - Manufacturing Enterprise Classification Management, Certification Mode Selection and Determination?€?, ?€?Compulsory Product
Certification Implementation Rules ?€? Manufacturing Enterprise Testing Resource and Utilization of Other Certification Results?€?, ?€?Compulsory Product Certification Implementation Rules - Factory Inspection General Requirements?€?.
The certification body shall make principles for certification according to the general implementation rules and this Rules and implement them accordingly. Manufacturing enterprise shall ensure that their certified products are capable of sustaining the compliance with the certification and are compatible with the requirements of the standards.
1????Application??scope
This Rules applies to small-power motors for driven use of which the rated voltage is above 36V (excluding 36V); DC is 1500V; AC is below 1000V,
including.
(1) When the rotating speed is converted to 1500 r/min, the various types of AC asynchronous motors and AC synchronous motors of which the
maximum continuous rated power is not greater than 1.1 kW;
(2) AC commutator motors and DC motors of which the maximum continuous
rated power is not greater than 1.1 kW.
Note 1. The rated power is ??? synchronous speed ?? 1.1 kW / 1500.
Note 2. It does not include explosion-proof motors and control motor (such as servo motors, stepper motors, selsyn, resolver, tachometer generators, induction phase shifters, etc.).
Note 3. It does not apply to multi-voltage, multi-speed motors of which a rating is over the above application range.
Due to the changes in the laws, regulations or related product standards, technology, industry policies and other causes which may change the applicable scope, the announcement released by CNCA shall be final and conclusive. 2????Standards??for??certification
GB 12350 Safety requirements of small-power motors
GB 14711 General requirements for safety of small and medium size rotating electrical machines
In principle, the latest versions of above standards that are issued by the National Standardization Administration shall be executed. When other versions are required to use, then it shall be executed according to the applicable relevant standards issued by the State Certification and Accreditation
Administration (CNCA).

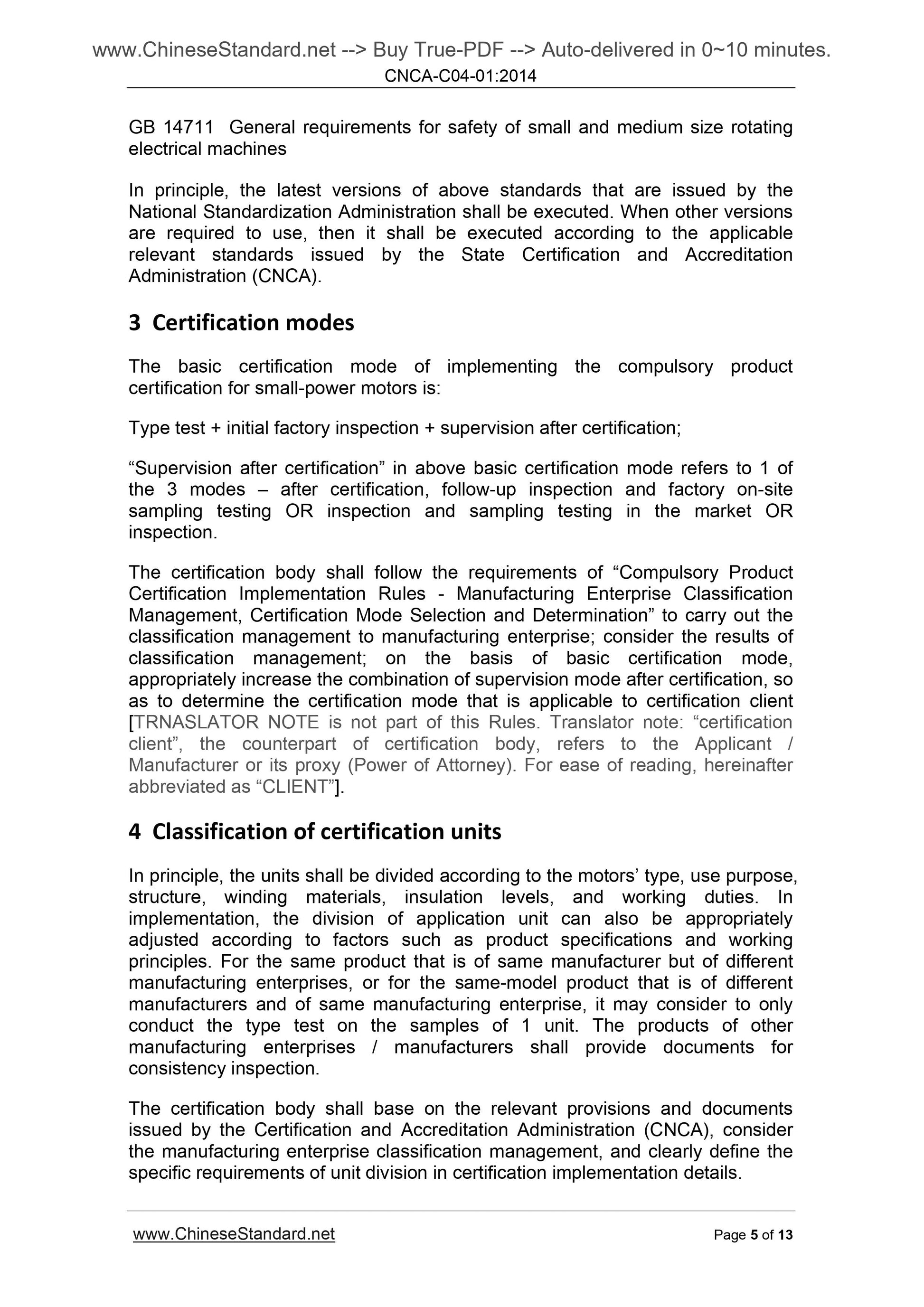

3????Certification??modes
The basic certification mode of implementing the compulsory product
certification for small-power motors is.
Type test + initial factory inspection + supervision after certification; ?€?Supervision after certification?€? in above basic certification mode refers to 1 of the 3 modes ?€? after certification, follow-up inspection and factory on-site sampling testing OR inspection and sampling testing in the market OR
inspection.
The certification body shall follow the requirements of ?€?Compulsory Product Certification Implementation Rules - Manufacturing Enterprise Classification Management, Certification Mode Selection and Determination?€? to carry out the classification management to manufacturing enterprise; consider the results of classification management; on the basis of basic certification mode,
appropriately increase the combination of supervision mode after certification, so as to determine the certification mode that is applicable to certification client [TRNASLATOR NOTE is not part of this Rules. Translator note. ?€?certification client?€?, the counterpart of certification body, refers to the Applicant / Manufacturer or its proxy (Power of Attorney). For ease of reading, hereinafter abbreviated as ?€?CLIENT?€?].
4????Classification??of??certification??units
In principle, the units shall be divided according to the motors?€? type, use purpose, structure, winding materials, insulation levels, and working duties. In implementation, the division of application unit can also be appropriately adjusted according to factors such as product specifications and working principles. For the same product that is of same manufacturer but of different manufacturing enterprises, or for the same-model product that is of different manufacturers and of same manufacturing enterprise, it may consider to only conduct the type test on the samples of 1 unit. The products of other
manufacturing enterprises / manufacturers shall provide documents for
consistency inspection.
The certification body shall base on the relevant provisions and documents issued by the Certification and Accreditation Administration (CNCA), consider the manufacturing enterprise classification management, and clearly define the specific requirements of unit division in certification implementation details. 7.2.1 Principles of factory on-site sampling test or inspection
If it adopts ?€?factory on-site sampling test or inspection?€? to implement the supervision after certification, then CLIENT, manufacturer and manufacturing enterprise shall cooperate.
7.2.2 Contents of factory on-site sampling test or inspection
Certification body shall formulate the contents and requirements of factory on- site sampling test or inspection in the certification implementation details. The manufacturing enterprise shall send the samples to designated laboratories. Certification body may also, according to "Compulsory Product Certification Implementation Rules ?€? Manufacturing Enterprise Testing Resource and
Utilization of Other Certification Results?€?, formulate the corresponding management procedure. utilize the manufacturing testing resource to conduct test (or witness test); and the designated laboratories issue the test reports. Certification body shall clearly define the specific requirements and procedure in certification implementation details.
7.3 Market sampling test or inspection
7.3.1 Principles for market sampling test or inspection
If it adopts ?€?market sampling test or inspection?€? to implement the supervision, CLIENT, manufacturer and manufacturing enterprise ...
