CJ/T 224-2012: Electronic remote-reading water meter

This standard stipulates the electronic remote-reading water-meter terms and definitions, structure and classification, metrological requirements, technical requirements, test method, inspection rules and mark, packaging, transportation, and storage. This standard is applicable to water-meters that have digital output signal and comply with relevant provisions of GB/T 778.1-2007 and GB/T 778.3-2007.
CJ/T ??224?€?2012

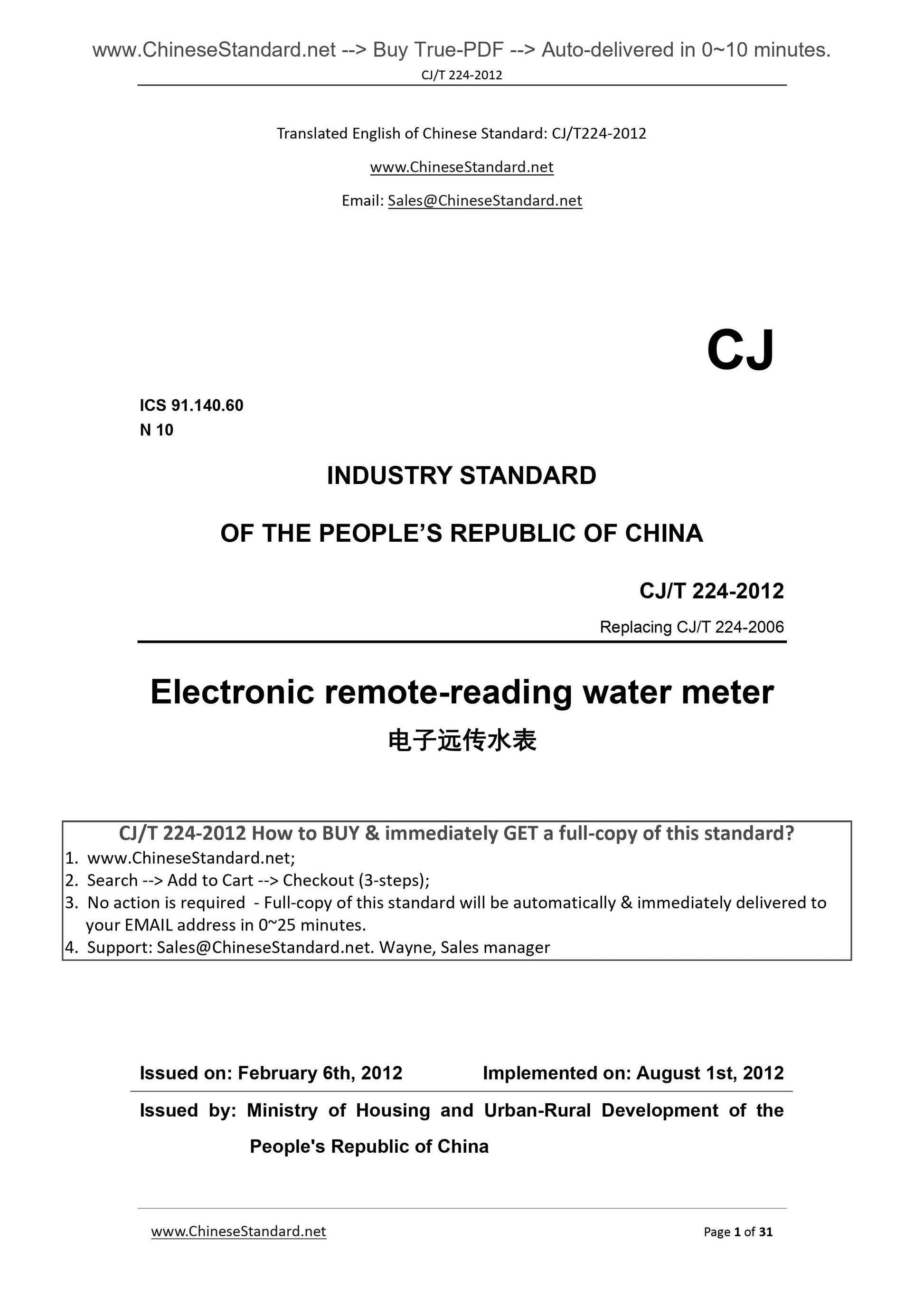

Translated??English??of??Chinese??Standard.??CJ/T224?€?2012
CJ
ICS 91.140.60
N 10
INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
CJT224-2012
Replacing CJ/T 224-2006
Electronic remote-reading water meter
ISSUED ON. FEBRUARY 6TH, 2012
IMPLEMENTED ON. AUGUST 1ST, 2012
Issued by. Ministry of Housing and Urban-Rural Development of the
People's Republic of China

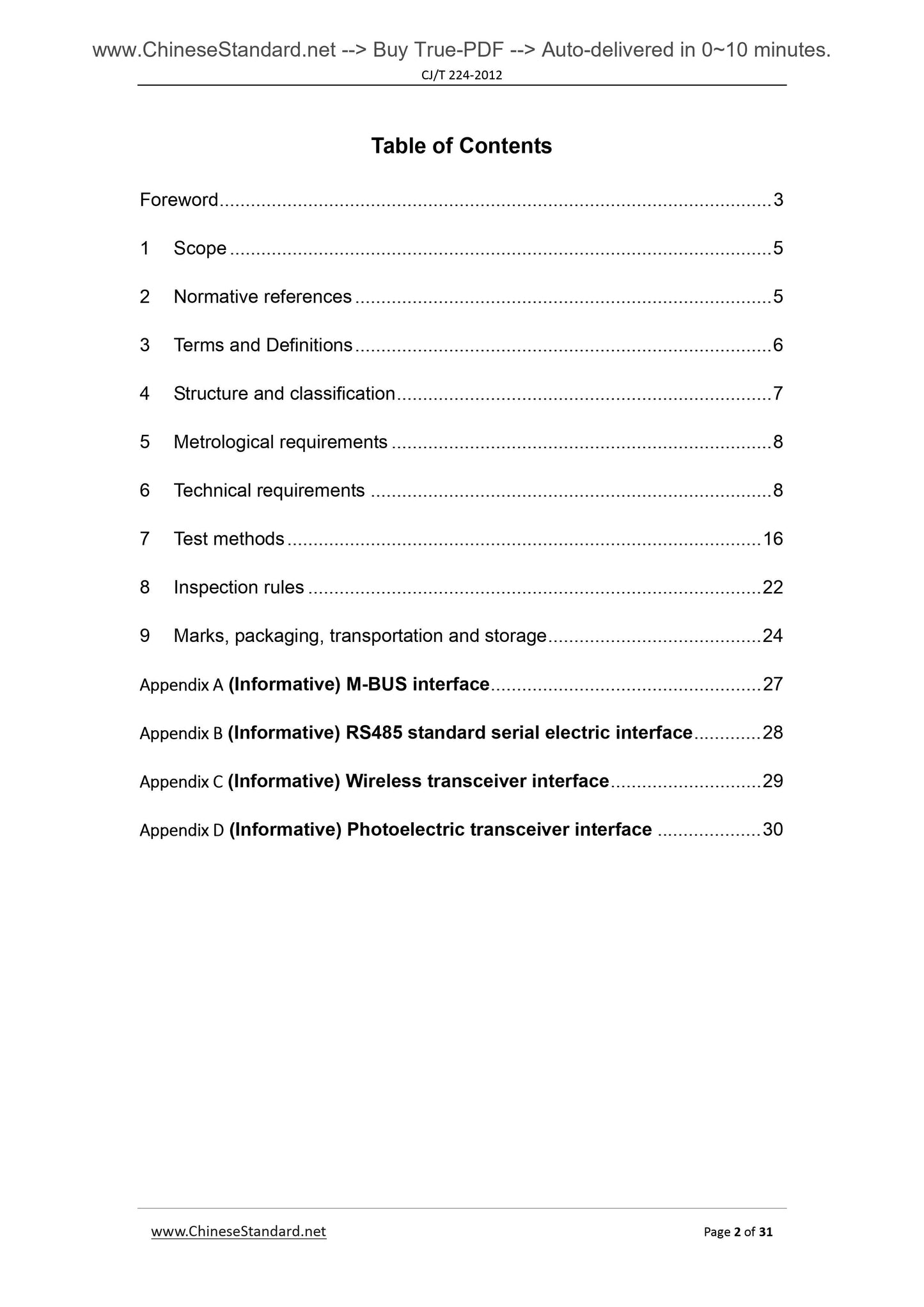

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and Definitions ... 6
4 Structure and classification ... 7
5 Metrological requirements ... 8
6 Technical requirements ... 8
7 Test methods ... 16
8 Inspection rules ... 22
9 Marks, packaging, transportation and storage ... 24
Appendix??A (Informative) M-BUS interface ... 27

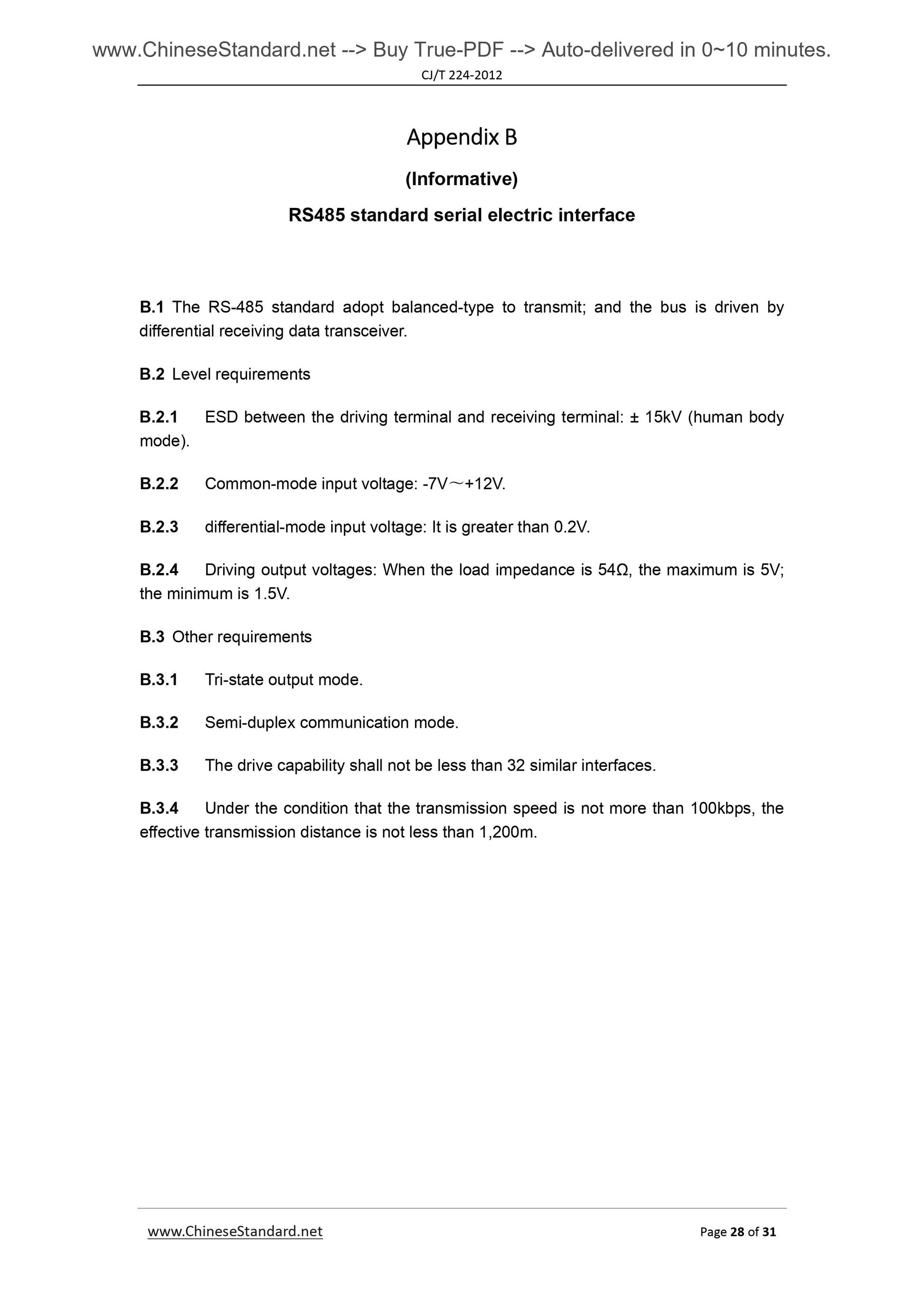

Appendix??B (Informative) RS485 standard serial electric interface ... 28 Appendix??C (Informative) Wireless transceiver interface ... 29

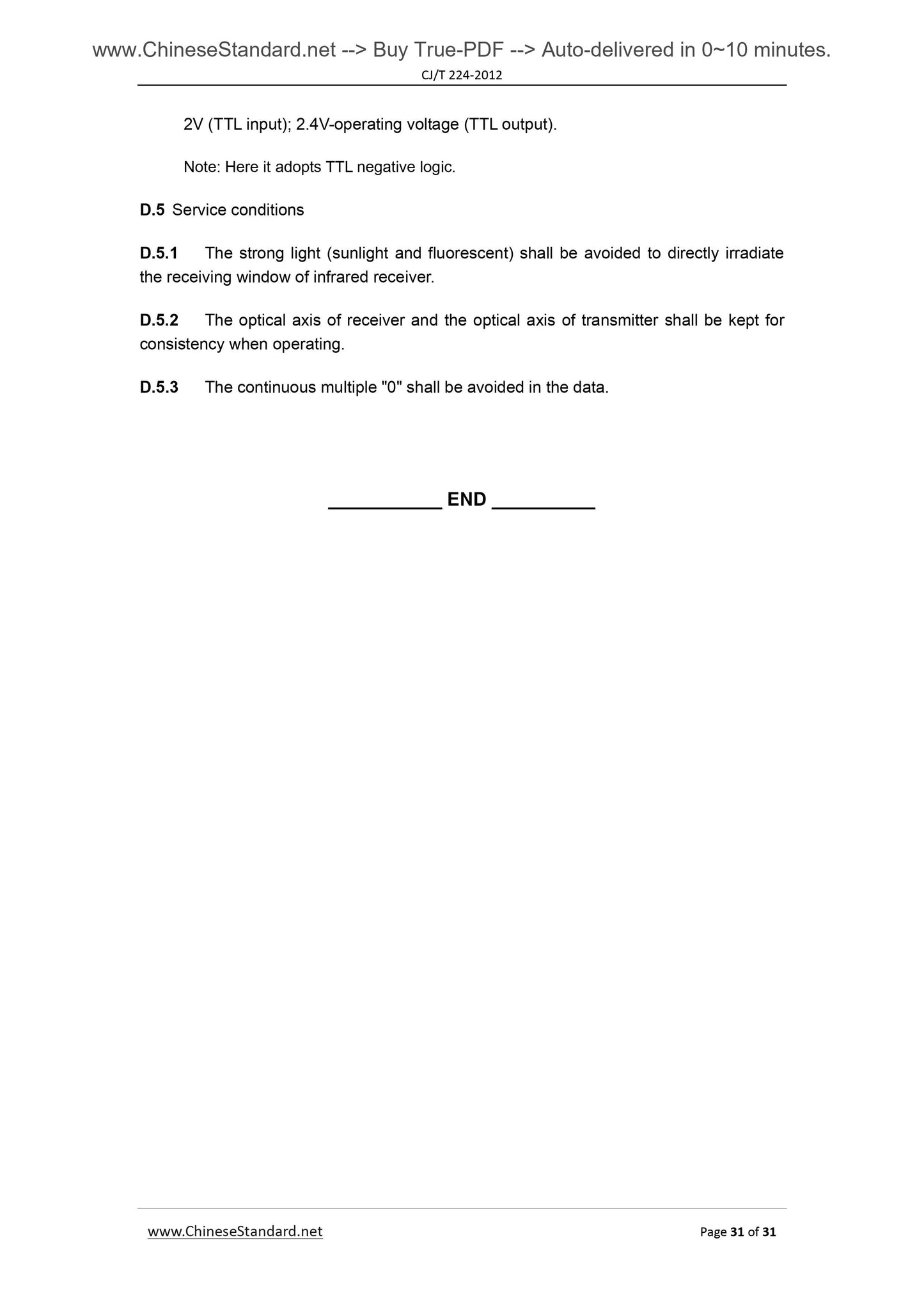

Appendix??D (Informative) Photoelectric transceiver interface ... 30

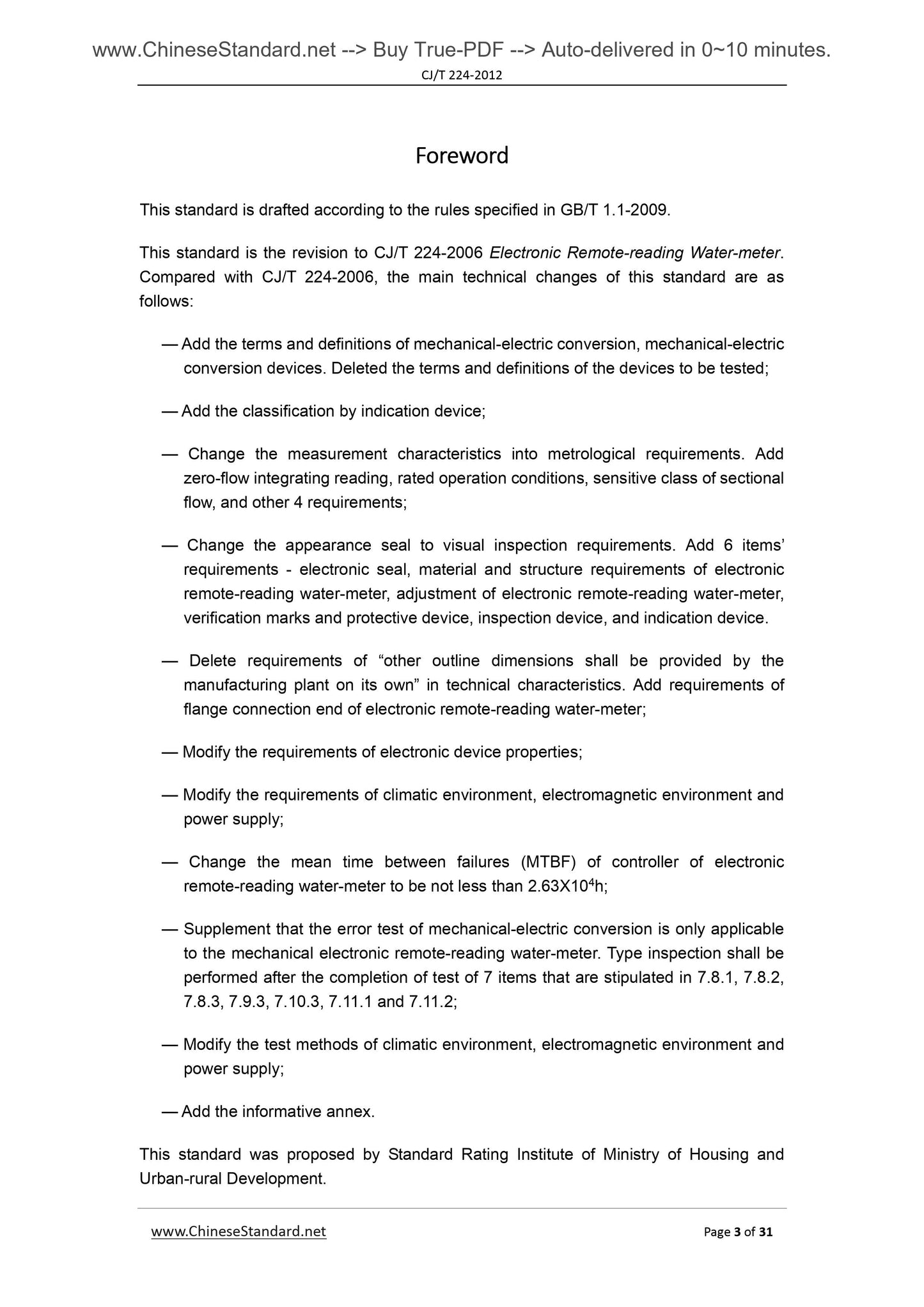

Foreword
This standard is drafted according to the rules specified in GB/T 1.1-2009. This standard is the revision to CJ/T 224-2006 Electronic Remote-reading Water-meter. Compared with CJ/T 224-2006, the main technical changes of this standard are as follows.
?€? Add the terms and definitions of mechanical-electric conversion, mechanical-electric conversion devices. Deleted the terms and definitions of the devices to be tested; ?€? Add the classification by indication device;
?€? Change the measurement characteristics into metrological requirements. Add zero-flow integrating reading, rated operation conditions, sensitive class of sectional flow, and other 4 requirements;
?€? Change the appearance seal to visual inspection requirements. Add 6 items?€? requirements - electronic seal, material and structure requirements of electronic remote-reading water-meter, adjustment of electronic remote-reading water-meter, verification marks and protective device, inspection device, and indication device. ?€? Delete requirements of ?€?other outline dimensions shall be provided by the manufacturing plant on its own?€? in technical characteristics. Add requirements of flange connection end of electronic remote-reading water-meter;
?€? Modify the requirements of electronic device properties;
?€? Modify the requirements of climatic environment, electromagnetic environment and power supply;
?€? Change the mean time between failures (MTBF) of controller of electronic remote-reading water-meter to be not less than 2.63X104h;
?€? Supplement that the error test of mechanical-electric conversion is only applicable to the mechanical electronic remote-reading water-meter. Type inspection shall be performed after the completion of test of 7 items that are stipulated in 7.8.1, 7.8.2, 7.8.3, 7.9.3, 7.10.3, 7.11.1 and 7.11.2;
?€? Modify the test methods of climatic environment, electromagnetic environment and power supply;
?€? Add the informative annex.
This standard was proposed by Standard Rating Institute of Ministry of Housing and Urban-rural Development.
Electronic remote-reading water meter

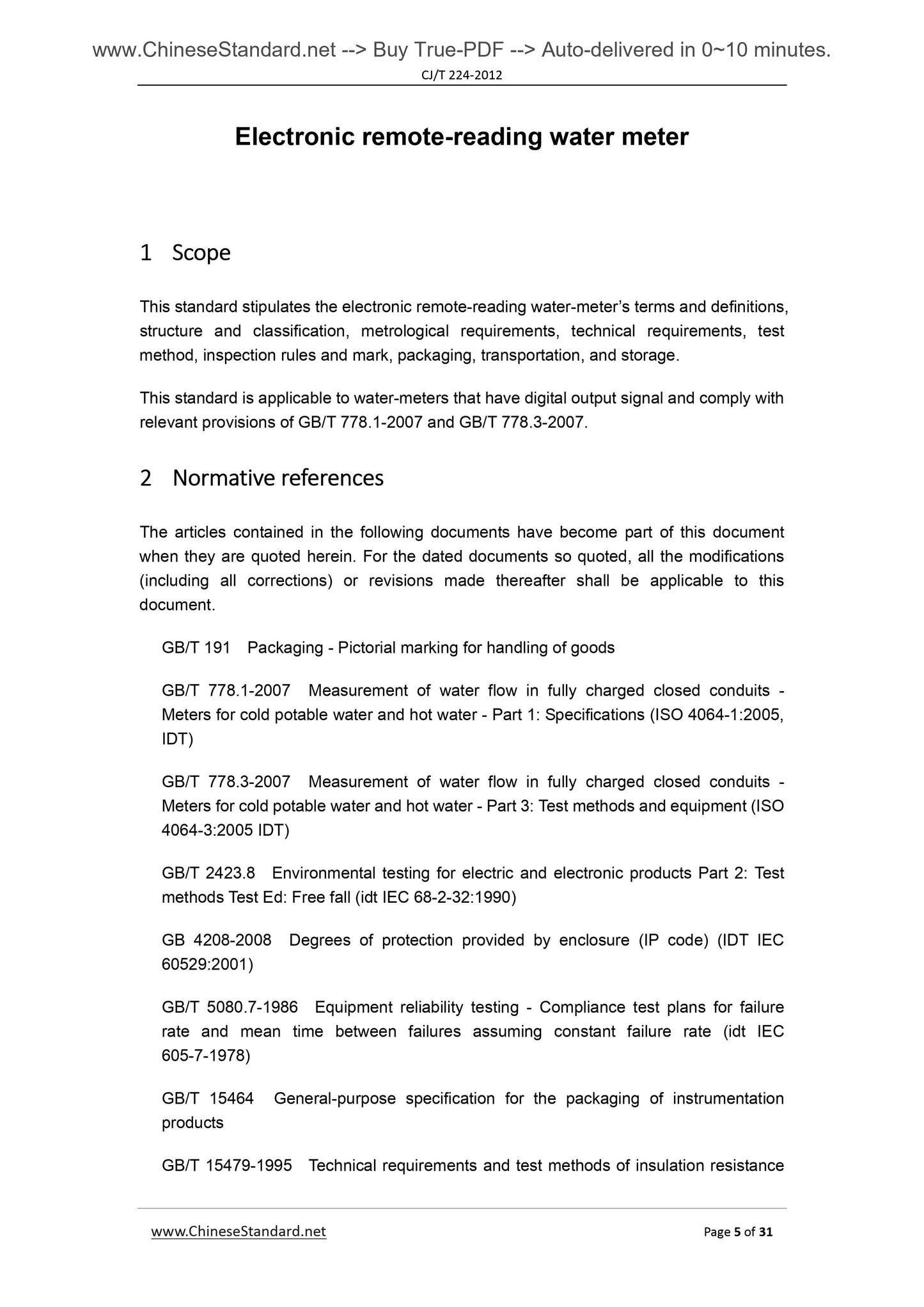

1 Scope
This standard stipulates the electronic remote-reading water-meter?€?s terms and definitions, structure and classification, metrological requirements, technical requirements, test method, inspection rules and mark, packaging, transportation, and storage. This standard is applicable to water-meters that have digital output signal and comply with relevant provisions of GB/T 778.1-2007 and GB/T 778.3-2007.
2 Normative??references
The articles contained in the following documents have become part of this document when they are quoted herein. For the dated documents so quoted, all the modifications (including all corrections) or revisions made thereafter shall be applicable to this document.
GB/T 191 Packaging - Pictorial marking for handling of goods
GB/T 778.1-2007 Measurement of water flow in fully charged closed conduits - Meters for cold potable water and hot water - Part 1. Specifications (ISO 4064-1.2005, IDT)
GB/T 778.3-2007 Measurement of water flow in fully charged closed conduits - Meters for cold potable water and hot water - Part 3. Test methods and equipment (ISO 4064-3.2005 IDT)
GB/T 2423.8 Environmental testing for electric and electronic products Part 2. Test methods Test Ed. Free fall (idt IEC 68-2-32.1990)
GB 4208-2008 Degrees of protection provided by enclosure (IP code) (IDT IEC 60529.2001)
GB/T 5080.7-1986 Equipment reliability testing - Compliance test plans for failure rate and mean time between failures assuming constant failure rate (idt IEC 605-7-1978)
GB/T 15464 General-purpose specification for the packaging of instrumentation products
GB/T 15479-1995 Technical requirements and test methods of insulation resistance and insulating strength for use in industrial process measurement and control instruments
JB/T 9329 Basic environmental conditions and testing methods for instruments transportation and storage in the transportation

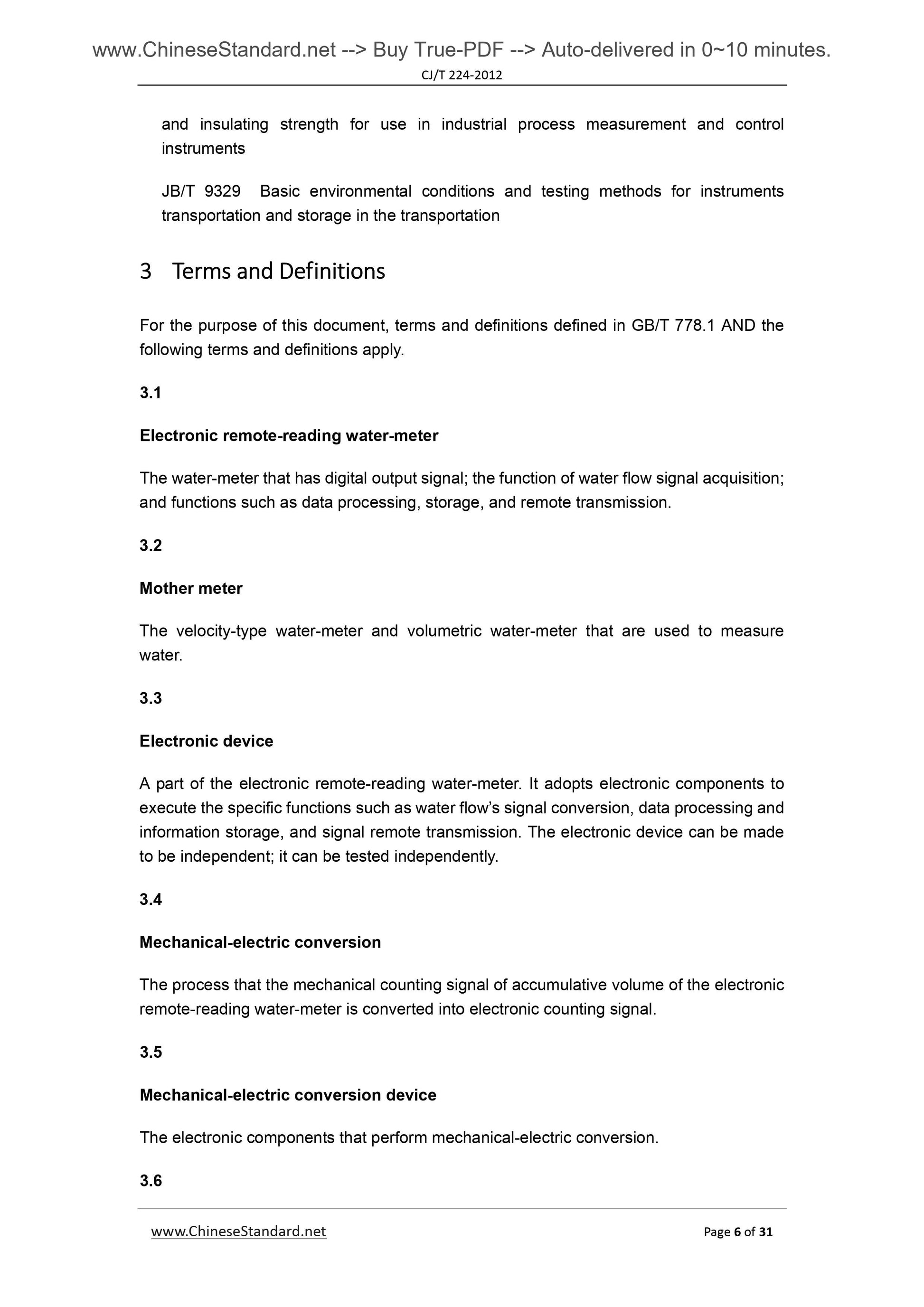

3 Terms??and??Definitions
For the purpose of this document, terms and definitions defined in GB/T 778.1 AND the following terms and definitions apply.
3.1
Electronic remote-reading water-meter
The water-meter that has digital output signal; the function of water flow signal acquisition; and functions such as data processing, storage, and remote transmission. 3.2
Mother meter
The velocity-type water-meter and volumetric water-meter that are used to measure water.
3.3
Electronic device
A part of the electronic remote-reading water-meter. It adopts electronic components to execute the specific functions such as water flow?€?s signal conversion, data processing and information storage, and signal remote transmission. The electronic device can be made to be independent; it can be tested independently.
3.4
Mechanical-electric conversion
The process that the mechanical counting signal of accumulative volume of the electronic remote-reading water-meter is converted into electronic counting signal. 3.5
Mechanical-electric conversion device
The electronic components that perform mechanical-electric conversion.
3.6

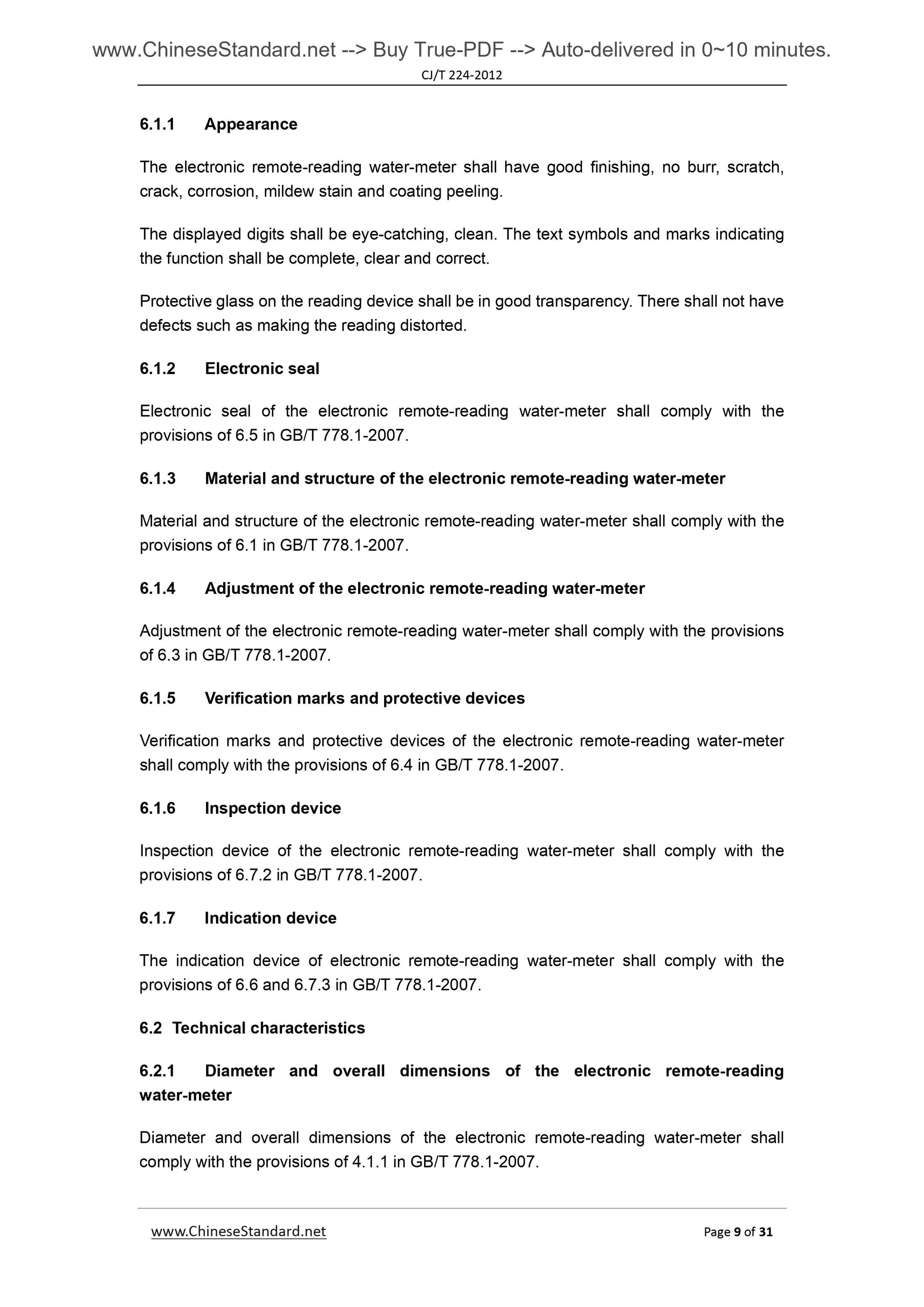

6.1.1 Appearance
The electronic remote-reading water-meter shall have good finishing, no burr, scratch, crack, corrosion, mildew stain and coating peeling.
The displayed digits shall be eye-catching, clean. The text symbols and marks indicating the function shall be complete, clear and correct.
Protective glass on the reading device shall be in good transparency. There shall not have defects such as making the reading distorted.
6.1.2 Electronic seal
Electronic seal of the electronic remote-reading water-meter shall comply with the provisions of 6.5 in GB/T 778.1-2007.
6.1.3 Material and structure of the electronic remote-reading water-meter Material and structure of the electronic remote-reading water-meter shall comply with the provisions of 6.1 in GB/T 778.1-2007.
6.1.4 Adjustment of the electronic remote-reading water-meter
Adjustment of the electronic remote-reading water-meter shall comply with the provisions of 6.3 in GB/T 778.1-2007.
6.1.5 Verification marks and protective devices
Verification marks and protective devices of the electronic remote-reading water-meter shall comply with the provisions of 6.4 in GB/T 778.1-2007.
6.1.6 Inspection device
Inspection device of the electronic remote-reading water-meter shall comply with the provisions of 6.7.2 in GB/T 778.1-2007.
6.1.7 Indication device
The indication device of electronic remote-reading water-meter shall comply with the provisions of 6.6 and 6.7.3 in GB/T 778.1-2007.
6.2 Technical characteristics
6.2.1 Diameter and overall dimensions of the electronic remote-reading
water-meter
Diameter and overall dimensions of the electronic remote-reading water-meter shall comply with the provisions of 4.1.1 in GB/T 778.1-2007.
Durability of the electronic remote-reading water-meter shall comply with the provisions of 6.2 in GB/T 778.1-2007.

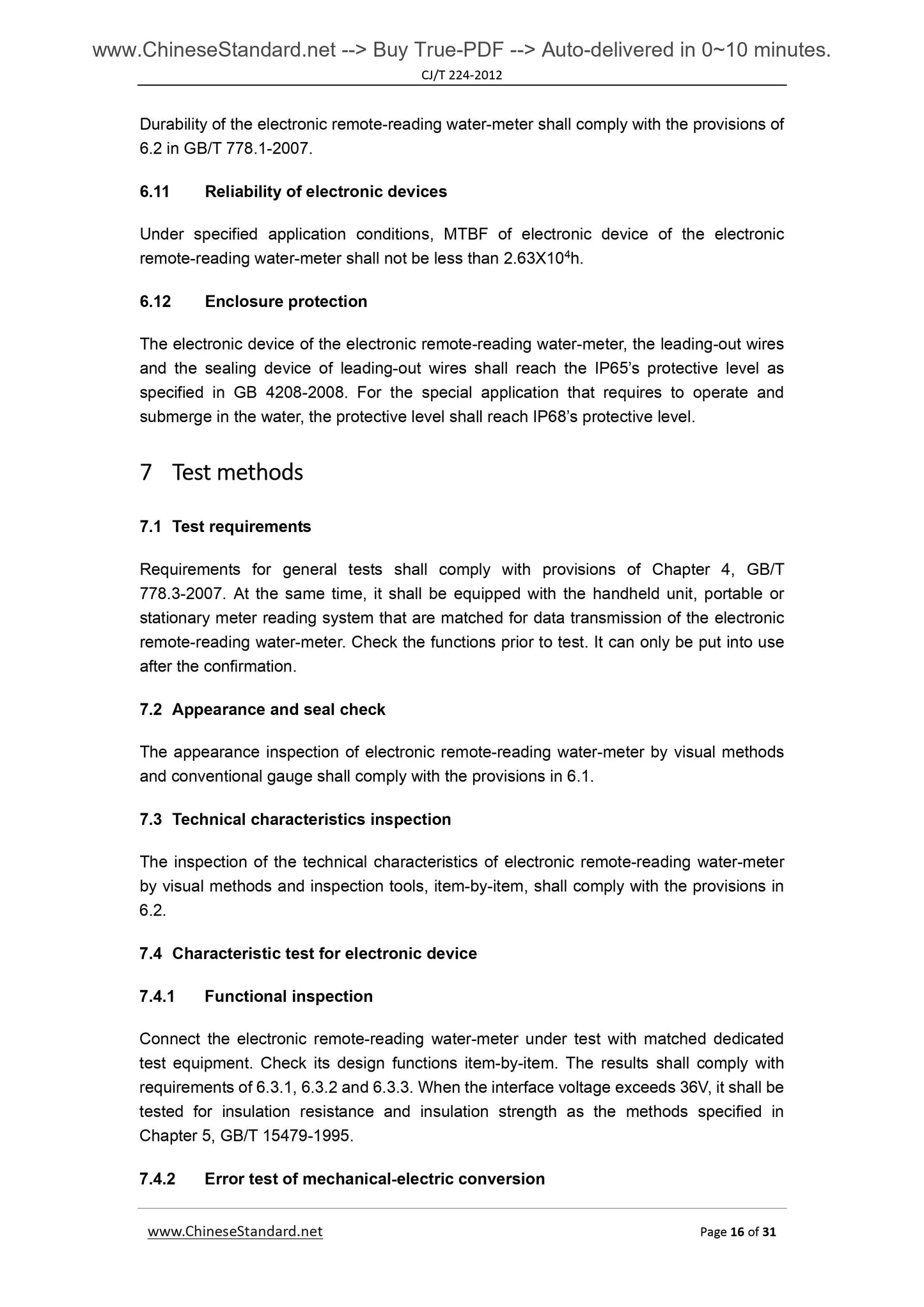

6.11 Reliability of electronic devices
Under specified application conditions, MTBF of electronic device of the electronic remote-reading water-meter shall not be less than 2.63X104h.
6.12 Enclosure protection
The electronic device of the electronic remote-reading water-meter, the leading-out wires and the sealing device of leading-out wires shall reach the IP65?€?s protective level as specified in GB 4208-2008. For the special application that requires to operate and submerge in the water, the protective level shall reach IP68?€?s protective level. 7 Test??methods

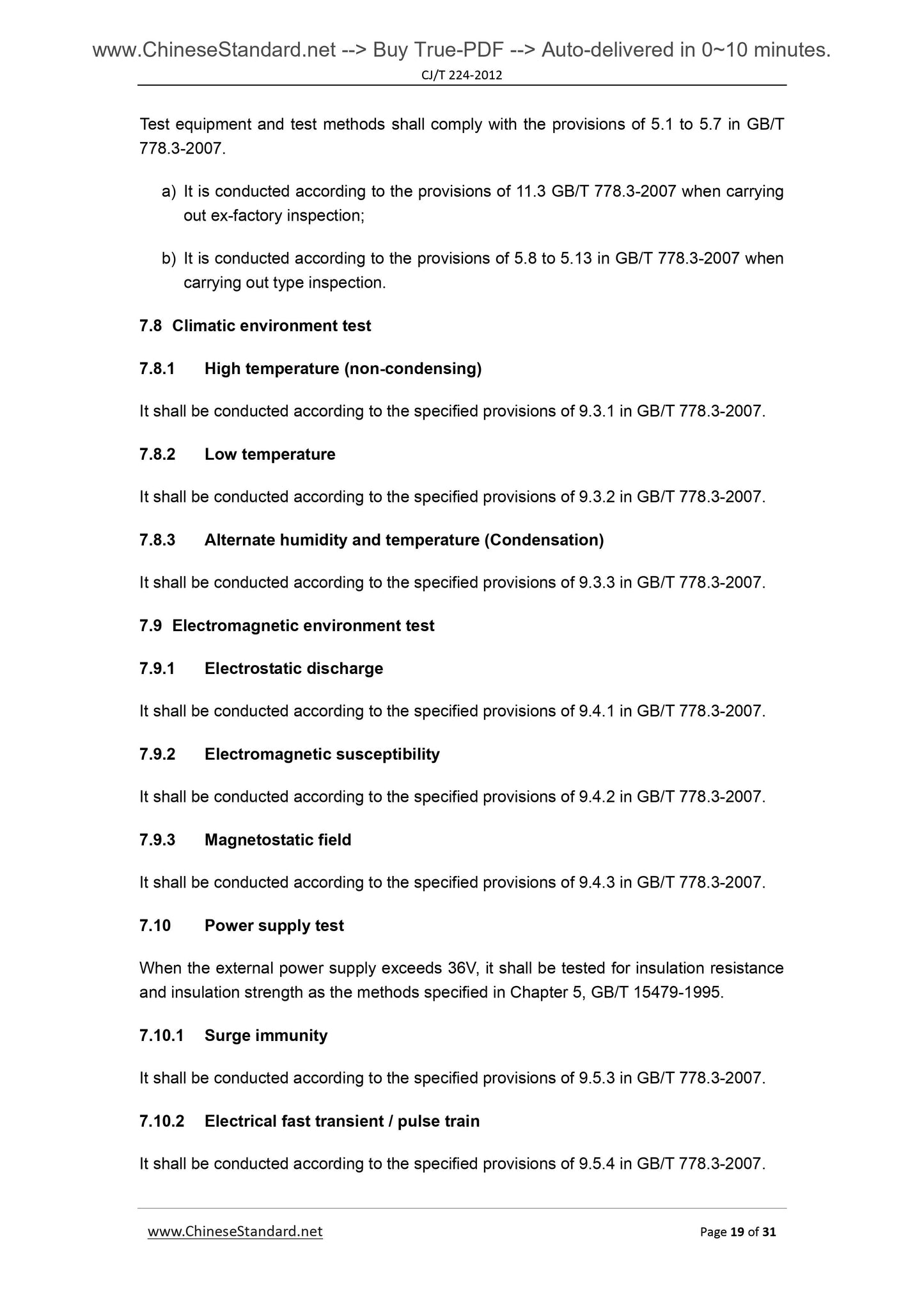

7.1 Test requirements
Requirements for general tests shall comply with provisions of Chapter 4, GB/T 778.3-2007. At the same time, it shall be equipped with the handheld unit, portable or stationary meter reading system that are matched for data transmission of the electronic remote-reading water-meter. Check the functions prior to test. It can only be put...
