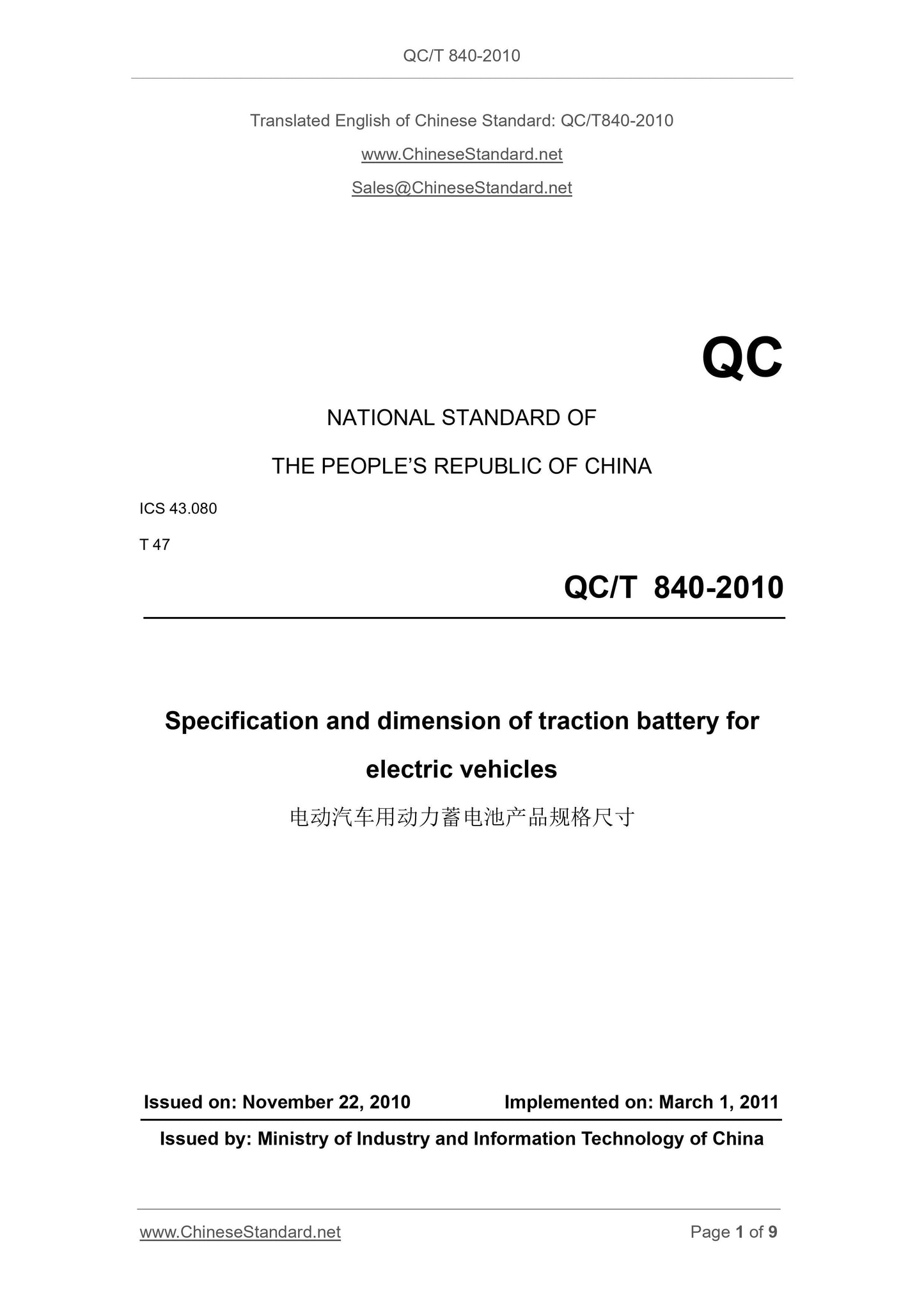

QC/T 840-2010: Specification and dimension of traction battery for electric vehicles
NATIONAL STANDARD OF
THE PEOPLE REPUBLIC OF CHINA
Specification and dimension of traction battery for
ISSUED ON. NOVEMBER 22, 2010
IMPLEMENTED ON. MARCH 1, 2011
Issued by. Ministry of Industry and Information Technology of China

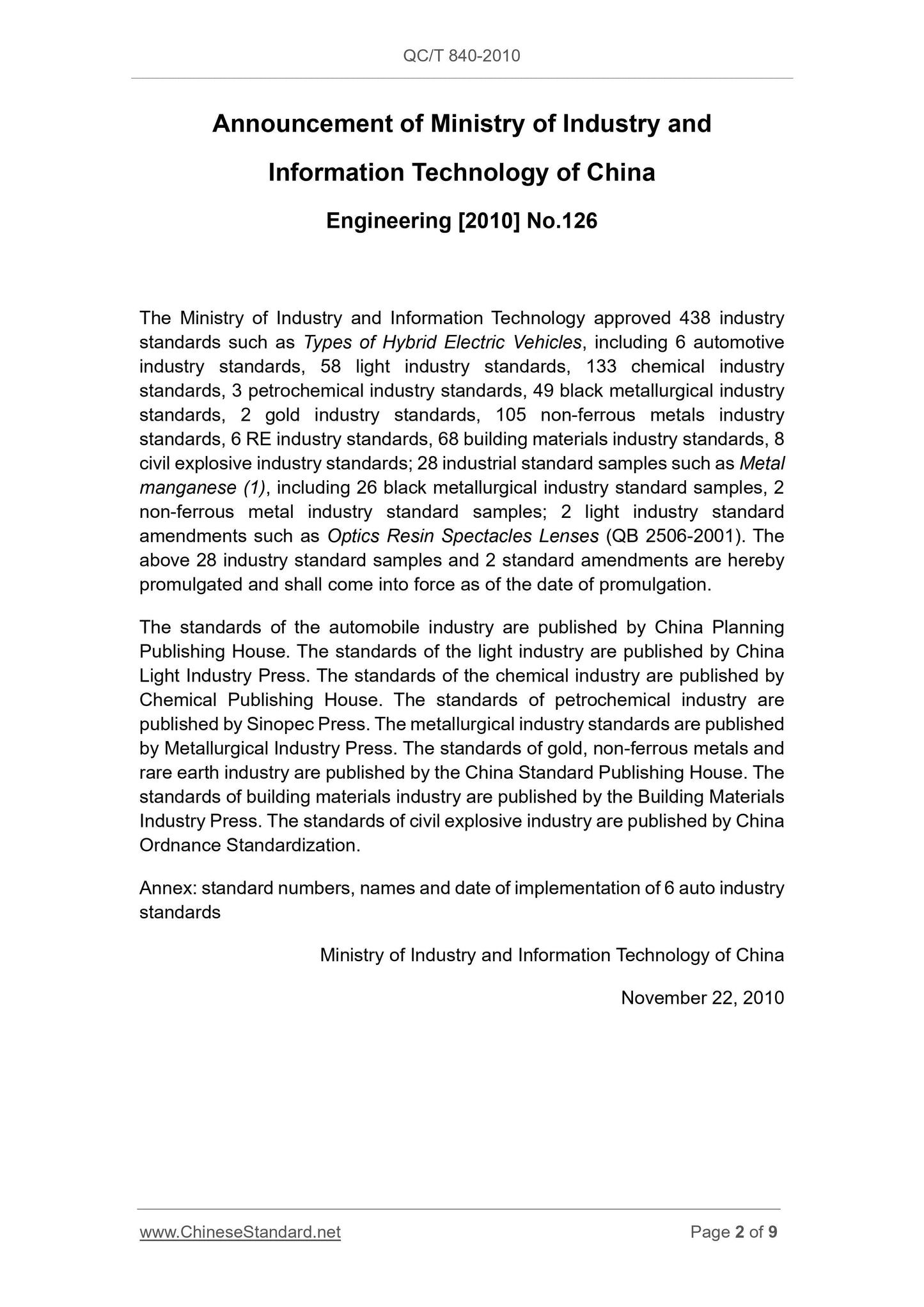

Announcement of Ministry of Industry and
Information Technology of China
Engineering  No.126
The Ministry of Industry and Information Technology approved 438 industry standards such as Types of Hybrid Electric Vehicles, including 6 automotive industry standards, 58 light industry standards, 133 chemical industry
standards, 3 petrochemical industry standards, 49 black metallurgical industry standards, 2 gold industry standards, 105 non-ferrous metals industry
standards, 6 RE industry standards, 68 building materials industry standards, 8 civil explosive industry standards; 28 industrial standard samples such as Metal manganese (1), including 26 black metallurgical industry standard samples, 2 non-ferrous metal industry standard samples; 2 light industry standard
amendments such as Optics Resin Spectacles Lenses (QB 2506-2001). The
above 28 industry standard samples and 2 standard amendments are hereby promulgated and shall come into force as of the date of promulgation.
The standards of the automobile industry are published by China Planning Publishing House. The standards of the light industry are published by China Light Industry Press. The standards of the chemical industry are published by Chemical Publishing House. The standards of petrochemical industry are
published by Sinopec Press. The metallurgical industry standards are published by Metallurgical Industry Press. The standards of gold, non-ferrous metals and rare earth industry are published by the China Standard Publishing House. The standards of building materials industry are published by the Building Materials Industry Press. The standards of civil explosive industry are published by China Ordnance Standardization.

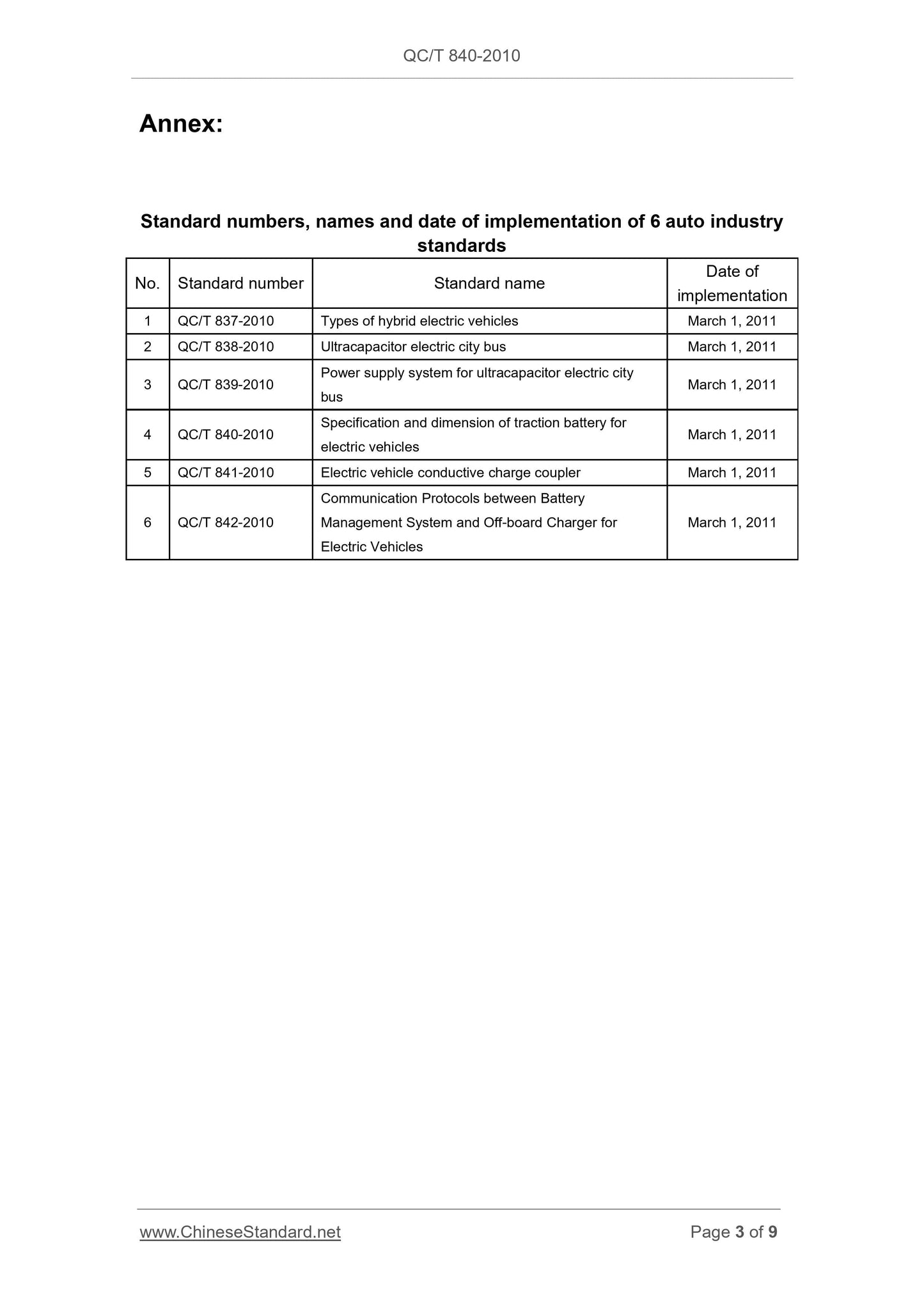

Annex. standard numbers, names and date of implementation of 6 auto industry standards
Ministry of Industry and Information Technology of China
November 22, 2010

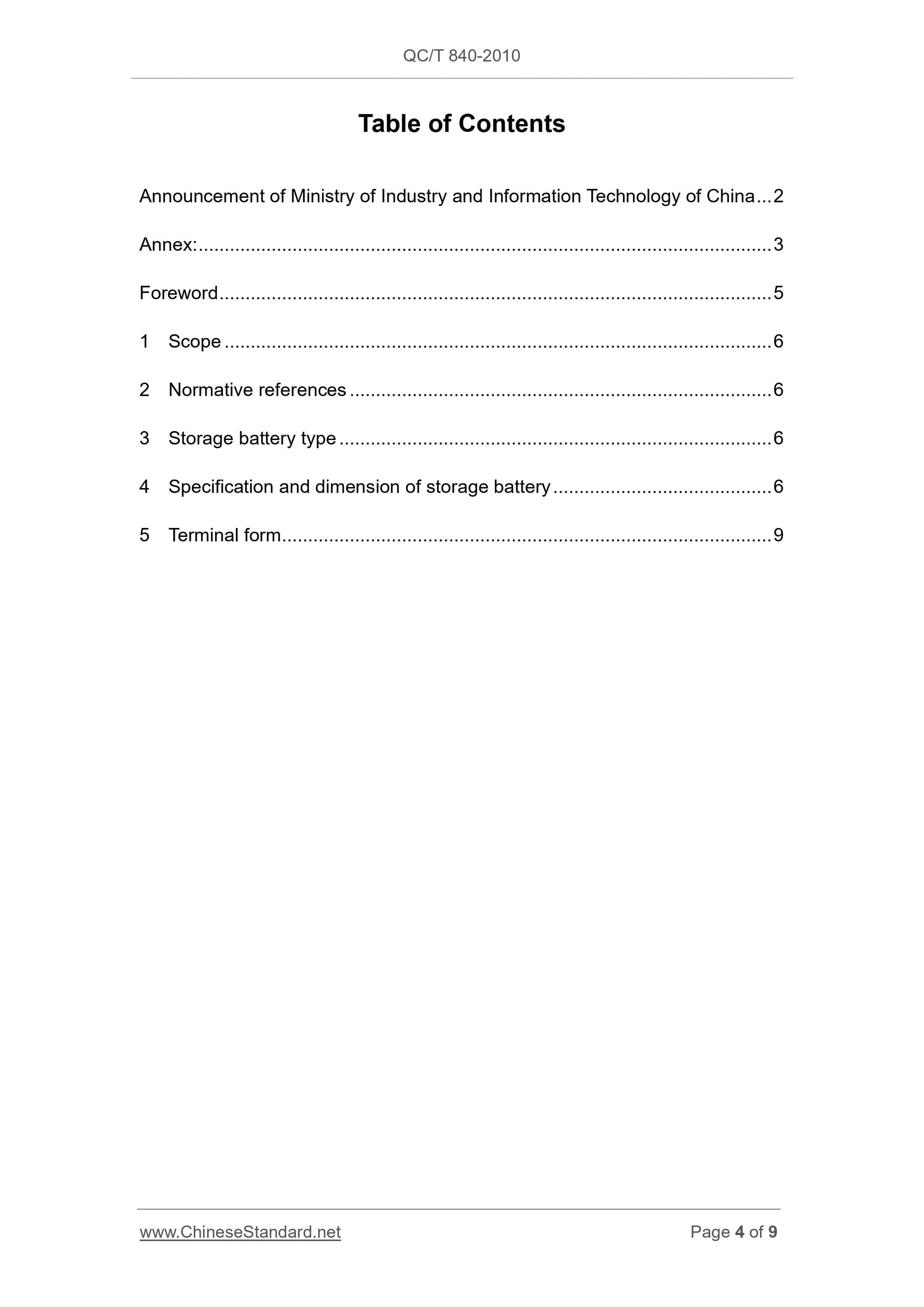

Table of Contents
Announcement of Ministry of Industry and Information Technology of China ... 2 Annex... 3
Foreword ... 5
1 Scope ... 6
2 Normative references ... 6
3 Storage battery type ... 6
4 Specification and dimension of storage battery ... 6
5 Terminal form ... 9

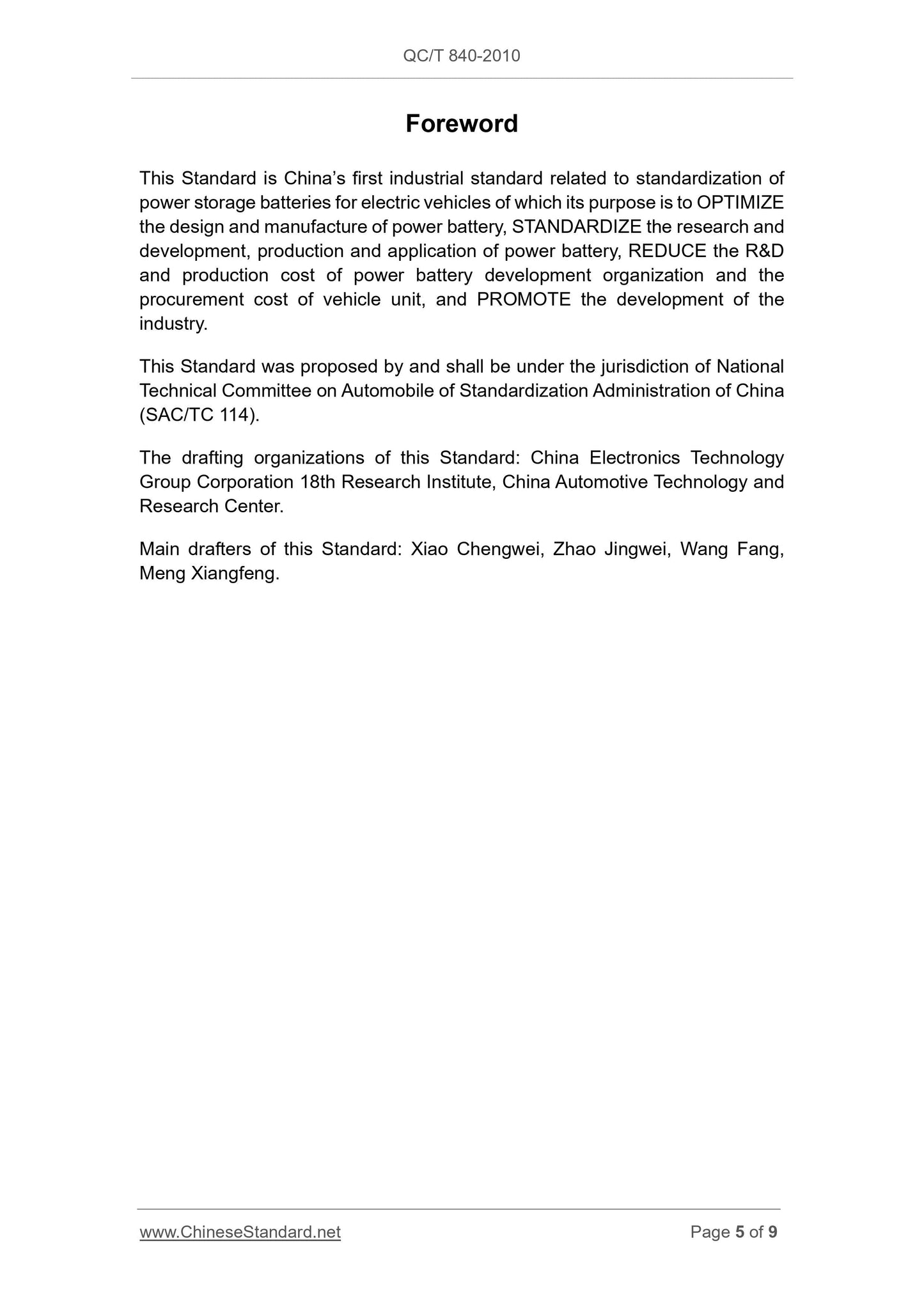

This Standard is China?€?s first industrial standard related to standardization of power storage batteries for electric vehicles of which its purpose is to OPTIMIZE the design and manufacture of power battery, STANDARDIZE the research and development, production and application of power battery, REDUCE the R and D and production cost of power battery development organization and the
procurement cost of vehicle unit, and PROMOTE the development of the
This Standard was proposed by and shall be under the jurisdiction of National Technical Committee on Automobile of Standardization Administration of China (SAC/TC 114).
The drafting organizations of this Standard. China Electronics Technology Group Corporation 18th Research Institute, China Automotive Technology and Research Center.
Main drafters of this Standard. Xiao Chengwei, Zhao Jingwei, Wang Fang, Meng Xiangfeng.

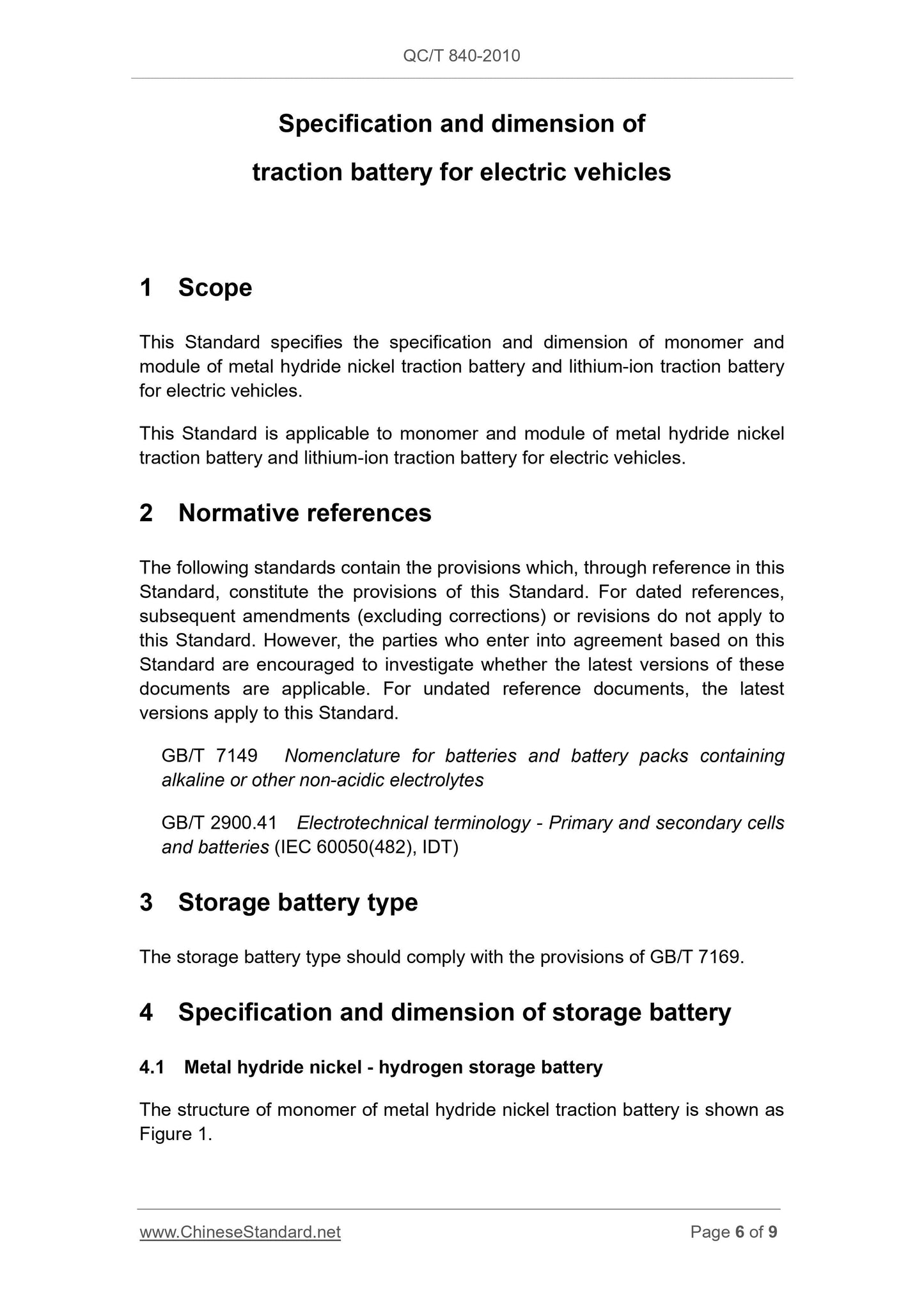

Specification and dimension of
traction battery for electric vehicles
This Standard specifies the specification and dimension of monomer and
module of metal hydride nickel traction battery and lithium-ion traction battery for electric vehicles.
This Standard is applicable to monomer and module of metal hydride nickel traction battery and lithium-ion traction battery for electric vehicles. 2 Normative references
The following standards contain the provisions which, through reference in this Standard, constitute the provisions of this Standard. For dated references, subsequent amendments (excluding corrections) or revisions do not apply to this Standard. However, the parties who enter into agreement based on this Standard are encouraged to investigate whether the latest versions of these documents are applicable. For undated reference documents, the latest
versions apply to this Standard.
GB/T 7149 Nomenclature for batteries and battery packs containing
alkaline or other non-acidic electrolytes
GB/T 2900.41 Electrotechnical terminology - Primary and secondary cells and batteries (IEC 60050(482), IDT)
3 Storage battery type
The storage battery type should comply with the provisions of GB/T 7169. 4 Specification and dimension of storage battery
4.1 Metal hydride nickel - hydrogen storage battery

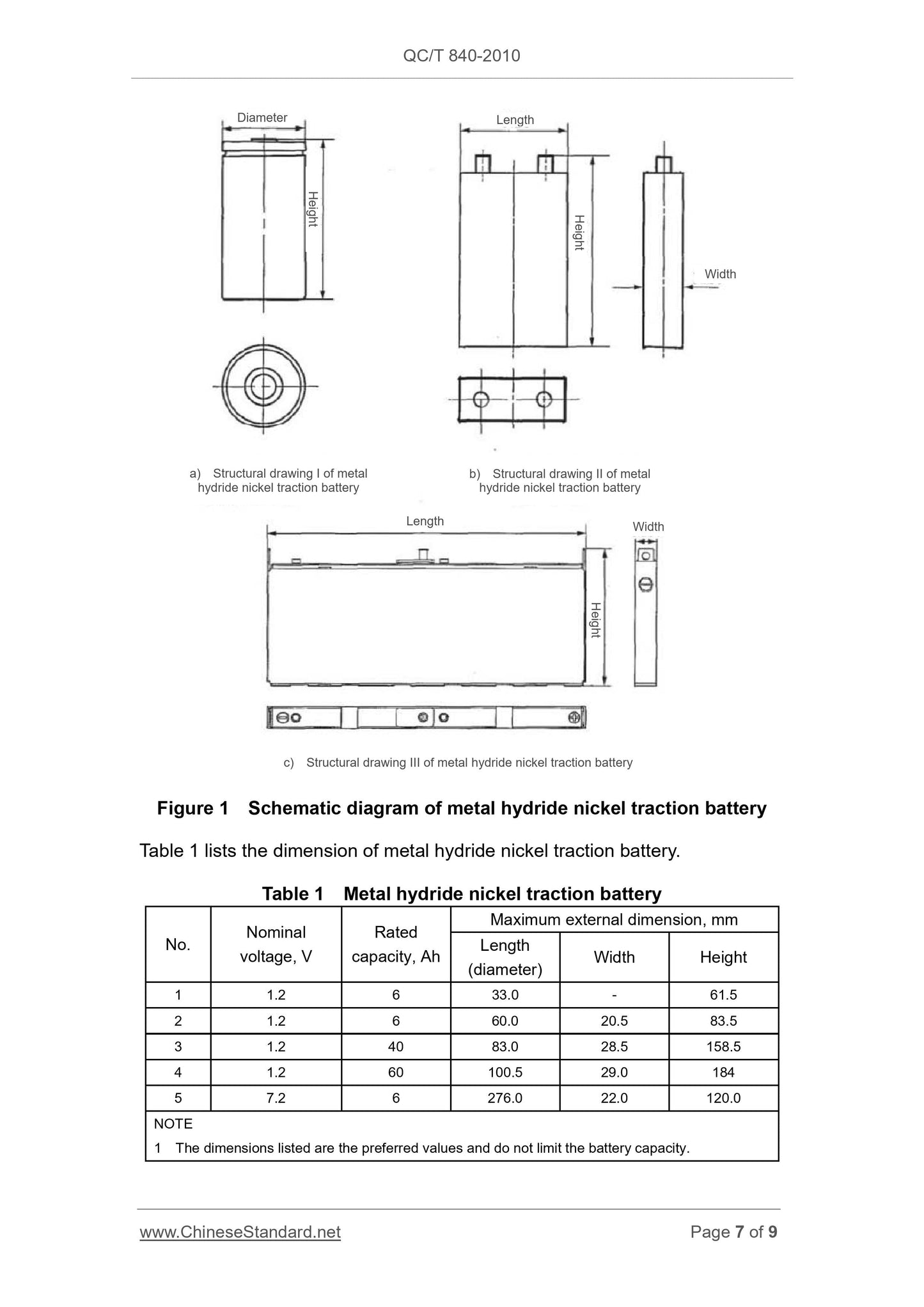

The structure of monomer of metal hydride nickel traction battery is shown as Figure 1.
