QC/T 1077-2017 English PDF (QCT1077-2017)

QC/T 1077-2017 English PDF (QCT1077-2017)

Regular price $125.00 USD
Regular price Sale price $125.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here QC/T 1077-2017 to get it for Purchase Approval, Bank TT...

QC/T 1077-2017: Terms of automotive automatic transmission classifications

This Standard specifies the terms and definitions of automotive automatic transmission classifications. This Standard applies to the automotive automatic transmission where the internal combustion engine is the sole source of power.

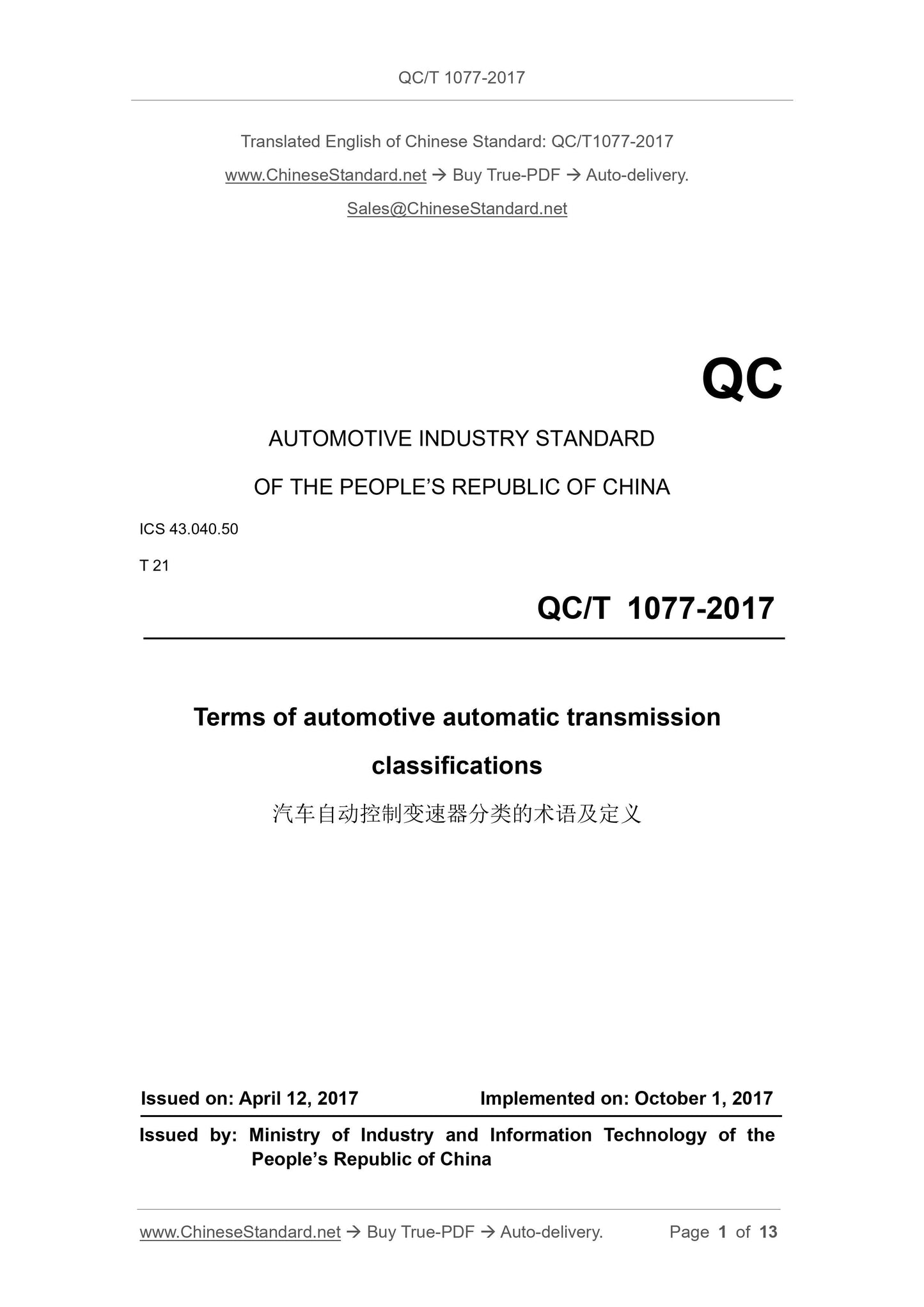

QC/T 1077-2017
AUTOMOTIVE INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 43.040.50
T 21
Terms of automotive automatic transmission
classifications
ISSUED ON: APRIL 12, 2017
IMPLEMENTED ON: OCTOBER 1, 2017
Issued by: Ministry of Industry and Information Technology of the
PEOPLE Republic of China

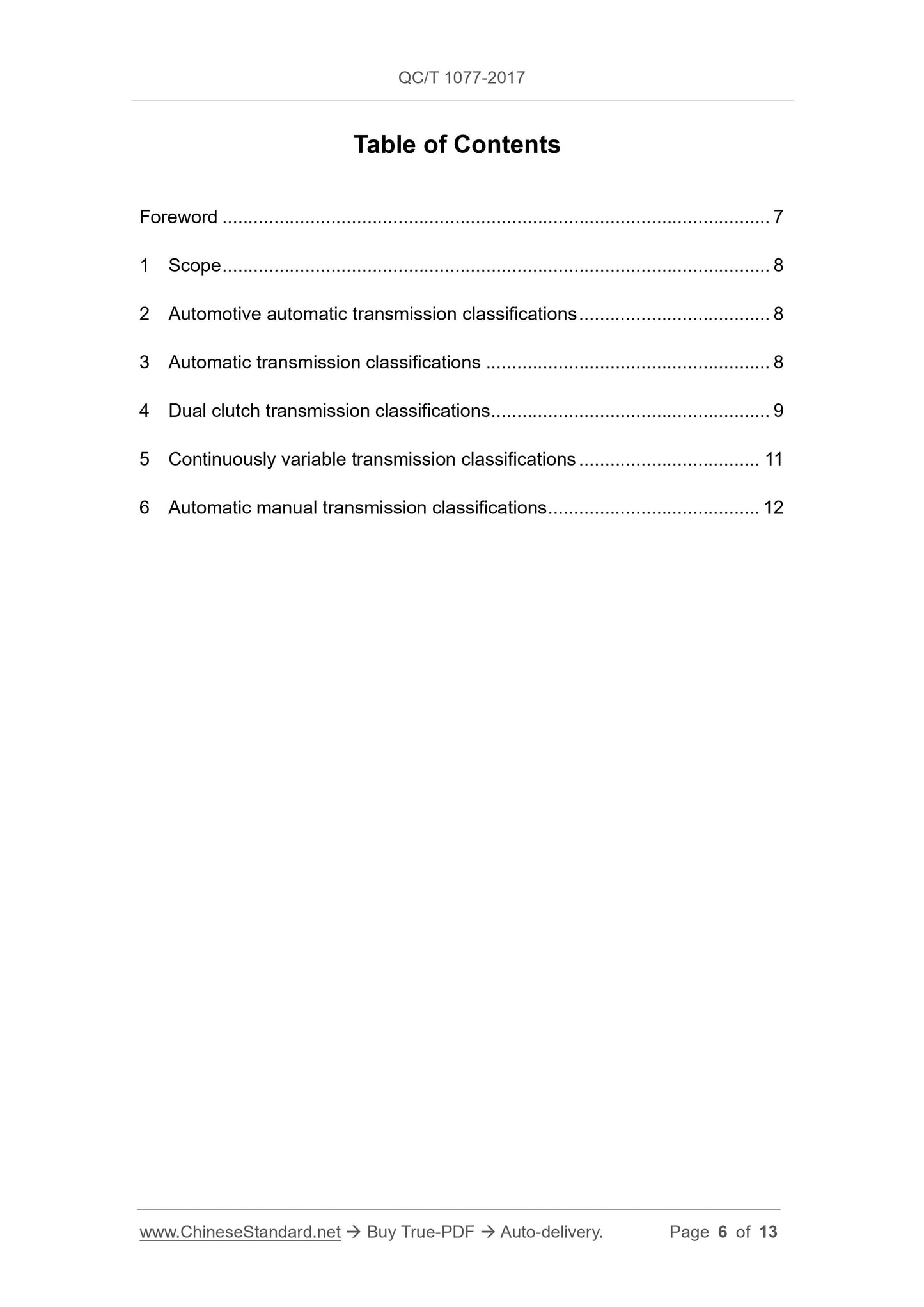

Table of Contents
Foreword ... 7
1 Scope ... 8
2 Automotive automatic transmission classifications ... 8
3 Automatic transmission classifications ... 8
4 Dual clutch transmission classifications ... 9
5 Continuously variable transmission classifications ... 11
6 Automatic manual transmission classifications ... 12

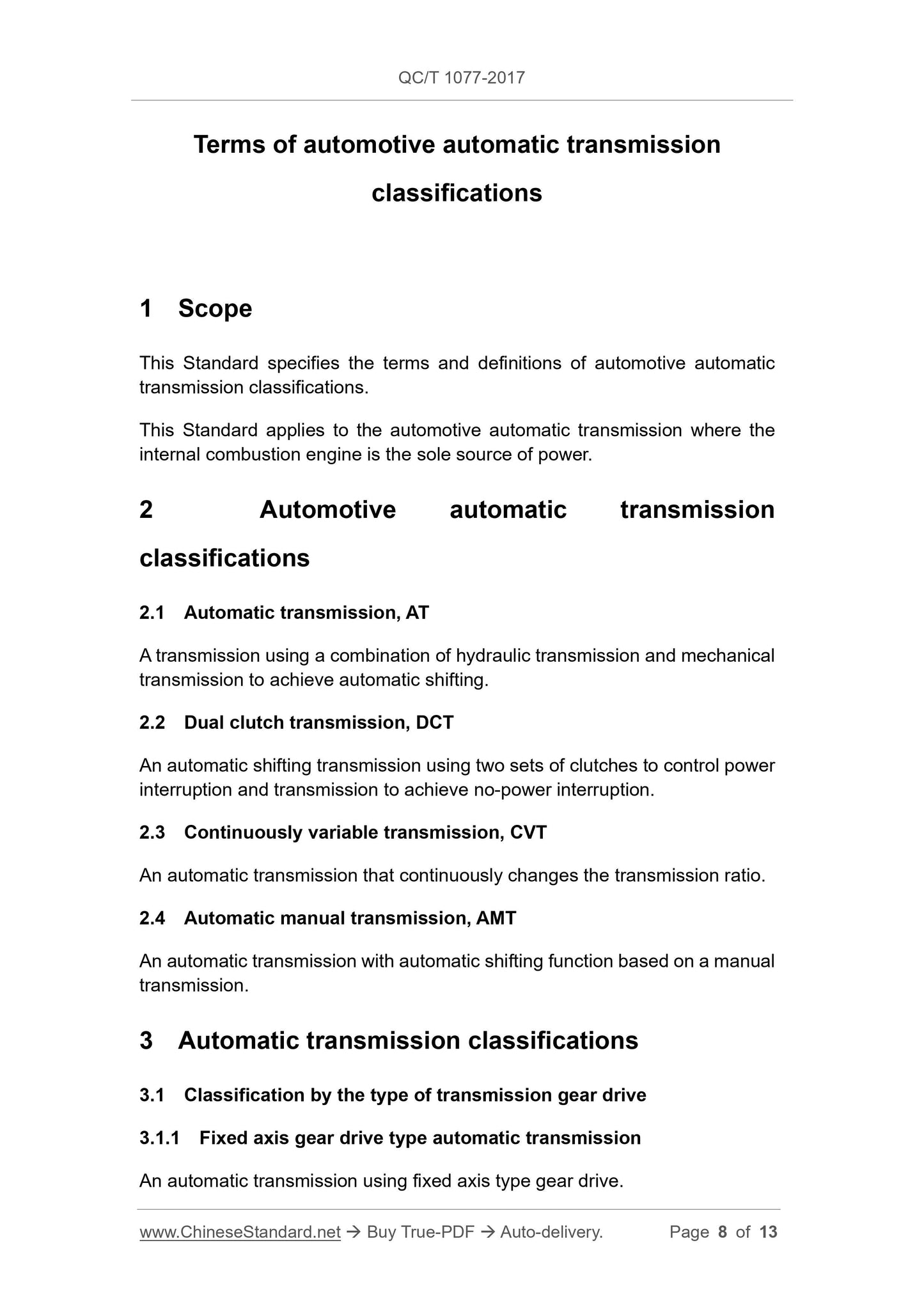

Terms of automotive automatic transmission
classifications
1 Scope
This Standard specifies the terms and definitions of automotive automatic transmission classifications.
This Standard applies to the automotive automatic transmission where the internal combustion engine is the sole source of power.
2 Automotive automatic transmission
classifications
2.1 Automatic transmission, AT
A transmission using a combination of hydraulic transmission and mechanical transmission to achieve automatic shifting.
2.2 Dual clutch transmission, DCT
An automatic shifting transmission using two sets of clutches to control power interruption and transmission to achieve no-power interruption.
2.3 Continuously variable transmission, CVT
An automatic transmission that continuously changes the transmission ratio. 2.4 Automatic manual transmission, AMT
An automatic transmission with automatic shifting function based on a manual transmission.
3 Automatic transmission classifications
3.1 Classification by the type of transmission gear drive
3.1.1 Fixed axis gear drive type automatic transmission
An automatic transmission using fixed axis type gear drive.

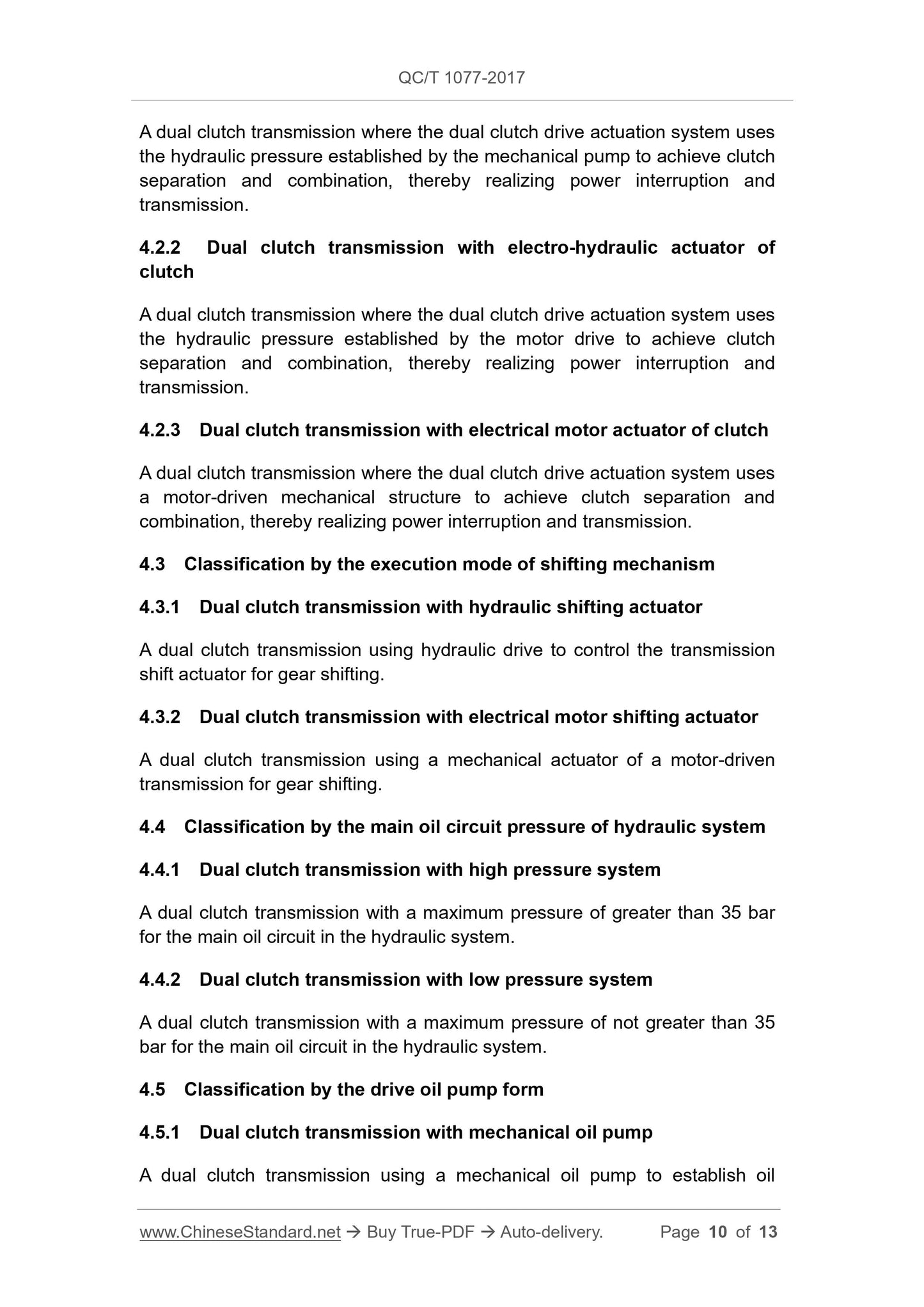

A dual clutch transmission where the dual clutch drive actuation system uses the hydraulic pressure established by the mechanical pump to achieve clutch separation and combination, thereby realizing power interruption and
transmission.
4.2.2 Dual clutch transmission with electro-hydraulic actuator of
clutch
A dual clutch transmission where the dual clutch drive actuation system uses the hydraulic pressure established by the motor drive to achieve clutch separation and combination, thereby realizing power interruption and
transmission.
4.2.3 Dual clutch transmission with electrical motor actuator of clutch A dual clutch transmission where the dual clutch drive actuation system uses a motor-driven mechanical structure to achieve clutch separation and
combination, thereby realizing power interruption and transmission.
4.3 Classification by the execution mode of shifting mechanism
4.3.1 Dual clutch transmission with hydraulic shifting actuator
A dual clutch transmission using hydraulic drive to control the transmission shift actuator for gear shifting.
4.3.2 Dual clutch transmission with electrical motor shifting actuator
A dual clutch transmission using a mechanical actuator of a motor-driven transmission for gear shifting.
4.4 Classification by the main oil circuit pressure of hydraulic system 4.4.1 Dual clutch transmission with high pressure system
A dual clutch transmission with a maximum pressure of greater than 35 bar for the main oil circuit in the hydraulic system.
4.4.2 Dual clutch transmission with low pressure system
A dual clutch transmission with a maximum pressure of not greater than 35 bar for the main oil circuit in the hydraulic system.
4.5 Classification by the drive oil pump form
4.5.1 Dual clutch transmission with mechanical oil pump

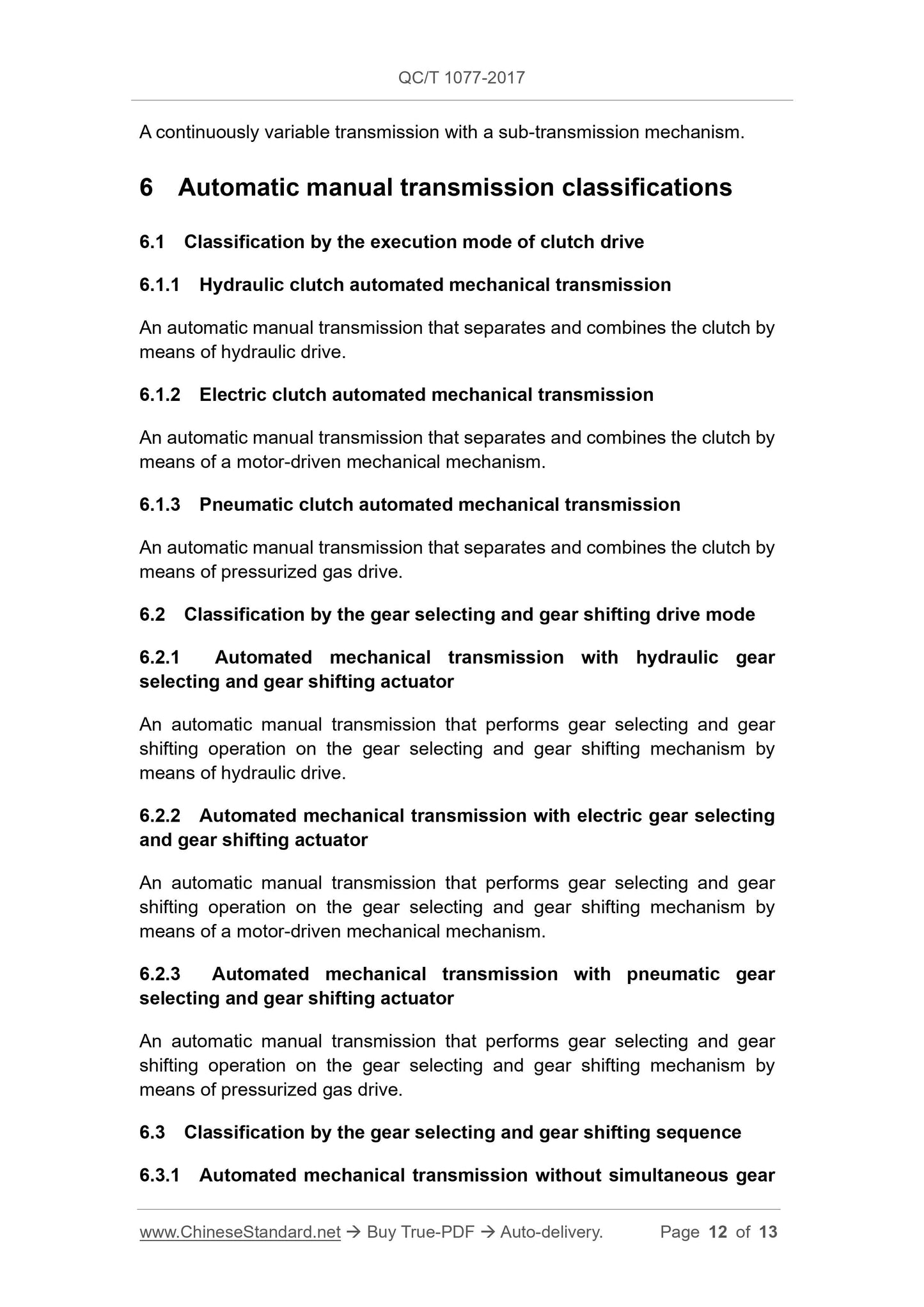

A dual clutch transmission using a mechanical oil pump to establish oil A continuously variable transmission with a sub-transmission mechanism. 6 Automatic manual transmission classifications
6.1 Classification by the execution mode of clutch drive
6.1.1 Hydraulic clutch automated mechanical transmission
An automatic manual transmission that separates and combines the clutch by means of hydraulic drive.
6.1.2 Electric clutch automated mechanical transmission
An automatic manual transmission that separates and combines the clutch by means of a motor-driven mechanical mechanism.
6.1.3 Pneumatic clutch automated mechanical transmission
An automatic manual transmission that separates and combines the clutch by means of pressurized gas drive.
6.2 Classification by the gear selecting and gear shifting drive mode
6.2.1 Automated mechanical transmission with hydraulic gear
selecting and gear shifting actuator
An automatic manual transmission that performs gear selecting and gear
shifting operation on the gear selecting and gear shifting mechanism by means of hydraulic drive.
6.2.2 Automated mechanical transmission with electric gear selecting
and gear shifting actuator
An automatic manual transmission that performs gear selecting and gear
shifting operation on the gear selecting and gear shifting mechanism by means of a motor-driven mechanical mechanism.
6.2.3 Automated mechanical transmission with pneumatic gear
selecting and gear shifting actuator
An automatic manual transmission that performs gear selecting and gear
shifting operation on the gear selecting and gear shifting mechanism by means of pressurized gas drive.
6.3 Classification by the gear selecting and gear shifting sequence
6.3.1 Automated mechanical transmission without simultaneous gear
