QC/T 1069-2017: Permanent magnet synchronous drive motor system for electric vehicles

This Standard specifies the technical requirements, test methods, inspection rules, marks and identifiers of permanent magnet synchronous drive motor system for electric vehicles. This Standard is applicable to the permanent magnet synchronous drive motor system for electric vehicles.

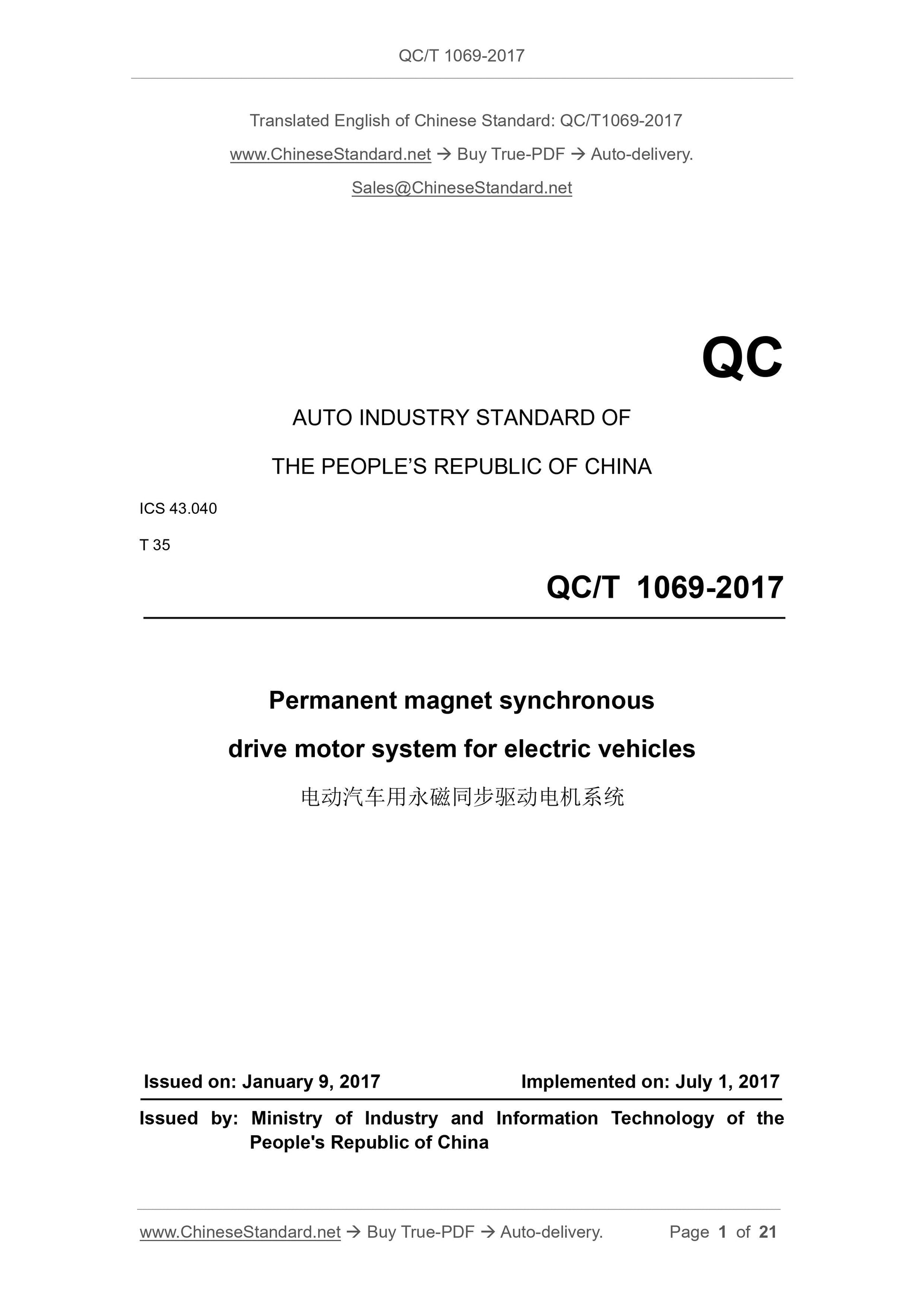

QC/T 1069-2017
QC
AUTO INDUSTRY STANDARD OF
THE PEOPLE REPUBLIC OF CHINA
ICS 43.040
T 35
Permanent magnet synchronous
drive motor system for electric vehicles
ISSUED ON. JANUARY 9, 2017
IMPLEMENTED ON. JULY 1, 2017
Issued by. Ministry of Industry and Information Technology of the
People's Republic of China

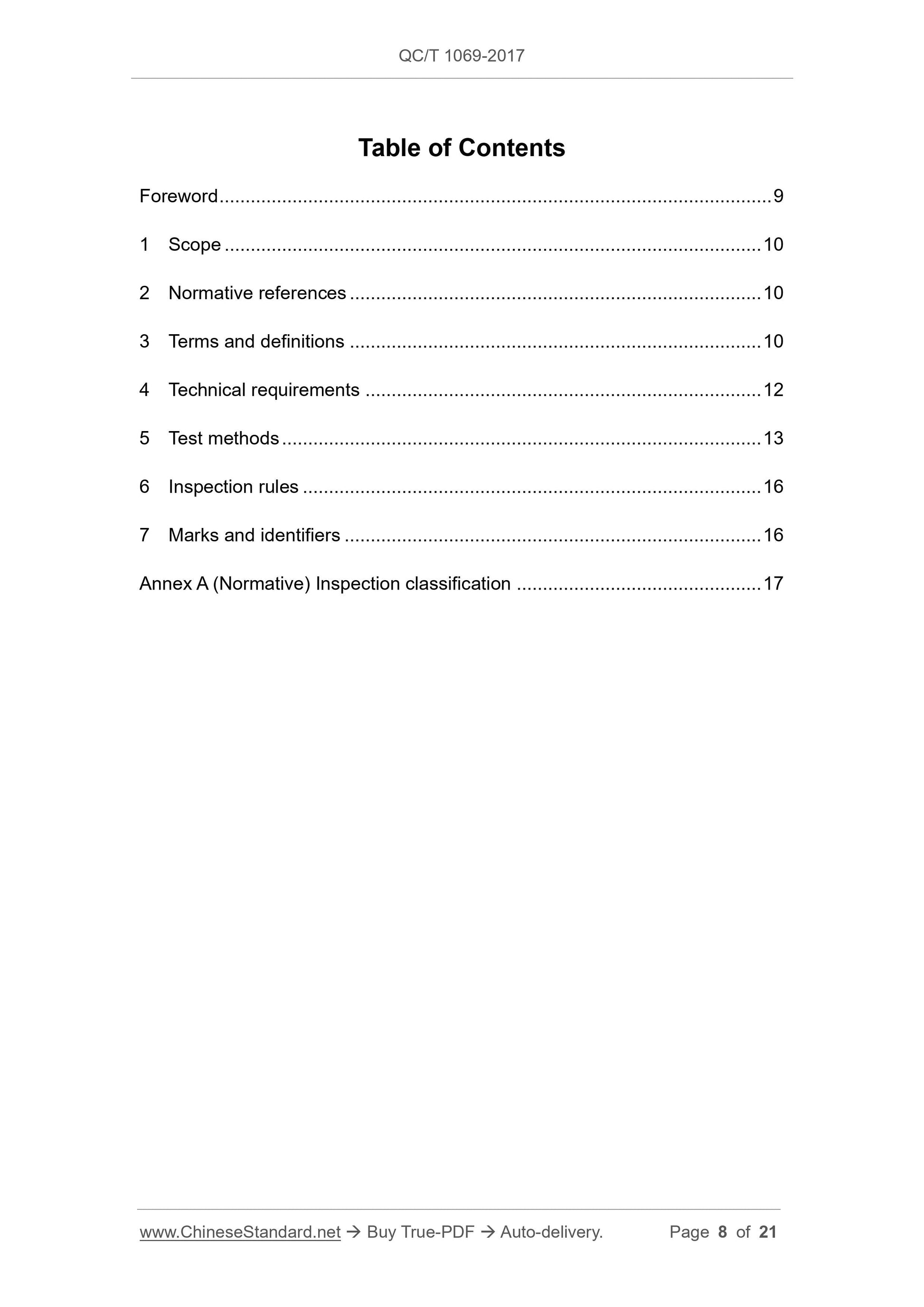

Table of Contents
Foreword ... 9
1 Scope ... 10
2 Normative references ... 10
3 Terms and definitions ... 10
4 Technical requirements ... 12
5 Test methods ... 13
6 Inspection rules ... 16
7 Marks and identifiers ... 16
Annex A (Normative) Inspection classification ... 17

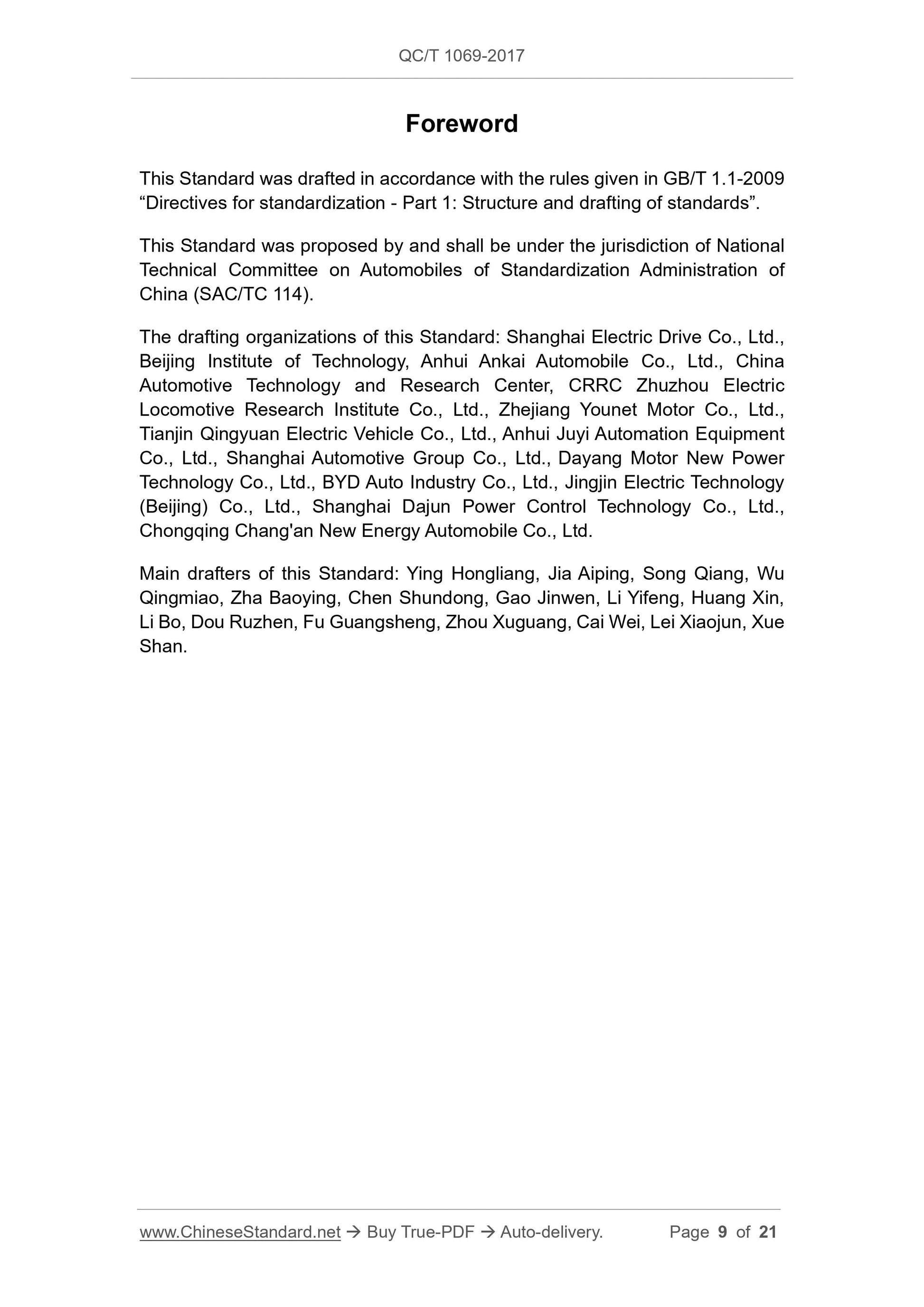

Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009 ?€?Directives for standardization - Part 1. Structure and drafting of standards?€?. This Standard was proposed by and shall be under the jurisdiction of National Technical Committee on Automobiles of Standardization Administration of China (SAC/TC 114).
The drafting organizations of this Standard. Shanghai Electric Drive Co., Ltd., Beijing Institute of Technology, Anhui Ankai Automobile Co., Ltd., China Automotive Technology and Research Center, CRRC Zhuzhou Electric
Locomotive Research Institute Co., Ltd., Zhejiang Younet Motor Co., Ltd., Tianjin Qingyuan Electric Vehicle Co., Ltd., Anhui Juyi Automation Equipment Co., Ltd., Shanghai Automotive Group Co., Ltd., Dayang Motor New Power
Technology Co., Ltd., BYD Auto Industry Co., Ltd., Jingjin Electric Technology (Beijing) Co., Ltd., Shanghai Dajun Power Control Technology Co., Ltd., Chongqing Chang'an New Energy Automobile Co., Ltd.
Main drafters of this Standard. Ying Hongliang, Jia Aiping, Song Qiang, Wu Qingmiao, Zha Baoying, Chen Shundong, Gao Jinwen, Li Yifeng, Huang Xin, Li Bo, Dou Ruzhen, Fu Guangsheng, Zhou Xuguang, Cai Wei, Lei Xiaojun, Xue Shan.
Permanent magnet synchronous
drive motor system for electric vehicles

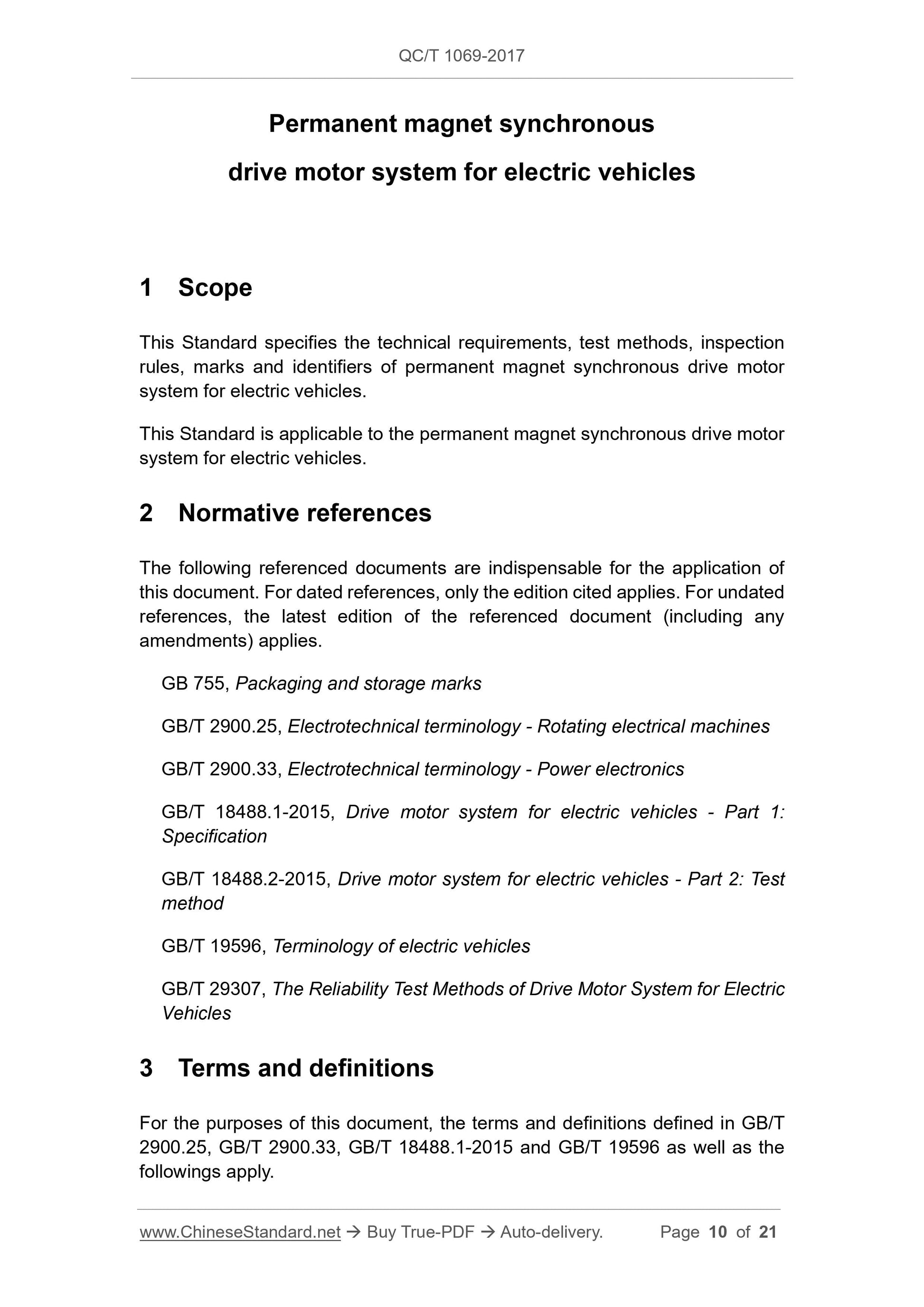

1 Scope
This Standard specifies the technical requirements, test methods, inspection rules, marks and identifiers of permanent magnet synchronous drive motor system for electric vehicles.
This Standard is applicable to the permanent magnet synchronous drive motor system for electric vehicles.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
GB 755, Packaging and storage marks
GB/T 2900.25, Electrotechnical terminology - Rotating electrical machines GB/T 2900.33, Electrotechnical terminology - Power electronics
GB/T 18488.1-2015, Drive motor system for electric vehicles - Part 1.
Specification
GB/T 18488.2-2015, Drive motor system for electric vehicles - Part 2. Test method
GB/T 19596, Terminology of electric vehicles
GB/T 29307, The Reliability Test Methods of Drive Motor System for Electric Vehicles

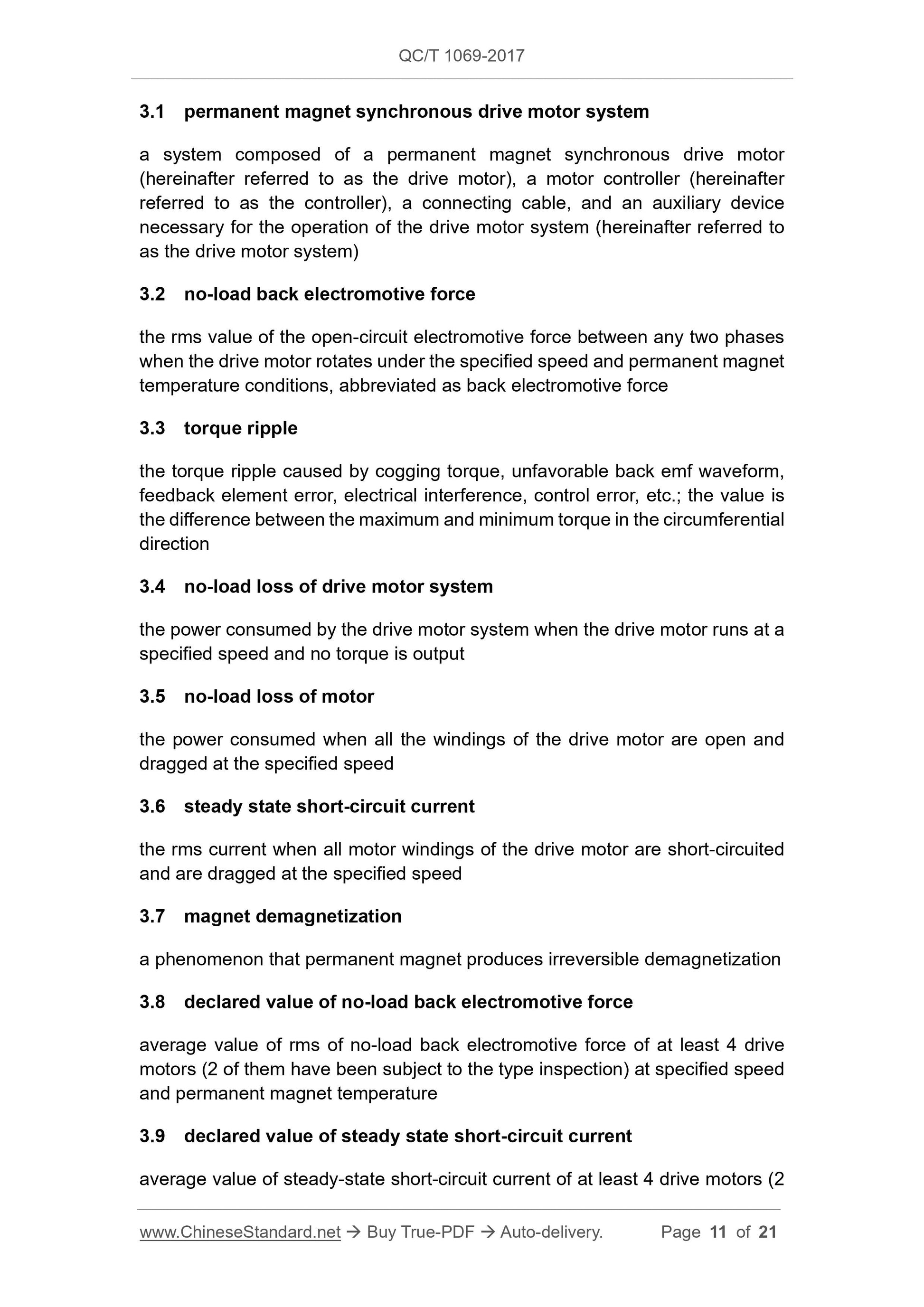

3 Terms and definitions
For the purposes of this document, the terms and definitions defined in GB/T 2900.25, GB/T 2900.33, GB/T 18488.1-2015 and GB/T 19596 as well as the
followings apply.
of them have been subject to the type inspection) at specified speed and permanent magnet temperature

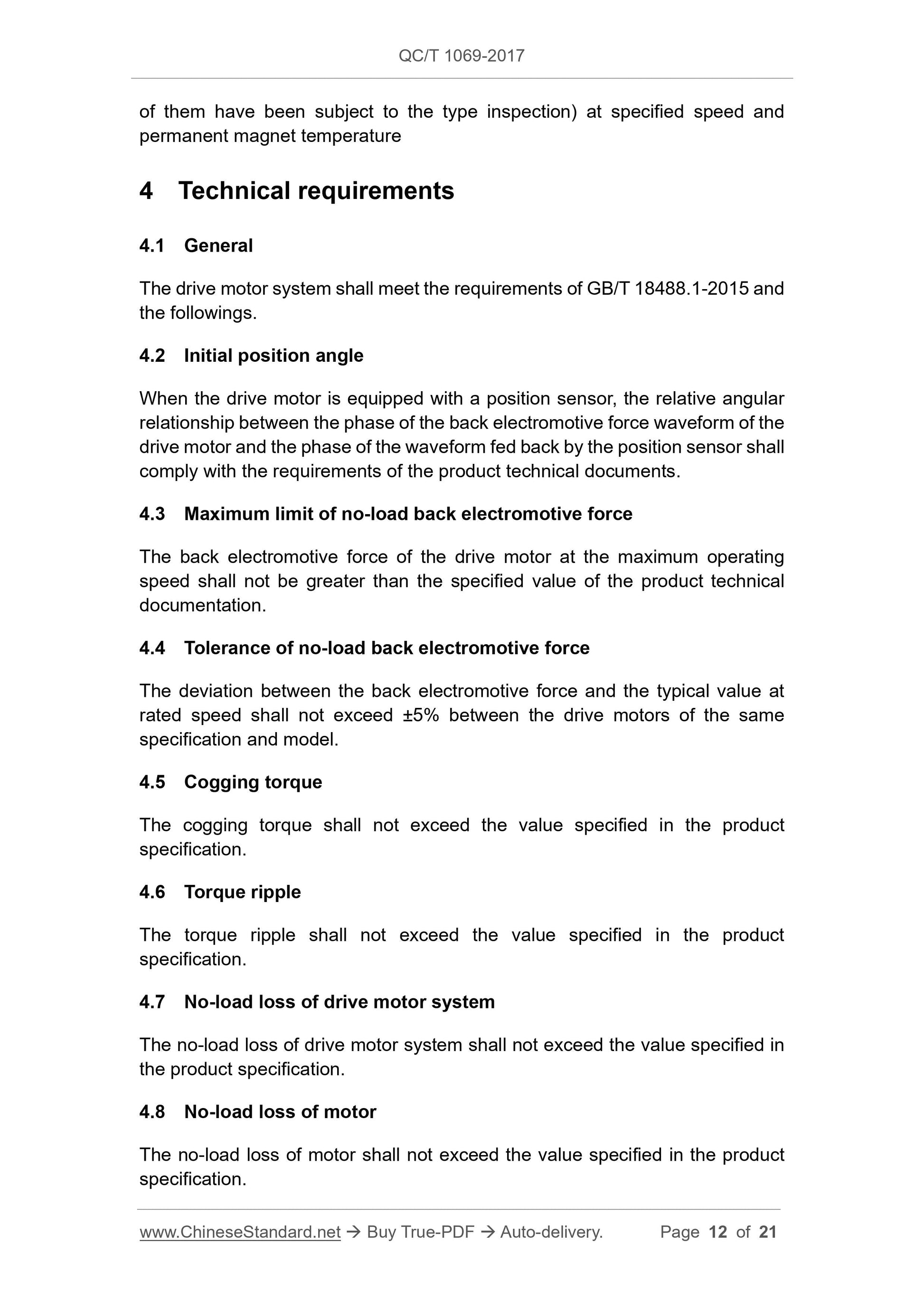

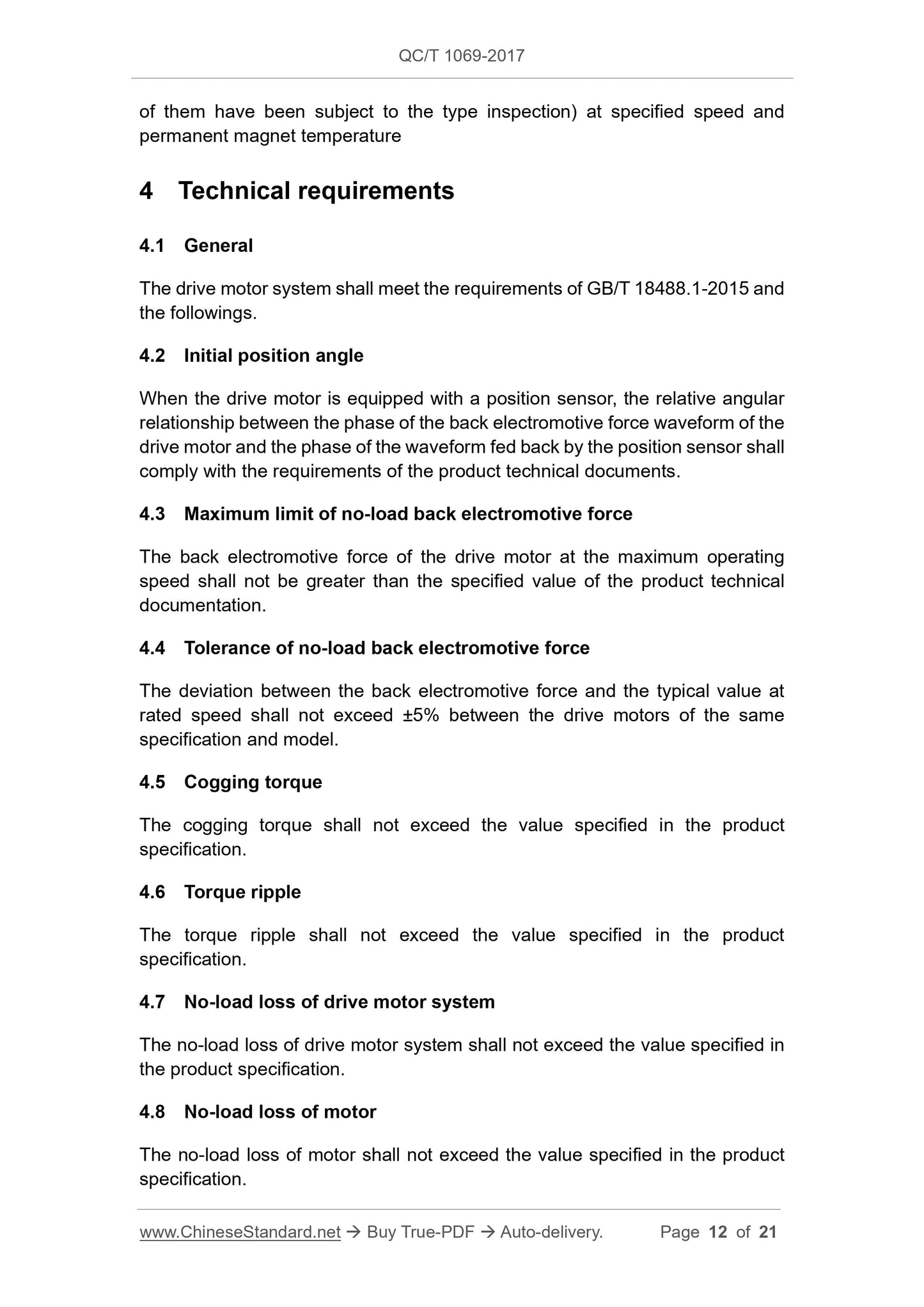

4 Technical requirements
4.1 General
The drive motor system shall meet the requirements of GB/T 18488.1-2015 and the followings.
4.2 Initial position angle
When the drive motor is equipped with a position sensor, the relative angular relationship between the phase of the back electromotive force waveform of the drive motor and the phase of the waveform fed back by the position sensor shall comply with the requirements of the product technical documents.
4.3 Maximum limit of no-load back electromotive force
The back electromotive force of the drive motor at the maximum operating speed shall not be greater than the specified value of the product technical documentation.
4.4 Tolerance of no-load back electromotive force
The deviation between the back electromotive force and the typical value at rated speed shall not exceed ??5% between the drive motors of the same
specification and model.
4.5 Cogging torque
The cogging torque shall not exceed the value specified in the product
specification.
4.6 Torque ripple
The torque ripple shall not exceed the value specified in the product
specification.
4.7 No-load loss of drive motor system
The no-load loss of drive motor system shall not exceed the value specified in the product specification.
4.8 No-load loss of motor
The no-load loss of motor shall not exceed the value specified in the product specification.
The test is performed under the actual cold condition and the ambient
temperature during the test must be recorded.
Drag the drive motor to rated speed and measure back electromotive force. The temperature correction method is described in 5.3.
For factory inspections in mass production, the supplier and the purchaser may agree on other methods to reflect the tolerance of no-load back electromotive force for the inspection of this item.
5.5 Cogging torque
The test is conducted in the actual cold state.
Place the drive motor smoothly and randomly select 3 different rotor positions. Rotate the rotor in opposite directions with torque wrench at each position. Read and record the value of the torch wrench when the rotor starts to rotate without continuous rotation. Take the maximum of all torque values as the cogging torque of the drive motor.
Other test methods agreed by both parties can also be used.
NOTE The torque value measured with a torque wrench is actually the sum of the friction torque and the cogging torque. Because the cogging torque of the motor generally accounts for a large proportion, the measured value can be substantially equal to the cogging torque. 5.6 Torque ripple
The test is conducted in the actual cold state. When the drive motor system is in the normal electrical connection state and under the cooling conditions specified in the product technical documentation, the rated voltage is applied to the DC bus.
Select several points evenly on the circumference. Fix the rotor at each rotor position. The controller applies a specified torque command. Test locked-rotor torque separately. The difference between the maximum and minimum values in the test value is the torque ripple.
The number of test points and the torque command value are agreed upon by both parties. Recommended to use peak torque, rated torque, 10% peak torque as torque command.
Other test methods agreed by both parties can also be used.
NOTE This method is only an approximate measurement method for torque ripple in non- weak magnetic regions, and does not consider the effect of rotation-induced position sensor feedback angle error.
5.7 No-load loss of drive motor system
The test is conducted in the actual cold state. When the drive motor system is under normal electrical connection and cooling conditions specified in the product technical documentation, the rated voltage is applied on the DC bus and the drive motor shaft is not connected to the load.
Evenly take at least 5 speed points within the speed range, including the maximum operating speed. Measure DC bus current, voltage and losses at
these speed points.
After the test draw the relationship curve between loss and speed.
5.8 No-load loss of motor
The test is conducted in the actual cold state.
Drag the drive motor to the specified speed. Record the torque, speed and power of the torque and speed sensor. The power value is the no-load loss of the drive motor at this speed. Evenly take at least 5 speed points within the speed range, including the maximum operating speed.
After the test draw the relationship curve between loss and speed.
5.9 Steady-state short-circuit current limit
The test is conducted in the actual cold state.
Use short-circuit conductors to short-circuit all windings of the drive motor as close to the stator winding outlet as possible. Drag the drive motor to the appropriate speed. Measure stator winding current at this speed. Evenly take at least 5 speed points within the speed range, which must include the
maximum operating speed.
After the test, draw the curve of steady-state short-circuit current and speed. 5.10 Steady-state short-circuit current tolerance
The test method is same with 5.9.
5.11 Magnet aging demagnetization
Re-measure the back electromotive force of the drive motor that has been subject to the reliability test specified in GB/T 29307 according to the method of 5.3. Calculate the back electromotive force reduction before and after the reliability test.
Or to characterize and test according to the methods agreed by both parties.
