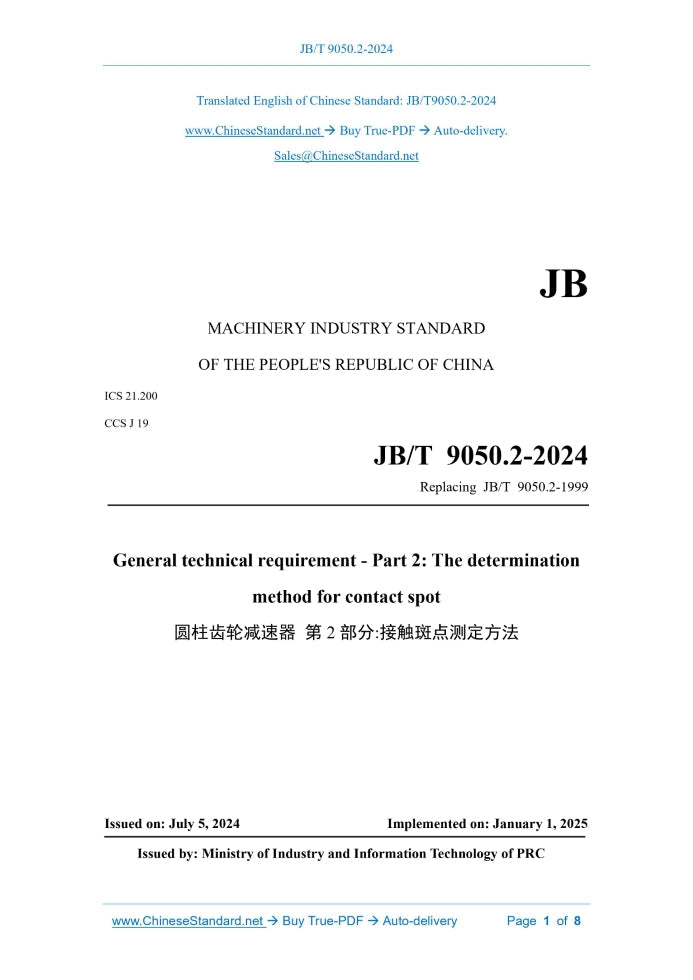

JB/T 9050.2-2024: General technical requirement - Part 2: The determination method for contact spot

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click JB/T 9050.2-2024 (Self-service in 1-minute)
Newer / historical versions: JB/T 9050.2-2024

Preview True-PDF

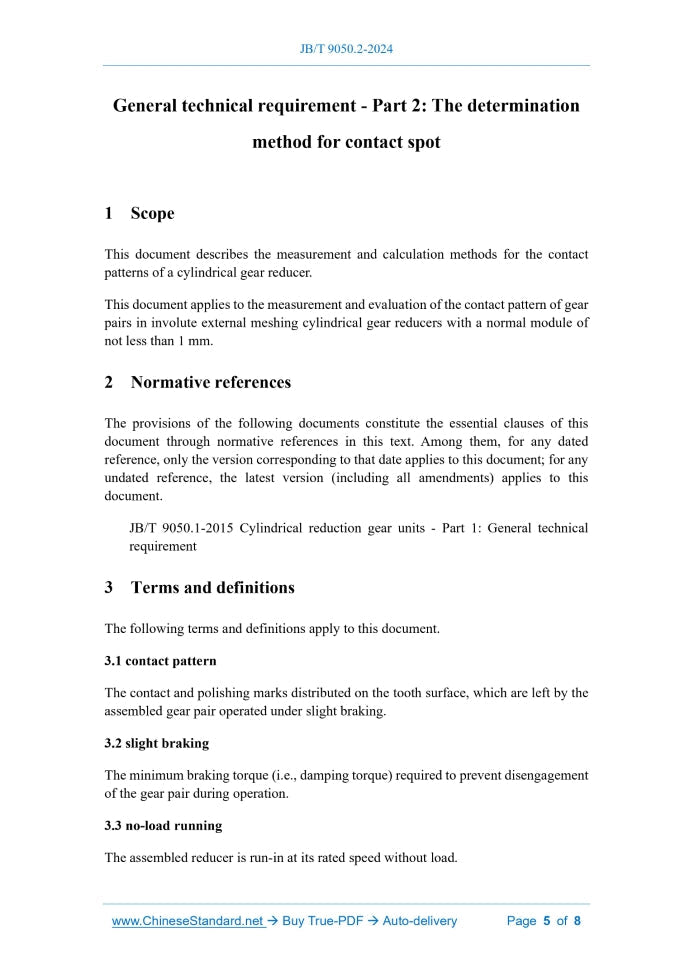

Scope

This document describes the measurement and calculation methods for the contact
patterns of a cylindrical gear reducer.
This document applies to the measurement and evaluation of the contact pattern of gear
pairs in involute external meshing cylindrical gear reducers with a normal module of
not less than 1 mm.

Basic Data

Standard ID	JB/T 9050.2-2024 (JB/T9050.2-2024)
Description (Translated English)	(Cylindrical gear reducers - Part 2: Method for determining contact spots)
Sector / Industry	Mechanical and Machinery Industry Standard (Recommended)
Classification of Chinese Standard	J19
Classification of International Standard	21.200
Date of Issue	2024-07-05
Date of Implementation	2025-01-01
Older Standard (superseded by this standard)	JB/T 9050.2-1999
Issuing agency(ies)	Ministry of Industry and Information Technology
Summary	This standard specifies the measurement method of contact spots of cylindrical gear reducers and the evaluation and calculation methods of contact spots.
