JB/T 6639-2015: Rolling bearings -- Rubber seals reinforced with a sheet steel insert -- Specifications

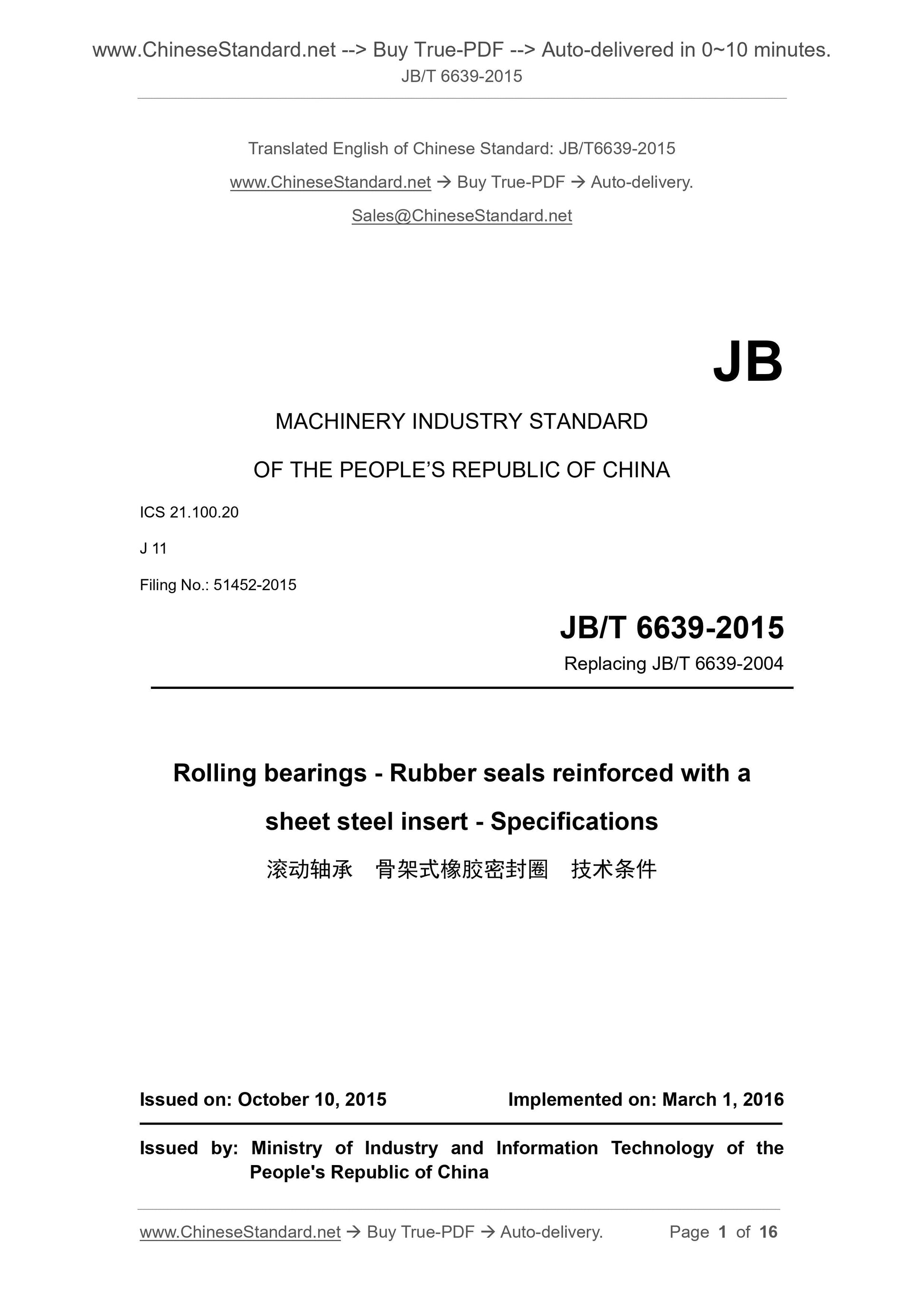

JB/T 6639-2015
JB
MACHINERY INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 21.100.20
J 11
Filing No.. 51452-2015
Replacing JB/T 6639-2004
Rolling bearings - Rubber seals reinforced with a
sheet steel insert - Specifications
ISSUED ON. OCTOBER 10, 2015
IMPLEMENTED ON. MARCH 1, 2016
Issued by. Ministry of Industry and Information Technology of the
People's Republic of China

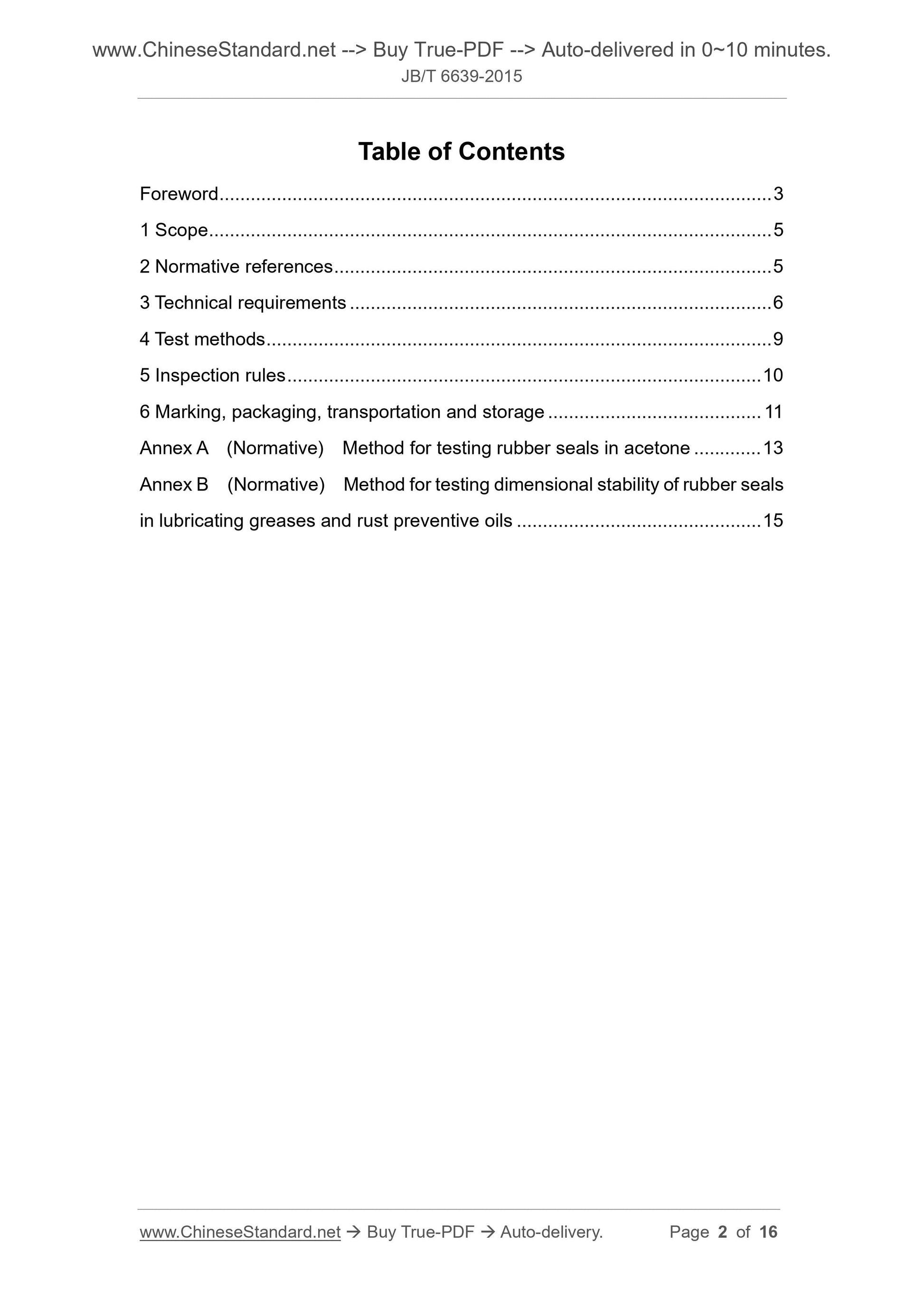

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Technical requirements ... 6
4 Test methods ... 9
5 Inspection rules ... 10
6 Marking, packaging, transportation and storage ... 11
Annex A (Normative) Method for testing rubber seals in acetone ... 13
Annex B (Normative) Method for testing dimensional stability of rubber seals
in lubricating greases and rust preventive oils ... 15

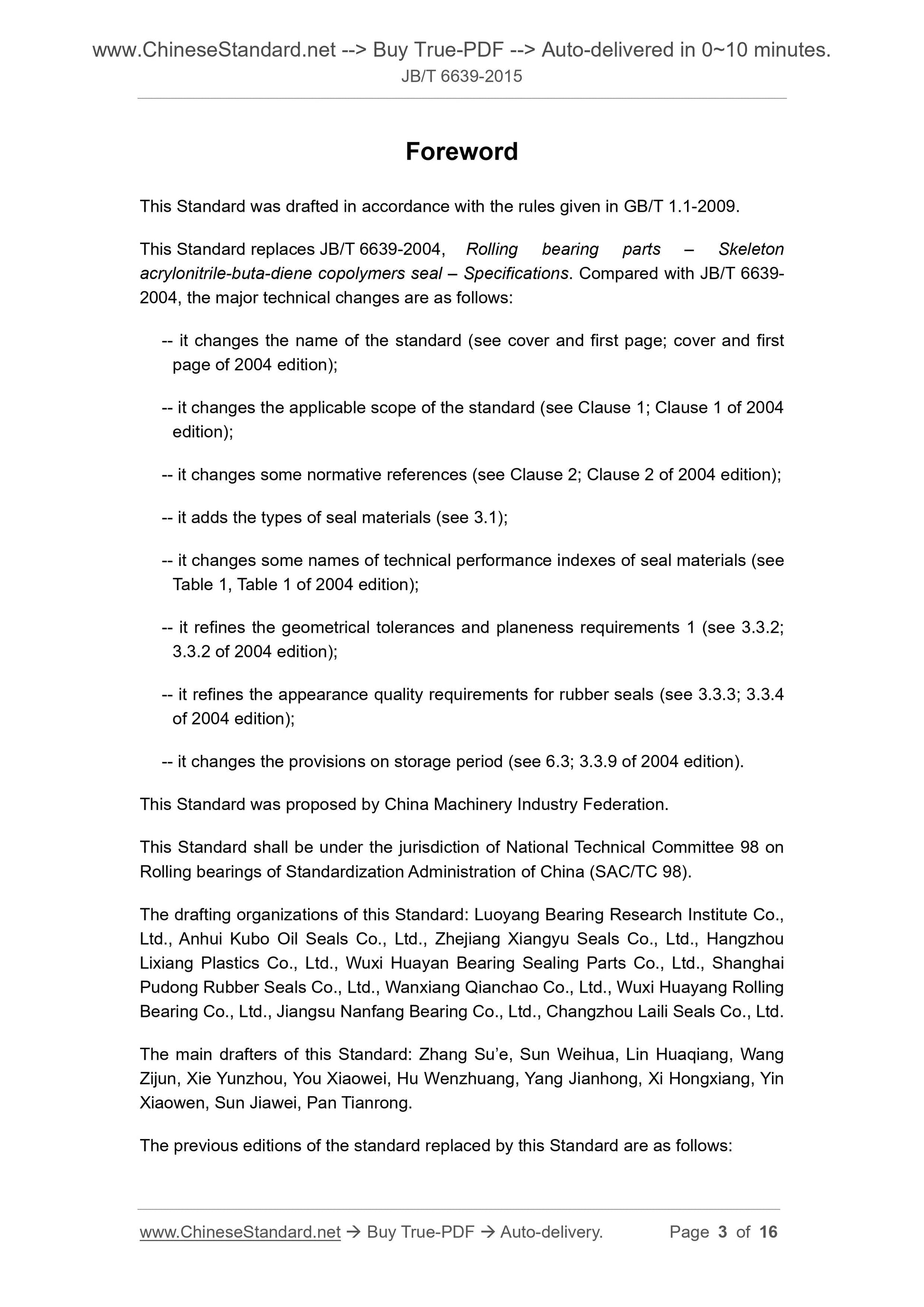

Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009.
This Standard replaces JB/T 6639-2004, Rolling bearing parts – Skeleton
acrylonitrile-buta-diene copolymers seal – Specifications. Compared with JB/T 6639-
2004, the major technical changes are as follows.
-- it changes the name of the standard (see cover and first page; cover and first
page of 2004 edition);
-- it changes the applicable scope of the standard (see Clause 1; Clause 1 of 2004
edition);
-- it changes some normative references (see Clause 2; Clause 2 of 2004 edition);
-- it adds the types of seal materials (see 3.1);
-- it changes some names of technical performance indexes of seal materials (see
Table 1, Table 1 of 2004 edition);
-- it refines the geometrical tolerances and planeness requirements 1 (see 3.3.2;
3.3.2 of 2004 edition);
-- it refines the appearance quality requirements for rubber seals (see 3.3.3; 3.3.4
of 2004 edition);
-- it changes the provisions on storage period (see 6.3; 3.3.9 of 2004 edition).
This Standard was proposed by China Machinery Industry Federation.
This Standard shall be under the jurisdiction of National Technical Committee 98 on
Rolling bearings of Standardization Administration of China (SAC/TC 98).
The drafting organizations of this Standard. Luoyang Bearing Research Institute Co.,
Ltd., Anhui Kubo Oil Seals Co., Ltd., Zhejiang Xiangyu Seals Co., Ltd., Hangzhou
Lixiang Plastics Co., Ltd., Wuxi Huayan Bearing Sealing Parts Co., Ltd., Shanghai
Pudong Rubber Seals Co., Ltd., Wanxiang Qianchao Co., Ltd., Wuxi Huayang Rolling
Bearing Co., Ltd., Jiangsu Nanfang Bearing Co., Ltd., Changzhou Laili Seals Co., Ltd.
The main drafters of this Standard. Zhang Su’e, Sun Weihua, Lin Huaqiang, Wang
Zijun, Xie Yunzhou, You Xiaowei, Hu Wenzhuang, Yang Jianhong, Xi Hongxiang, Yin
Xiaowen, Sun Jiawei, Pan Tianrong.
The previous editions of the standard replaced by this Standard are as follows.

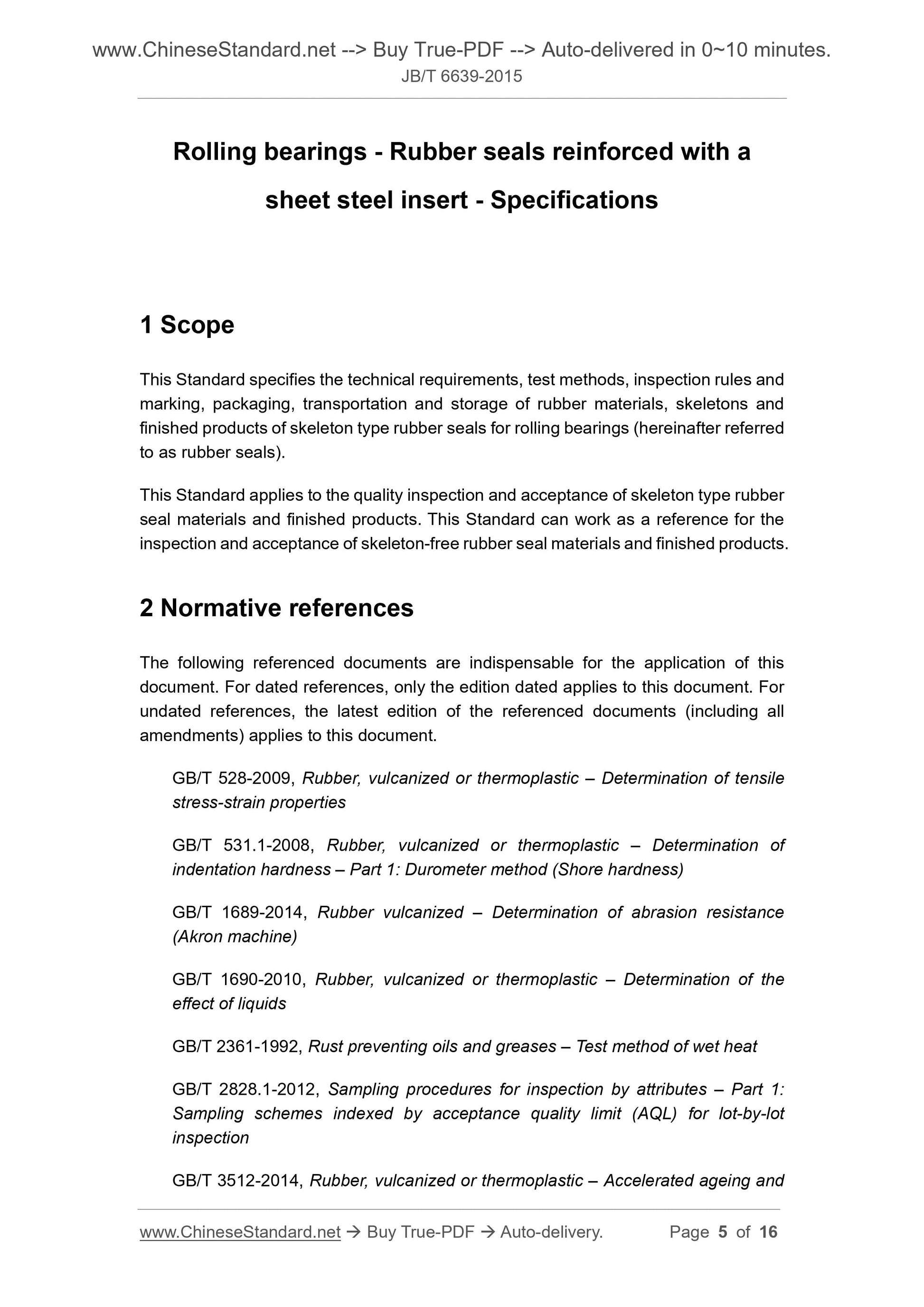

Rolling bearings - Rubber seals reinforced with a
sheet steel insert - Specifications
1 Scope
This Standard specifies the technical requirements, test methods, inspection rules and
marking, packaging, transportation and storage of rubber materials, skeletons and
finished products of skeleton type rubber seals for rolling bearings (hereinafter referred
to as rubber seals).
This Standard applies to the quality inspection and acceptance of skeleton type rubber
seal materials and finished products. This Standard can work as a reference for the
inspection and acceptance of skeleton-free rubber seal materials and finished products.
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition dated applies to this document. For
undated references, the latest edition of the referenced documents (including all
amendments) applies to this document.
GB/T 528-2009, Rubber, vulcanized or thermoplastic – Determination of tensile
stress-strain properties
GB/T 531.1-2008, Rubber, vulcanized or thermoplastic – Determination of
indentation hardness – Part 1. Durometer method (Shore hardness)
GB/T 1689-2014, Rubber vulcanized – Determination of abrasion resistance
(Akron machine)
GB/T 1690-2010, Rubber, vulcanized or thermoplastic – Determination of the
effect of liquids
GB/T 2361-1992, Rust preventing oils and greases – Test method of wet heat
GB/T 2828.1-2012, Sampling procedures for inspection by attributes – Part 1.
Sampling schemes indexed by acceptance quality limit (AQL) for lot-by-lot
inspection
GB/T 3512-2014, Rubber, vulcanized or thermoplastic – Accelerated ageing and

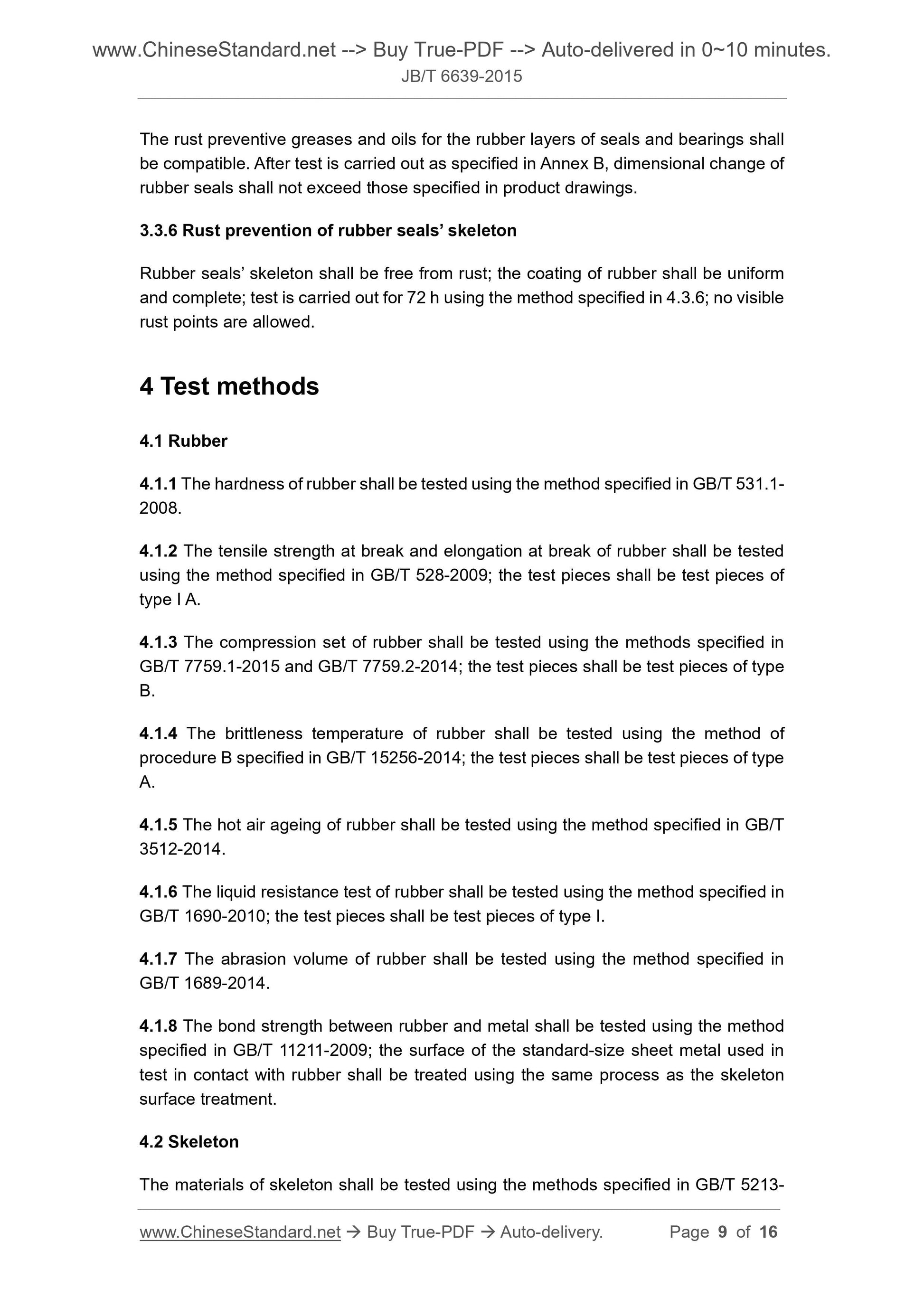

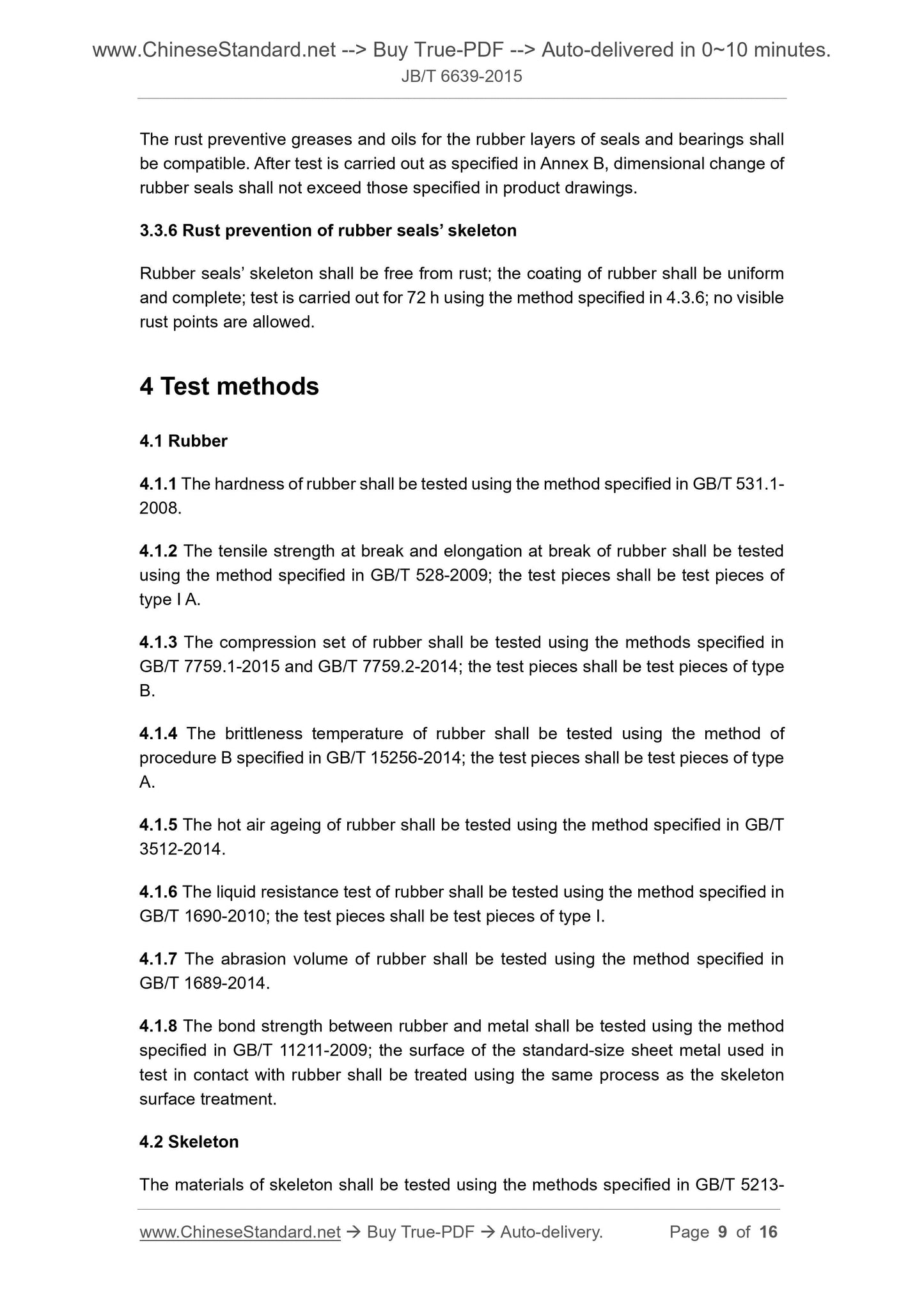

The rust preventive greases and oils for the rubber layers of seals and bearings shall
be compatible. After test is carried out as specified in Annex B, dimensional change of
rubber seals shall not exceed those specified in product drawings.
3.3.6 Rust prevention of rubber seals’ skeleton
Rubber seals’ skeleton shall be free from rust; the coating of rubber shall be uniform
and complete; test is carried out for 72 h using the method specified in 4.3.6; no visible
rust points are allowed.
4 Test methods
4.1 Rubber
4.1.1 The hardness of rubber shall be tested using the method specified in GB/T 531.1-
2008.
4.1.2 The tensile strength at break and elongation at break of rubber shall be tested
using the method specified in GB/T 528-2009; the test pieces shall be test pieces of
type I A.
4.1.3 The compression set of rubber shall be tested using the methods specified in
GB/T 7759.1-2015 and GB/T 7759.2-2014; the test pieces shall be test pieces of type
B.
4.1.4 The brittleness temperature of rubber shall be tested using the method of
procedure B specified in GB/T 15256-2014; the test pieces shall be test pieces of type
A.
4.1.5 The hot air ageing of rubber shall be tested using the method specified in GB/T
3512-2014.
4.1.6 The liquid resistance test of rubber shall be tested using the method specified in
GB/T 1690-2010; the test pieces shall be test pieces of type I.
4.1.7 The abrasion volume of rubber shall be tested using the method specified in
GB/T 1689-2014.
4.1.8 The bond strength between rubber and metal shall be tested using the method
specified in GB/T 11211-2009; the surface of the standard-size sheet metal used in
test in contact with rubber shall be treated using the same process as the skeleton
surface treatment.
4.2 Skeleton

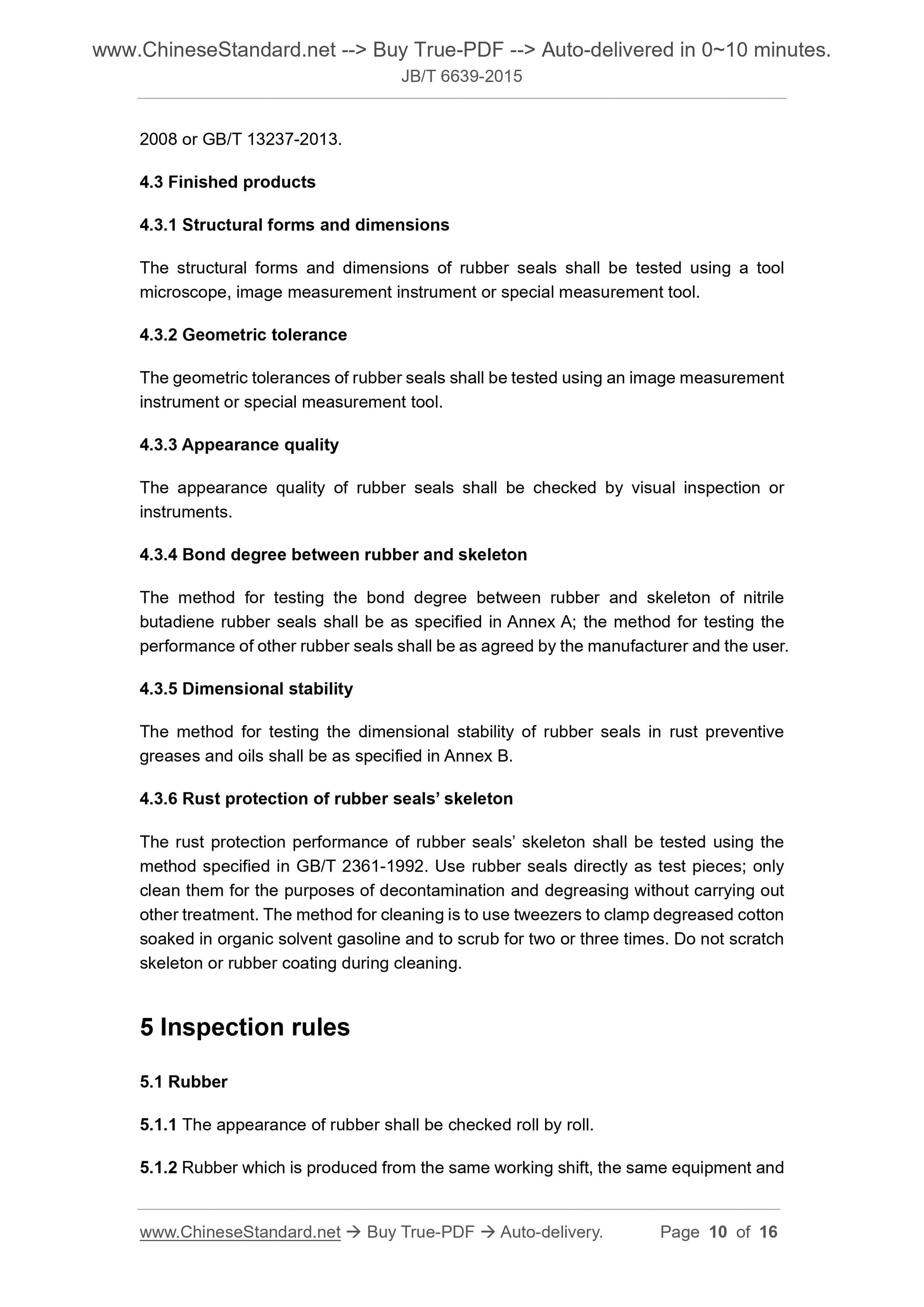

The materials of skeleton shall be tested using the methods specified in GB/T 5213-
2008 or GB/T 13237-2013.
4.3 Finished products
4.3.1 Structural forms and dimensions
The structural forms and dimensions of rubber seals shall be tested using a tool
microscope, image measurement instrument or special measurement tool.
4.3.2 Geometric tolerance
The geometric tolerances of rubber seals shall be tested using an image measurement
instrument or special measurement tool.
4.3.3 Appearance quality
The appearance quality of rubber seals shall be checked by visual inspection or
instruments.
4.3.4 Bond degree between rubber and skeleton
The method for testing the bond degree between rubber and skeleton of nitrile
butadiene rubber seals shall be as specified in Annex A; the method for testing the
performance of other rubber seals shall be as agreed by the manufacturer and the user.
4.3.5 Dimensional stability
The method for testing the dimensional stability of rubber seals in rust preventive
greases and oils shall be as specified in Annex B.
4.3.6 Rust protection of rubber seals’ skeleton
The rust protection performance of rubber seals’ skeleto...
Get QUOTATION in 1-minute: Click JB/T 6639-2015
Historical versions: JB/T 6639-2015
Preview True-PDF (Reload/Scroll if blank)
JB/T 6639-2015: Rolling bearings -- Rubber seals reinforced with a sheet steel insert -- Specifications
JB/T 6639-2015
JB
MACHINERY INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 21.100.20
J 11
Filing No.. 51452-2015
Replacing JB/T 6639-2004
Rolling bearings - Rubber seals reinforced with a
sheet steel insert - Specifications
ISSUED ON. OCTOBER 10, 2015
IMPLEMENTED ON. MARCH 1, 2016
Issued by. Ministry of Industry and Information Technology of the
People's Republic of China
Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Technical requirements ... 6
4 Test methods ... 9
5 Inspection rules ... 10
6 Marking, packaging, transportation and storage ... 11
Annex A (Normative) Method for testing rubber seals in acetone ... 13
Annex B (Normative) Method for testing dimensional stability of rubber seals
in lubricating greases and rust preventive oils ... 15
Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009.
This Standard replaces JB/T 6639-2004, Rolling bearing parts – Skeleton
acrylonitrile-buta-diene copolymers seal – Specifications. Compared with JB/T 6639-
2004, the major technical changes are as follows.
-- it changes the name of the standard (see cover and first page; cover and first
page of 2004 edition);
-- it changes the applicable scope of the standard (see Clause 1; Clause 1 of 2004
edition);
-- it changes some normative references (see Clause 2; Clause 2 of 2004 edition);
-- it adds the types of seal materials (see 3.1);
-- it changes some names of technical performance indexes of seal materials (see
Table 1, Table 1 of 2004 edition);
-- it refines the geometrical tolerances and planeness requirements 1 (see 3.3.2;
3.3.2 of 2004 edition);
-- it refines the appearance quality requirements for rubber seals (see 3.3.3; 3.3.4
of 2004 edition);
-- it changes the provisions on storage period (see 6.3; 3.3.9 of 2004 edition).
This Standard was proposed by China Machinery Industry Federation.
This Standard shall be under the jurisdiction of National Technical Committee 98 on
Rolling bearings of Standardization Administration of China (SAC/TC 98).
The drafting organizations of this Standard. Luoyang Bearing Research Institute Co.,
Ltd., Anhui Kubo Oil Seals Co., Ltd., Zhejiang Xiangyu Seals Co., Ltd., Hangzhou
Lixiang Plastics Co., Ltd., Wuxi Huayan Bearing Sealing Parts Co., Ltd., Shanghai
Pudong Rubber Seals Co., Ltd., Wanxiang Qianchao Co., Ltd., Wuxi Huayang Rolling
Bearing Co., Ltd., Jiangsu Nanfang Bearing Co., Ltd., Changzhou Laili Seals Co., Ltd.
The main drafters of this Standard. Zhang Su’e, Sun Weihua, Lin Huaqiang, Wang
Zijun, Xie Yunzhou, You Xiaowei, Hu Wenzhuang, Yang Jianhong, Xi Hongxiang, Yin
Xiaowen, Sun Jiawei, Pan Tianrong.
The previous editions of the standard replaced by this Standard are as follows.
Rolling bearings - Rubber seals reinforced with a
sheet steel insert - Specifications
1 Scope
This Standard specifies the technical requirements, test methods, inspection rules and
marking, packaging, transportation and storage of rubber materials, skeletons and
finished products of skeleton type rubber seals for rolling bearings (hereinafter referred
to as rubber seals).
This Standard applies to the quality inspection and acceptance of skeleton type rubber
seal materials and finished products. This Standard can work as a reference for the
inspection and acceptance of skeleton-free rubber seal materials and finished products.
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition dated applies to this document. For
undated references, the latest edition of the referenced documents (including all
amendments) applies to this document.
GB/T 528-2009, Rubber, vulcanized or thermoplastic – Determination of tensile
stress-strain properties
GB/T 531.1-2008, Rubber, vulcanized or thermoplastic – Determination of
indentation hardness – Part 1. Durometer method (Shore hardness)
GB/T 1689-2014, Rubber vulcanized – Determination of abrasion resistance
(Akron machine)
GB/T 1690-2010, Rubber, vulcanized or thermoplastic – Determination of the
effect of liquids
GB/T 2361-1992, Rust preventing oils and greases – Test method of wet heat
GB/T 2828.1-2012, Sampling procedures for inspection by attributes – Part 1.
Sampling schemes indexed by acceptance quality limit (AQL) for lot-by-lot
inspection
GB/T 3512-2014, Rubber, vulcanized or thermoplastic – Accelerated ageing and
The rust preventive greases and oils for the rubber layers of seals and bearings shall
be compatible. After test is carried out as specified in Annex B, dimensional change of
rubber seals shall not exceed those specified in product drawings.
3.3.6 Rust prevention of rubber seals’ skeleton
Rubber seals’ skeleton shall be free from rust; the coating of rubber shall be uniform
and complete; test is carried out for 72 h using the method specified in 4.3.6; no visible
rust points are allowed.
4 Test methods
4.1 Rubber
4.1.1 The hardness of rubber shall be tested using the method specified in GB/T 531.1-
2008.
4.1.2 The tensile strength at break and elongation at break of rubber shall be tested
using the method specified in GB/T 528-2009; the test pieces shall be test pieces of
type I A.
4.1.3 The compression set of rubber shall be tested using the methods specified in
GB/T 7759.1-2015 and GB/T 7759.2-2014; the test pieces shall be test pieces of type
B.
4.1.4 The brittleness temperature of rubber shall be tested using the method of
procedure B specified in GB/T 15256-2014; the test pieces shall be test pieces of type
A.
4.1.5 The hot air ageing of rubber shall be tested using the method specified in GB/T
3512-2014.
4.1.6 The liquid resistance test of rubber shall be tested using the method specified in
GB/T 1690-2010; the test pieces shall be test pieces of type I.
4.1.7 The abrasion volume of rubber shall be tested using the method specified in
GB/T 1689-2014.
4.1.8 The bond strength between rubber and metal shall be tested using the method
specified in GB/T 11211-2009; the surface of the standard-size sheet metal used in
test in contact with rubber shall be treated using the same process as the skeleton
surface treatment.
4.2 Skeleton
The materials of skeleton shall be tested using the methods specified in GB/T 5213-
2008 or GB/T 13237-2013.
4.3 Finished products
4.3.1 Structural forms and dimensions
The structural forms and dimensions of rubber seals shall be tested using a tool
microscope, image measurement instrument or special measurement tool.
4.3.2 Geometric tolerance
The geometric tolerances of rubber seals shall be tested using an image measurement
instrument or special measurement tool.
4.3.3 Appearance quality
The appearance quality of rubber seals shall be checked by visual inspection or
instruments.
4.3.4 Bond degree between rubber and skeleton
The method for testing the bond degree between rubber and skeleton of nitrile
butadiene rubber seals shall be as specified in Annex A; the method for testing the
performance of other rubber seals shall be as agreed by the manufacturer and the user.
4.3.5 Dimensional stability
The method for testing the dimensional stability of rubber seals in rust preventive
greases and oils shall be as specified in Annex B.
4.3.6 Rust protection of rubber seals’ skeleton
The rust protection performance of rubber seals’ skeleto...
