GBZ 115-2023: Standard for radiological protection in low-energy radiation generating devices

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GBZ 115-2023 (Self-service in 1-minute)
Newer / historical versions: GBZ 115-2023

Preview True-PDF

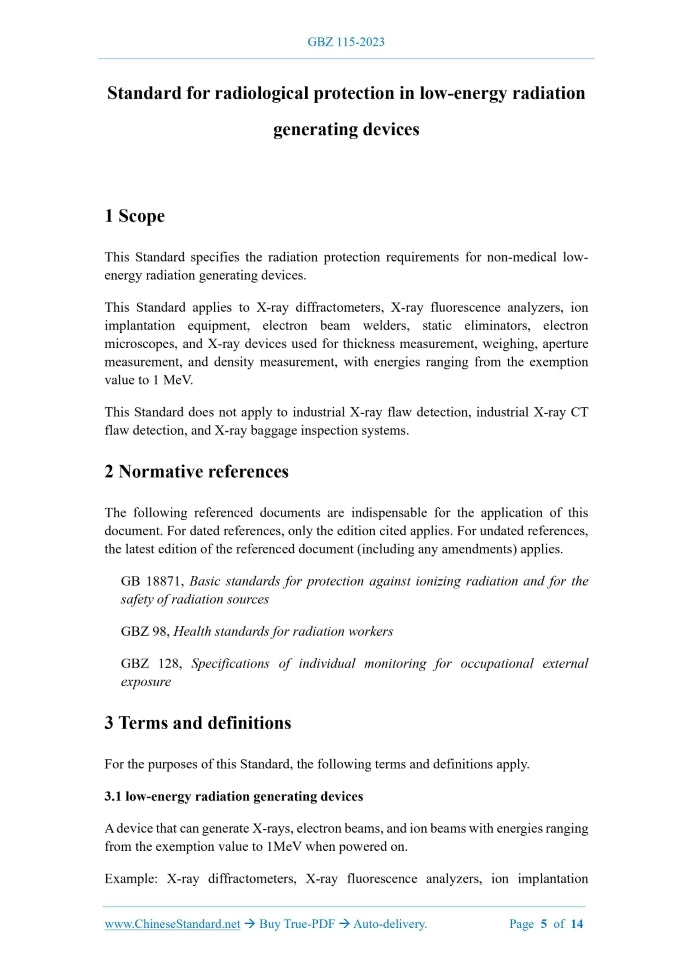

Scope

This Standard specifies the radiation protection requirements for non-medical low-
energy radiation generating devices.
This Standard applies to X-ray diffractometers, X-ray fluorescence analyzers, ion
implantation equipment, electron beam welders, static eliminators, electron
microscopes, and X-ray devices used for thickness measurement, weighing, aperture
measurement, and density measurement, with energies ranging from the exemption
value to 1 MeV.
This Standard does not apply to industrial X-ray flaw detection, industrial X-ray CT
flaw detection, and X-ray baggage inspection systems.

Basic Data

Standard ID	GBZ 115-2023 (GBZ115-2023)
Description (Translated English)	Standard for radiological protection in low-energy radiation generating devices
Sector / Industry	National Standard
Classification of Chinese Standard	C57
Classification of International Standard	13.100
Word Count Estimation	8,815
Date of Issue	2023-03-07
Date of Implementation	2024-03-01
Issuing agency(ies)	State Administration for Market Regulation, China National Standardization Administration
Summary	This standard specifies the radiation protection requirements for non-medical low-energy radiation devices. This standard is applicable to X-ray diffractometers, X-ray fluorescence analyzers, ion implantation devices, electron beam welders, static eliminators, electron microscopes, thickness measurement, weighing, aperture measurement, and density measurement from the exemption value to 1MeV. ray device. This standard does not apply to industrial X-ray flaw detection, industrial X-ray CT flaw detection, and X-ray luggage inspection systems.
