GB/T 5013.4-2008: Rubber insulated cables of rated voltages up to and including 450/750V -- Part 4: Cords and flexible cables

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 5013.4-2008 (Self-service in 1-minute)
Newer / historical versions: GB/T 5013.4-2008

Preview True-PDF

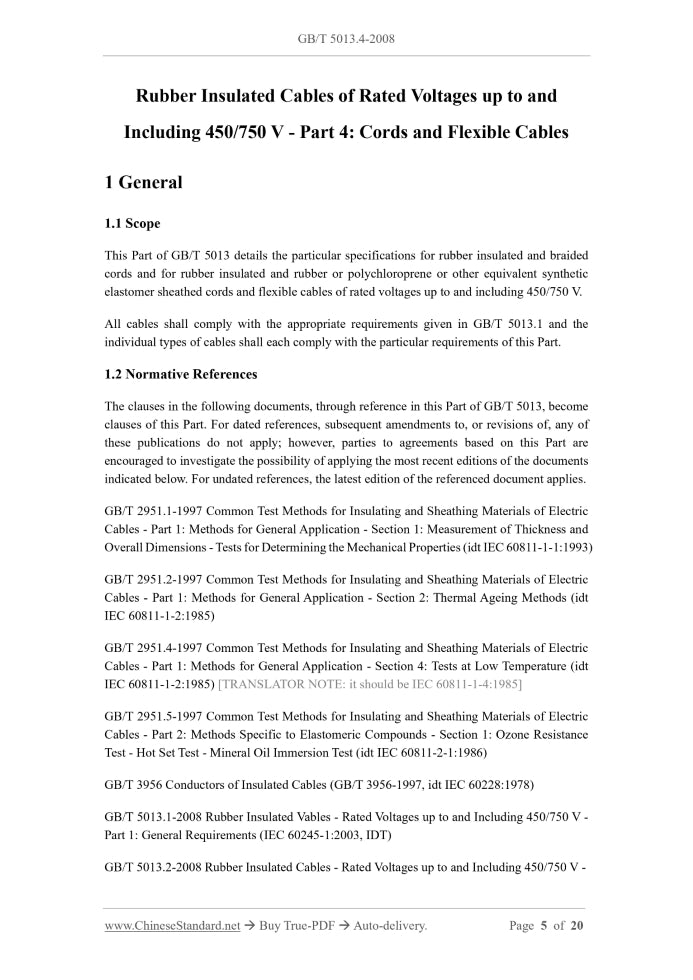

Scope

1.1 Scope
This Part of GB/T 5013 details the particular specifications for rubber insulated and braided
cords and for rubber insulated and rubber or polychloroprene or other equivalent synthetic
elastomer sheathed cords and flexible cables of rated voltages up to and including 450/750 V.
All cables shall comply with the appropriate requirements given in GB/T 5013.1 and the
individual types of cables shall each comply with the particular requirements of this Part.
1.2 Normative References
The clauses in the following documents, through reference in this Part of GB/T 5013, become
clauses of this Part. For dated references, subsequent amendments to, or revisions of, any of
these publications do not apply; however, parties to agreements based on this Part are
encouraged to investigate the possibility of applying the most recent editions of the documents
indicated below. For undated references, the latest edition of the referenced document applies.
GB/T 2951.1-1997 Common Test Methods for Insulating and Sheathing Materials of Electric
Cables - Part 1.Methods for General Application - Section 1.Measurement of Thickness and
Overall Dimensions - Tests for Determining the Mechanical Properties (idt IEC 60811-1-1.1993)
GB/T 2951.2-1997 Common Test Methods for Insulating and Sheathing Materials of Electric
Cables - Part 1.Methods for General Application - Section 2.Thermal Ageing Methods (idt
IEC 60811-1-2.1985)
GB/T 2951.4-1997 Common Test Methods for Insulating and Sheathing Materials of Electric
Cables - Part 1.Methods for General Application - Section 4.Tests at Low Temperature (idt
IEC 60811-1-2.1985) [TRANSLATOR NOTE. it should be IEC 60811-1-4.1985]
GB/T 2951.5-1997 Common Test Methods for Insulating and Sheathing Materials of Electric
Cables - Part 2.Methods Specific to Elastomeric Compounds - Section 1.Ozone Resistance
Test - Hot Set Test - Mineral Oil Immersion Test (idt IEC 60811-2-1.1986)
GB/T 3956 Conductors of Insulated Cables (GB/T 3956-1997, idt IEC 60228.1978)
GB/T 5013.1-2008 Rubber Insulated Vables - Rated Voltages up to and Including 450/750 V -
Part 1.General Requirements (IEC 60245-1.2003, IDT)
GB/T 5013.2-2008 Rubber Insulated Cables - Rated Voltages up to and Including 450/750 V -

Basic Data

Standard ID	GB/T 5013.4-2008 (GB/T5013.4-2008)
Description (Translated English)	Rubber insulated cables of rated voltages up to and including 450/750V -- Part 4: Cords and flexible cables
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	K13
Classification of International Standard	29.060.20
Word Count Estimation	14,126
Date of Issue	2008-01-22
Date of Implementation	2008-09-01
Older Standard (superseded by this standard)	GB 5013.4-1997
Quoted Standard	GB/T 2951.1-1997; GB/T 2951.2-1997; GB/T 2951.4-1997; GB/T 2951.5-1997; GB/T 3956; GB/T 5013.1-2008; GB/T 5013.2-2008; GB/T 5013.8-2006
Adopted Standard	IEC 60245-4-2004, IDT
Regulation (derived from)	Announcement of Newly Approved National Standards No. 2, 2008 (No. 115 overall)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the rated voltage 450/750V rubber insulated rubber or neoprene or other equivalent synthetic elastomer sheathed cords and flexible cables technical requirements. Each cable shall comply with GB/T 5013. 1 requirements, and each type cables shall each comply with the special requirements of this section.
