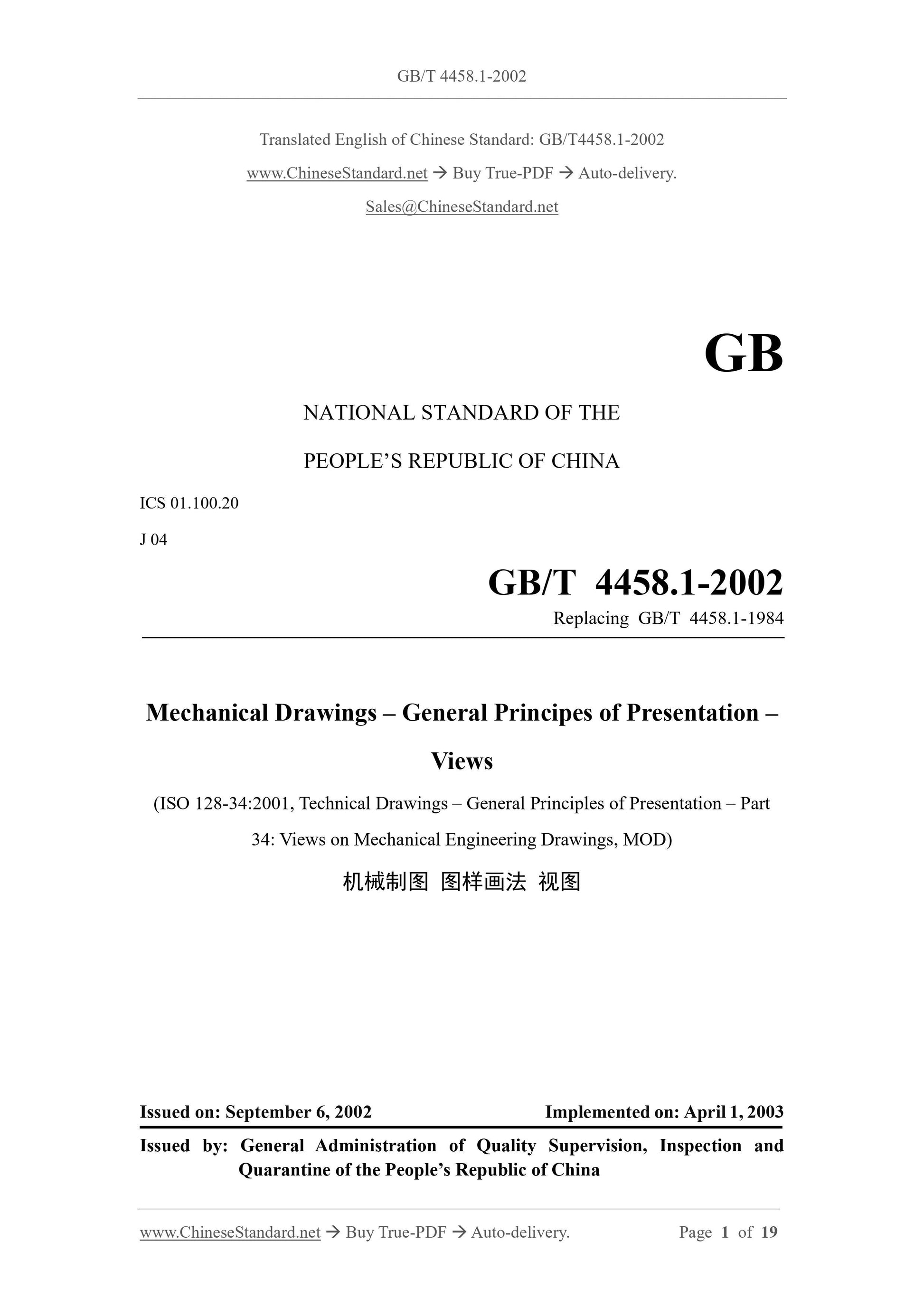

GB/T 4458.1-2002: Mechanical drawings -- General principles of presentation -- Views

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 4458.1-2002 (Self-service in 1-minute)
Newer / historical versions: GB/T 4458.1-2002

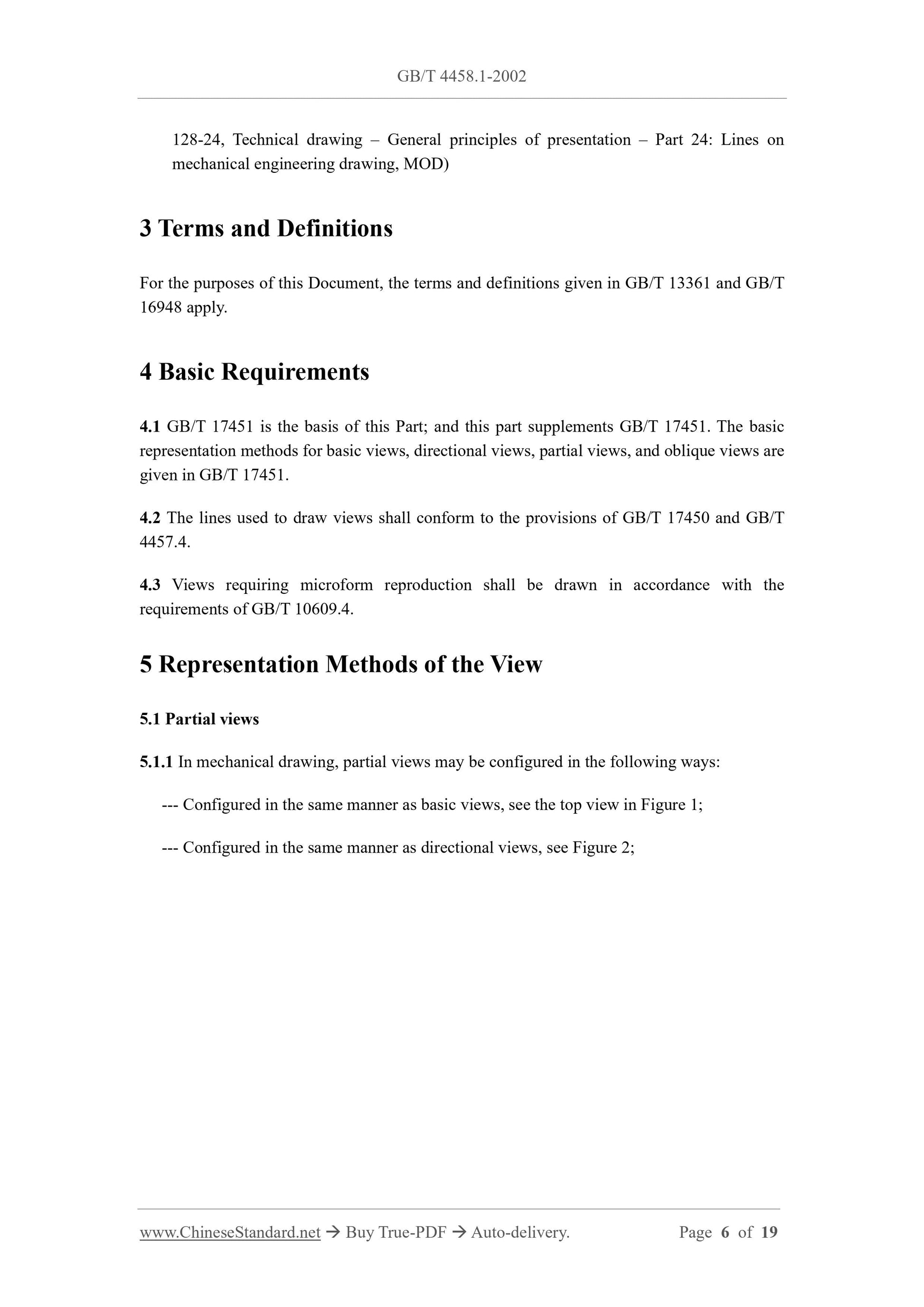

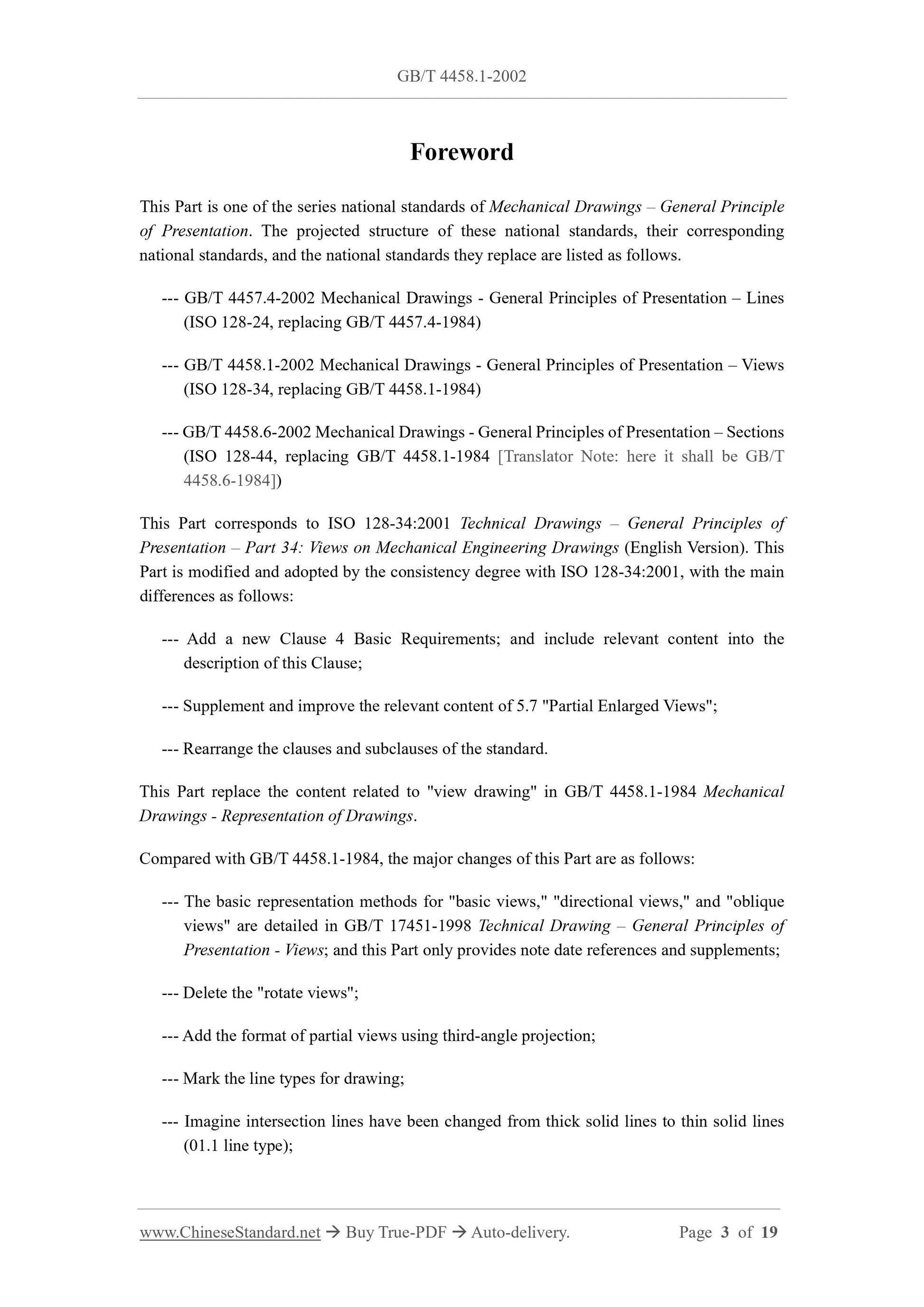

Preview True-PDF

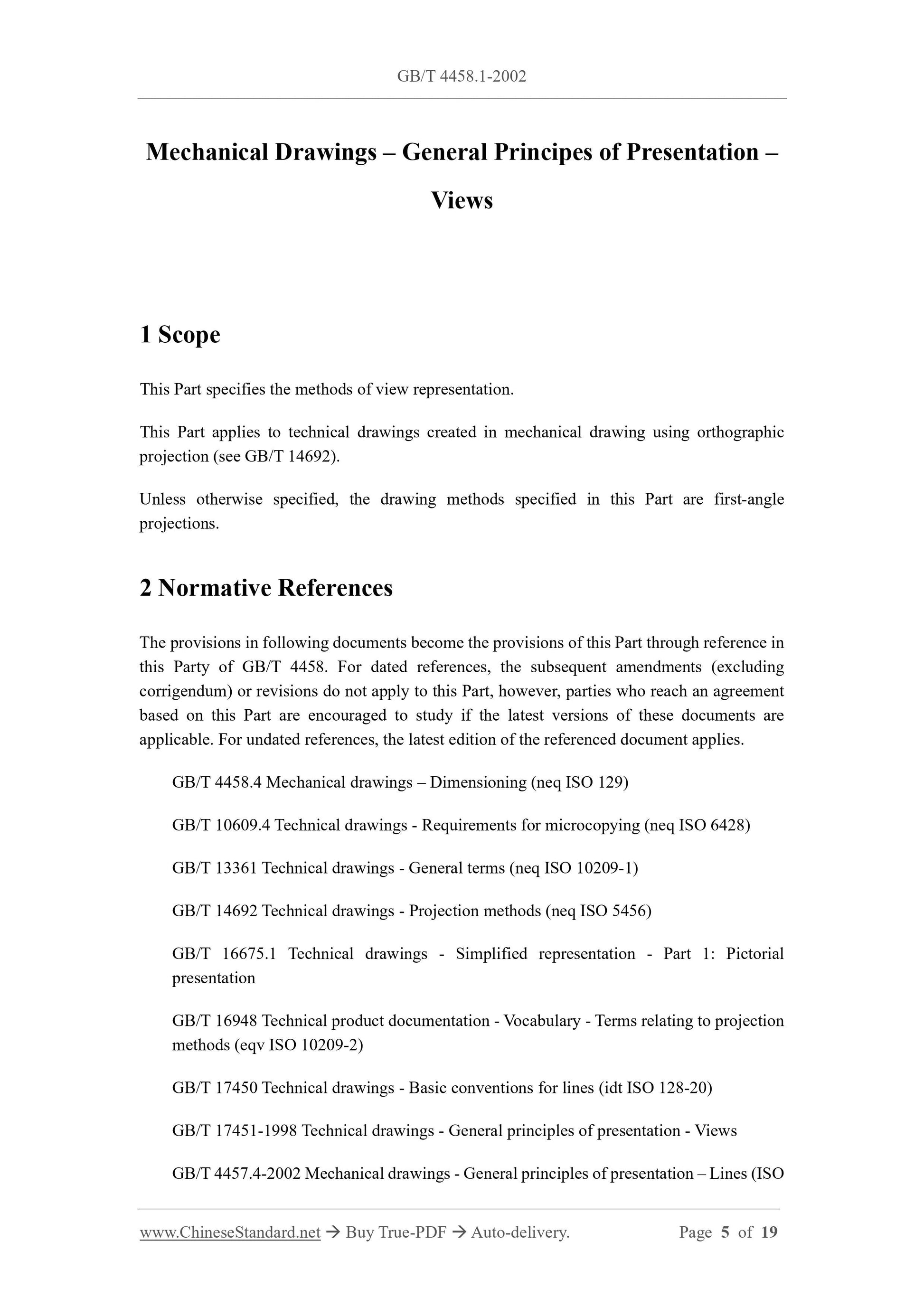

Scope

This Part specifies the methods of view representation.
This Part applies to technical drawings created in mechanical drawing using orthographic
projection (see GB/T 14692).
Unless otherwise specified, the drawing methods specified in this Part are first-angle
projections.

Basic Data

Standard ID	GB/T 4458.1-2002 (GB/T4458.1-2002)
Description (Translated English)	Mechanical drawings -- General principles of presentation -- Views
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	J04
Classification of International Standard	01.100.20
Word Count Estimation	16,139
Date of Issue	9/6/2002
Date of Implementation	4/1/2003
Older Standard (superseded by this standard)	GB/T 4458.1-1984
Adopted Standard	ISO 128-34-2001, MOD
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People Republic of China
Summary	This Standard specifies the view representation. This Standard is applicable to mechanical drawing using the orthographic projection (see G13/T 14692) rendering technical drawings. In addition to not be specified, this standard pattern painting painting department first corner.
