GB/T 32.2-2025: Fasteners - Hexagon head bolts with split pin hole on head - Part 2: Reduced shank - Product grade B

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 32.2-2025 (Self-service in 1-minute)
Newer / historical versions: GB/T 32.2-2025

Preview True-PDF

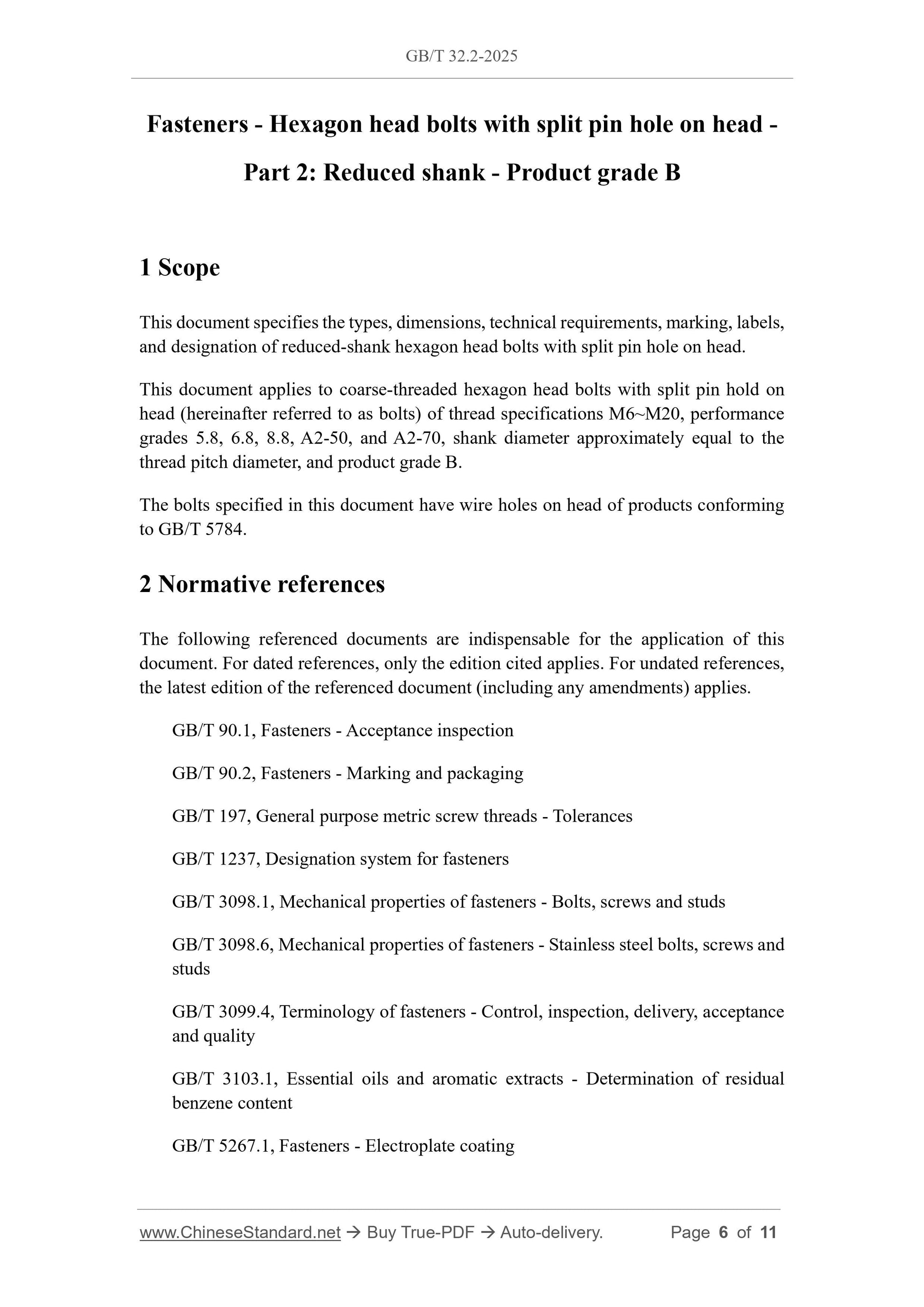

Scope

This document specifies the types, dimensions, technical requirements, marking, labels,
and designation of reduced-shank hexagon head bolts with split pin hole on head.
This document applies to coarse-threaded hexagon head bolts with split pin hold on
head (hereinafter referred to as bolts) of thread specifications M6~M20, performance
grades 5.8, 6.8, 8.8, A2-50, and A2-70, shank diameter approximately equal to the
thread pitch diameter, and product grade B.
The bolts specified in this document have wire holes on head of products conforming
to GB/T 5784.

Basic Data

Standard ID	GB/T 32.2-2025 (GB/T32.2-2025)
Description (Translated English)	Fasteners - Hexagon head bolts with split pin hole on head - Part 2: Reduced shank - Product grade B
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	J13
Classification of International Standard	21.060.10
Word Count Estimation	10,173
Date of Issue	2025-10-05
Date of Implementation	2026-02-01
Older Standard (superseded by this standard)	GB/T 32.2-1988
Issuing agency(ies)	State Administration for Market Regulation and Standardization Administration of China
