GB/T 27602-2011: Measurement of radiofrequency sensitivity for industrial electric detonator

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 27602-2011 (Self-service in 1-minute)
Newer / historical versions: GB/T 27602-2011

Preview True-PDF

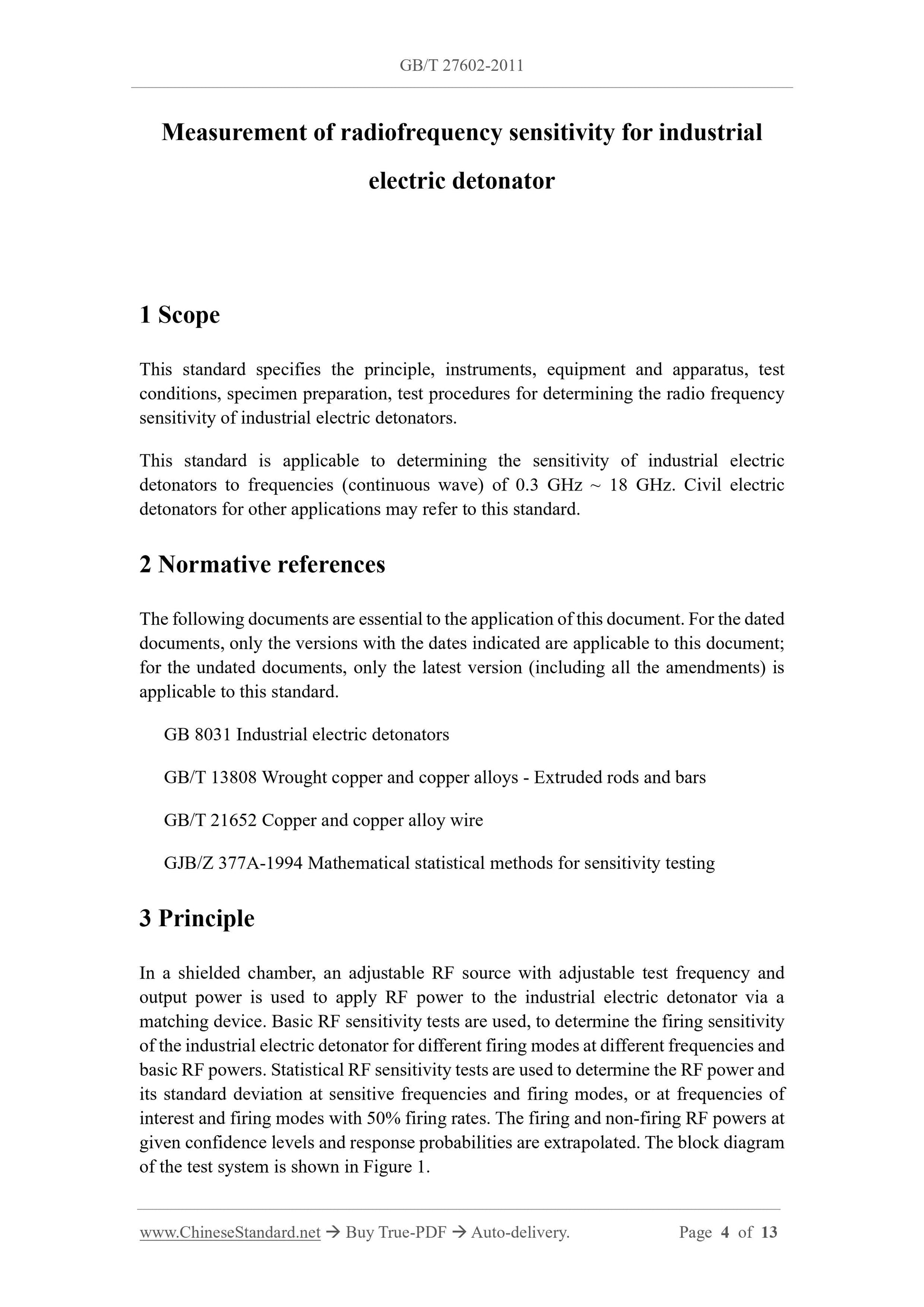

Scope

This standard specifies the principle, instruments, equipment and apparatus, test
conditions, specimen preparation, test procedures for determining the radio frequency
sensitivity of industrial electric detonators.
This standard is applicable to determining the sensitivity of industrial electric
detonators to frequencies (continuous wave) of 0.3 GHz ~ 18 GHz. Civil electric
detonators for other applications may refer to this standard.

Basic Data

Standard ID	GB/T 27602-2011 (GB/T27602-2011)
Description (Translated English)	Measurement of radiofrequency sensitivity for industrial electric detonator
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	G89
Classification of International Standard	71.100.30
Word Count Estimation	10,154
Date of Issue	2011-12-05
Date of Implementation	2012-05-01
Quoted Standard	GB 8031; GB/T 13808; GB/T 21652; GJB/Z 377A-1994
Regulation (derived from)	Announcement of Newly Approved National Standards No. 19 of 2011
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the industrial electric detonators RF sensitivity measurement principle, apparatus, equipment and installations, test conditions, sample preparation and testing procedures. This standard applies to the determination of industrial electric detonators on the 0. 3GHz ~ 18GHz frequency (continuous wave) of sensitivity. Other uses of the public electricity detonator may refer to the use.
