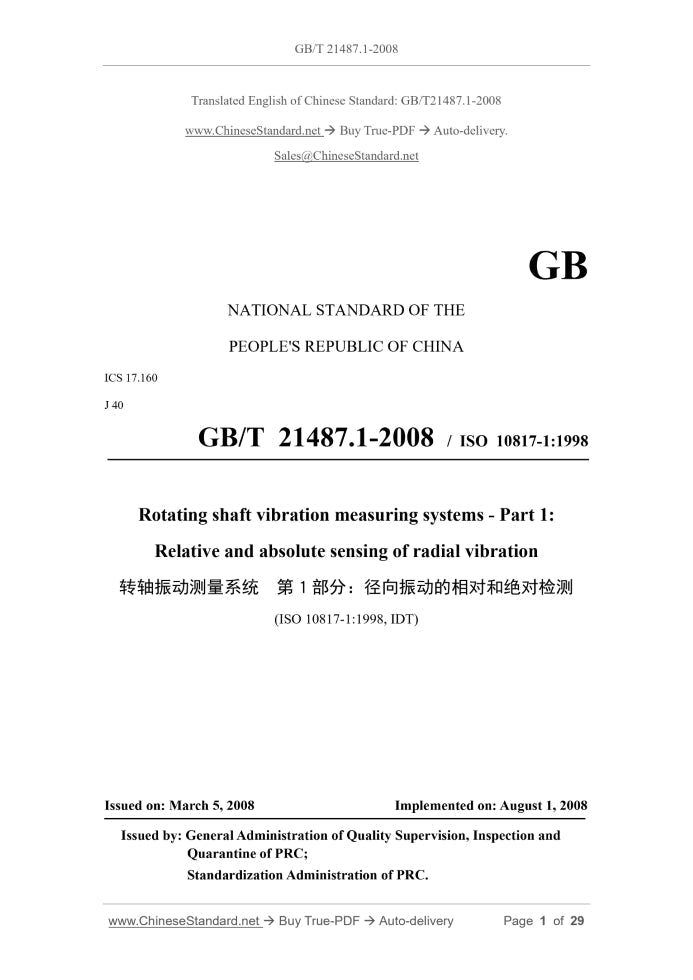

GB/T 21487.1-2008: Rotating shaft vibration measuring systems -- Part 1: Relative and absolute sensing of radial vibration

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 21487.1-2008 (Self-service in 1-minute)
Newer / historical versions: GB/T 21487.1-2008

Preview True-PDF

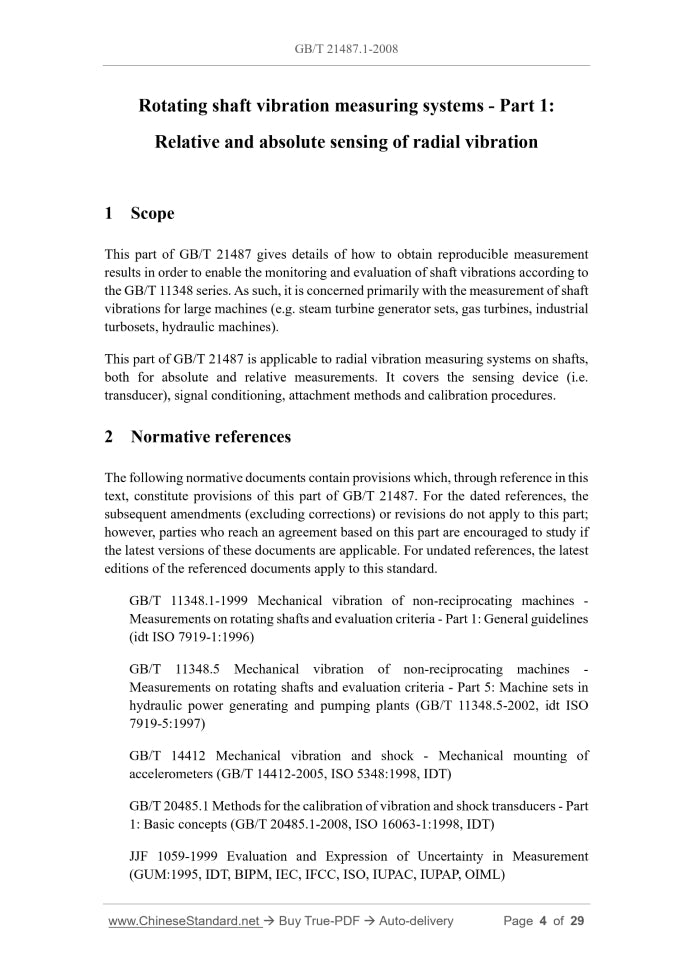

Scope

This part of GB/T 21487 gives details of how to obtain reproducible measurement
results in order to enable the monitoring and evaluation of shaft vibrations according to
the GB/T 11348 series. As such, it is concerned primarily with the measurement of shaft
vibrations for large machines (e.g. steam turbine generator sets, gas turbines, industrial
turbosets, hydraulic machines).
This part of GB/T 21487 is applicable to radial vibration measuring systems on shafts,
both for absolute and relative measurements. It covers the sensing device (i.e.
transducer), signal conditioning, attachment methods and calibration procedures.

Basic Data

Standard ID	GB/T 21487.1-2008 (GB/T21487.1-2008)
Description (Translated English)	Rotating shaft vibration measuring systems -- Part 1: Relative and absolute sensing of radial vibration
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	J04
Classification of International Standard	17.160
Word Count Estimation	20,283
Date of Issue	2008-03-05
Date of Implementation	2008-08-01
Quoted Standard	GB/T 11348.1-1999; GB/T 11348.5; GB/T 14412; GB/T 20485.1; JJF 1059-1999; ISO 683-1; ISO 2041; ISO 4287; ISO 5347; ISO 7919-2; ISO 7919-3; ISO 7919-4; ISO 8042; IEC 60068-2-6; IEC 60068-2-29; IEC 60529-1989
Adopted Standard	ISO 10817-1-1998, IDT
Regulation (derived from)	National Standard Approval Announcement 2008 No.3 (Total No.116)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the shaft vibration monitoring and evaluation. Therefore, it is mainly with the shaft vibration measurements on large machines. This part of the GB/T 21487 absolute and relative detection system suitable for shaft radial vibration. It includes a detection device, signal demodulator suitable, connection methods and calibration procedures.
