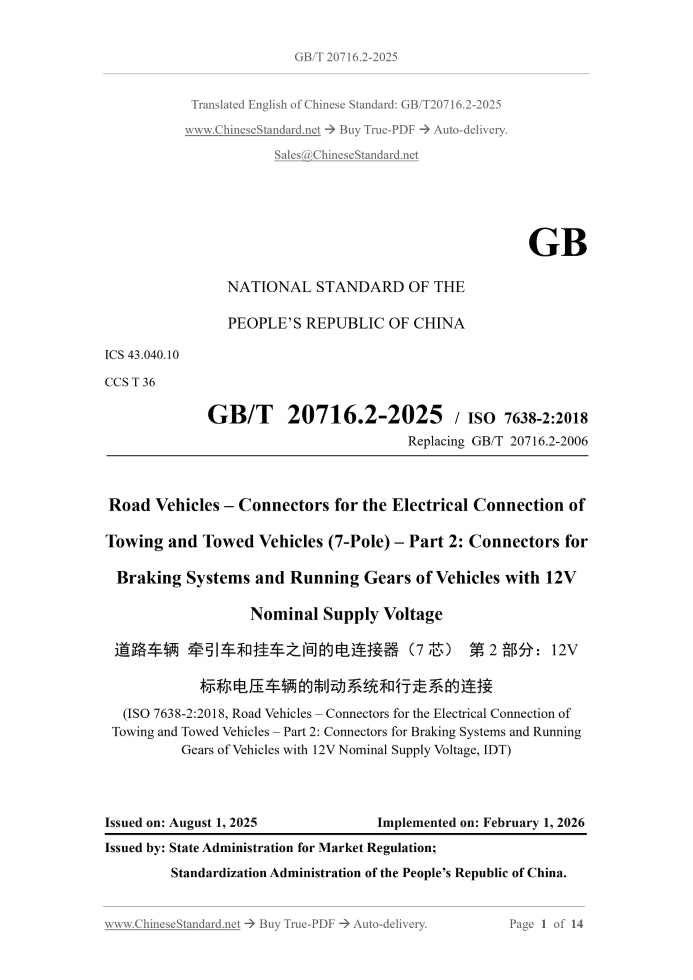

GB/T 20716.2-2025: Road vehicles - Connectors for the electrical connection of towing and towed vehicles(7-pole) - Part 2: Connectors for braking systems and running gears of vehicles with 12 V nominal supply voltage

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 20716.2-2025 (Self-service in 1-minute)
Newer / historical versions: GB/T 20716.2-2025

Preview True-PDF

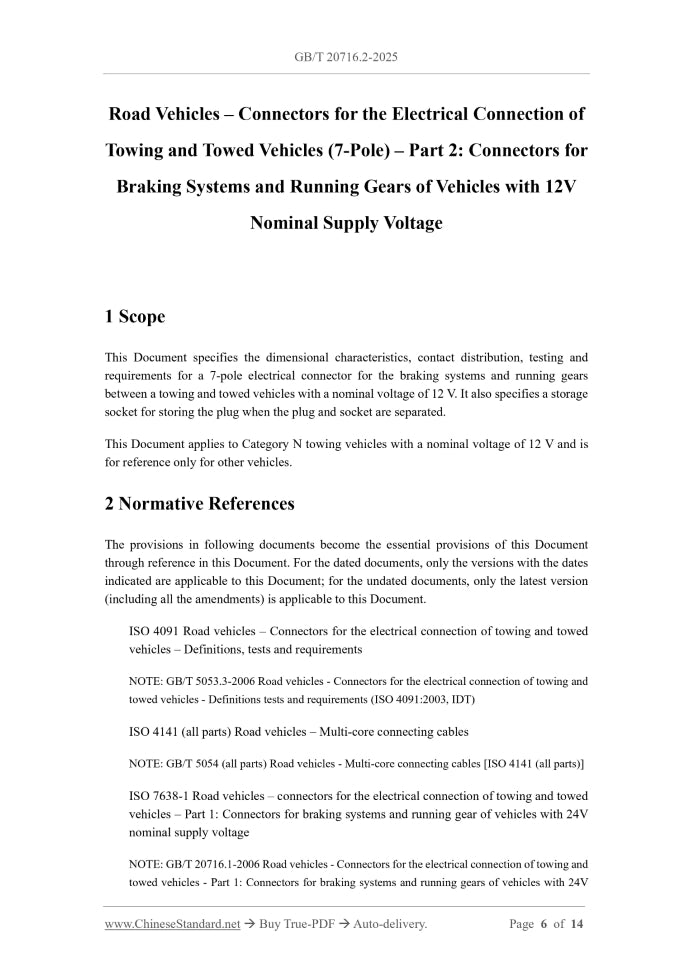

Scope

This Document specifies the dimensional characteristics, contact distribution, testing and
requirements for a 7-pole electrical connector for the braking systems and running gears
between a towing and towed vehicles with a nominal voltage of 12 V. It also specifies a storage
socket for storing the plug when the plug and socket are separated.
This Document applies to Category N towing vehicles with a nominal voltage of 12 V and is
for reference only for other vehicles.

Basic Data

Standard ID	GB/T 20716.2-2025 (GB/T20716.2-2025)
Description (Translated English)	Road vehicles - Connectors for the electrical connection of towing and towed vehicles(7-pole) - Part 2: Connectors for braking systems and running gears of vehicles with 12 V nominal supply voltage
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	T36
Classification of International Standard	43.040.10
Word Count Estimation	14,146
Date of Issue	2025-08-01
Date of Implementation	2026-02-01
Older Standard (superseded by this standard)	GB/T 20716.2-2006
Issuing agency(ies)	State Administration for Market Regulation, Standardization Administration of China
